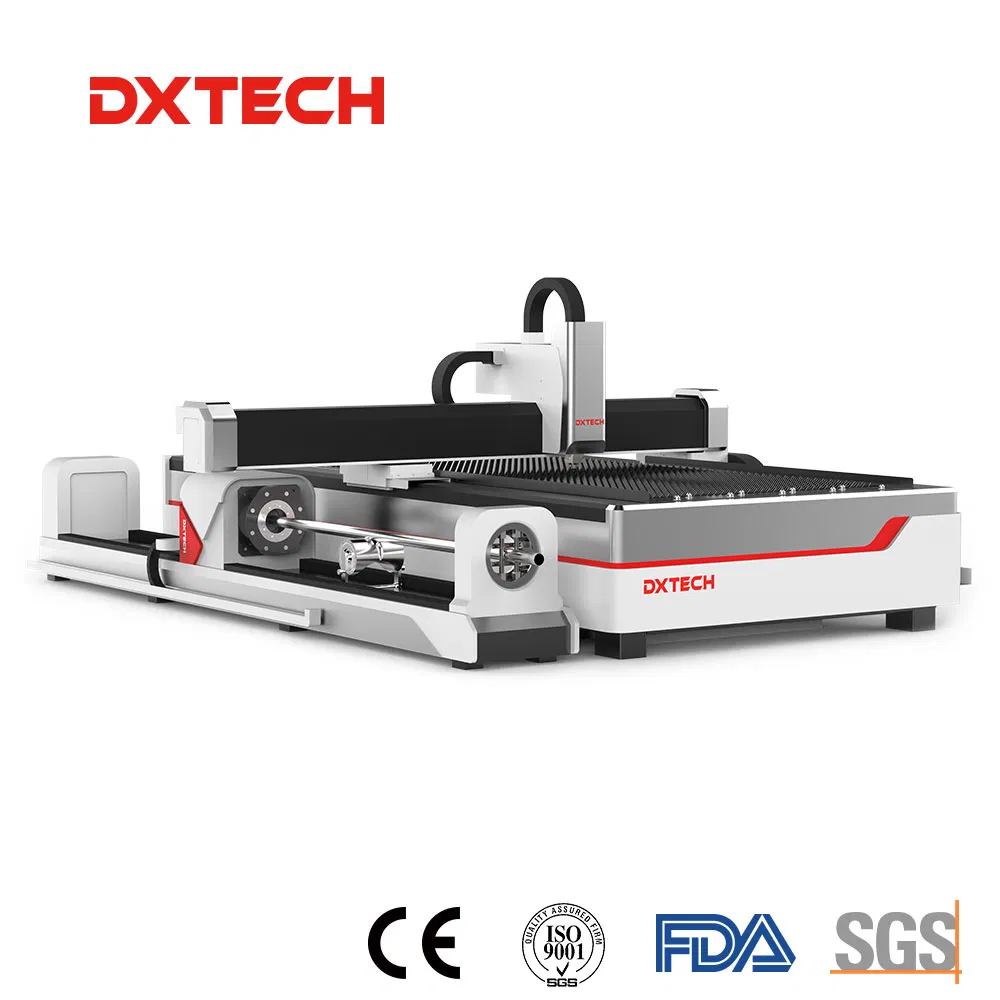

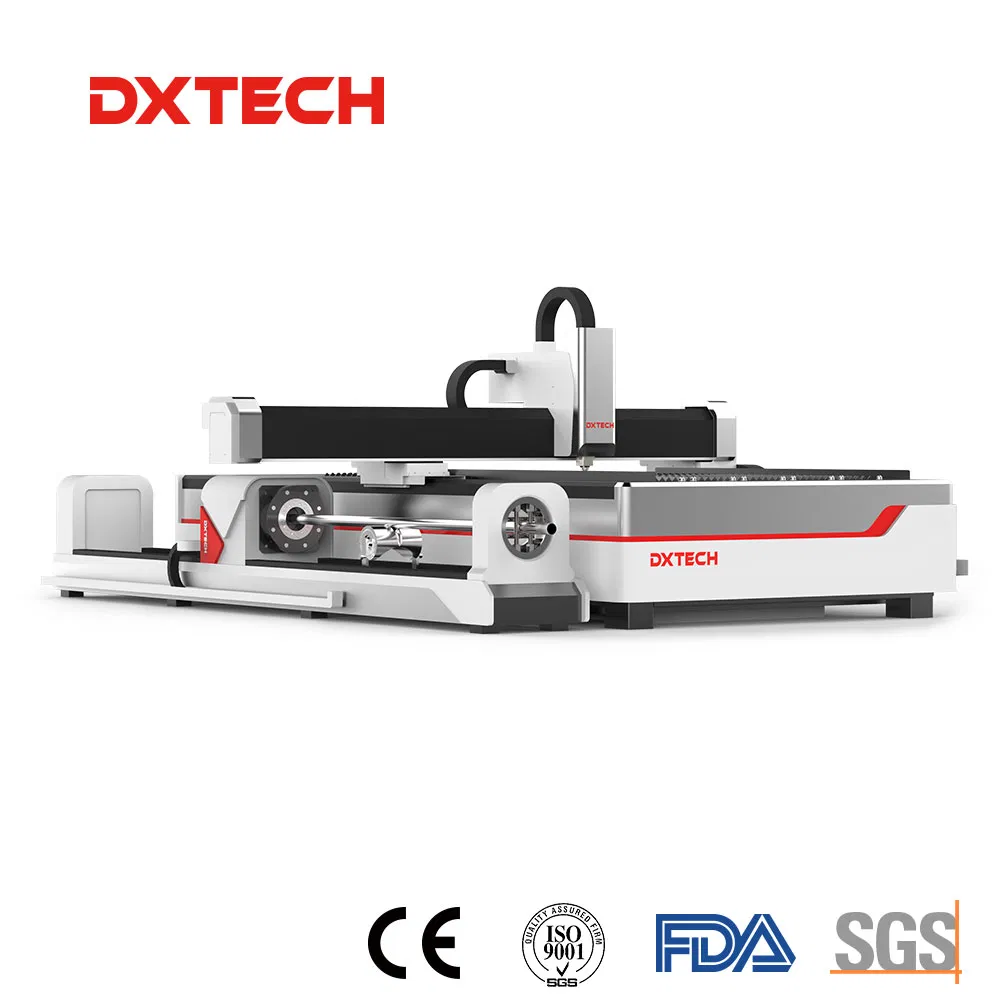

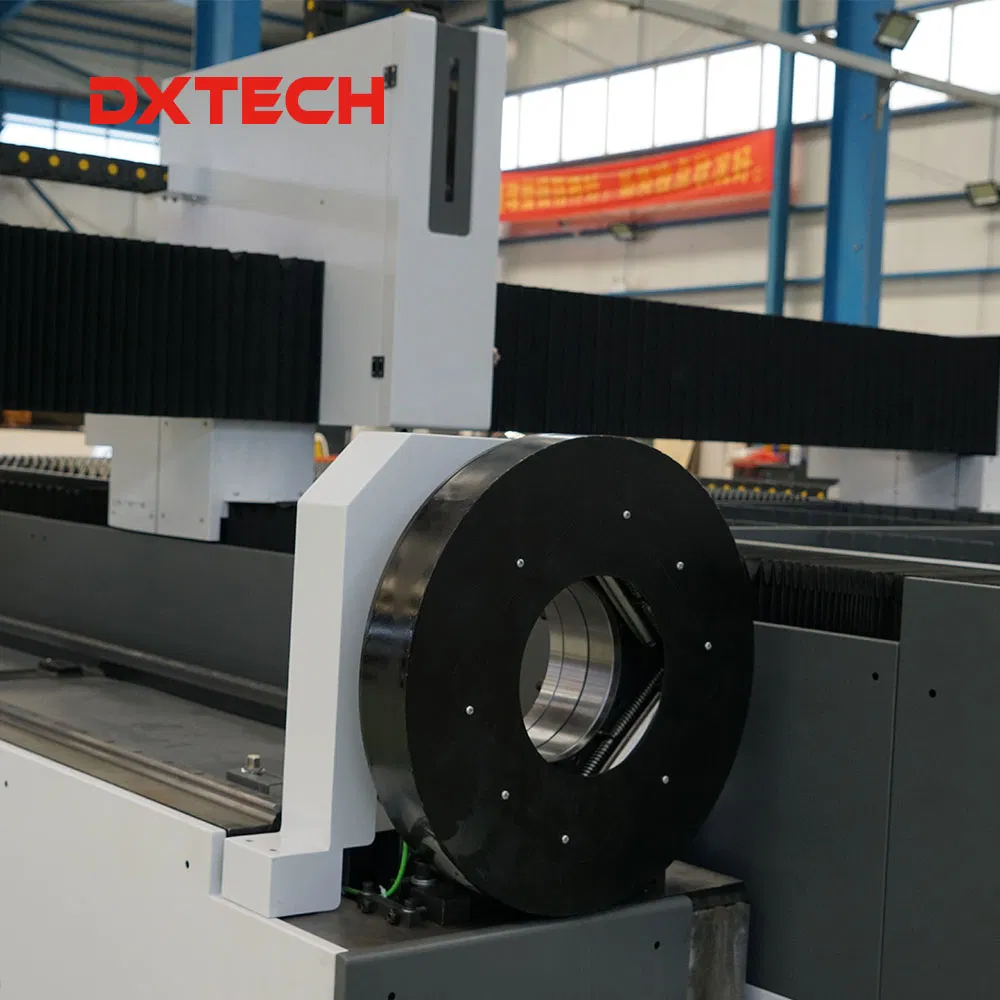

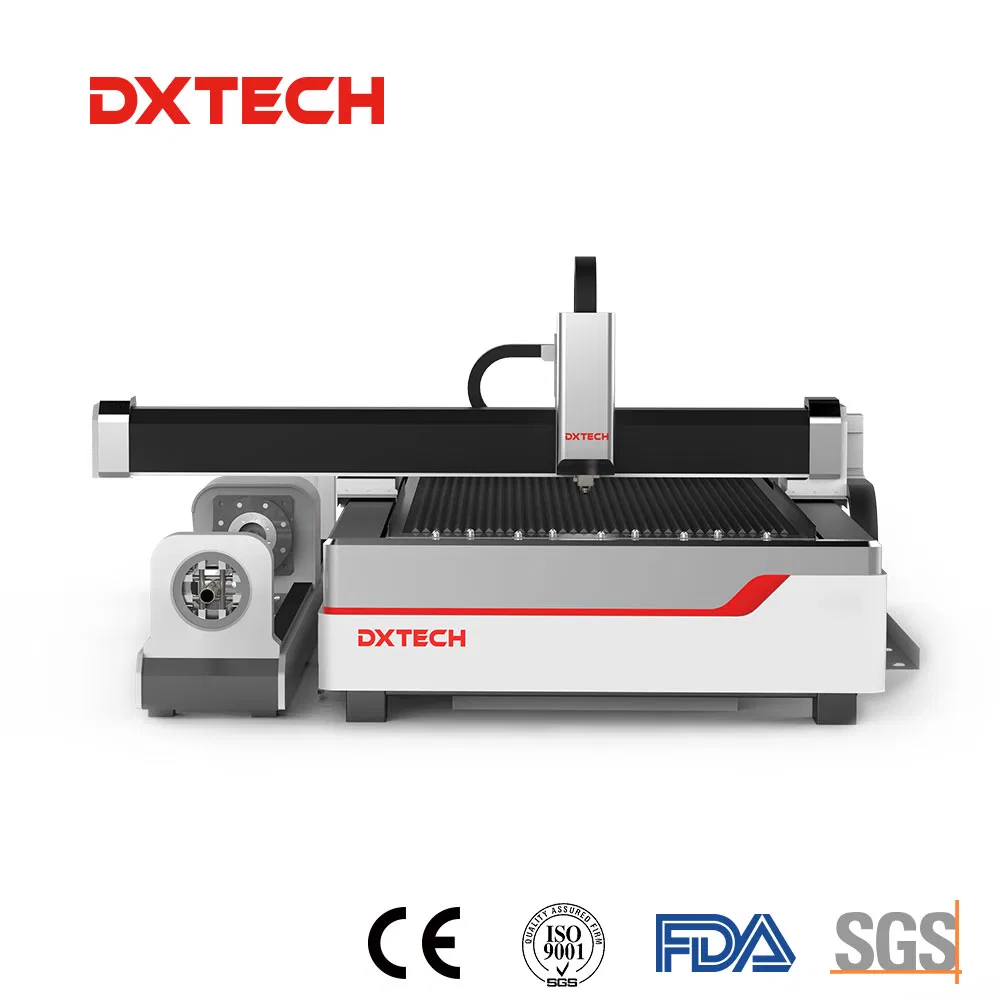

If you are looking for a Multifunctional Metal fiber laser cutter, this sheet and tube fiber laser cutting machine is your best choice. This dual use fiber laser cutter can process both metal sheets and metal tubes very efficiently. It combines metal sheet processing platform with a metal tube cutter together, saving a lot of initial investment and working space. This dual use laser cutter has been widely recognized by many customers at home and abroad. If you need to process both metal sheets and tubes, this dual use fiber laser cutter is the best cost-effective choice.
| Model | DX-1530F |
| Working Area | 1300*900mm to 2500*8000mm(optional) |
| Laser Output Power | 500w-12000w |
| X/Y-axis positioning accuracy | ±0.03mm |
| X/Y-axis repositioning accuracy | ±0.02mm |
| Max Cutting Speed | 25m/min |
| Maximum acceleration | 1.5G |

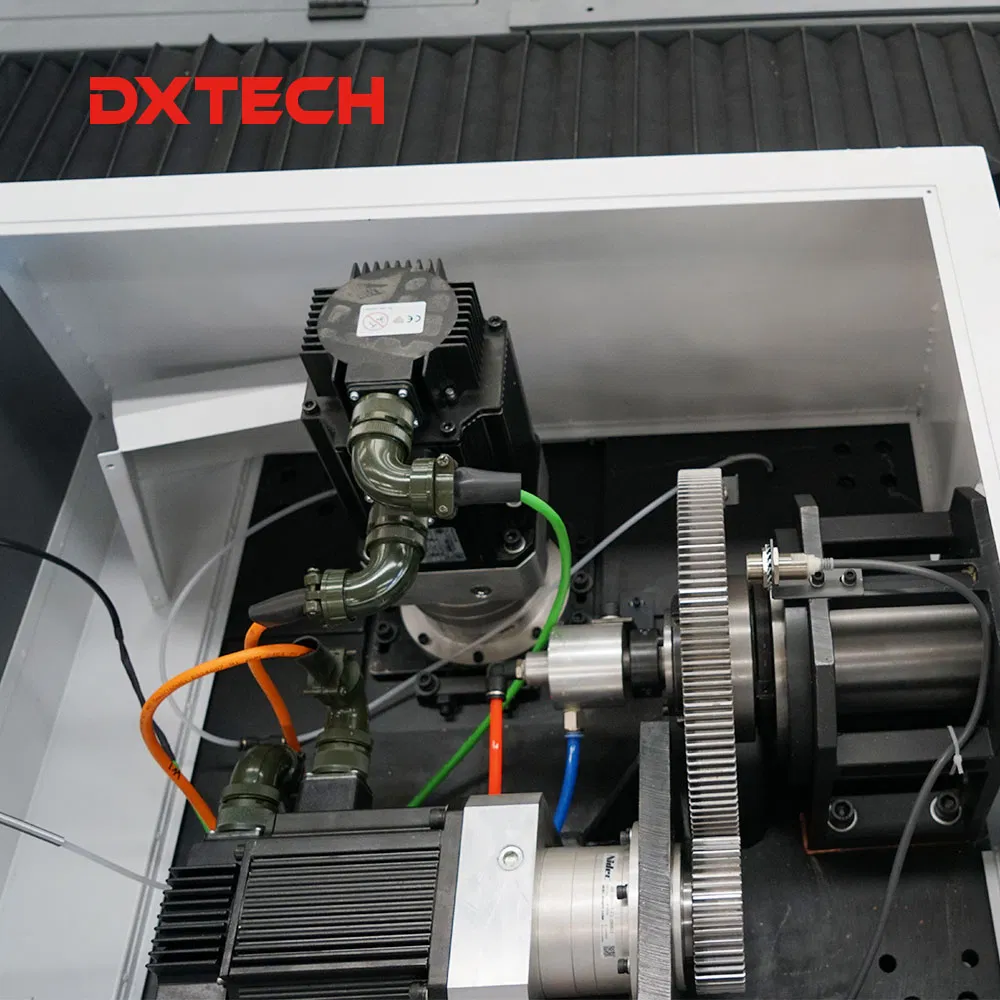

| Servo motor | Japan Yaskawa / Japan Fuji |
| Electrical components | Schneider |
| Reducer | Japan SHIMPO |
| Material | 500W | 750W | 1000W | 1500W | 2000W | 3000W |
|---|---|---|---|---|---|---|
| Carbon Steel | 0.4-6mm | 0.4-10mm | 0.4-12mm | 0.4-14mm | 0.4-16mm | 0.4-20mm |
| Stainless Steel | 0.4-3mm | 0.4-4mm | 0.4-5mm | 0.4-6mm | 0.4-8mm | 0.4-10mm |
| Aluminum | 0.4-2mm | 0.4-3mm | 0.4-3mm | 0.4-4mm | 0.4-6mm | 0.4-8mm |
| Brass | - | - | 0.4-3mm | 0.4-3mm | 0.4-3mm | 0.4-8mm |

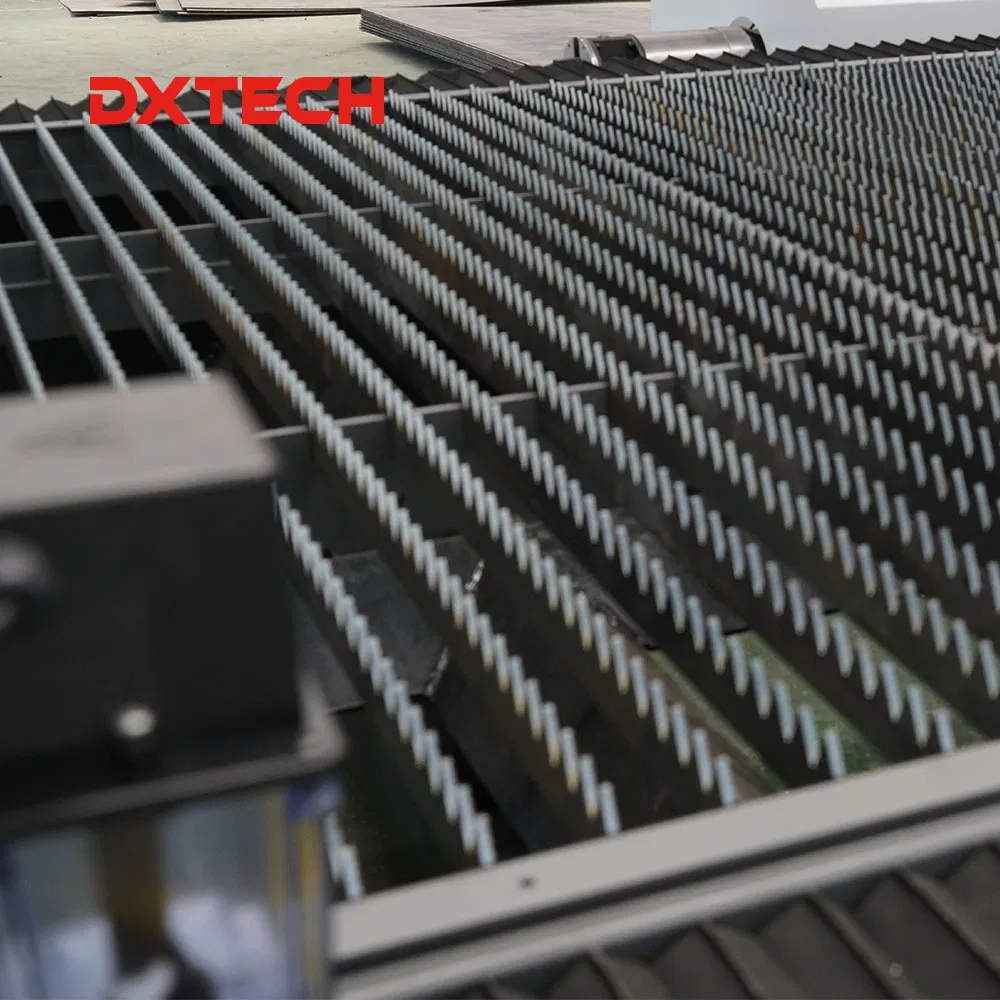

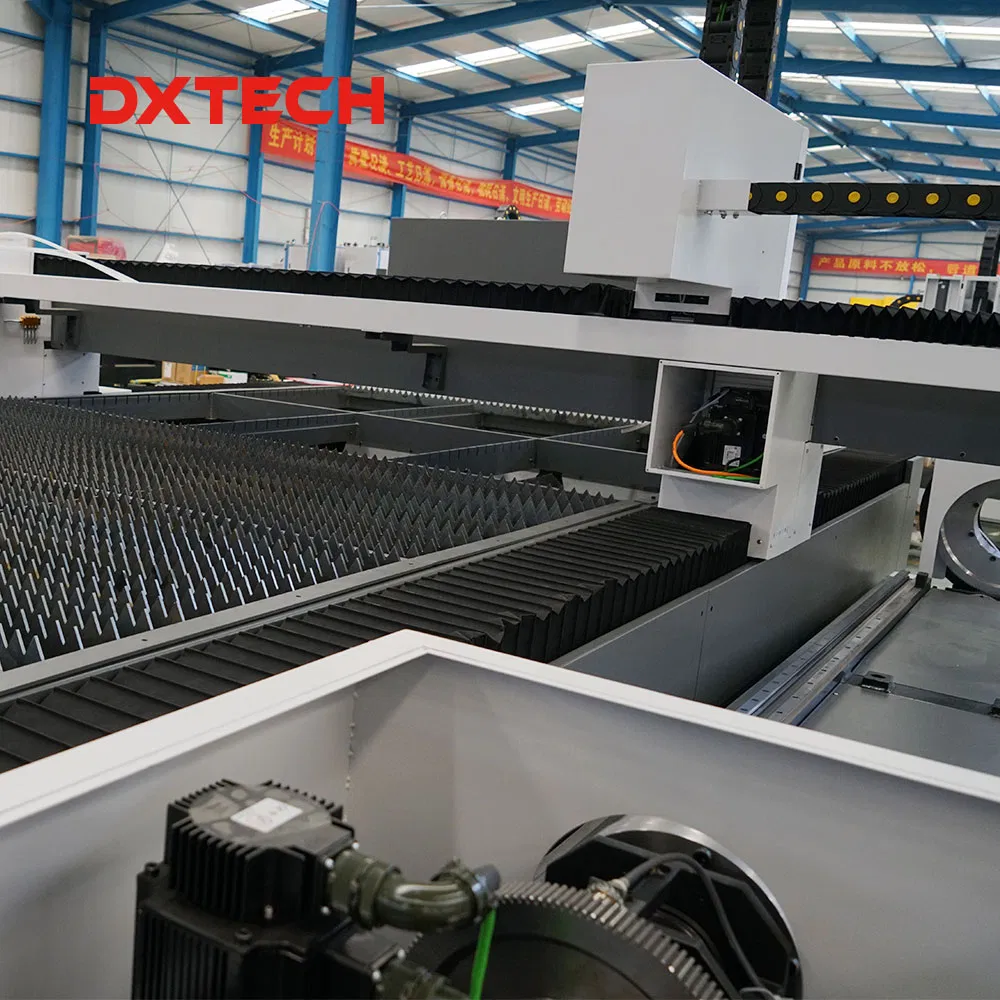

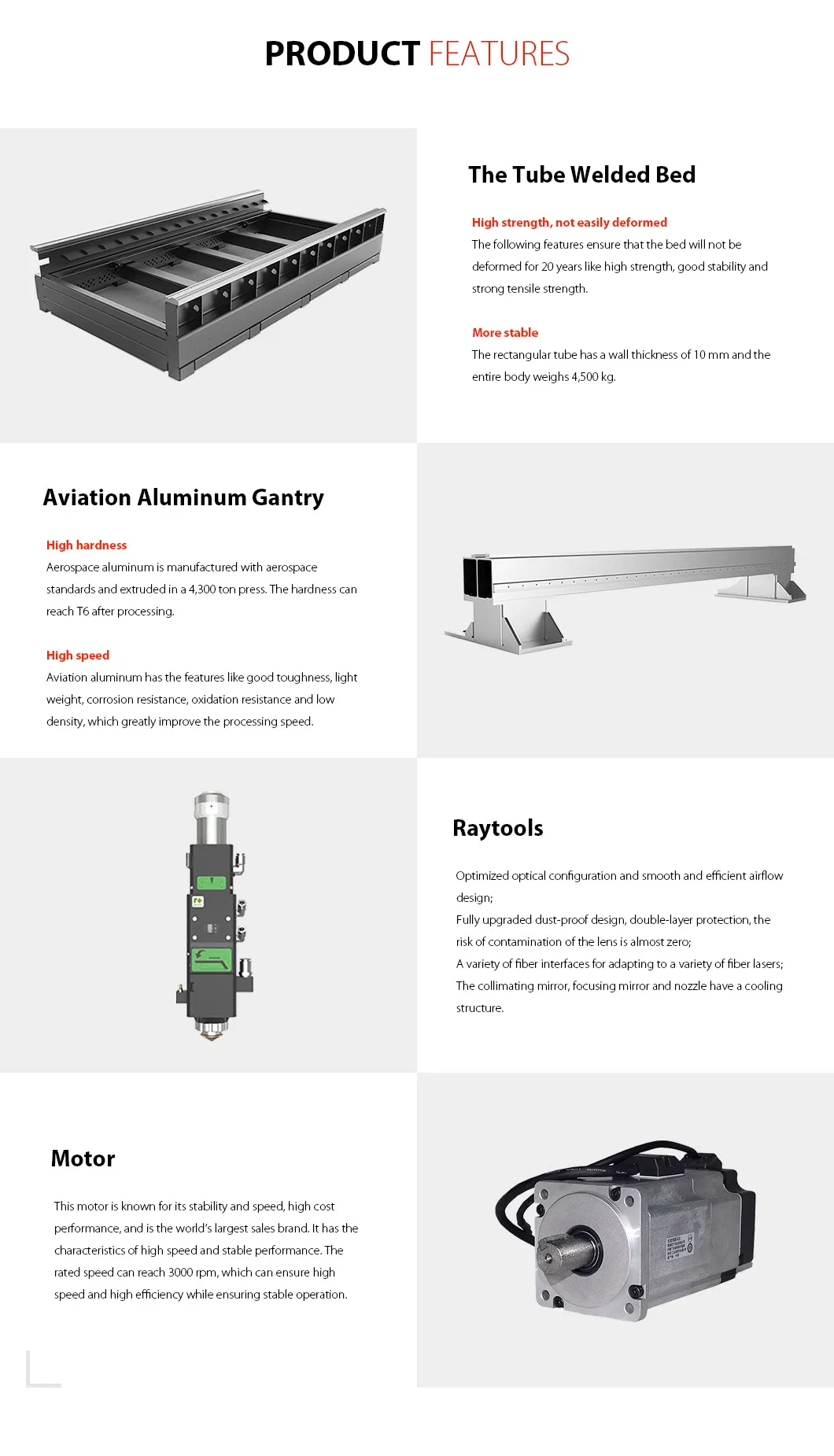

High strength, not easily deformed: The following features ensure that the bed will not be deformed for 20 years like high strength, good stability and strong tensile strength. More stable: The rectangular tube has a wall thickness of 10 mm and the entire body weighs 4,500 kg.
Three Layers Packaging:
They're very environmentally friendly. If you need a wooden box, we will make fumigation free wooden package outside the machine.
We are professional in the design and manufacturing of fiber laser cutting and engraving machines, CO2 laser cutting and engraving machines, and fiber or CO2 laser marking machines. We have always been devoted to the research and manufacture of Laser CNC cutting and engraving machines. With dedicated R&D, Quality Control, and Sales & Service departments, our products are widely used in woodworking, advertising, kitchenware, sheet metal, cabinet, and fitness industries globally.
