6-Axis Linkage Robotic Arm Laser Cutting: ±0.05mm Precision, Intelligent Visual Positioning, Efficient Equipment for Auto Chassis/Aerospace Parts Processing!
1 / 5

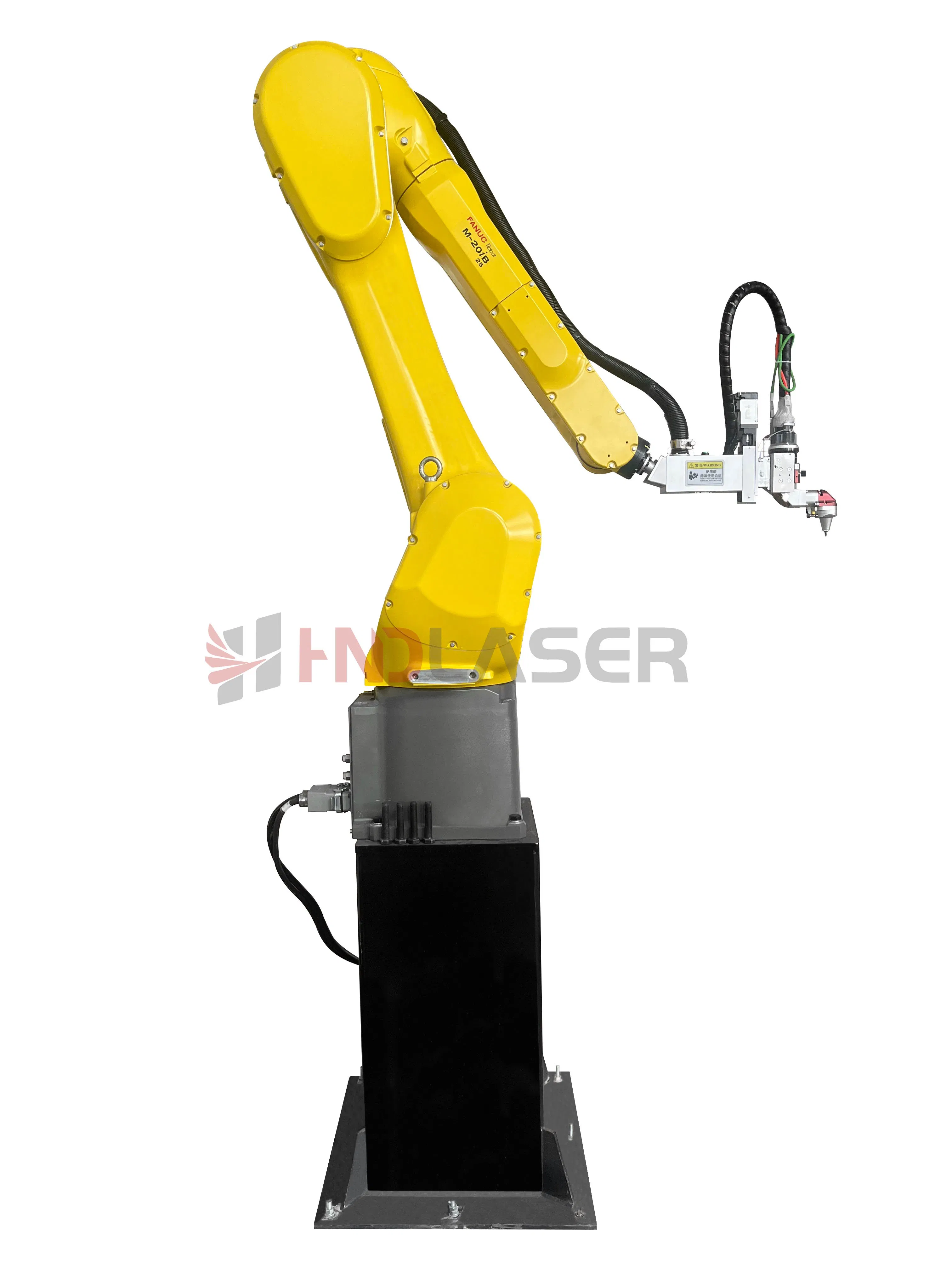

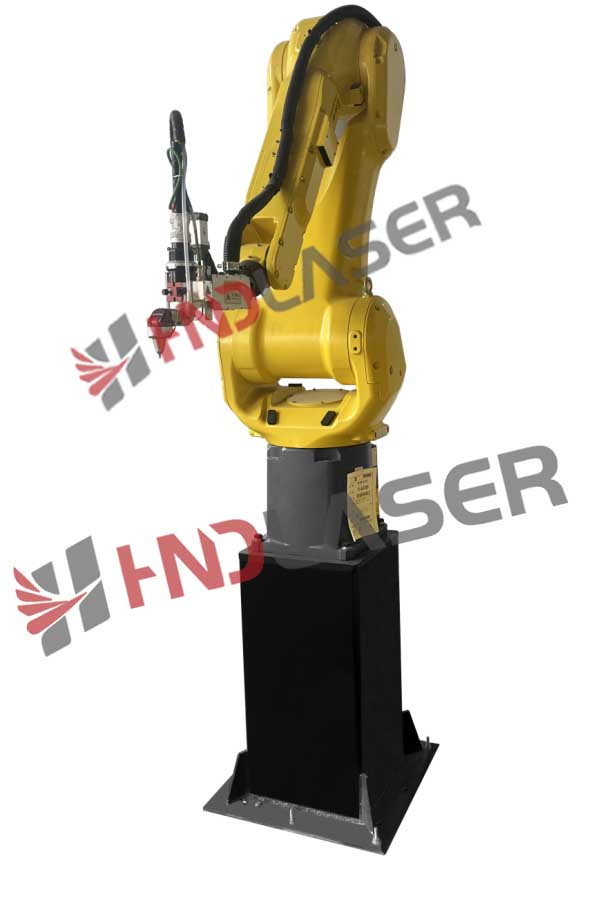

6-Axis Linkage Robotic Arm Laser Cutting: ±0.05mm Precision, Intelligent Visual Positioning, Efficient Equipment for Auto Chassis/Aerospace Parts Processing!
Simple startup operation: All power switches start with one button.
High intelligence: Equipped with PLC controller and touchscreen for intuitive monitoring of equipment status and fault diagnosis, enabling quick production recovery according to standard procedures.
Safety protection: Emergency stop buttons at workstations ensure operational safety.
Separate wiring for high/low voltage: Neater electrical layout in control cabinet improves human-machine safety, reduces signal interference, and ensures long-term stable operation.
Self-optimized cutting software: Includes standard shape library, laser commands, and auto-calibration for faster programming.
Experienced training: Instructors with over a decade of sheet metal cutting programming expertise provide targeted guidance for effective skill mastery.
Specifications
Category
Parameters
Details / Values
Robot
Robot Brands and Models
FANUC-M-20iB
Maximum working radius (external)
1853mm
Repeat positioning accuracy
±0.02mm
Number of axes
6-axis
Arm payload capacity
25KG
Laser
Fiber laser power
1500W
Laser wavelength
1080±5nm
Minimum kerf width
0.2-1mm (affected by material thickness)
Maximum cutting speed
Affected by the actual cutting material
Processable material thickness
Affected by the actual cutting material
Water Chiller
Cooling Method
Water Cooling
Complete Machine
Continuous Operating Time
24h
Power Supply
380V ± 10%; 50Hz/60Hz
Coaxial Gas Supply Requirement
0.4-10MPa
Product Description
Our medium/small-power 3D laser cutting systems represent the ultimate industry configuration, delivering high electro-optical conversion efficiency, exceptional stability, compact footprint, flexible operation, and user-friendly programming - perfectly processing carbon steel, stainless steel, aluminum, and galvanized sheets with superior cutting efficiency, minimal heat-affected zones, flawless kerf quality, and low operating costs, making them the essential flexible manufacturing solution for premium metal fabrications.
Advantages & Accessories

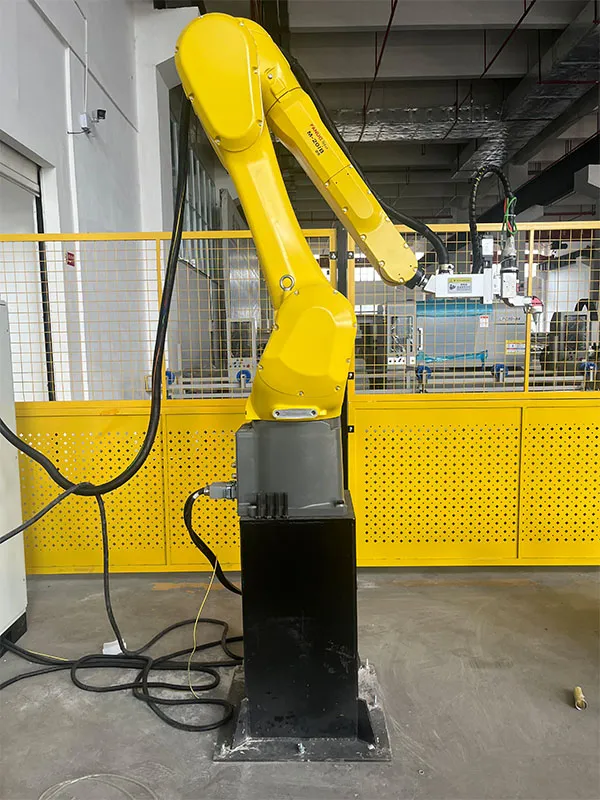

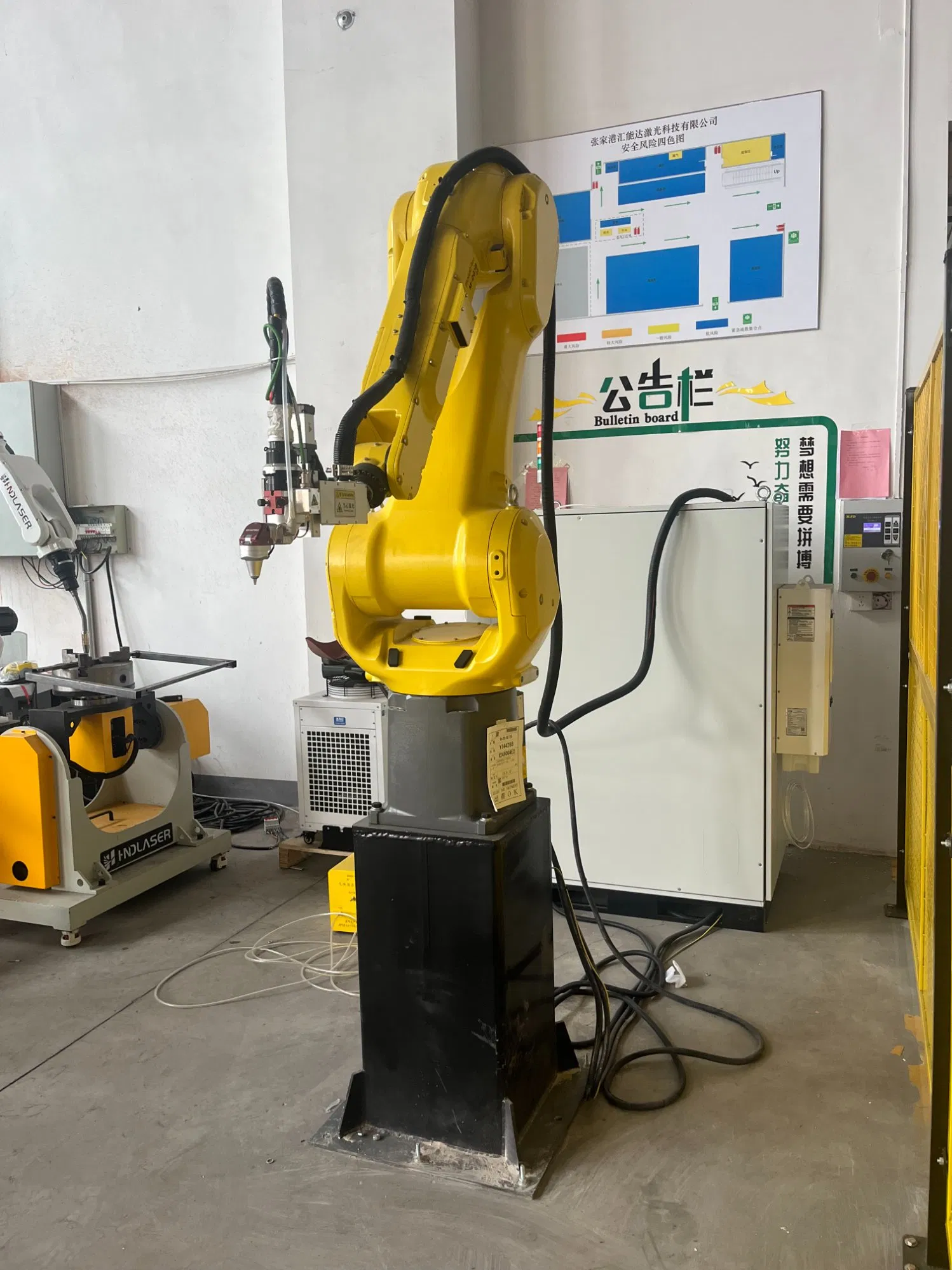

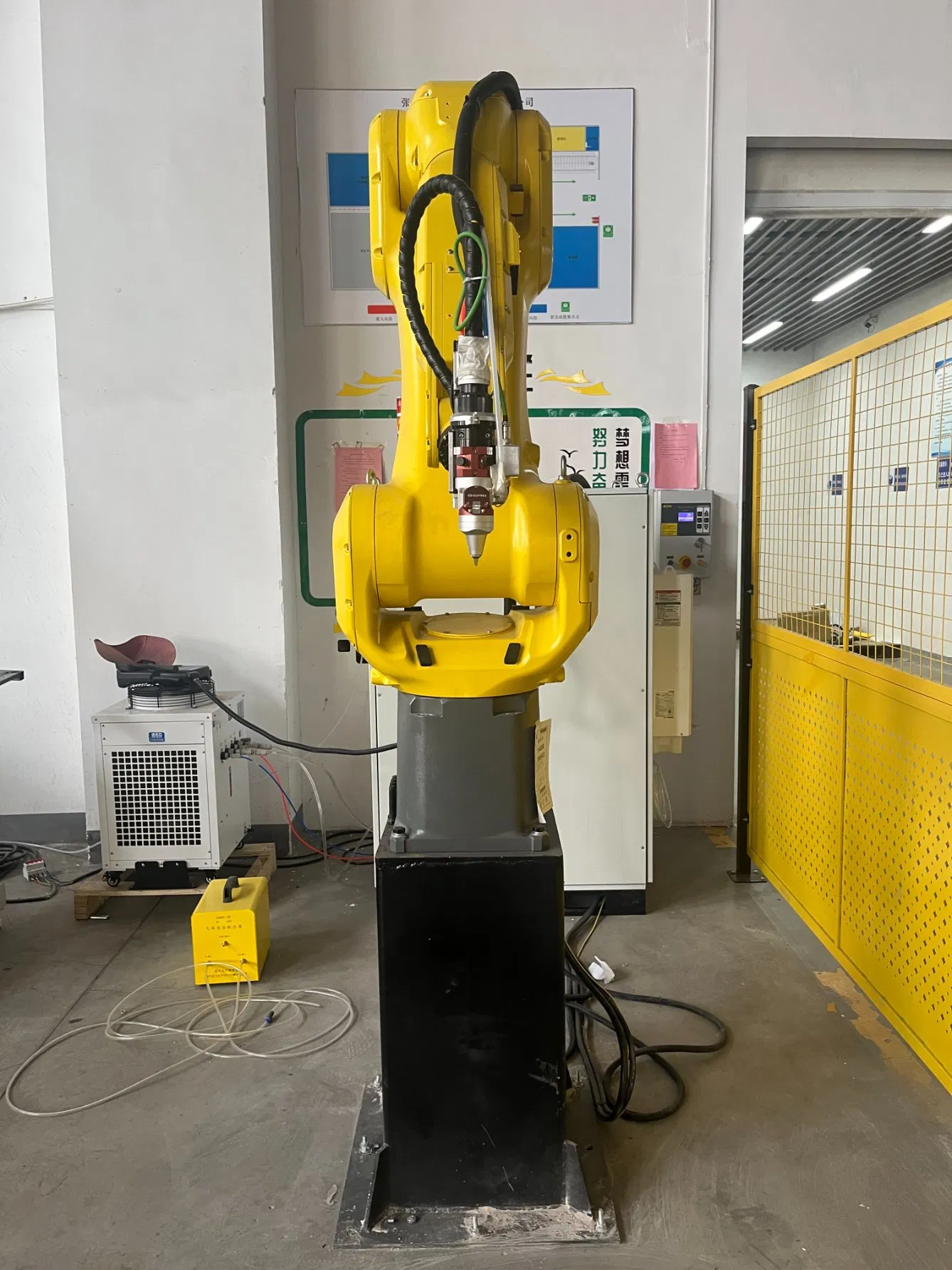

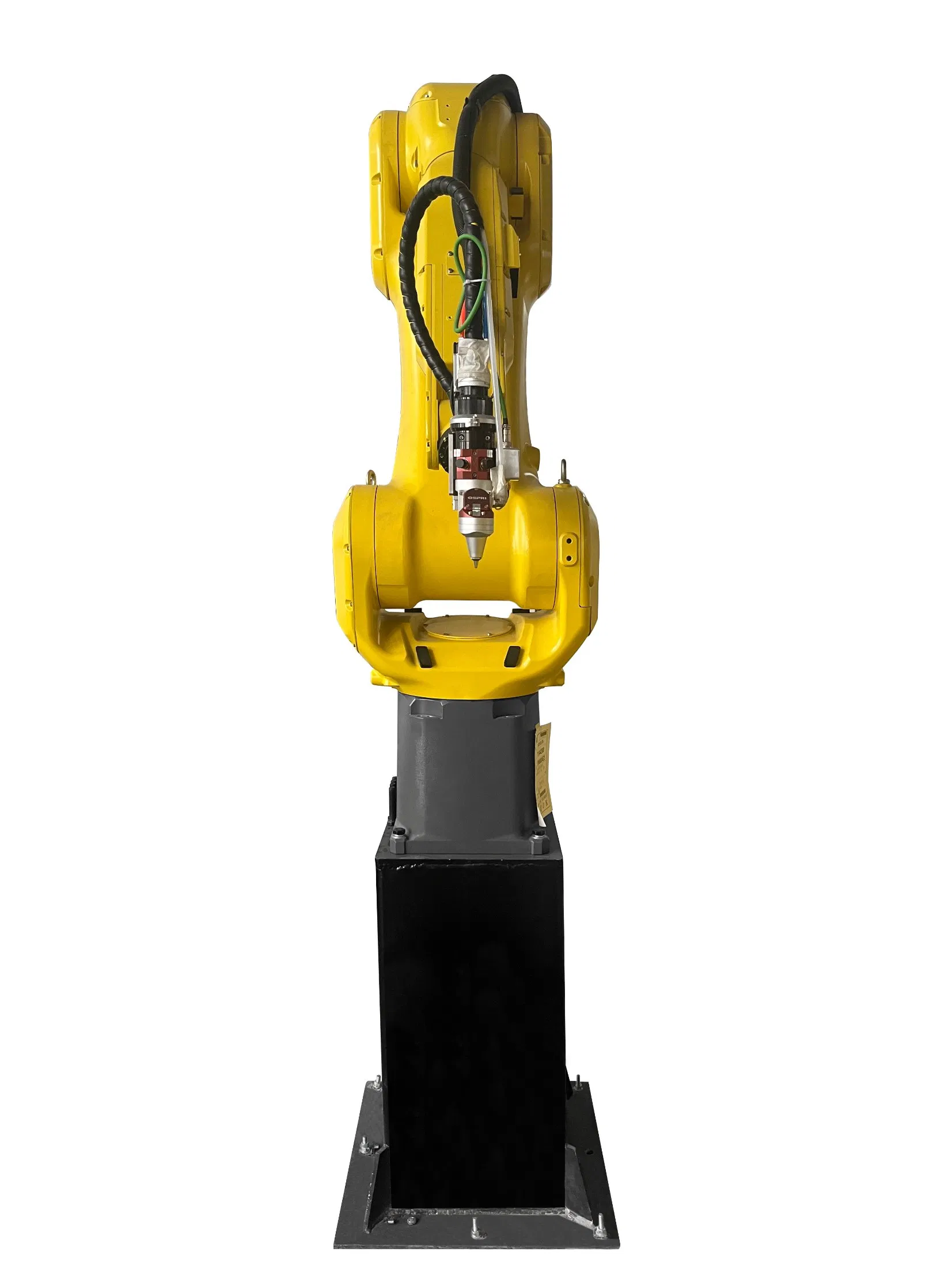

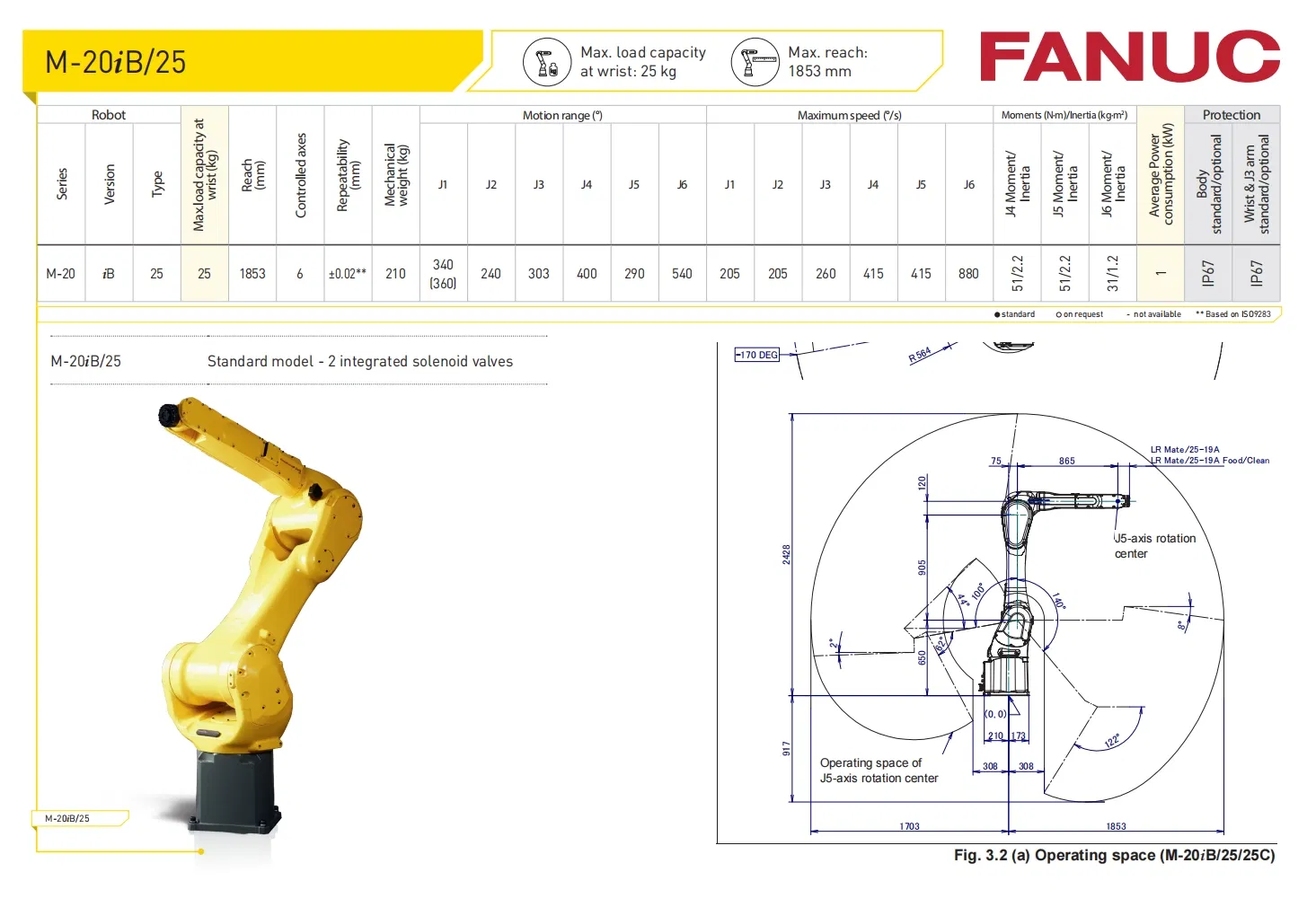

M-20iB High-Precision Robot
The industrial robot currently holds the world's leading market share. Renowned for its exceptional stability, high precision, and superior global service capabilities.

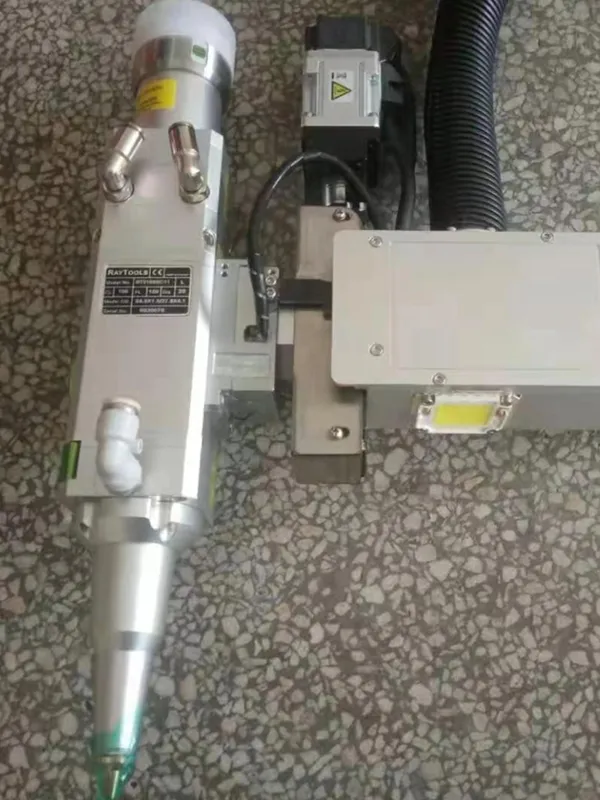

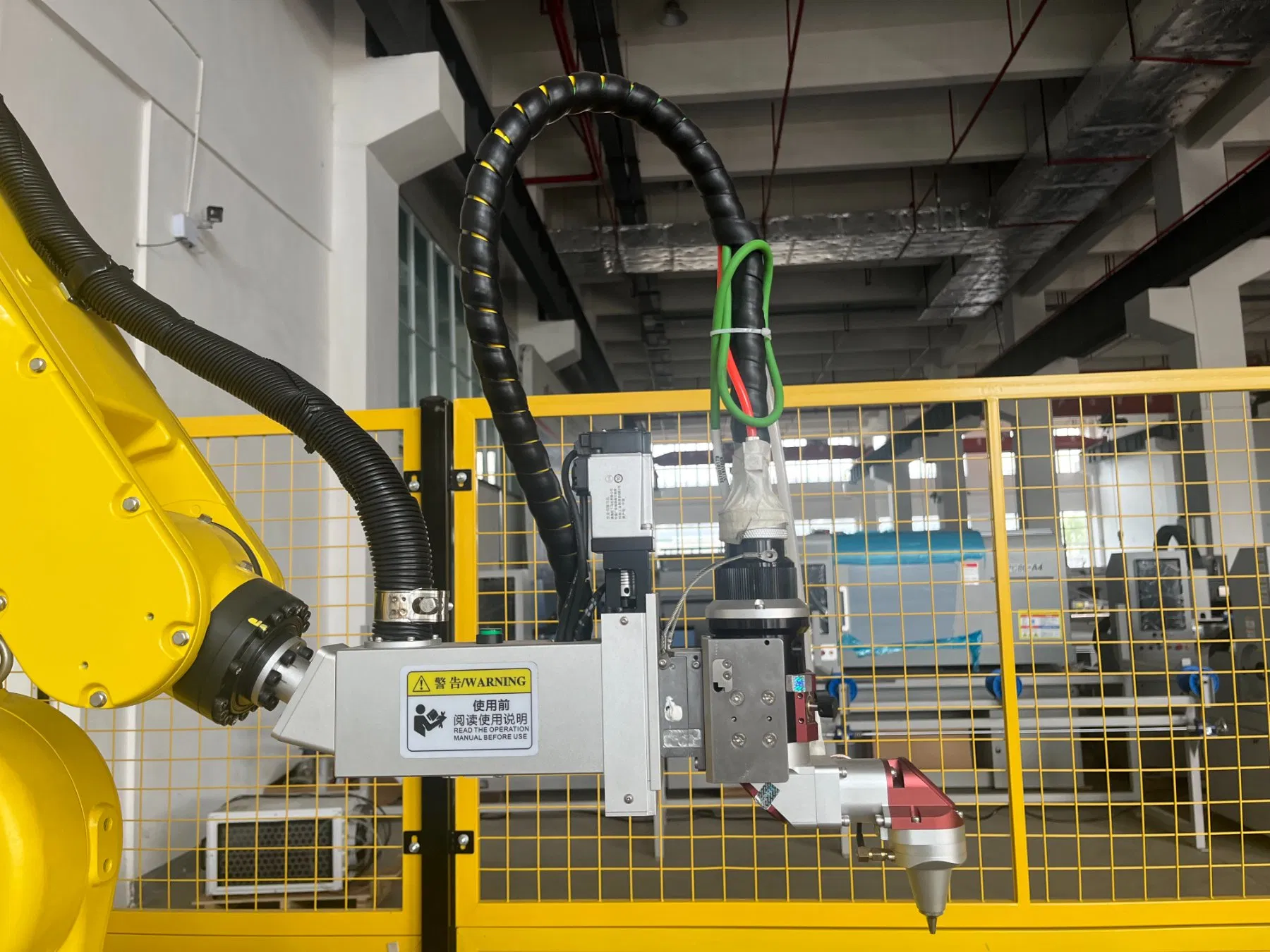

Raytools BT220 Cutting Head
The magnetic adsorption device ensures high reset accuracy after collisions, significantly improving operator efficiency. Post-collision clearance is limited to only 0.6mm at the torch head, with immediate collision alerts displayed on the touchscreen.

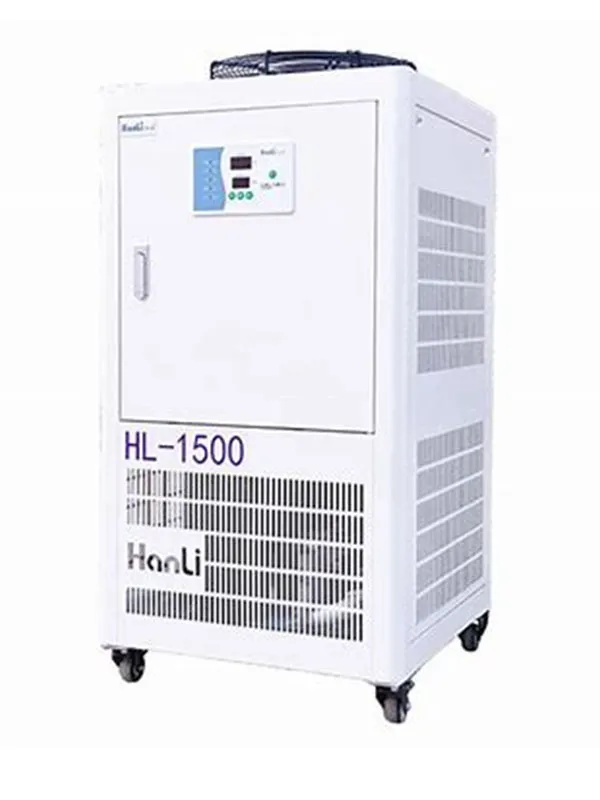

Water Chiller HL-1500
Equipped with an LCD controller that displays real-time coolant temperature. The CPU-controlled automation ensures simple operation. Precision dual-temperature regulation provides stable cooling while preventing lens condensation damage.

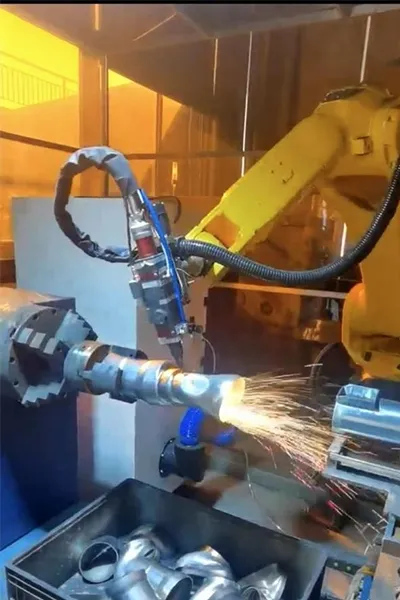

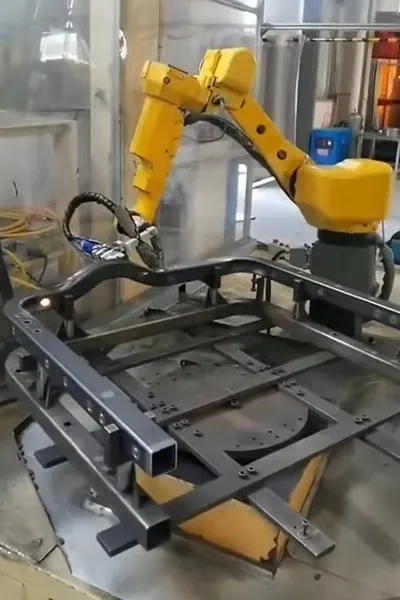

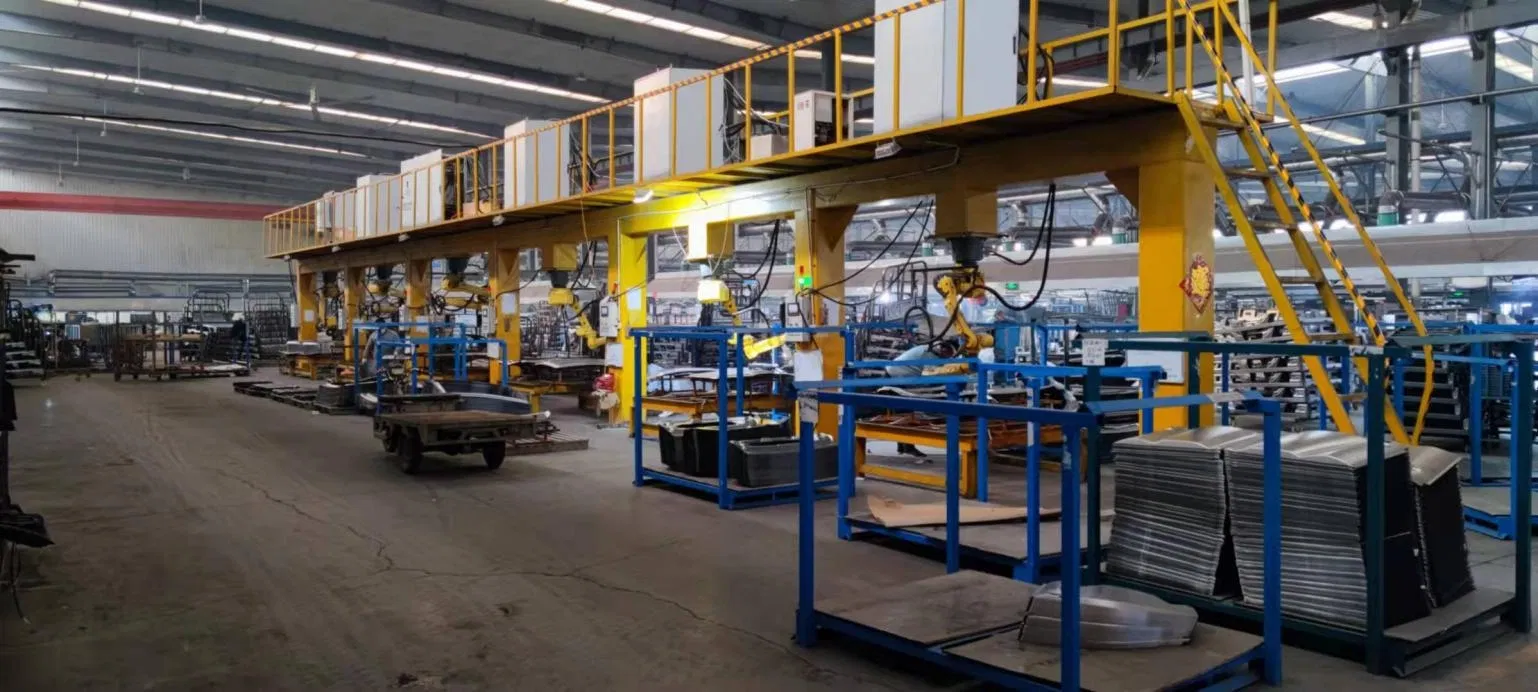

Customer Case Diagrams

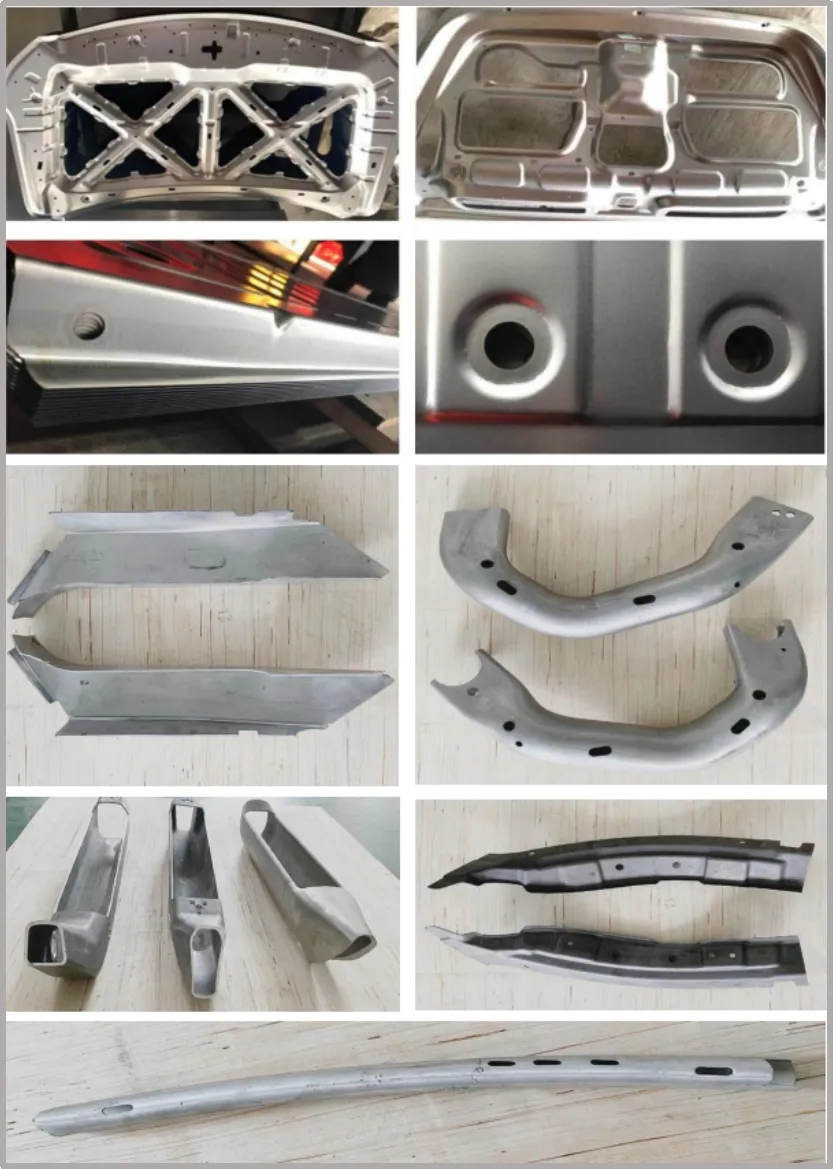

Customer Workpiece Cutting Results
Certifications
Certified by a leading third-party organization, our machines come with a reliable warranty service. If you ever require assistance or support, we are perpetually at your service.
After Sales Service
Equipment quality assurance period: One year after-sales service for the whole machine.
If there are quality problems with system parts during the warranty period, service engineers will provide telephone or on-site services. Free replacement of parts and services will be provided for any damage caused by the quality of the equipment itself, excluding conventional consumables (such as chuck jaws, chuck rollers, support rollers, lubricating oil, copper nozzles, lenses, etc.) and accidents caused by user violations.
During the domestic warranty period, follow-up and replies will occur within 2 hours after receiving the maintenance notice. If the telephone or fax still cannot eliminate the fault, technical service personnel can rush to the site within 48 hours.
Outside the warranty period, extensive and preferential technical support services, regular maintenance of the whole machine and auxiliary machines, and spare parts supply remain available. Daily consultation and guidance on equipment, as well as information on improvement and maintenance technology, will be provided.
Sufficient spare parts are maintained to provide technical and spare parts services in a timely manner to meet the needs of equipment operation and maintenance.
Technical engineers are regularly arranged to provide free technical return visits to the user's site.
Frequently Asked Questions
What materials can this 3D robotic arm laser cutting system process?
The system is designed to process carbon steel, stainless steel, aluminum, and galvanized sheets with excellent cutting efficiency, narrow kerfs, and minimal heat-affected zones.
What is the repeat positioning accuracy of the robotic arm?
Equipped with the high-precision FANUC-M-20iB robot, the system delivers a repeat positioning accuracy of ±0.02mm, ensuring highly stable and consistent output for complex profiles.
How does the collision protection mechanism protect the cutting head?
The cutting head uses a Raytools BT220 magnetic adsorption device. In the event of a collision, it triggers an immediate touchscreen alert and halts operation. It maintains high reset accuracy, with post-collision clearance limited to just 0.6mm.
What power supply and utilities are required to operate the system?
The system requires a power supply of 380V ± 10% at 50Hz/60Hz. It also requires a coaxial gas supply with a pressure range between 0.4 and 10MPa to support optimal cutting processes.
What warranty and technical support services are provided?
We provide a 1-year quality assurance period for the entire machine. Standard service response starts within 2 hours after a request. If remote diagnostics (telephone/fax) cannot resolve the issue, technical service personnel can arrive at your site within 48 hours.
