⚙️ Products Description
| Pipe diameter (maximum outer diameter) |
Round tube φ13–φ80; Square tube 13*13-60*60; Other tube types: Maximum outer diameter ≤80 (manual) |
mm |
| Loading pipe length |
5000-7000 (Manual feeding unlimited length) |
mm |
| Tail |
≥50 (depending on the specific situation of the pipe) |
mm |
| Automation degree |
Automatic |
R/min |
| Acceleration |
15000 |
mm/s² |
| Total weight |
950 (No material rack included) |
KG |
| Main machine dimensions (L×W×H) |
8441*2035*1930 |
mm |
⚠️ Common Problems In Tube Cutting
● 1. Cutting speed is so slow.
● 2. It is hard for workers to operate.
🚀 Product Advantage

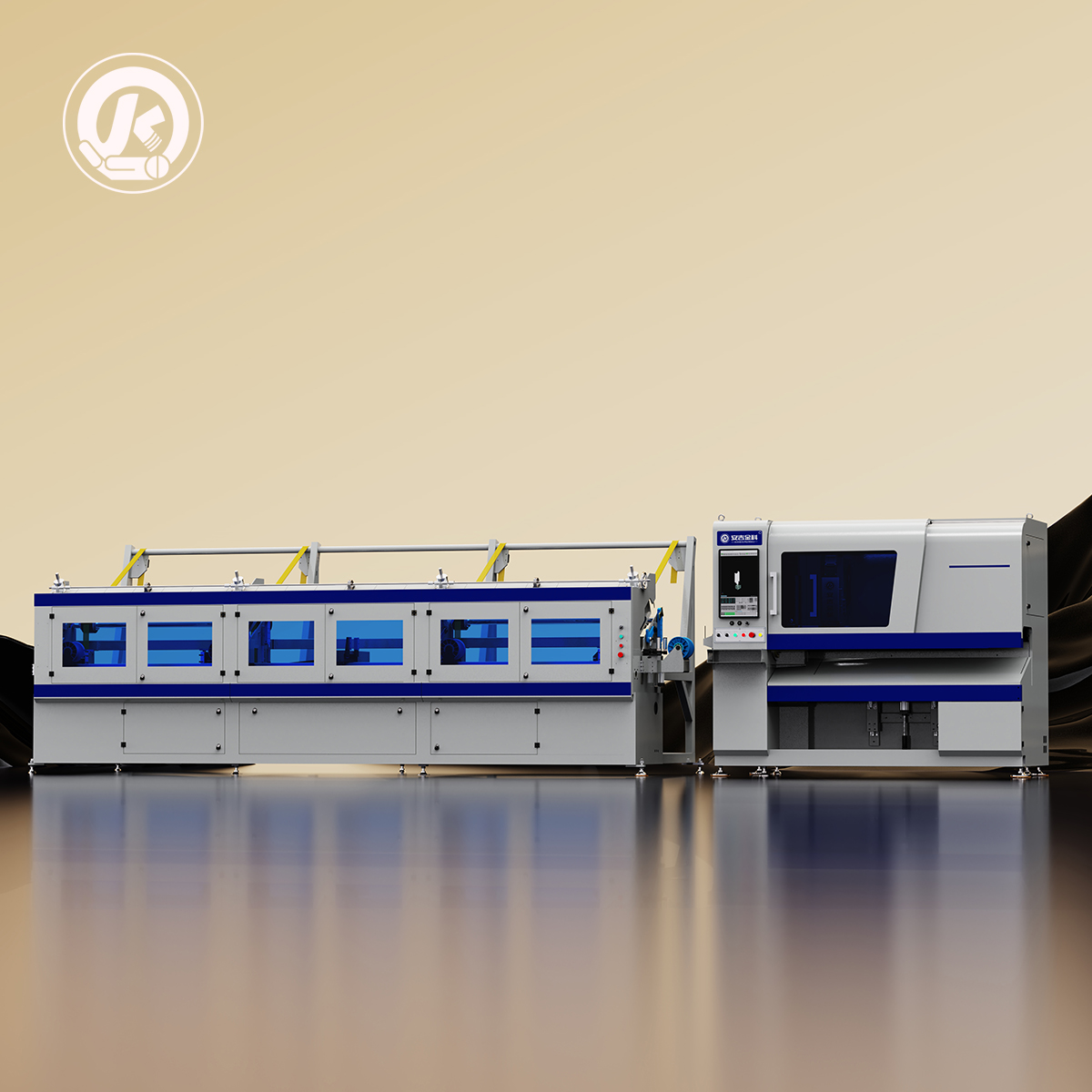

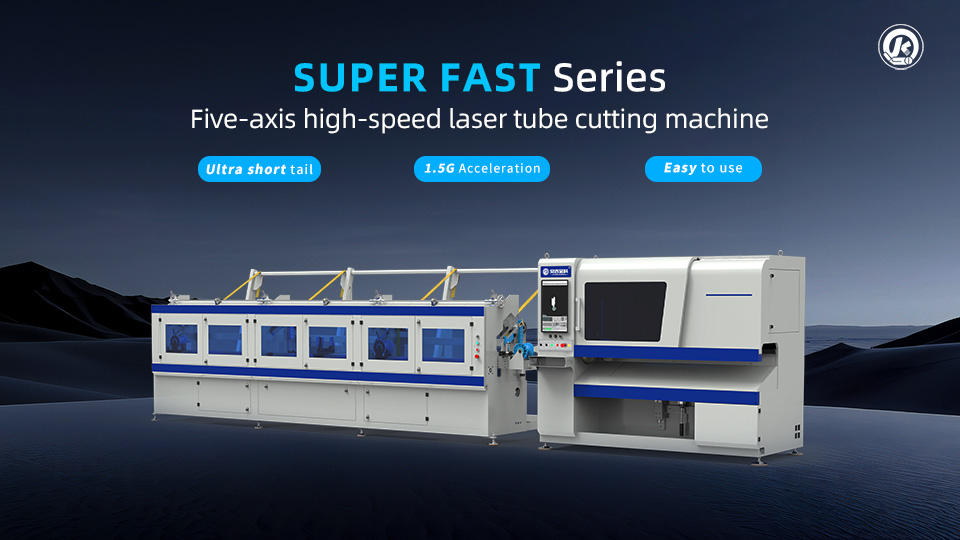

High Precision and High Performance Cutting Machine
This CNC fiber laser tube cutting machine with CE certification can get 1.5G acceleration, with a quick response and the ability to perform batch tasks. The machine tool structure is stress-eliminating through annealing treatment, and it has strong rigidity, ensuring fast and accurate completion of cutting tasks.

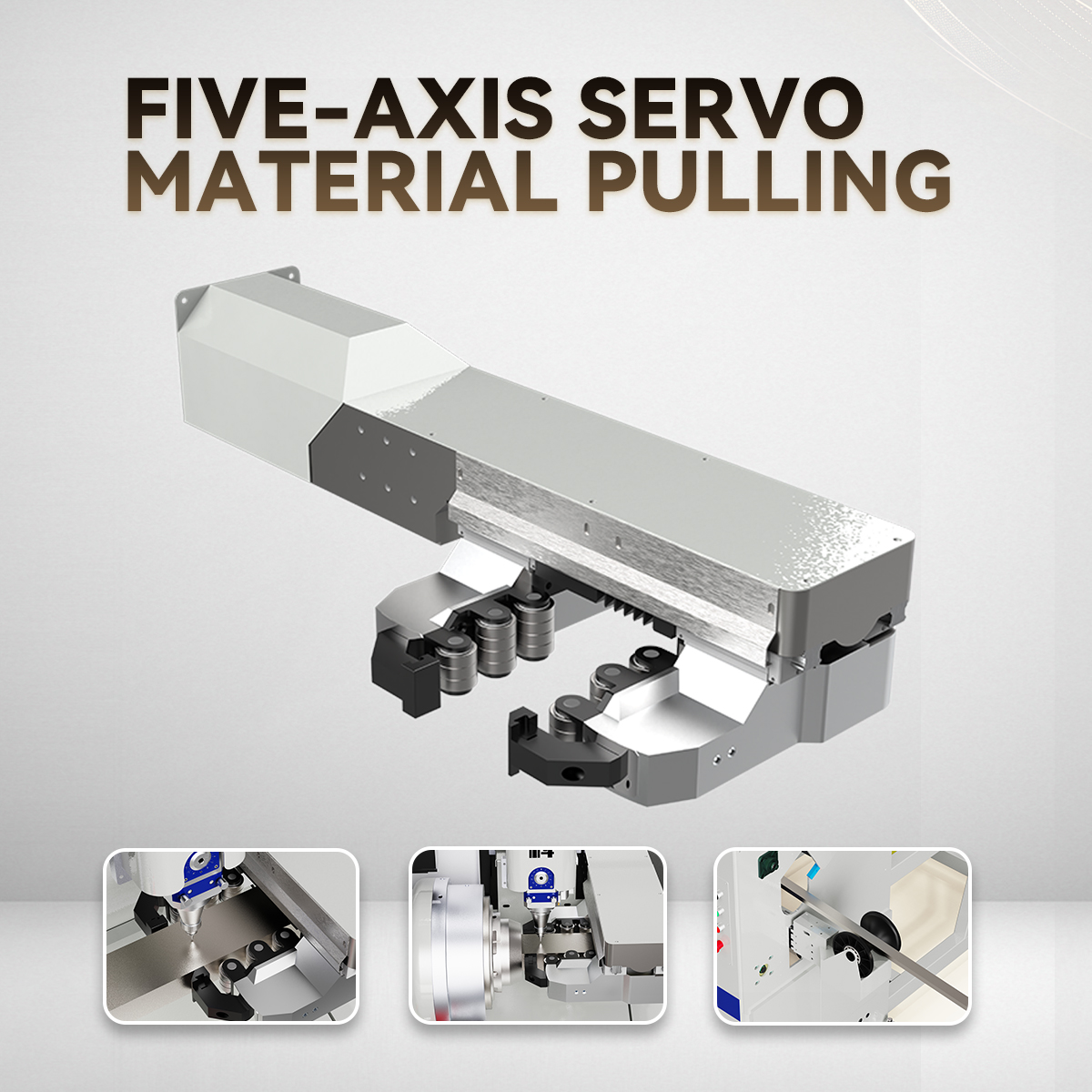

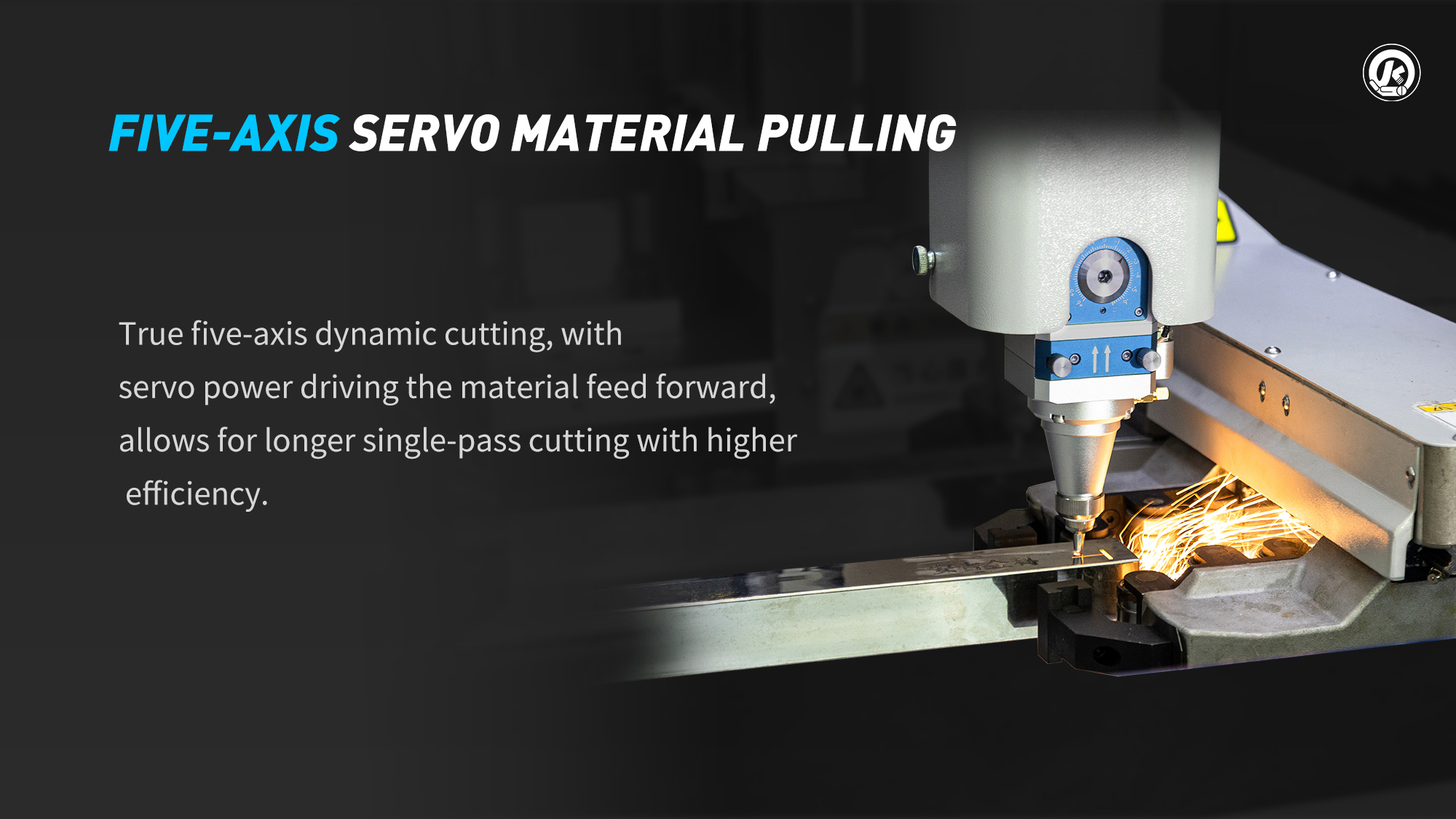

Servo Clamping:
Reduce the number of material pulling times and improve cutting efficiency: When cutting products of the same length, the single pulling length is up to 1200mm. This machine only needs to pull the material twice, which takes 51 seconds and the speed is increased by 30%.

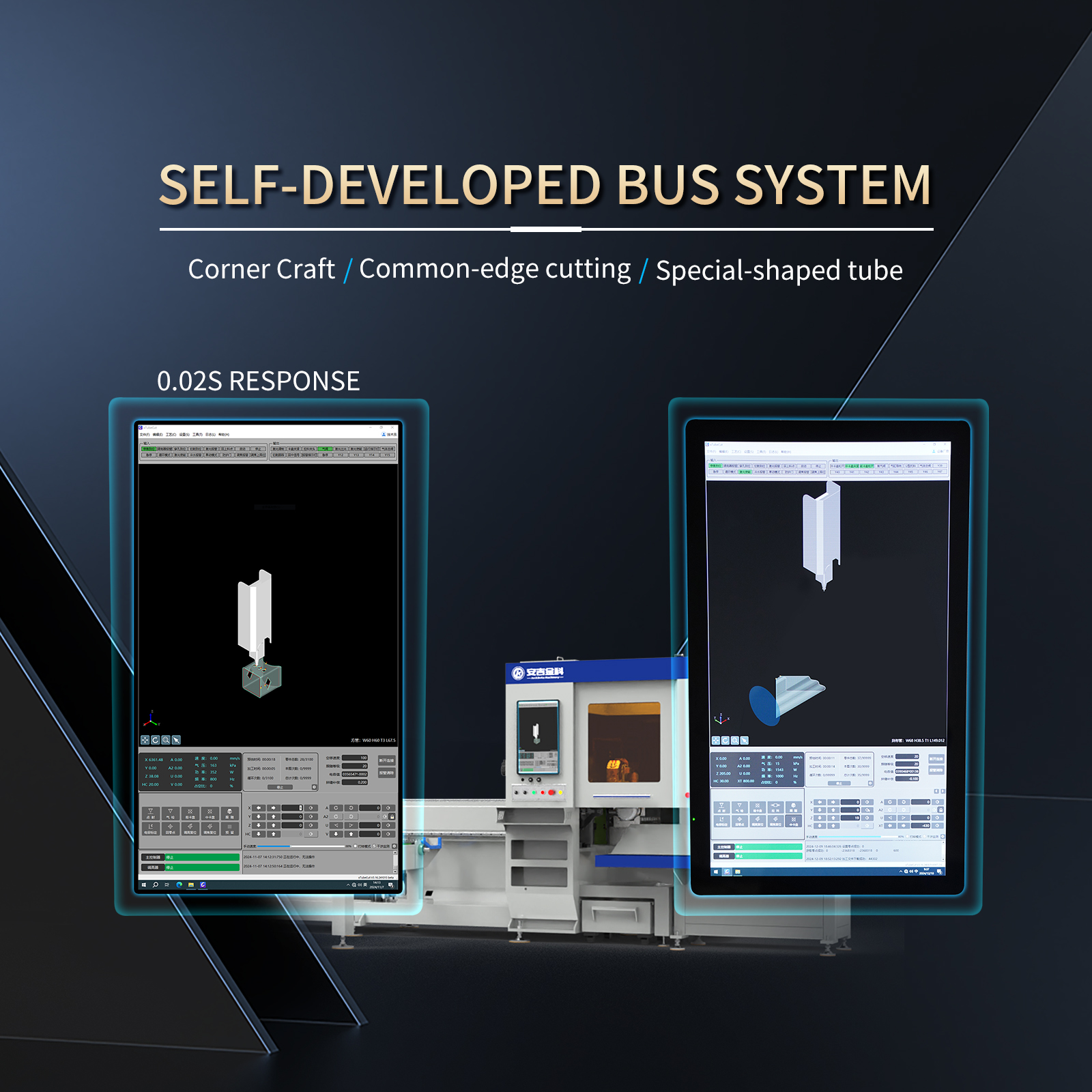

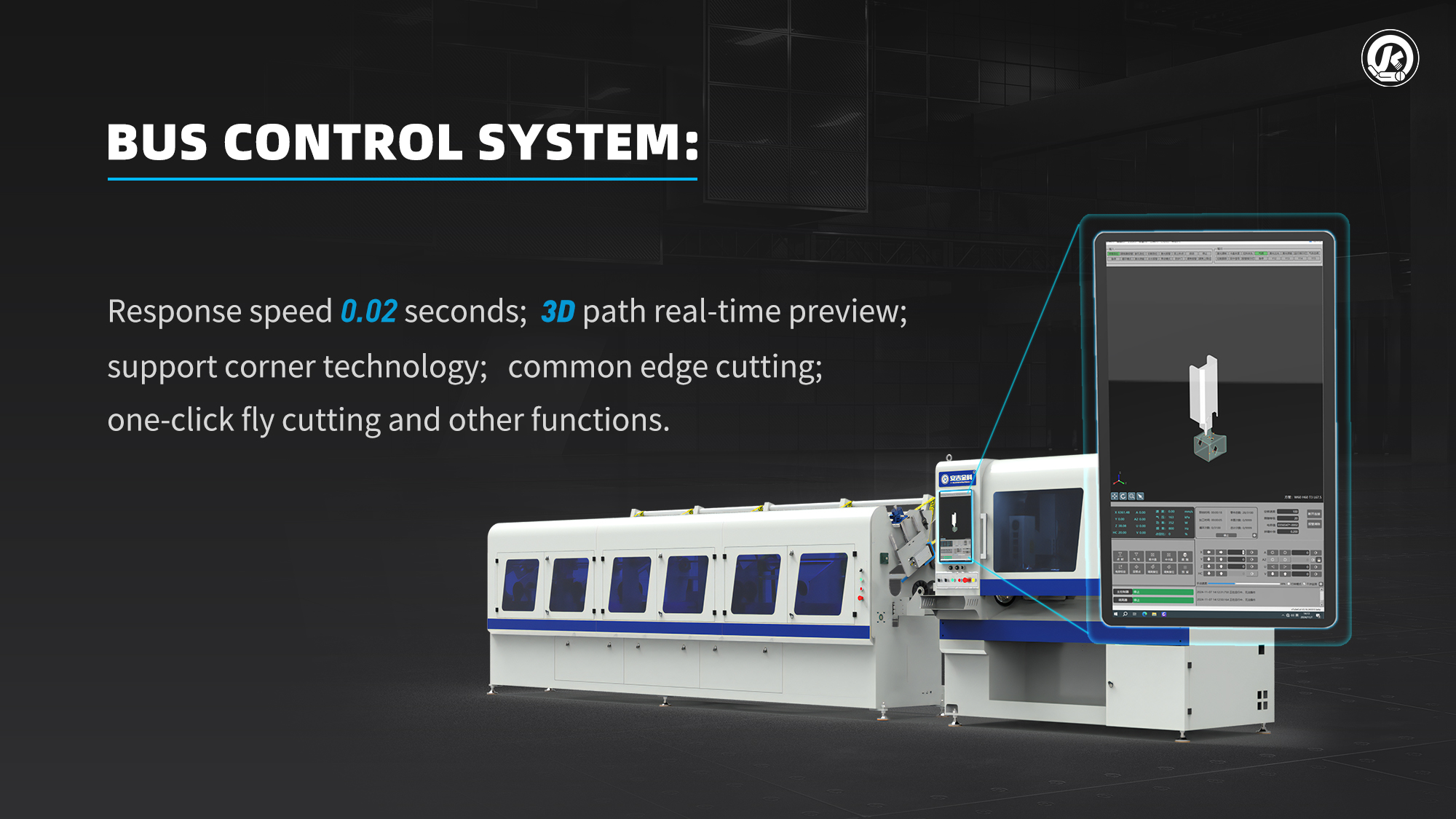

Self-developed Bus System
Using bus technology, the speed of stable data transmission is 10 times faster than the pulse signal and the anti-electromagnetic interference ability is improved by 50%, which prevents cutting deviations caused by signal loss.

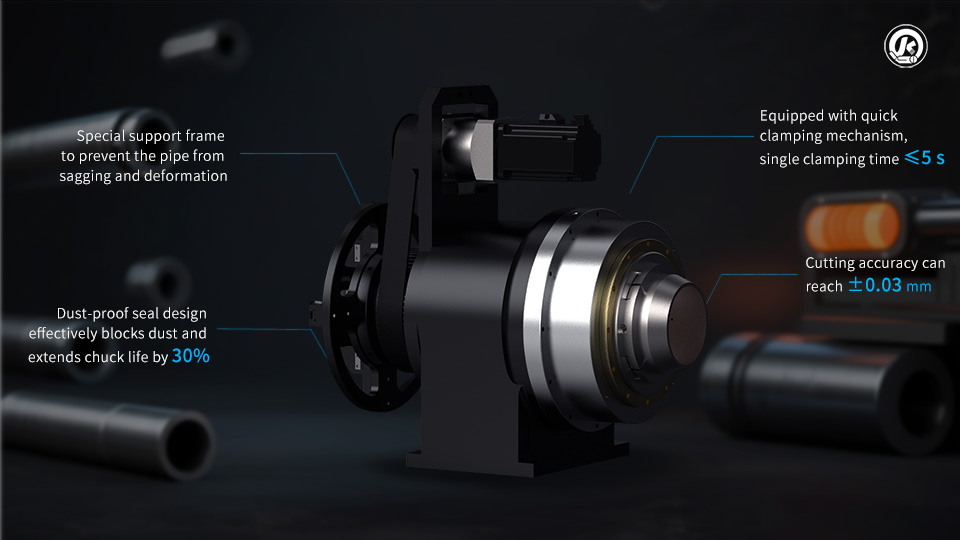

Self-designed and High Precision Chuck
The high-precision clamping capability of the integrated pneumatic chuck ensures stable pipe positioning. Combined with the equipment's ±0.03mm repeatability, this ensures highly consistent cutting dimensions during mass production.
Fully Automatic Feeding Rack
The three-axis fully automatic feeding rack features efficient automated design, stability, durability, and intelligent collaborative functions.

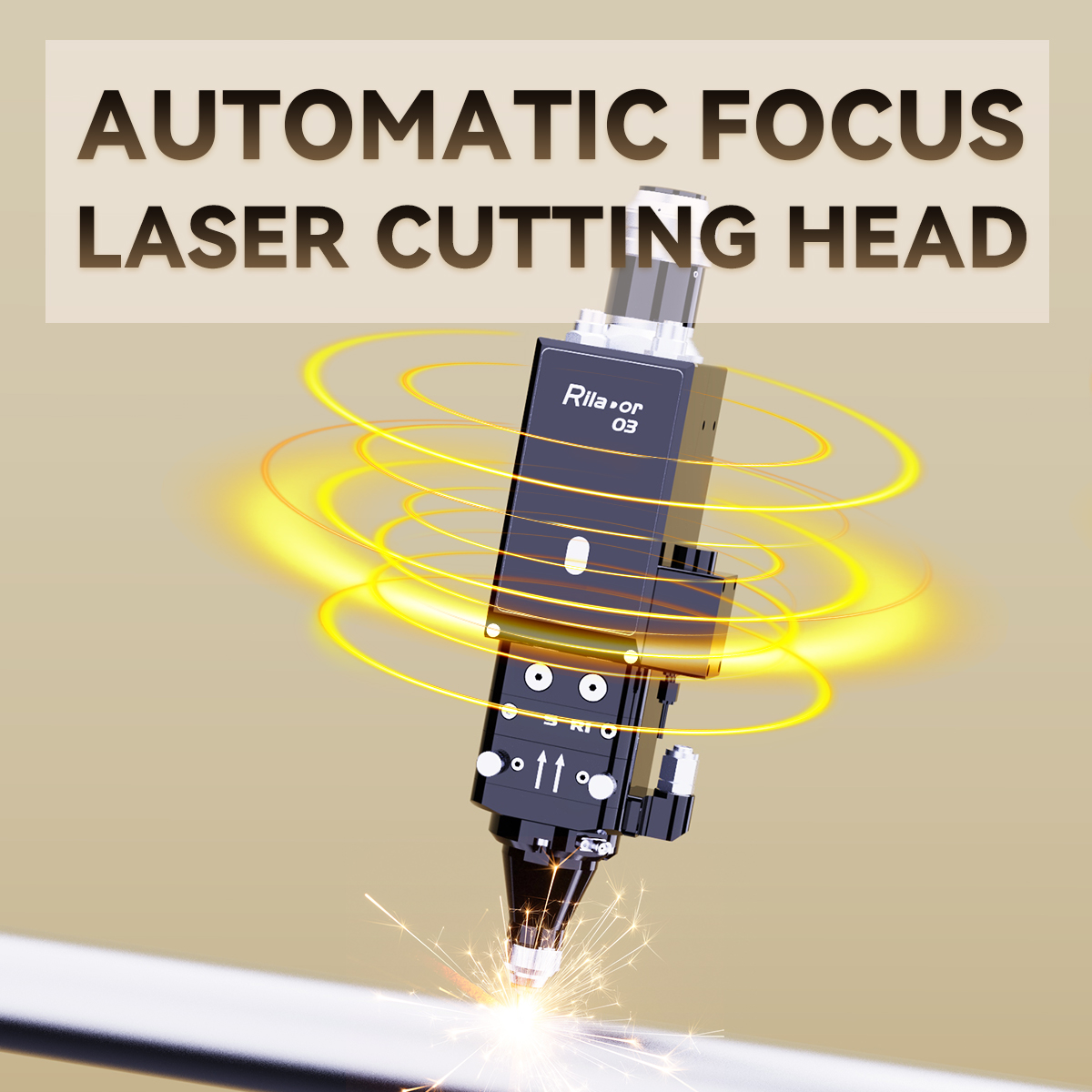

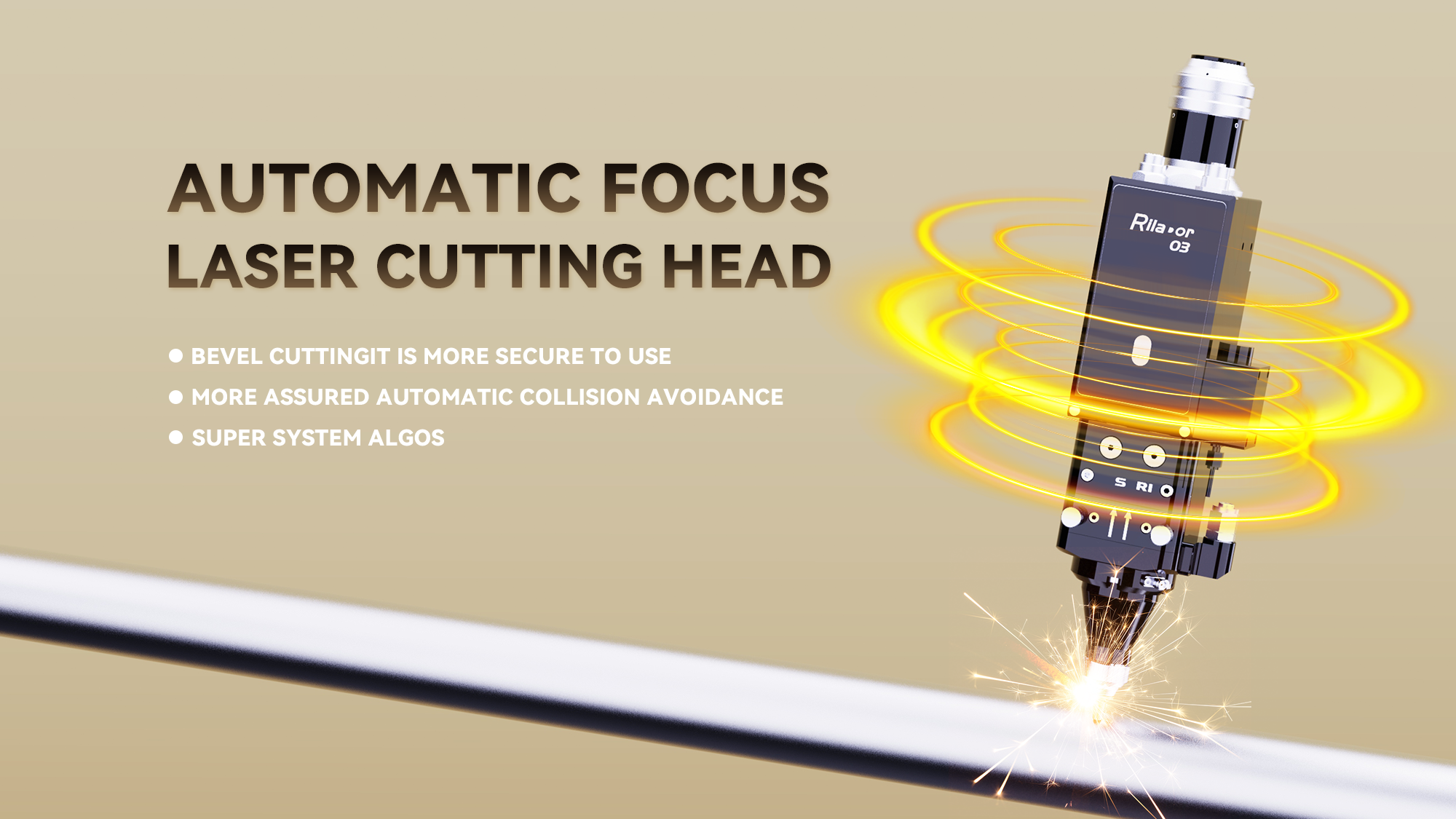

High Precision Cutting Head
Maximum idle running speed of 1600mm/s, enabling faster cutting. Servo-pulling technology enables full-stroke cutting, reducing draw times and processing time by over 30%.
🏠 Application Fields
Furniture industry, maternal and infant products, fitness equipment, outdoor products, medical equipment, automobile manufacturing, door and window guardrails...

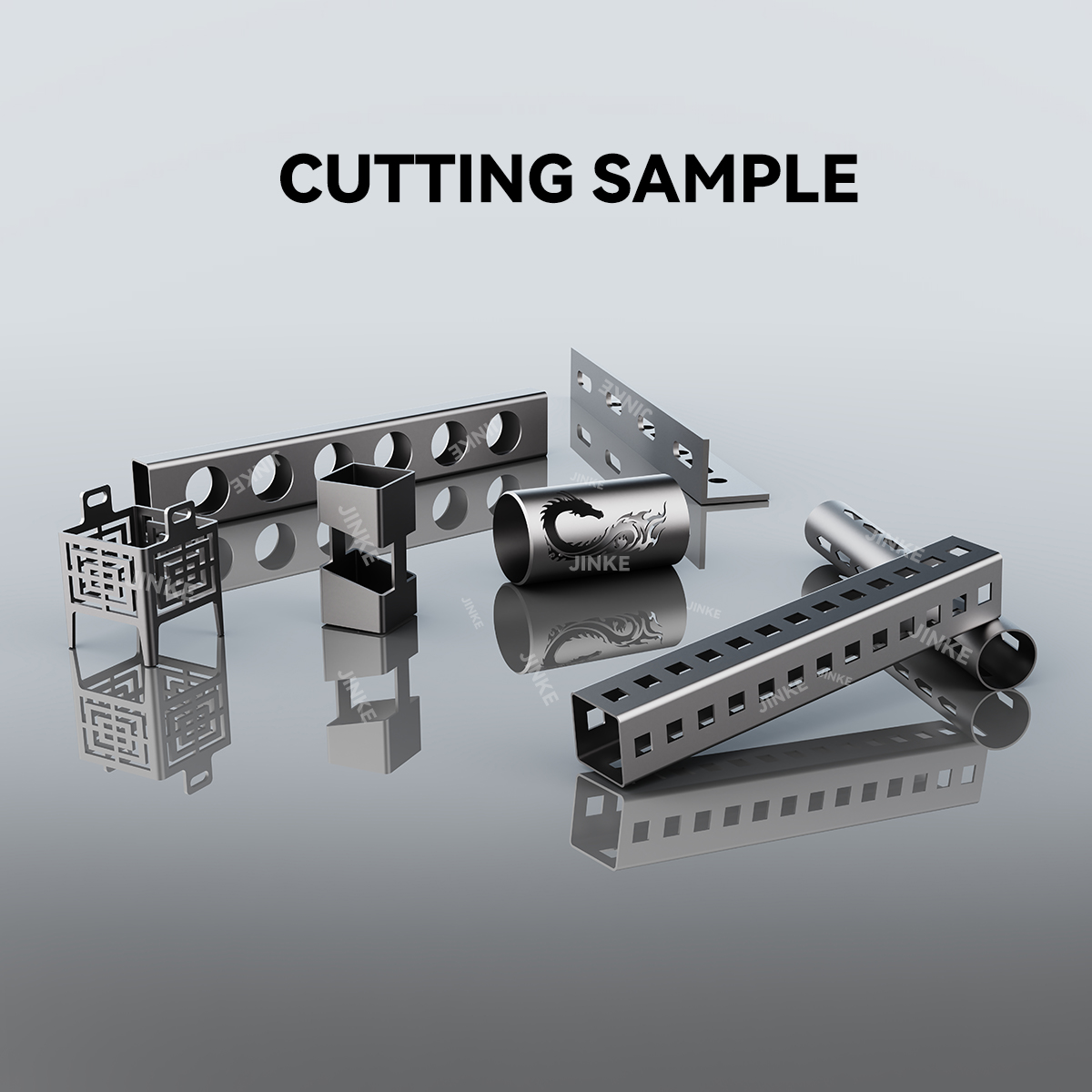

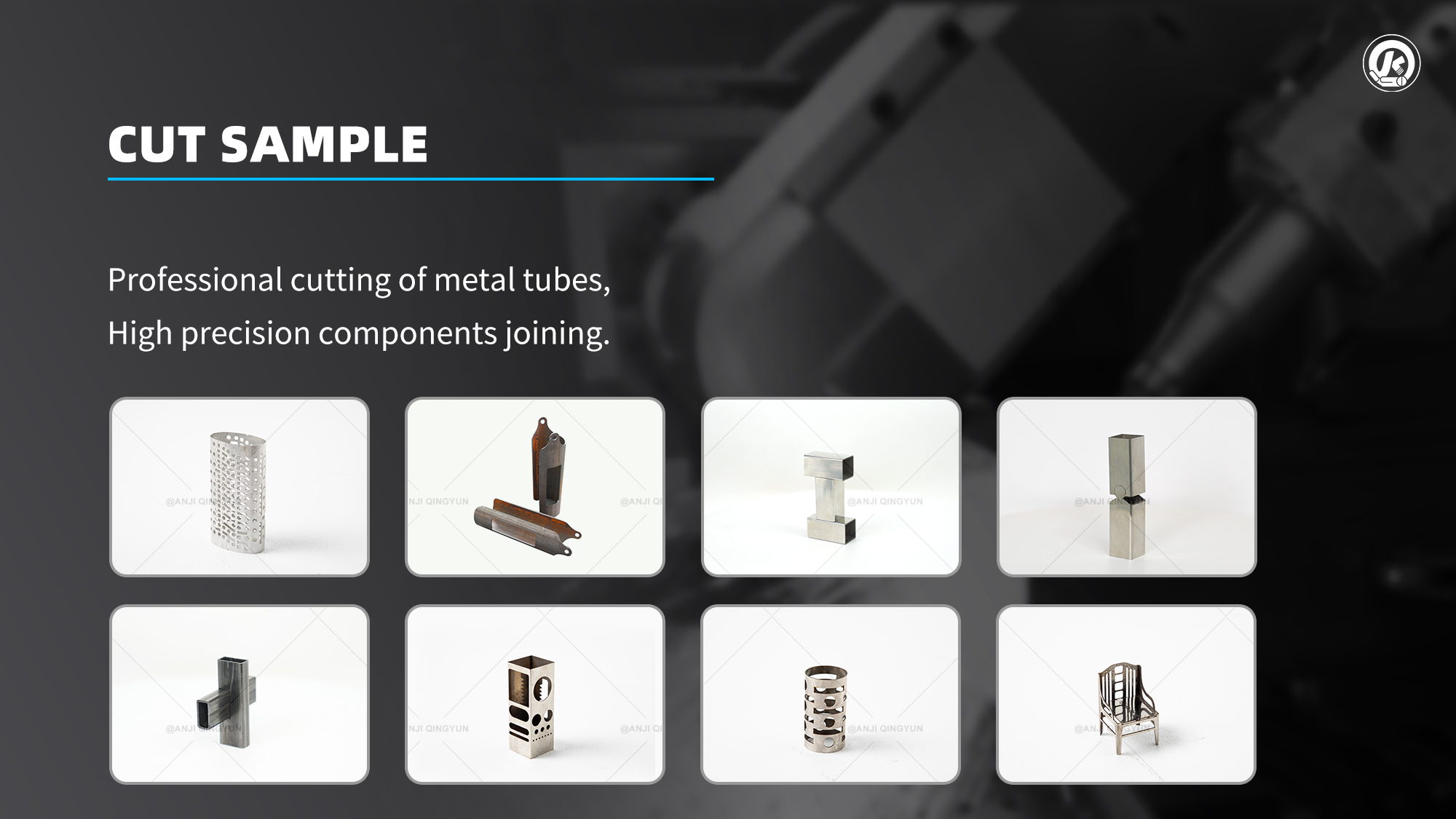

📐 Tube Information
Compatible with round pipes, square pipes (20×20-110×110mm), oval pipes, and special-shaped pipes (such as waist-shaped and H-shaped). The rear-mounted chuck automatically adjusts the position during rotation, avoiding pressure deformation.
🏭 Manufacturing Excellence
The national high-tech enterprise integrates research, development, and production with a base covering 20,000 square meters. Equipped with dozens of high-precision CNC machining centers and large gantry milling machines, achieving independent high-precision manufacturing of core components.

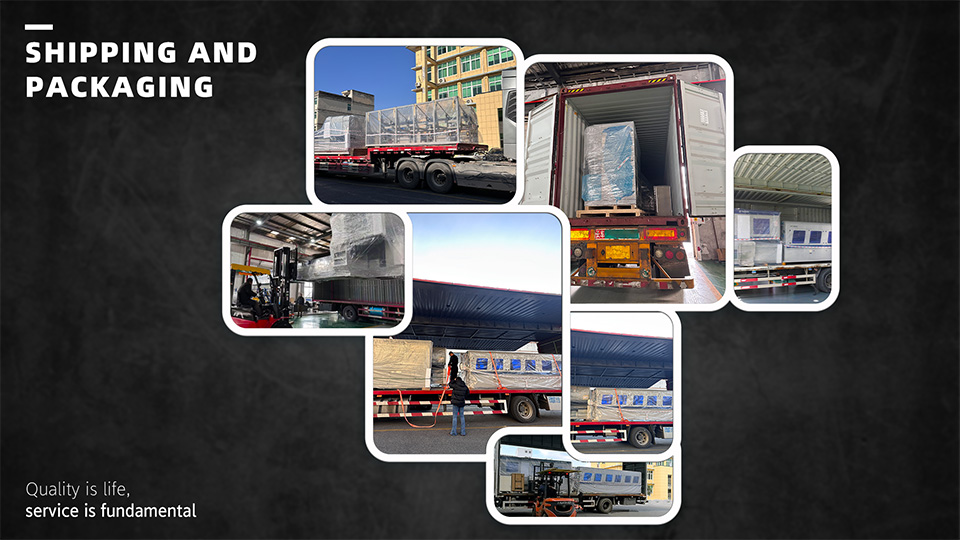

📦 Packing & Delivery
Excellent packaging and delivery ensure the safety of expensive equipment assets, reducing potential claims and delays while shortening the production cycle and improving overall service capabilities.
🛡️ Professional Capability
Specializing in laser tube cutting machines with a skilled technical team, hundreds of patents, and global export experience to Europe, North America, Southeast Asia, and Russia. Providing automation solutions for sanitary ware, automotive, new energy, and more. Missioned to simplify robot usage and deliver genuine value through integrity and innovation.
❓ FAQ
1. How can we guarantee quality?
We always provide a pre-production sample before mass production and conduct a final inspection before shipment to ensure the highest standards.
2. What products can you buy from us?
Our range includes laser cutting machines, tube laser cutting machines, laser pipe cutters, and bevel laser cutting equipment.
3. Can the machine be customized?
Yes, we have a strong technical team with rich experience capable of customizing machines according to your specific requirements.
4. What services do you provide?
We offer various delivery terms (FOB, CFR, CIF, EXW) and payment options (T/T, L/C, D/P). Support is available in English and Chinese.
5. How can I get a sample to check quality?
You can provide your logo or design, and we can provide free marking samples to demonstrate the cutting quality.
6. Can you arrange international shipment?
Yes, we can arrange shipment for our clients by sea or air under various trading terms including FOB, CIF, and EXW.
