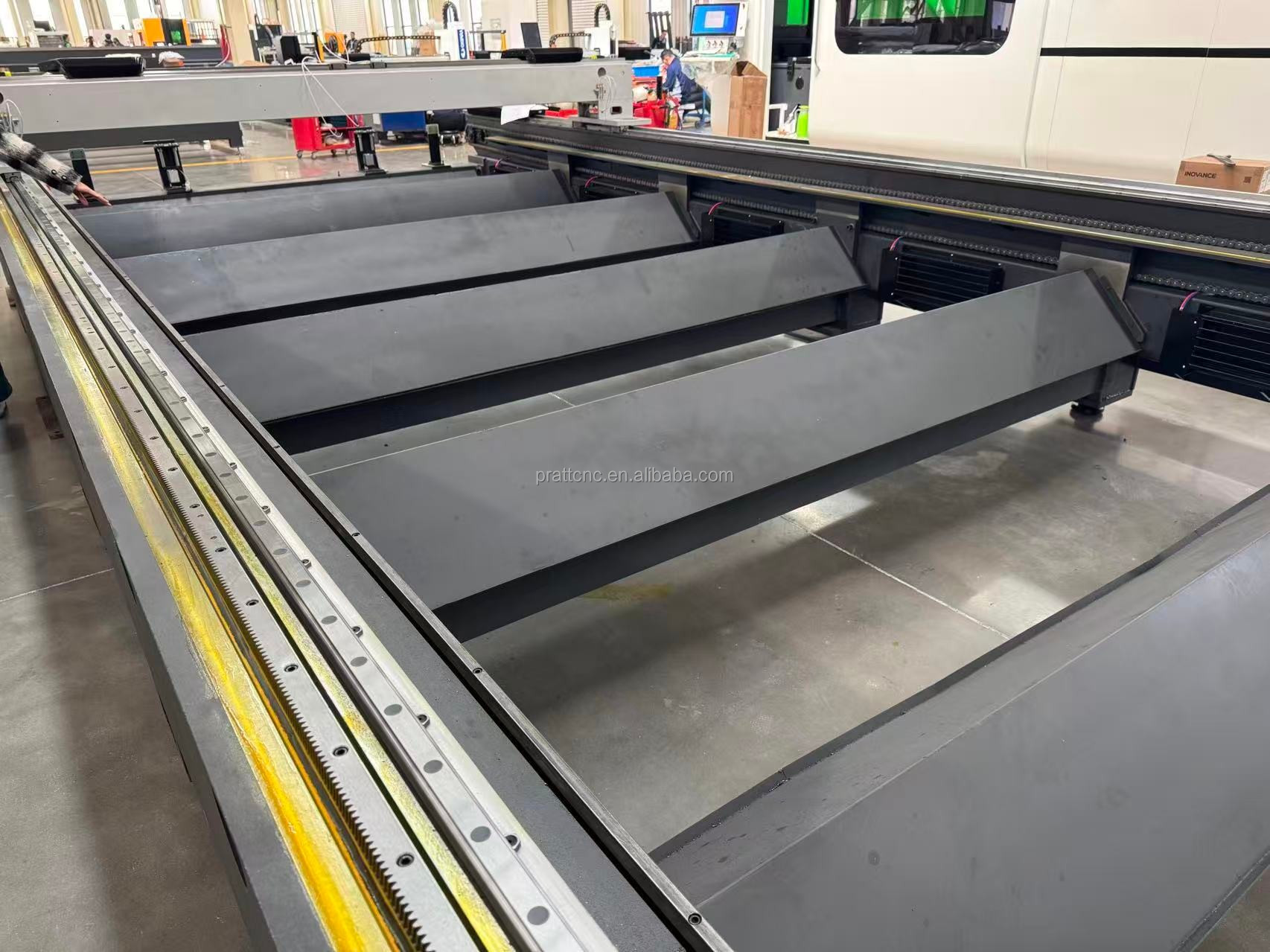

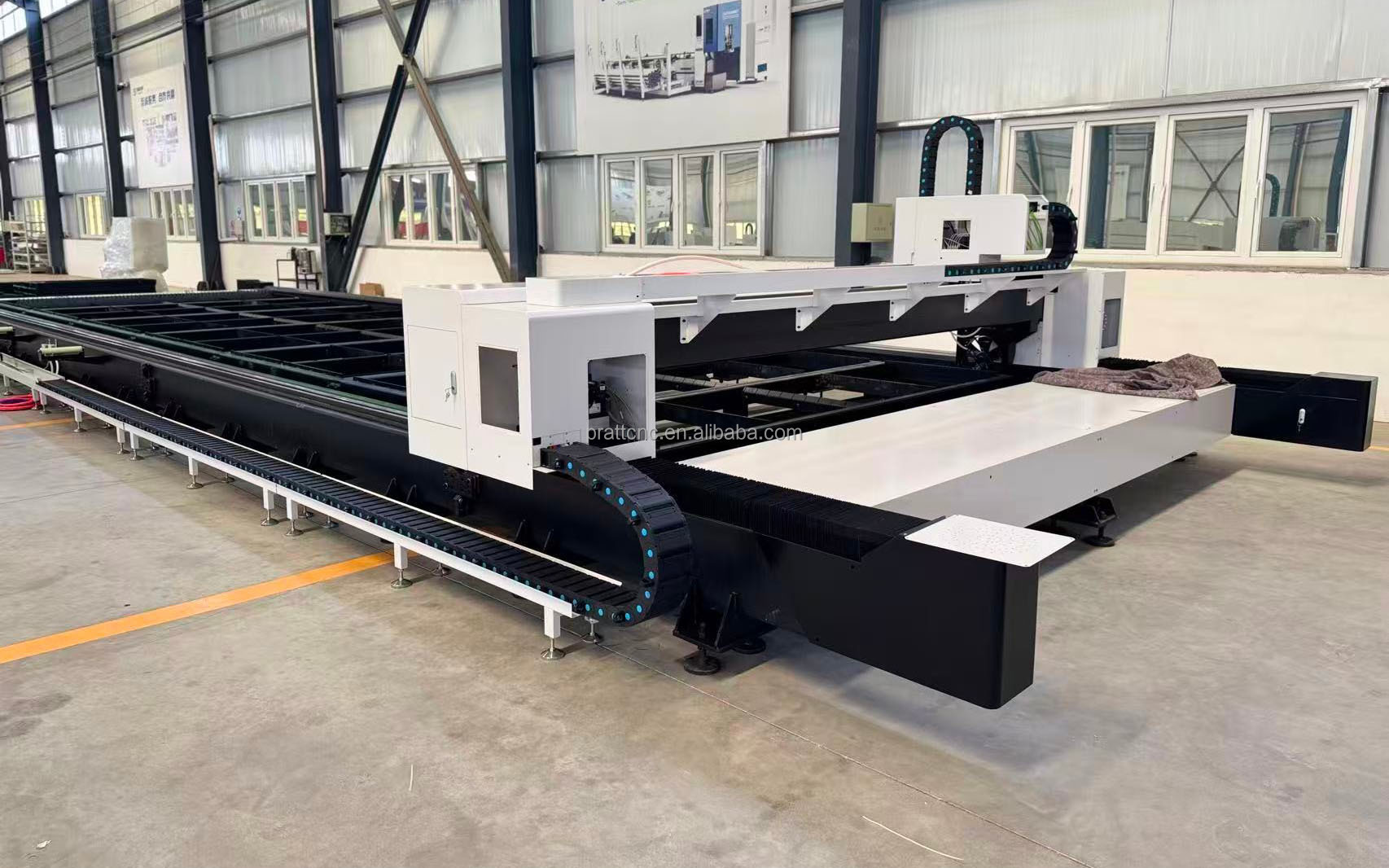

The ground-rail laser cutting machine is a specialized equipment utilizing laser technology for high-precision material processing. It operates on two parallel tracks, enabling rapid and accurate cutting of products between the rails.

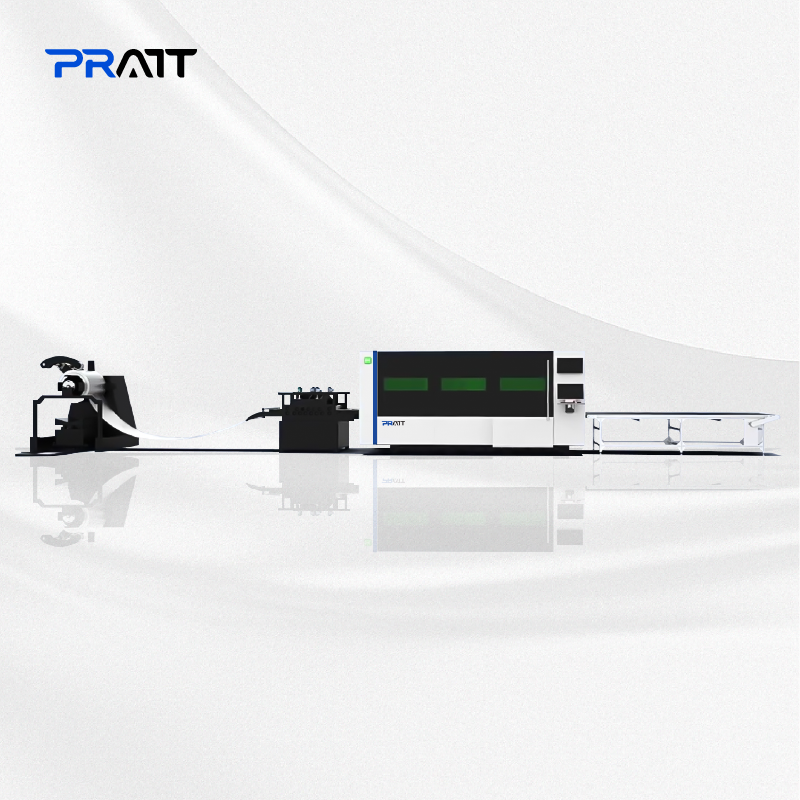

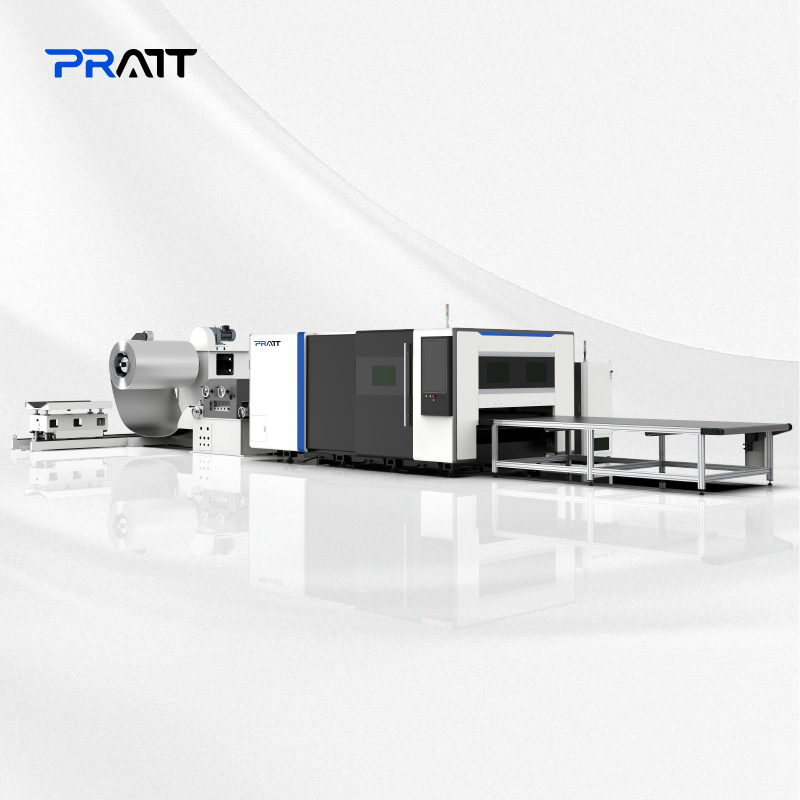

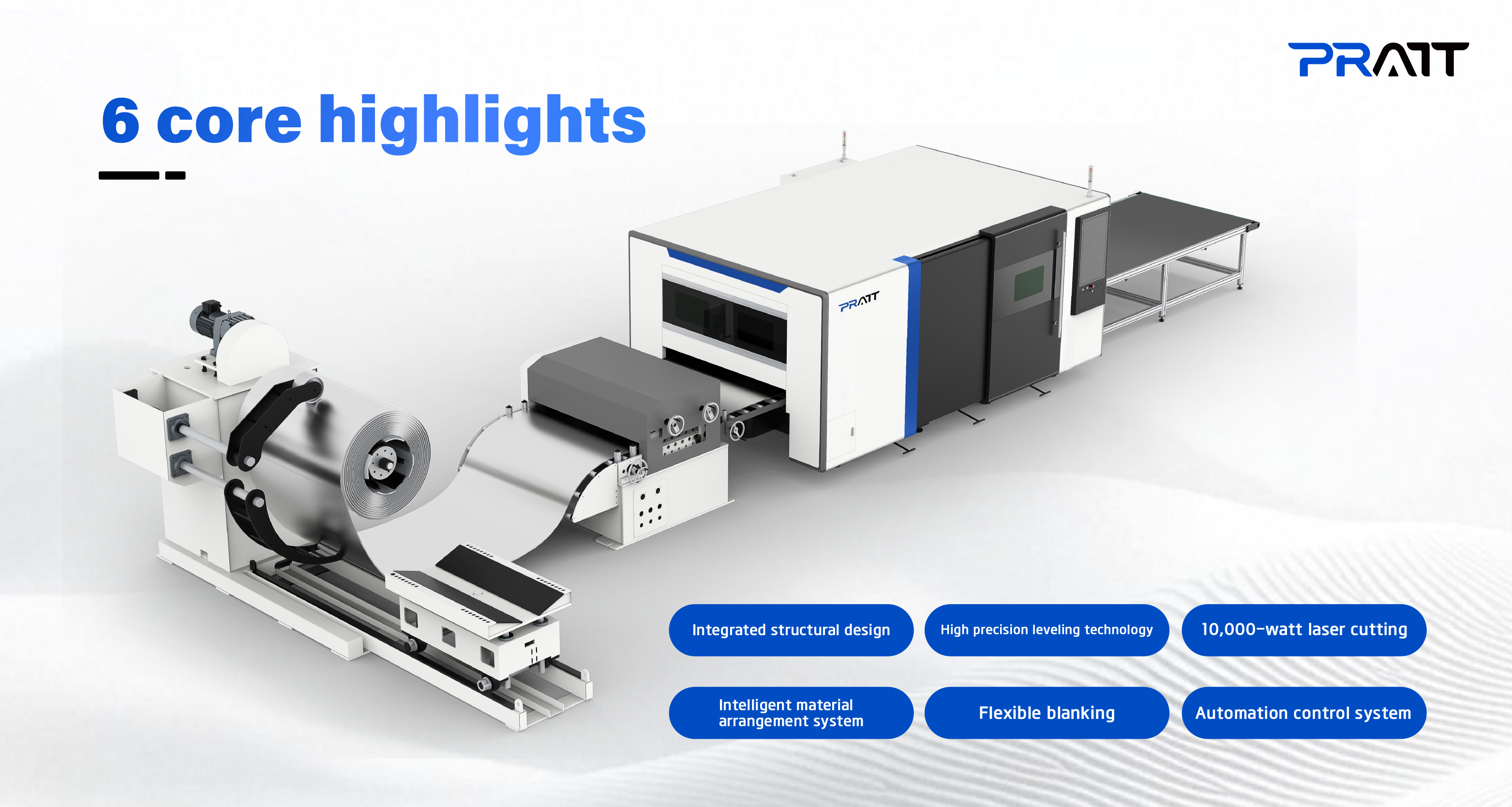

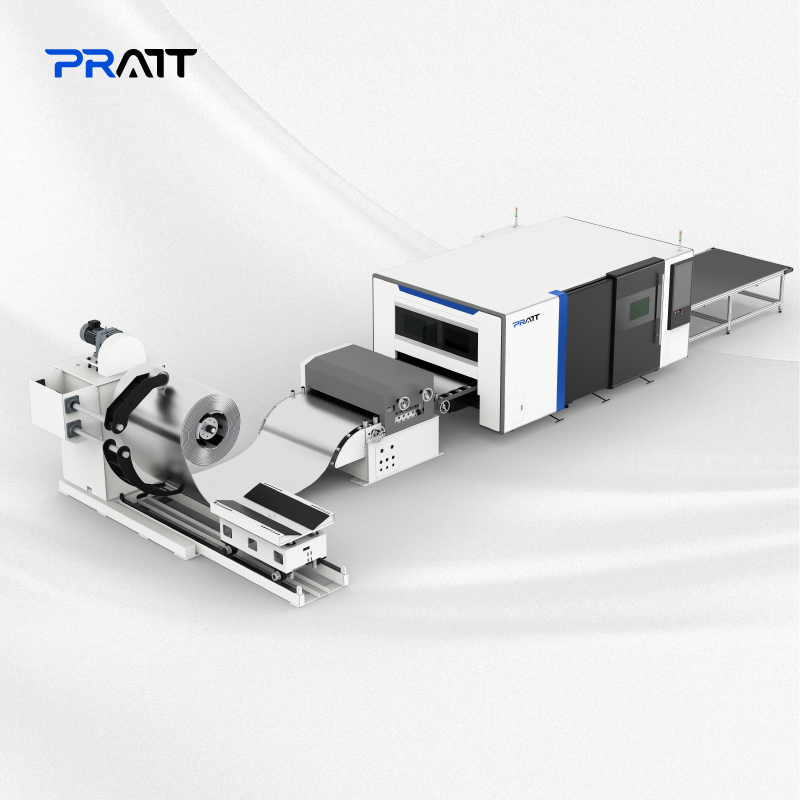

The PRF-3015FC coil-fed fiber laser cutting machine is engineered for the automatic cutting of thin metal sheets, particularly stainless steel. It integrates uncoiling, leveling, and cutting into a single automated workflow, significantly improving efficiency and reducing labor costs.
| Model | PRF-1530FC | PRF-1540FC | PRF1545FC |
|---|---|---|---|
| Total machine weight | 6.2t | 6.7t | 6.9t |
| Working area (mm) | 1515*3030 | 5360*2250 | 5900*2250 |
| Max. acceleration | 1.5G | 1.5G | 1.5G |
| Worktable | Rolling blade | Rolling blade | Rolling blade |
| Positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
| Repositioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Laser power | 1kW – 2kW | 1kW – 2kW | 1kW – 2kW |
| Coil sheet thickness | 0.8-2.5mm | 0.8-2.5mm | 0.8-2.5mm |
| Machine bed | Tube welded bed | Tube welded bed | Tube welded bed |
| X/Y-axis max speed | 140m/min | 140m/min | 140m/min |
| Technical Specifications | ||
| Raw Material | Cold rolled sheet, galvanized sheet, stainless steel | |
| Plate Thickness | 0.5mm ～ 2.0mm | |
| Plate Width | 500mm～1500mm | |
| Coil Weight | ≤10T | |
| Leveling Accuracy | ±1mm / m2 | |
| Diagonal Accuracy | ≤1mm/2000mm | |
| Power Supply | 3φ AC, 400V±5%, 50Hz±2% | |

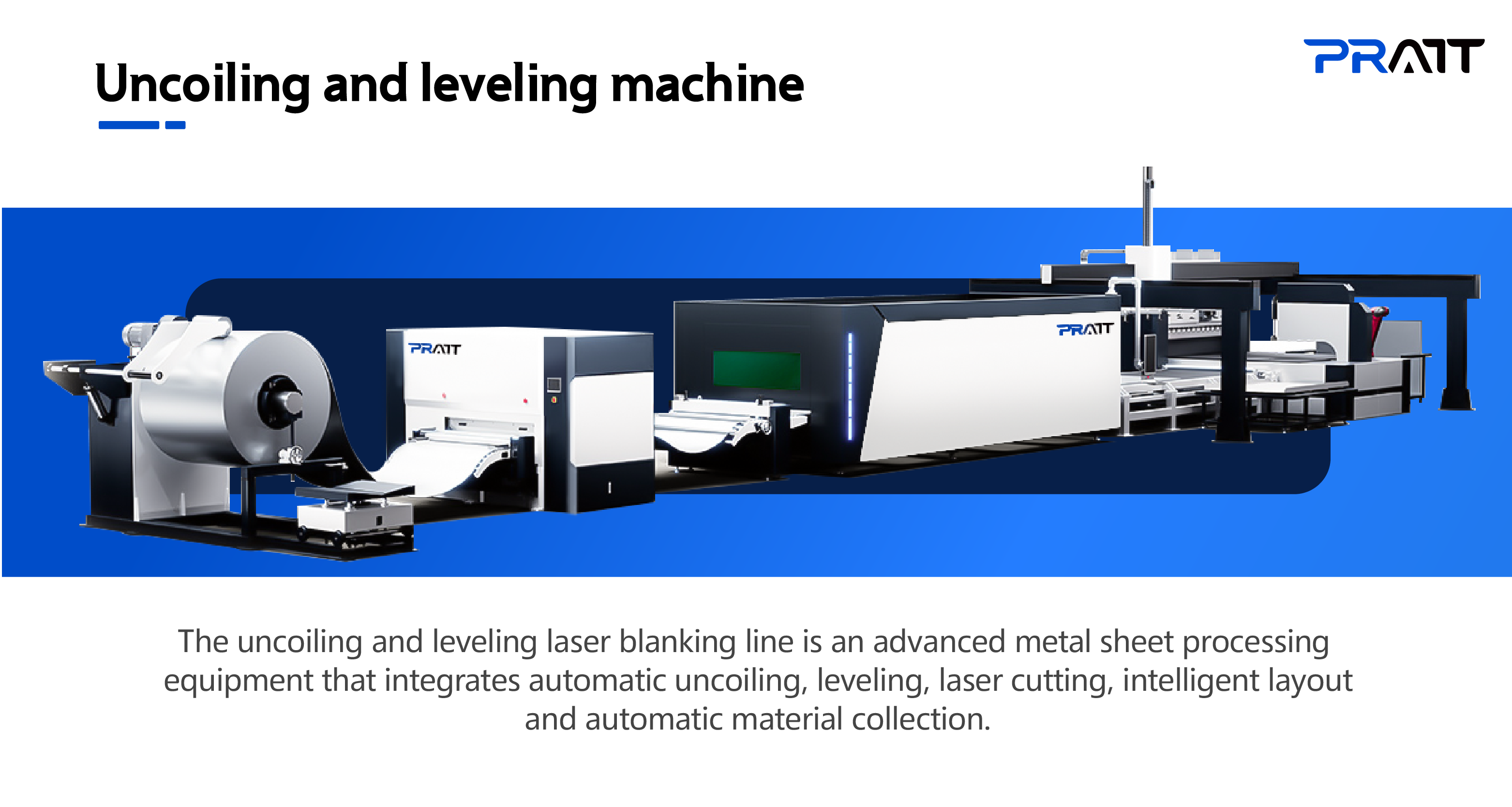

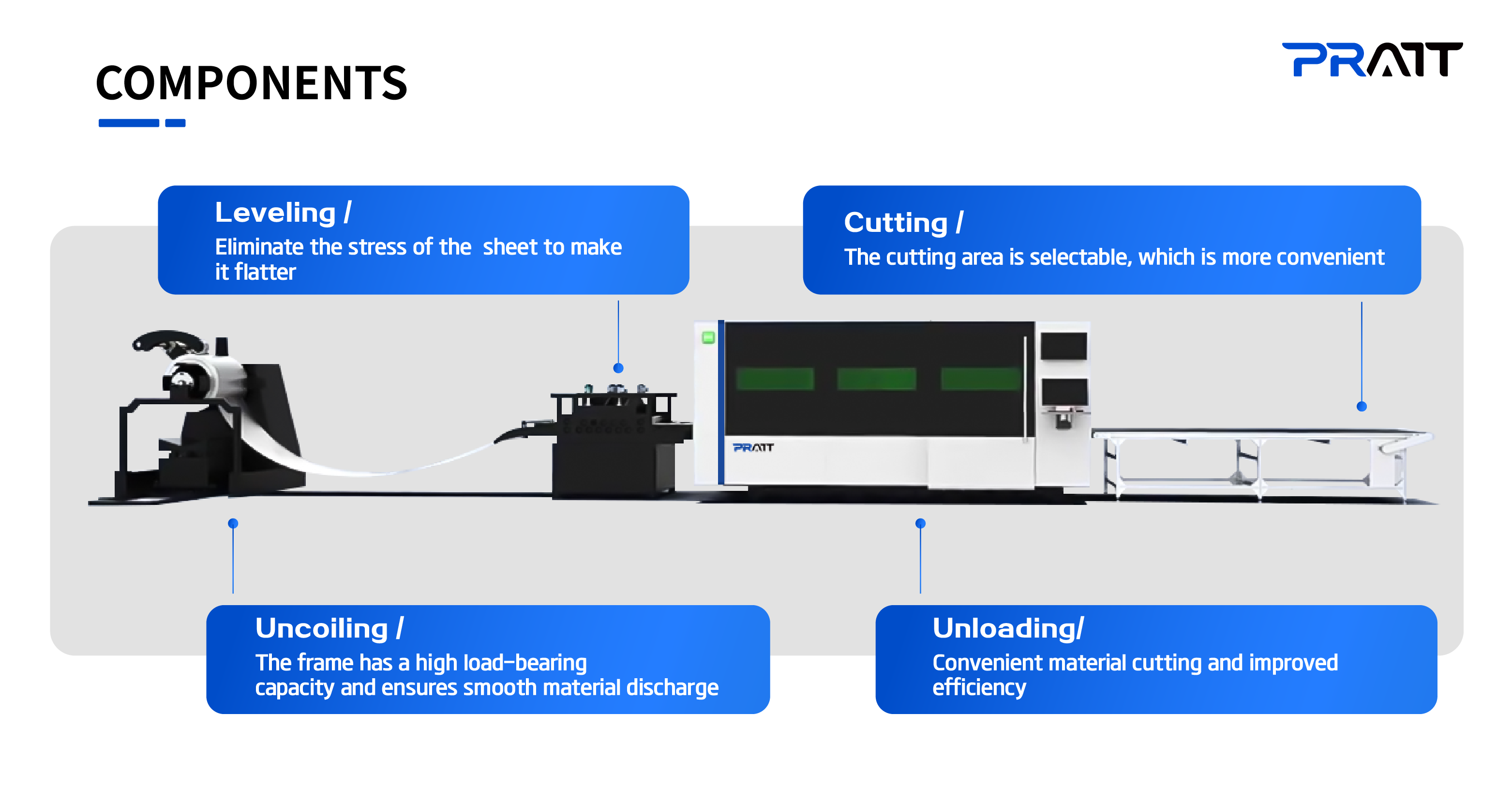

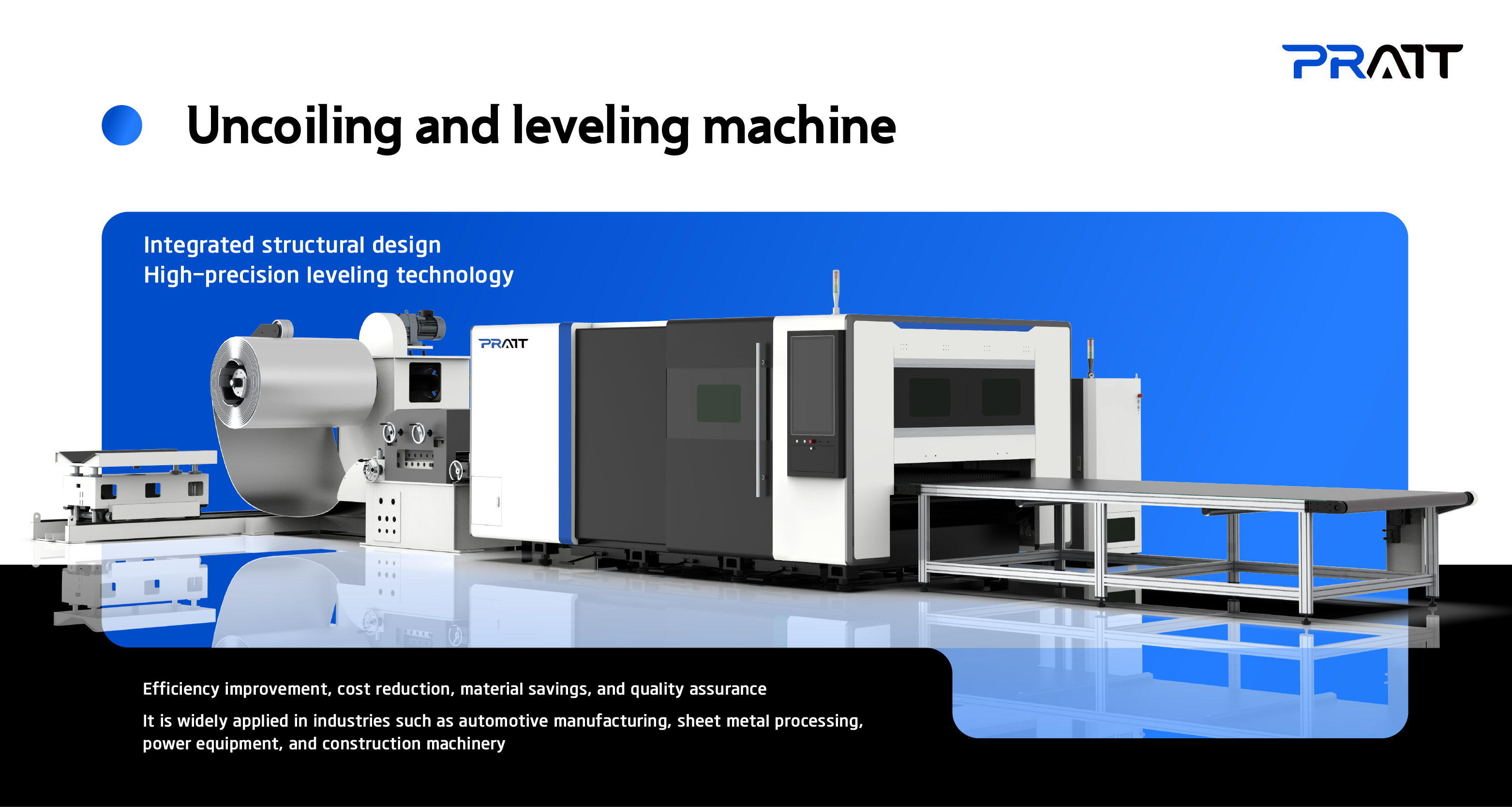

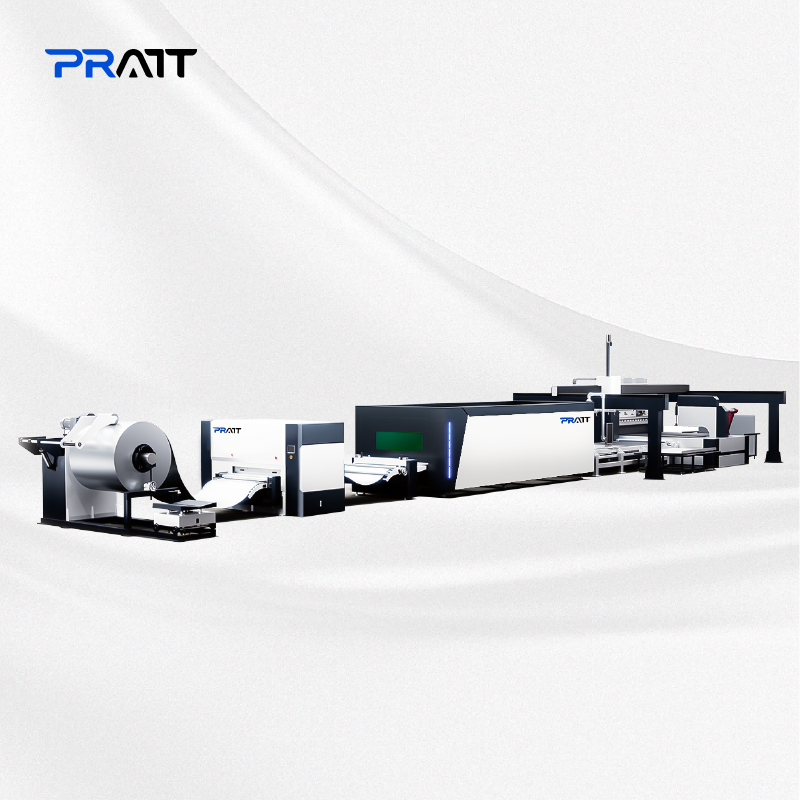

Automatic Loading and Unloading: The system features an uncoiler and leveling machine that automatically unwind and level materials. The workflow includes laser precision cutting, beam-type palletizing, and manipulator automatic palletizing. This end-to-end automation covers conveying, opening, leveling, cutting, waste collection, and finished product stacking.
