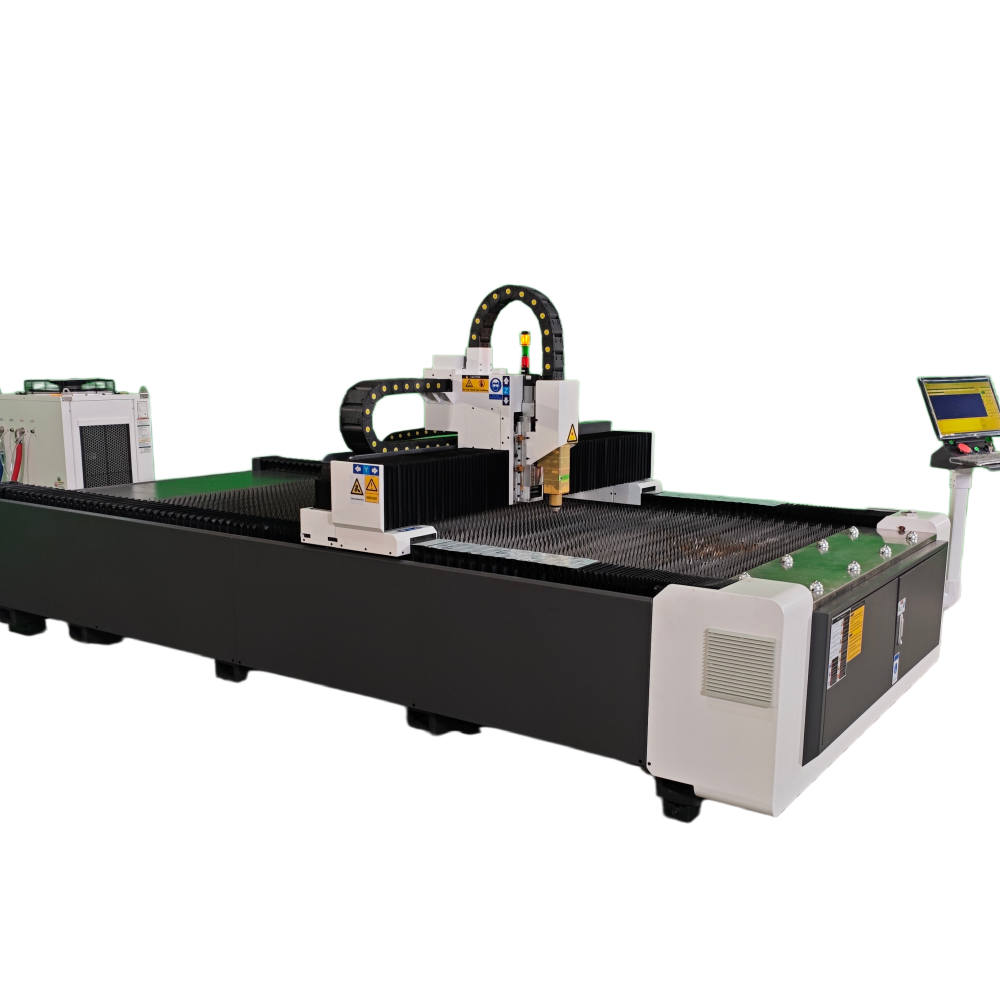

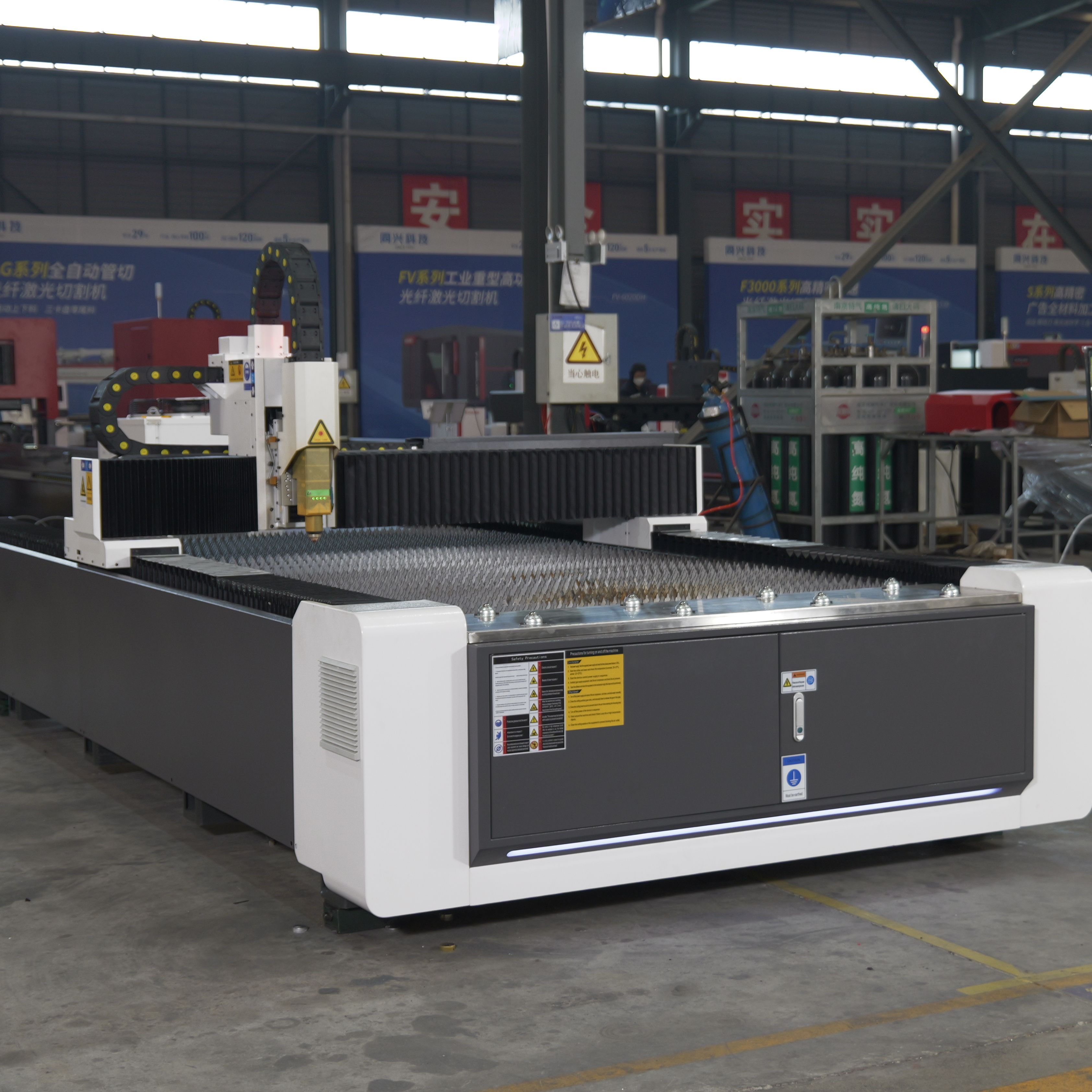

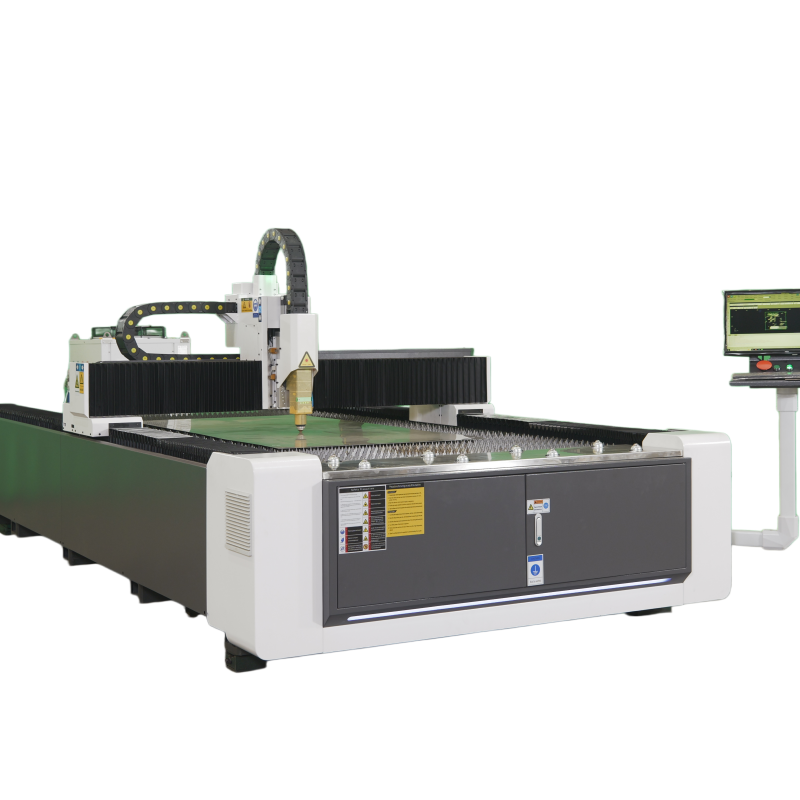

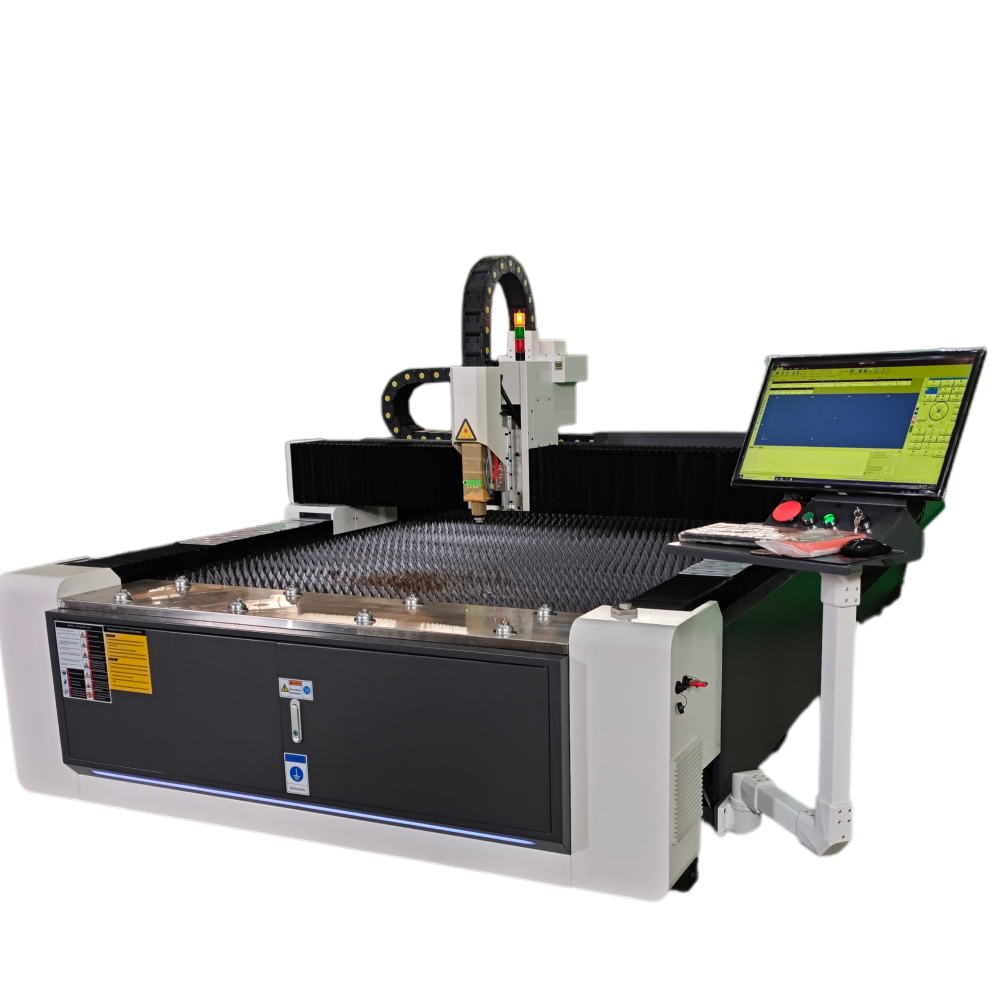

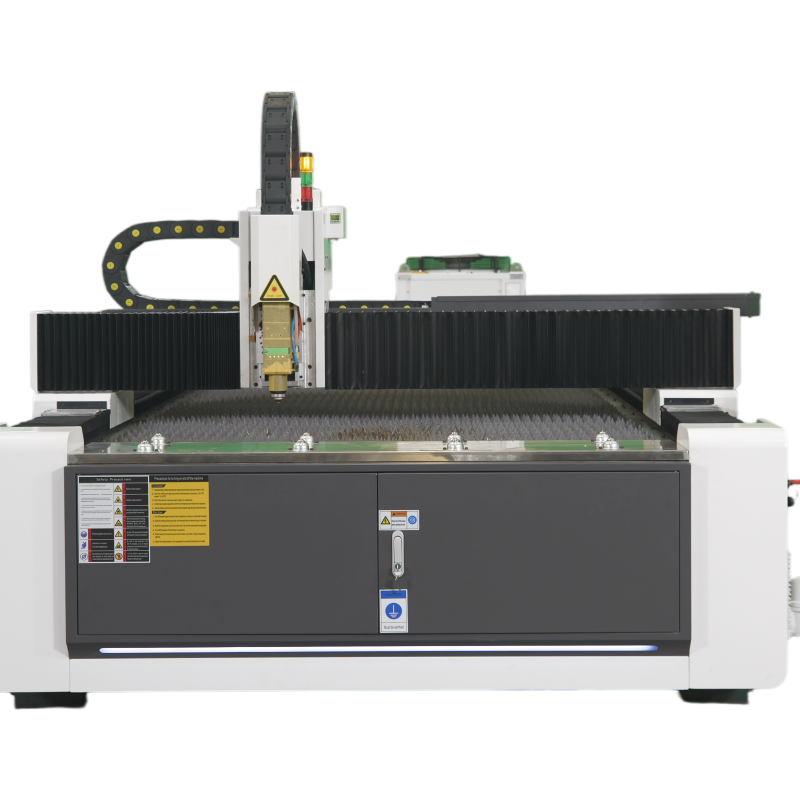

Customizable 3015 Laser Cutting Machine for Personalized Needs
Customizable 3015 Laser Cutting Machine for Personalized Needs
Customizable 3015 Laser Cutting Machine for Personalized Needs
Customizable 3015 Laser Cutting Machine for Personalized Needs
Customizable 3015 Laser Cutting Machine for Personalized Needs
1 / 5
Customizable 3015 Laser Cutting Machine for Personalized Needs
Customizable 3015 Laser Cutting Machine for Personalized Needs
Customizable 3015 Laser Cutting Machine for Personalized Needs
Customizable 3015 Laser Cutting Machine for Personalized Needs
Customizable 3015 Laser Cutting Machine for Personalized Needs

Customizable 3015 Laser Cutting Machine for Personalized Needs

Send Inquiry

Product Description

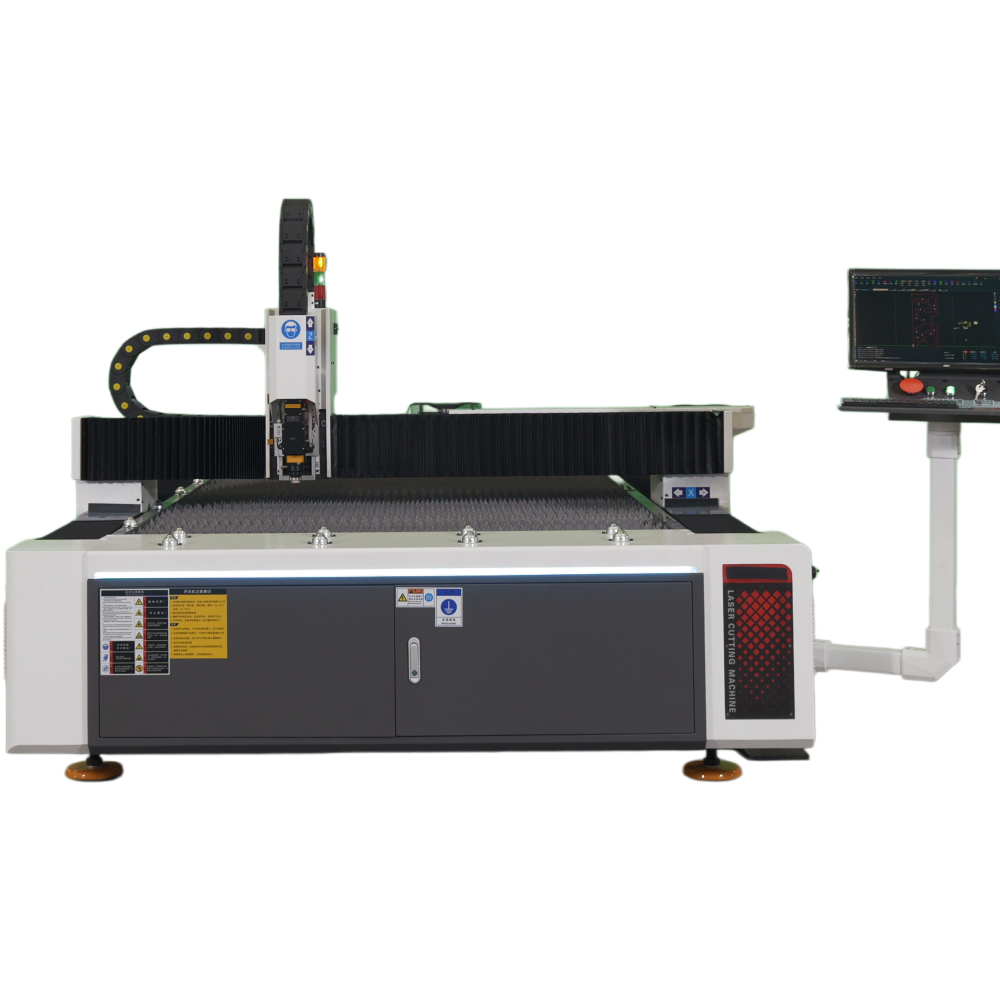

Fiber Laser Cutting Machine Overview

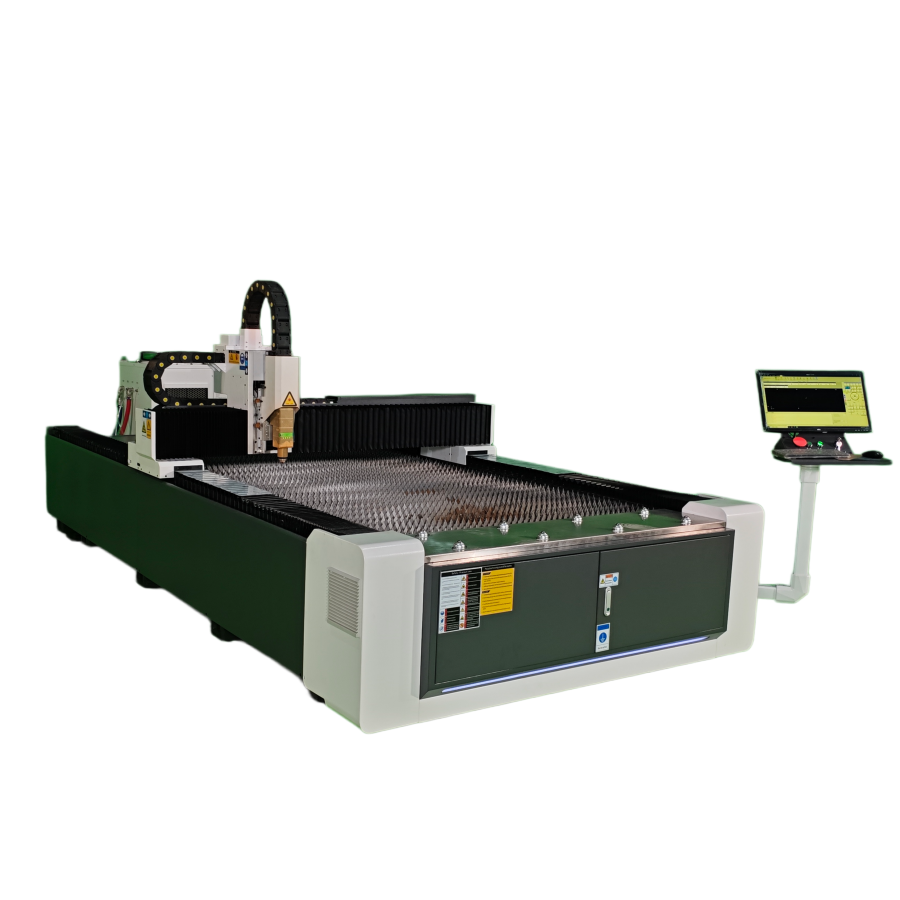

Laser Cutting Performance
Model Type F-3015 F-4015 F-4020 F-6020
Cutting Width 1500×3000mm 1500×4000mm 2000×4000mm 2000×6000mm
Laser Media Fiber Laser
Power 1000w/1500w/2000w/3000w
Min. Route Width 0.01mm
Reposition Accuracy ±0.05mm
Wave Length 1080nm
Aiming Positioning Red Dot
Voltage Requirement 220V or 380V / 50Hz~60Hz
Linear Rail Taiwan Lapping/Japan THK(optional)
Reducer Japan Shimpo
Laser Source RAYCUS/MAX/IPG(optional)
Cutting Head WSX/Raytools
Servo System France Schneider AC Servo System
Control System Cypcut/Weihong NC Studio
◈
Industrial Independent cabinet with separation of strong and weak electricity for safety.
◈
Industrial steel welding machine body under heat treatment ensures no deformation over long-term use.
◈
5-Axis gantry CNC milling center processing (milling, drilling, tapping) ensures high assembly accuracy.
◈
3-Axis Taiwan Lapping rail provides smooth, wear-resistant, and dust-proof operation.
◈
X/Y Axis grinding rack with high-precision reducer and Z axis grinding screw.
◈
X/Y/Z Axis equipped with HCFA / INNOVANCE AC servo driver systems.
◈
Professional CNC Laser Control System with WSX/Raytools cutting head and high-sensitivity optical lens.
◈
Compatible with various software for flexible graphic design and instant cutting operations.
Machine Detail 1
Machine Detail 2
Machine Detail 3
Machine Detail 4

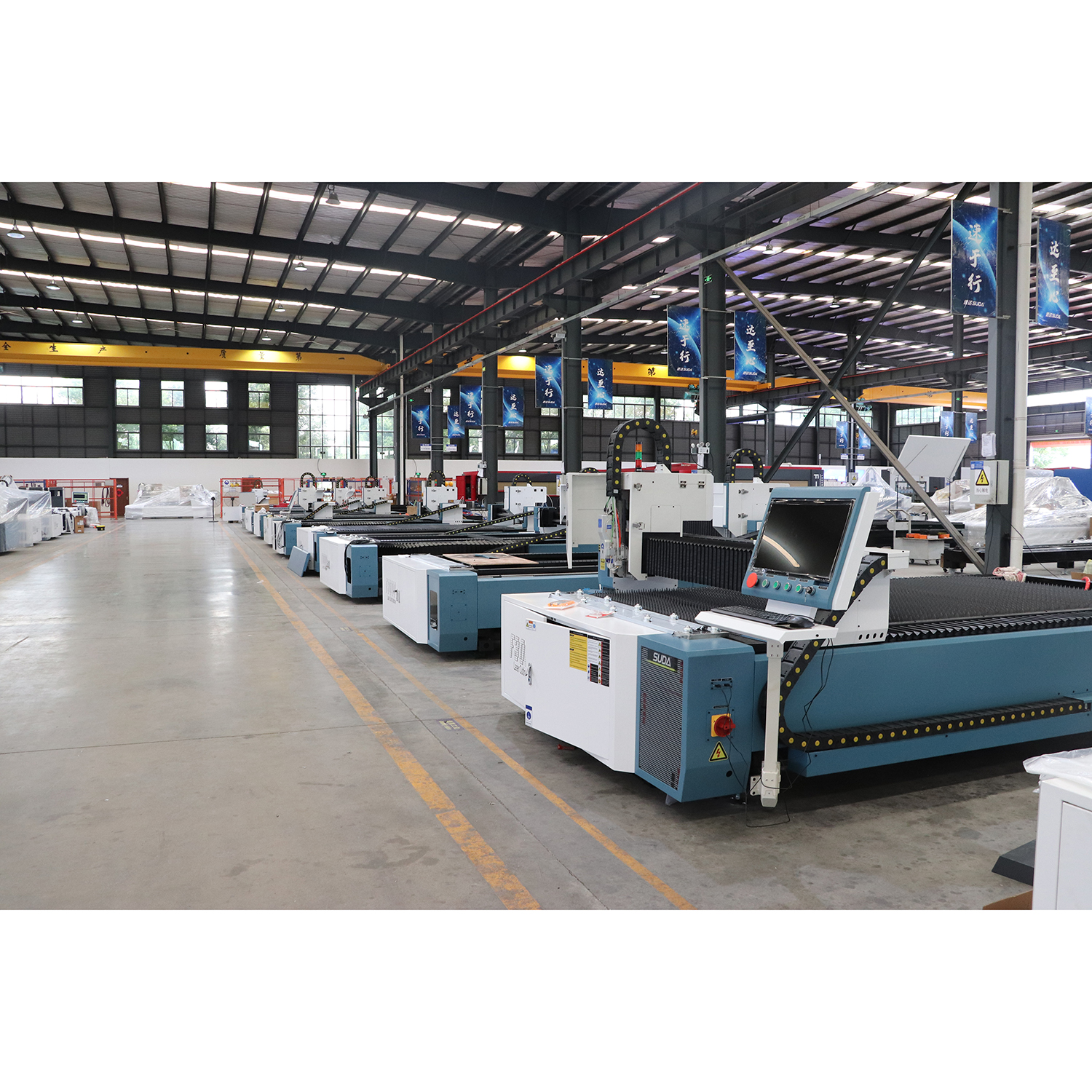

Machine Detail 5
Machine Detail 6
Machine Detail 7
Machine Detail 8
Machine Detail 9
Frequently Asked Questions
What materials can this fiber laser machine cut?
This machine is designed for high-precision cutting of various metals, including carbon steel, stainless steel, aluminum, brass, and copper.
What is the expected lifespan of the fiber laser source?
The fiber laser source (such as Raycus, MAX, or IPG) typically has a service life of over 100,000 hours, depending on usage and maintenance.
Does the machine body deform over time?
No, the machine body is made of industrial-grade welded steel and undergoes professional heat treatment to ensure long-term stability and zero deformation.
What control systems are compatible with this equipment?
The machine standardly supports professional CNC systems like Cypcut or Weihong NC Studio, which are user-friendly and highly efficient.
Is the machine compatible with international voltage standards?
Yes, the machine can be configured to meet different power requirements, typically 220V or 380V at 50Hz or 60Hz.
What kind of accuracy can I expect?
With high-precision linear rails and reducers, the machine achieves a repositioning accuracy of ±0.05mm and a minimum route width of 0.01mm.
