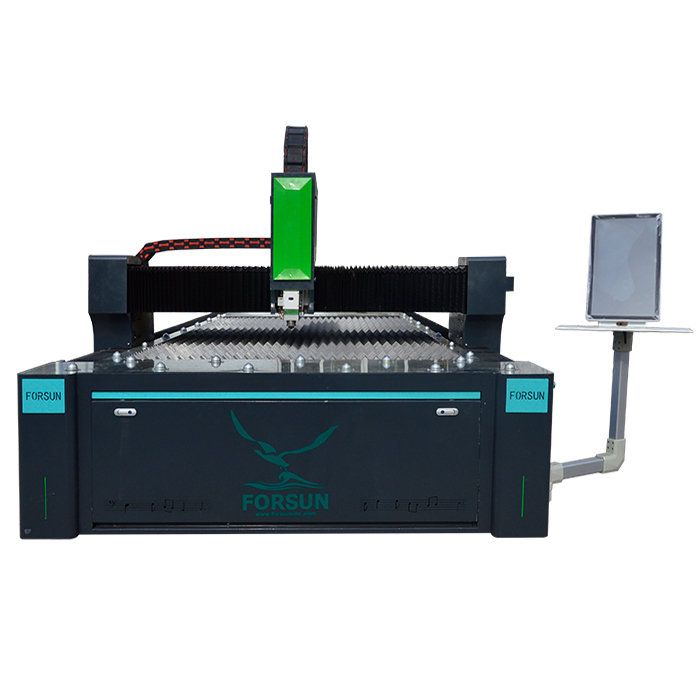

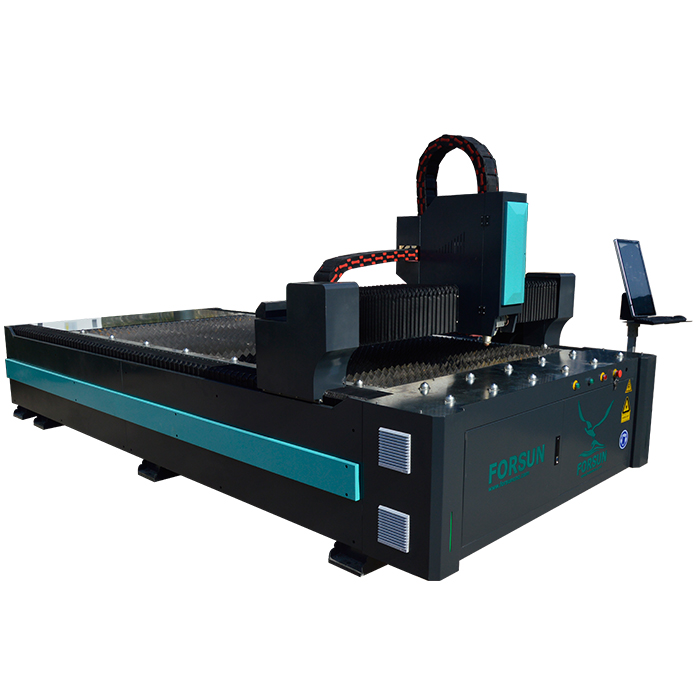

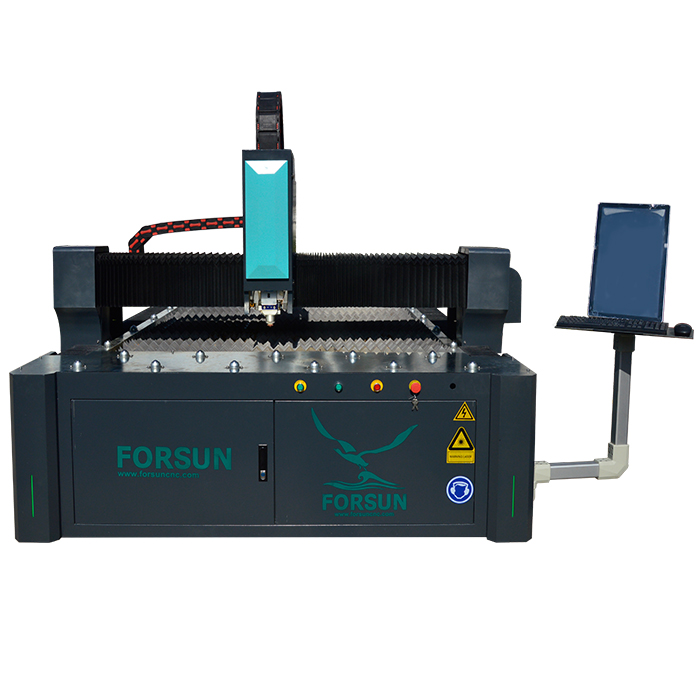

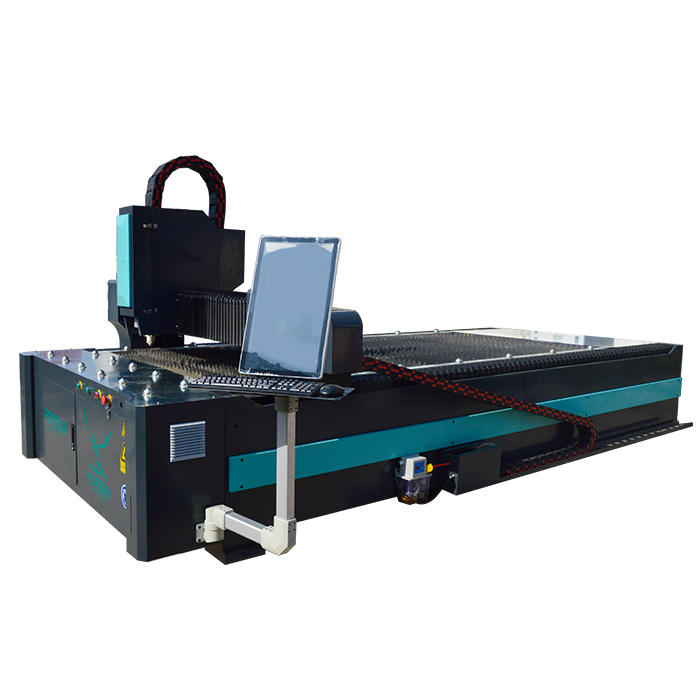

Datum Machine
Datum Machine
• Effective cutting size: 3000*1500mm*200mm
• Raytools Fiber Laser Cutting Head
• Cypcut control system
• Delta servo motor
• Raycus / Maxphotonics Fiber Laser
• Sawteeth working table
• Taiwan TBI Ball Screw, Germany Helical Rack and Pinion
• 4th Rotary Axis for Metal Tubes
• Enclosed cover, protect from laser
• Japan Shimpo Reducer
| NO. | Description | Parameter |
|---|---|---|
| 1 | Laser Source | Raycus / Maxphotonics |
| 2 | Positioning Accuracy | ±0.02mm/300mm |
| 3 | Laser Power | 500w, 750w, 1000w, 1500W, 2000W, 3000W etc |
| 4 | Maximum Speed | 100M/min |
| 5 | Running Environment Temperature | 0 - 45 Centigrade |
| 6 | Relative Humidity | 30% - 75% |
| 7 | Voltage | 3PH, AC 380V/50HZ |

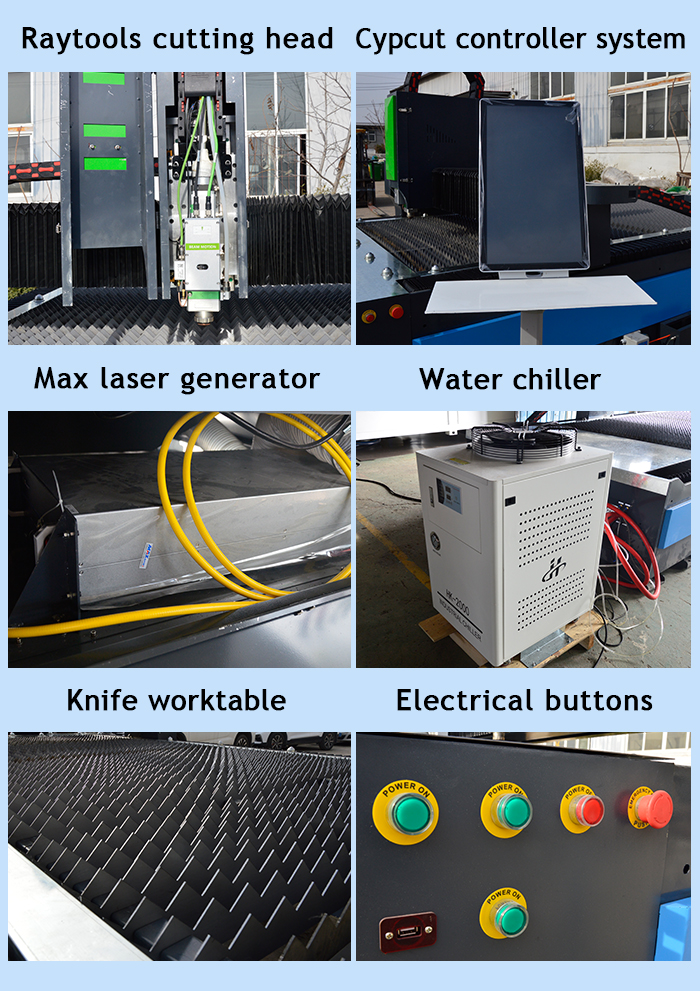

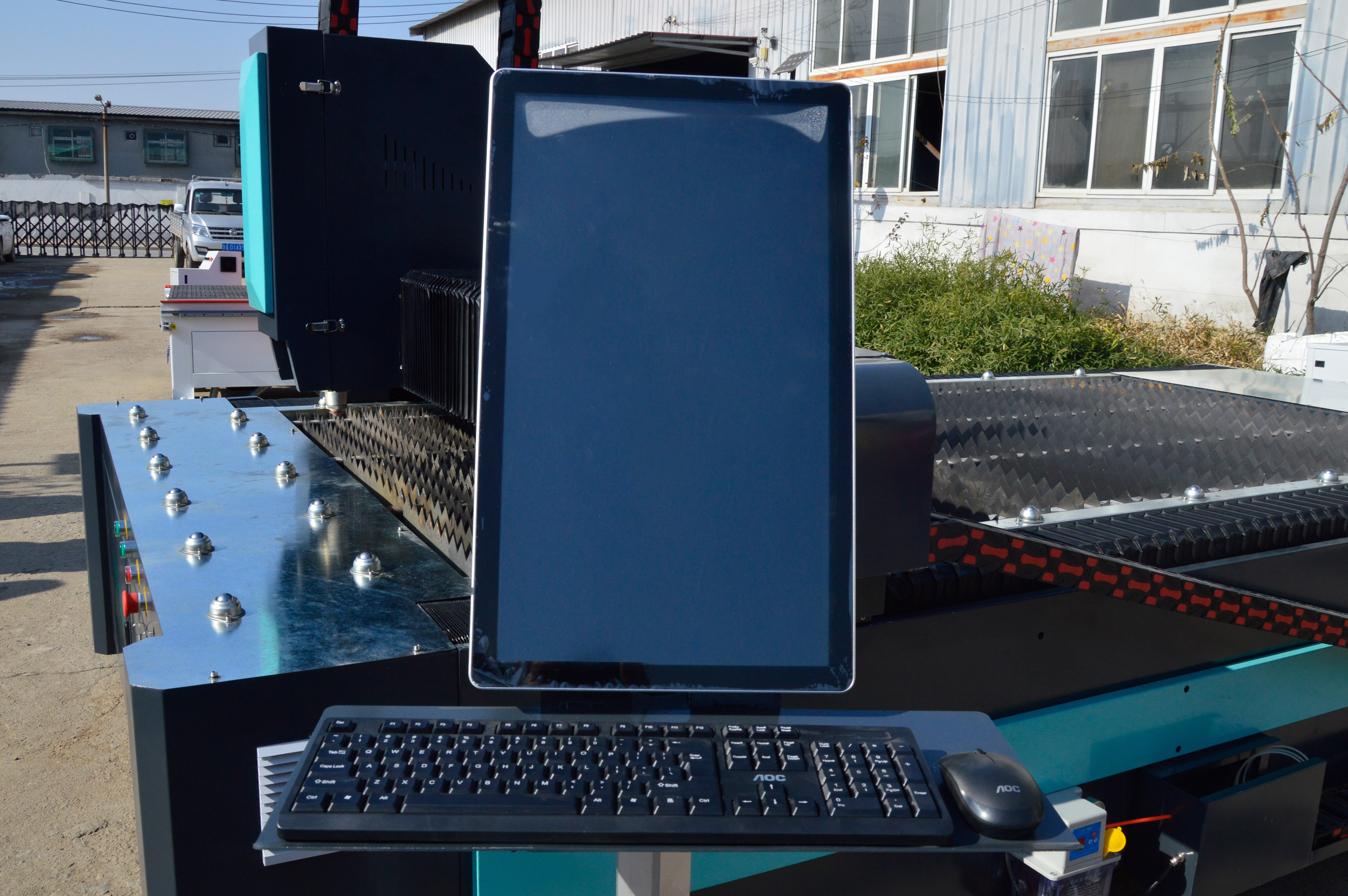

Cypcut control system: realize intelligent layout of graphics, automatically choosing and matching cutting paths, save processing time.
Famous Brand Raycus / Maxphotonics: Solid state laser lasts over 50,000hrs; Various power options available.
Raytools cutting head: Focal point automatically adjusted to achieve the best effect for different thicknesses.
Japan YASKAWA Servo driver and motor: Providing strong power and high precision performance.
Japan Shimpo Reducer: The world's top reducer brand, making machine more powerful and stable.
Precision cutting: Reaches ±0.02mm/300mm for professional results.

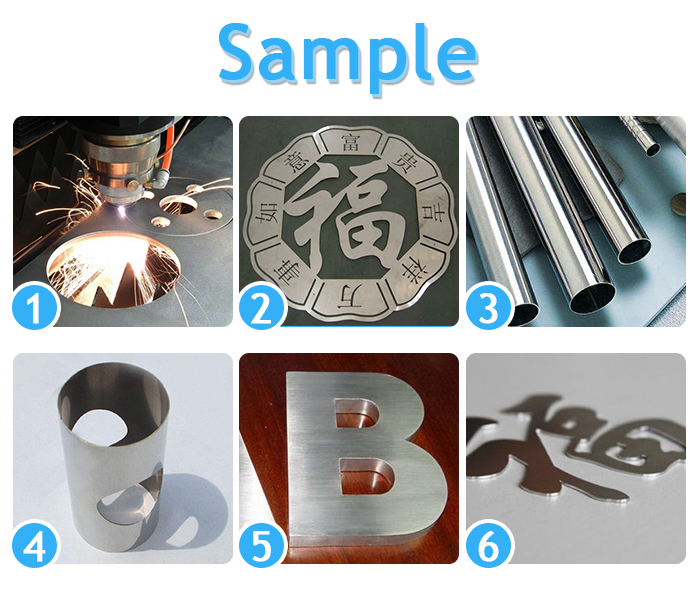

Widely used in advertising decoration, kitchen ware, engineering machinery, steel and iron, automobile, metal plate chassis, air-conditioner manufacturing, and metal plate cutting.
Carbon steel: 0-20mm; Stainless steel: 0-10mm. Professional used to cut thin sheet metal, aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, and more.
1.5 years for the whole machine. Spare parts provided for free within 18 months under normal use. Lifetime technical support included.
24/7 support via phone, email, and social apps. English manuals and operation videos provided. Engineers available for overseas service.

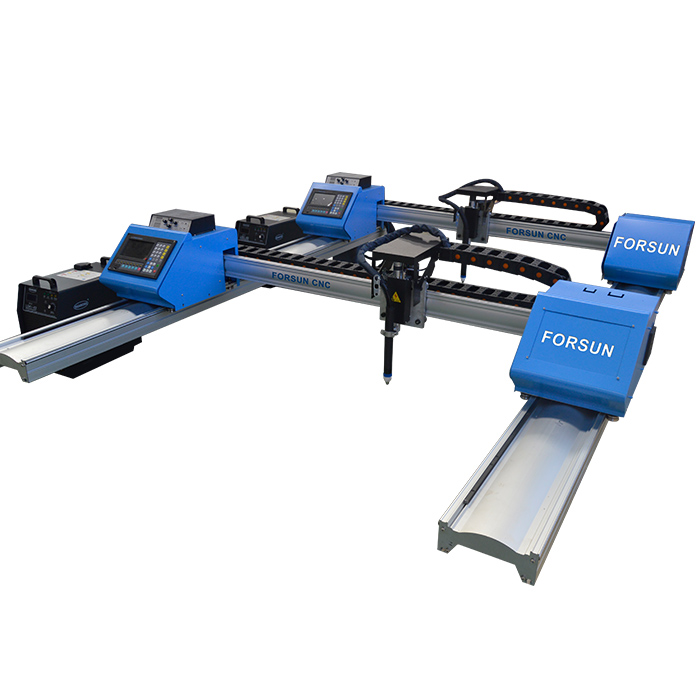

Plasma Cutting Machine
Economical CNC Router

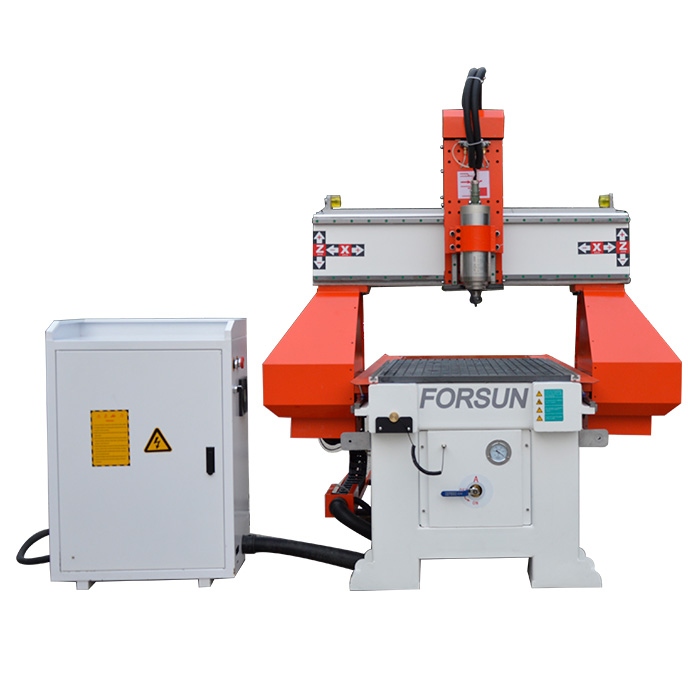

Mini CNC Router
