Product Overview

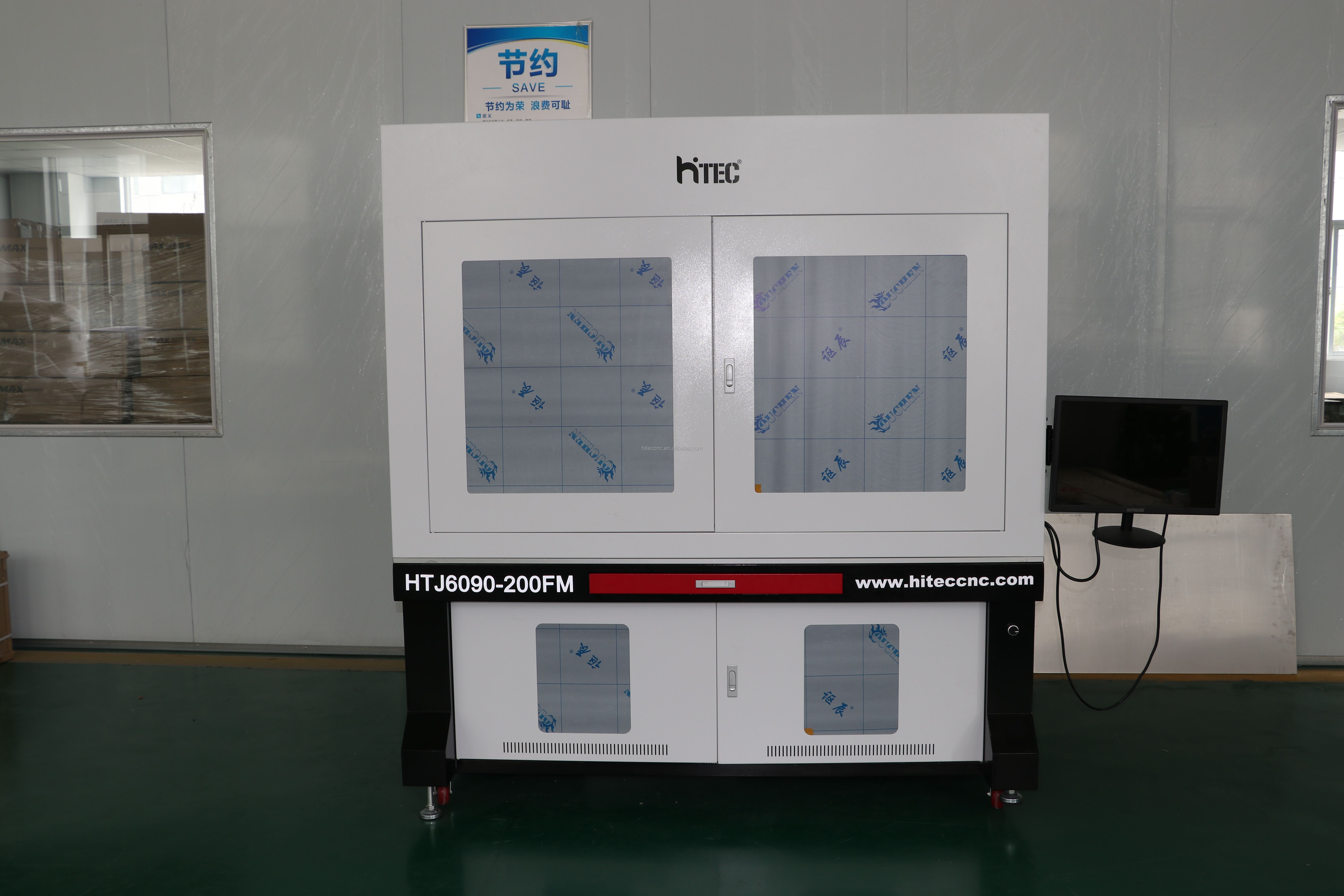

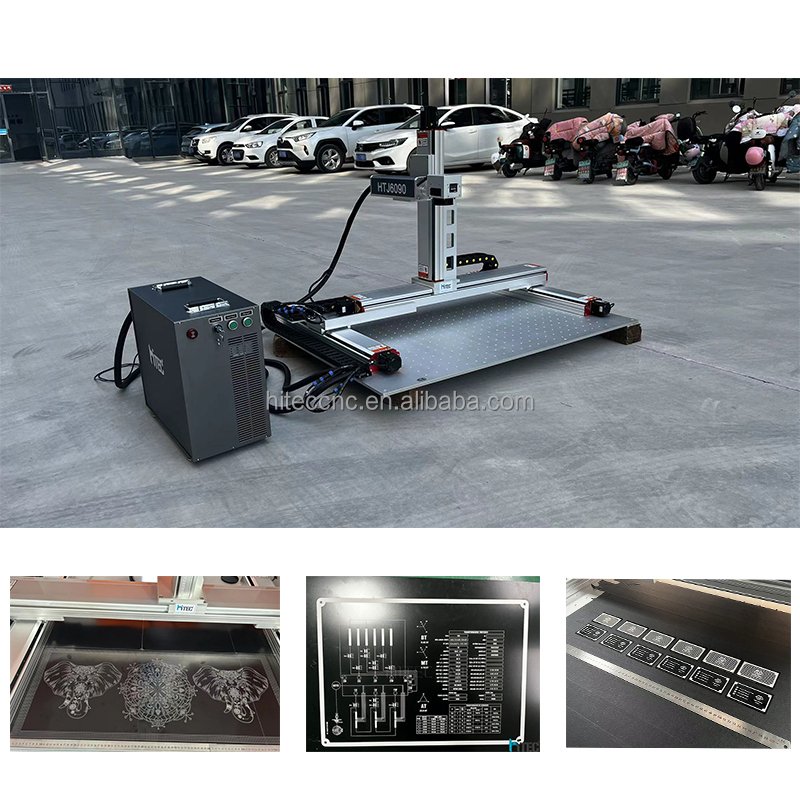

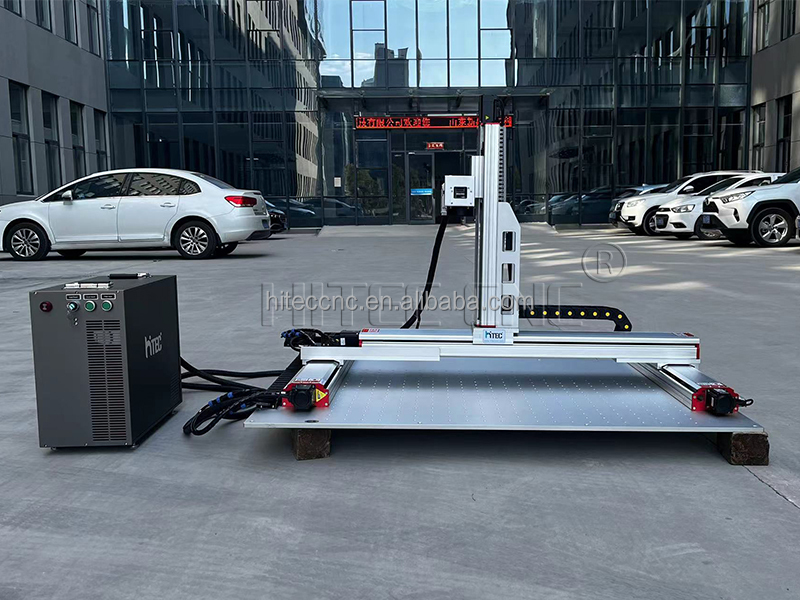

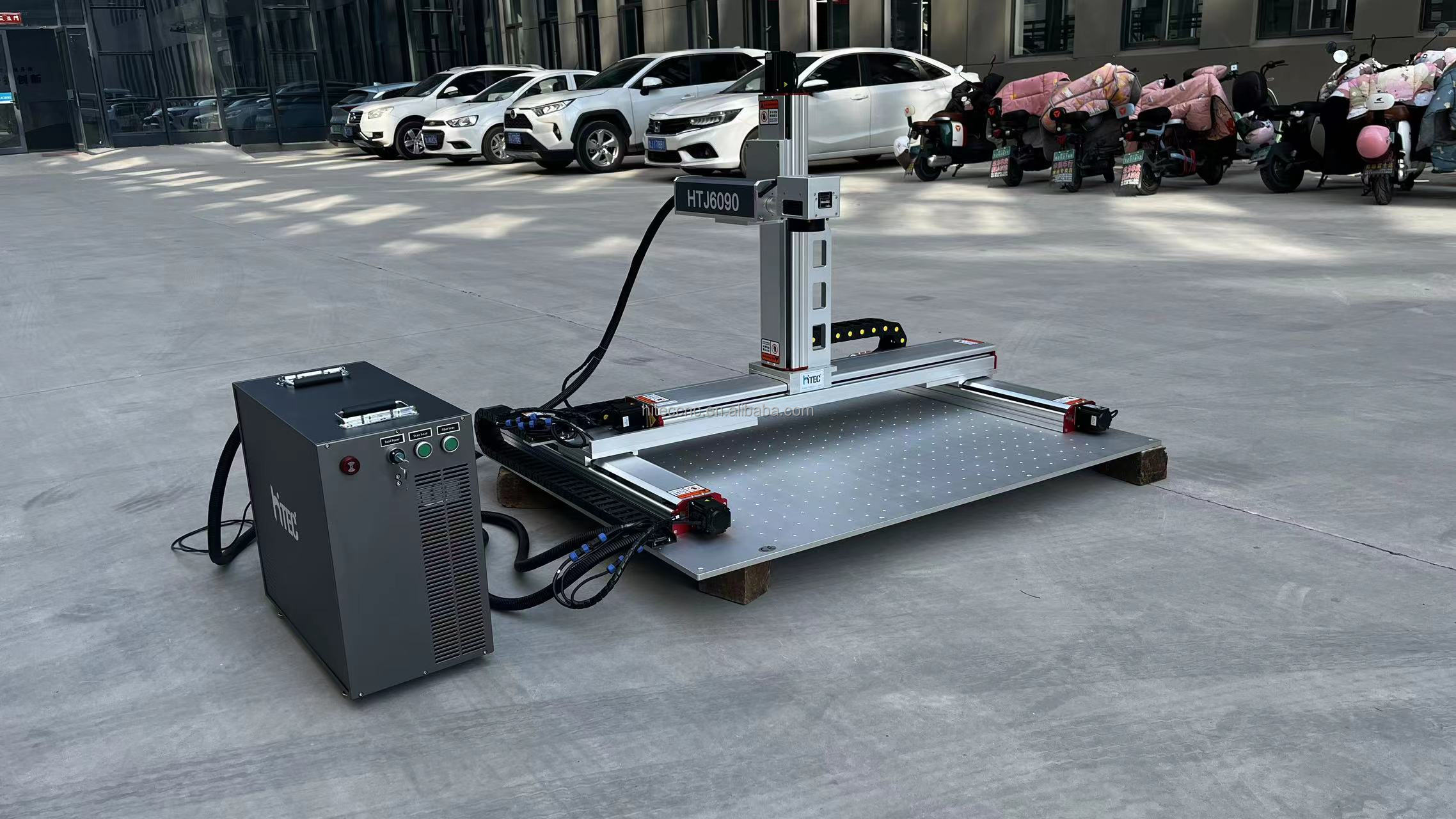

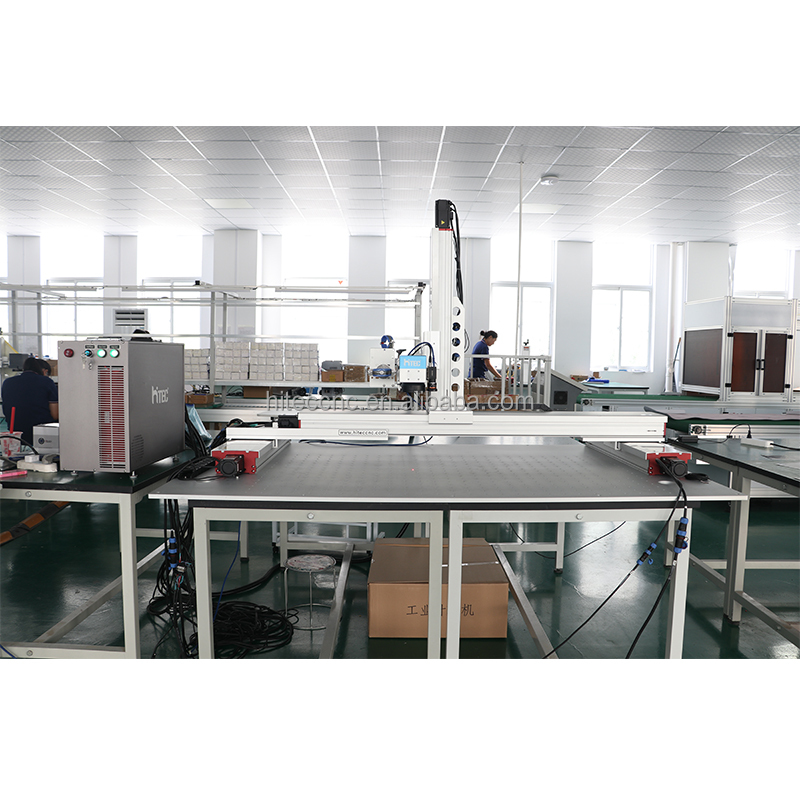

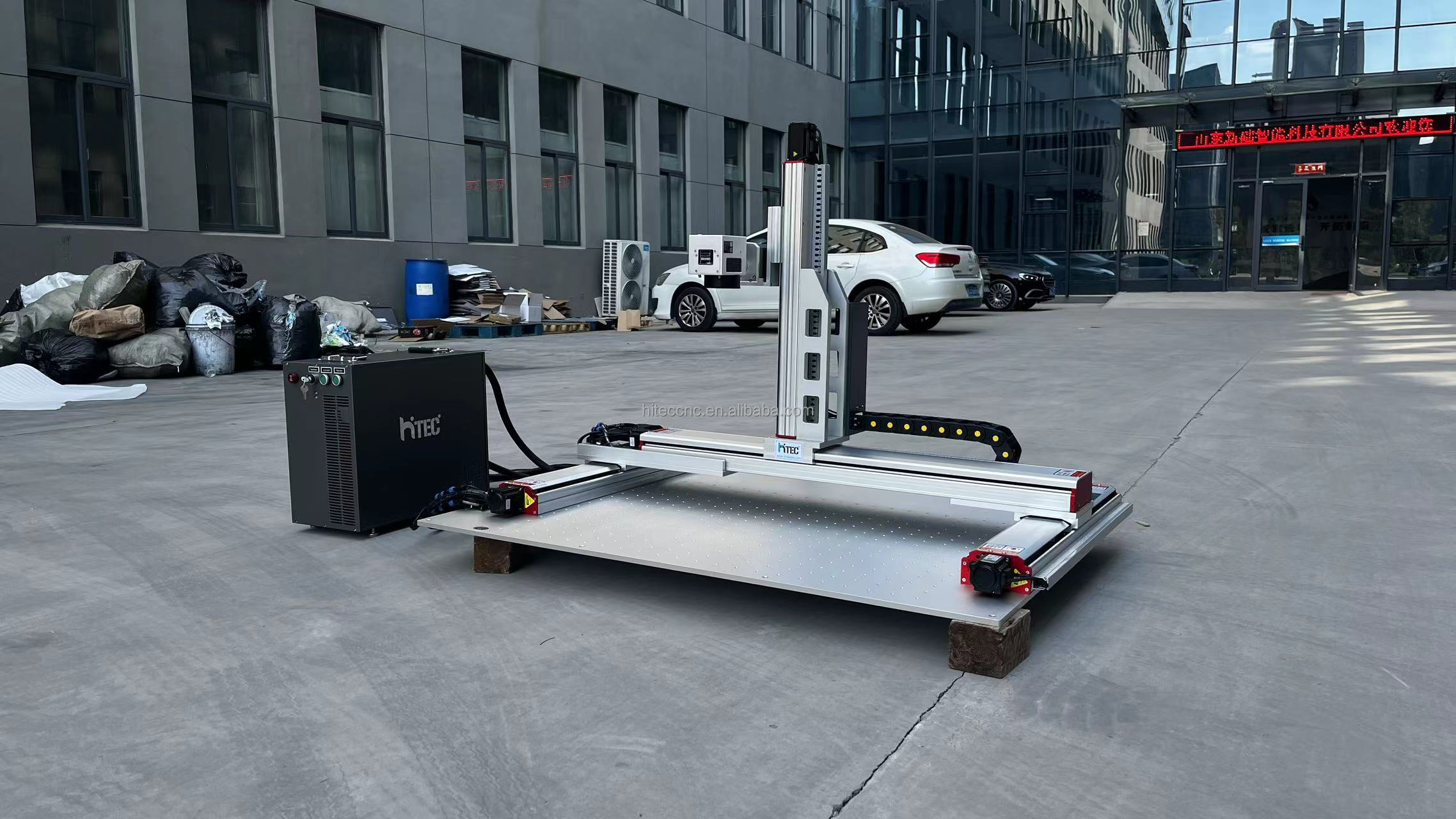

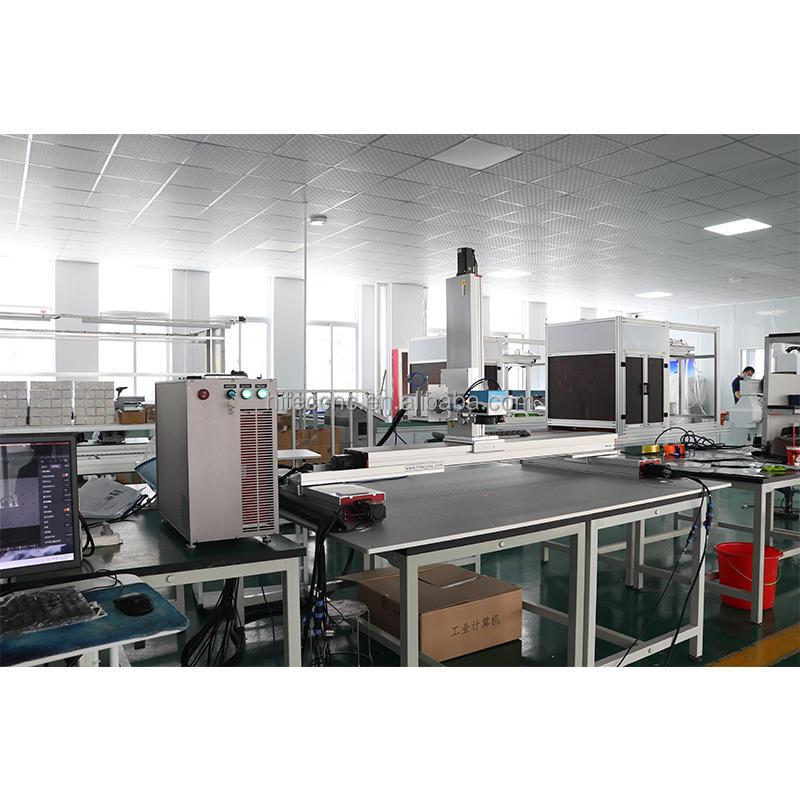

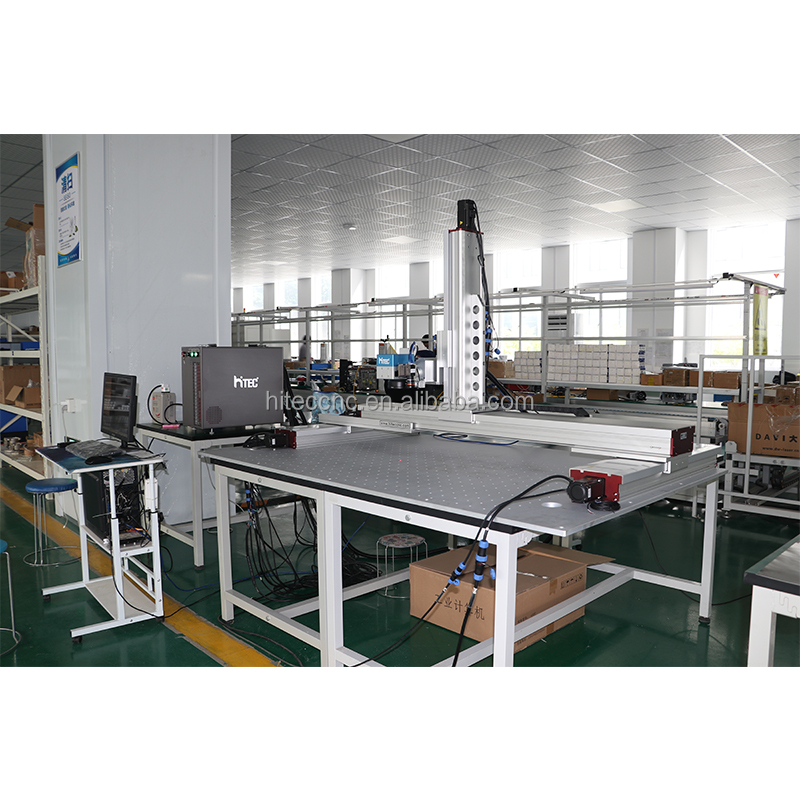

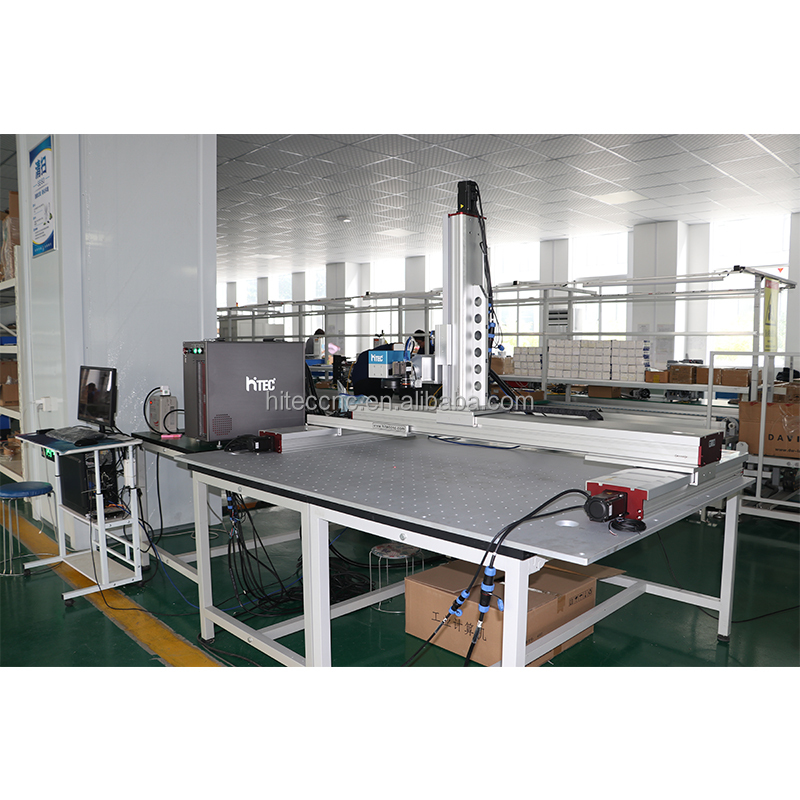

JPT 50W 60W 100W 200W Gantry Type HTJ-6090FM Series Laser Marking Machine
Featuring a massive 600*900 mm working area, the HTJ-6090FM series fiber laser marking machine is highly effective for industrial metal marking applications such as nameplate marking, silicone keypad marking, and bearing marking.
Key Features at a Glance
Product Technologies
| Parameter | Details |
|---|---|
| Type | HTJ-6090FM |
| Power Options | 50w / 60w / 100w / 200w |
| Laser Wavelength | 1064nm |
| Laser Head | Original Beijing SG2206 Galvo head |
| Laser Source | JPT / IPG / Raycus |
| Marking Area | 600*900mm (Optional: Up to 1300*2500mm) |
| Marking Speed | 8000mm/s |
| Repeated Precision | ±0.003mm |
| Fiber Laser Lifespan | 80,000 - 100,000 hours |
| Operating System | Windows XP / 7 / 8 / 10 / 11 |
| Cooling Mode | Built-in Air Cooling |
| Warranty | 2 Years |
Product Configuration
| No. | Item | Data |
|---|---|---|
| 1 | Laser Source | JPT / Raycus / IPG |
| 2 | Laser Head | Original Beijing SG2206 Galvo head |
| 3 | Controller | EZCAD3 / Zeus Controller |
| 4 | Power Supply | Taiwan Mean Well (MW) |
| 5 | Servo Motor | Leadshine Servo Motor |
| 6 | Safety Gear | Safety Glasses, Focal Ruler, Dimming Piece, Foot Switch |

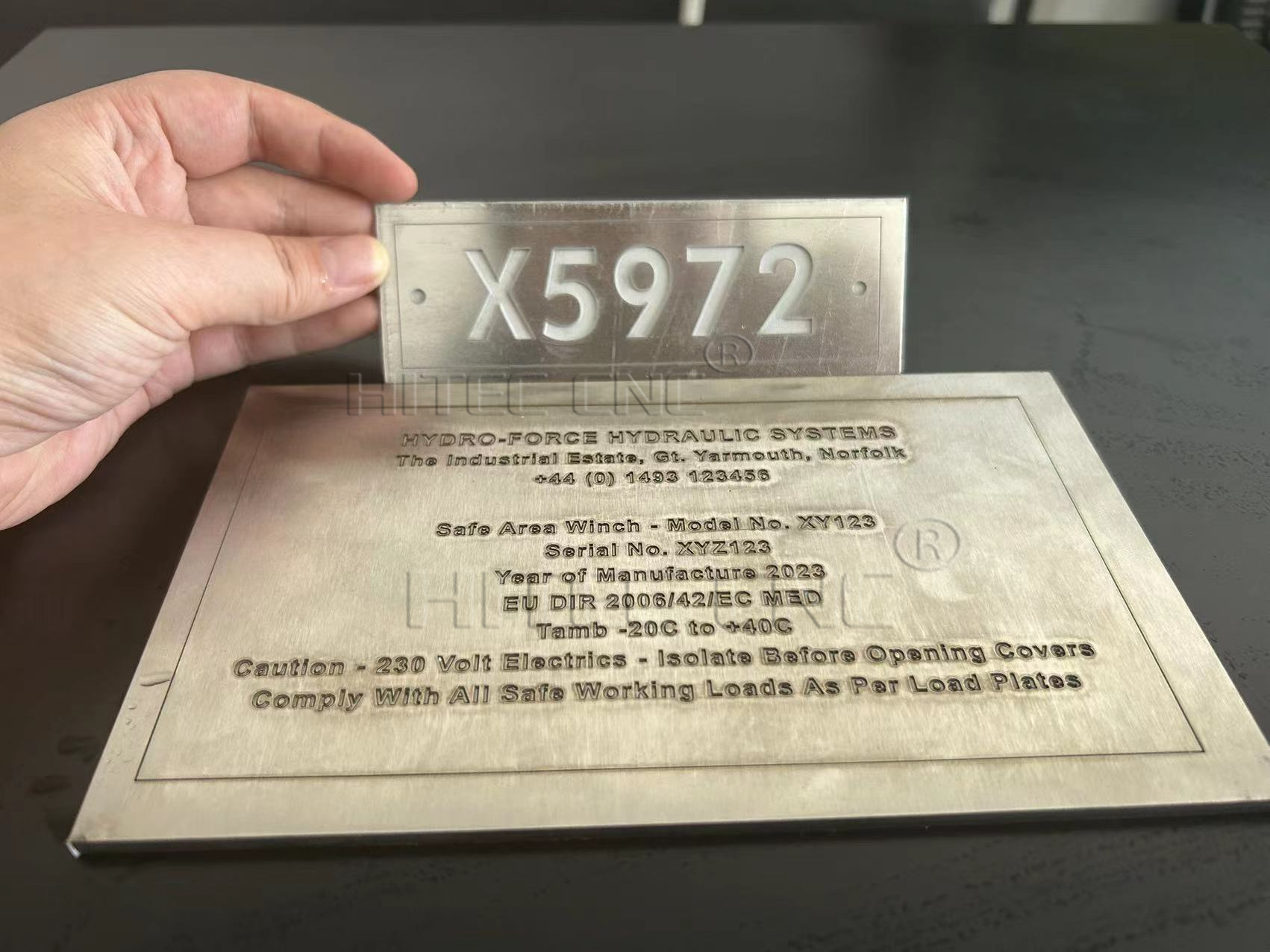

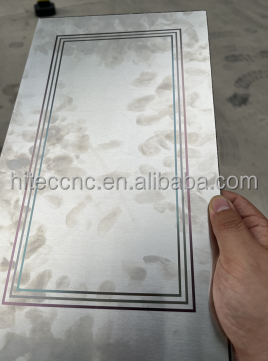

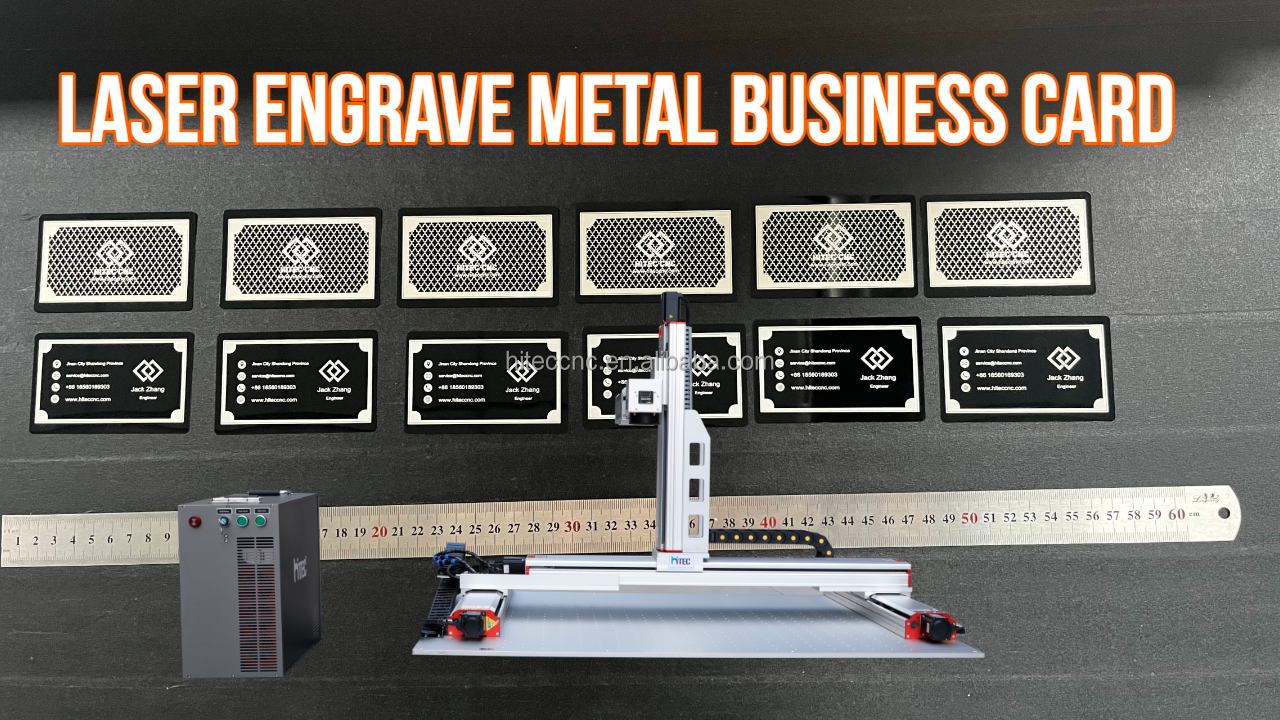

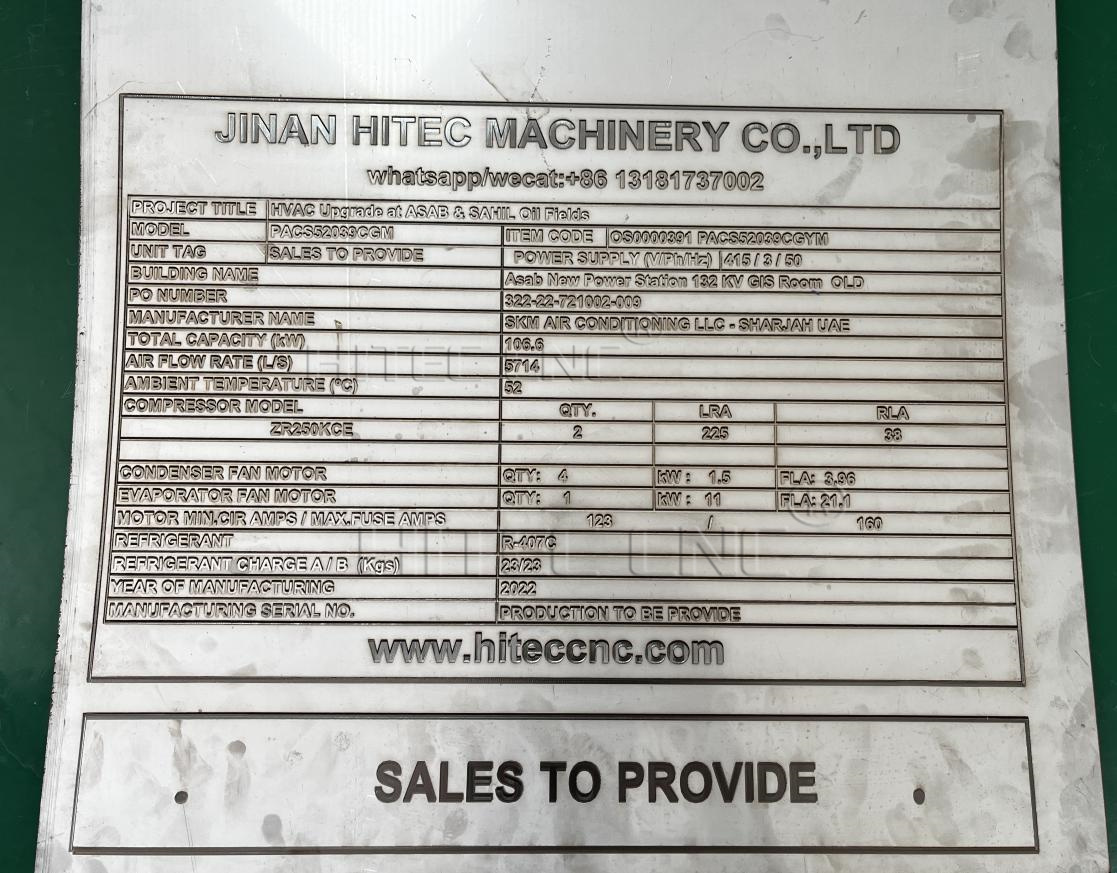

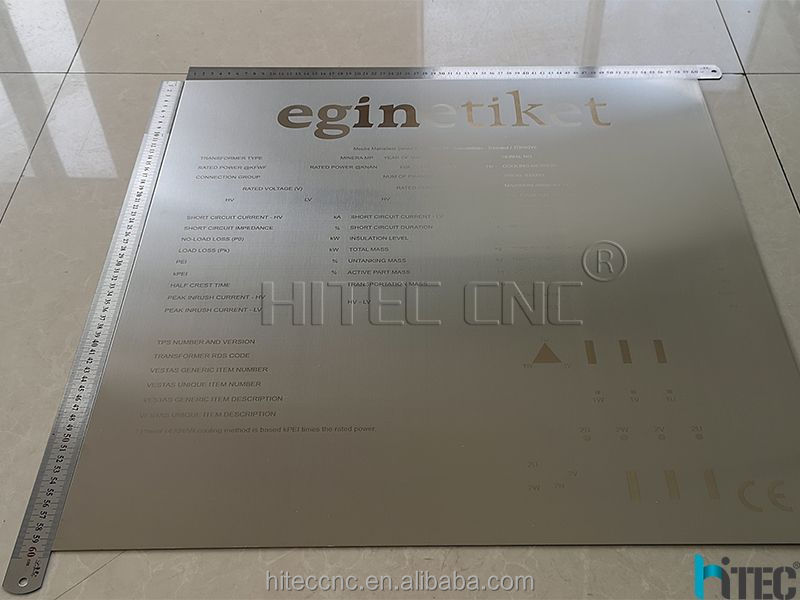

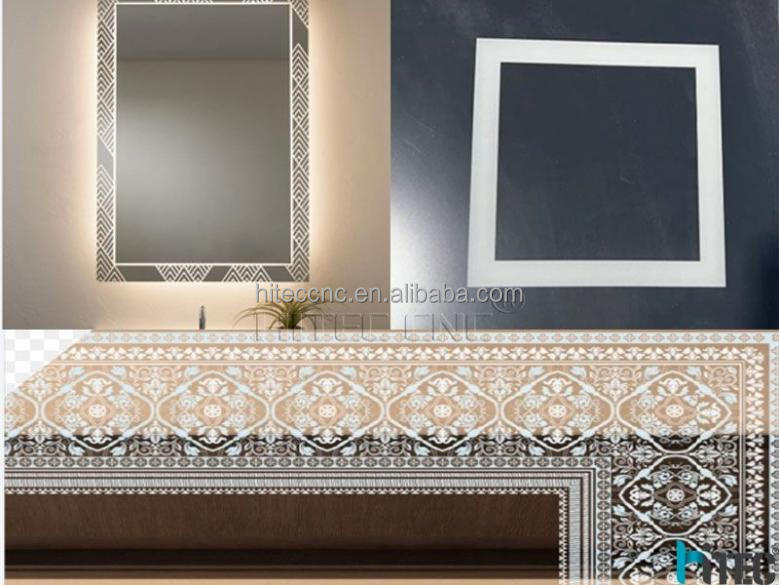

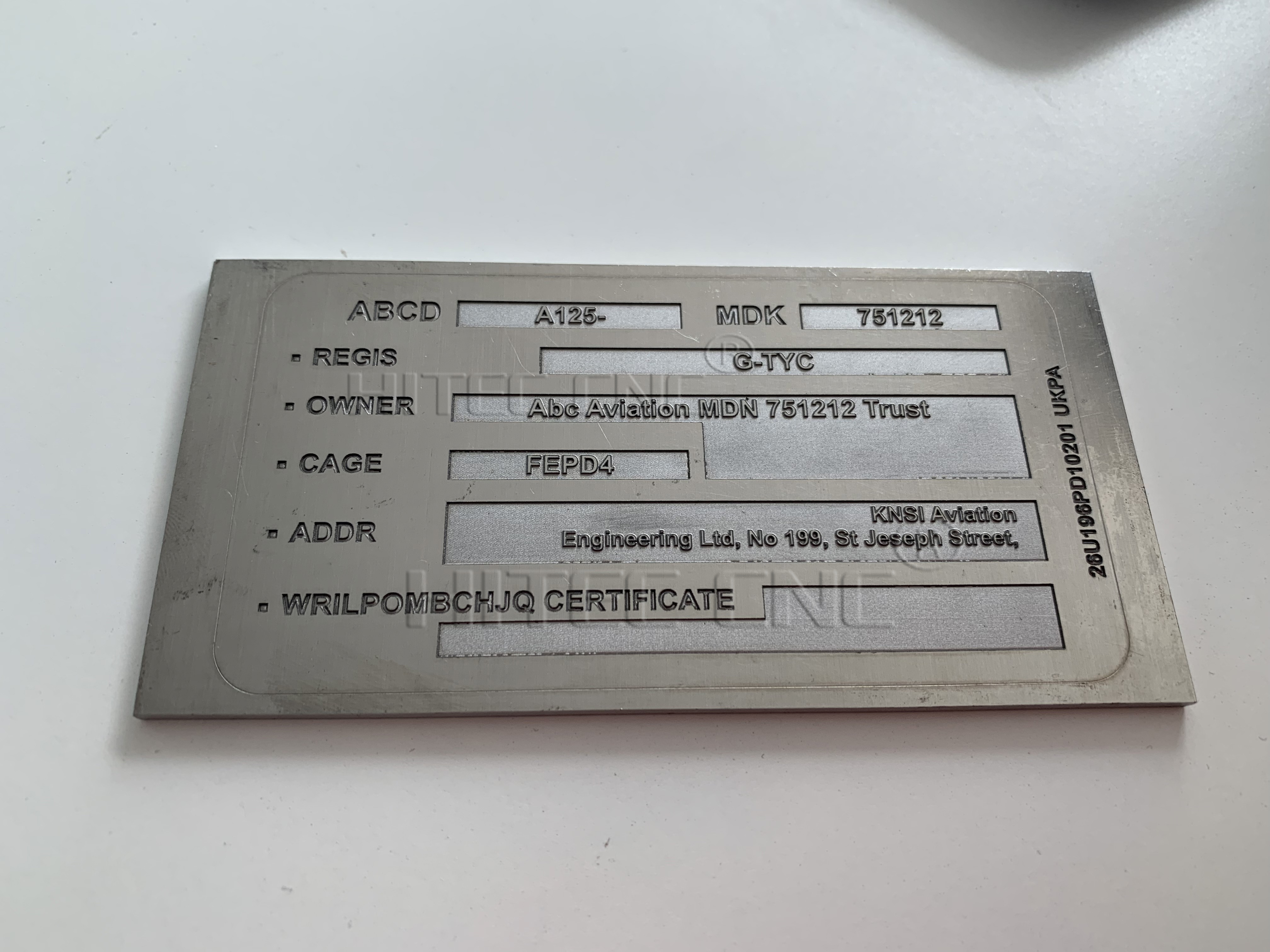

Marking Samples

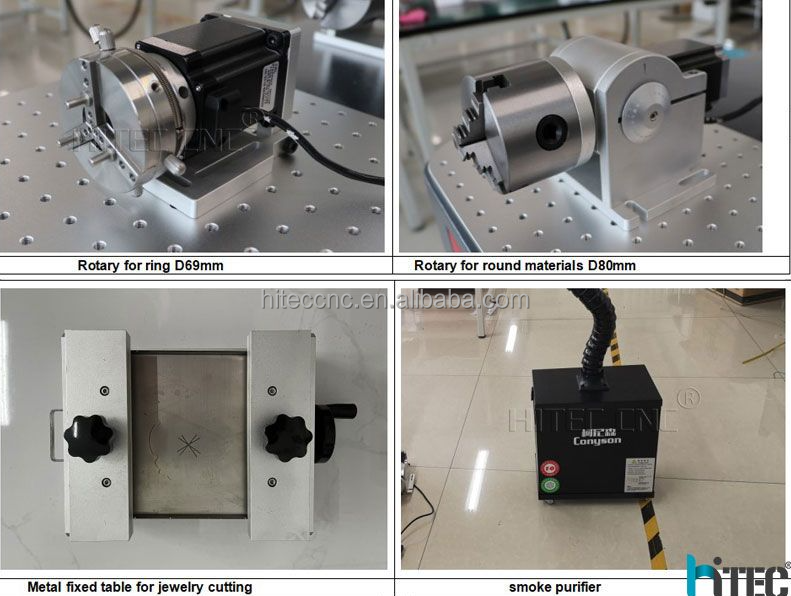

Optional Components & Types
Quality Control & Service

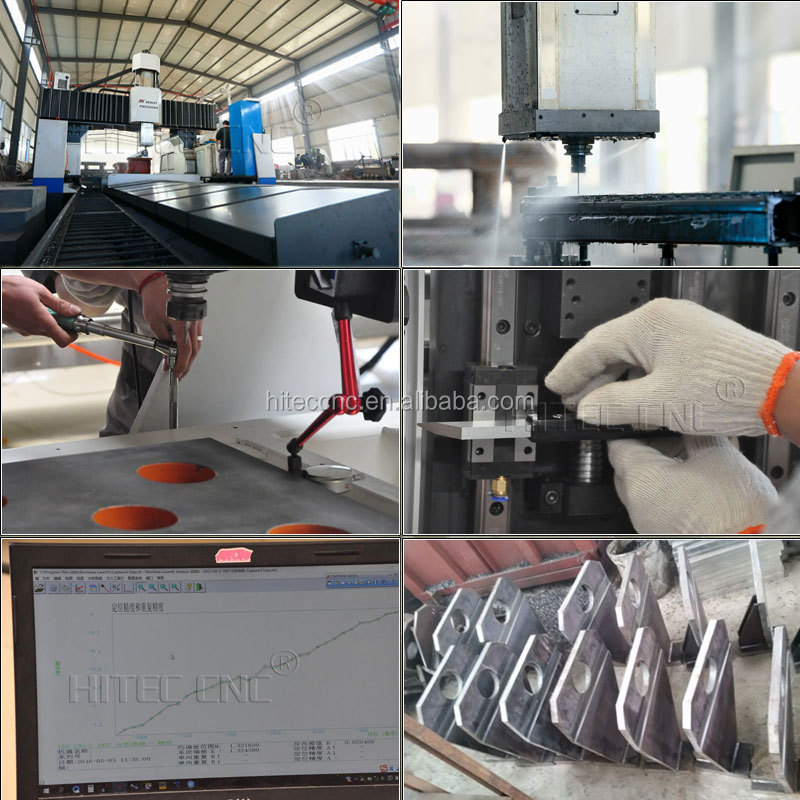

Quality Assurance: We utilize 5-face CNC milling machines with processing accuracy of 0.001mm to ensure the precision of all hardware, from the machine bed to gantry parts.
Certification: CE, FDA, and ISO certified products.
Technical Support: We supply machine operation manuals, training videos, and online installation support. If required, onsite engineering support is available for 5-7 days for setup and training.
Guarantee Policy: 3-year quality guarantee. We provide free replacement parts for non-artificial damage during the guarantee period.
Frequently Asked Questions
