Datum Machine
Datum Machine

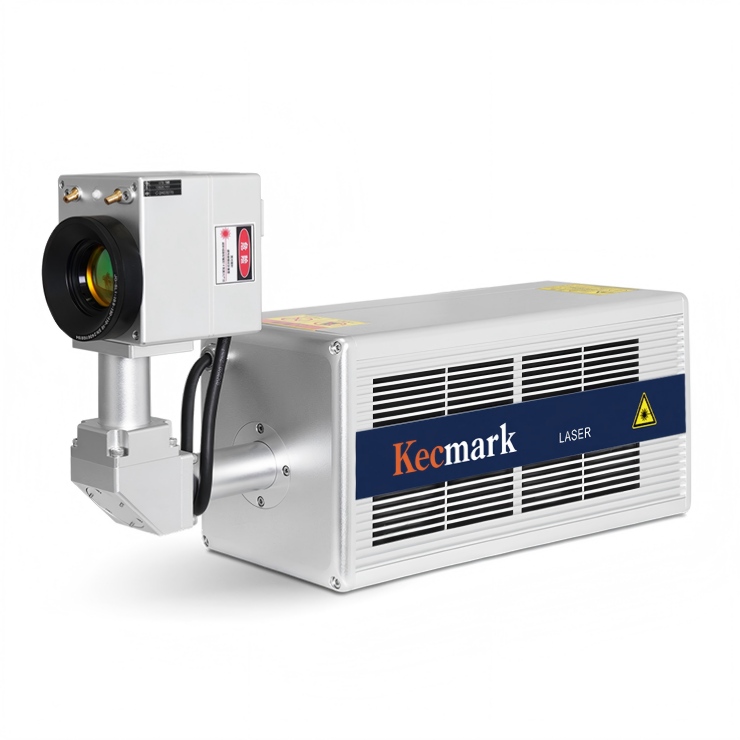

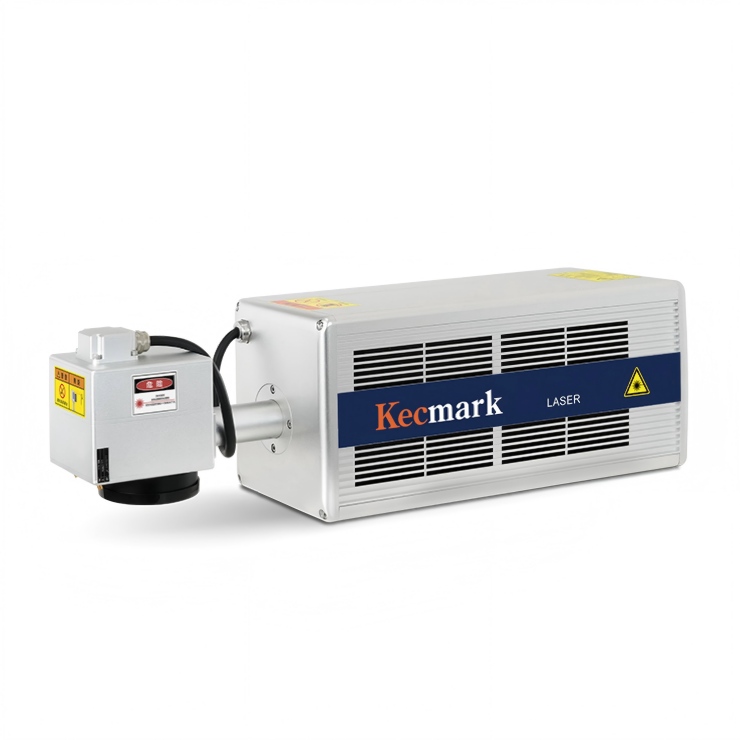

| Lasers | Sealed CO2 RF Laser |
| Power | 30W |
| Laser wavelength | 9.3μm / 10.2μm / 10.6μm |
| Repetition rate | 0-25KHz |
| Radiation field | 4x (customisable) |
| Laser class | Class 4 laser products ~ IEC60825-1 compliant |
| Marking direction | 0-360° |
| Marking area | 110*110mm (customisable) |
| Scribing speed | Up to 20m/s |
| Working distance | 165mm |
| Spot size | 0.8mm (±0.2mm) |
| Marking content | 1D, 2D barcodes, icons, Chinese, English and numbers |

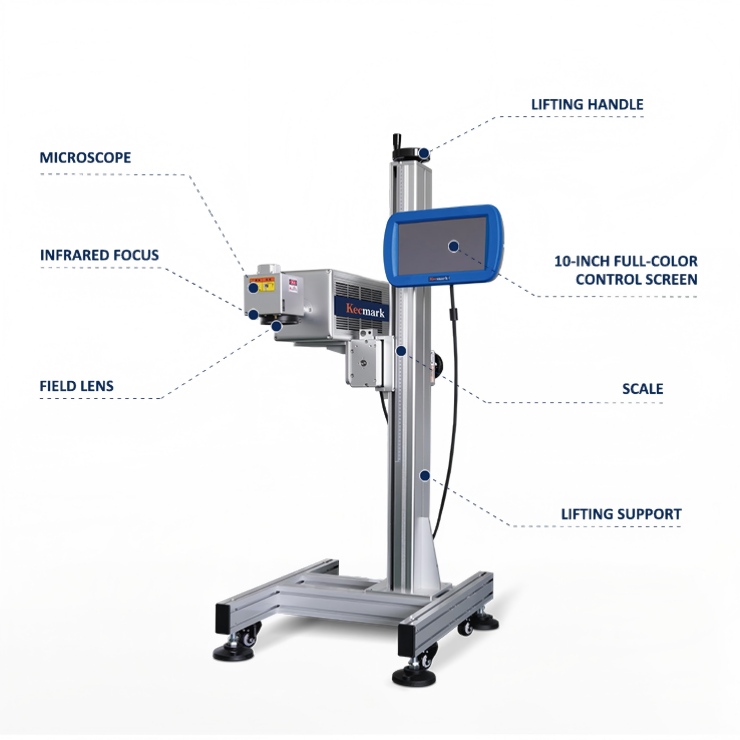

| User interface | 10’ full colour touch screen |
| Communication interface | RJ45, RS232, RS485, USB, SD card |
| Rated voltage | 200~240V 50/60Hz |
| Power of the whole machine | ≤300W |
| Cooling method | Air cooling |
| Protection class | IP54 (customisable) |
| Environmental temperature | 5~40℃ |
| Humidity range | Relative humidity < 90%, non-condensing |
| Weight | Laser 16.5kg |
Quality is our top priority. We enforce strict control through:
Premium Components: Core parts like lasers and galvanometers are sourced from internationally renowned brands.
Rigorous Testing: Each machine undergoes seal, waterproof, environmental, and vibration testing, including continuous marking tests exceeding 7x24 hours.
Full Traceability: Each machine carries a unique serial number for tracking component origins and test records.
(1) We provide comprehensive user manuals, guides, and video tutorials.
(2) One-on-one video guidance sessions are available.
(3) If necessary, we can dispatch engineers for on-site training courses.
(1) One-year warranty and lifetime maintenance (excluding consumables).
(2) Lifetime free software upgrades.
(3) Response within 8 hours and online repair guidance within 24 hours.
(4) Annual follow-ups to assess equipment usage and technical needs.
