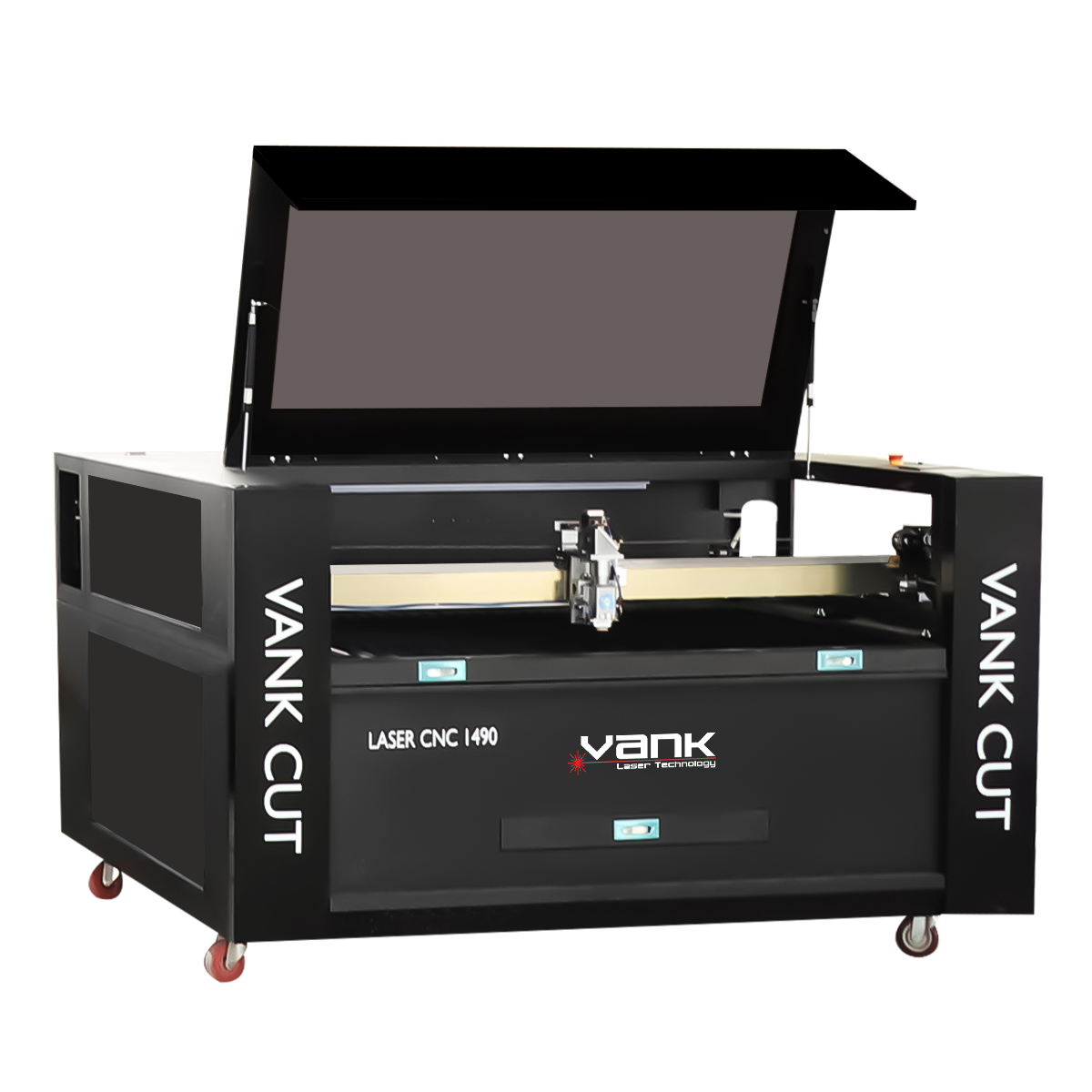

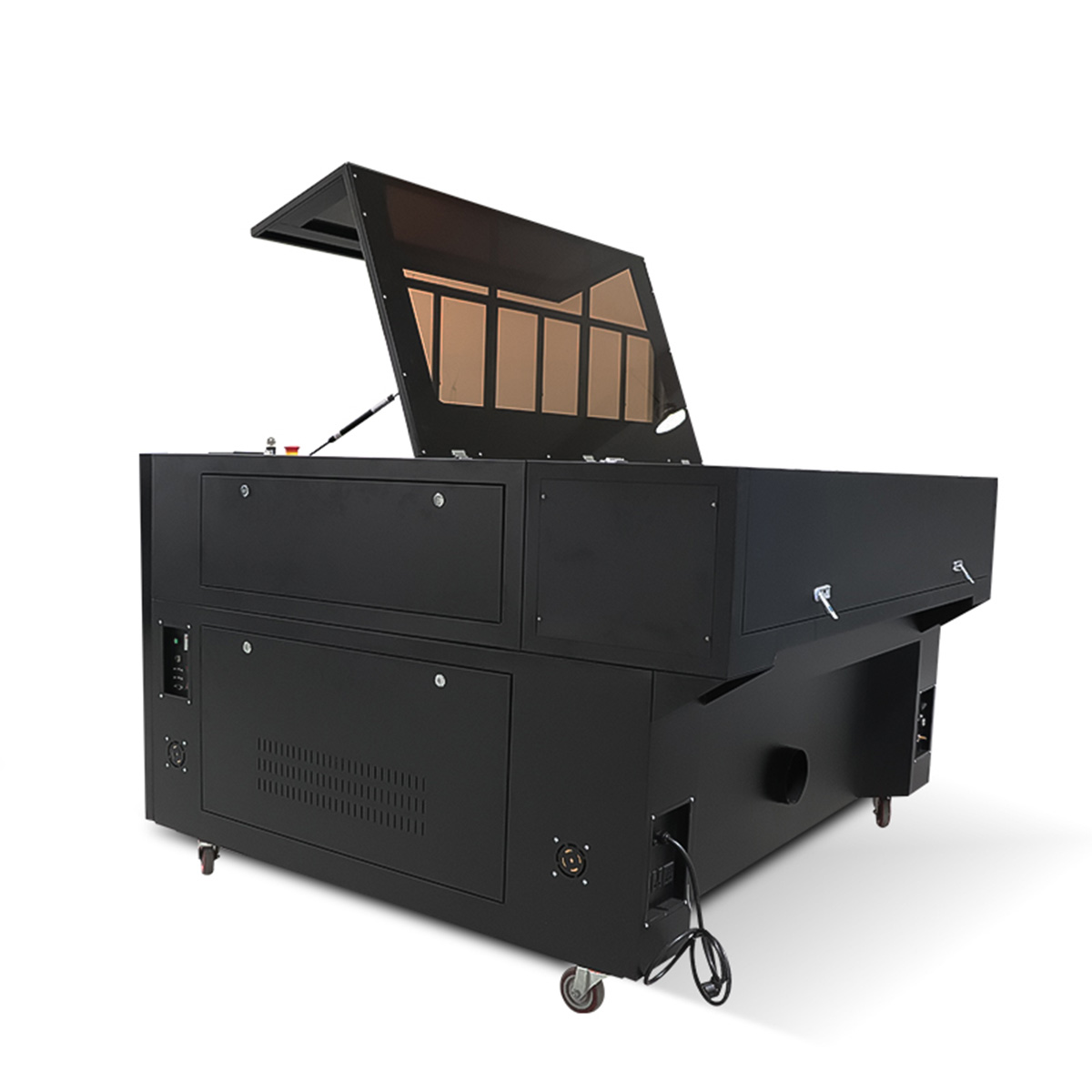

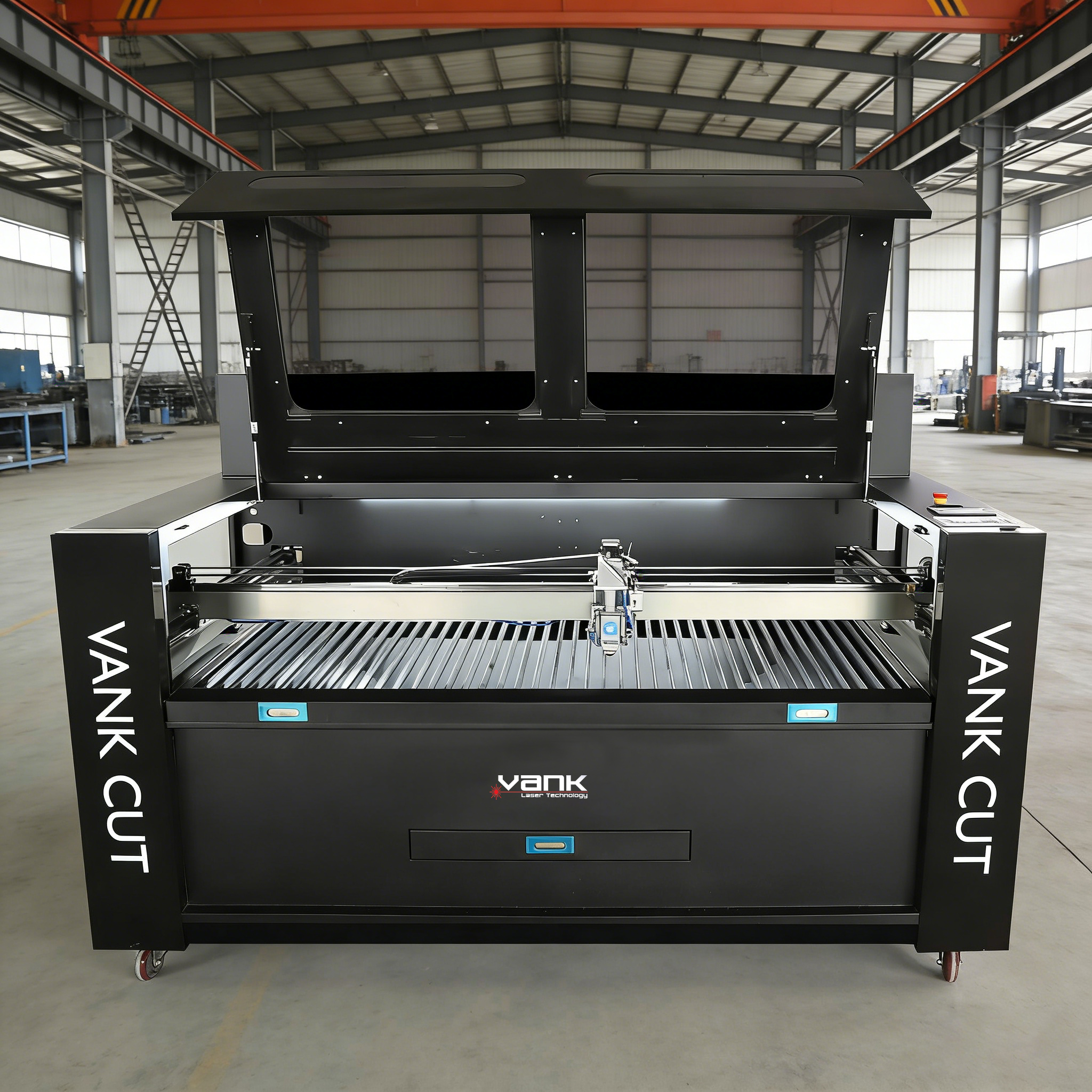

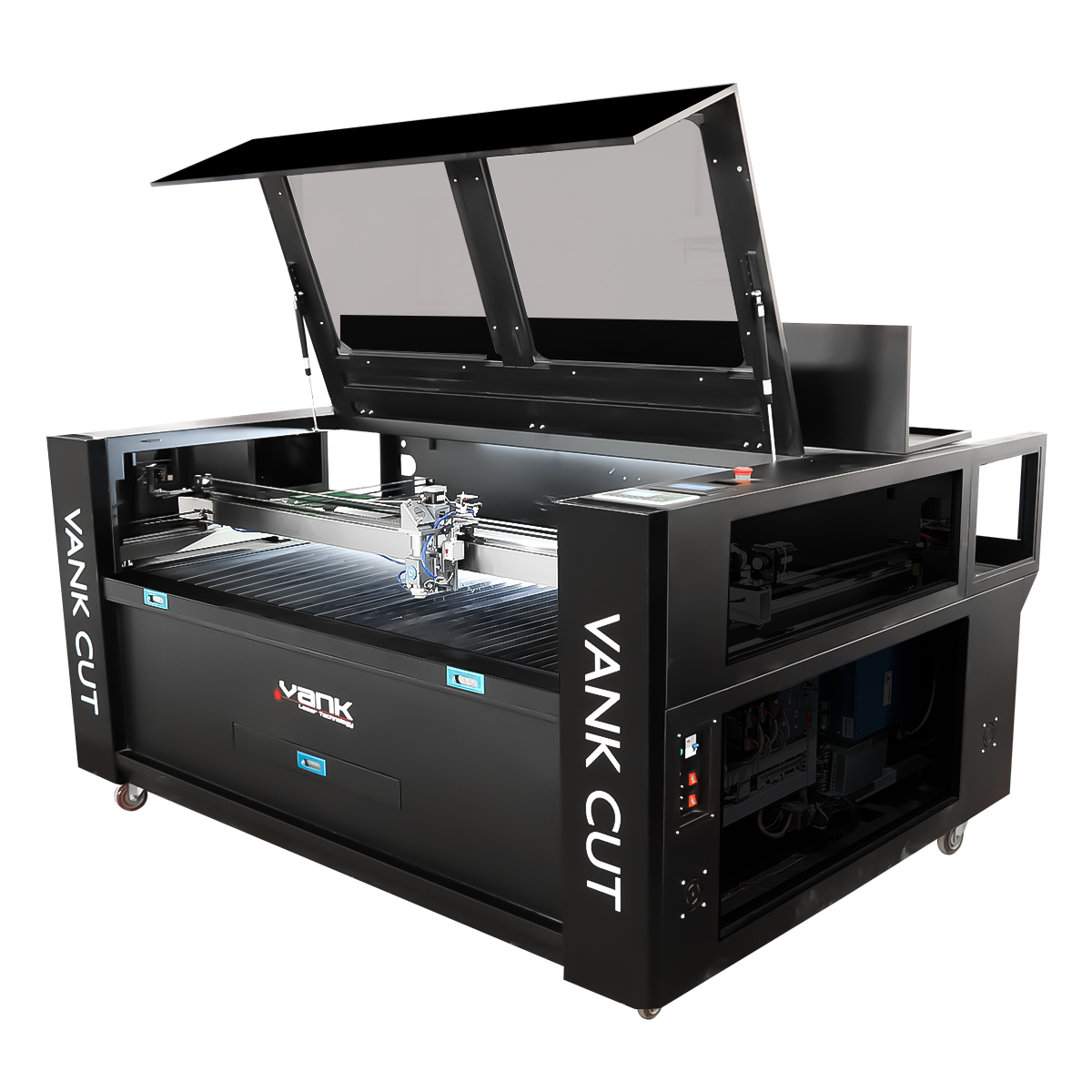

Datum Machine
Datum Machine
Outstanding cutting cross section, high precision, and good stability, satisfying the processing demands of precision parts. Dynamic performance is stable for long-term operation.

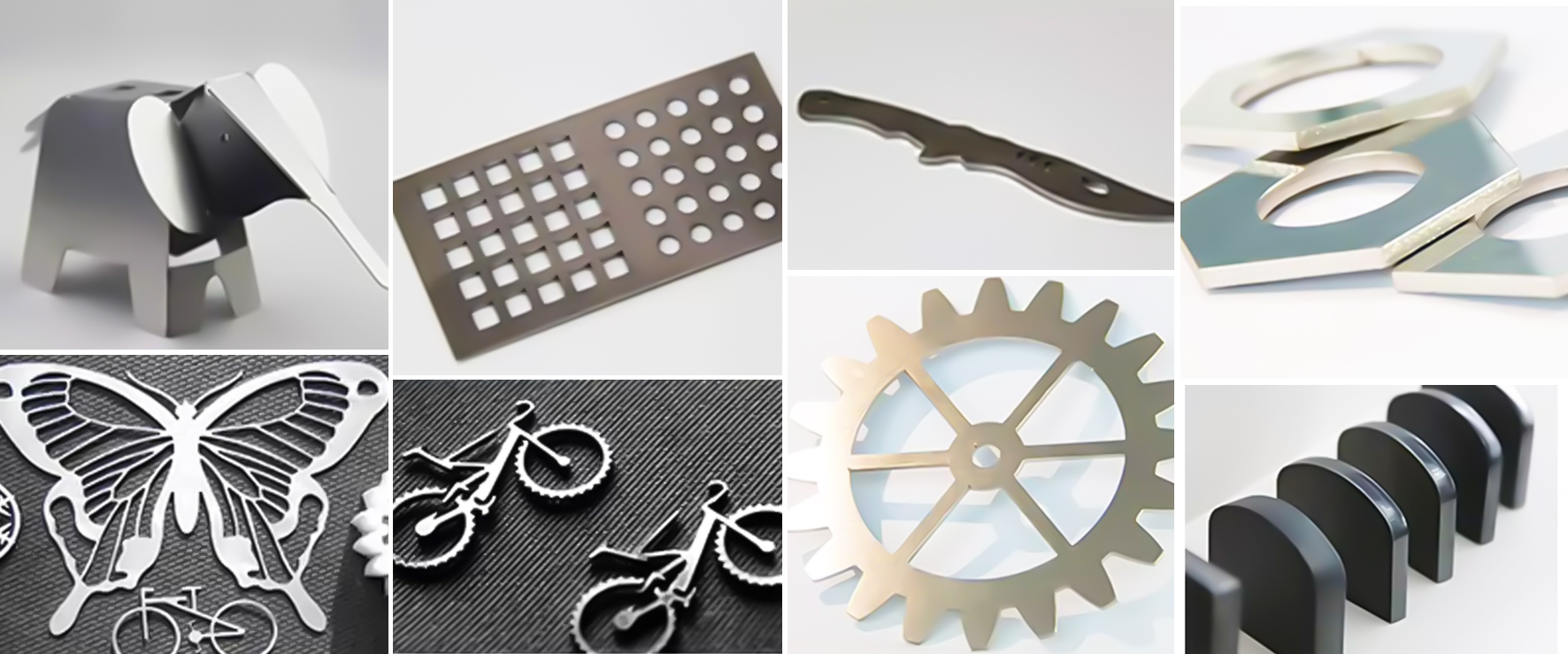

Capable of cutting both non-metal and metal materials, including stainless steel, carbon steel, acrylic, and wood.

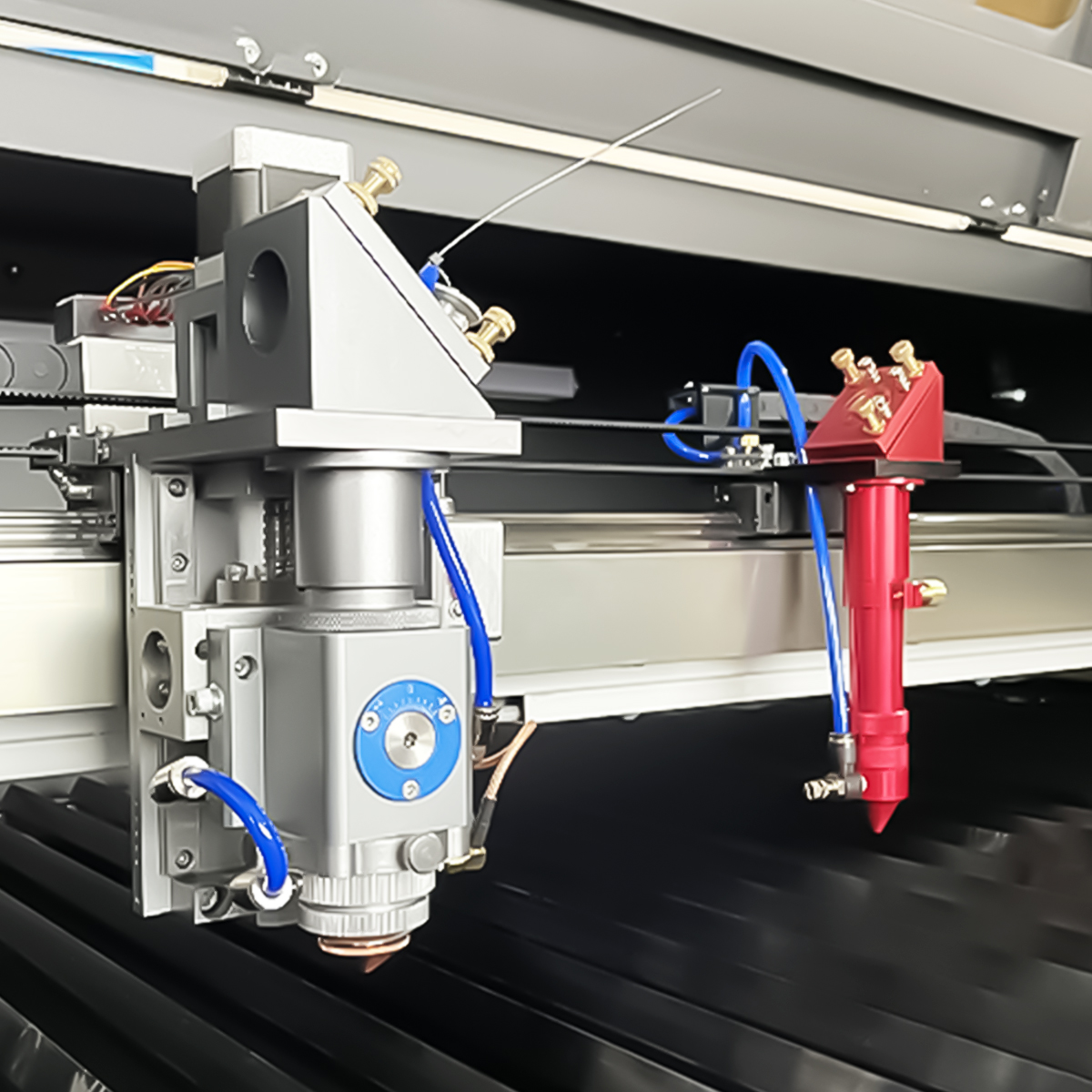

Laser cutting head with auto-focusing system. It automatically adjusts height along the surface, ensuring consistent focal length and smooth cutting edges.
Double heads option available. The CO2 laser head is optimized for engraving non-metal materials like MDF, leather, and plastic.
Materials: This CO2 laser system is used to cut and engrave acrylic, PVC, rubber, plastic, wood, bamboo, leather, cloth, two-color boards, carbon steel, stainless steel, and MDF.
Industries: Ideal for moulds, plexiglass products, architectural models, advertising, decoration, arts & crafts, and the electronics industry.

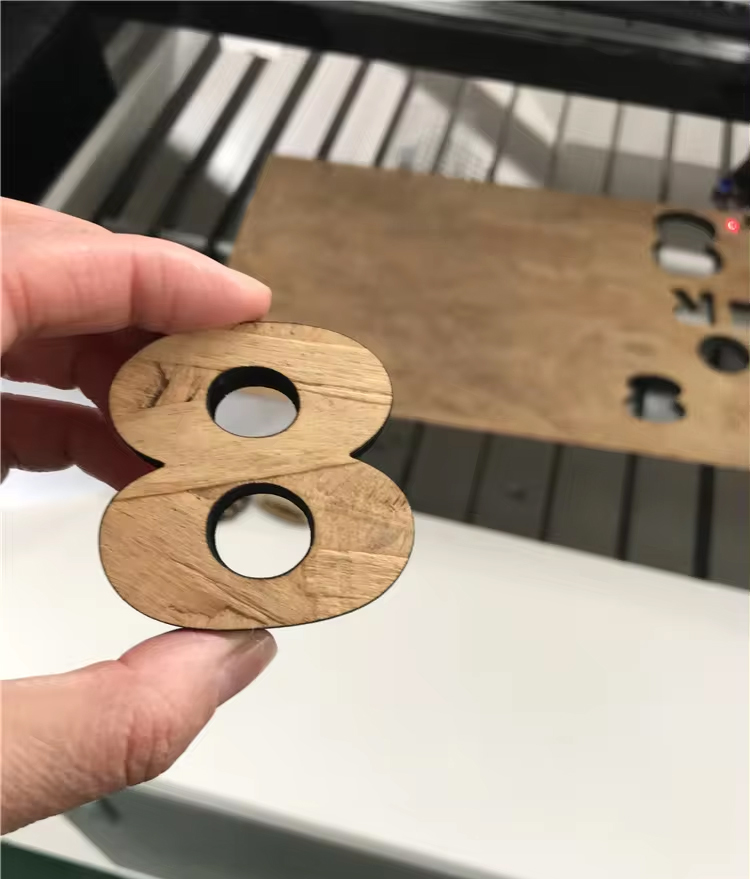

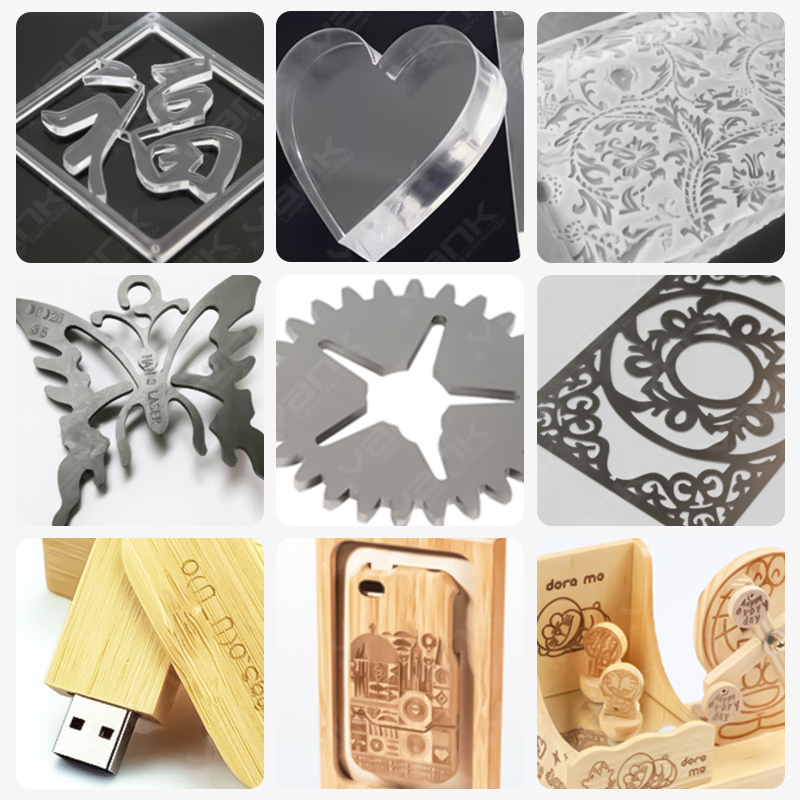

10mm Solid Wood Cutting

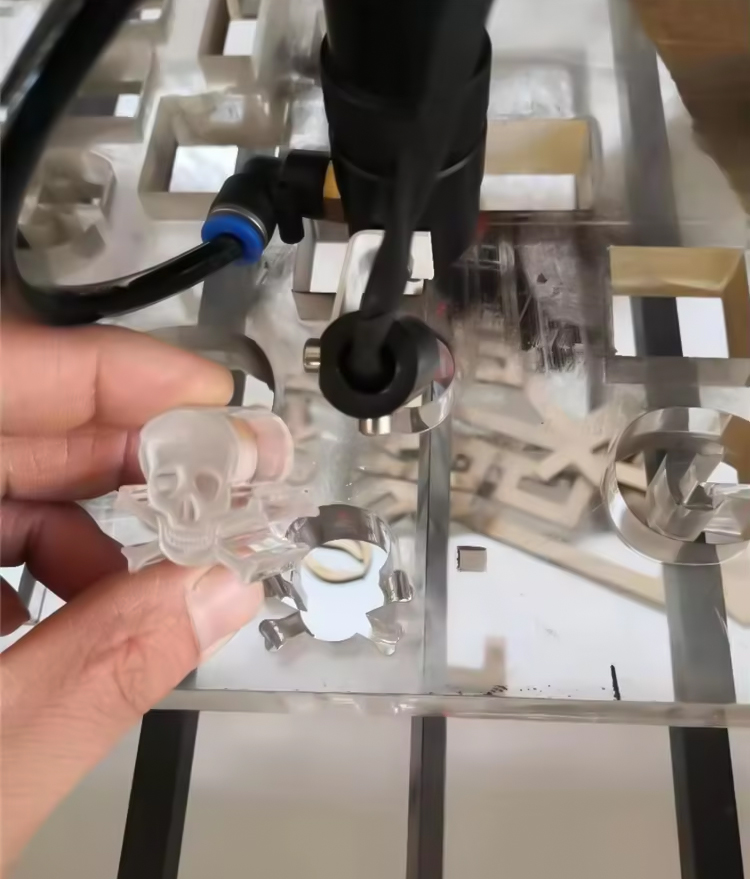

20mm Acrylic Cutting

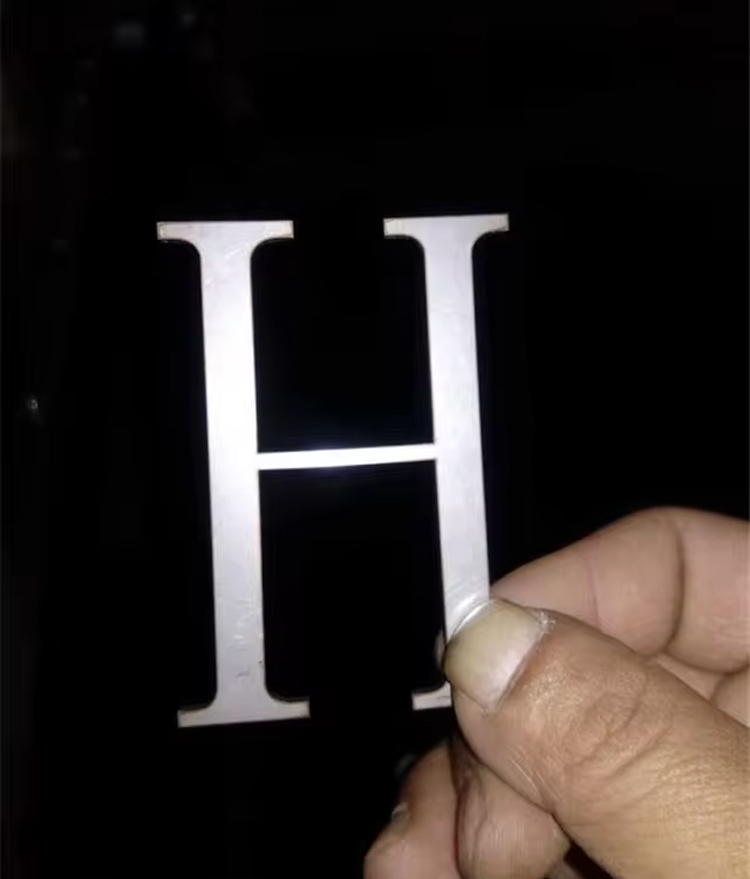

2mm Stainless Steel Cutting

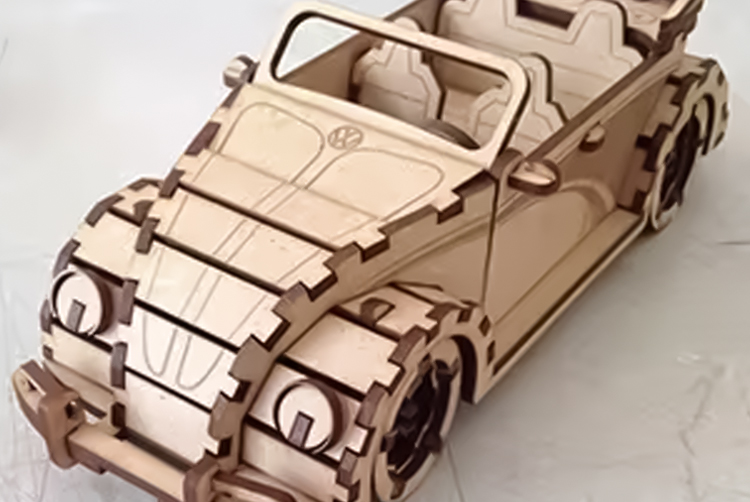

Model Cutting
Advertising Decoration

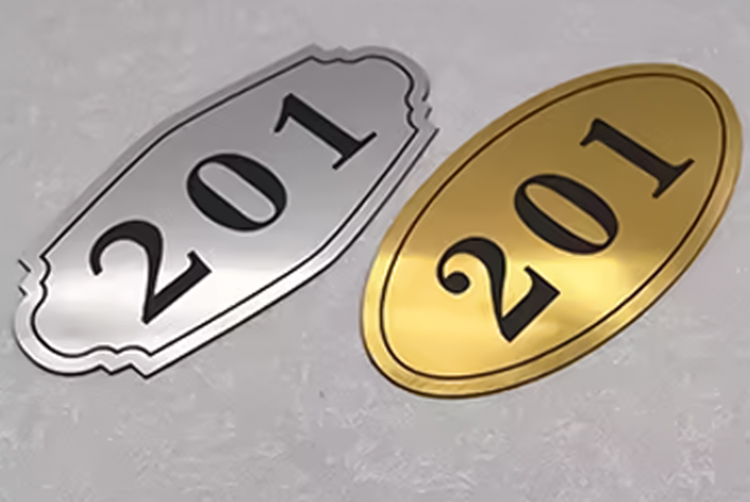

Double Color Plate Engraving

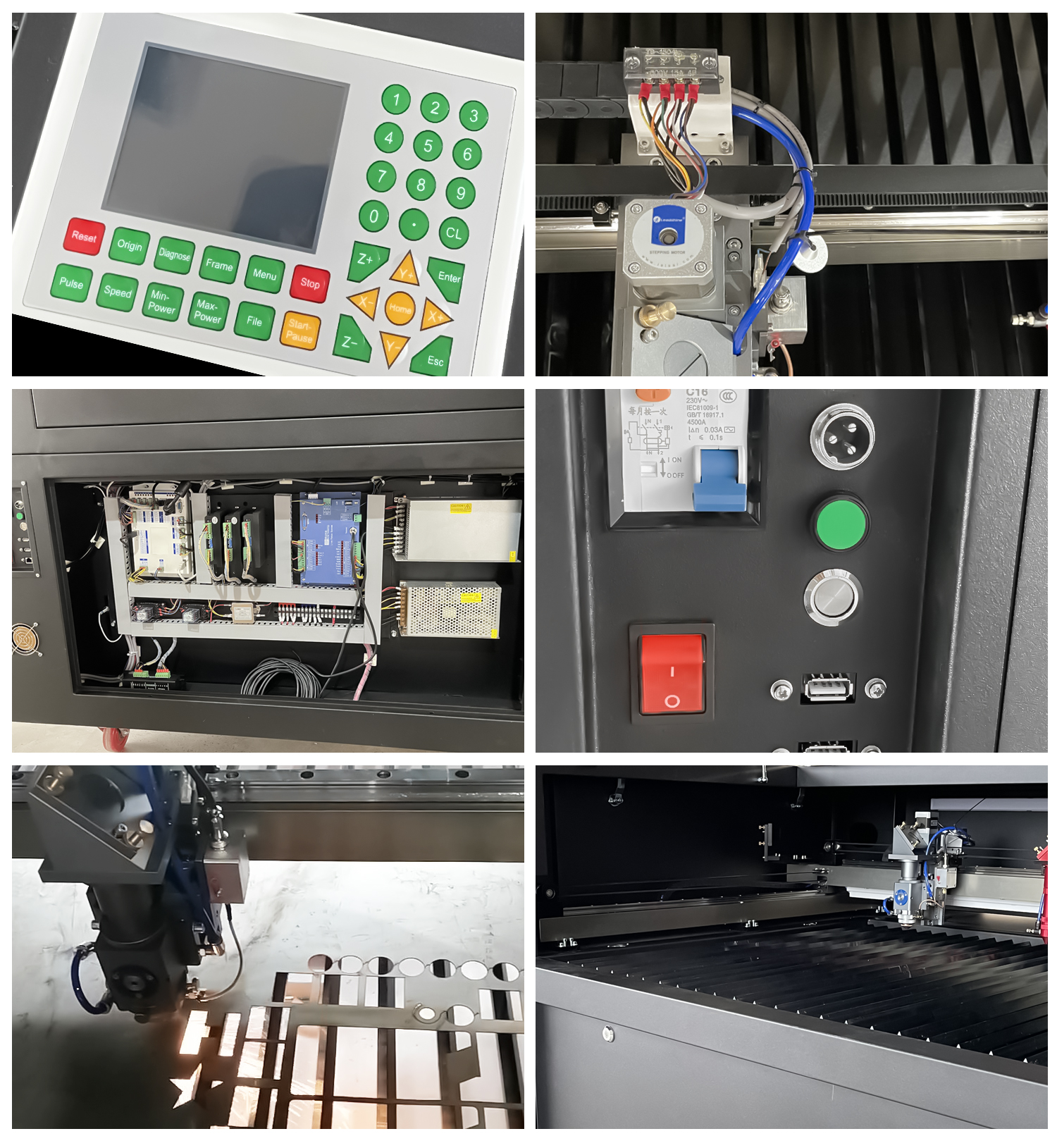

Equipped with a built-in Auto Focus function. It automatically calibrates the distance between the material and the laser for optimum focus. Includes air-assist to keep the area clean from debris and smoke.

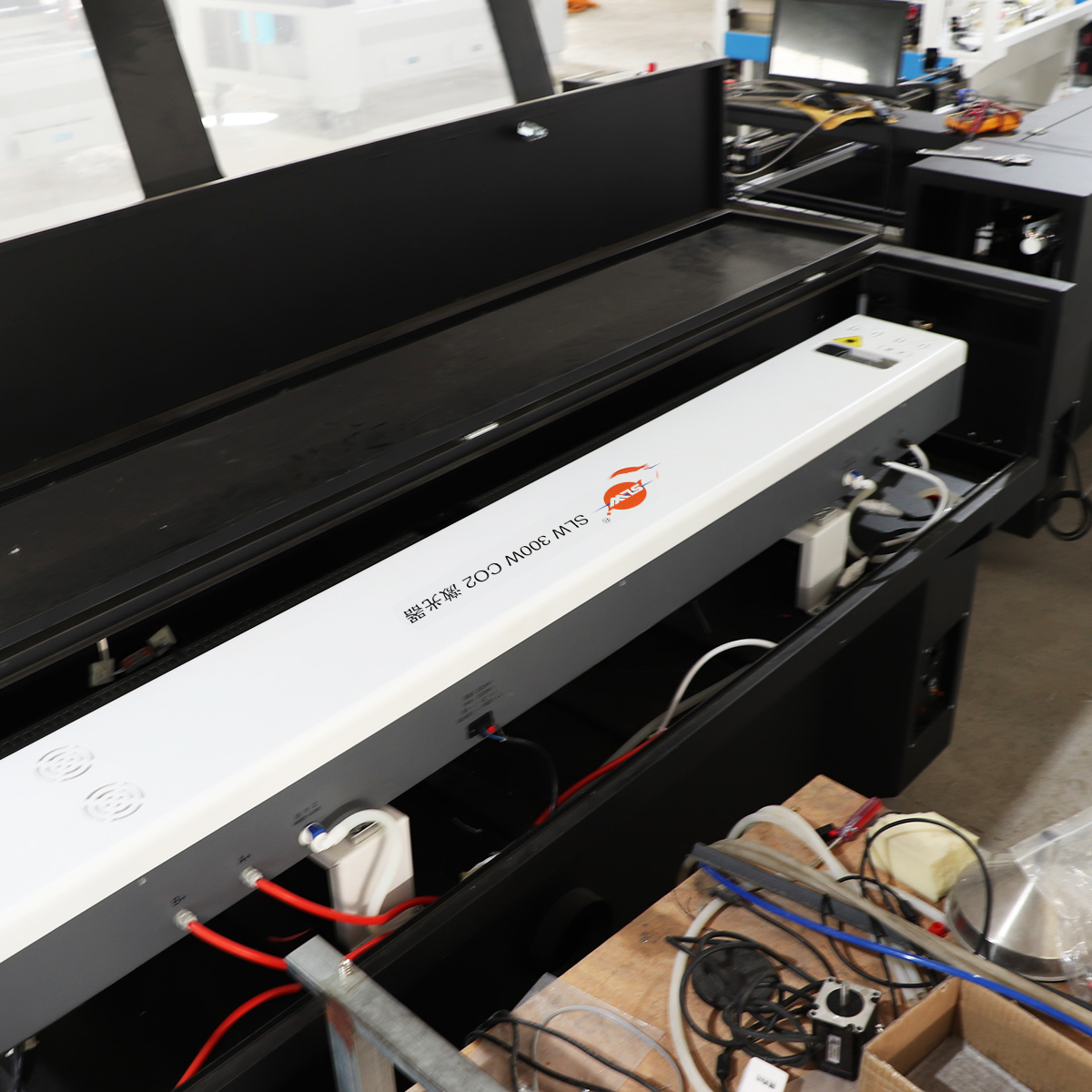

The peak power exceeds 360W with a stable working power of 300W. It features a continuous working life of over 12,000 hours, allowing for effortless cutting of Plywood, MDF, and Metal.

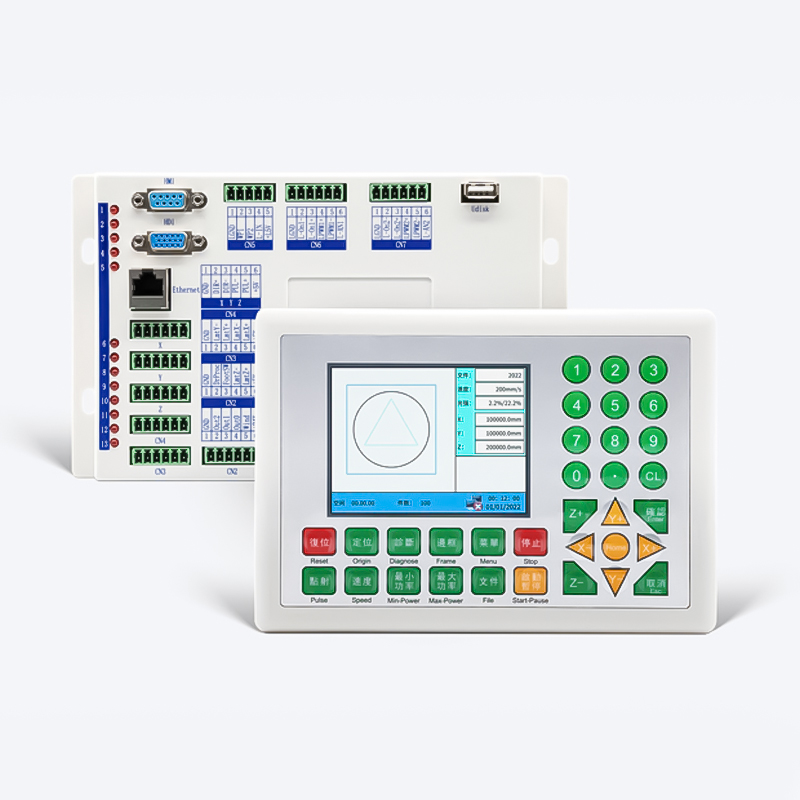

Specifically developed for hybrid cutting, combining metal sheet and non-metal processing technology. It provides a mature and stable control environment for complex tasks.

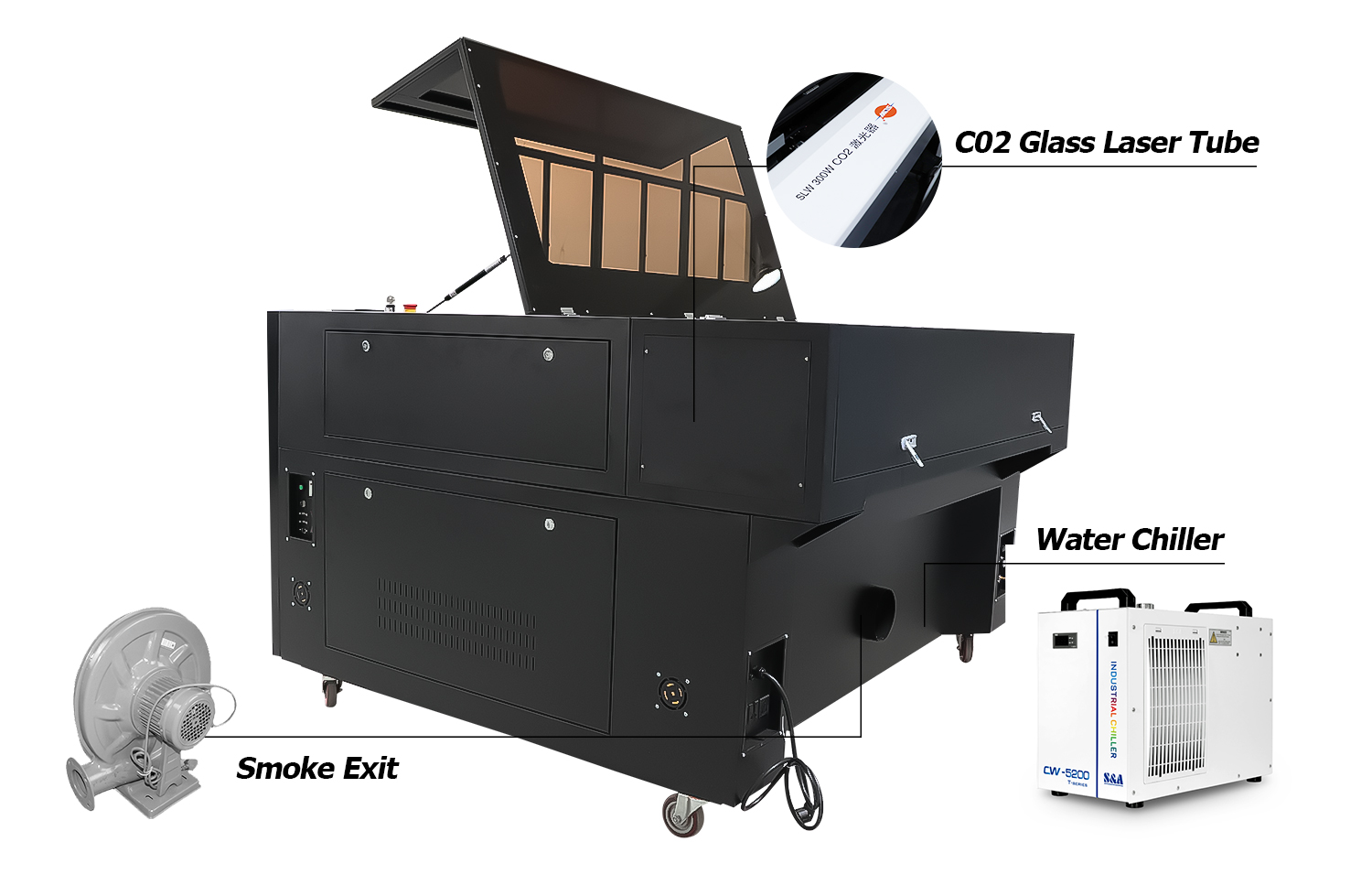

| Model | VK-1610 Hybrid Laser |
| Working area | 1600*1000mm |
| Laser Power | 150w / 200w / 250w / 300w |
| Laser Type | CO2 Sealed Laser Tube, 10.6um |
| Transmission Method | Belt Transmission |
| Driving System | High-precision 3-phase Step Motor |
| Working Table | Thicken Strip Working Table |
| Cooling Type | Water Cooling |
| Positioning Accuracy | ±0.02mm/m |
| Max. Cutting Thickness | 40mm |
| Graphic Format Supported | BMP, PLT, DST, DXF, AI, etc. |
| Packing Size | 1930*1660*1130mm |
| Packing Weight | 566 kgs |

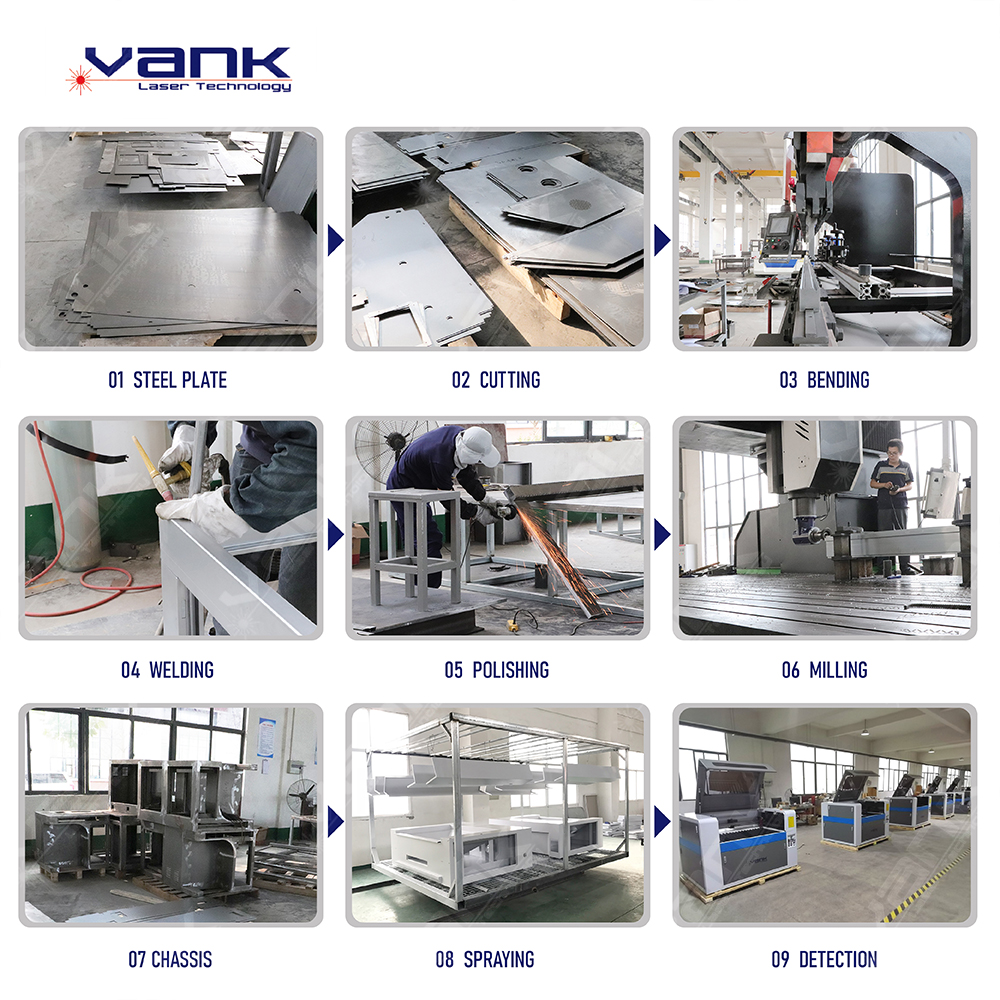

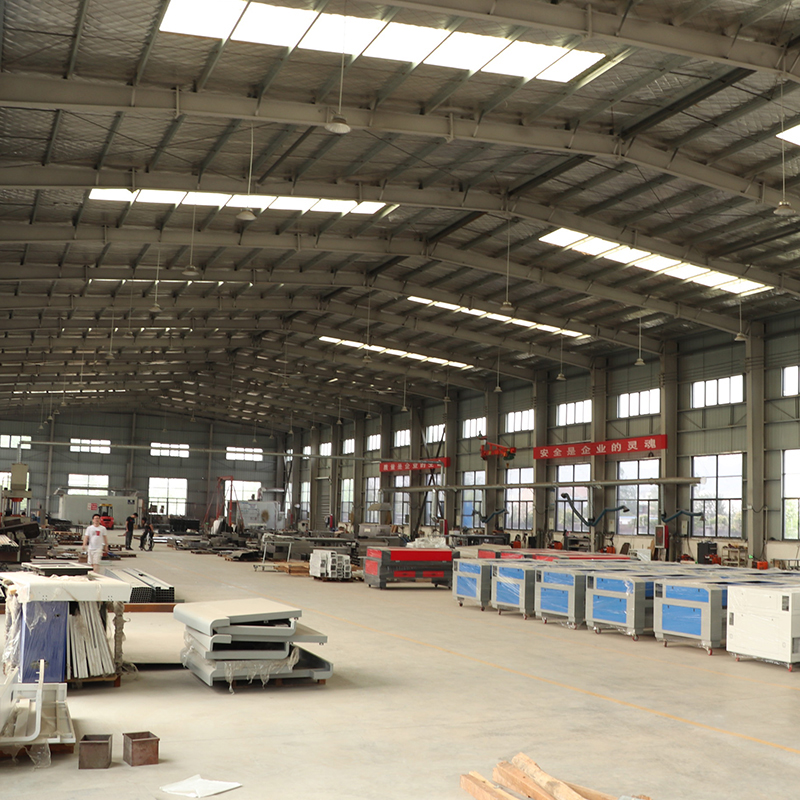

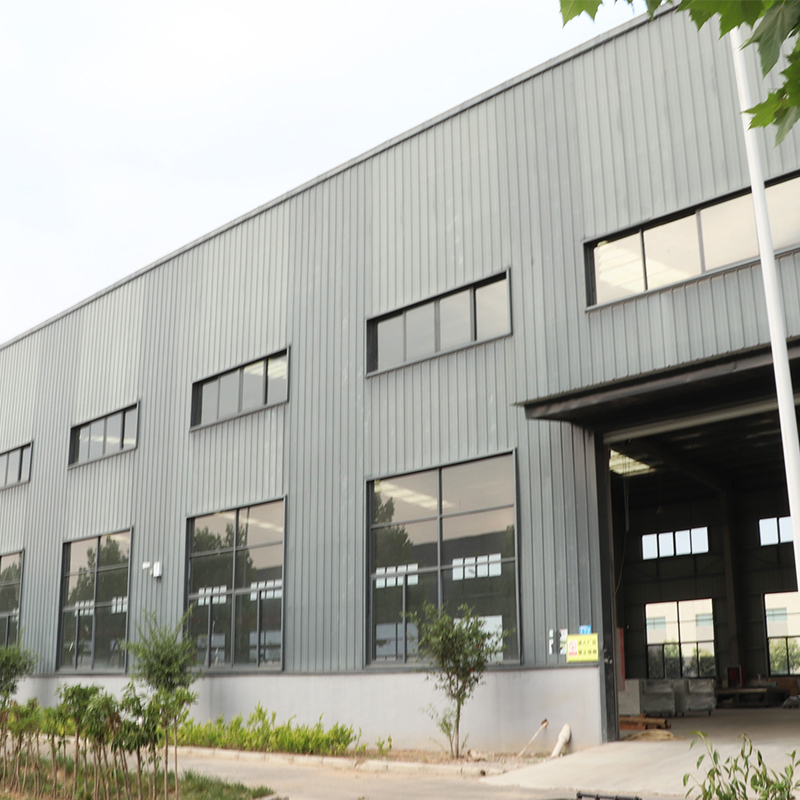

We are a high-tech enterprise with years of experience in R&D, production, sales, and technical maintenance in the laser equipment industry. All products are CE certified, ensuring safe and reliable quality. We provide customized solutions to meet different industrial needs worldwide.
