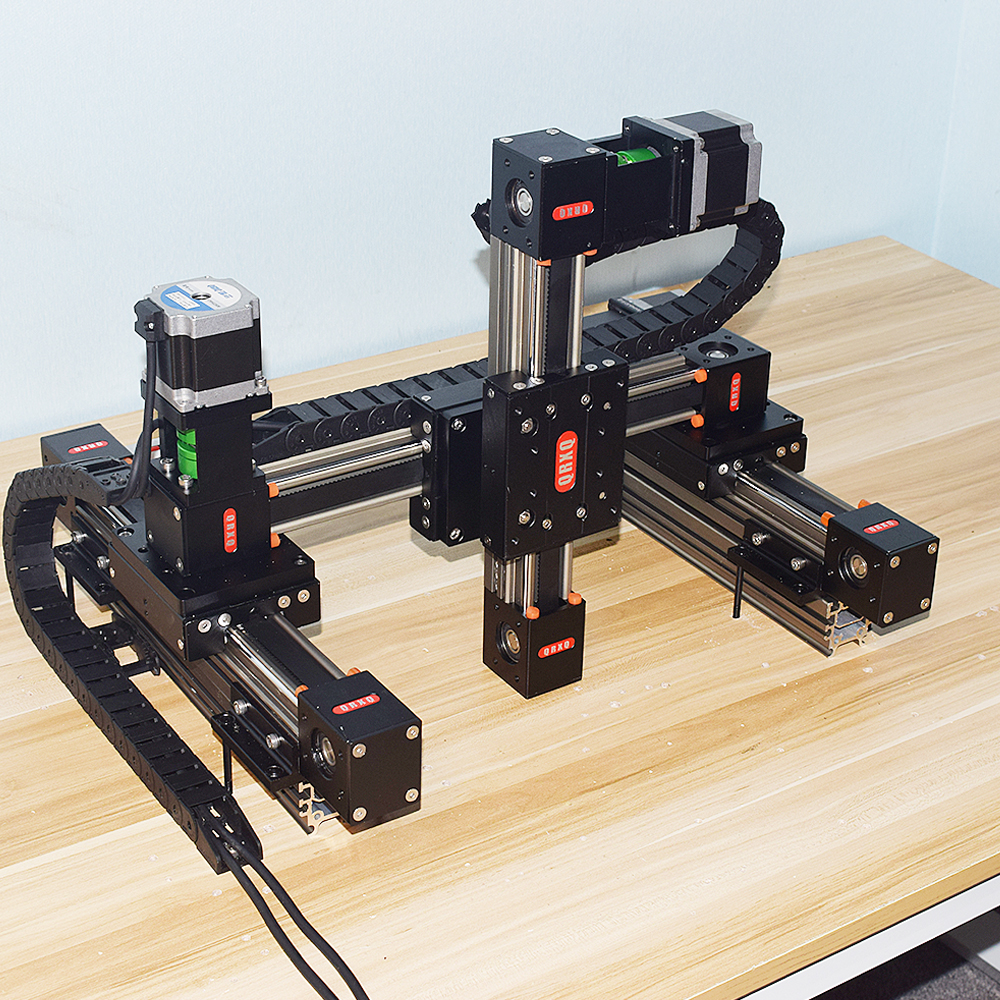

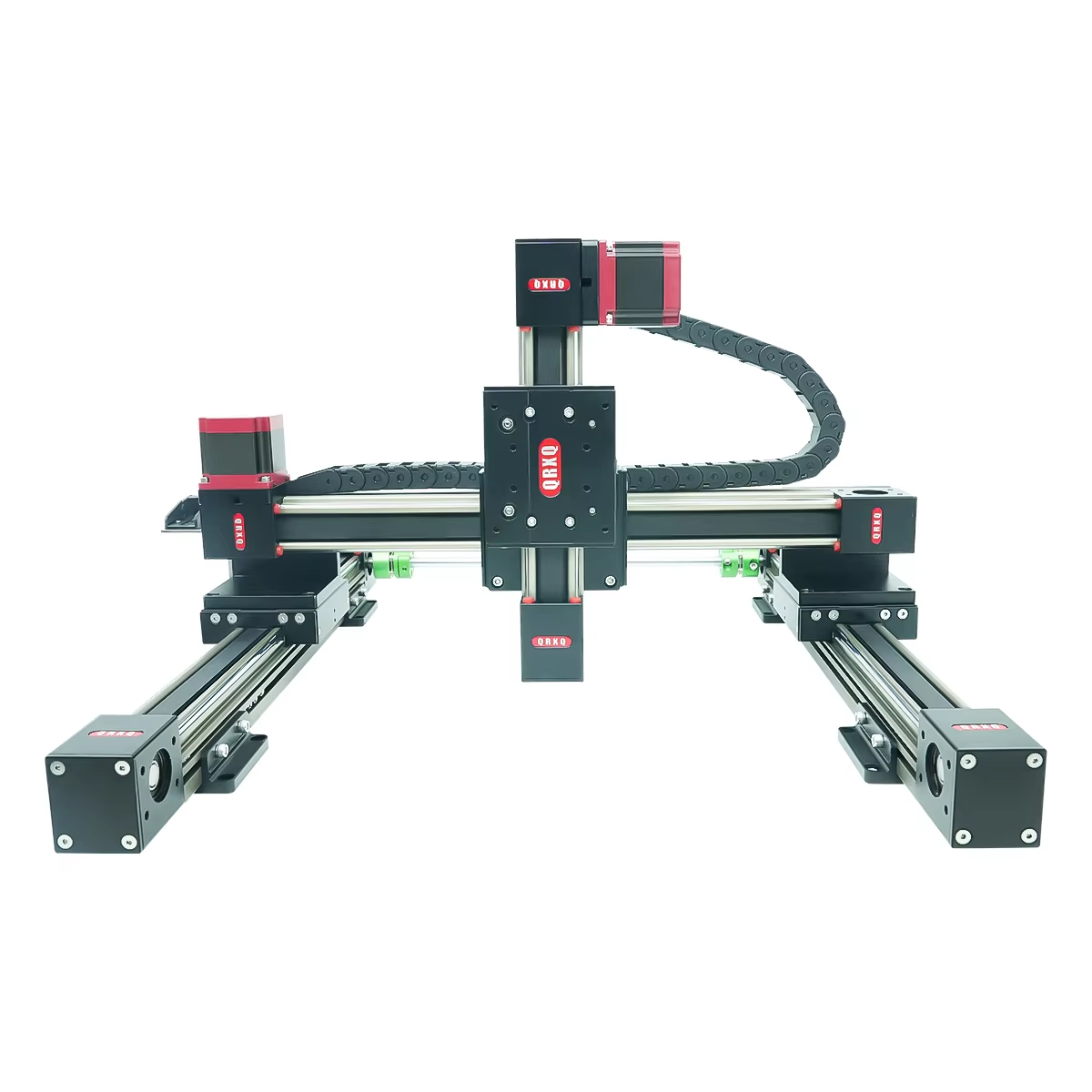

QRXQ RXP-L-45 Gantry Robot XYZ Stage CNC Router Motorized 3 Axis Table Linear Motion Belt Guide Rail With Stepper Motor
QRXQ RXP-L-45 Gantry Robot XYZ Stage CNC Router Motorized 3 Axis Table Linear Motion Belt Guide Rail With Stepper Motor
QRXQ RXP-L-45 Gantry Robot XYZ Stage CNC Router Motorized 3 Axis Table Linear Motion Belt Guide Rail With Stepper Motor
QRXQ RXP-L-45 Gantry Robot XYZ Stage CNC Router Motorized 3 Axis Table Linear Motion Belt Guide Rail With Stepper Motor
QRXQ RXP-L-45 Gantry Robot XYZ Stage CNC Router Motorized 3 Axis Table Linear Motion Belt Guide Rail With Stepper Motor
1 / 5
QRXQ RXP-L-45 Gantry Robot XYZ Stage CNC Router Motorized 3 Axis Table Linear Motion Belt Guide Rail With Stepper Motor
QRXQ RXP-L-45 Gantry Robot XYZ Stage CNC Router Motorized 3 Axis Table Linear Motion Belt Guide Rail With Stepper Motor
QRXQ RXP-L-45 Gantry Robot XYZ Stage CNC Router Motorized 3 Axis Table Linear Motion Belt Guide Rail With Stepper Motor
QRXQ RXP-L-45 Gantry Robot XYZ Stage CNC Router Motorized 3 Axis Table Linear Motion Belt Guide Rail With Stepper Motor
QRXQ RXP-L-45 Gantry Robot XYZ Stage CNC Router Motorized 3 Axis Table Linear Motion Belt Guide Rail With Stepper Motor

QRXQ RXP-L-45 Gantry Robot XYZ Stage CNC Router Motorized 3 Axis Table Linear Motion Belt Guide Rail With Stepper Motor

Send Inquiry

Product Description

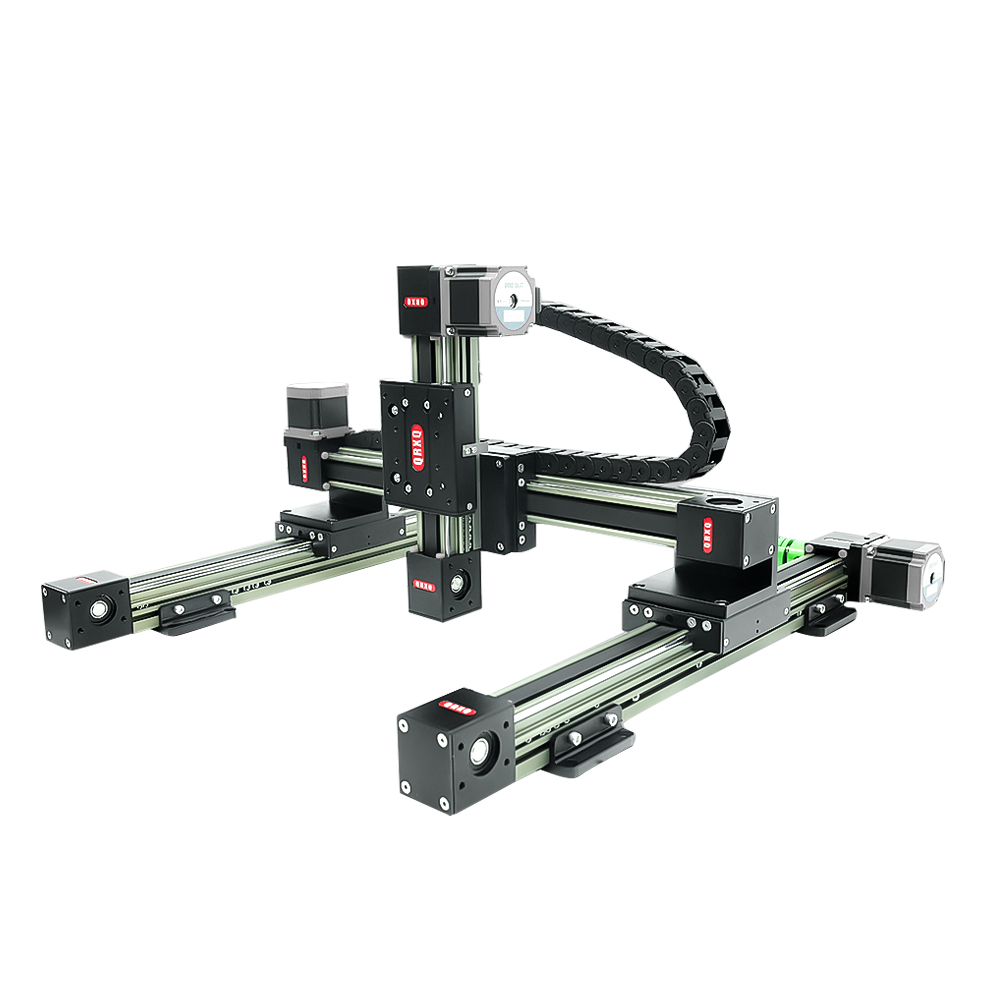

RXP-L-45 Gantry Robot XYZ Stage CNC Router Motorized 3 Axis Table Linear Motion Belt Guide Rail With Stepper Motor
Product Parameters
Technical Parameters
Module Width: 45 mm
Stage Width: 105 * 90 mm
Positioning Accuracy: 0.05 mm (±0.01 mm)
Lead: 75mm
Recommended Speed: 700 mm/s

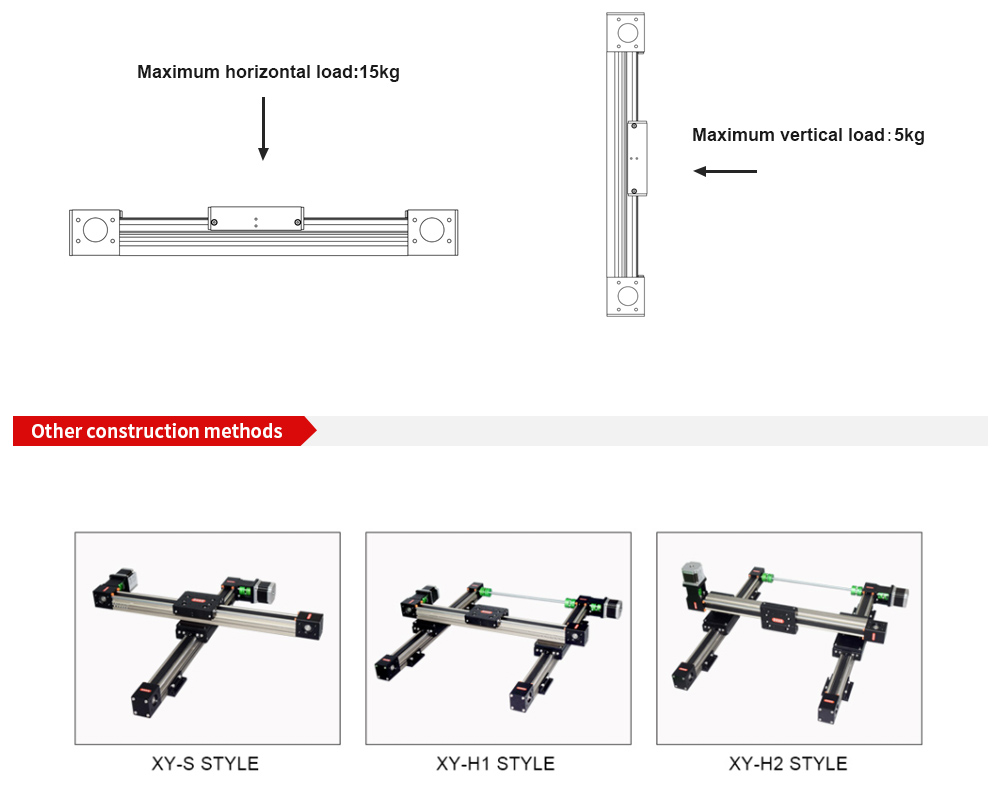

Max Horizontal Load: 15 kg
Max Vertical Load: 5 kg
Product Specifications
Item Value
ConditionNew
Warranty1.5 years
Applicable IndustriesManufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Energy & Mining, Advertising Company
Weight (KG)16
Core ComponentsPLC, Engine, Bearing, Gearbox, Motor, Gear
Model NumberRXP45-xyz
MaterialAlloys
Effective Stroke100mm-3000mm (Customizable)
Straightness/Twist≤0.01mm/300mm
Belt Specifications3M-15 (steel wire)
Synchronous WheelHTD3M, 25 teeth
Product Detailed Display
Frequently Asked Questions
How do you guarantee product quality?
We ensure quality through a strict process: always provide a pre-production sample before mass production and conduct a final inspection before every shipment.
What types of products can I purchase from you?
Our core product line includes linear modules, screw drives, synchronization band modules, mobile slides, and linear actuators.
Is the effective stroke customizable?
Yes, the effective stroke can be customized ranging from 100mm up to 3000mm to suit your specific application needs.
What are the core components of the XYZ stage?
The system utilizes high-quality core components including the PLC, engine, high-precision bearings, gearbox, stepper motor, and gears.
What delivery and payment terms are accepted?
We accept various delivery terms such as FOB, DDP, DDU, and Express Delivery. Payments can be made via T/T, L/C, PayPal, Western Union, and Credit Card in multiple global currencies.
Which industries are these modules suitable for?
These motorized stages are ideal for manufacturing plants, printing shops, machinery repair, energy & mining, and advertising companies requiring precise linear motion.
