Datum Machine
Datum Machine

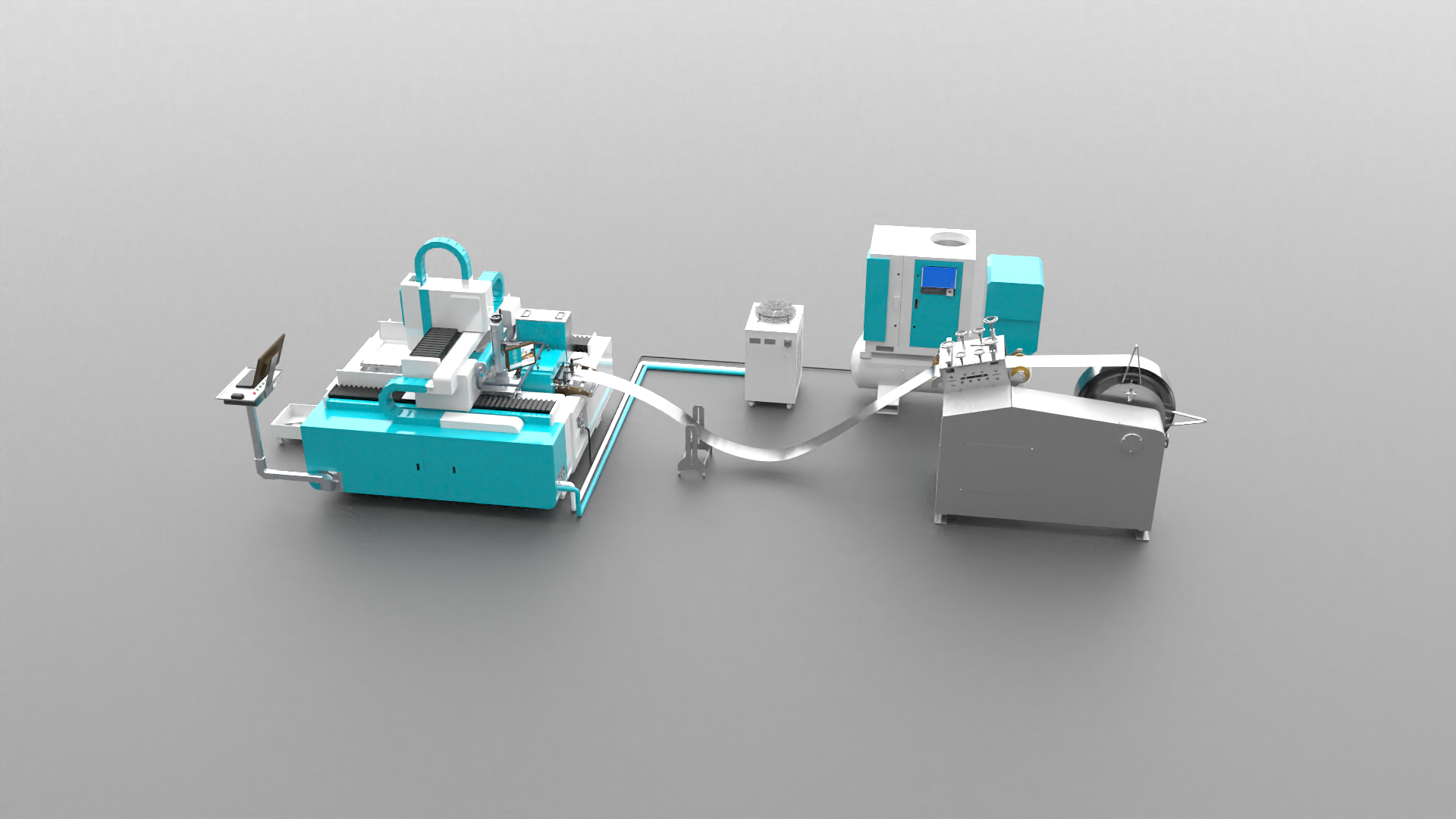

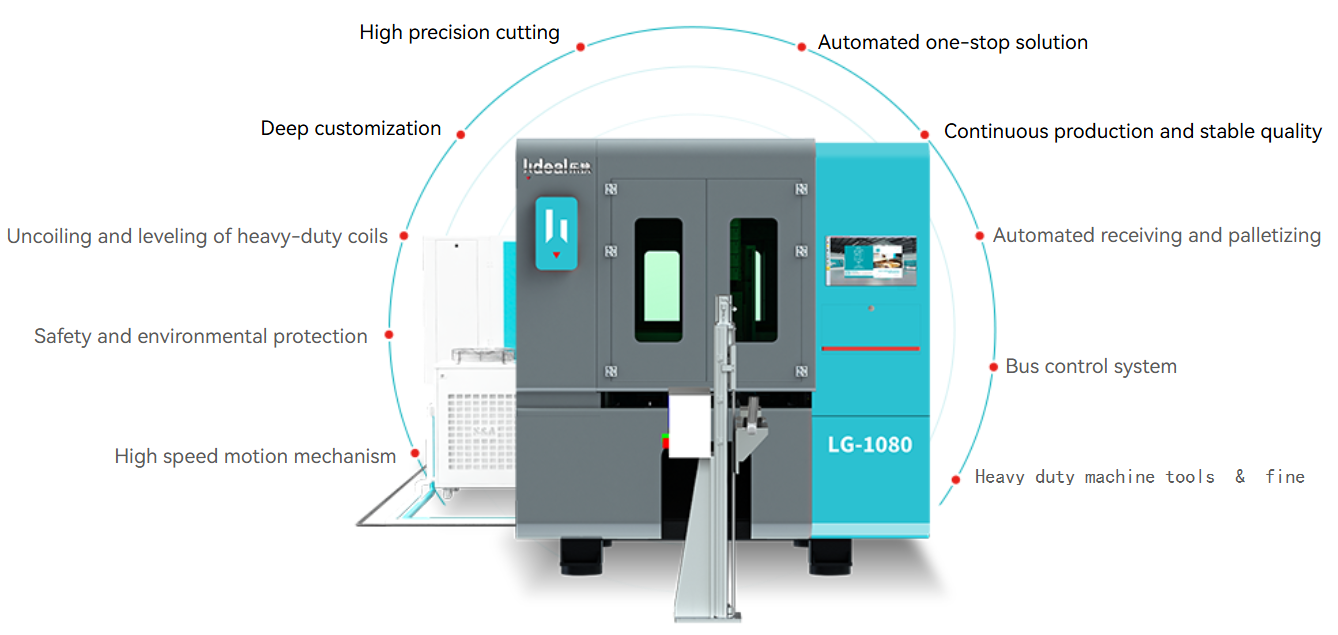

Upgrading from single cutting to one-stop processing, one machine can handle multiple procedures, optimize layout to eliminate waste, no need molds simple and fast, auto-palletizing to make unloading more organized.
Uncoiling and leveling + accurate fixed-length feeding, feeding accuracy≤0.5mm; the cutting repeatability is 0.02mm, the cutting acceleration is 1G.
Gantry frame machine tool structure, expressive overall welding with stable rigidity and high precision; aerospace aluminum beams are corrosion-resistant and oxidation-resistant.
Use fiber laser, intelligent cutting head, and high-precision displacement module to achieve high-speed, high-precision cutting and stable performance.

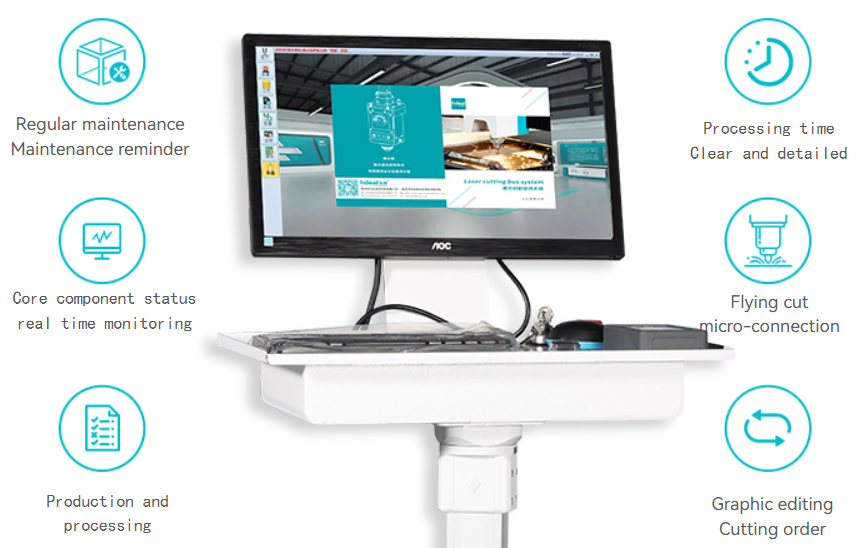

Friendly interface and convenient operation. Products with different needs can be produced by importing processing drawings to meet the needs of different shapes and changeable requirements.
Depending on the cutting workpiece and working environment, options include: fully enclosed design, dust purifier, rewinding, and palletizing etc.

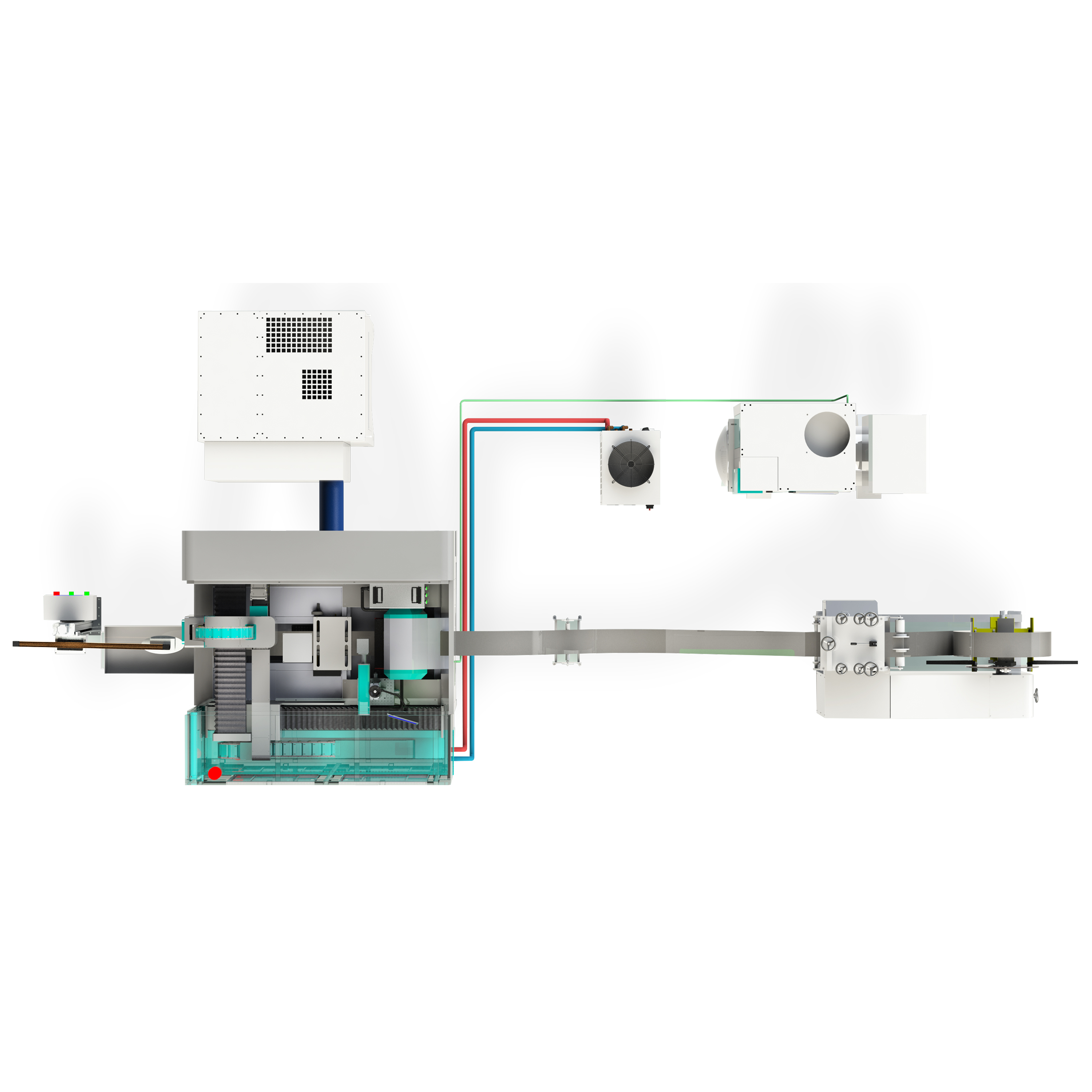

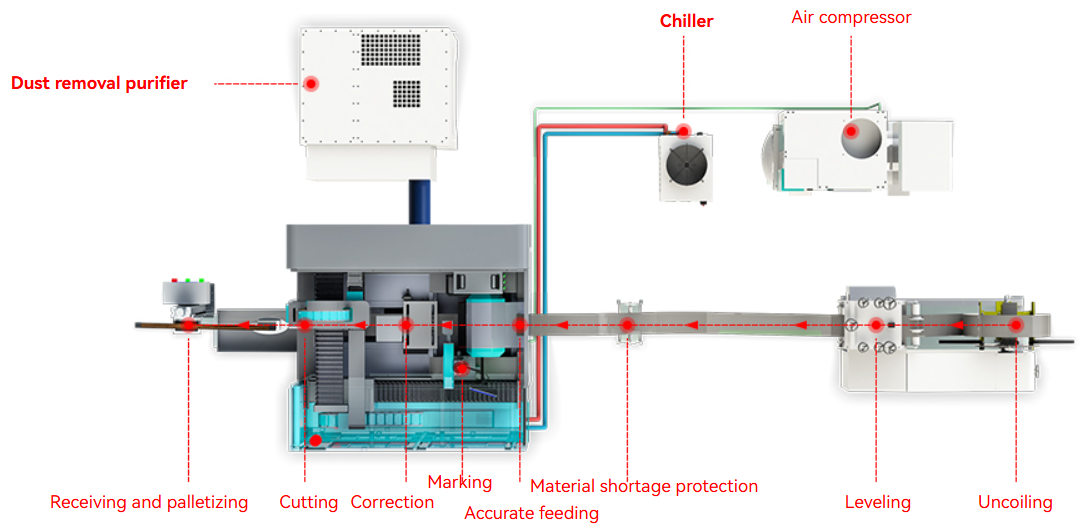

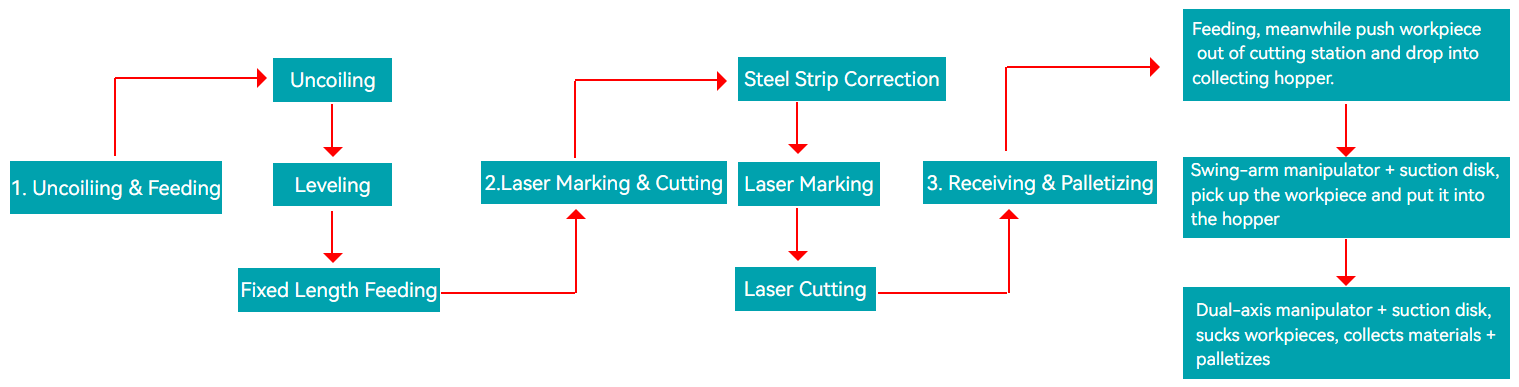

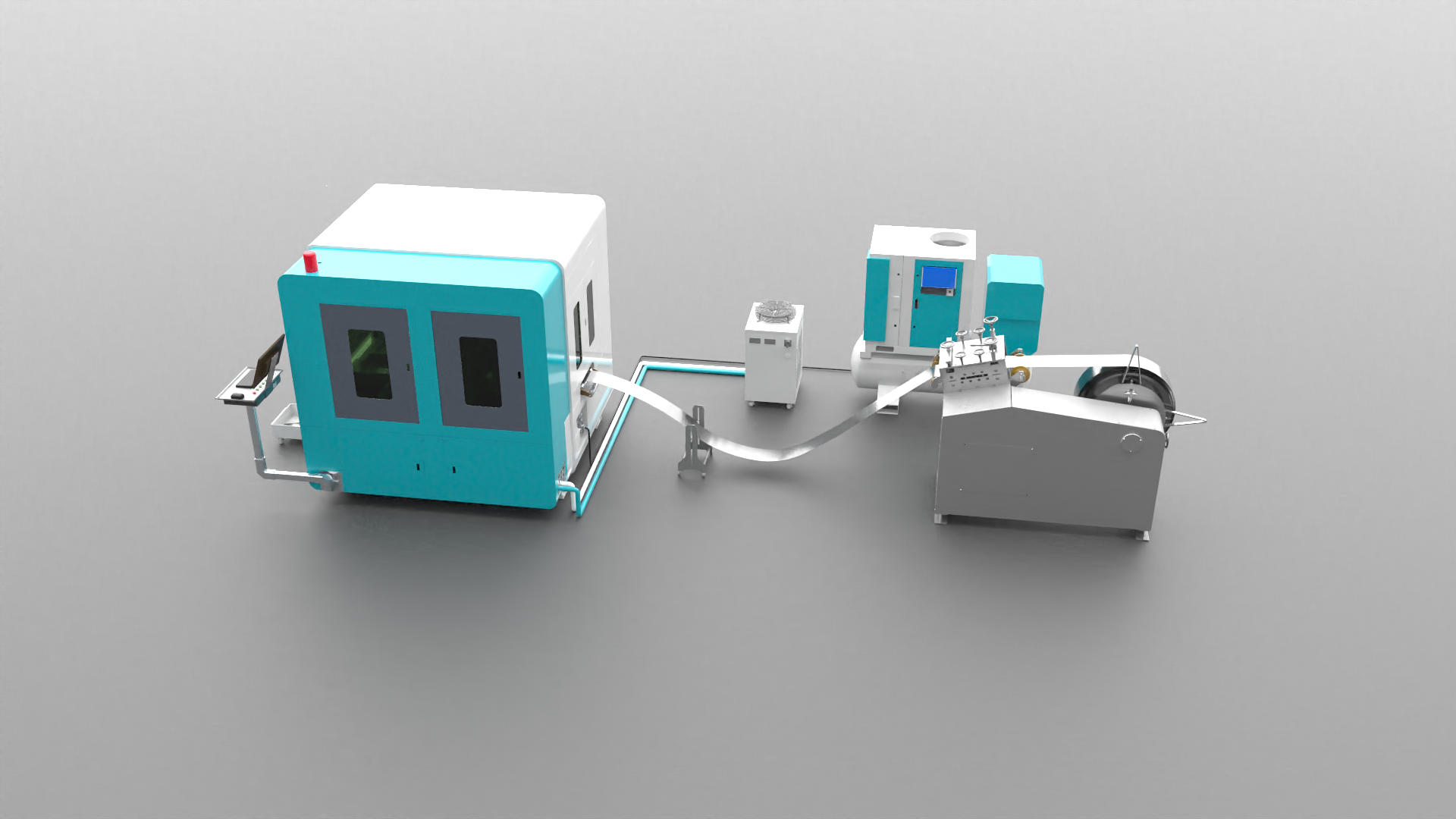

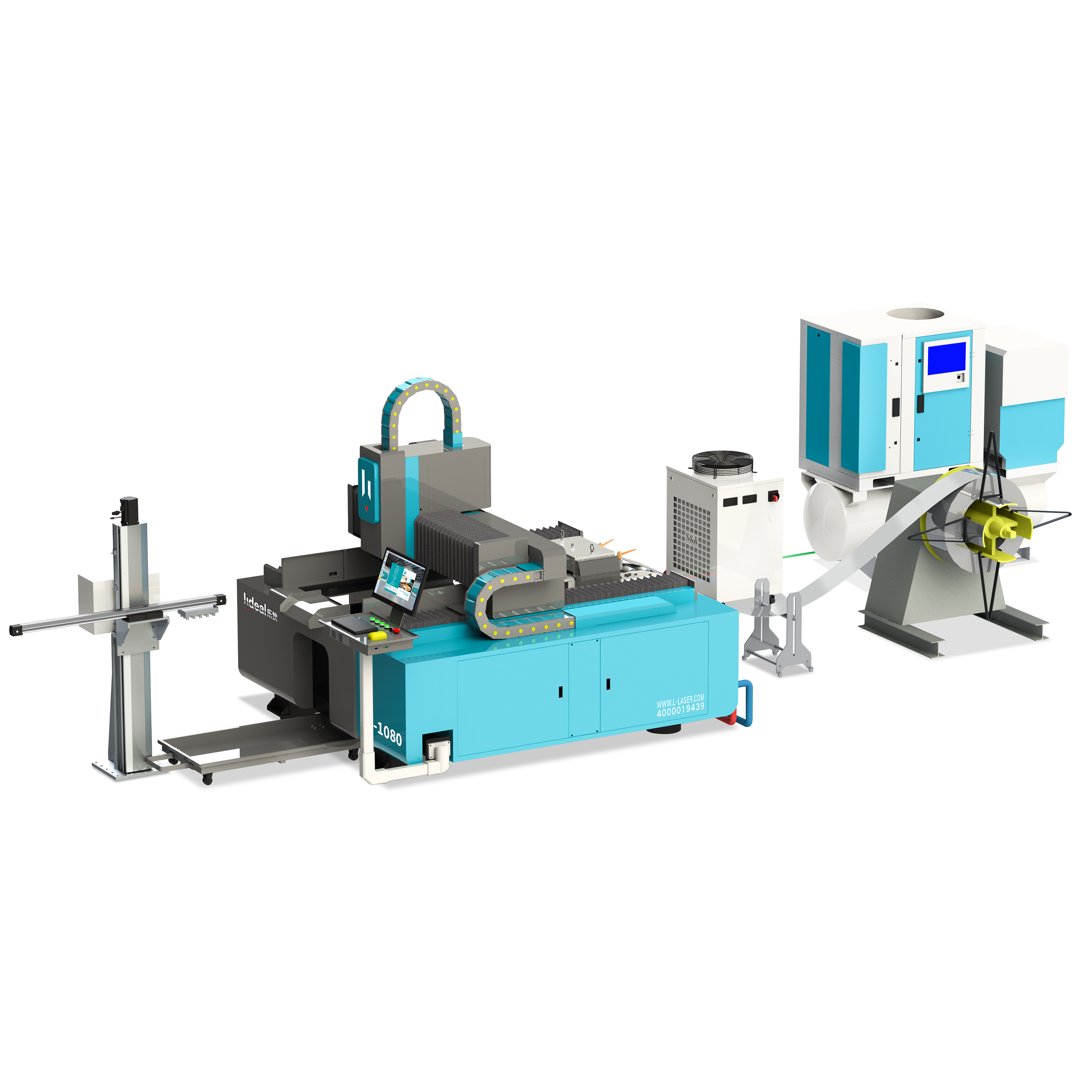

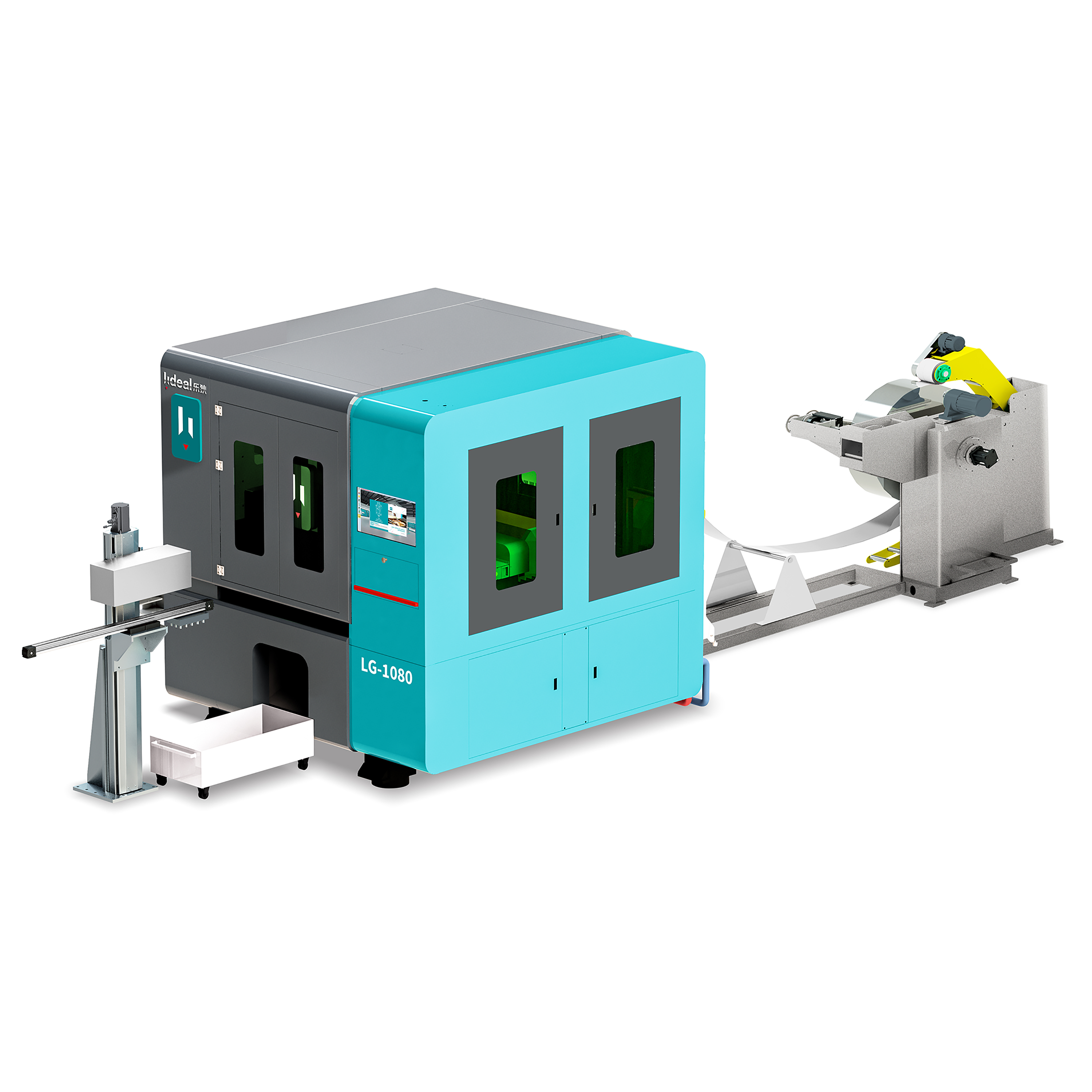

Change traditional punch processing method and upgrade to automated flexible laser cutting and marking production line. To realize: automatic uncoiling, leveling, accurate fixed-length feeding, real-time deviation correction, laser marking, high-speed and high-precision laser cutting, stacking, waste collection, environmental protection and purification.

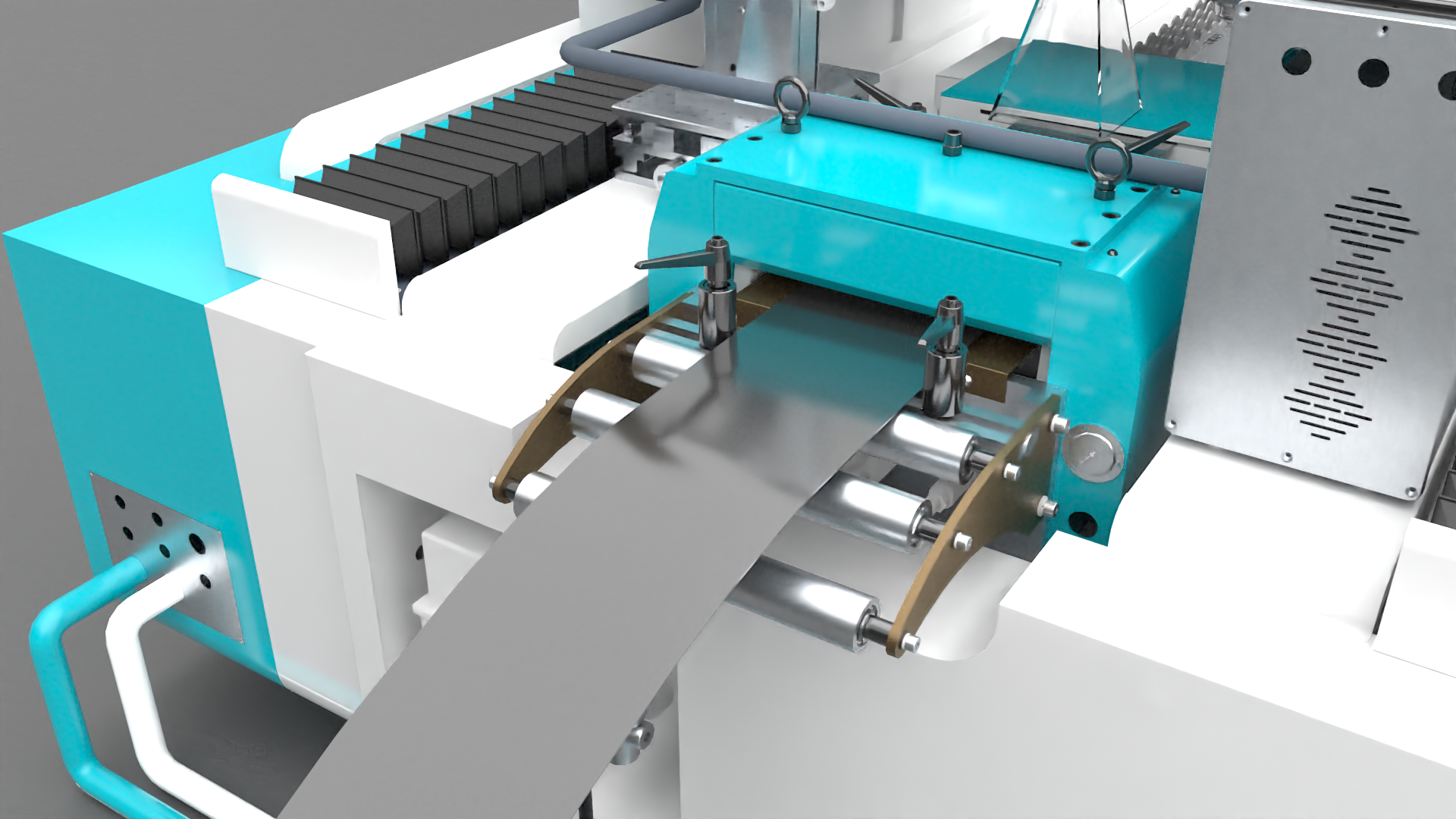

Select the uncoiler + leveler + feeder based on material. Ensures feeding accuracy and stability.

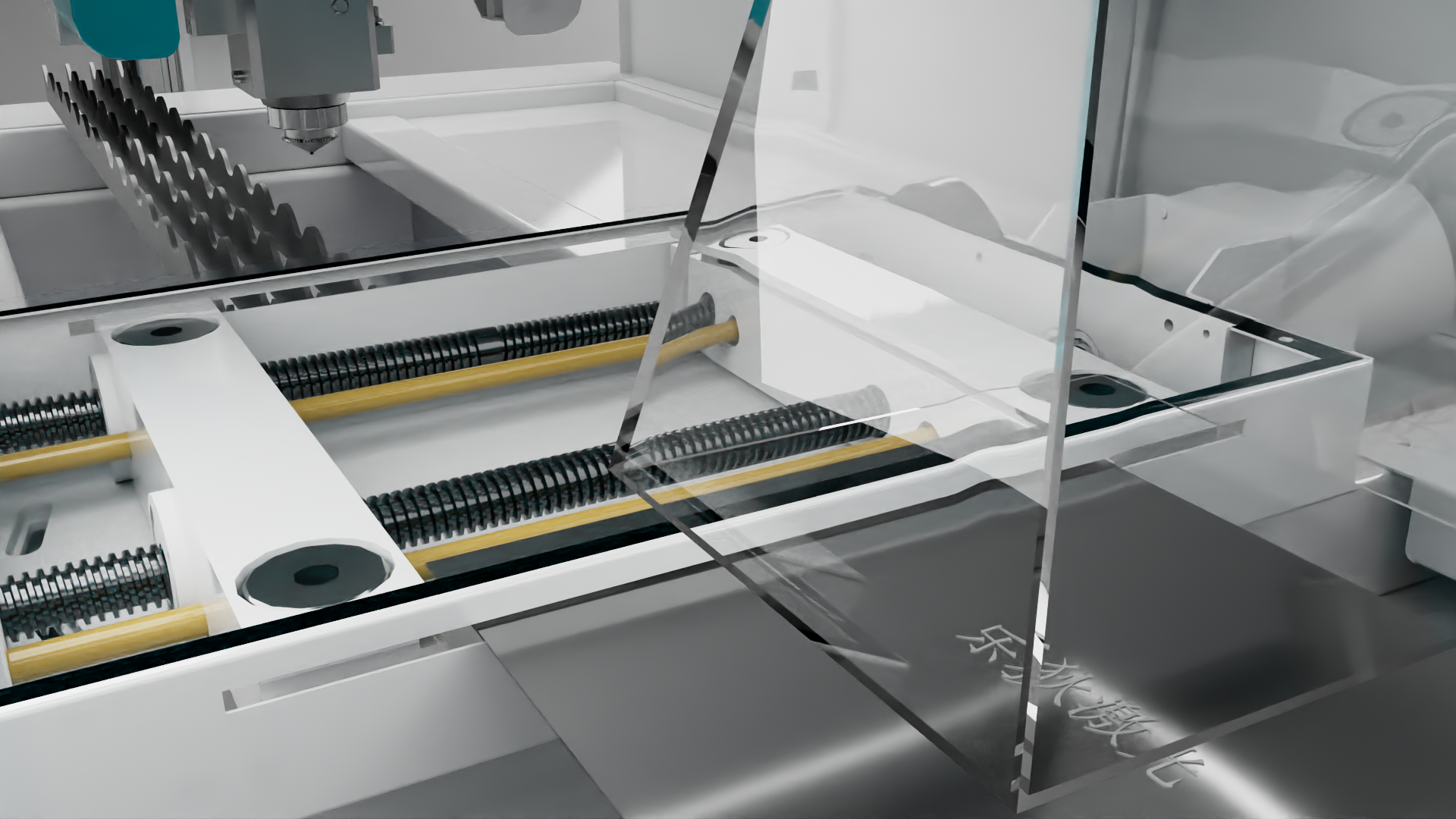

Mechanical or electric real-time correction device with mechanism accuracy of 0.2 mm.

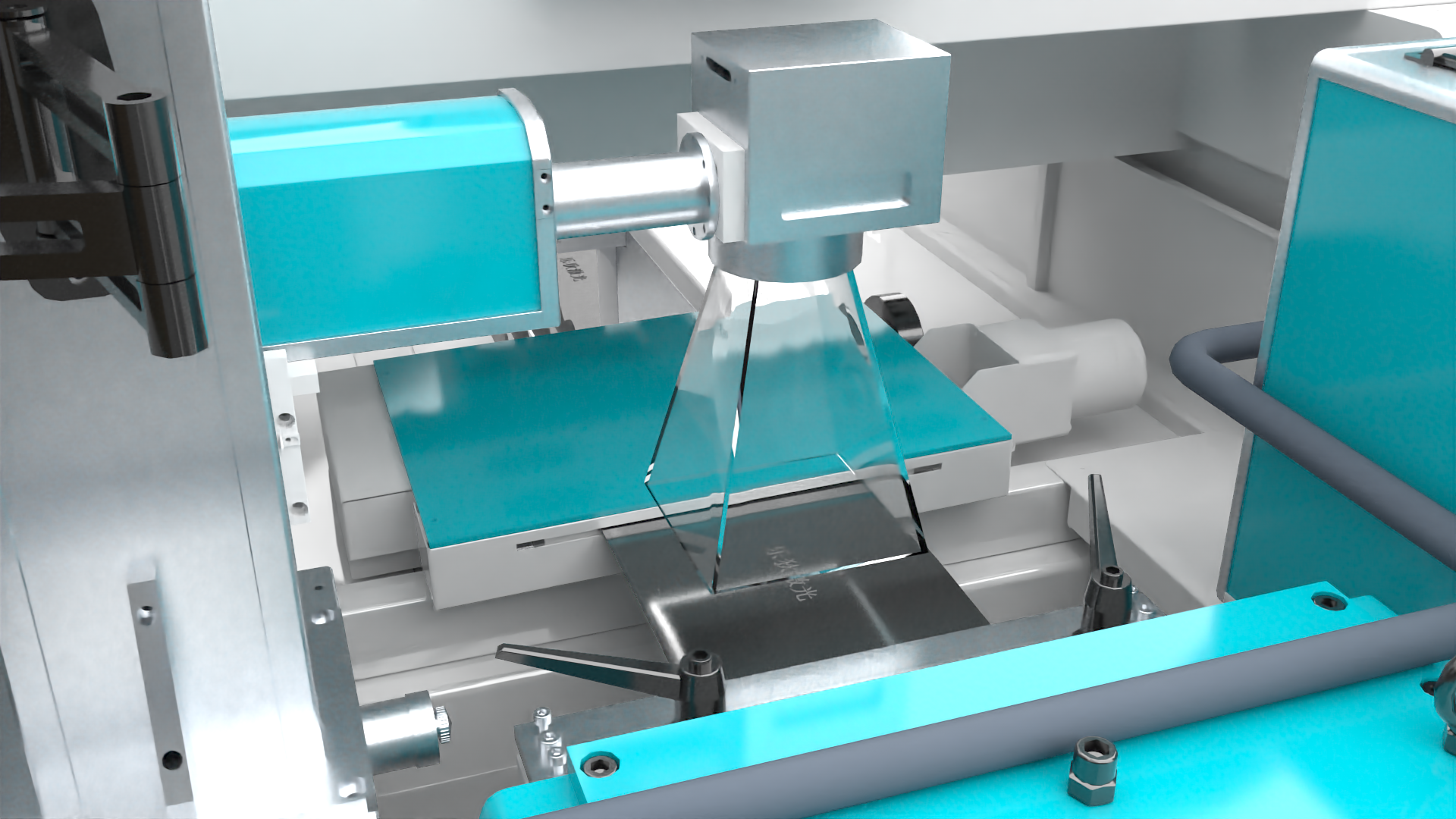

Online marking accuracy 0.01mm. Support text and flying marking.

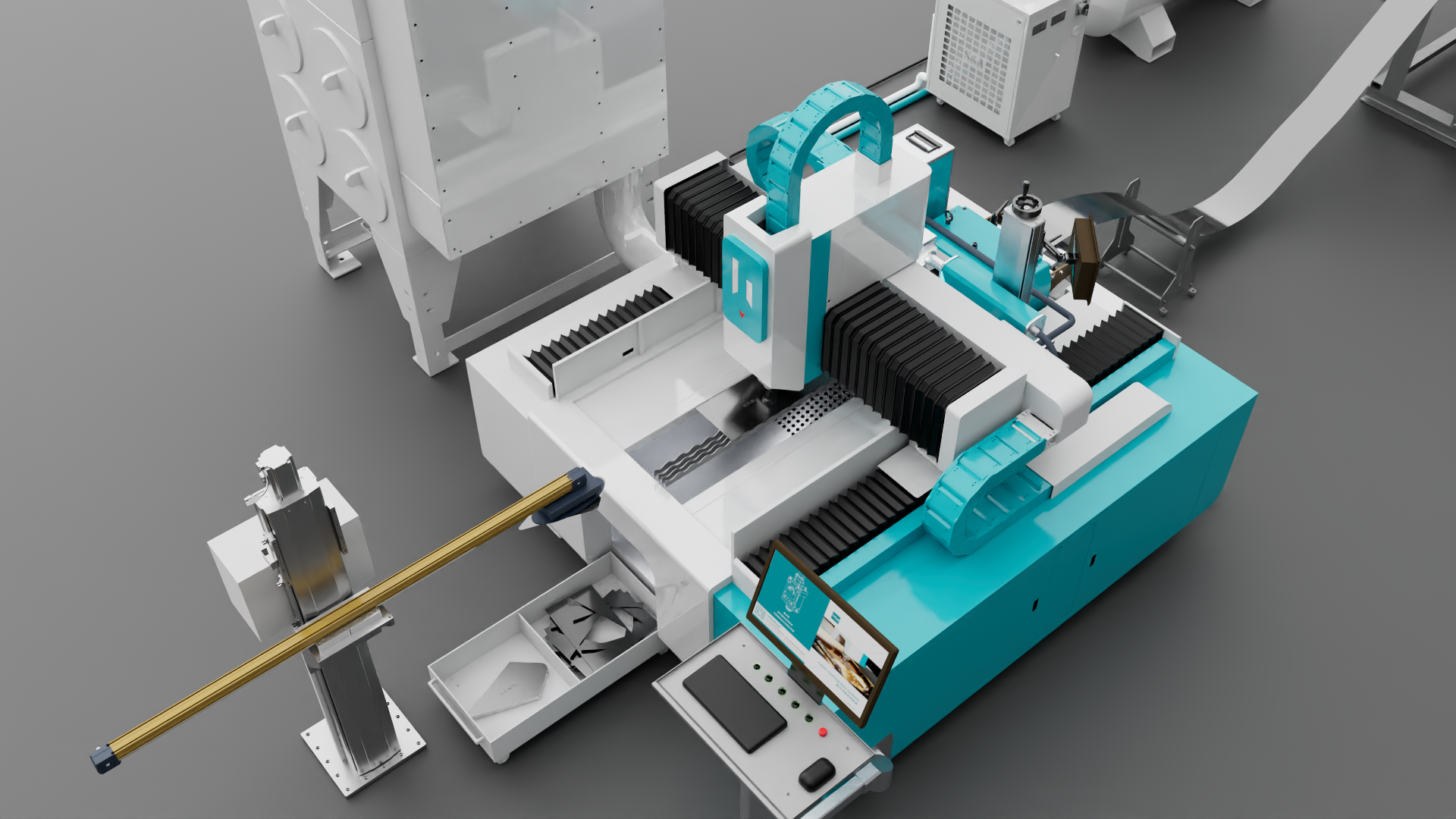

Quickly collect and stack materials. Connected to the cutting system for one-click automation.

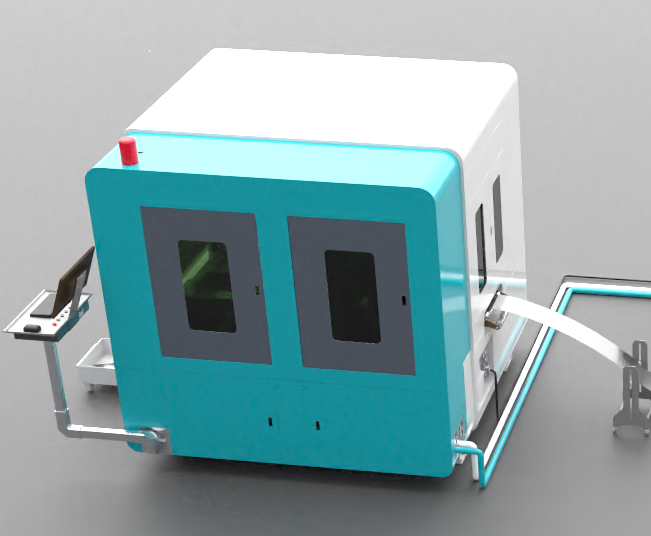

Meet higher demands for safety and environmental protection.

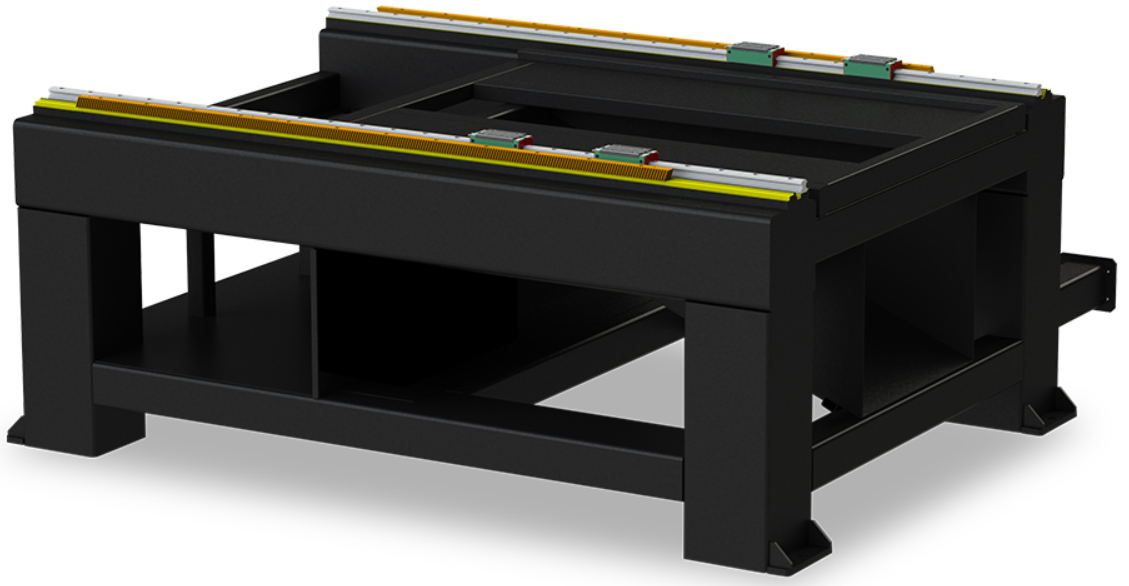

High-strength overall bed welding, annealed at high temperature to ensure the frame will not deform for 20 years.

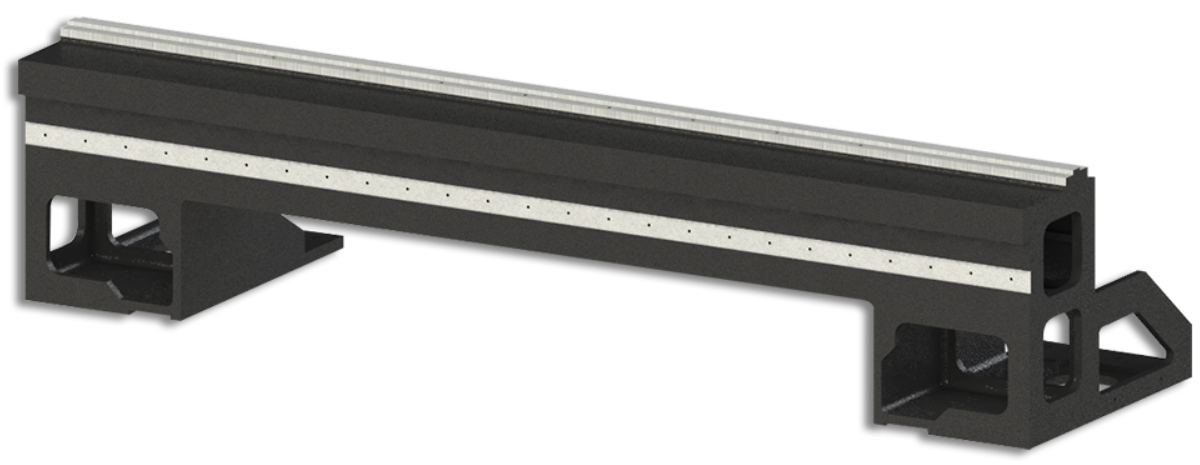

Extruded by 4,300-ton press. Lightweight, high rigidity, and higher cutting accuracy.

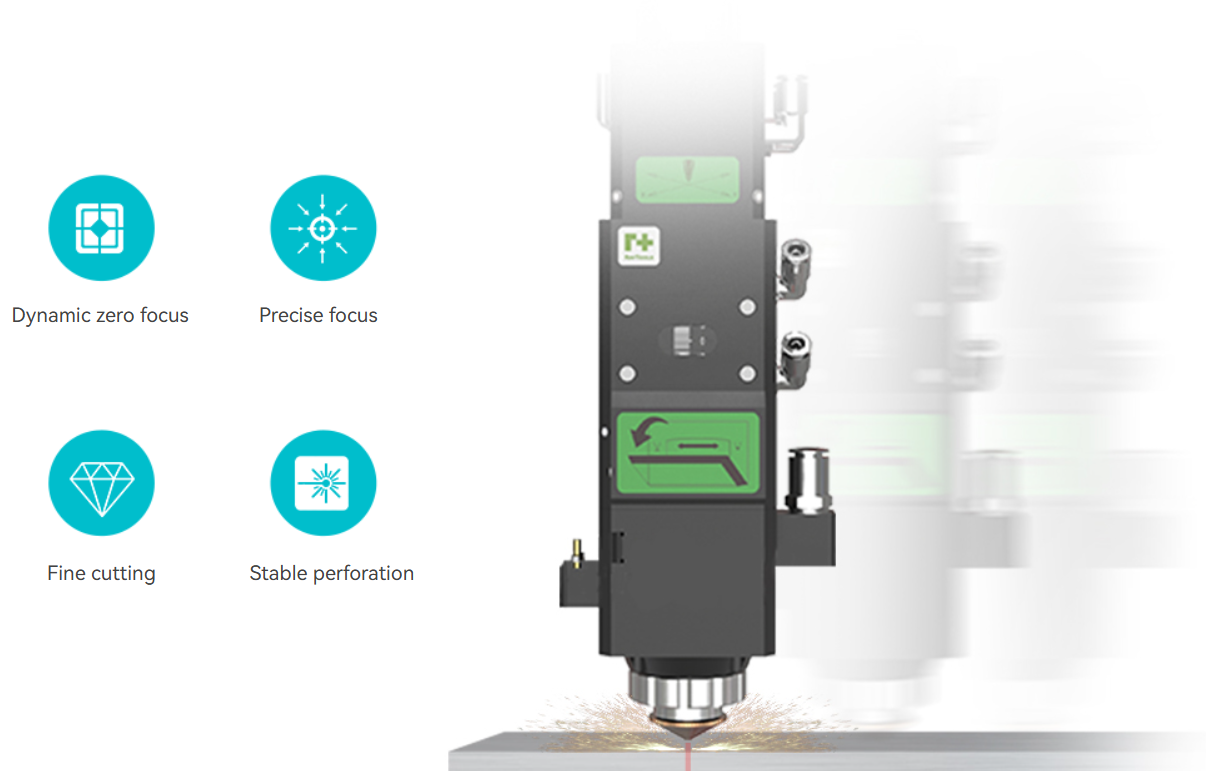

Achieve thicker and faster cutting with minimal heat affected areas.
Customized system allowing feeding and cutting at the same time.
Operating accuracy 0.02mm with top quality dustproof drag chains.

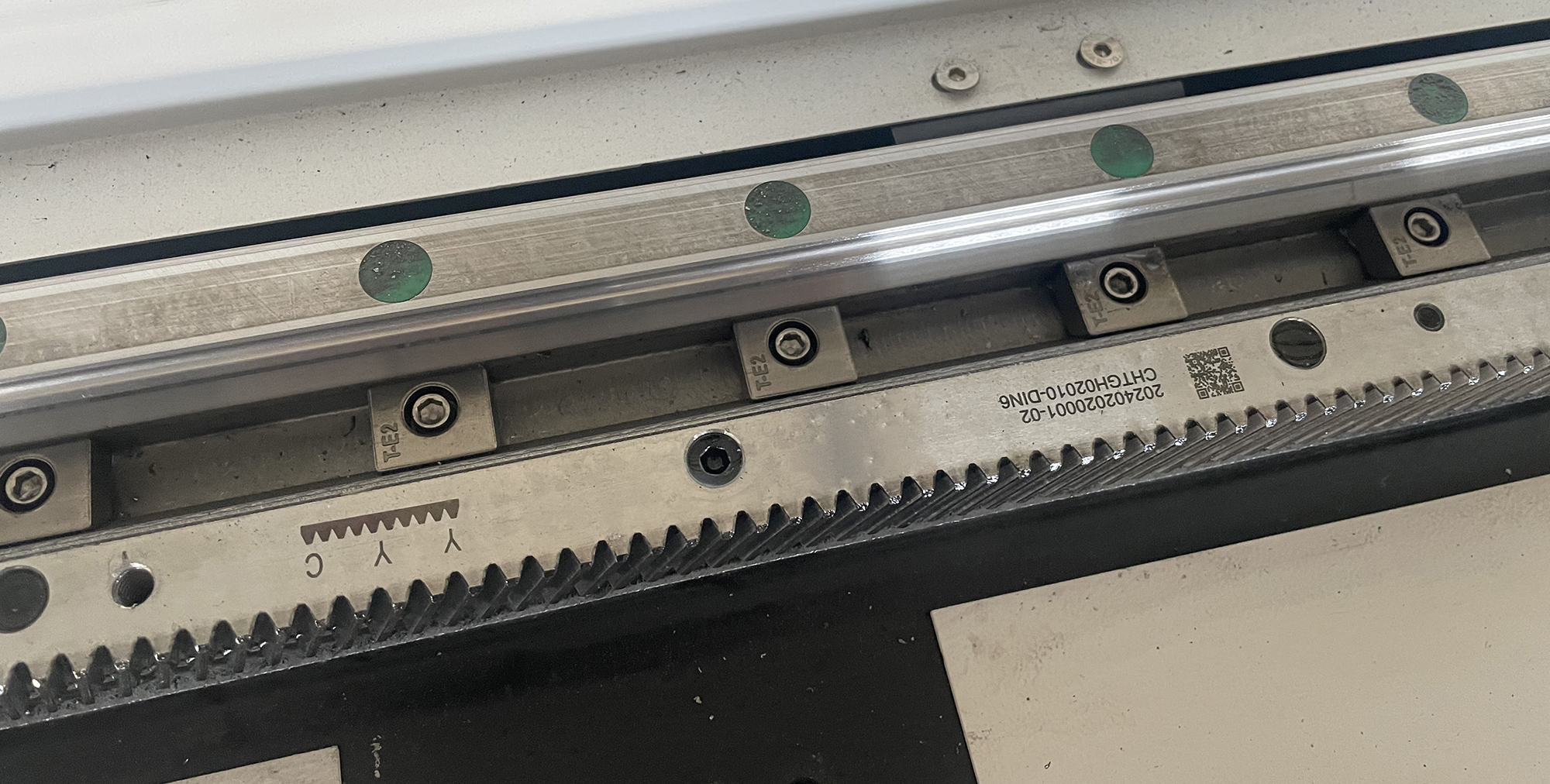

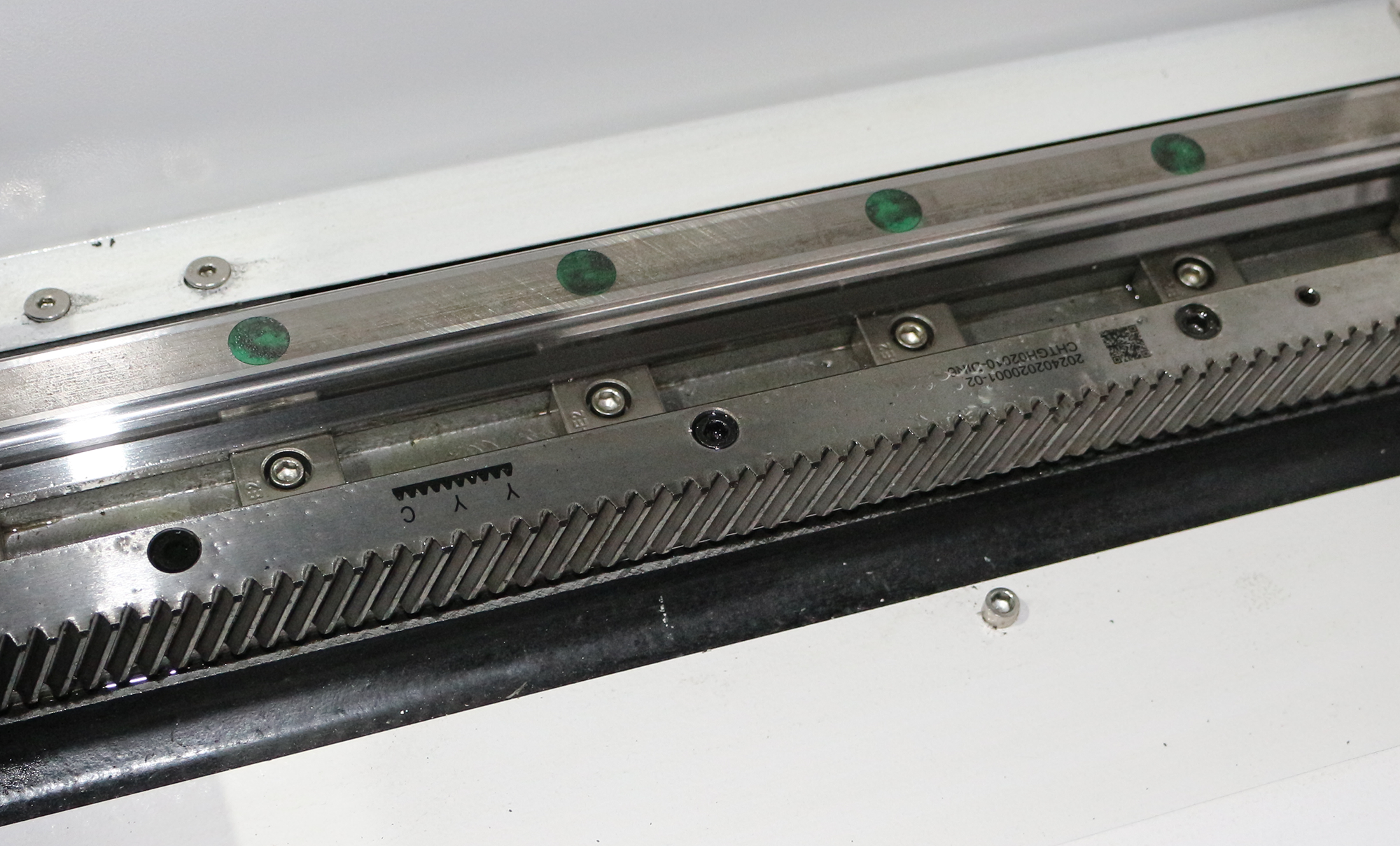

Smooth transmission without deviation or skipping.
| Work Mode | Single/Double laser head cutting | Maximum Acceleration | 0.8G |
| Laser Power | 1500W/2000W/3000W/6000W | Cutting Line Width | 0.1mm |
| Work Area | 700*850mm (Customizable) | Repeatability | ±0.01mm |
| Max Running Speed | 80m/min | Working Power | 380V 50Hz/60Hz 60A |
| Total Power | ≥12KW | Feeding Length | 0-1000mm |
| Feeding Speed | 30m/min | Feeding Accuracy | ≥0.5mm |
| Machine Size | 210x210x215cm | Production Line Size | 950x210x215cm |
