Datum Machine
Datum Machine

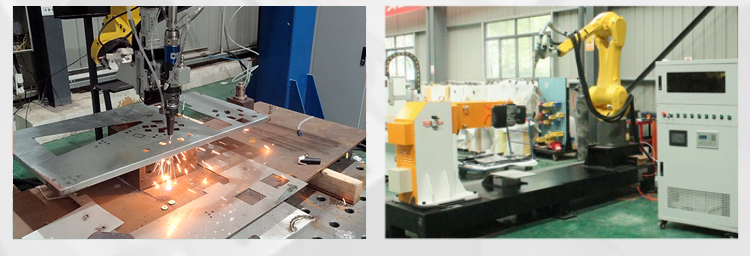

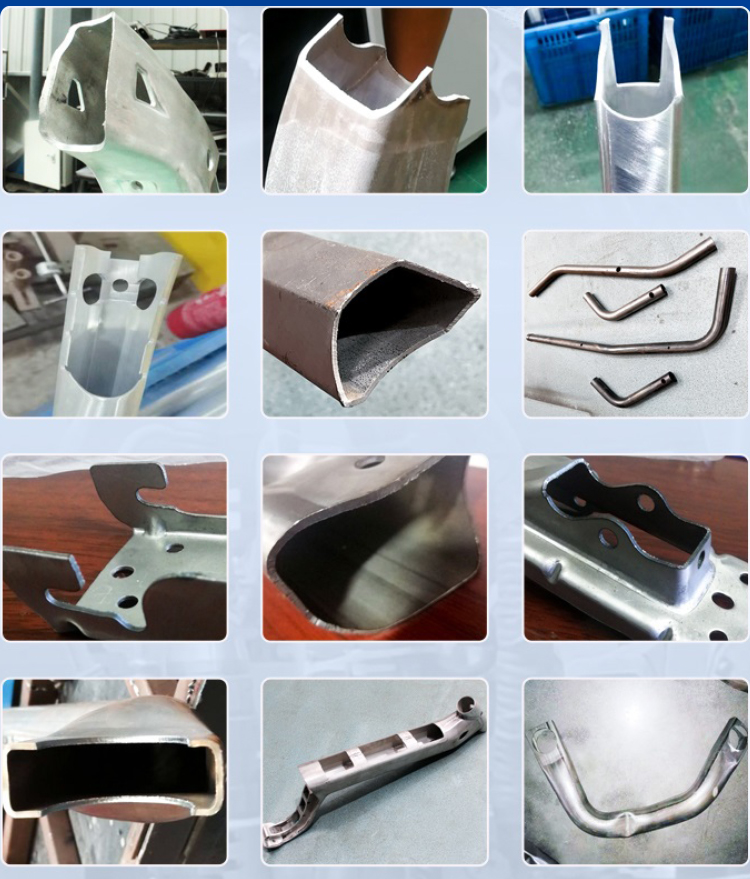

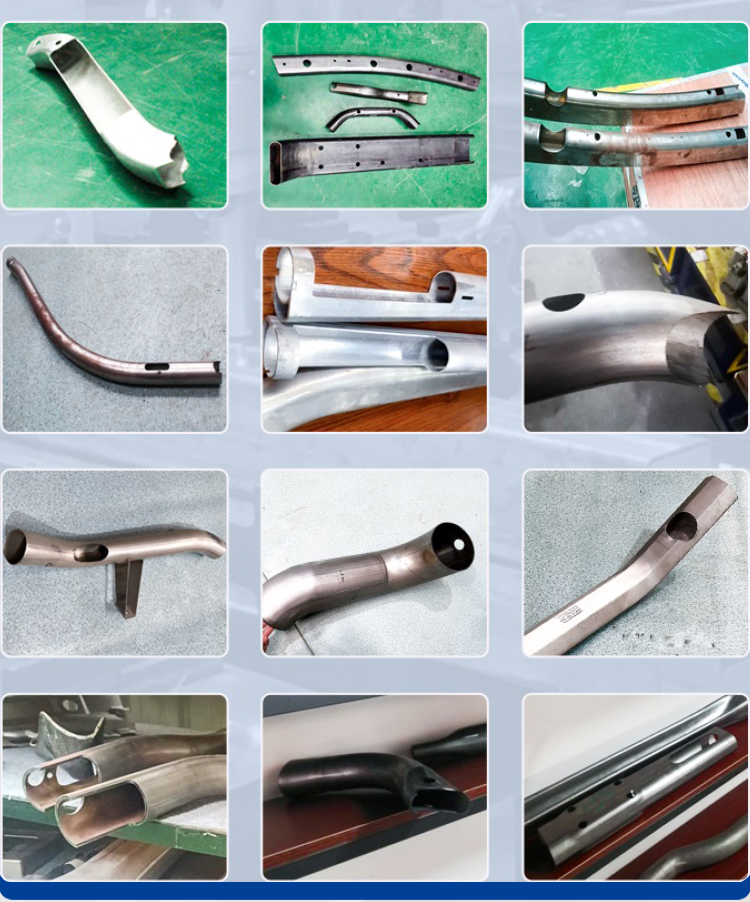

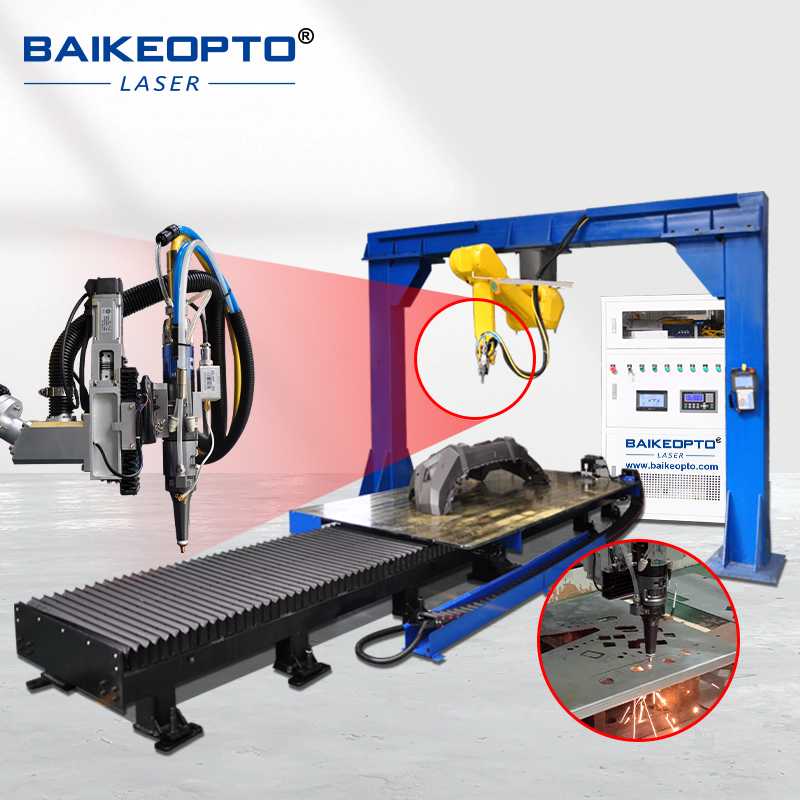

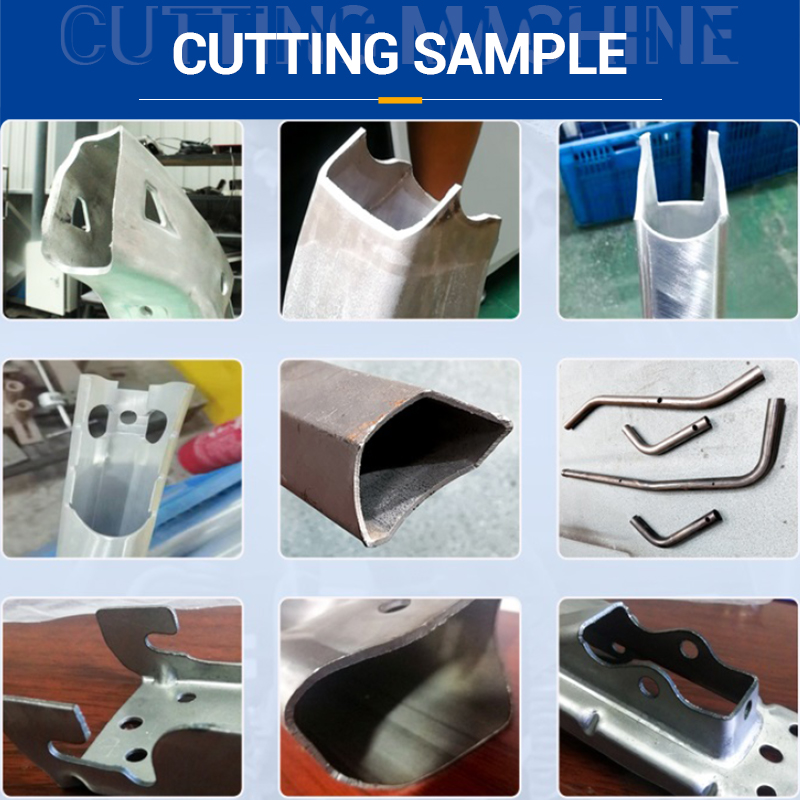

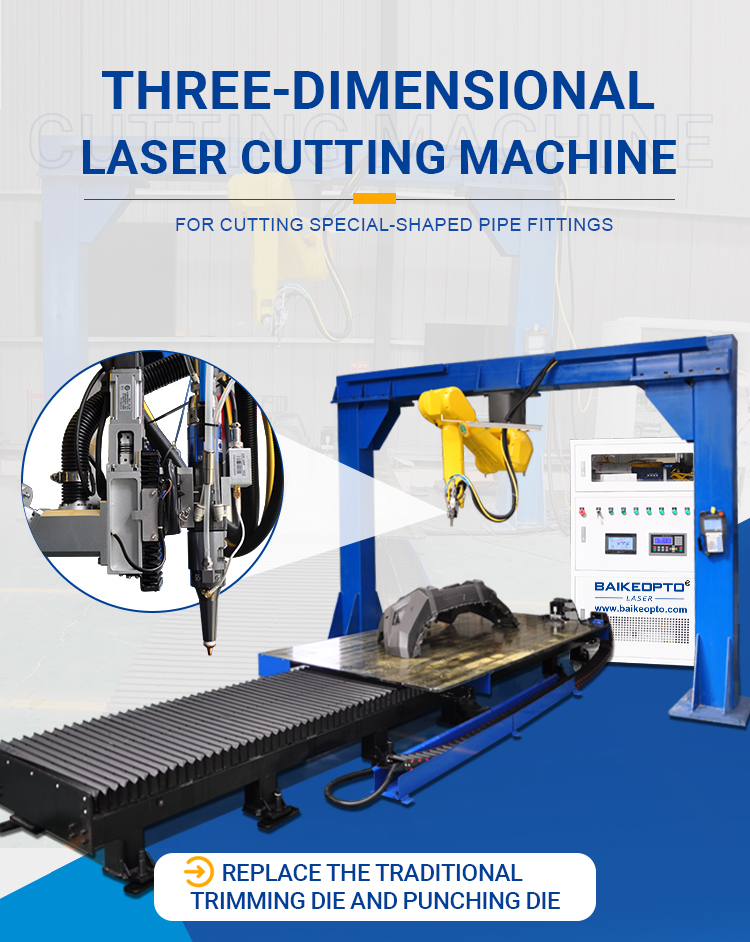

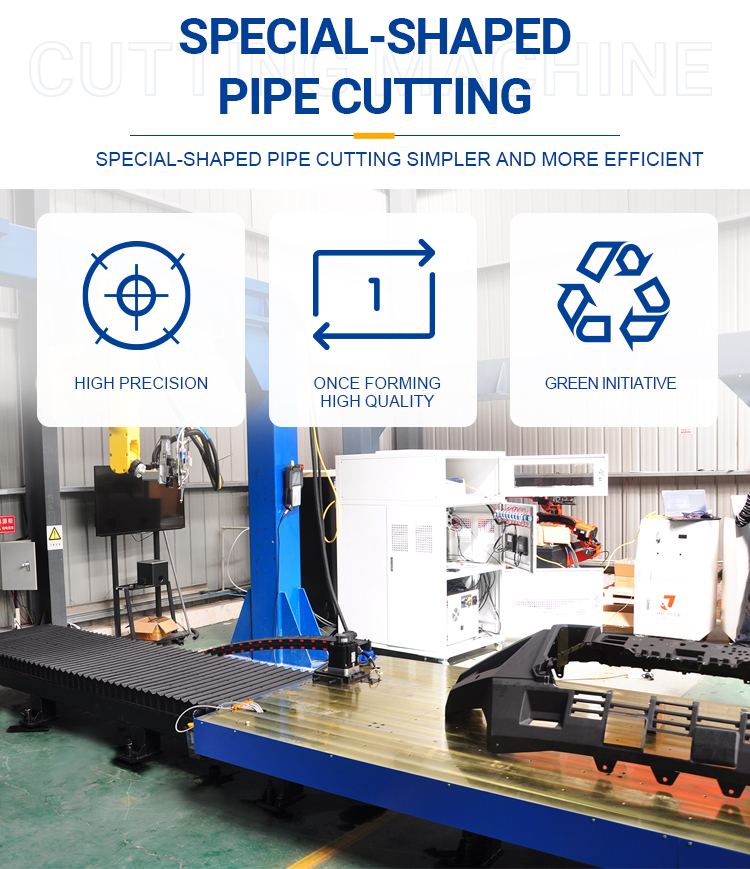

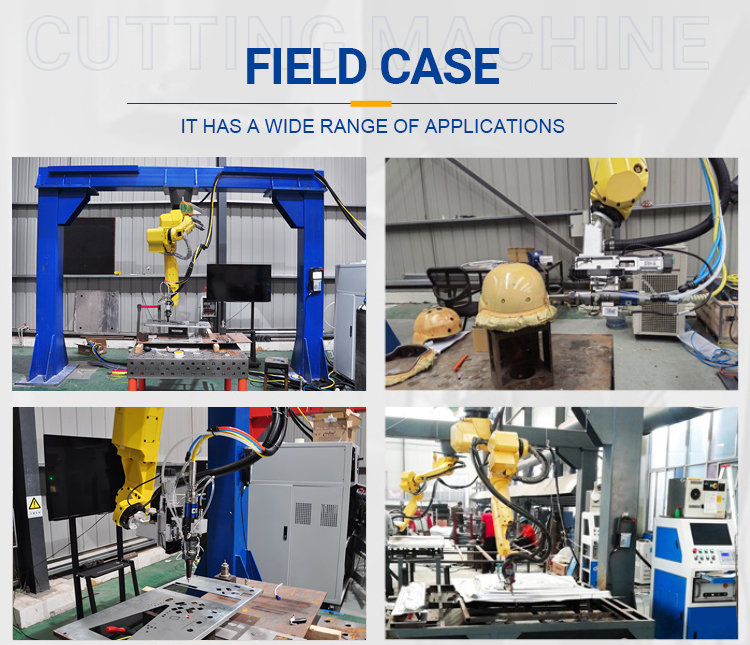

This system features a wide range of applications across various manufacturing sectors: Frame manufacturing, Helmet manufacturing, Fitness equipment manufacturing, Mold manufacturing, Crafts production, Automobile manufacturing, Electric tools, Elevator manufacturing, Kitchen Hardware manufacturing, etc. It is an advanced, cost-effective tool developed to realize high-speed hole cutting and arc cutting of metal frames and special-shaped pipes.

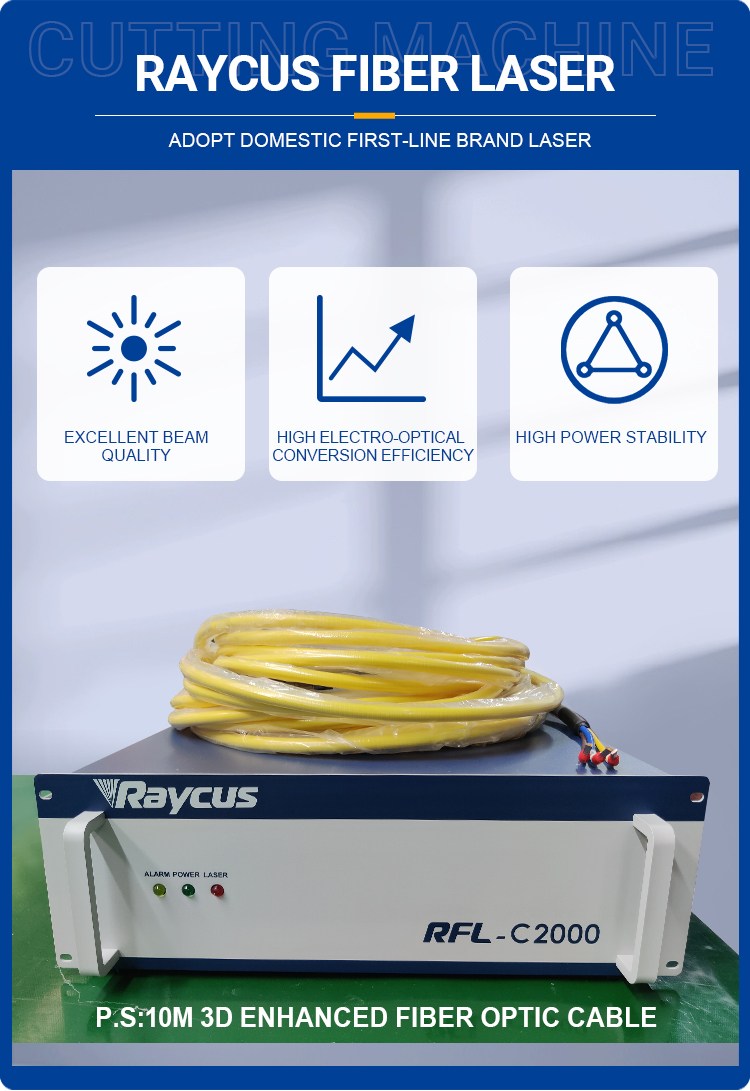

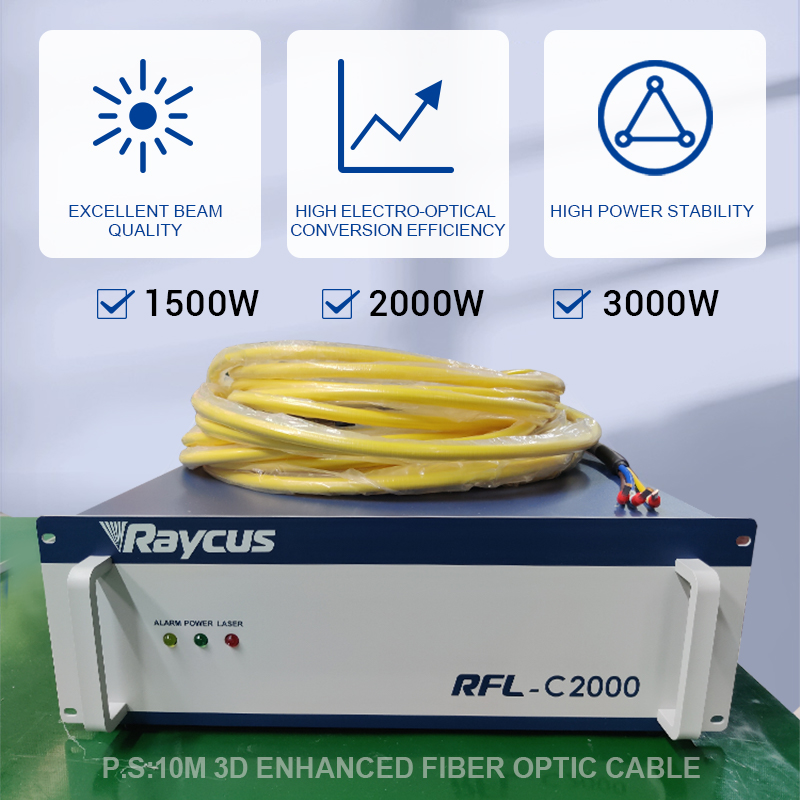

| Laser cutting light source | High performance fiber laser |
| Laser power | 1000W ~ 6000W (Optional) |

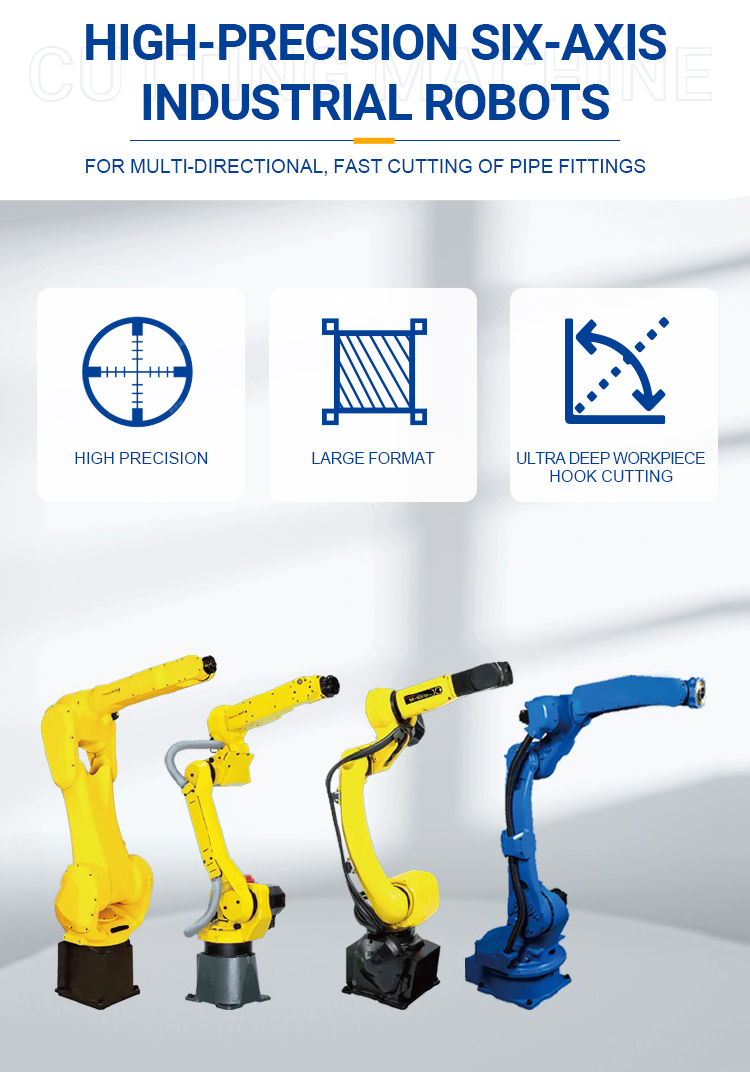

| Robot brand | FANUC |
| Scope of work | 2200MM * 1800MM * 200MM |
| Repeated positioning accuracy | ±0.05MM |
| Trajectory accuracy | ±0.15MM |
| Cutting wall thickness | 0.5 ~ 6MM (Suitable material) |
| Minimum cutting aperture | 3MM |
| Maximum cutting speed | 12M/MIN |
| Maximum velocity of spaceflight | 60M/MIN |
| Power supply | Three-phase five-wire AC380V, 50HZ |
| Protection class | IP54 |
Note: This equipment is not suitable for cutting scrap metal and solid columnar workpieces. Configuration and parameters can be customized according to requirements.

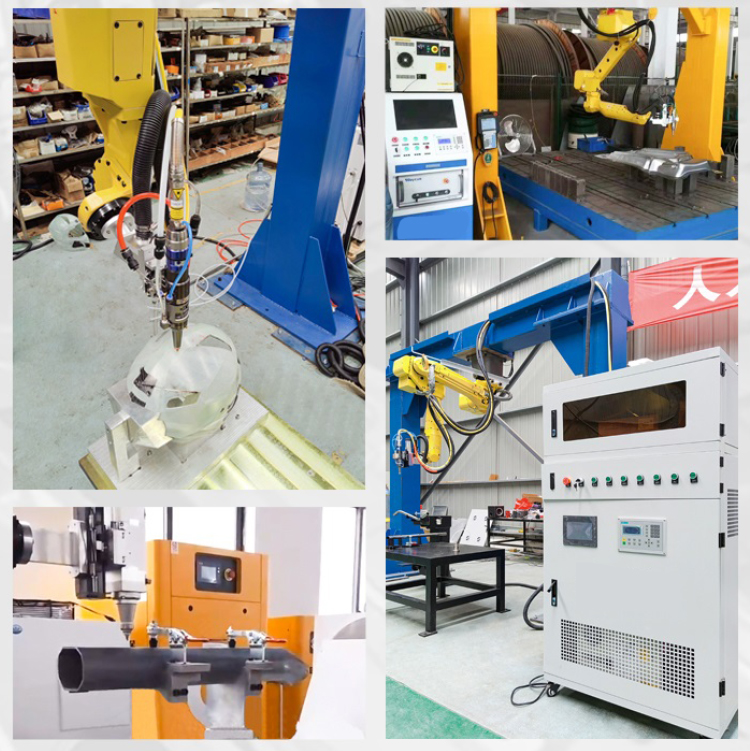

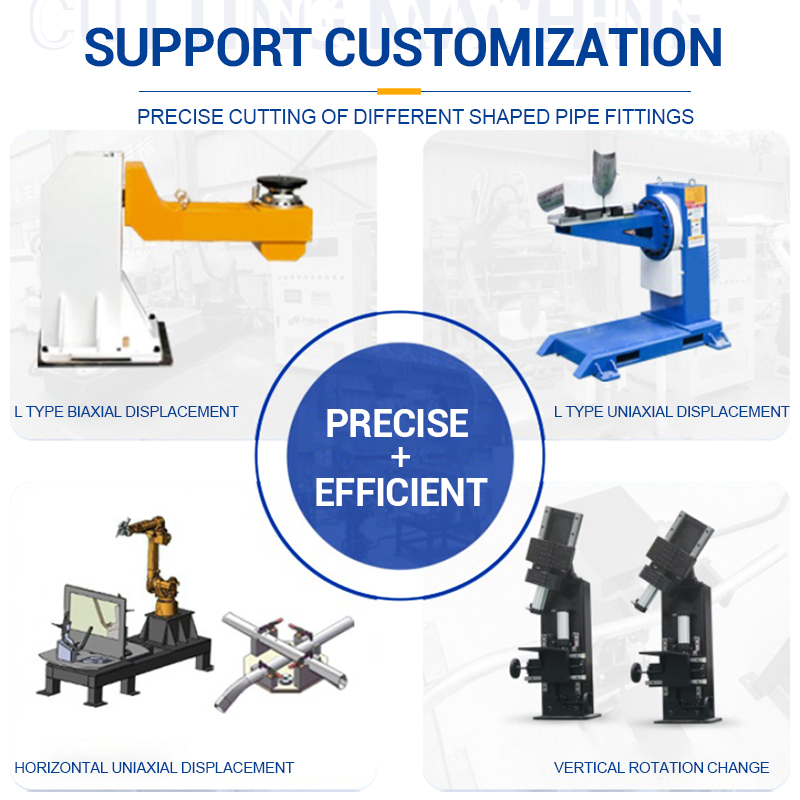

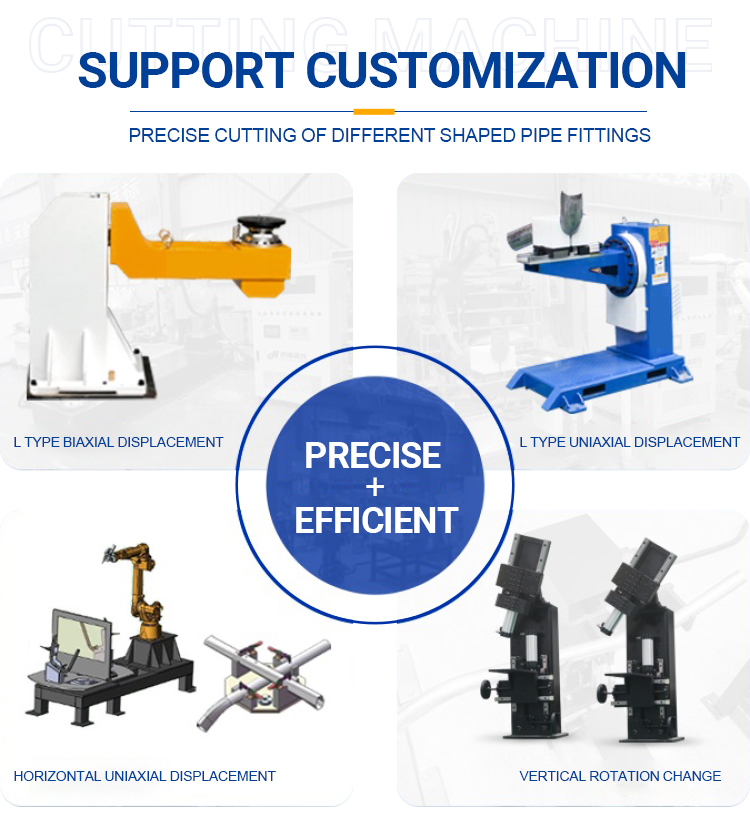

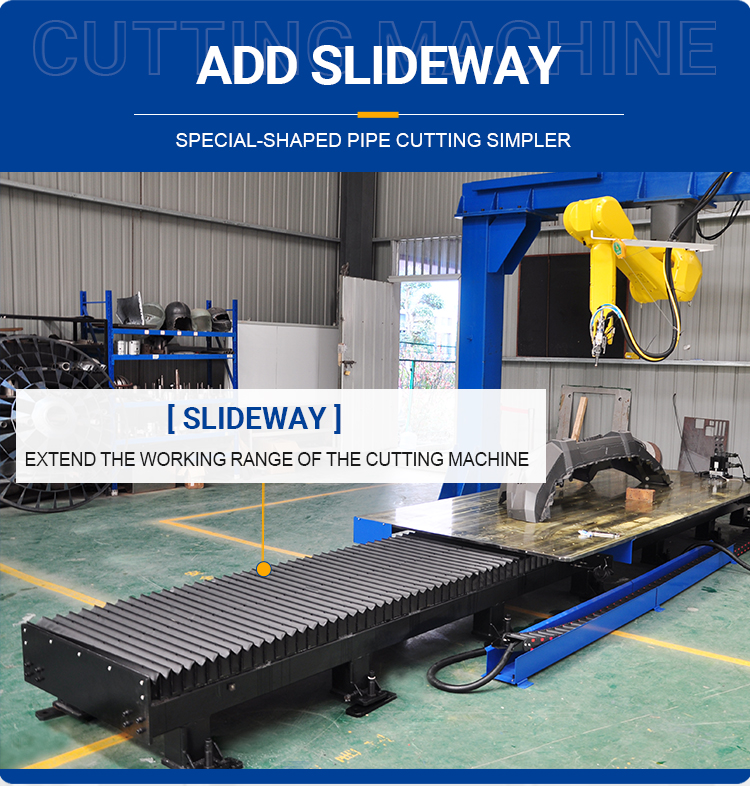

The system supports full customization. It can be combined with multi-station workbenches for a small footprint, allowing small workpieces to be cut together. With the addition of a gantry, the processing space is expanded, enabling the cutting of large and extra-long workpieces.
