Product Description

Product Introduction

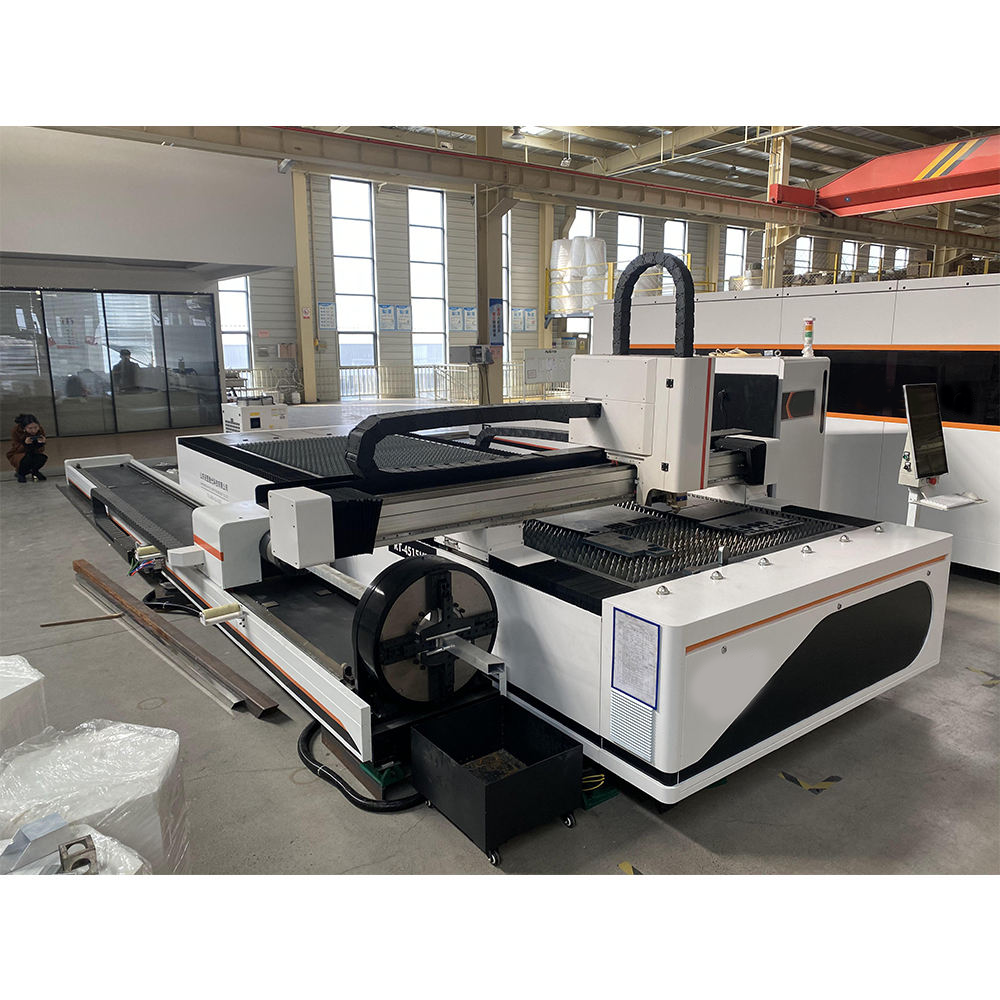

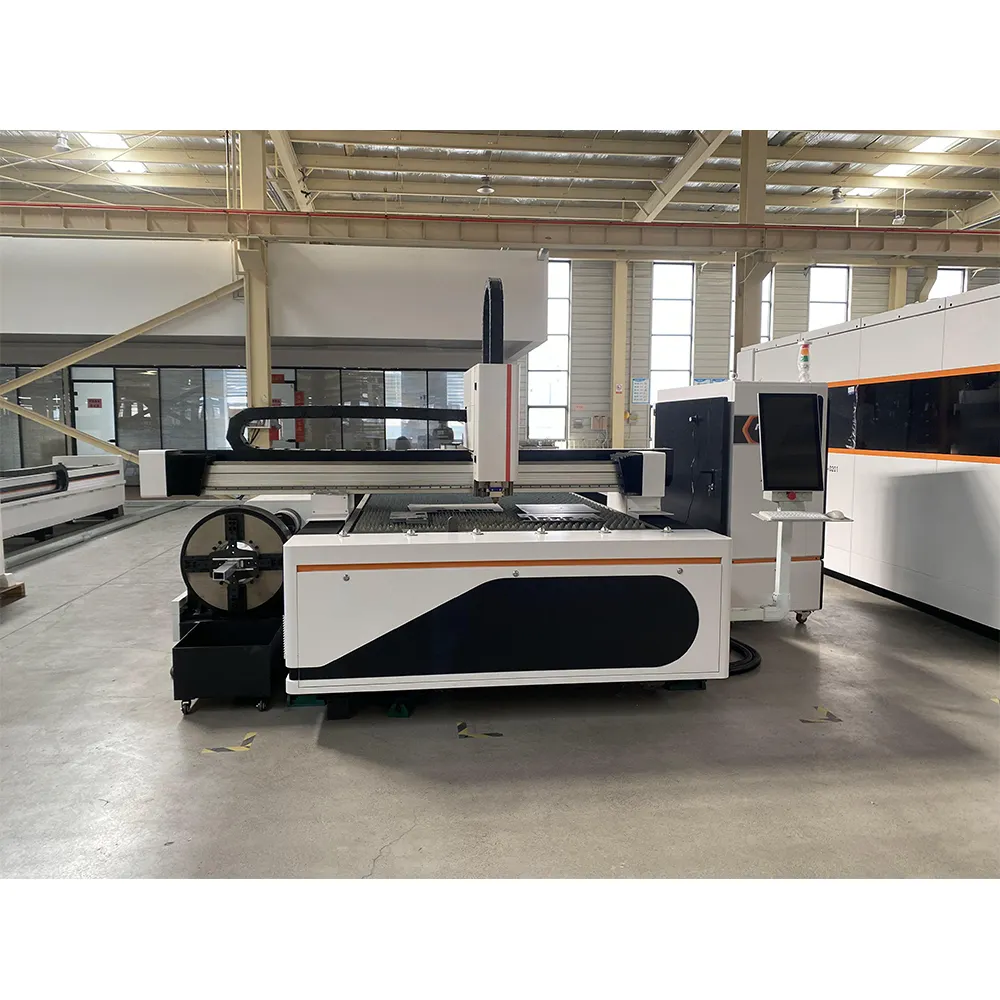

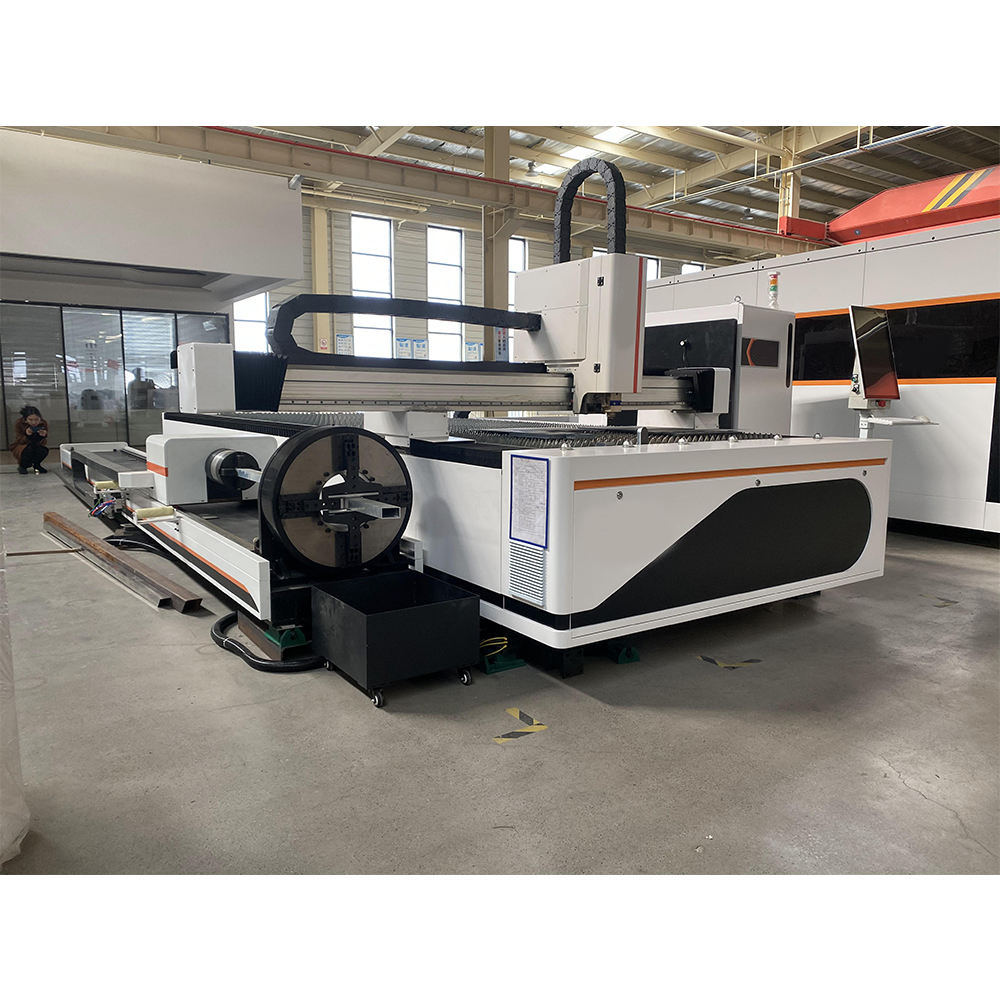

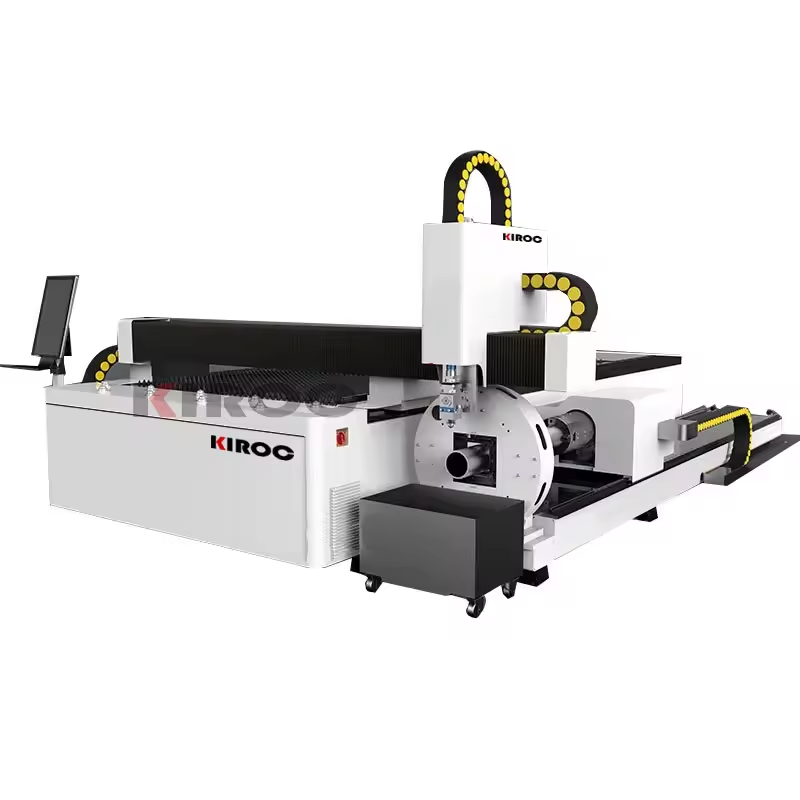

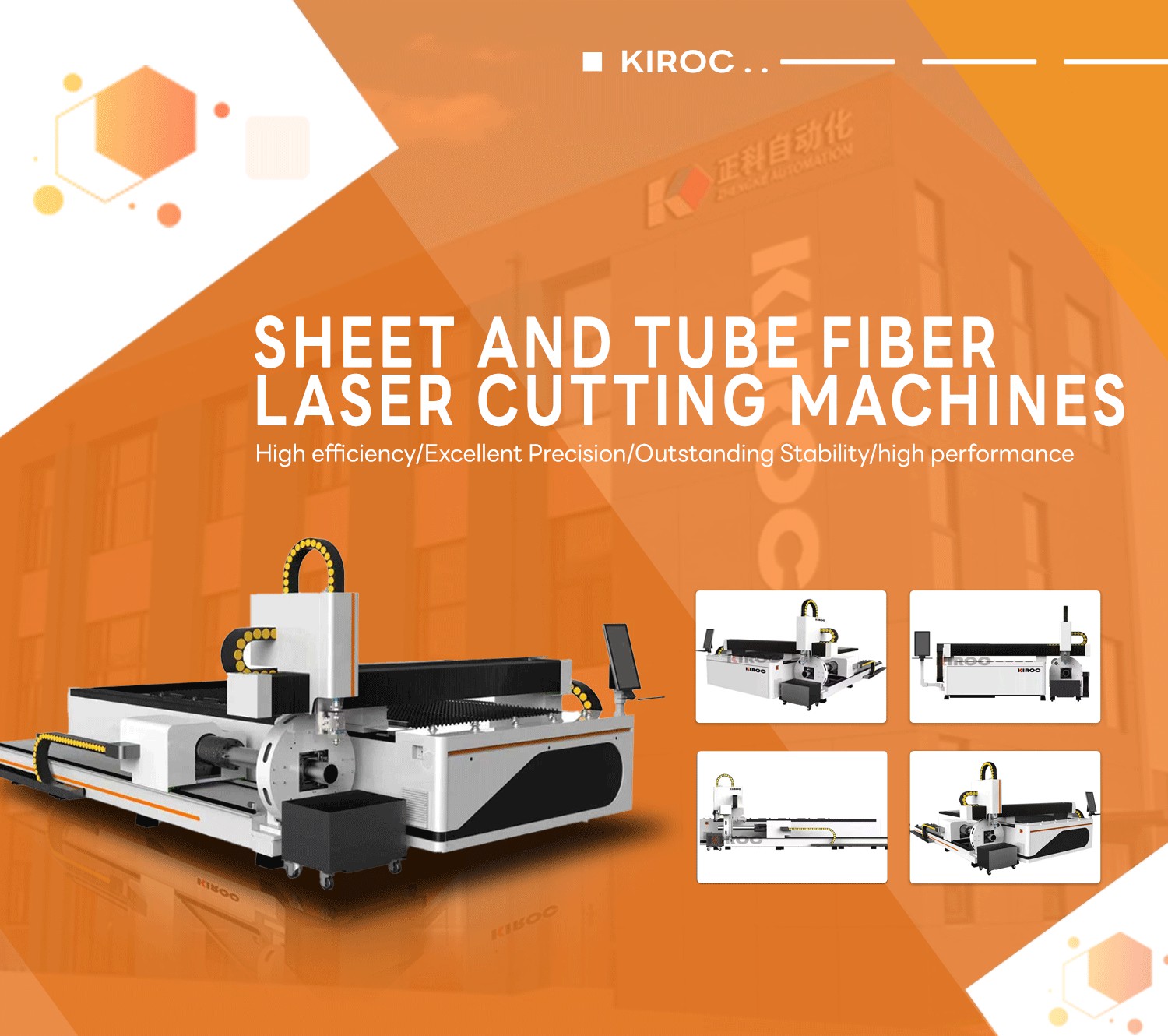

Fiber Laser Cutting Machine for Plate and Tube

The Dual-use Metal Sheet Pipe Tube Laser Cutting Machine is designed for Circular Square Metal Pipe Tube Cutting and sheets cutting. It adopts a strong steel bed, rack drive system, and professional pipe laser cutting CNC system, ensuring high cutting accuracy and efficiency. This system is an ideal choice for economic users looking to process both plates and pipes effectively.

Advantages

🚀

Dual Purpose: One machine for sheets and various metal tubes, saving cost and workspace.

💎

Stability: Strong steel bed prevents distortion over years of operation.

⚙️

Precision: World-class guide rails and racks guarantee extreme cutting accuracy.

🖥️

Easy Operation: Professional CNC pipe cutting system is simple to maintain and operate.

🌬️

Eco-friendly: Integrated large air volume dust removal system.

🔧

High-end Components: Imported accessories provide powerful cutting ability and stable operation.

Technical Specifications

Model	ZK3015	ZK6015	ZK6020
Working area	3000*1500mm	6000*1500mm	6000*2000mm
Worktable capacity	800kg	1500kg	2000kg
Positioning accuracy	±0.03mm	±0.03mm	±0.03mm
Repositioning accuracy	±0.02mm	±0.02mm	±0.02mm
Pipe section shape	Round/square/rectangular	Round/square/rectangular	Round/square/rectangular
Max. length of pipe	3m/6m	3m/6m	3m/6m
Laser power	1kW – 4kW	1kW – 4kW	1kW – 4kW
Laser source	MAX/RAYCUS	MAX/RAYCUS	MAX/RAYCUS
Max. acceleration	1.5G	1.5G	1.5G
Max. running speed	140m/min	140m/min	140m/min

Core Technology

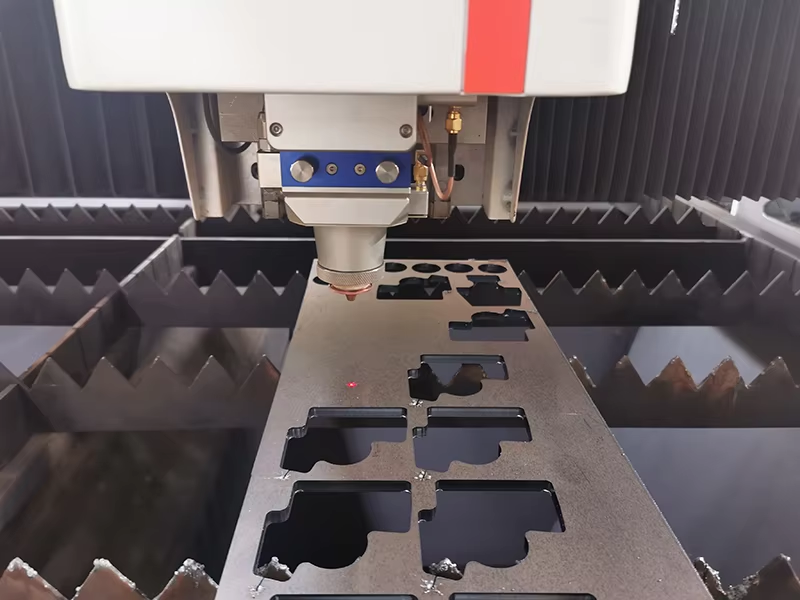

Intelligent Focusing Laser Head

Cooling: Collimating and focusing lens groups are water-cooled. An additional cooling airflow nozzle protects ceramics and prolongs life. Chasing Aperture reduces stray light interference.

Autofocus: Reaches speeds of 10m/min with repeatability of approximately 50 microns without human intervention.

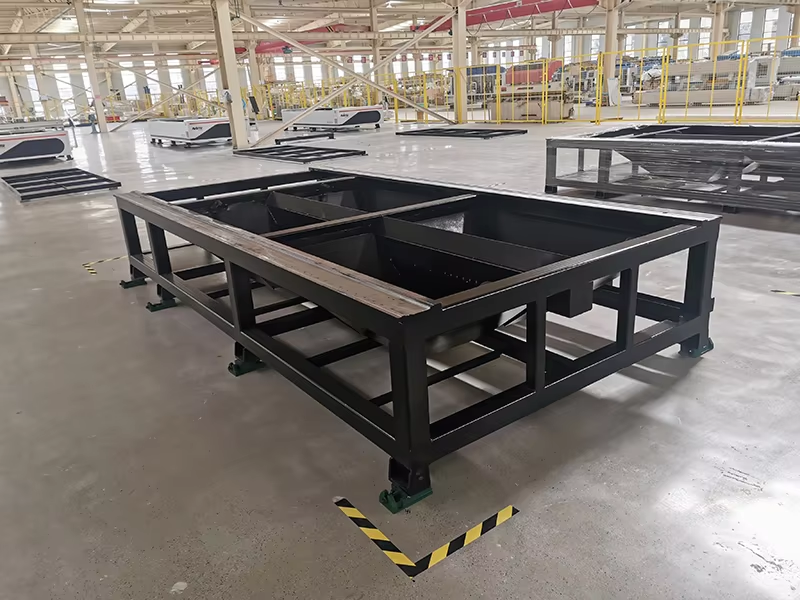

Thick-walled Carbon Steel Welding Bed

Utilizes high-quality carbon steel welding. The high-strength machine tool undergoes 600℃ stress relief annealing treatment, ensuring strong structural rigidity, minimal deformation, and low vibration for precise cutting.

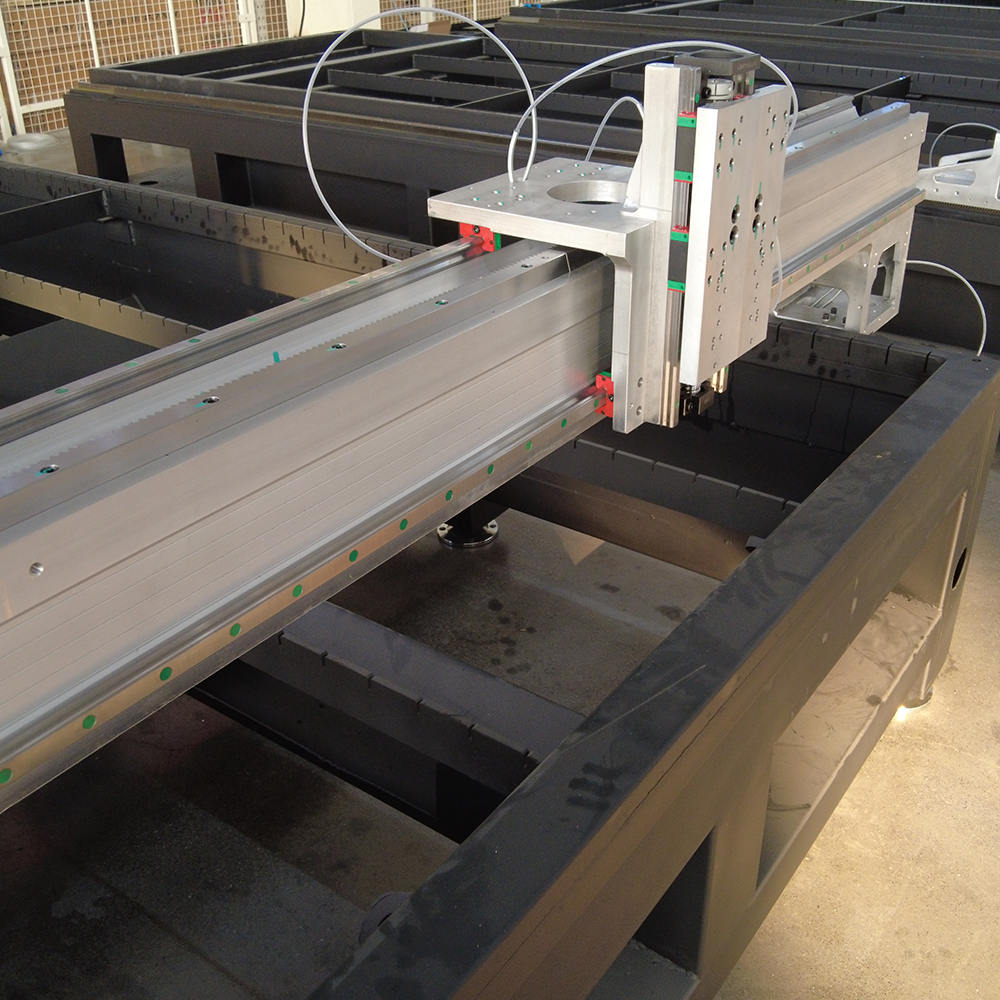

Aviation Aluminum Beam

Lightweight & Rigid: Corrosion resistance and high rigidity allow for high-speed laser processing movement.

Dynamic Performance: Anti-distortion and anti-deformation features ensure superior cutting accuracy.

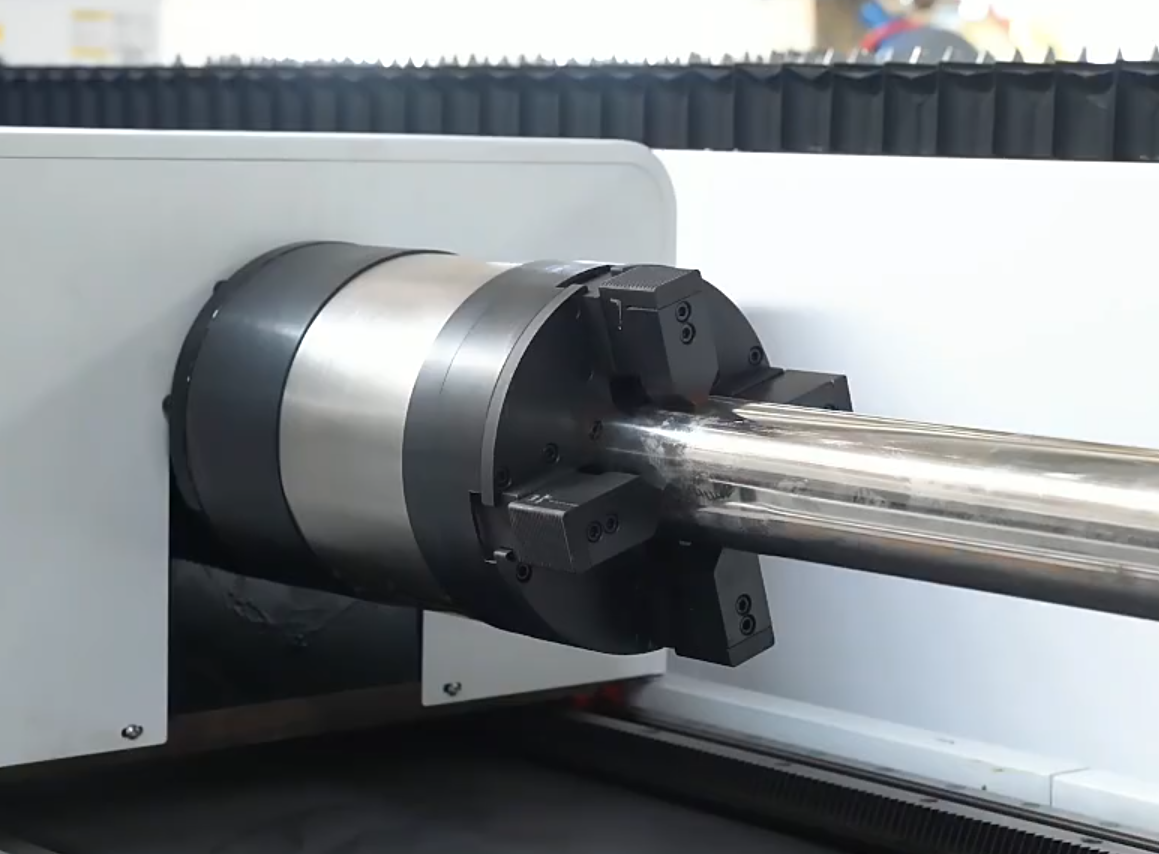

Automatic Double Pneumatic Chuck

Efficiency: One-click chuck opening and automatic centering reduces loading/unloading time.

Clamp Stability: Constant damping force ensures heavy pipes do not slip, maintaining accuracy.

Support: Special support frame avoids pipe sagging and extends chuck service life.

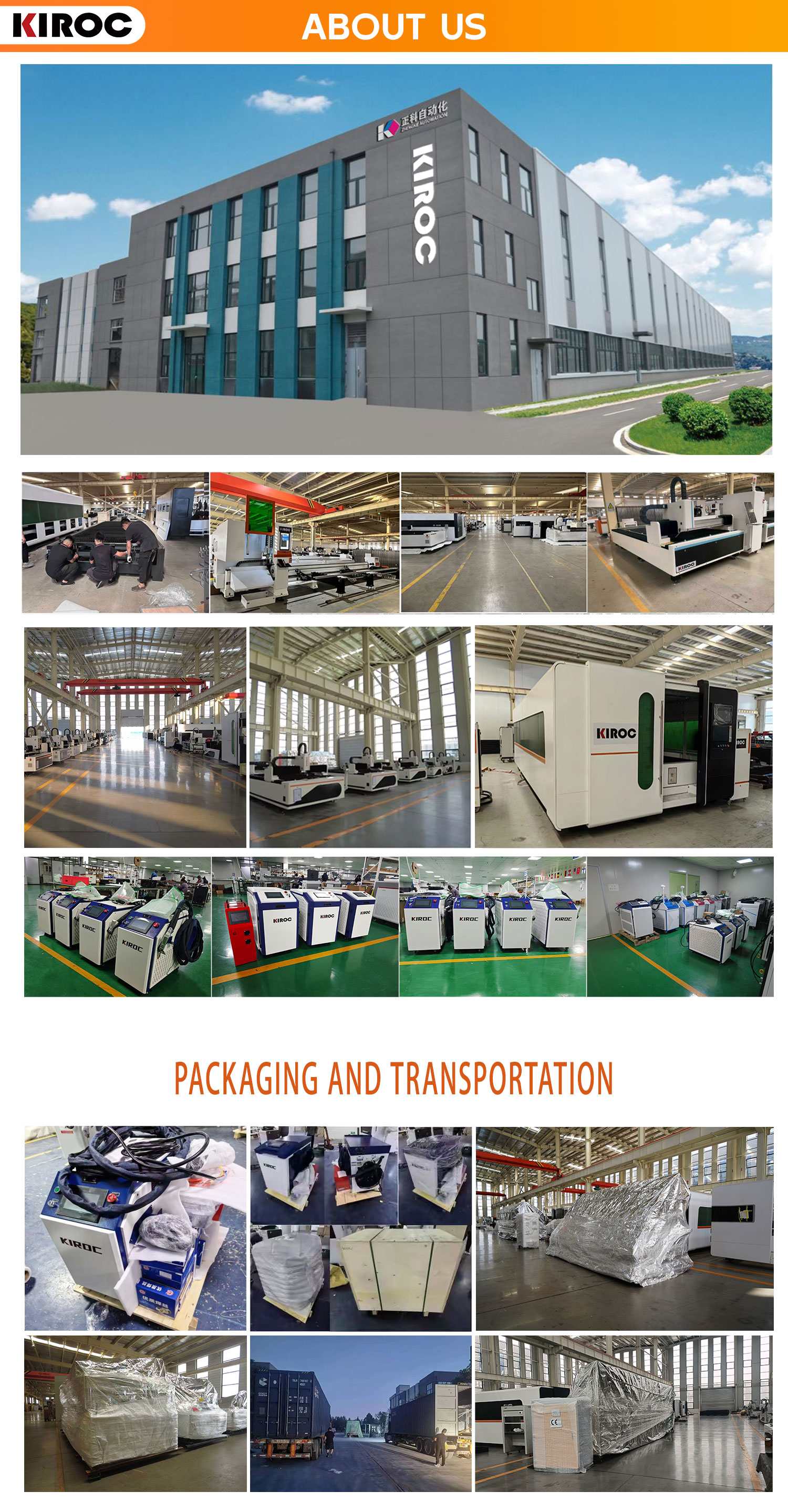

Manufacturing Excellence

Frequently Asked Questions

❓ What is the warranty policy for this laser machine?

We provide a two-year machine warranty. During this period, we provide replacement parts free of charge for any machine issues (excluding artificial damage). We also offer whole-lifetime service support after the warranty expires.

❓ How is the machine shipped to my location?

Depending on your address, we can arrange shipment by sea, air, truck, or railway. We can also deliver the machine directly to your warehouse based on your specific requirements.

❓ I am a first-time user. How do I learn to operate it?

Operation videos and manuals are sent with the machine. Our engineers provide online training. If necessary, we can send engineers to your site for hands-on training or you can send operators to our facility.

❓ How do you ensure the quality and reliability of the equipment?

We utilize a strong quality control system. Each machine is subjected to rigorous operation testing and performance verification before shipping to ensure it meets all standards.

❓ What types of pipes can this machine cut?

The dual-use machine is highly versatile and can process various metal tubes, including round, square, and rectangular profiles, in addition to standard metal sheets.

❓ Does the machine include a dust removal system?

Yes, the machine is equipped with an integrated large air volume dust removal system to ensure a clean working environment and protect the optical components.
