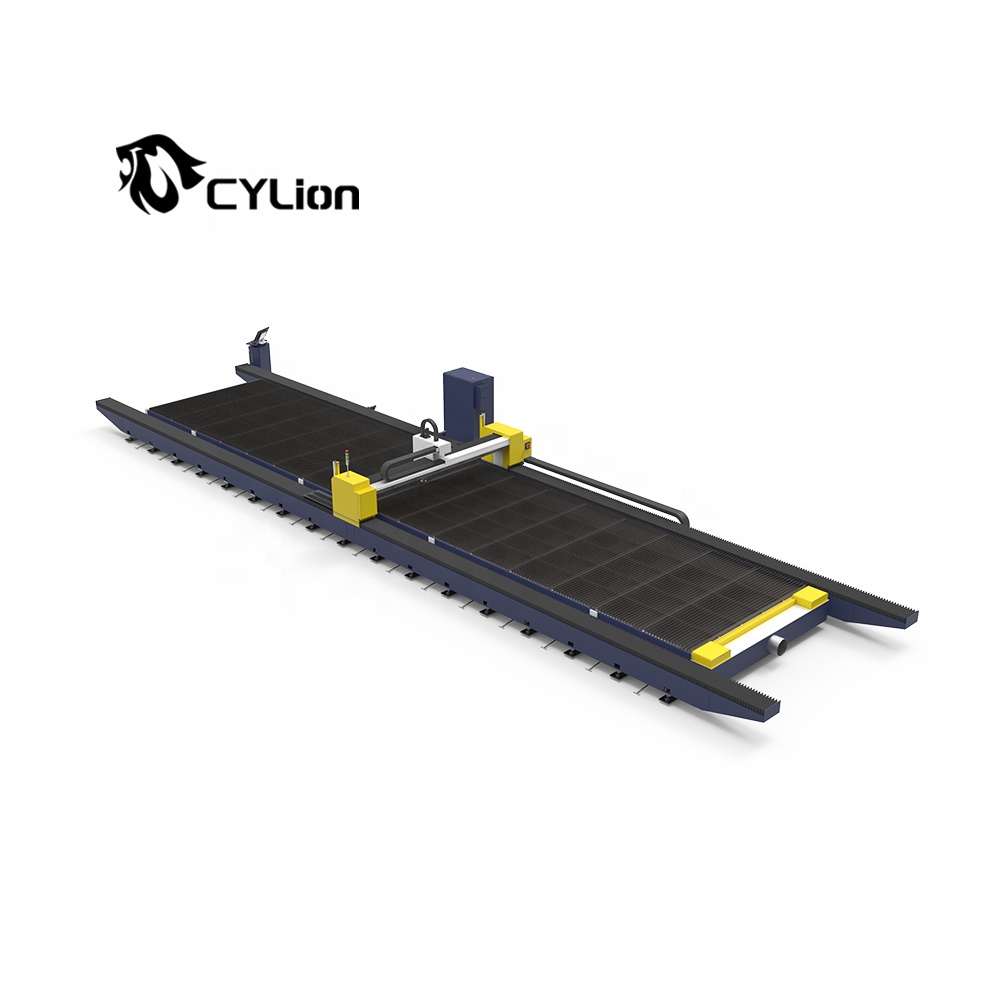

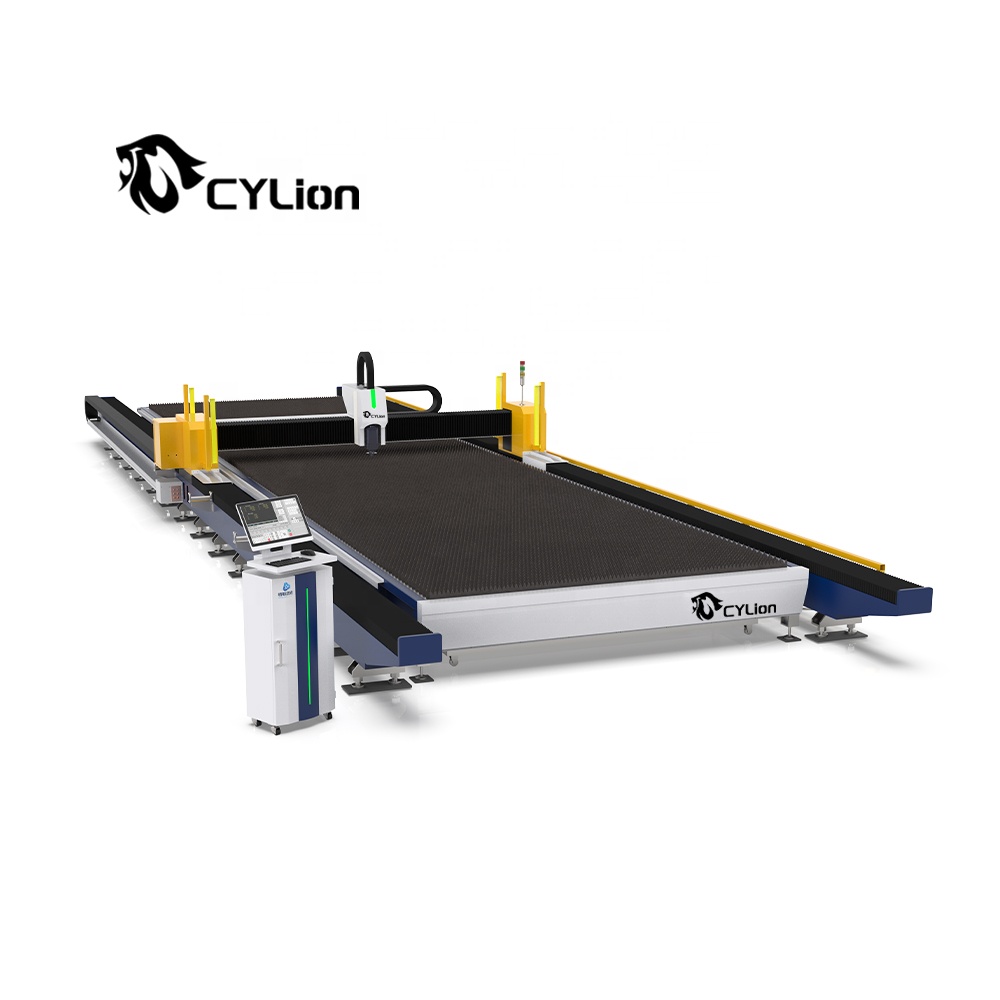

2025 New Condition Large Scale 40KW CNC Fiber Laser Cutting Machine Automatic Gantry CyPcut Equipment Yaskawa AI BMP For Metal

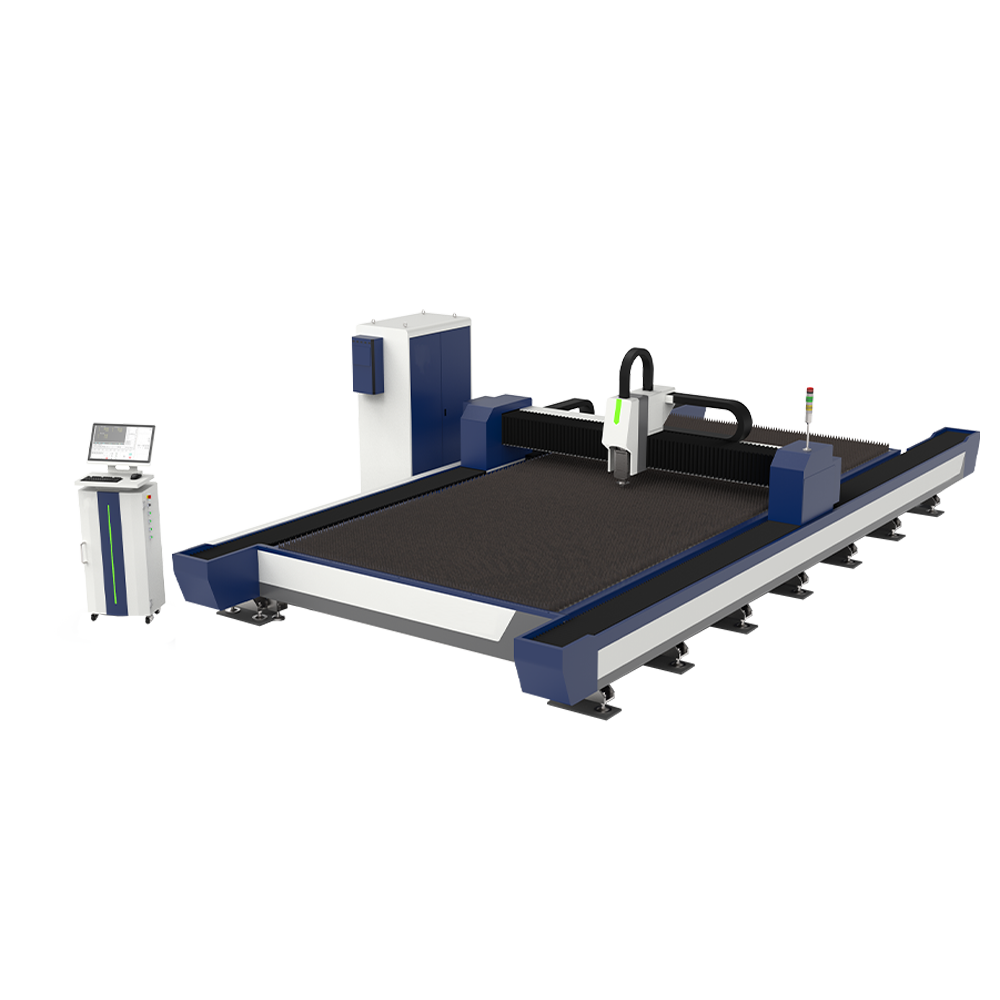

Gantry Type Series Fiber Laser Cutting Machine Main Features
JLH Large-format laser cutting machine, suitable for various machinery manufacturing and processing industries, realizes laser cutting large-format, high-power, high-precision cutting, and improves cutting efficiency through rapid positioning and focusing. Ultra-large-format sheet cutting to realize the overall processing of ultra-long workpieces, 3*36 meters and 4*42 meters support customization.
✔ High-performance laser source and stable operating system for the best cutting effect.
✔ Perfect cooling system, lubrication system, and dust removal system to ensure stable, efficient, and durable operation.
✔ Automatic height adjustment to maintain constant focal length and stable cutting quality.
✔ Capable of cutting a variety of metals with excellent and stable quality.
✔ Specialized CAD / CAM automatic programming and nesting software to maximize raw material savings.
✔ Ethernet interface for CNC system communication and remote monitoring.
Technical Parameters
Model
6020
6025
8025
12030
13035 (Bevel)
24035 (Bevel)
Processing format (L×W)
6000mm×2000mm
6000mm×2500mm
8000mm×2500mm
12000mm×3000mm
13000mm×3500mm
24000mm×3500mm
X-axis stroke
6050mm
6050mm
8050mm
12050mm
13050mm
24050mm
Y-axis stroke
2050mm
2550mm
2550mm
3050mm
3550mm
3550mm
Z-axis stroke
150mm
150mm
150mm
150mm
300mm
300mm
Positioning accuracy
±0.03mm
Reposition accuracy
±0.01mm
Acceleration / Laser Power
0.6-1.5G / 6000W-50000W (Optional)

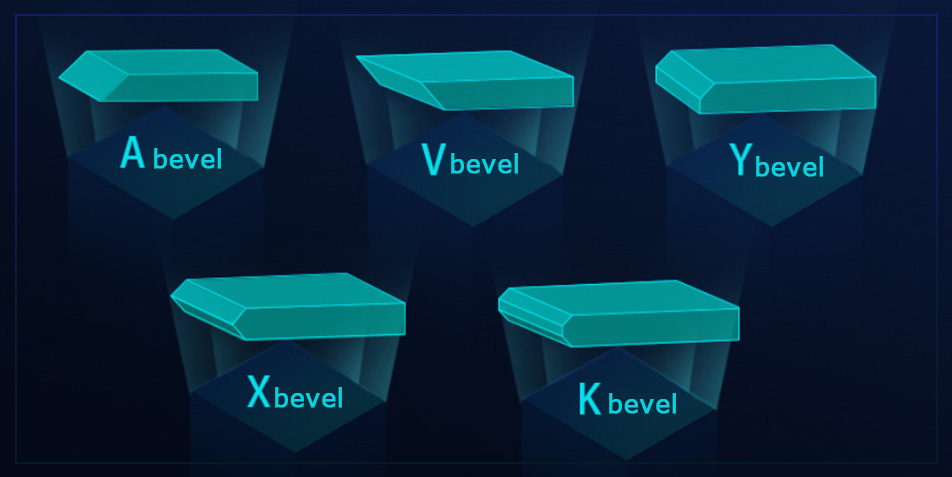

Can be equipped with 40KW+ laser generator. Single axis acceleration up to 1.2G. Maximum air movement speed of single axis is 100 m/min. The effective processing width can be expanded. Front and rear grating safety protection. Meets any groove requirement of A/K/Y/X/V types less than 45 degrees.
Product Details & Advantages
1. Machine body designed with low center of gravity and compact structure.
2. Maximum fast forward speed up to 60m/min with safety light curtain protection.
3. Gantry dual drive with advanced gear rack transmission and precision collimator assembly.

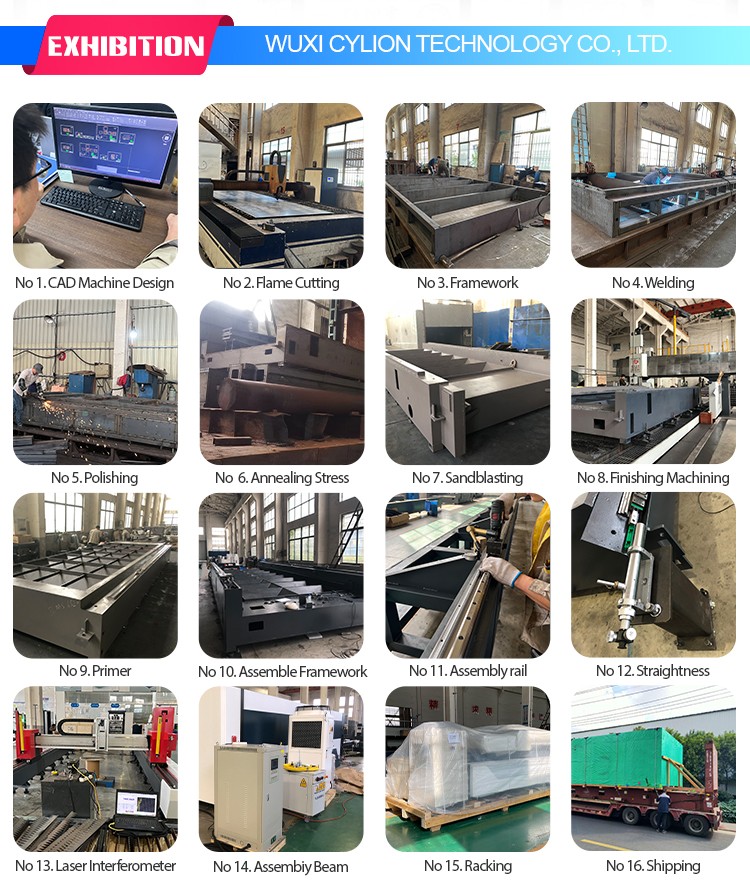

4. Machine table processed by large planomiller, high temperature annealing twice, and high strength welding.
5. Aviation aluminum modular beam design for high speed response and cutting precision.

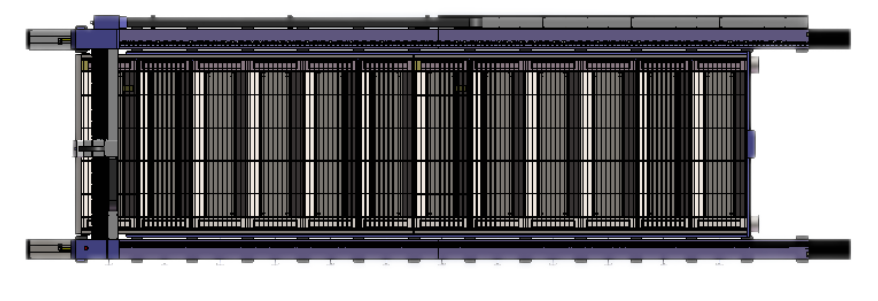

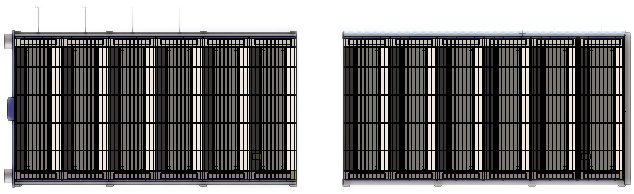

The segmented modular workbench can be disassembled and replaced without delaying production. The gravity-wrapped ultra-high-power full-hollow bed is covered with fire-resistant bricks to prevent high-temperature damage.

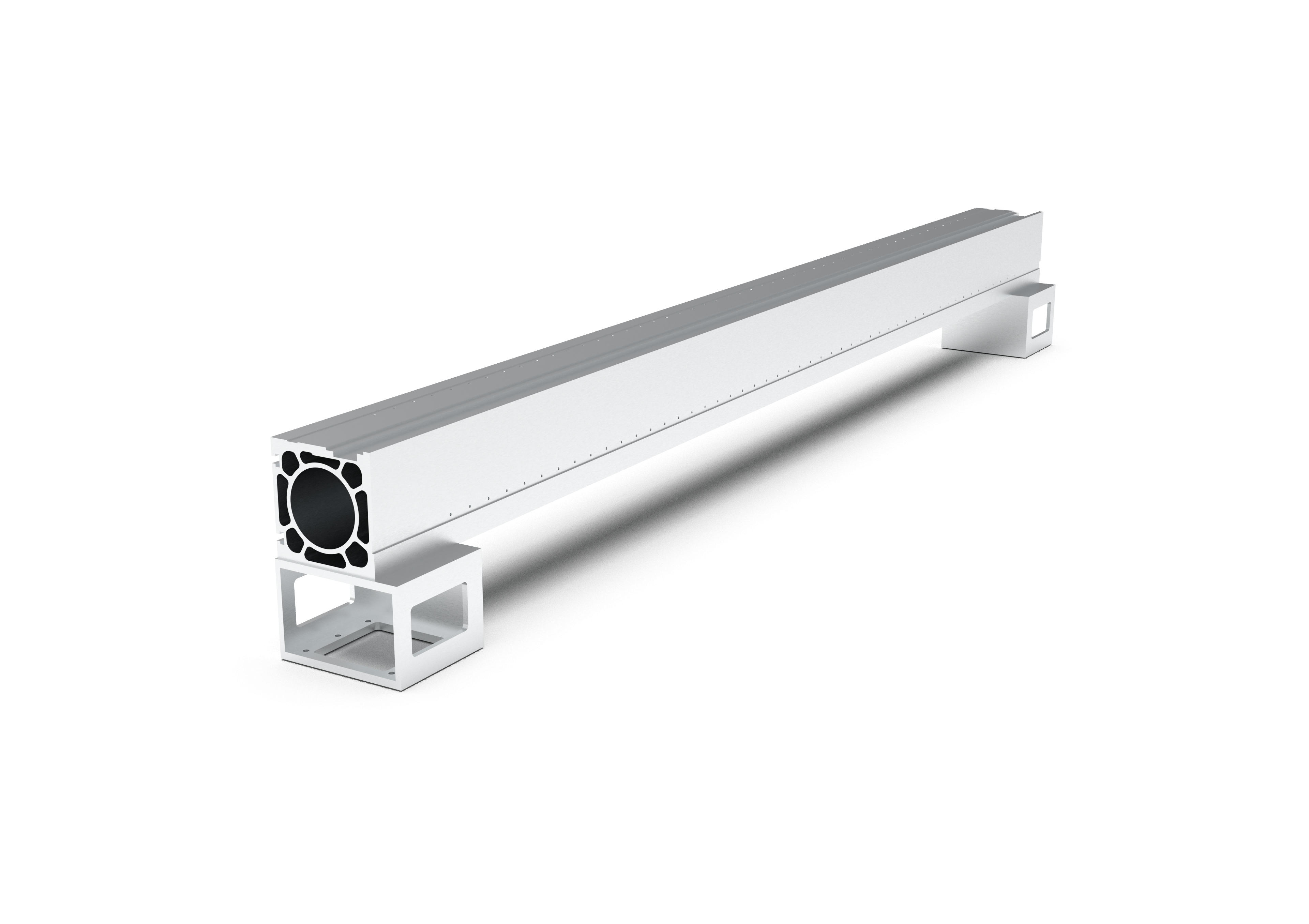

The beam body adopts integrated tensile aviation aluminum. Lightweight gantry design minimizes inertia, allowing for rapid acceleration and sensitive control precision.

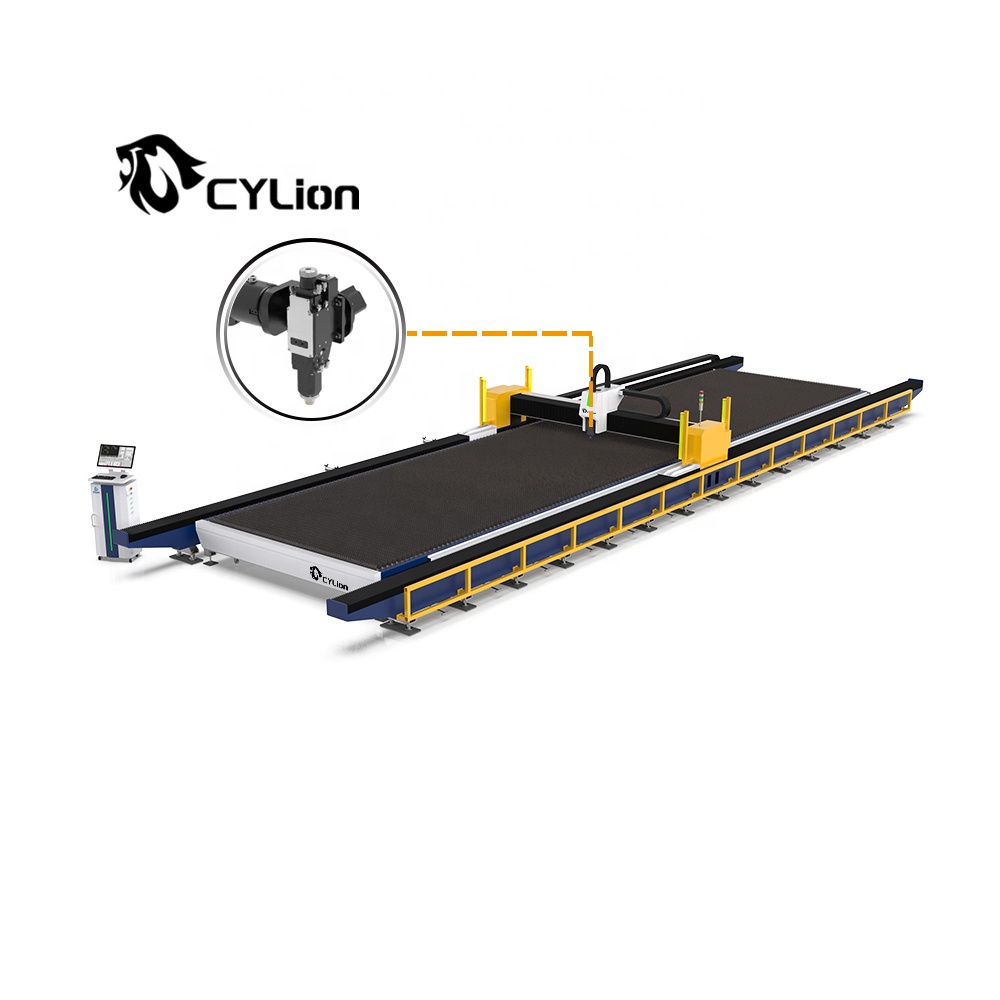

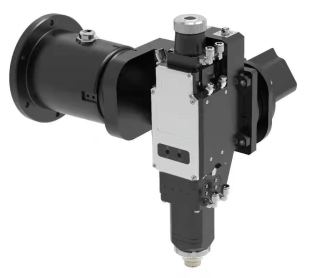

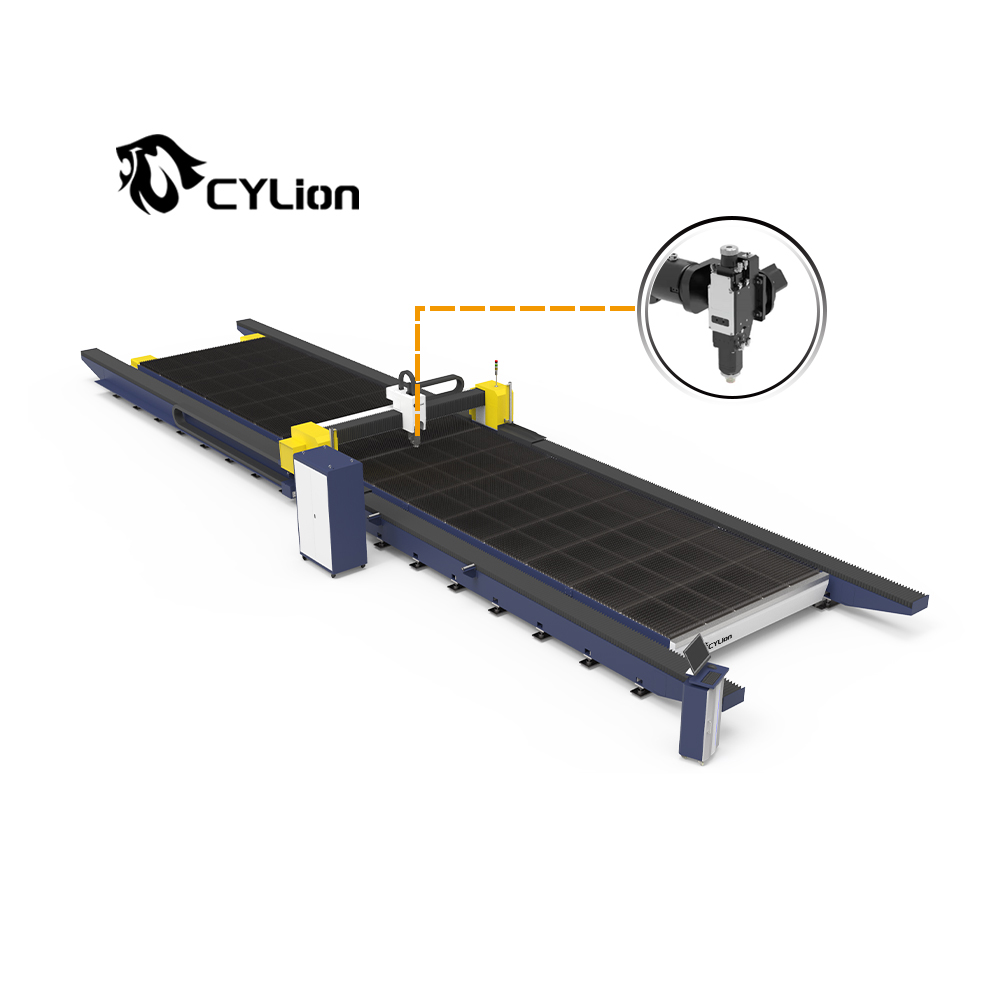

One-time molding bevel processing. Equipped with a professional control system, it achieves maximum 45-degree bevel cutting, improving processing efficiency significantly.

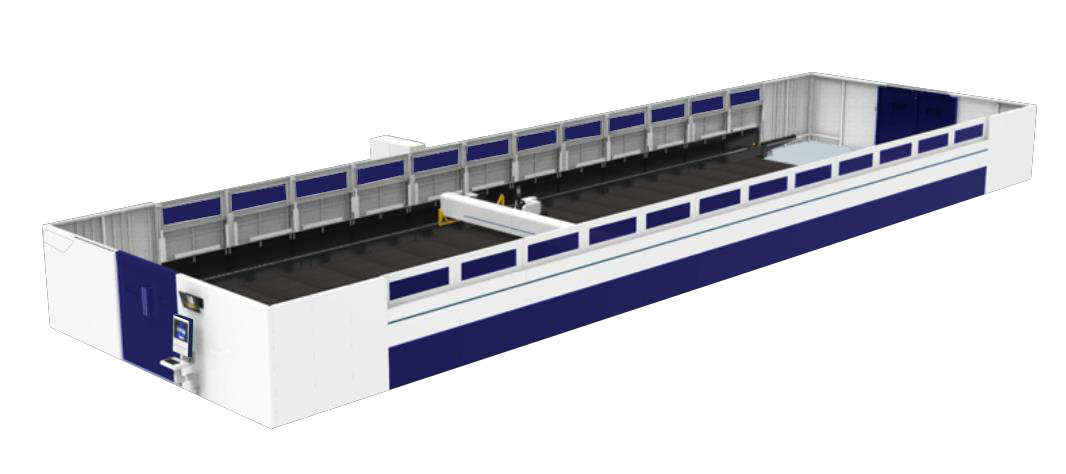

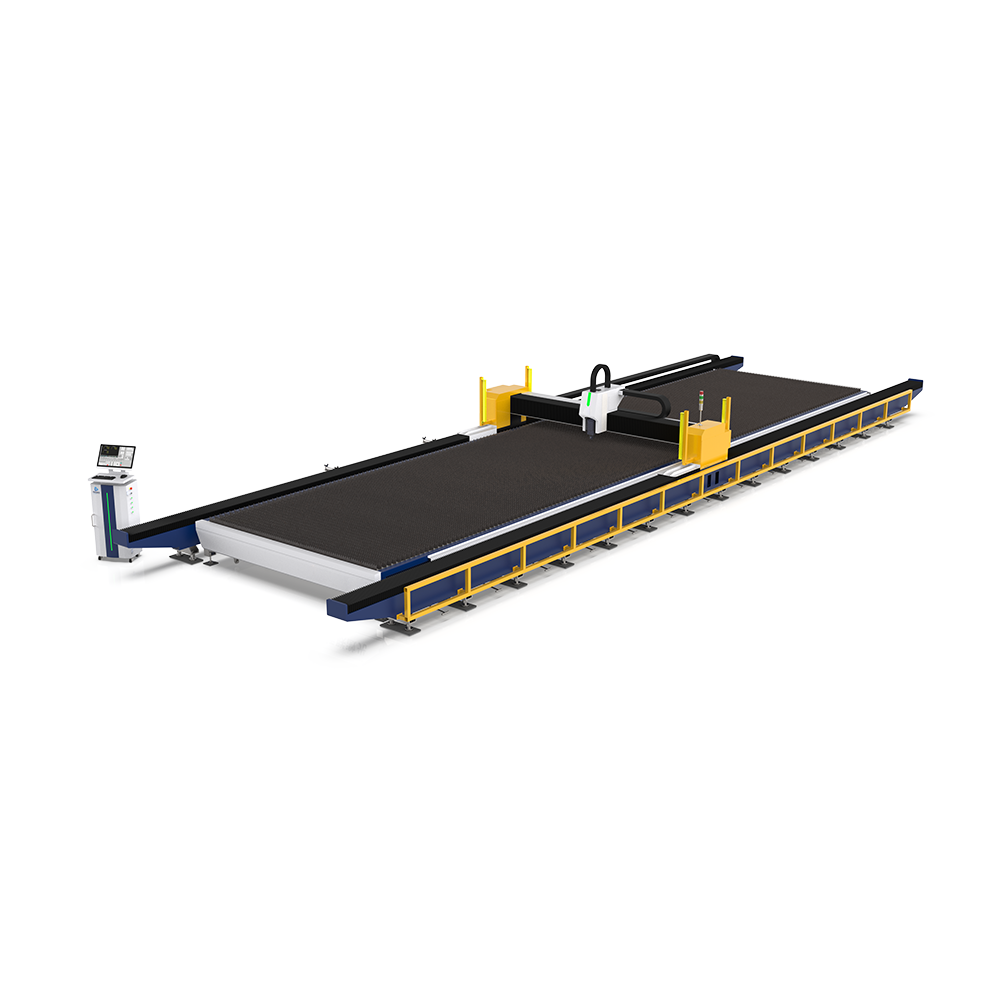

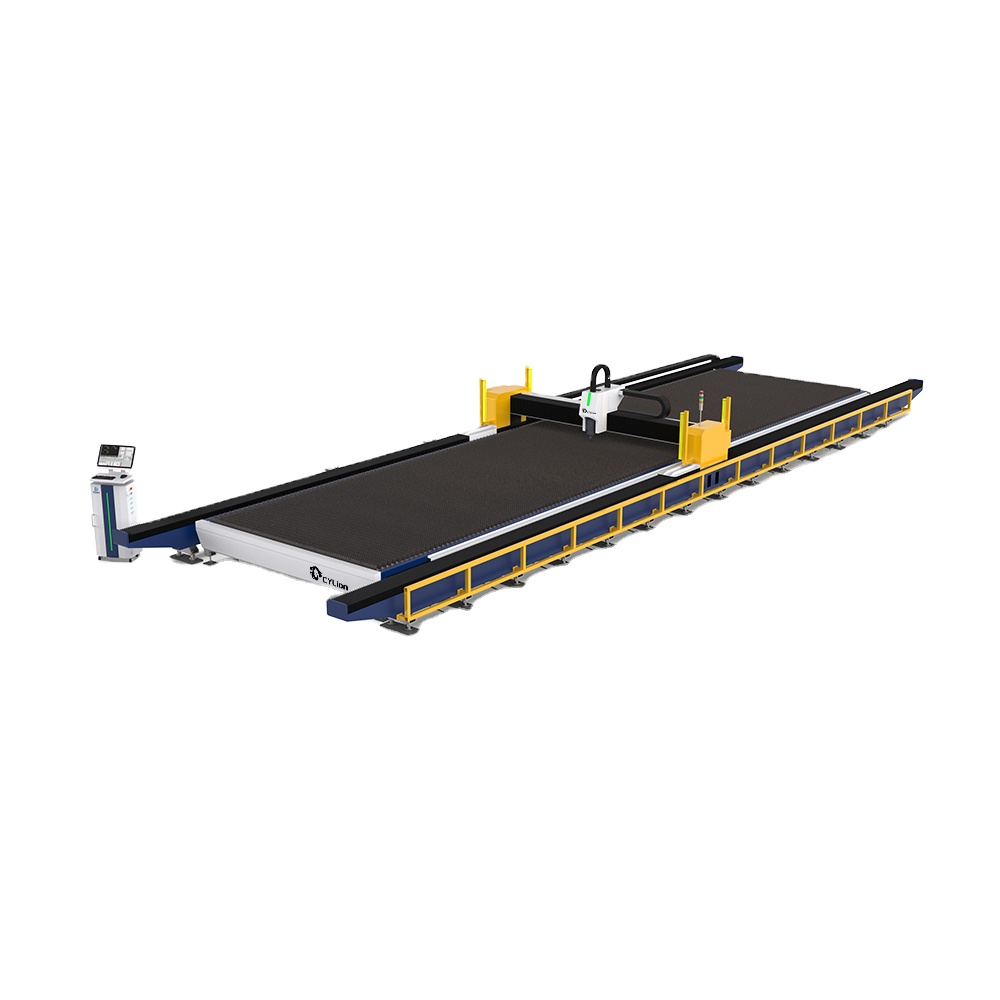

Super large cutting format (up to 34000*4000mm) enables overall processing of massive workpieces and precise cutting of metal sheets.

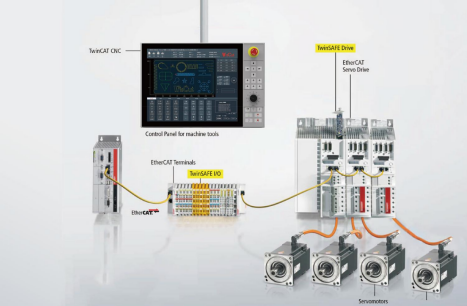

German Beckhoff bus CNC system: stable, reliable, quick to install, and easy to operate. A high-end laser cutting control system for excellent performance.

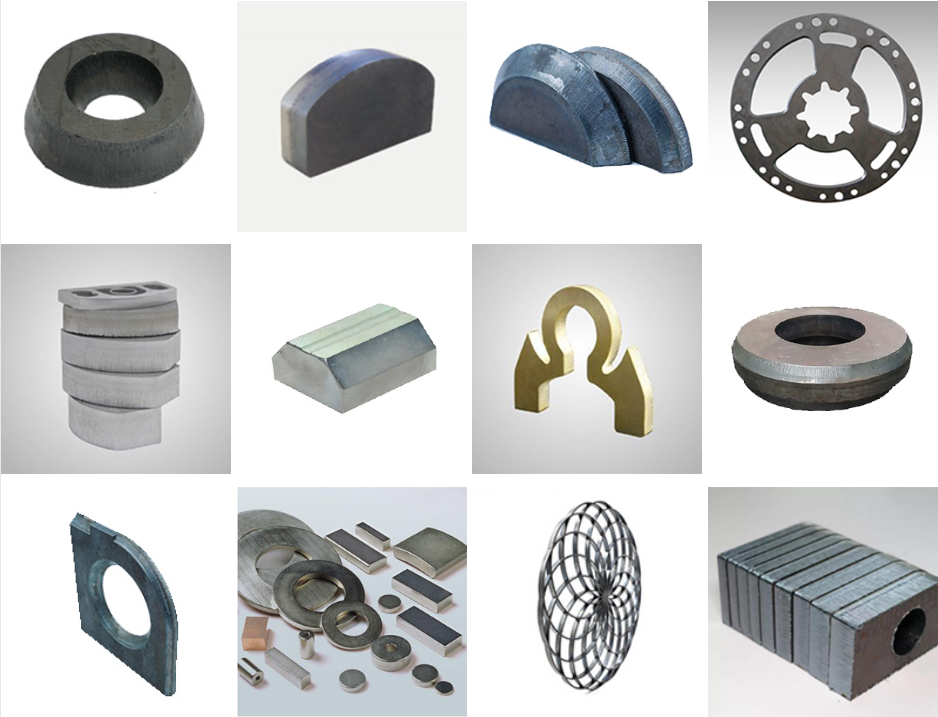

Processing Samples
Straight cutting quality matches plane machines. Gradient bevels up to ±45 degrees.
Certifications
We hold CE, ISO, SGS, and other international certificates.
Frequently Asked Questions
Q1: I know nothing about this machine, what kind of machine should I choose?
It is very easy to choose. Just let us know your intended application for the CNC laser machine, and we will provide professional solutions and suggestions.
Q2: How can I choose the most suitable machine?
Please specify the type of work (engraving, cutting, or marking), the materials used, the maximum thickness for cutting, and the required working area size.
Q3: How do I operate the machine when I receive it?
We provide an English manual with the equipment. Our team can assist with remote installation and commissioning. Maintenance personnel can also be arranged for on-site setup if required.
Q4: What should I do if problems occur during the warranty period?
We supply free replacement parts during the warranty period for any technical issues. We also provide lifelong after-sales service and technical support.
Q5: How can I obtain samples?
We are honored to offer you samples to demonstrate the cutting quality and capabilities of our machines.
Q6: Can the machine size be customized?
Yes, we support customization for ultra-large formats such as 3x36 meters and 4x42 meters to meet specific industrial processing needs.
