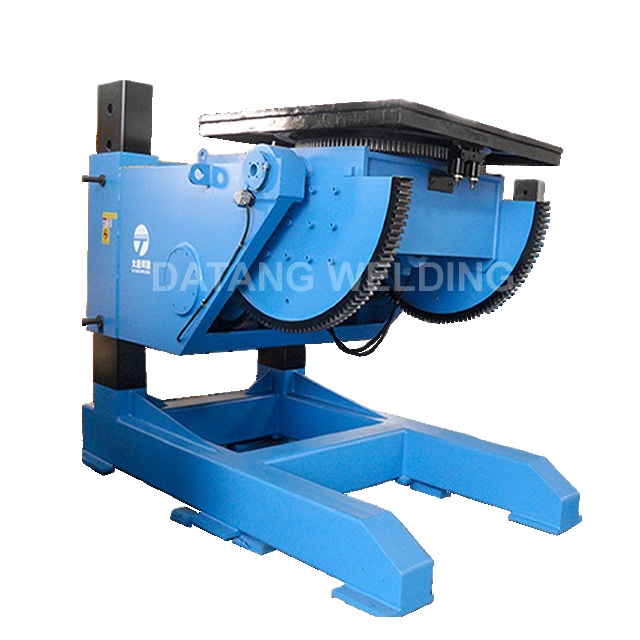

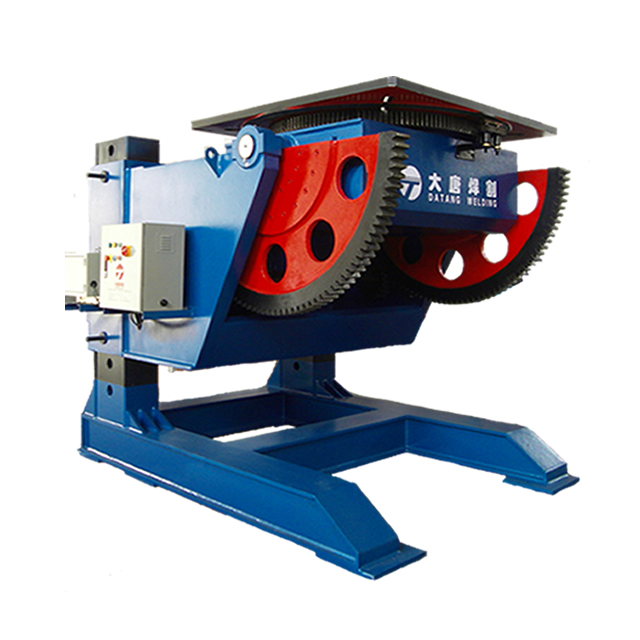

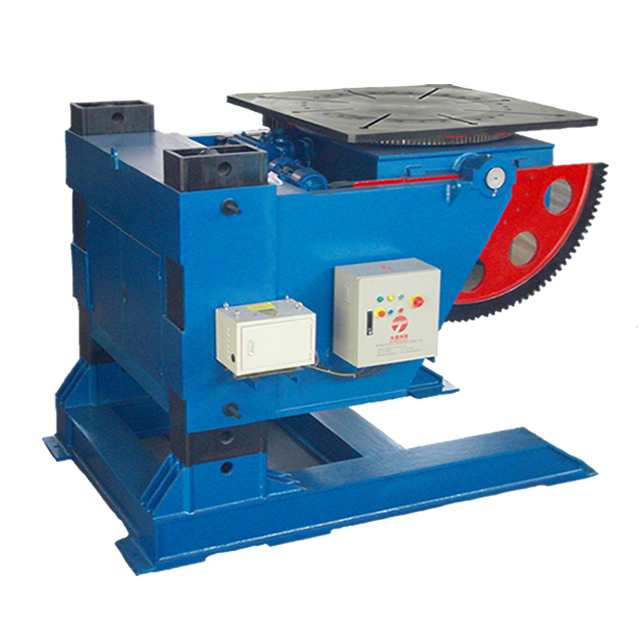

3 Axis Heavy Duty Automatic Welding Positioner With Lifting Function Rotary Welding Turntable For Precision Fabrication
3 Axis Heavy Duty Automatic Welding Positioner With Lifting Function Rotary Welding Turntable For Precision Fabrication
3 Axis Heavy Duty Automatic Welding Positioner With Lifting Function Rotary Welding Turntable For Precision Fabrication
3 Axis Heavy Duty Automatic Welding Positioner With Lifting Function Rotary Welding Turntable For Precision Fabrication
3 Axis Heavy Duty Automatic Welding Positioner With Lifting Function Rotary Welding Turntable For Precision Fabrication
1 / 5
3 Axis Heavy Duty Automatic Welding Positioner With Lifting Function Rotary Welding Turntable For Precision Fabrication
3 Axis Heavy Duty Automatic Welding Positioner With Lifting Function Rotary Welding Turntable For Precision Fabrication
3 Axis Heavy Duty Automatic Welding Positioner With Lifting Function Rotary Welding Turntable For Precision Fabrication
3 Axis Heavy Duty Automatic Welding Positioner With Lifting Function Rotary Welding Turntable For Precision Fabrication
3 Axis Heavy Duty Automatic Welding Positioner With Lifting Function Rotary Welding Turntable For Precision Fabrication

3 Axis Heavy Duty Automatic Welding Positioner With Lifting Function Rotary Welding Turntable For Precision Fabrication

Send Inquiry

Product Description

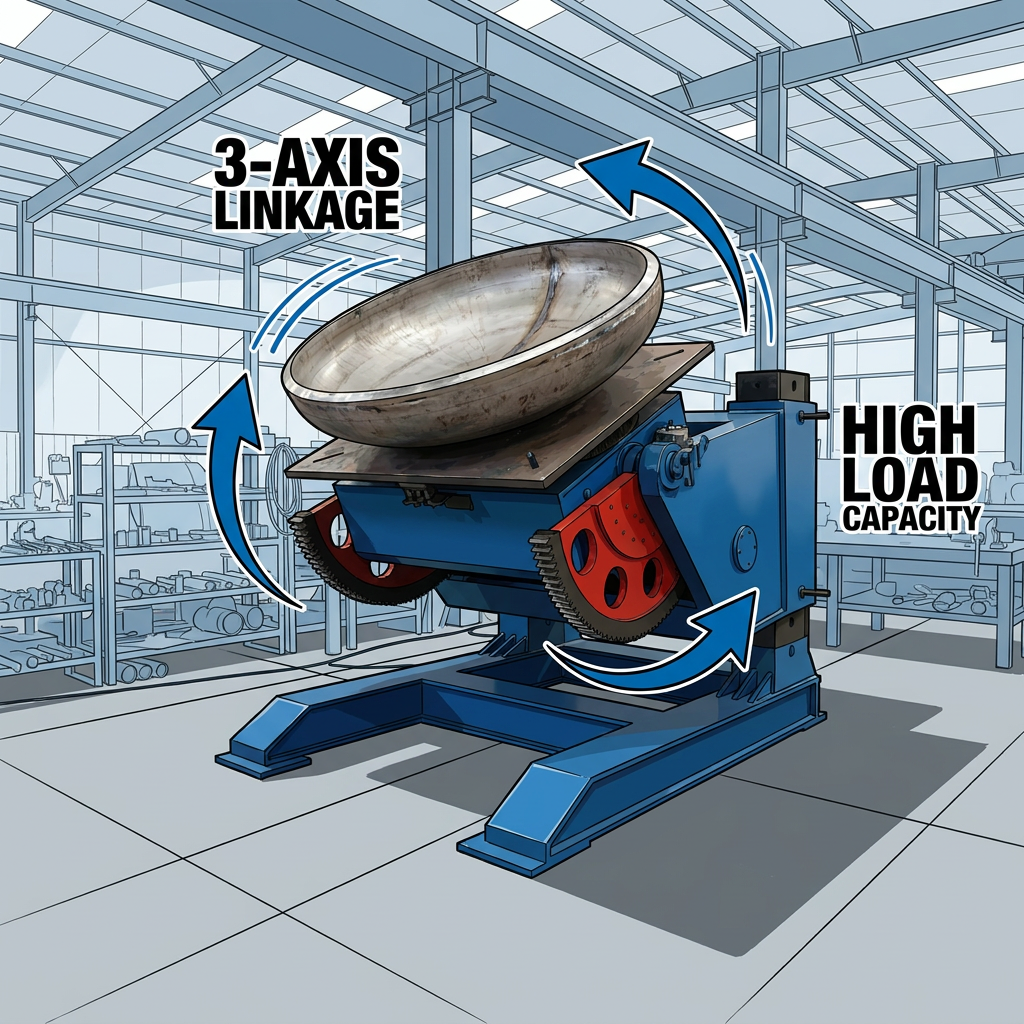

Welding Positioner Main View

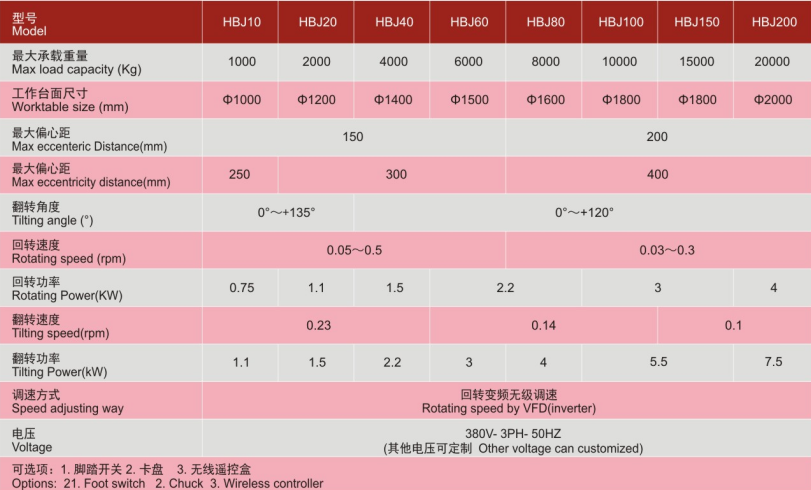

Technical Specifications

Model HBJ10 HBJ20 HBJ40 HBJ60 HBJ80 HBJ100 HBJ150 HBJ200
Max load capacity (kg) 1000 2000 4000 6000 8000 10000 15000 20000
Worktable size (mm) Φ1000 Φ1200 Φ1400 Φ1500 Φ1600 Φ1800 Φ2000
Max eccentricity distance (mm) 150 200
Max gravity center distance (mm) 250 300 400
Tilting angle (°) 0°~±135° 0°~±120°
Rotating speed (rpm) 0.05~0.5 0.03~0.3
Rotating power (kw) 0.75 1.1 1.5 2.2 3 4
Tilting speed (rpm) 0.23 0.14 0.1
Tilting Power (kw) 1.1 1.5 2.2 3 4 5.5 7.5
Speed adjusting way Rotating speed by VFD (INVERTER)
Voltage 380V-3PH-50HZ (other voltage can customized)
Options:
1. Foot switch | 2. Chuck | 3. Wireless controller

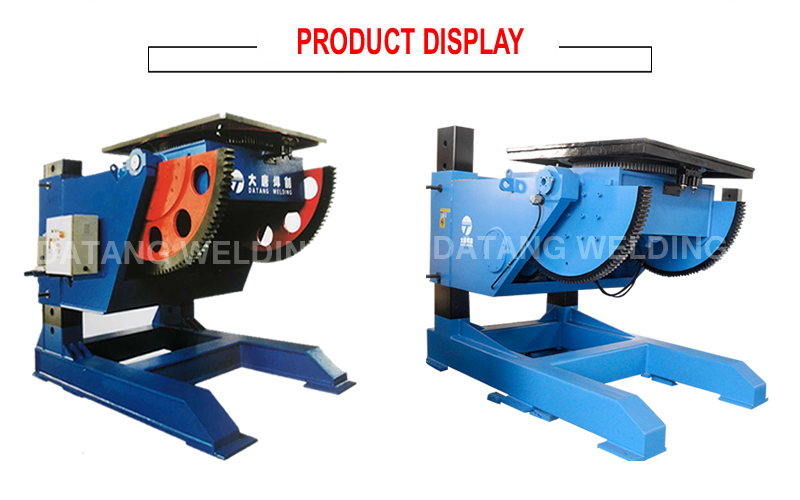

Equipment Detail 1
Equipment Detail 2
Equipment Detail 3
Equipment Detail 4

Frequently Asked Questions

What is the maximum load capacity for the HBJ series?
The HBJ series offers a wide range of load capacities, starting from 1000kg (HBJ10) up to 20,000kg (HBJ200) to suit various industrial needs.
Can the power supply voltage be customized?
Yes. While the standard configuration is 380V, 3-Phase, 50Hz, we can customize the voltage to meet your specific local electrical requirements.
How is the rotation speed of the worktable controlled?
The rotation speed is precisely controlled using a Variable Frequency Drive (VFD/Inverter), allowing for smooth and adjustable speed settings.
What are the available tilting angles for these positioners?
Smaller models (HBJ10-20) provide a tilting range of 0° to ±135°, while larger models (HBJ40-200) provide a tilting range of 0° to ±120°.
Are there any optional accessories available for the HBJ series?
Yes, we offer several options to enhance operation, including foot switches, specialized chucks, and wireless controllers.
How do I choose the right model based on my workpiece?
Selection should be based on the total weight of your workpiece, its maximum eccentricity distance, and the center of gravity distance as specified in the technical table.
