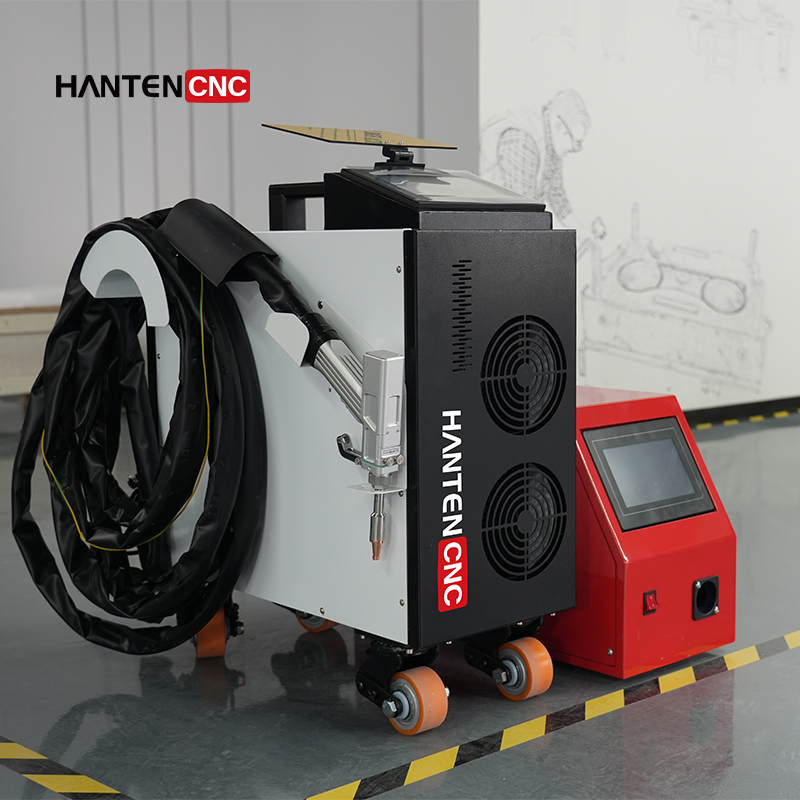

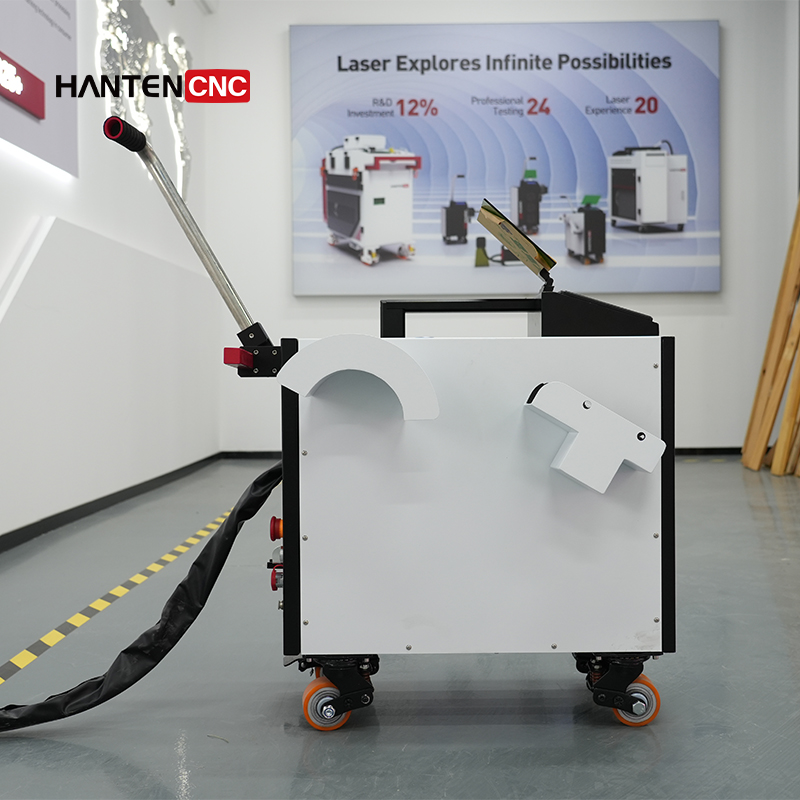

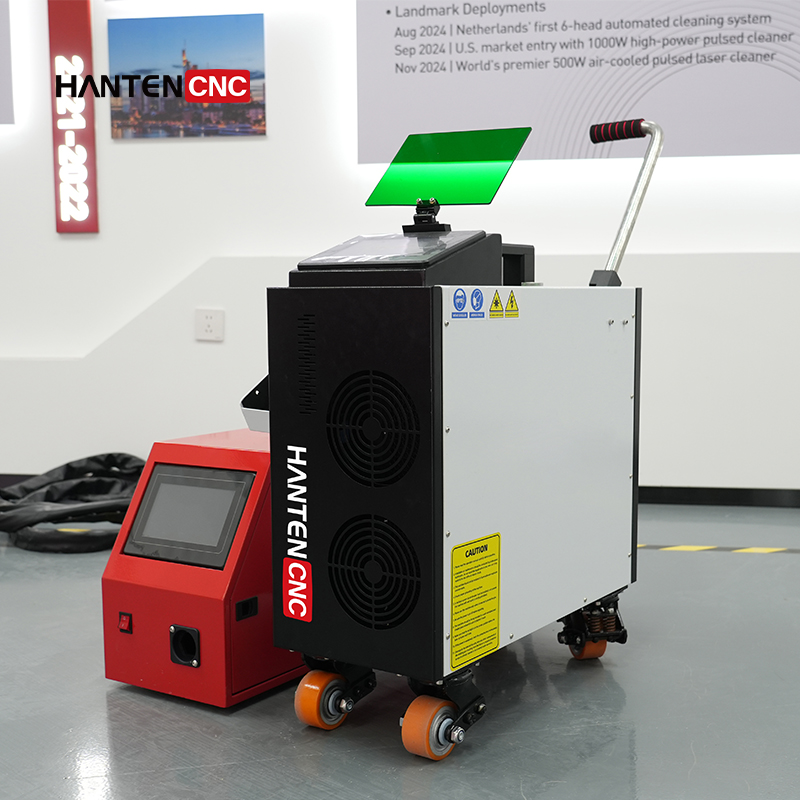

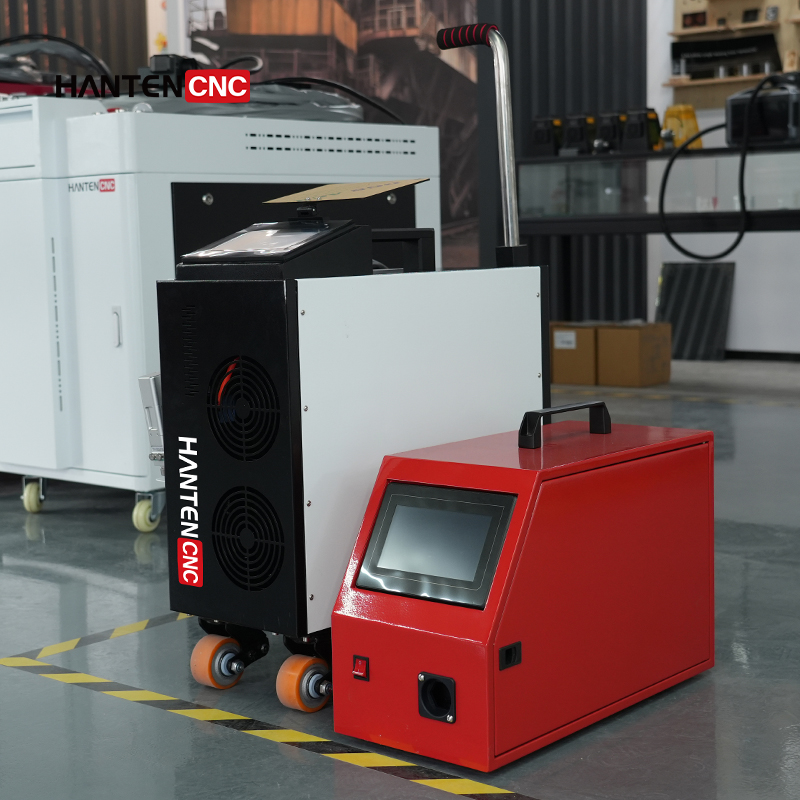

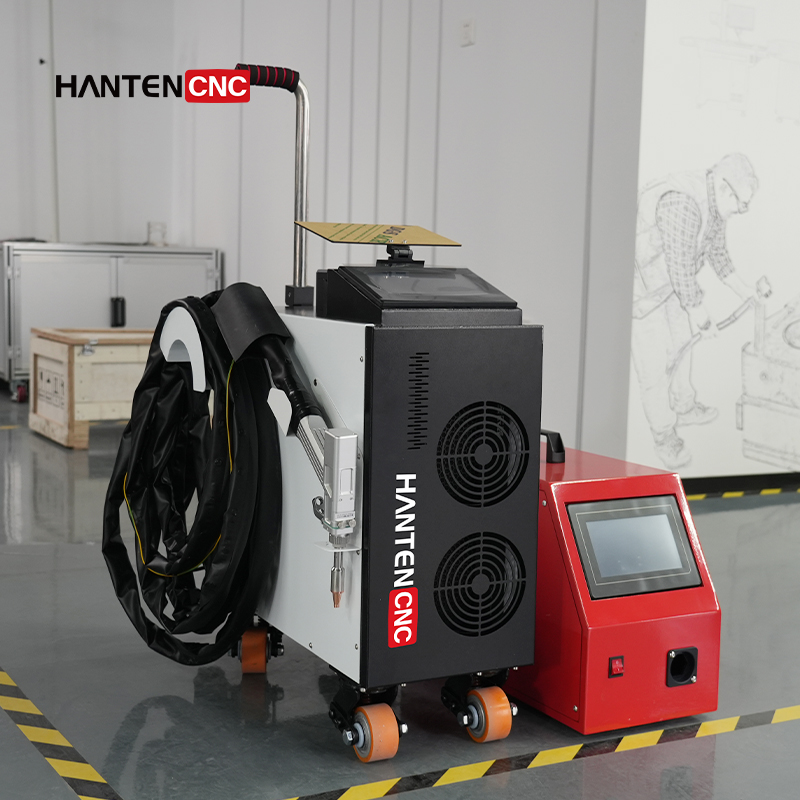

The SEAGULL4™ handheld laser welding machine, with a power range of 800w to 1500w, can accurately and efficiently weld steel and other metals with thicknesses of 1-5mm.

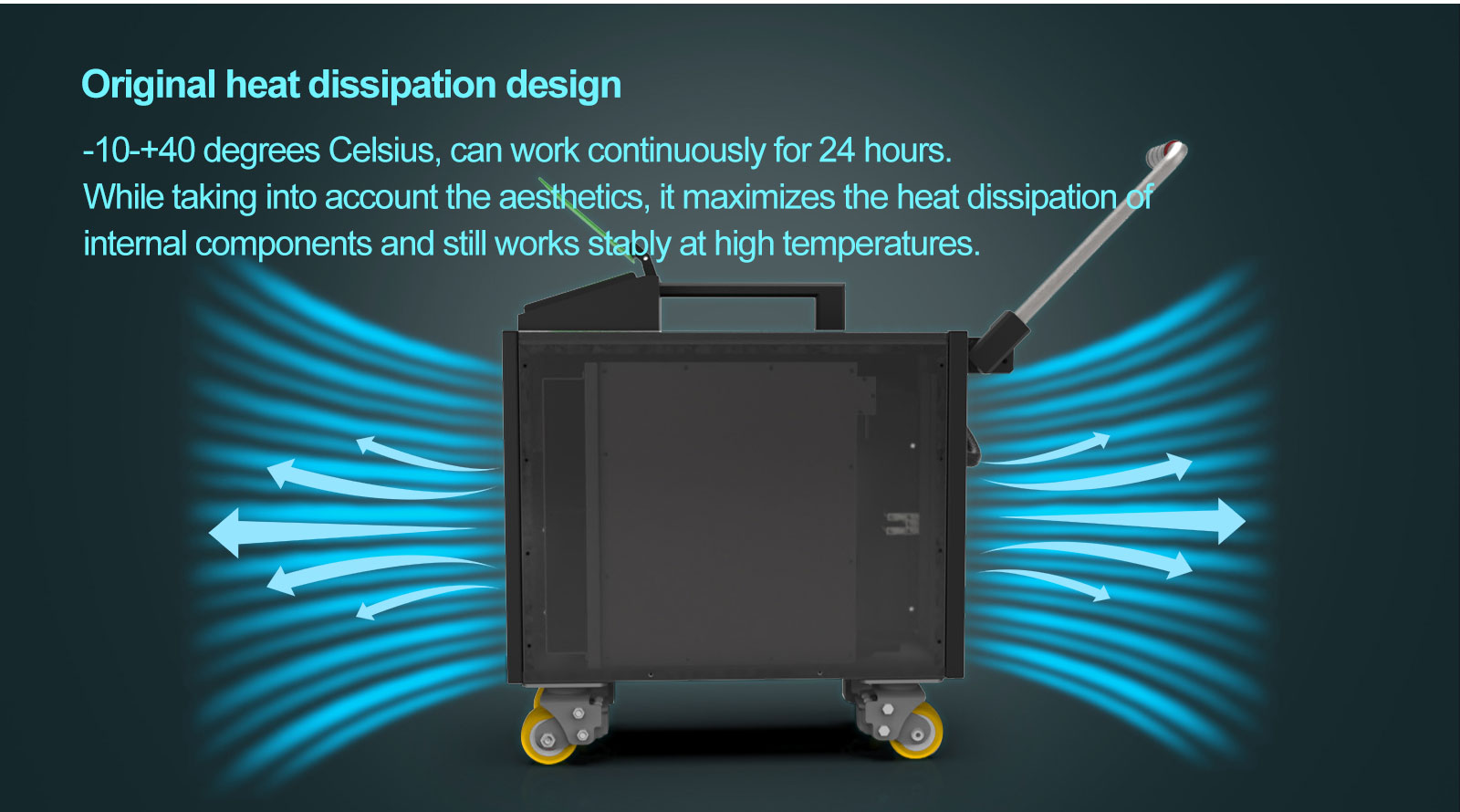

This air-cooled laser welder ensures clean, smooth welds with minimal heat distortion. It is ideal for mobile welding tasks in workshops, construction sites, and other environments where flexibility and high-quality results are required.
This air-cooled laser welding machine, SEAGULL4™, delivers 800W–1500W output, easily welding 1–5mm steel and other metals—no water chiller needed.
Perfect for: On-site repairs, construction sites, and places where large machines cannot reach.
| MODEL | HTW800 | HTW1500 | HTW1200 |
|---|---|---|---|
| Laser Power | 800W | 1500W | 1200W |
| Laser wavelength | 1064nm | 1064nm | 1064nm |
| Working Voltage | 220V | 220V | 220V |
| Fiber length | 10M/15M/Max 20M | 10M/15M/Max 20M | 10M/15M/Max 20M |
| Cooling System | Air-cooling | Air-cooling | Air-cooling |
| Welding Thickness | 0-5 mm | 0-5 mm | 0-5 mm |
| Scanning Width | 0-8 mm | 0-8 mm | 0-8 mm |
| Laser Welder Weight | 60KG | 60KG | 60KG |

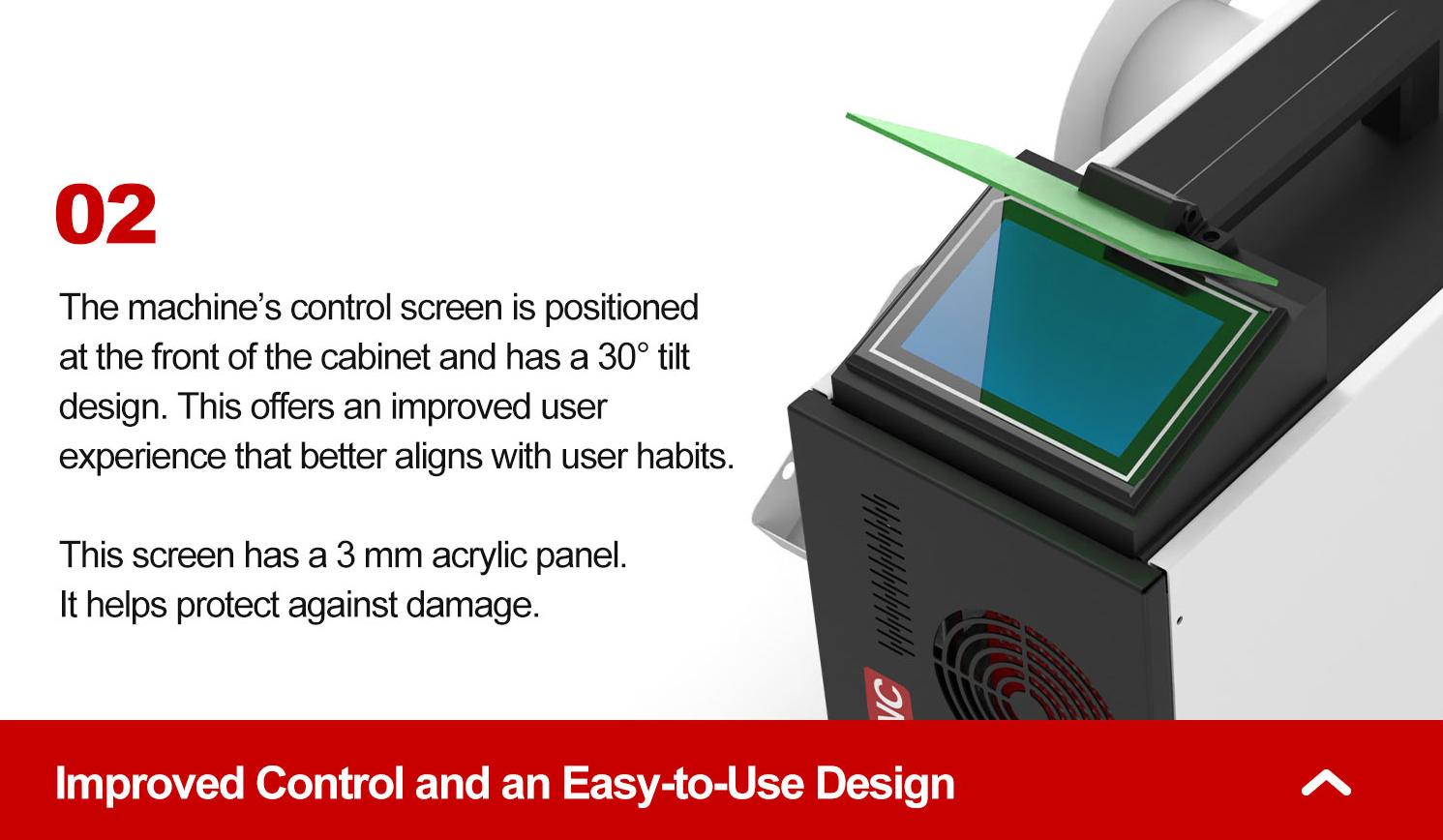

The control system is developed based on proven technology with improvements in insulation, stability, and maintenance. It features smart alarms and automatic laser shut-off for enhanced safety.

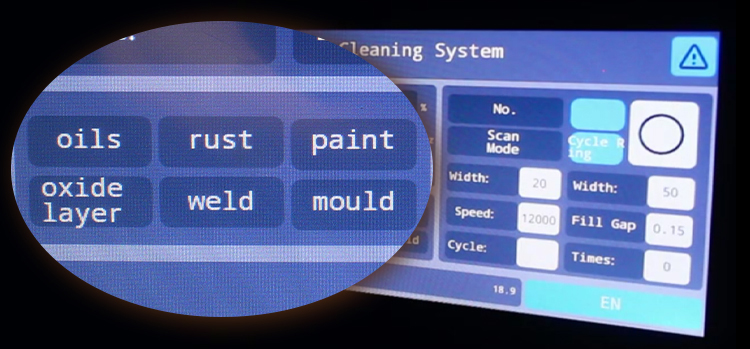

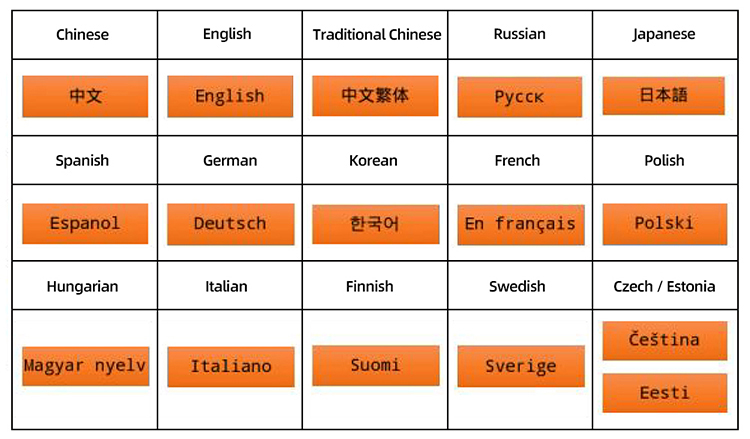

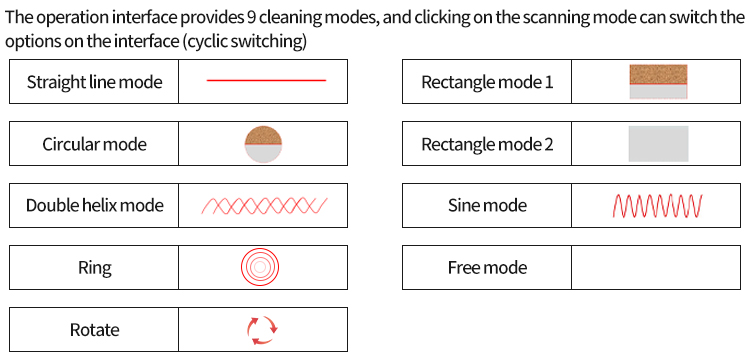

The optimized HMI interface lets you quickly call up preset sets of process parameters via six process options, ensuring faster response and smoother operation.
