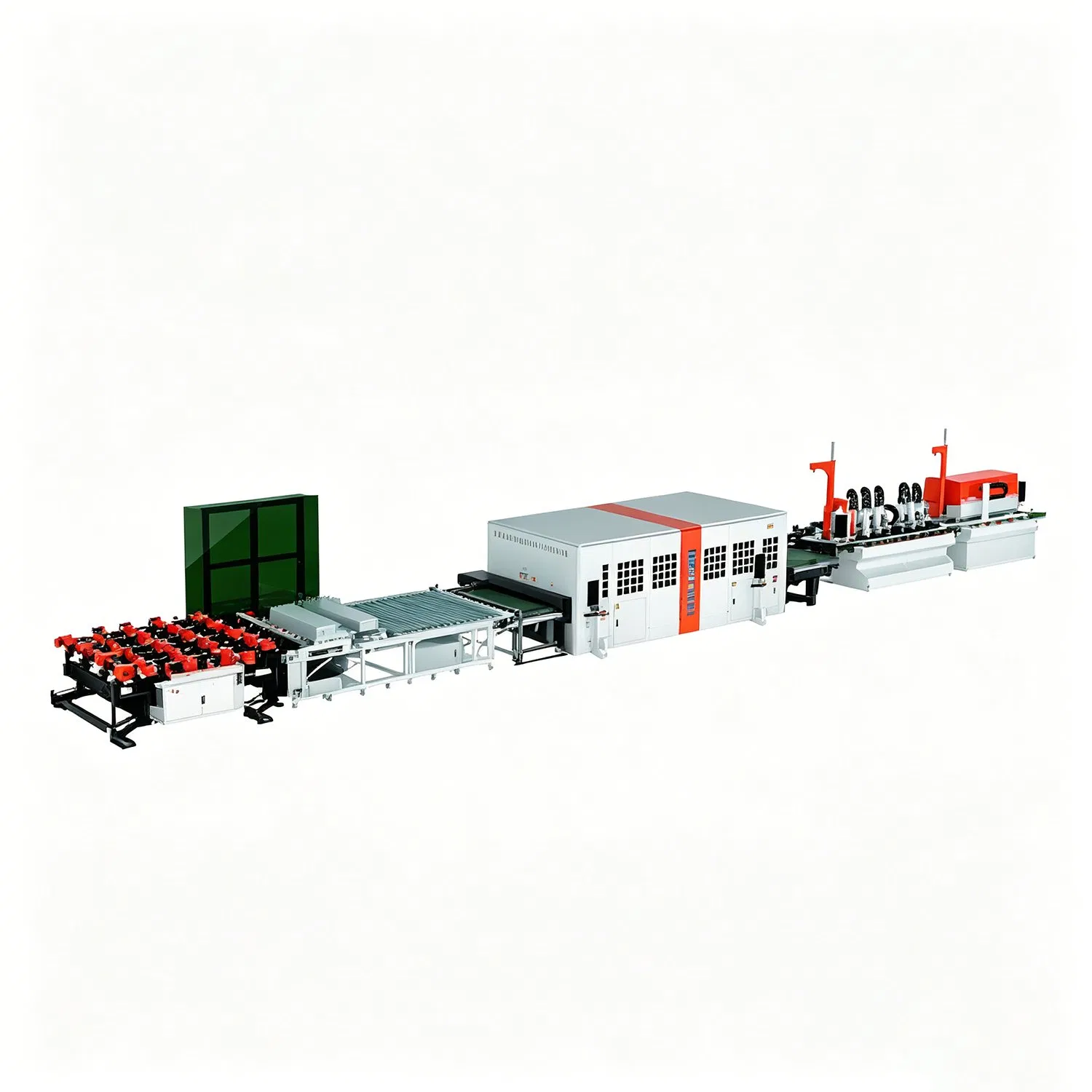

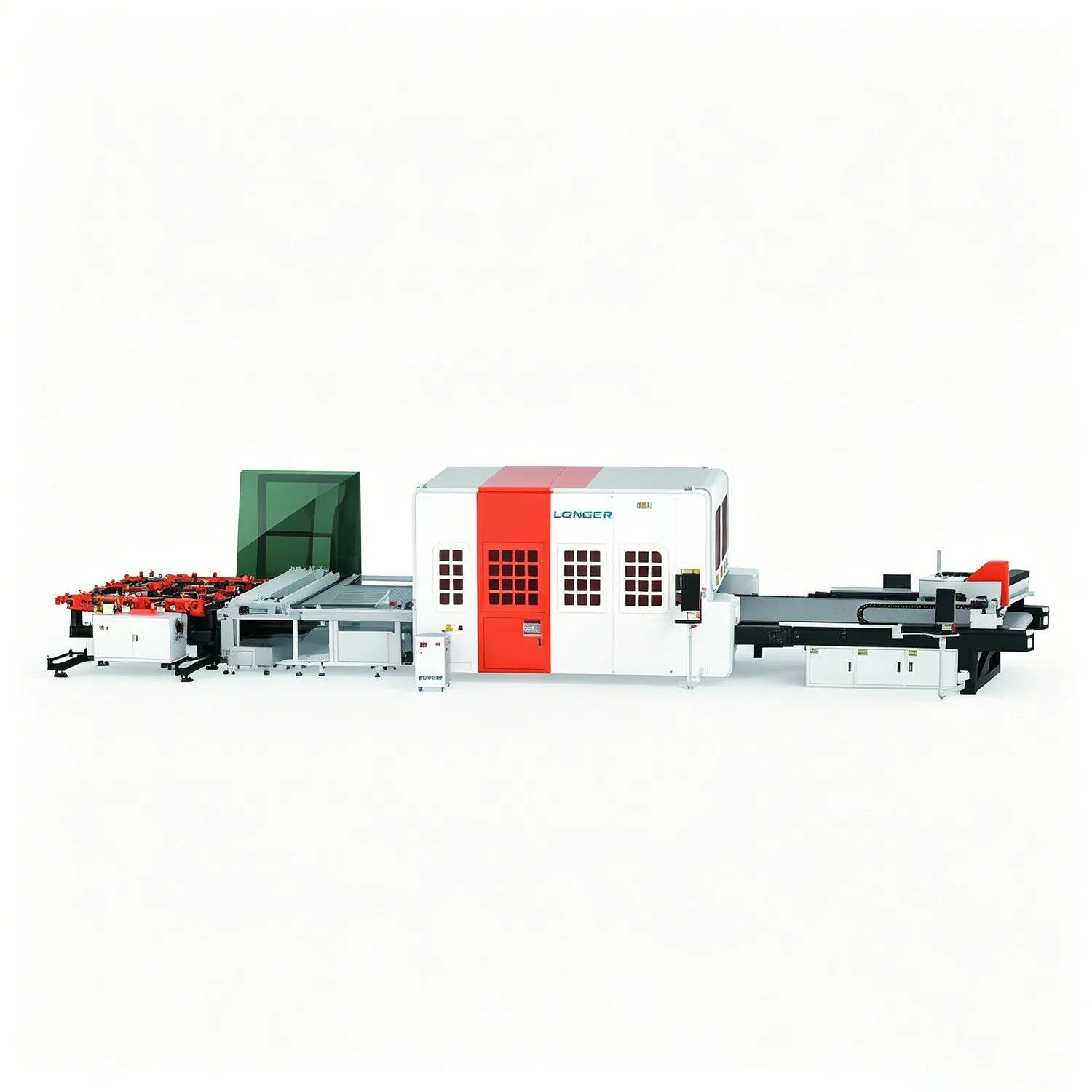

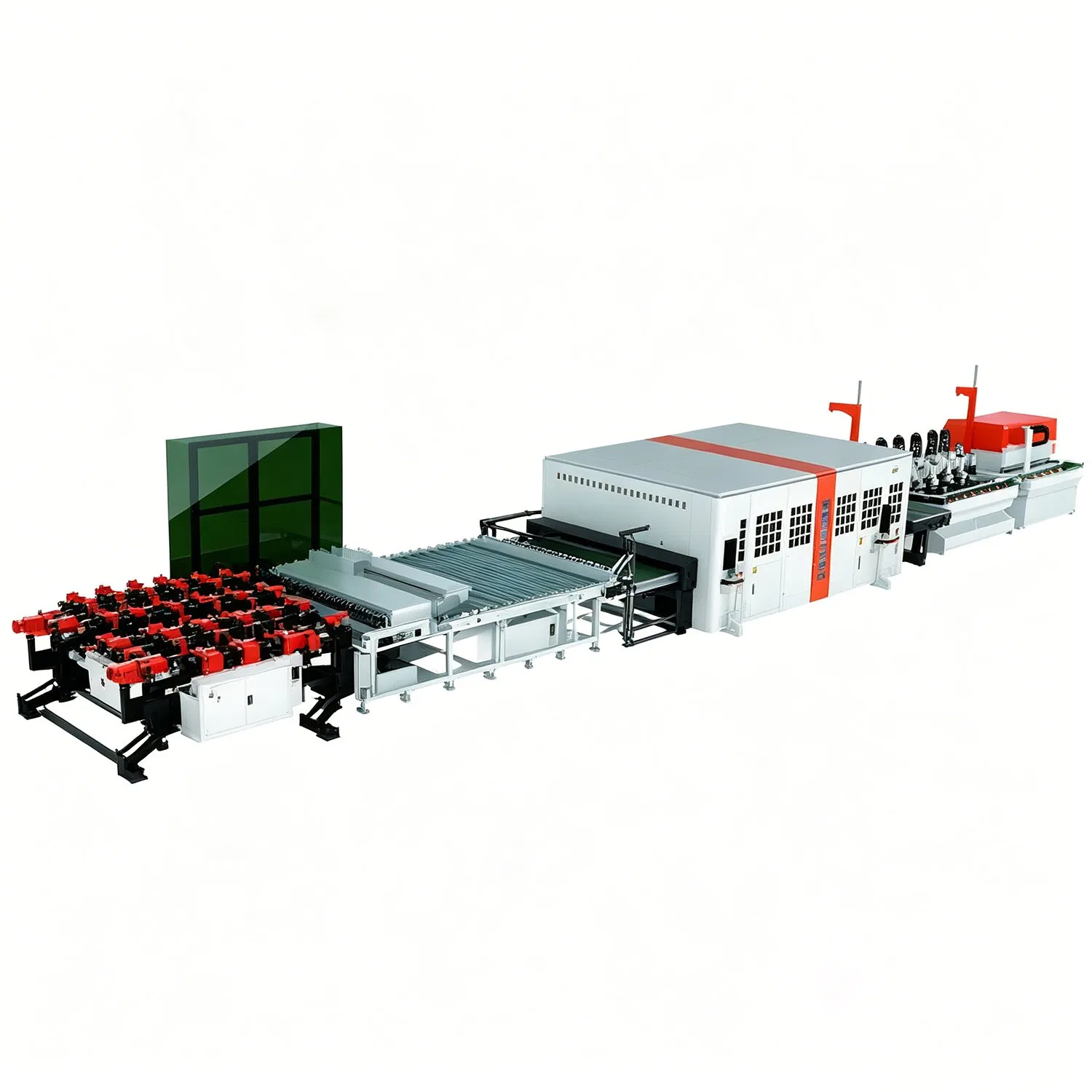

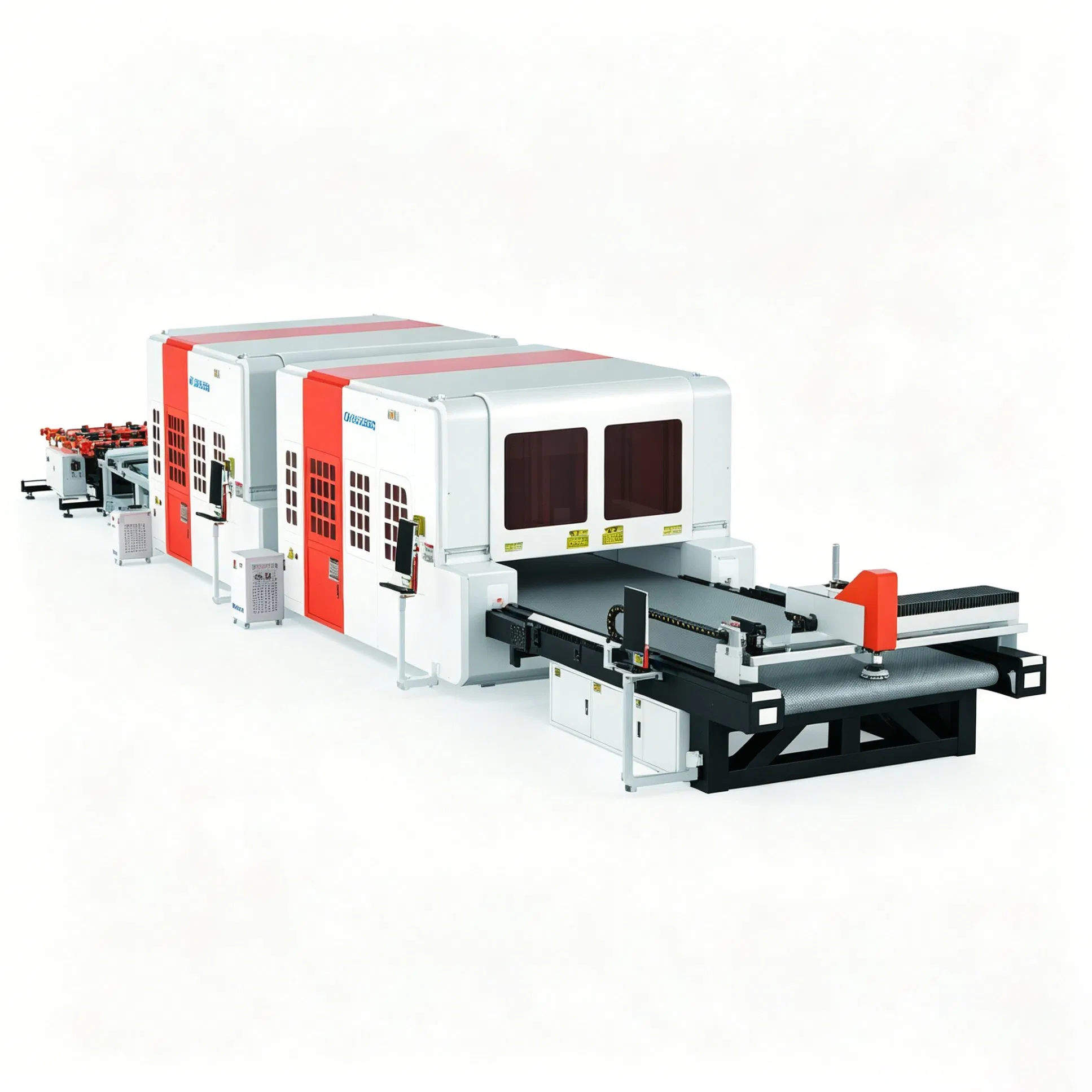

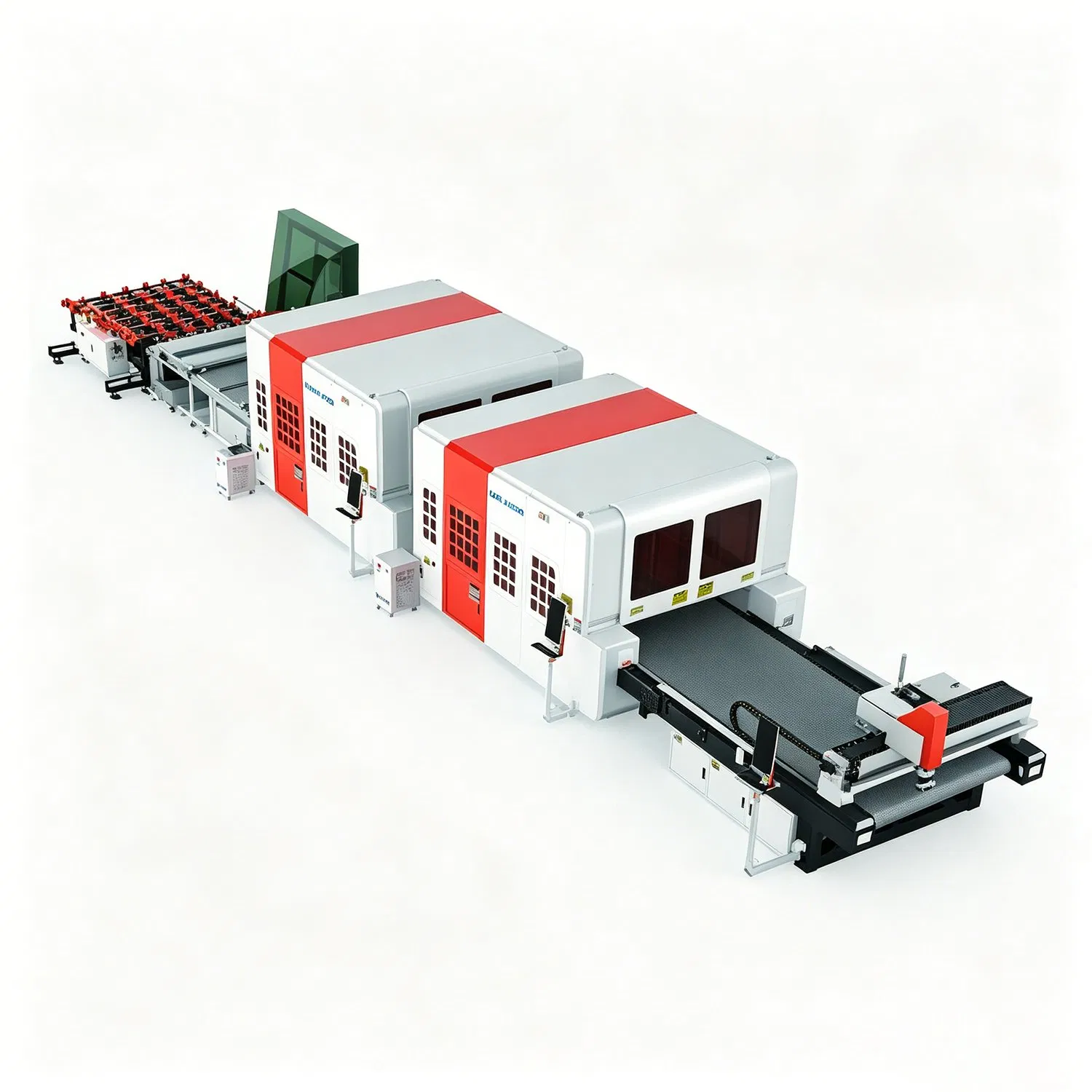

2424 * 3600mm Automatic Feeding Glass Cleaning and Cutting, Split Glass Drilling, Edge Grinding, Chamfering, Glass Laser Cutting Production Line
2424 * 3600mm Automatic Feeding Glass Cleaning and Cutting, Split Glass Drilling, Edge Grinding, Chamfering, Glass Laser Cutting Production Line
2424 * 3600mm Automatic Feeding Glass Cleaning and Cutting, Split Glass Drilling, Edge Grinding, Chamfering, Glass Laser Cutting Production Line
2424 * 3600mm Automatic Feeding Glass Cleaning and Cutting, Split Glass Drilling, Edge Grinding, Chamfering, Glass Laser Cutting Production Line
2424 * 3600mm Automatic Feeding Glass Cleaning and Cutting, Split Glass Drilling, Edge Grinding, Chamfering, Glass Laser Cutting Production Line
1 / 5
2424 * 3600mm Automatic Feeding Glass Cleaning and Cutting, Split Glass Drilling, Edge Grinding, Chamfering, Glass Laser Cutting Production Line
2424 * 3600mm Automatic Feeding Glass Cleaning and Cutting, Split Glass Drilling, Edge Grinding, Chamfering, Glass Laser Cutting Production Line
2424 * 3600mm Automatic Feeding Glass Cleaning and Cutting, Split Glass Drilling, Edge Grinding, Chamfering, Glass Laser Cutting Production Line
2424 * 3600mm Automatic Feeding Glass Cleaning and Cutting, Split Glass Drilling, Edge Grinding, Chamfering, Glass Laser Cutting Production Line
2424 * 3600mm Automatic Feeding Glass Cleaning and Cutting, Split Glass Drilling, Edge Grinding, Chamfering, Glass Laser Cutting Production Line

2424 * 3600mm Automatic Feeding Glass Cleaning and Cutting, Split Glass Drilling, Edge Grinding, Chamfering, Glass Laser Cutting Production Line

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
LK-L60
Laser Power
120W
Laser Source
Picosecond Laser
Cooling System
Water Cooling
Applicable Material
Glass
Structure Type
Gantry Type
Max Glass Thickness
20mm
Minimum Aperture
0.3mm
Laser Lifetime
100,000h
Certificate
CE
Product Description

Integrated Intelligent Glass Laser Cutting Production Line

This production line integrates automatic feeding, precise laser cutting, and efficient fragmentation. It is designed to overcome traditional processing challenges such as high manual labor dependency, edge breakage, and production bottlenecks in large-scale glass processing.

  • Automatic feeding and cleaning integration.
  • High precision picosecond laser technology.
  • Significant reduction in manual labor (replaces 5+ workers).
  • Efficiency increased by over 300% compared to traditional modes.
  • Extremely low defect rate (within 0.3%).

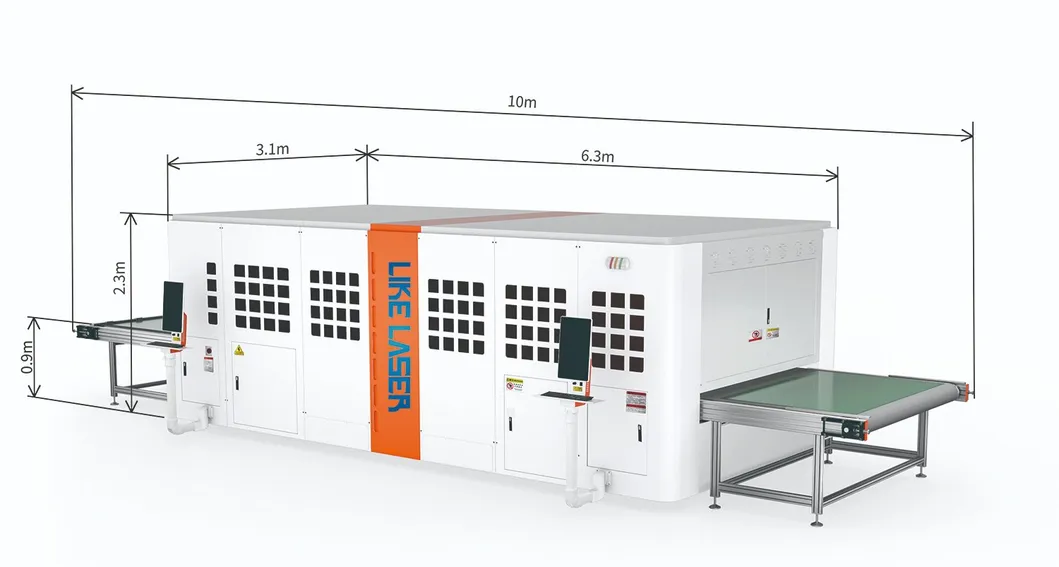

Glass Laser Cutting Production Line

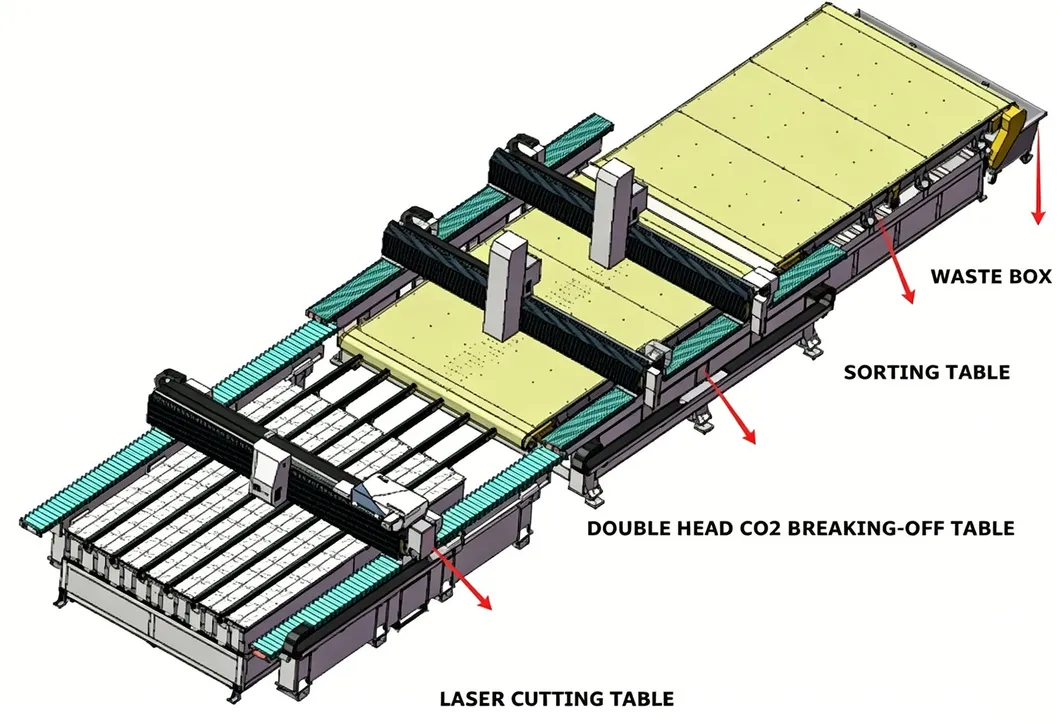

Automatic Glass Processing
Key Advantages
No. Explanation
1Reduces manual labor by more than 5 persons per shift.
2Production efficiency is more than three times higher than traditional methods.
3Defect rate maintained within 0.3% for high-quality output.
4Zero consumables required during the laser cutting process.
Production Line Configurations

The system supports multiple streamlined configurations for seamless operation:

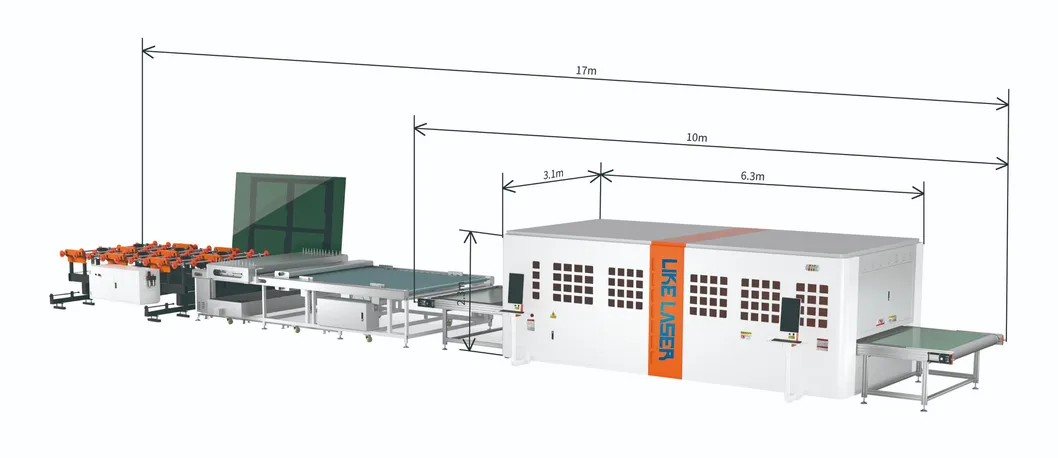

Workflow 1

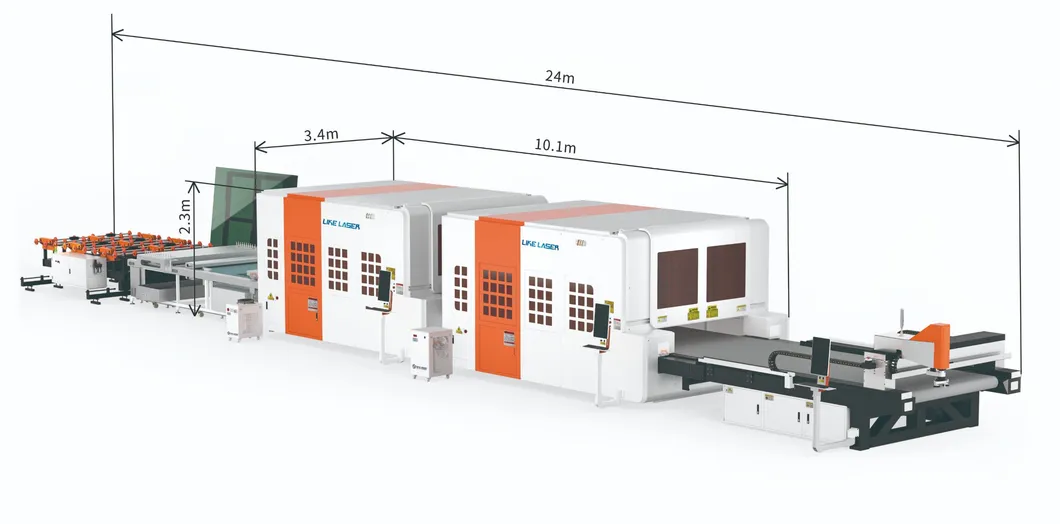

Workflow 2

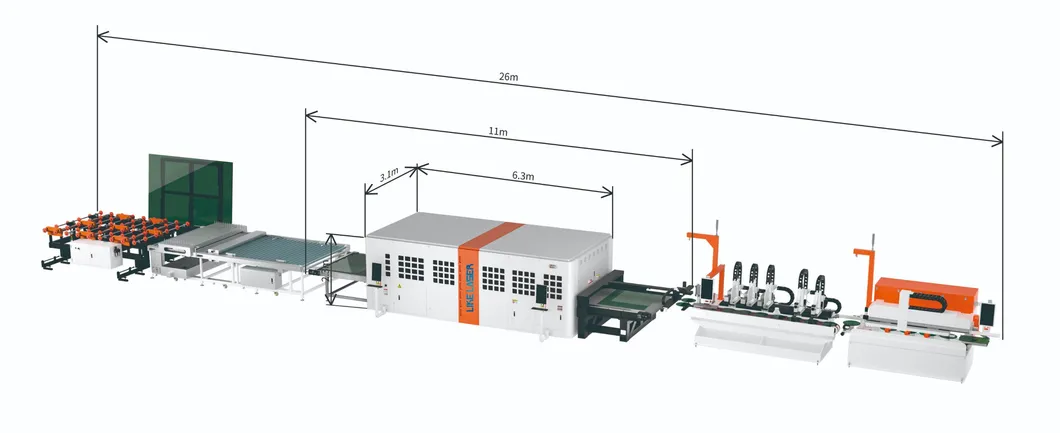

Workflow 3

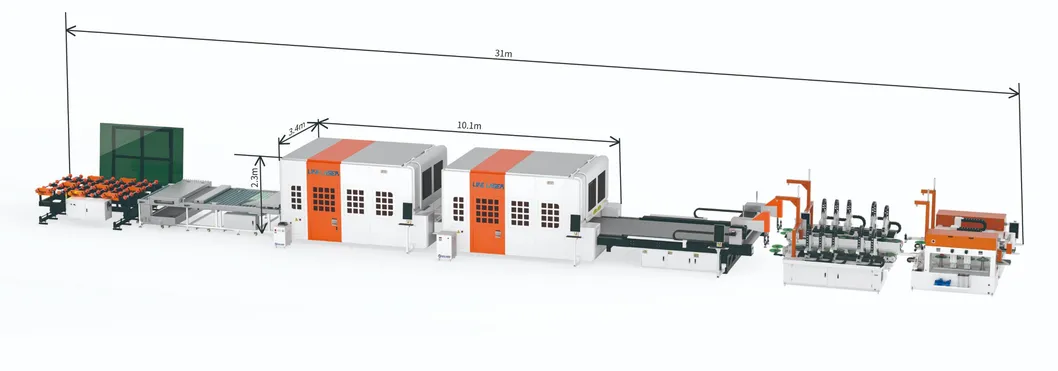

Workflow 4
Application Fields

Widely used in high-end home appliances, petroleum machinery, aerospace, automotive, and electronic glass industries.

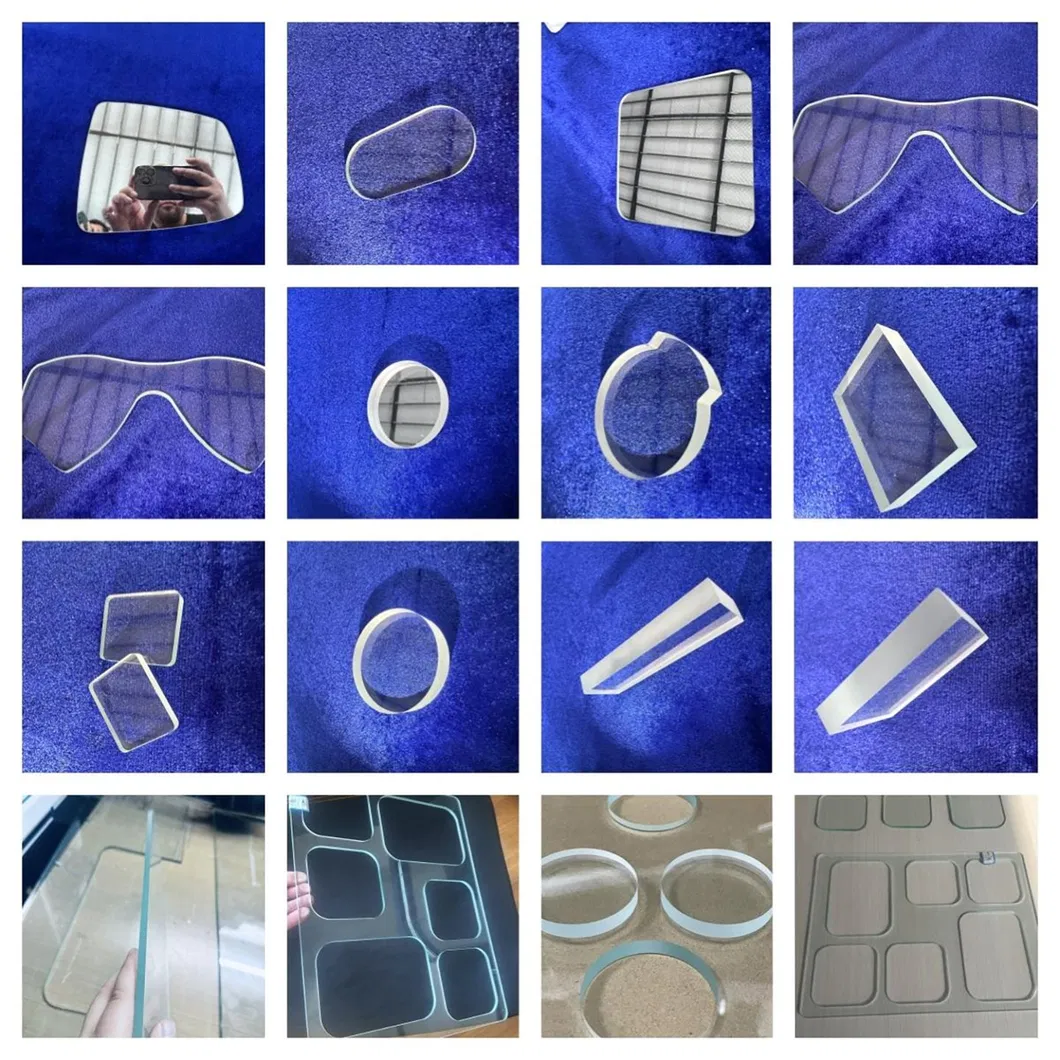

Application Gallery
Technical Parameters
Item Specification Details
Processing Range1200*2400mm to 2400*3600mm (Customizable)
Glass Thickness1 ~ 10mm
Cutting Speed100 - 300mm/s
Cutting Precision±0.05mm
Edge QualityEdge collapse < 10um
Total Power40KW
Power Supply380V/50HZ three-phase five wire
Control SystemIndustrial PC + Specialized Software + German Control Chip
PositioningCCD Visual Positioning + Servo Motor Closed-loop
Packaging & Shipping
Packaging
Shipping
Frequently Asked Questions
What is the maximum glass size the machine can handle?
The standard production line can process glass up to 2400 * 3600mm, but sizes can be customized according to specific requirements.
What materials are compatible with this laser system?
This equipment is specifically optimized for various types of glass, including electronic glass, photovoltaic glass, and household appliance glass.
How precise is the cutting performance?
The system offers high precision with a tolerance of ±0.05mm and edge collapse maintained under 10um.
Does the machine require frequent maintenance?
The laser source has a lifetime of approximately 100,000 hours. The main maintenance involves regular water changes for the chiller every 15 days using purified water.
What is the typical lead time for an order?
The standard lead time is approximately 60 days for a single production line unit.
