Datum Machine
Datum Machine

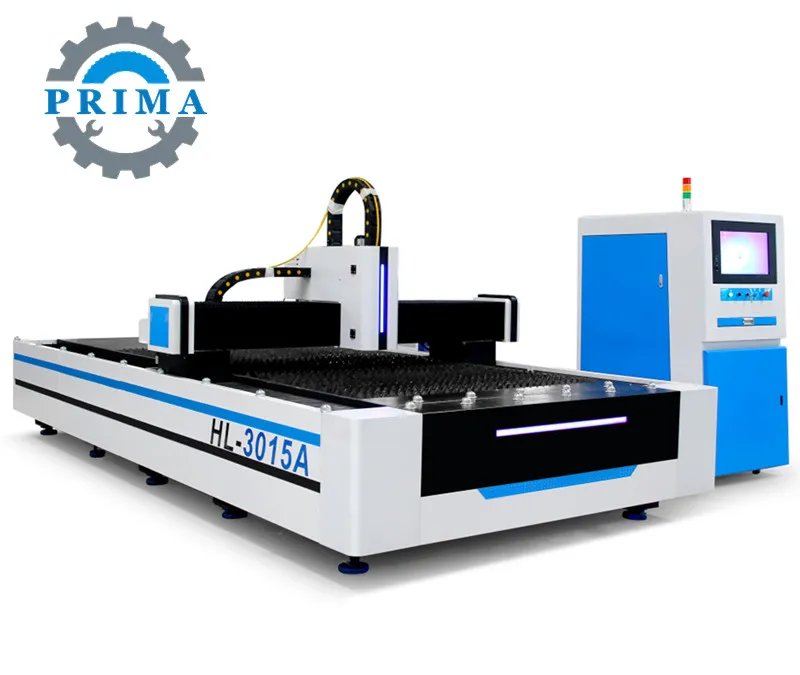

Featuring a high-strength, high-rigidity box type welding machine frame and integrally cast aluminum beam for superior accuracy and stability. Achieve machine acceleration of 0.6 G and empty moving speeds of up to 72 m/s.
Photoelectric conversion efficiency reaches 30%, doubling that of traditional CO2 lasers.
Gantry double drive structure ensures smooth movement and long-term equipment accuracy of +/- 0.05 mm.

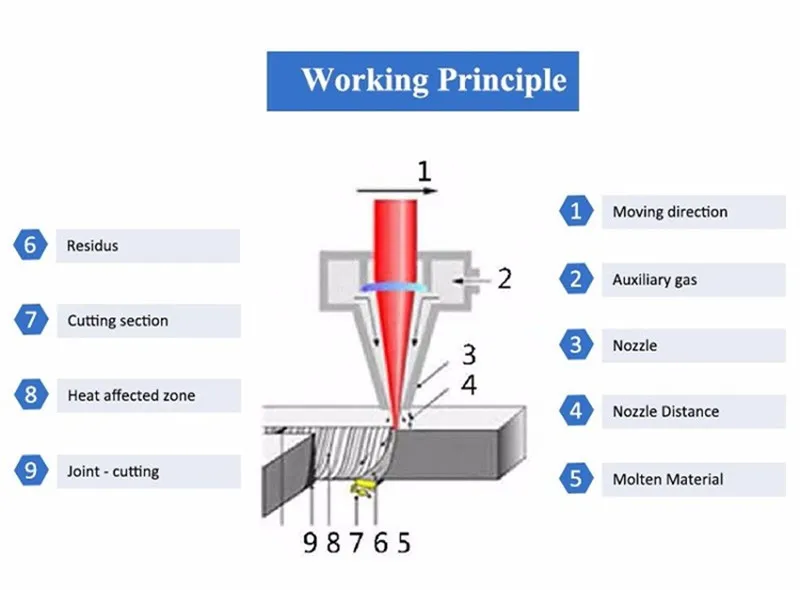

Fiber transmission without reflection lenses eliminates the need for light path adjustments, saving maintenance costs.
Designed for high-quality professional cutting of:
| No. | Description | Brand | Origin |
|---|---|---|---|
| 1 | Machine main body | Premium Series | China |
| 2 | CNC operating cabinet | Premium Series | China |
| 3 | Smoke dust sucking structure | Premium Series | China |
| 4 | Air conditioning cabinet | Premium Series | China |

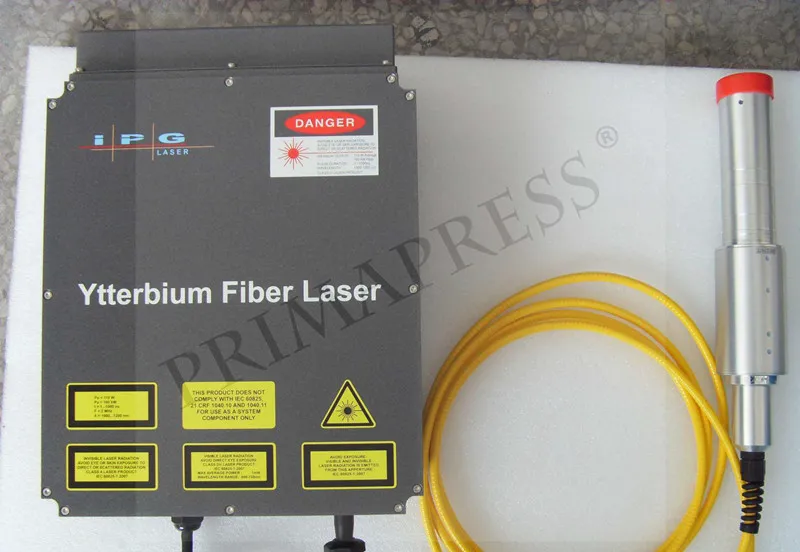

| 5 | Fiber Laser | IPG-700W | Germany |
| 6 | Laser cutting head | RayTools | Swiss |

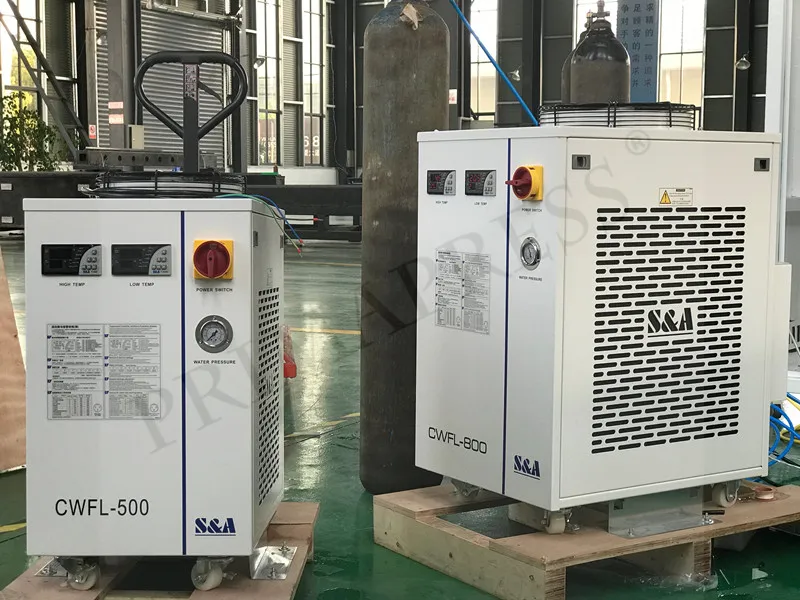

| 7 | Laser chiller | Standard Selection | China |
| 8 | CNC system | CypCut | China |
| 9 | Capacitive THC | CypCut | China |
| 10 | Servo motor | Schneider | France |
| 11 | Gear rack | YYC Level 6 | Taiwan |
| 12 | Linear Guide | Hiwin | Taiwan |
| 13 | Precision reducer | Neugar | German |
| 14 | Proportional valve | SMC | Japan |
| 15 | High-pressure valve | SMC | Japan |
| 16 | Electronic pieces | Schneider | France |
| 17 | Solenoid valve | SMC | Japan |
| 18 | Air cylinder | AirTAC | Korea |
| 19 | Air Conditioner | Professional Grade | China |
| 20 | Cutting software | CypCut | China |
| 21 | Composing software | SmartNest | China |

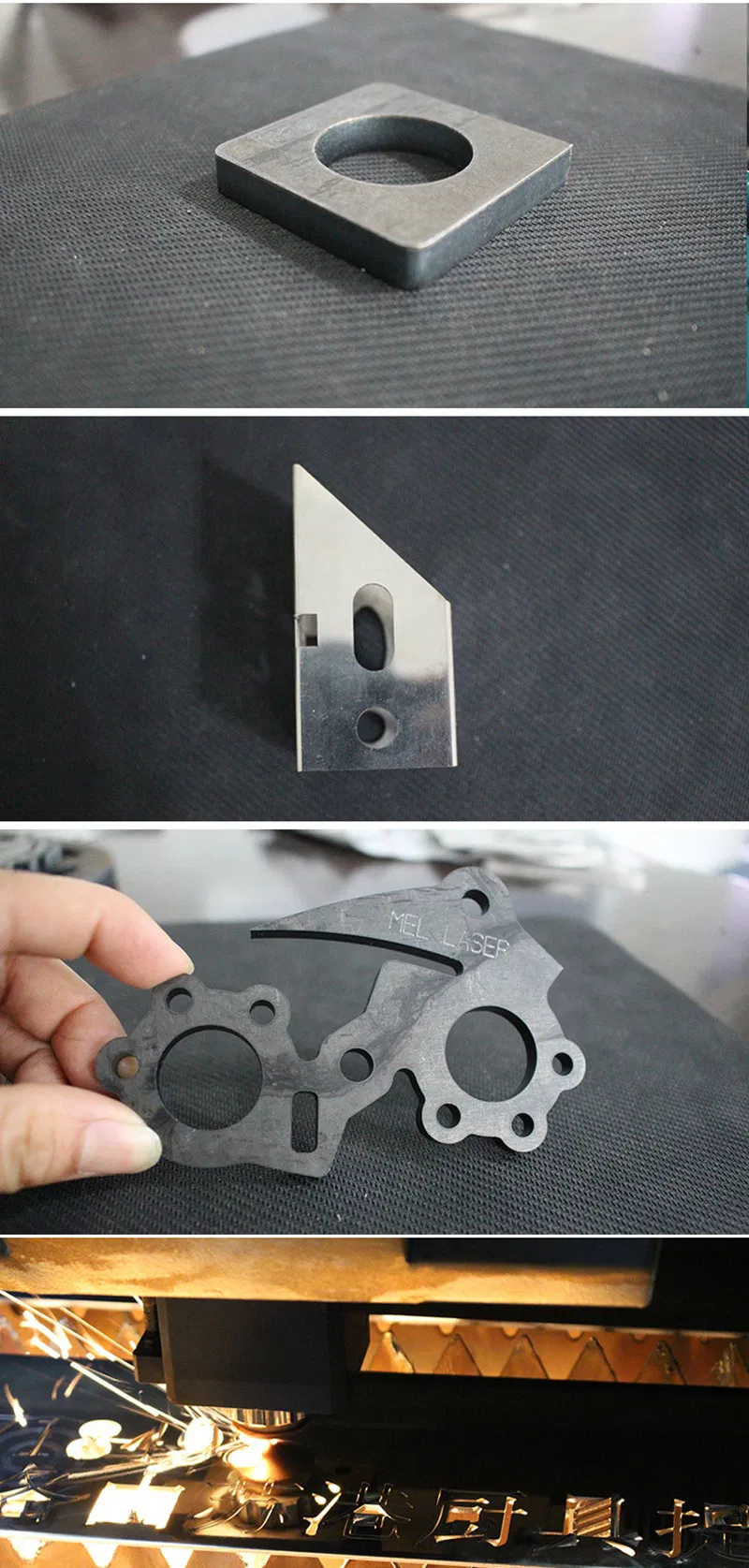

The machine is designed to cut a wide variety of thin sheet metals, including carbon steel (up to 10mm), stainless steel (up to 4mm), aluminum alloy, galvanized sheet, silicon steel, and titanium alloy.
The photoelectric conversion efficiency reaches 30%, which is twice as efficient as CO2 lasers. It also consumes only about 20% to 30% of the power compared to traditional CO2 laser systems.
No, the machine uses optical fiber transmission without reflection lenses. This eliminates the need to adjust the light path and significantly reduces maintenance requirements.

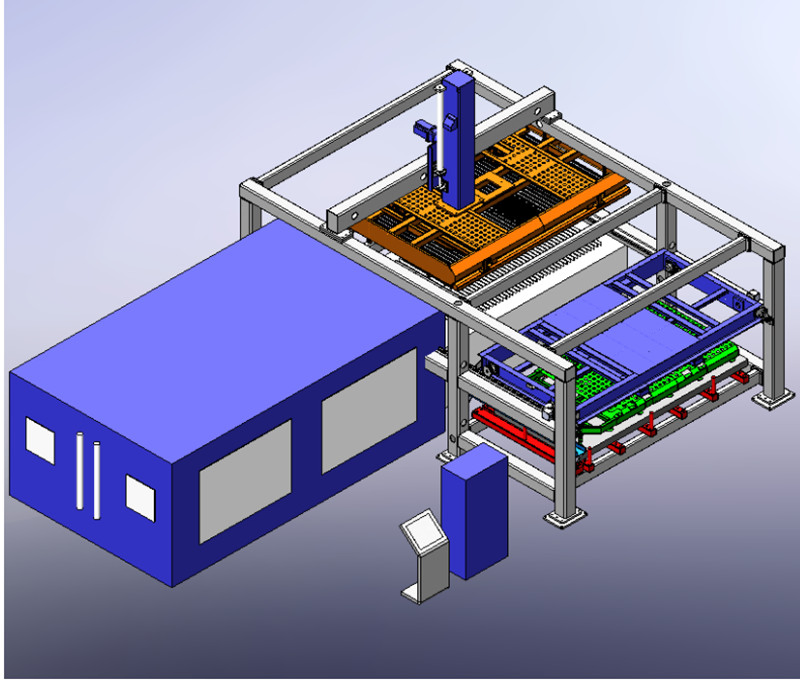

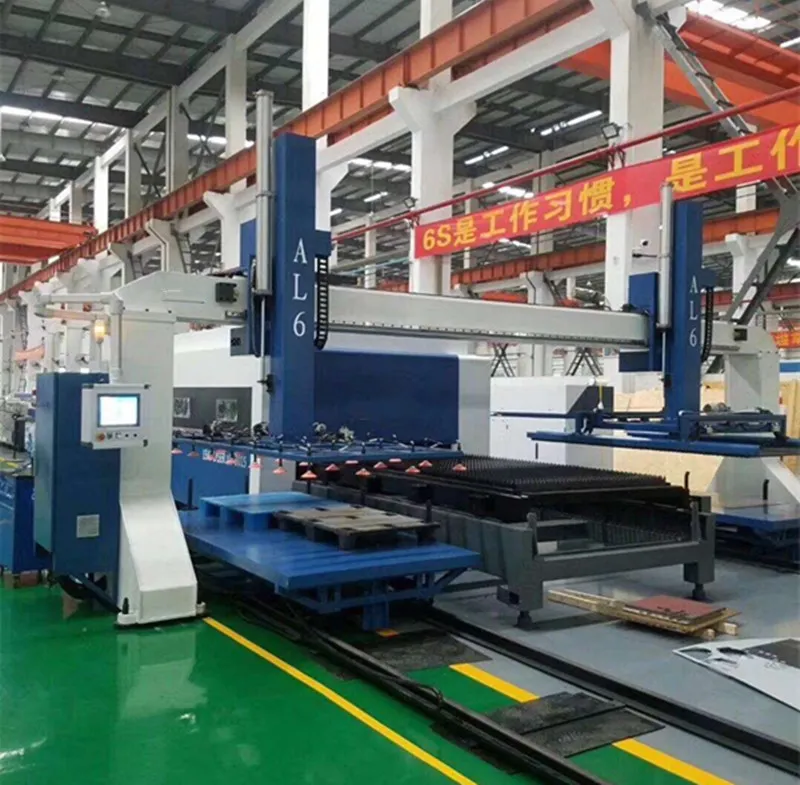

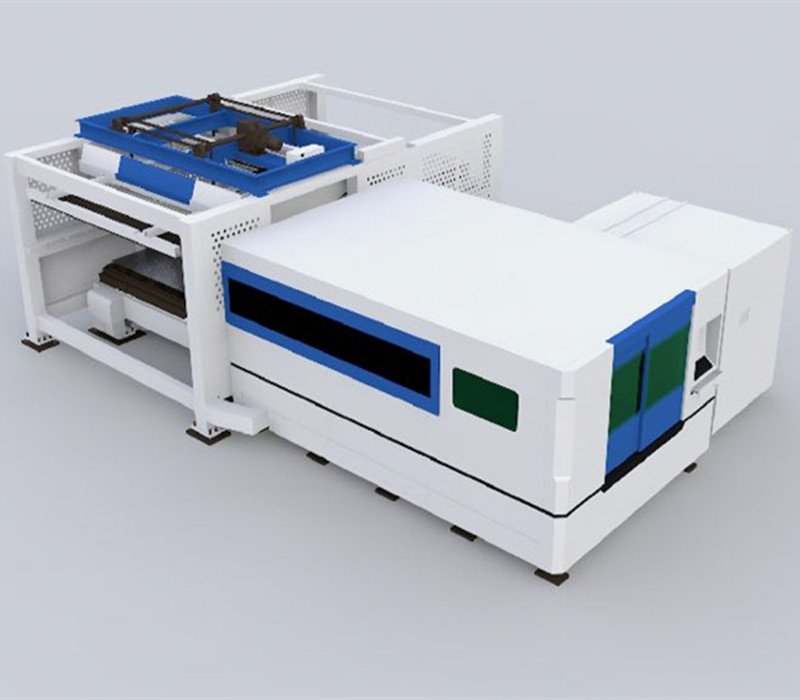

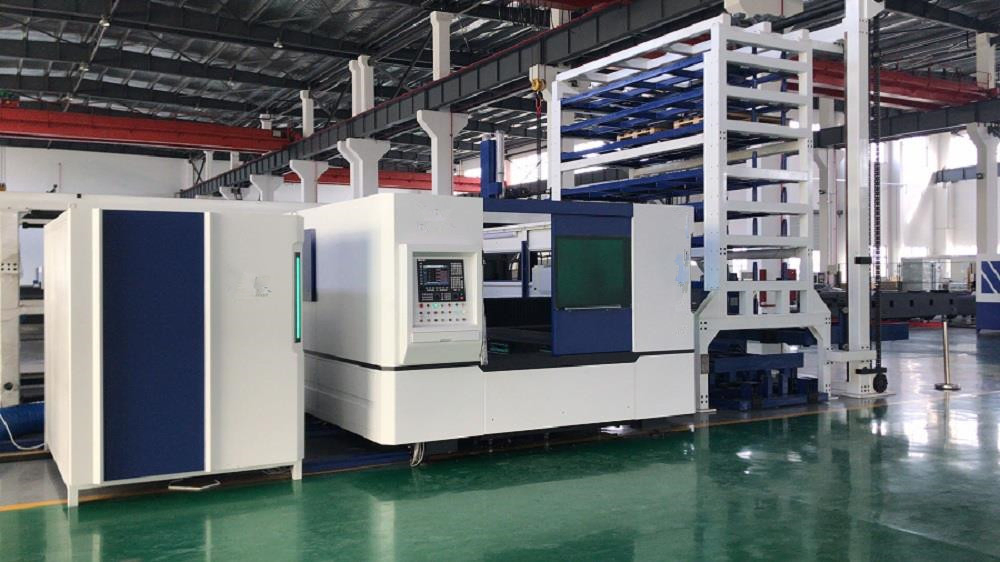

The automatic system enhances production efficiency by automating the material handling process, reducing labor requirements and allowing for continuous operation of the 2D laser cutting machine.
The machine utilizes a high-strength welding frame, precision gear racks, and linear guides. Together with high-precision servo motors and a double closed-loop capacitive height controller, it maintains accuracy within +/- 0.05 mm.
Yes, the CNC system is concise and user-friendly, featuring powerful graphic editing functions and support for multiple input formats, which lowers the requirements for operators.
