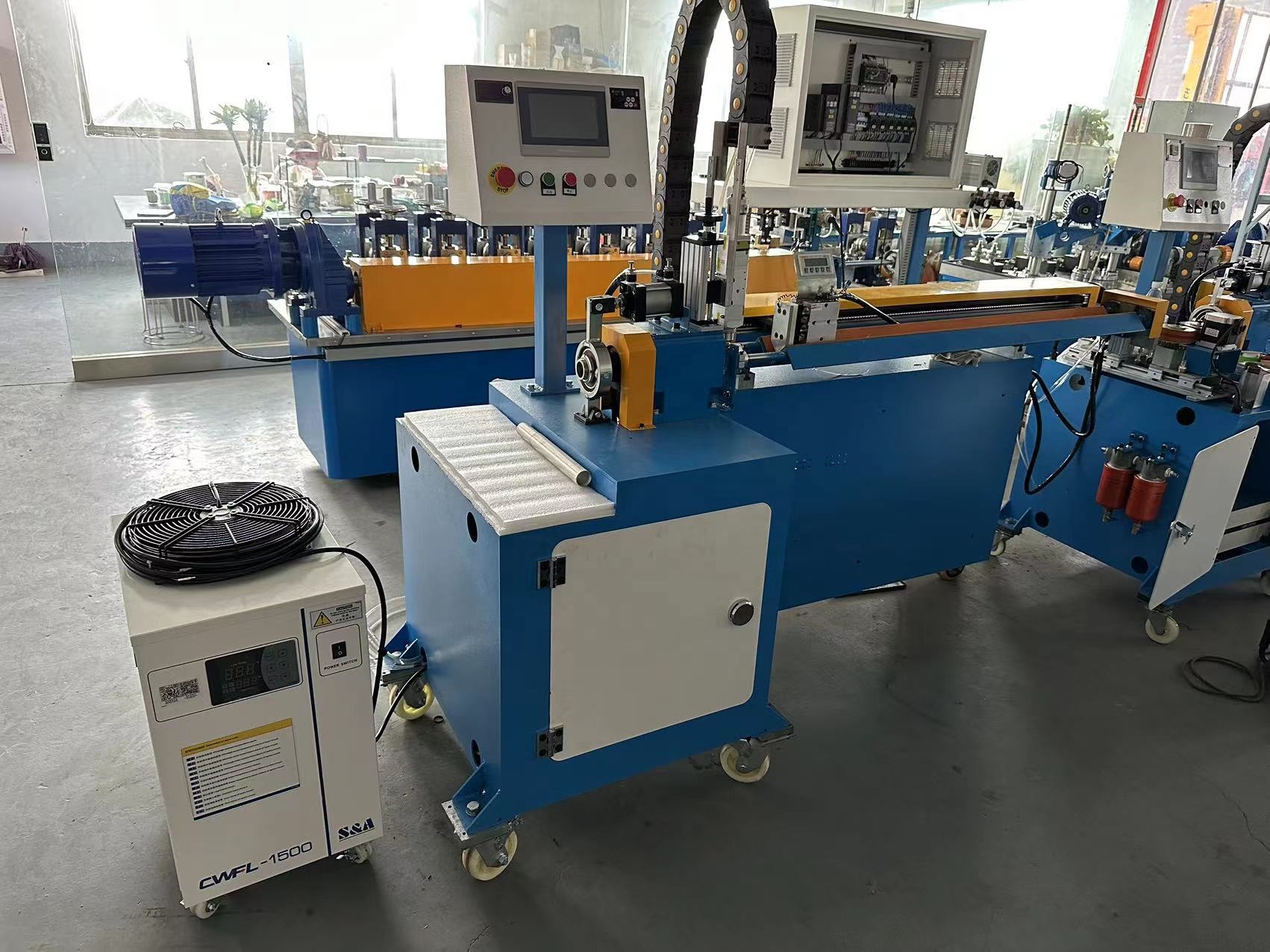

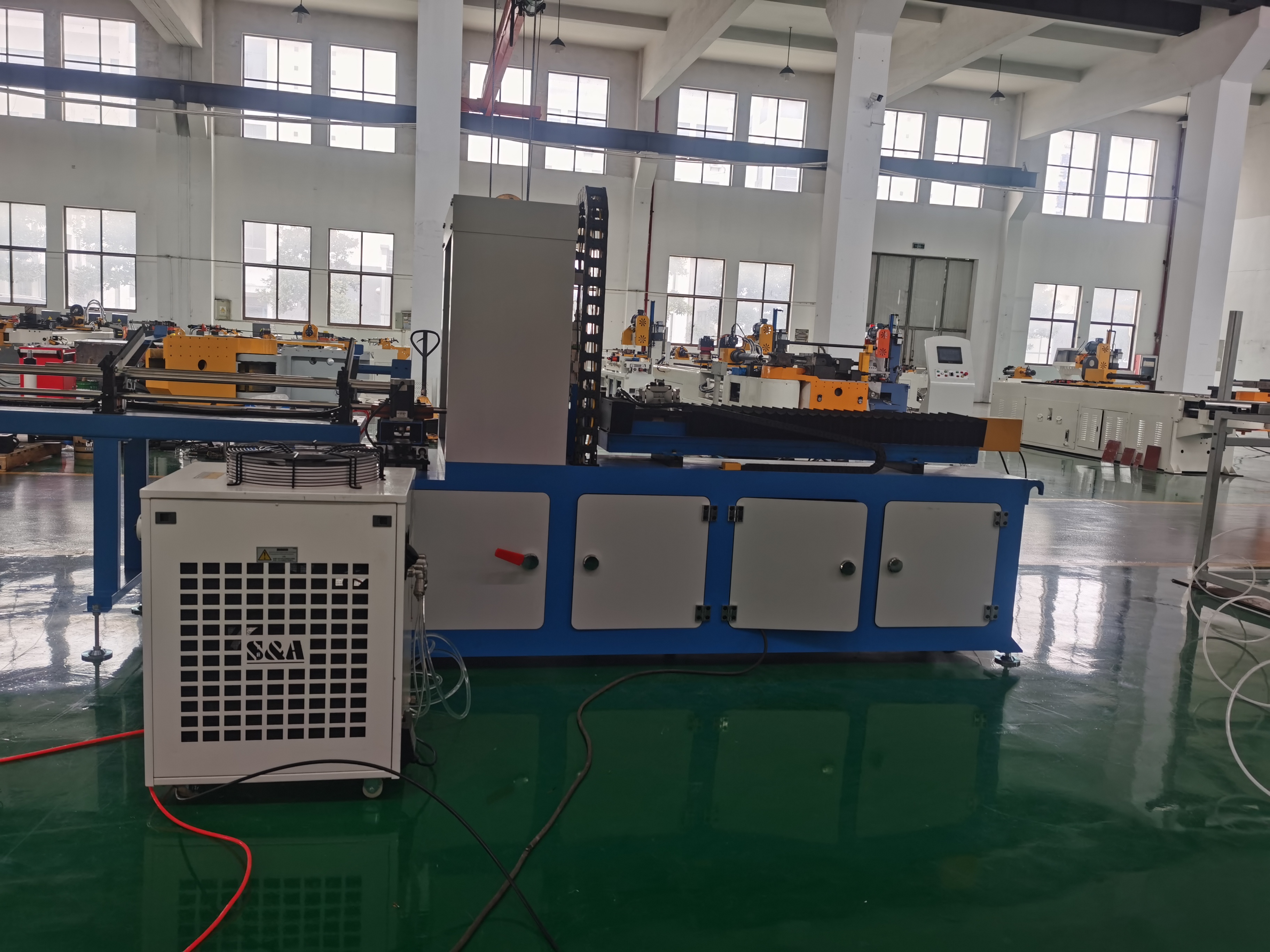

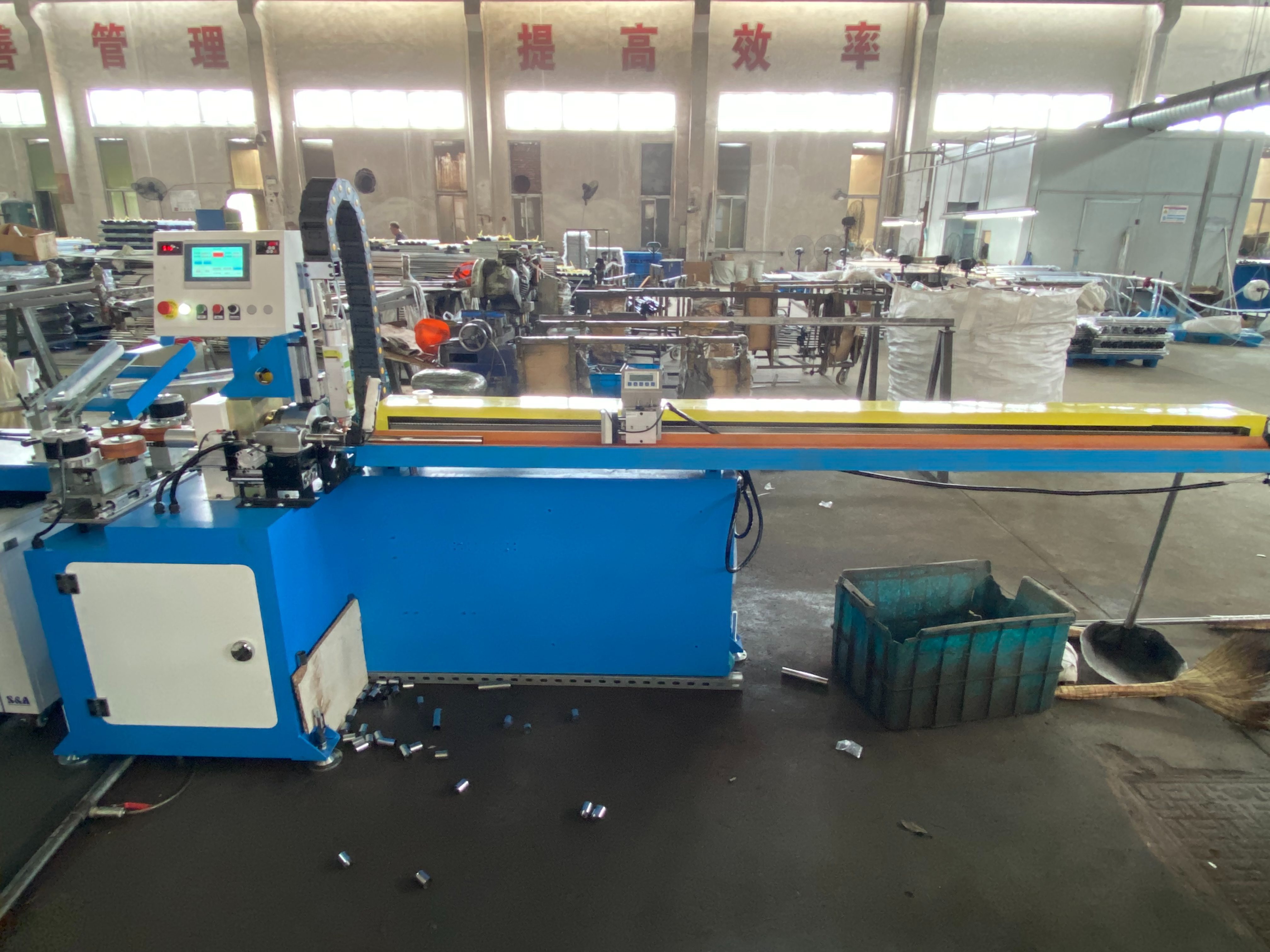

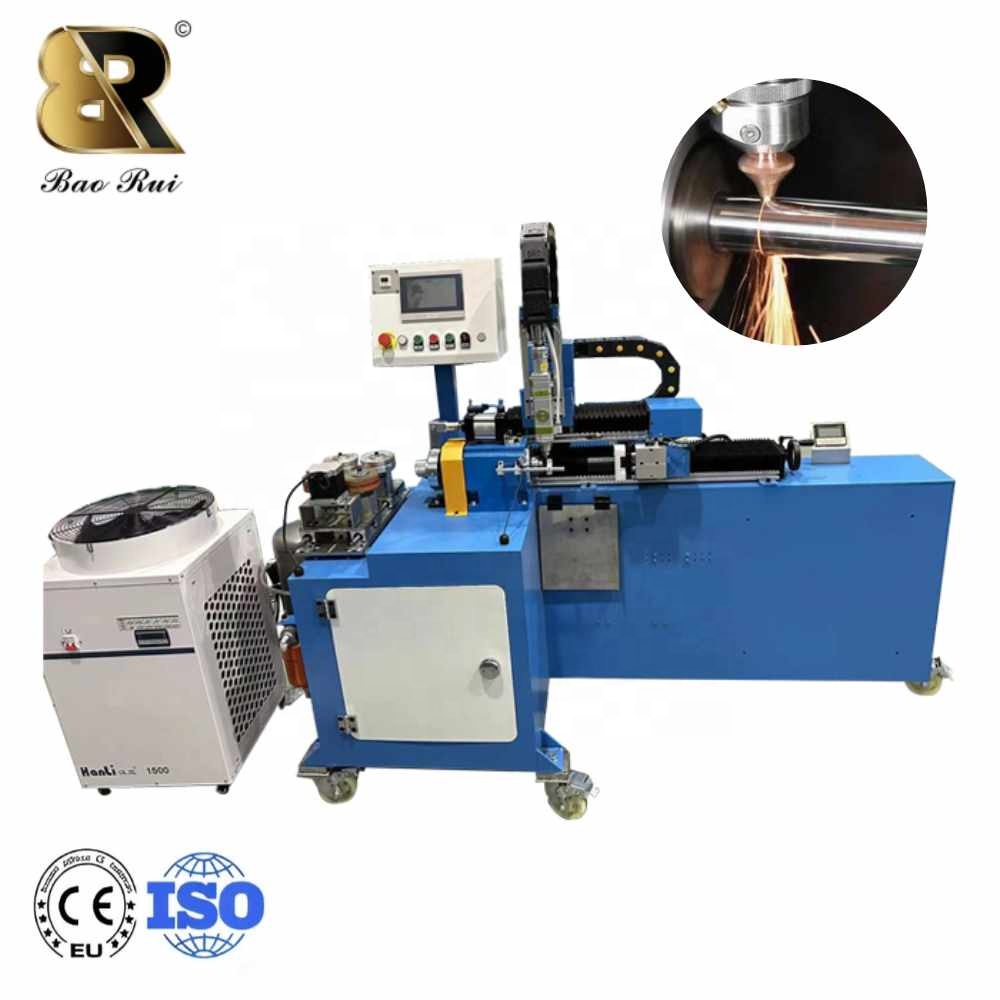

The BR-70CNC is a cost-effective and compact laser tube cutting machine designed for simple operation and high precision. As a "Simple Type" model, it focuses on essential cutting functions, making it ideal for small to medium-sized businesses or workshops that process small-diameter tubes without complex tooling requirements.
Features a user-friendly CNC system that requires minimal training. Operators can quickly load programs or manually input paths.
Small footprint saves valuable workshop space while being easy to move or install in limited areas.
Optimized for diameters up to 32mm. Ideal for mild steel, stainless steel, and aluminum.

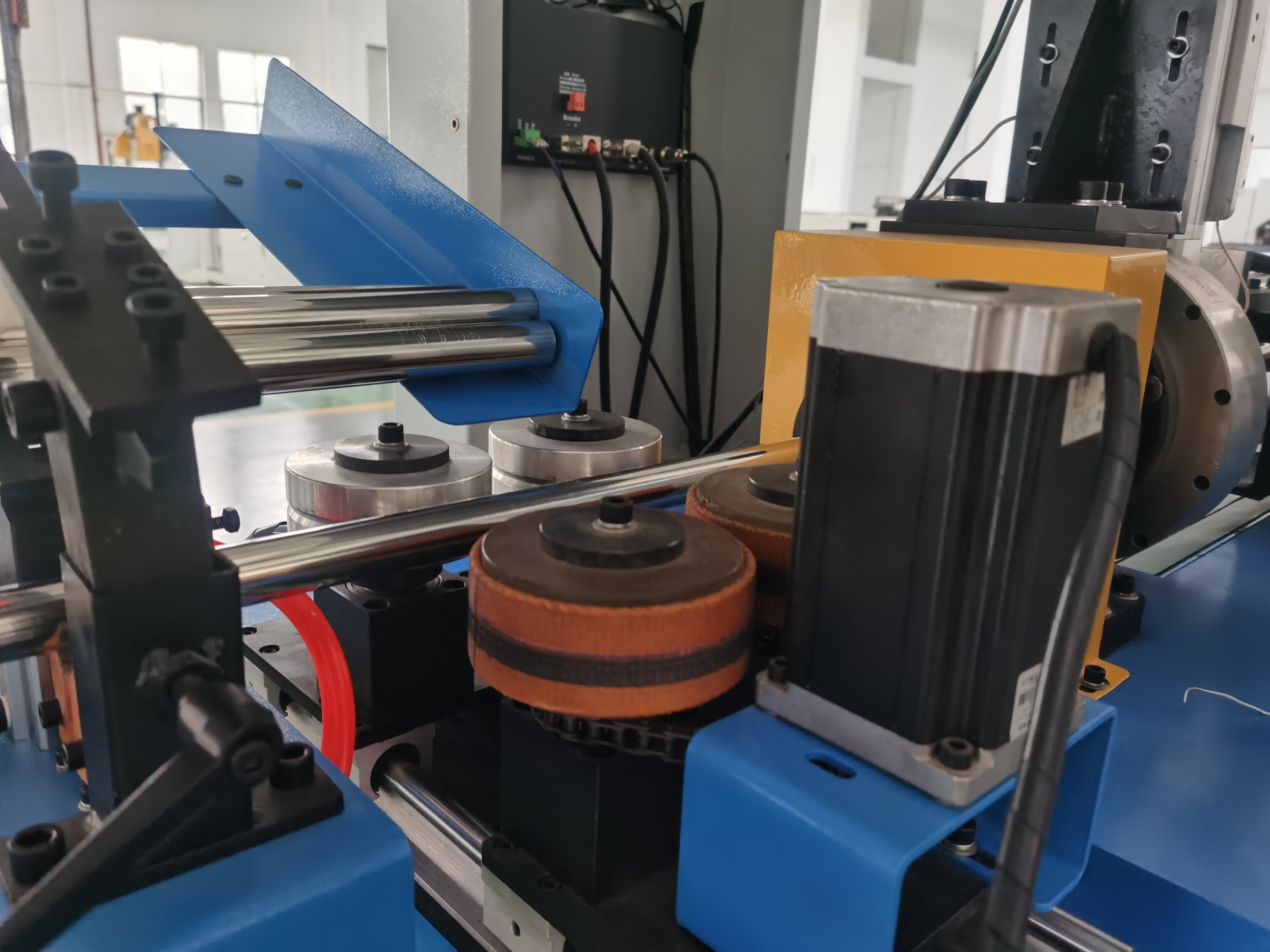

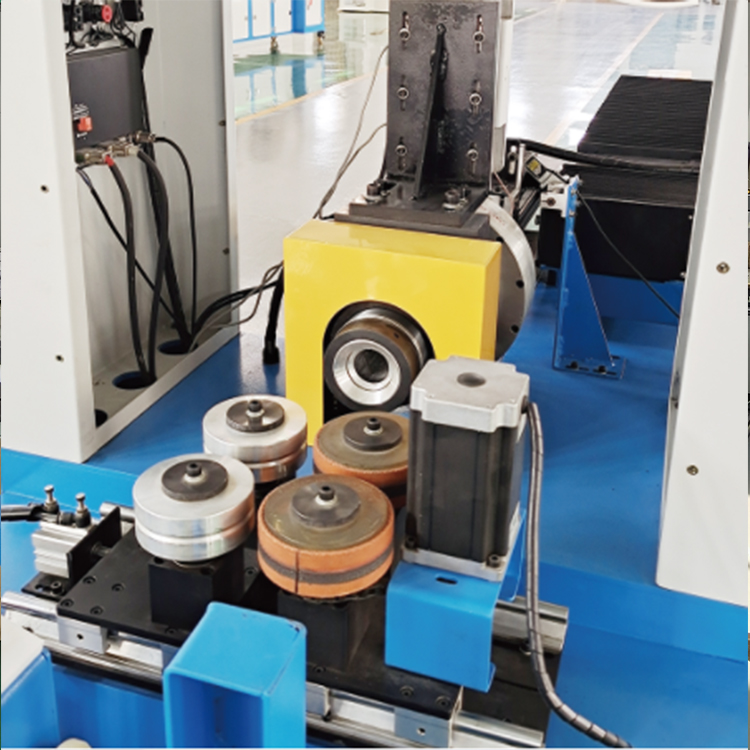

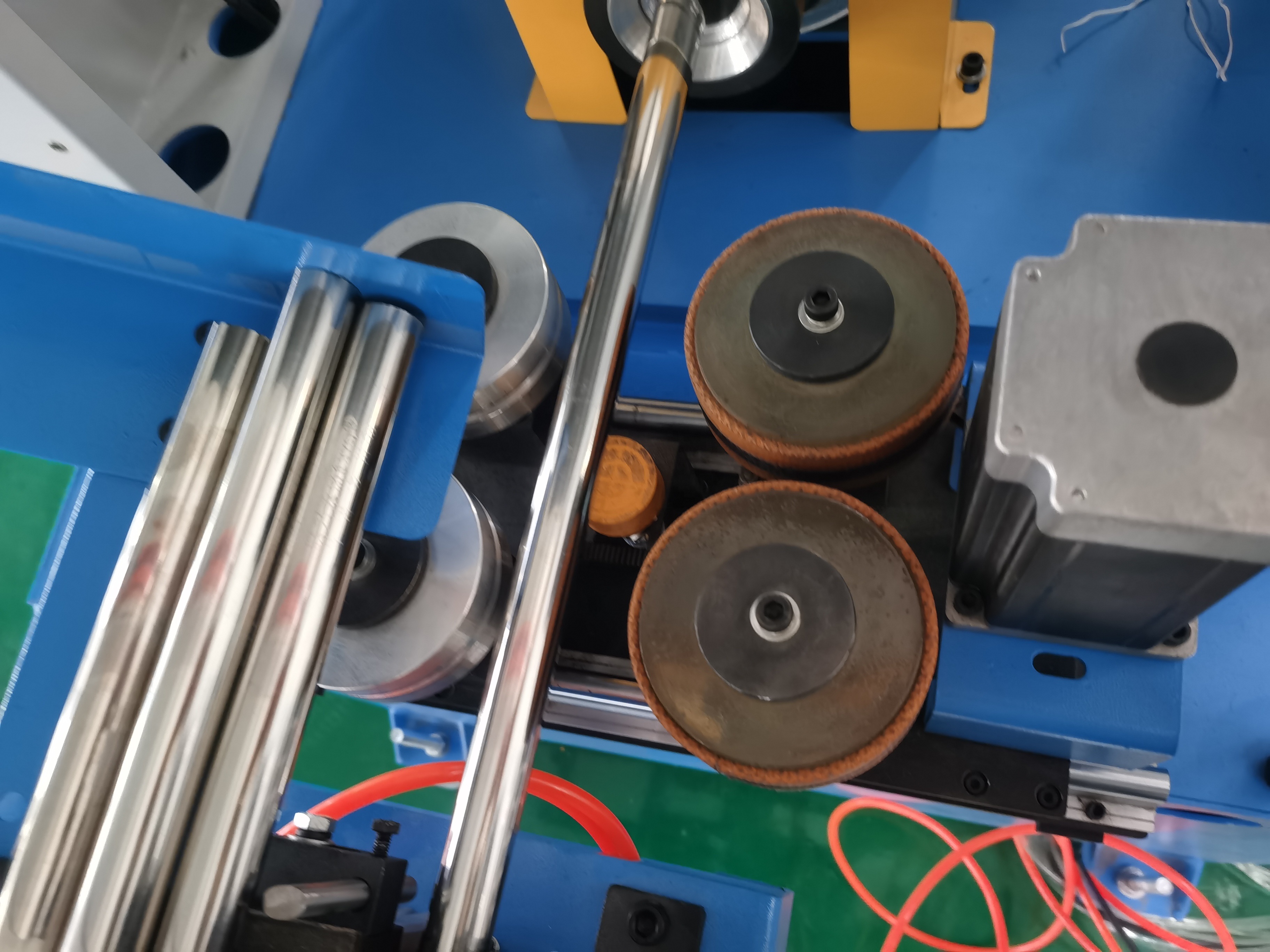

Equipped with a servo-driven system for fast positioning and improved production efficiency.
| Item | Name | Unit | Data |
|---|---|---|---|
| 1 | Pipe processing range | mm | Φ6—Φ70 |
| 2 | Cutting material thickness | mm | 0.15-2 |
| 3 | Power | W | 1500 |
| 4 | Cutting accuracy | mm | ±0.2 |
| 5 | Cutting speed | s/cut | 0.8 |
| 6 | Void speed | m/min | 120 |
| 7 | Feed length | mm | 5-1000 |
Equipped with an automated program control system, it ensures that even highly difficult bending tasks for various types of steel pipes can easily meet the dual requirements of mass production and high precision.
Y (feeding), B (tube rotation), C (tube bending), upper and lower die changing, and translational movement are all controlled by servo motors and drivers for maximum accuracy.
Utilizes precision rigid linear guides and micro-level clamps, all finely machined and calibrated. These parts deliver ±0.01mm positioning accuracy, reduce friction wear for longer service life, and ensure consistent quality with lower scrap rates.
Solutions: Custom-fit options via 1-on-1 consultations, imported core components for durability, and 24/7 support with expedited parts shipping.
Solutions: Tiered pricing and rebates, flexible trial orders from 1 unit, and full marketing support including videos and case studies.
