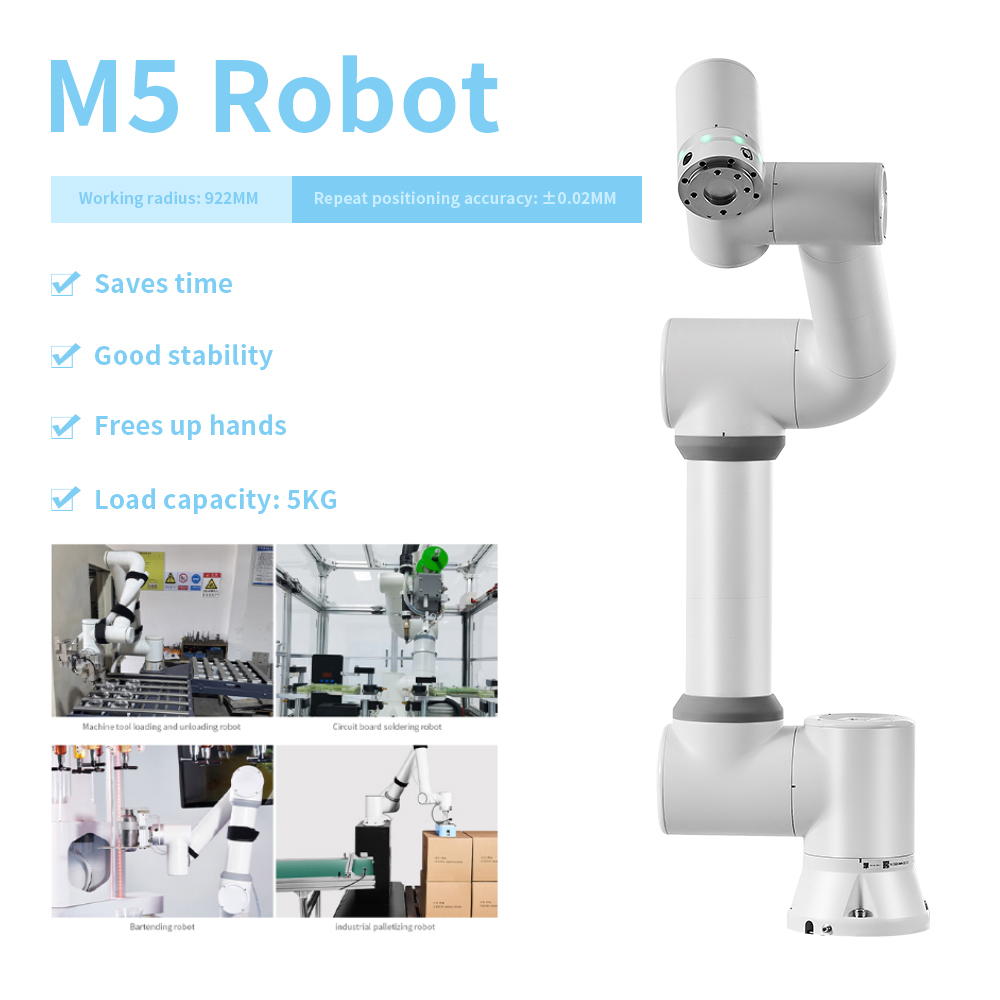

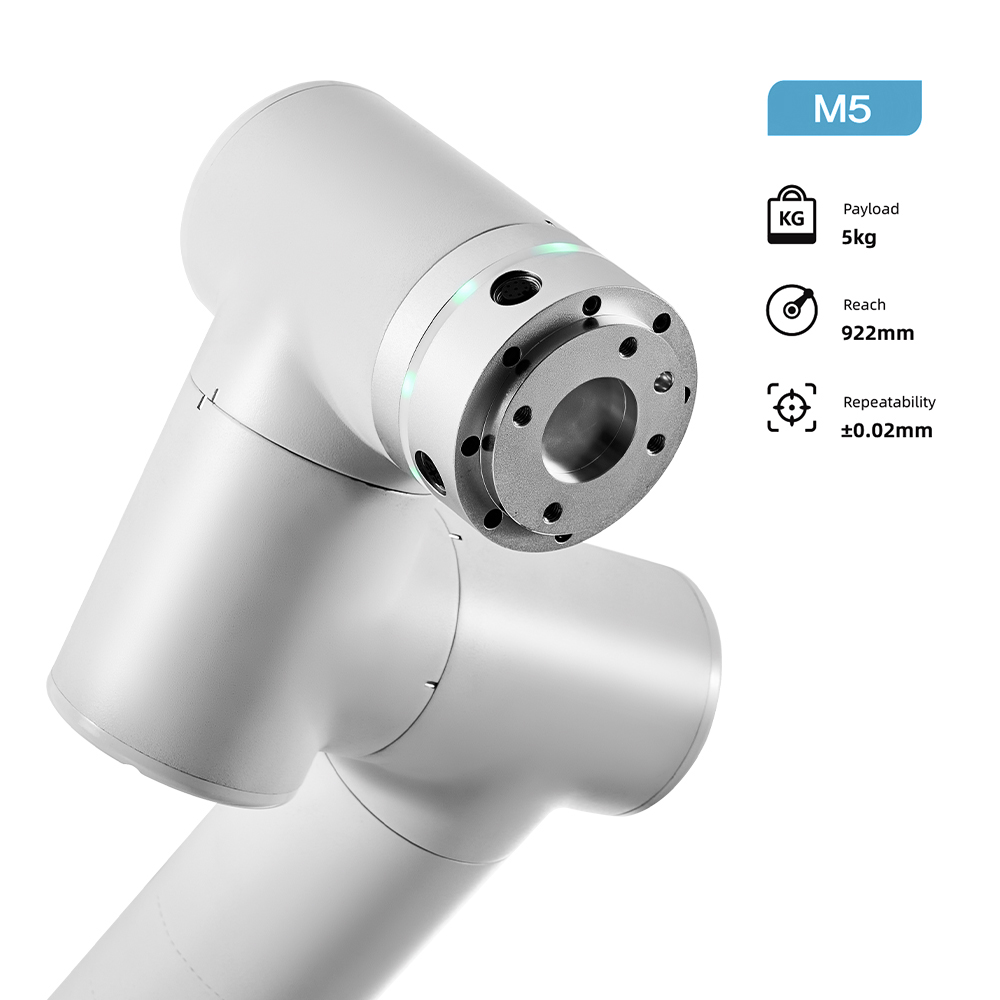

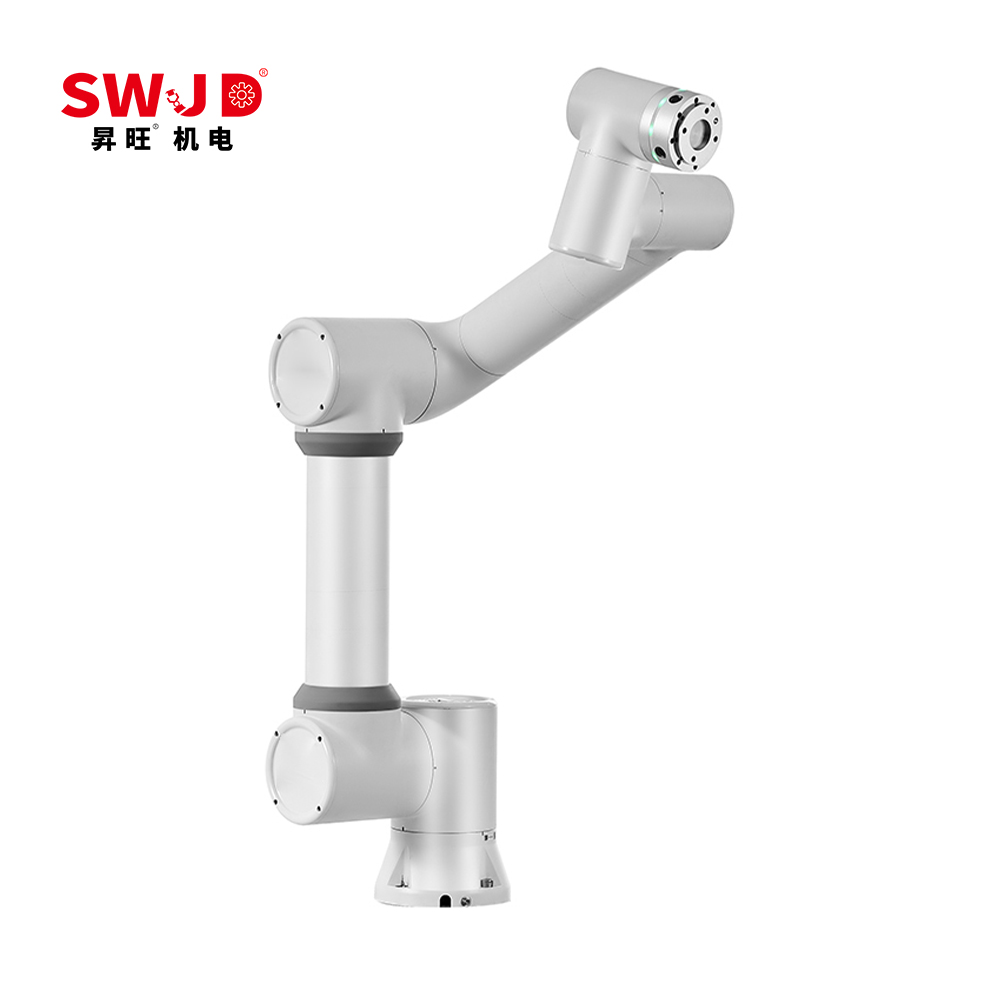

China Ip54 Easy Programming Automatic Cobot Machine Kit Engraving Laser Cutting Welding Metal Collaborative 6 Axis Cnc Robot Arm

Send Inquiry

Product Description

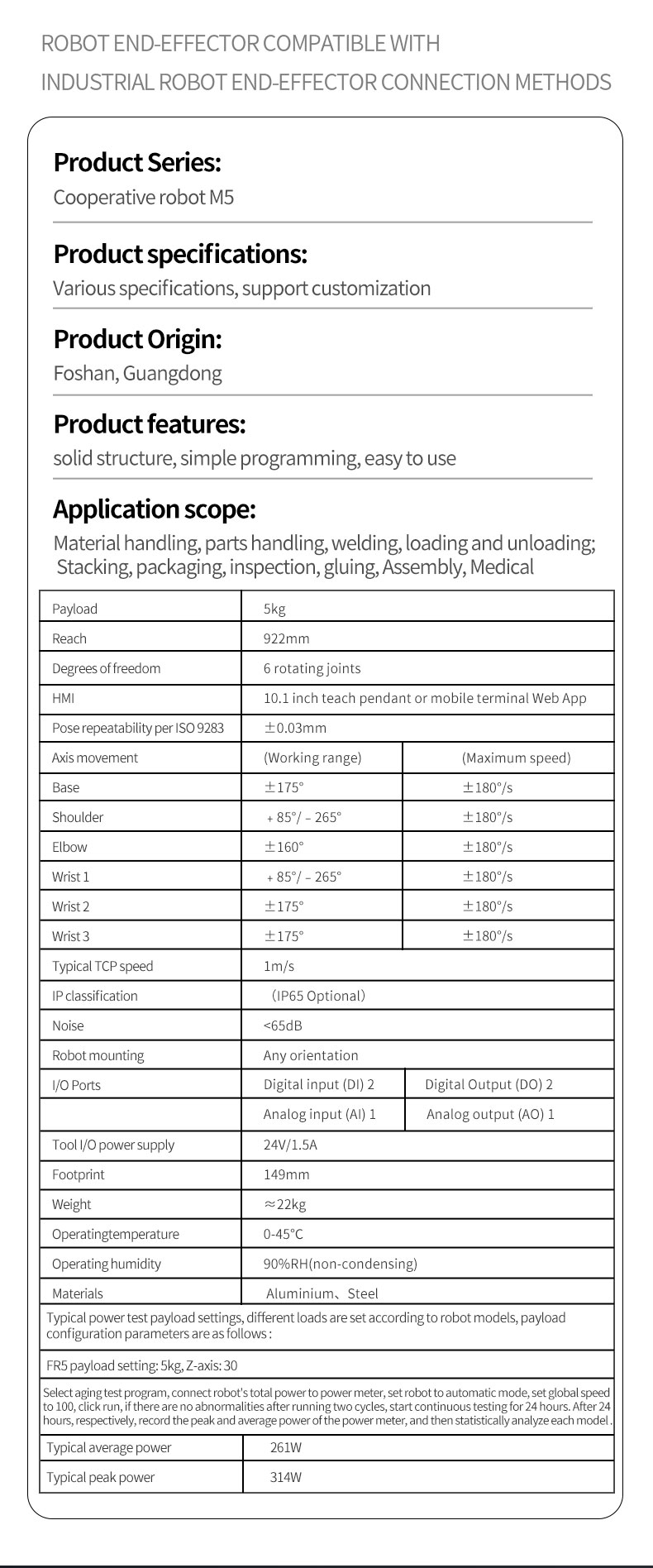

📊 Product Parameters

Payload	5 kg
Reach	922 mm
Degrees of Freedom	6 rotating joints
HMI	10.1-inch teach pendant or mobile terminal Web App
Pose Repeatability	±0.02 mm (per ISO9283)

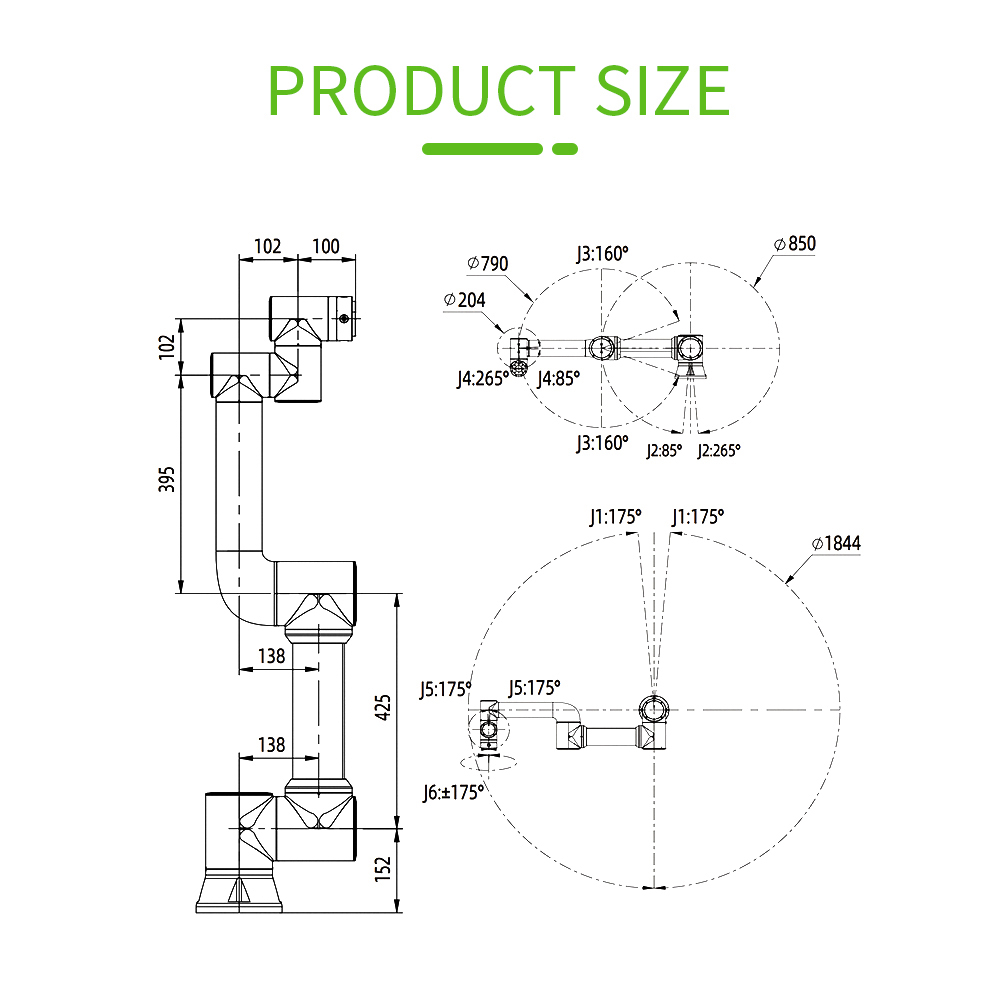

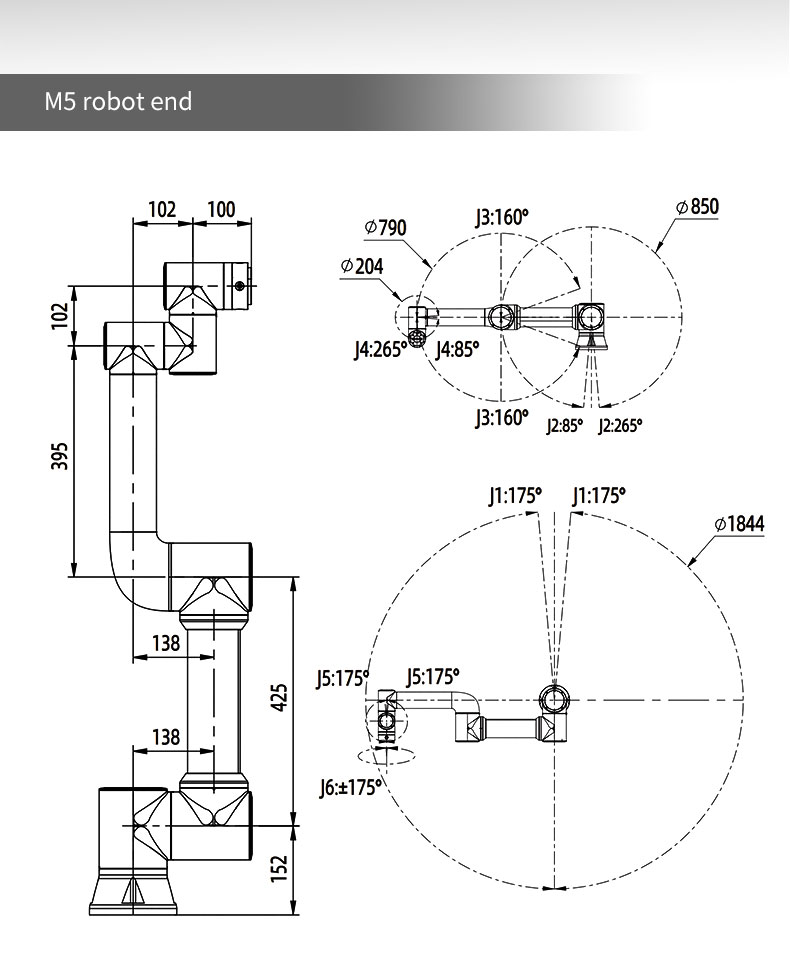

Axis Movement Range & Speed	• Base: ±175°, ±180°/s • Shoulder: +85°/265°, ±180°/s • Elbow: ±160°, ±180°/s • Wrist 1: +85°/265°, ±180°/s • Wrist 2: ±175°, ±180°/s • Wrist 3: ±175°, ±180°/s
Typical TCP Speed	1 m/s
IP Classification	IP65 (optional)
Noise Level	<65 dB
Mounting Orientation	Any orientation
I/O Ports	• Digital Inputs (DI): 2 • Digital Outputs (DO): 2 • Analog Inputs (AI): 1 • Analog Outputs (AO): 1
Tool Power Supply	24V/1.5A
Footprint	149 mm × 149 mm
Weight	≈22 kg
Operating Environment	Temp: 0–45°C \| Humidity: ≤90% RH
Materials	Aluminum, Steel

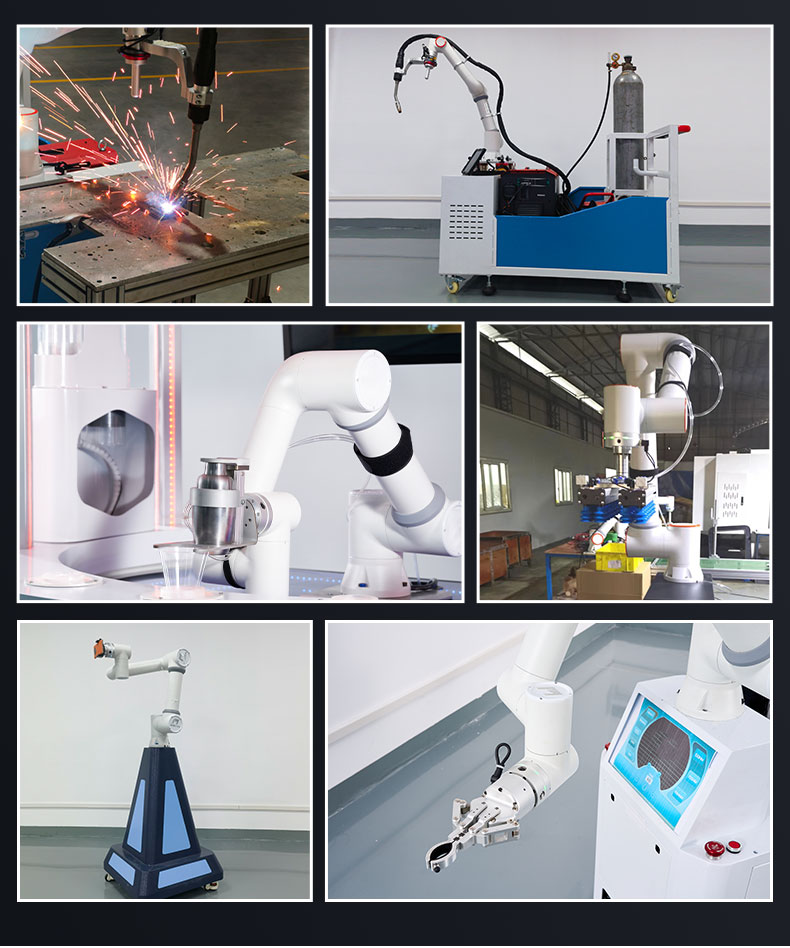

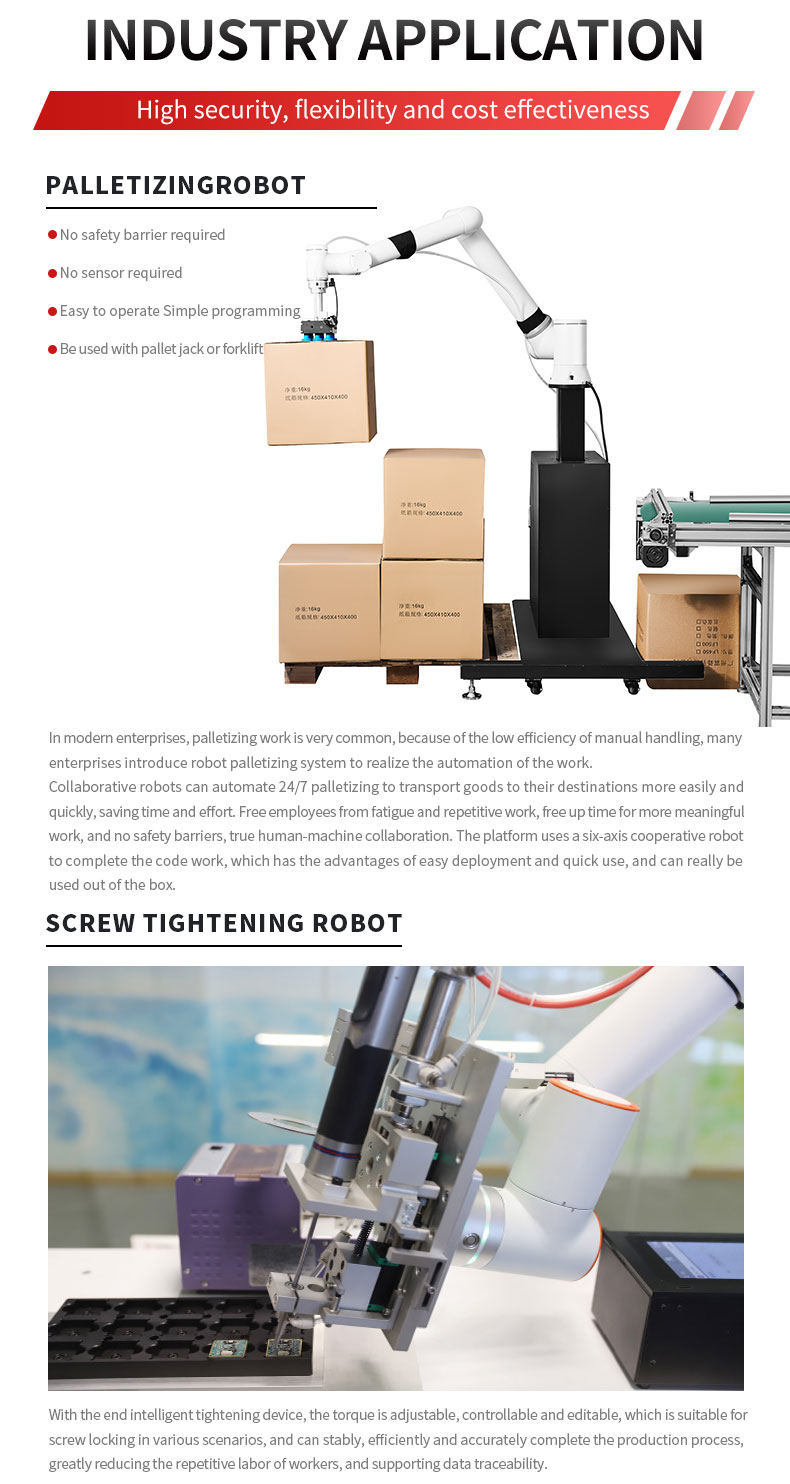

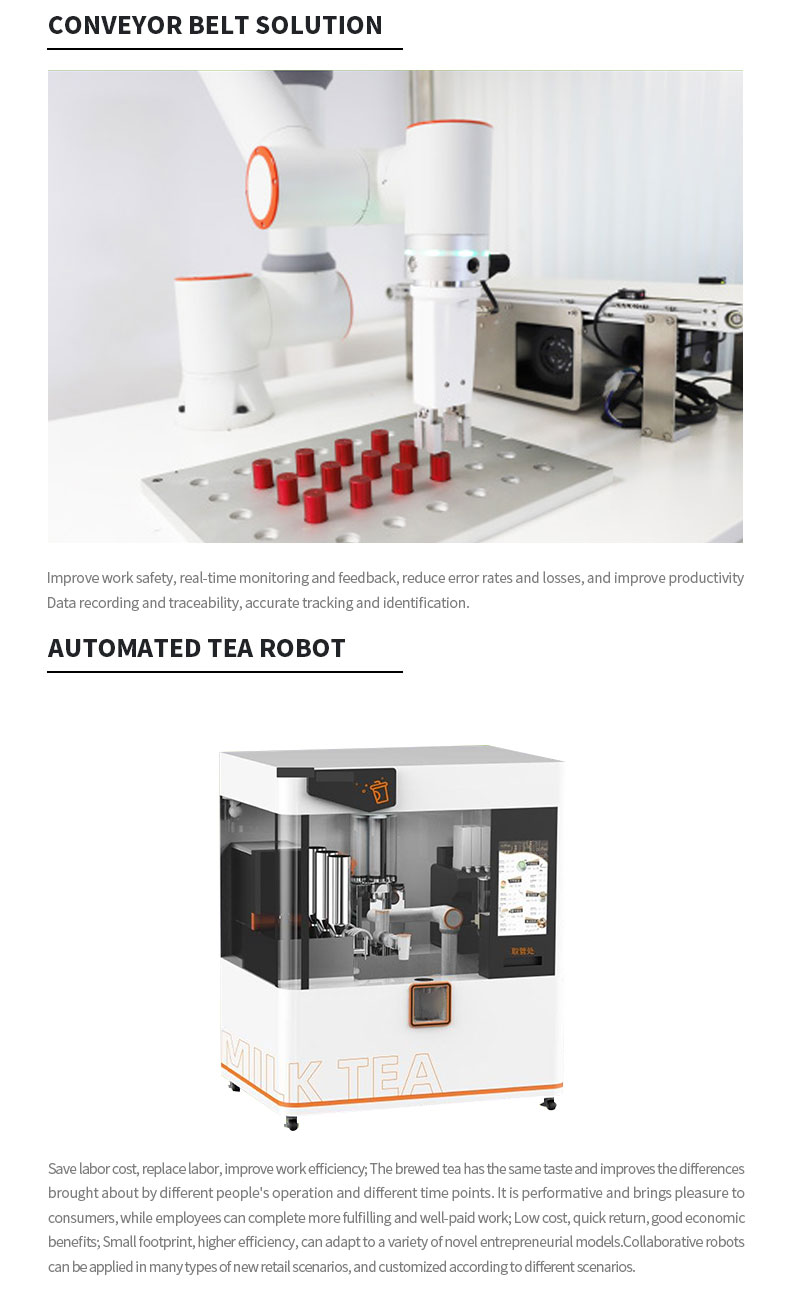

🖼️ Gallery & Features

Frequently Asked Questions

What is the payload capacity and working reach of this robot?

This robotic arm features a 5 kg payload capacity and a maximum reach of 922 mm, making it ideal for a variety of pick-and-place and assembly tasks.

How accurate is the robotic arm during repetitive tasks?

The robot offers high precision with a pose repeatability of ±0.02 mm, complying with ISO9283 standards for industrial reliability.

Can the robot be installed in restricted spaces or specific angles?

Yes, the robot supports any mounting orientation (floor, ceiling, or wall) and has a compact footprint of 149 mm × 149 mm.

What control interfaces are available for operation?

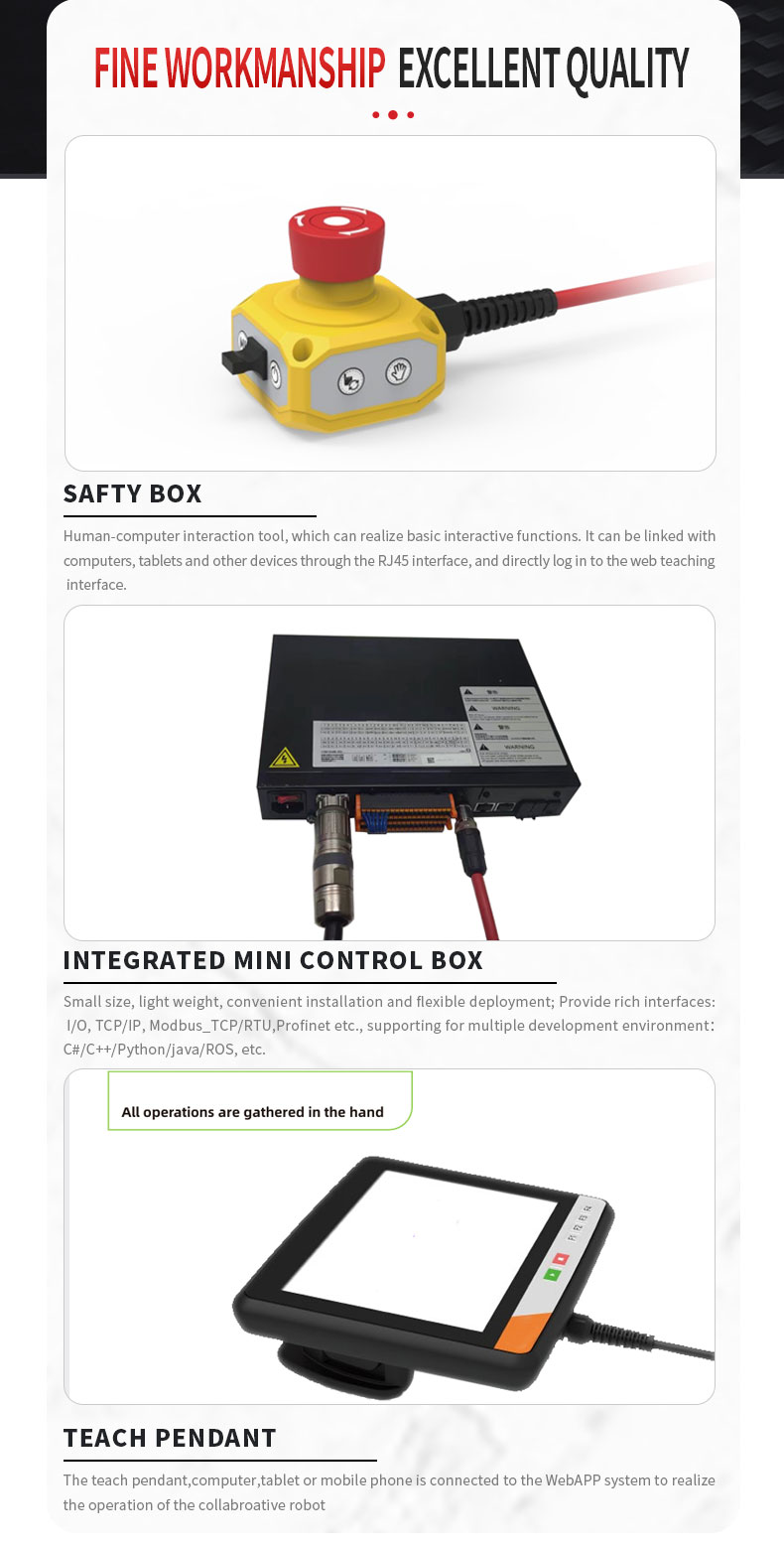

Operators can use a 10.1-inch teach pendant or a Web App via mobile terminals for intuitive control and programming.

Is this robot suitable for clean or harsh environments?

The standard model is built with aluminum and steel. An optional IP65 classification is available for protection against dust and water ingress.

What are the power requirements for end-of-arm tooling?

The tool flange provides a dedicated power supply of 24V/1.5A to support various grippers and sensors.
