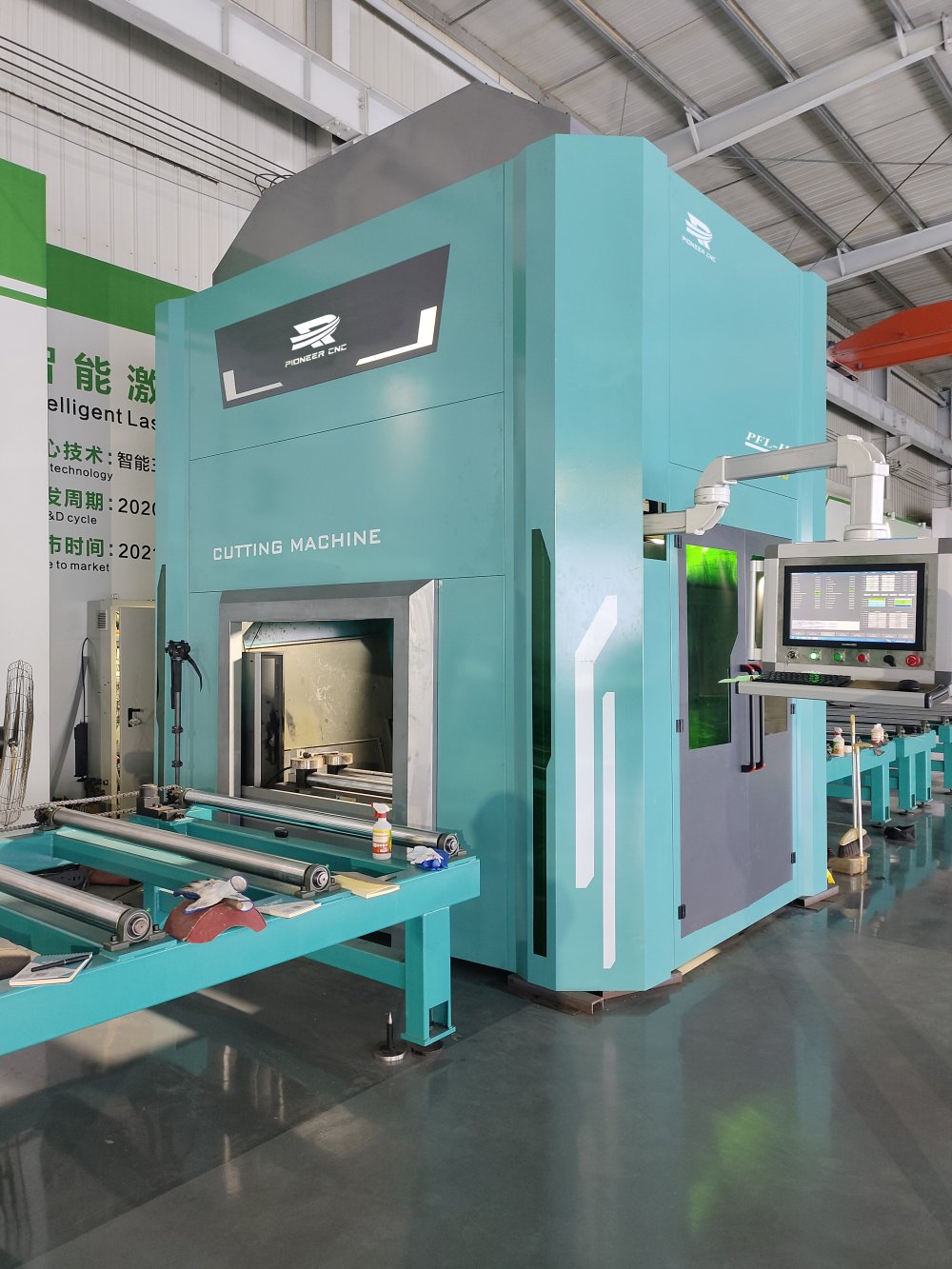

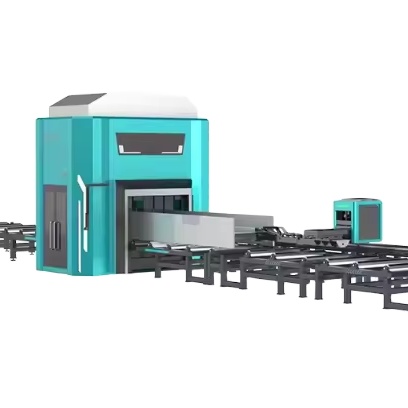

Steel Metal H Beam Laser Cutting Machine Robot Line | Automatic H Beam Laser Cutter CNC
| Item | Name | Parameters |
|---|---|---|
| 1 | H/I beam [Web/Flange] | 100~1250mm x 100~600mm |
| 2 | Channel/ U/C Beam | 100x48~400x200mm |
| 3 | Cutting Method | Fiber Laser Cutting |
| 4 | Laser Source | Max 20000W |
| 5 | Pierce Cutting Thickness | 1-40mm |
| 6 | Position Precision | ±0.1mm/m |
| 7 | Cutting Speed | 500.0~30,000.0mm/min |
| 8 | Beveling Cutting | ±45 degree |
| No. | Commodity | Brand/Model | Origin |
|---|---|---|---|
| 1 | Laser Steel Cutting Host | Pioneer CNC | China |
| 2 | Laser Cutting Head | PORAD | China |
| 3 | CNC System | BECKHOFF | Germany |
| 4 | Linear Guides | HIWIN | Taiwan |
| 5 | Fiber-optic Laser Power | Max or Raycus | China |
| 6 | Servo Drive and Motor | INOVANCE | China |

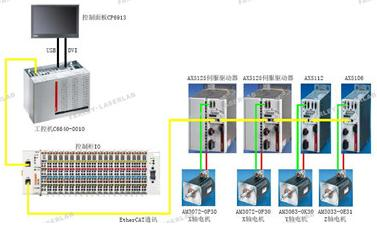

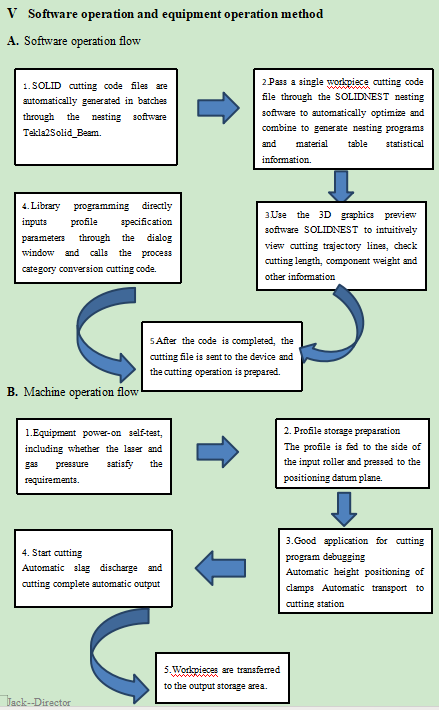

Control System & Working Principle
The production line features a German Beckhoff industrial computer system with high-speed EtherCAT bus technology. This ensures a short control cycle and extreme reliability for complex multi-axis linkage control.

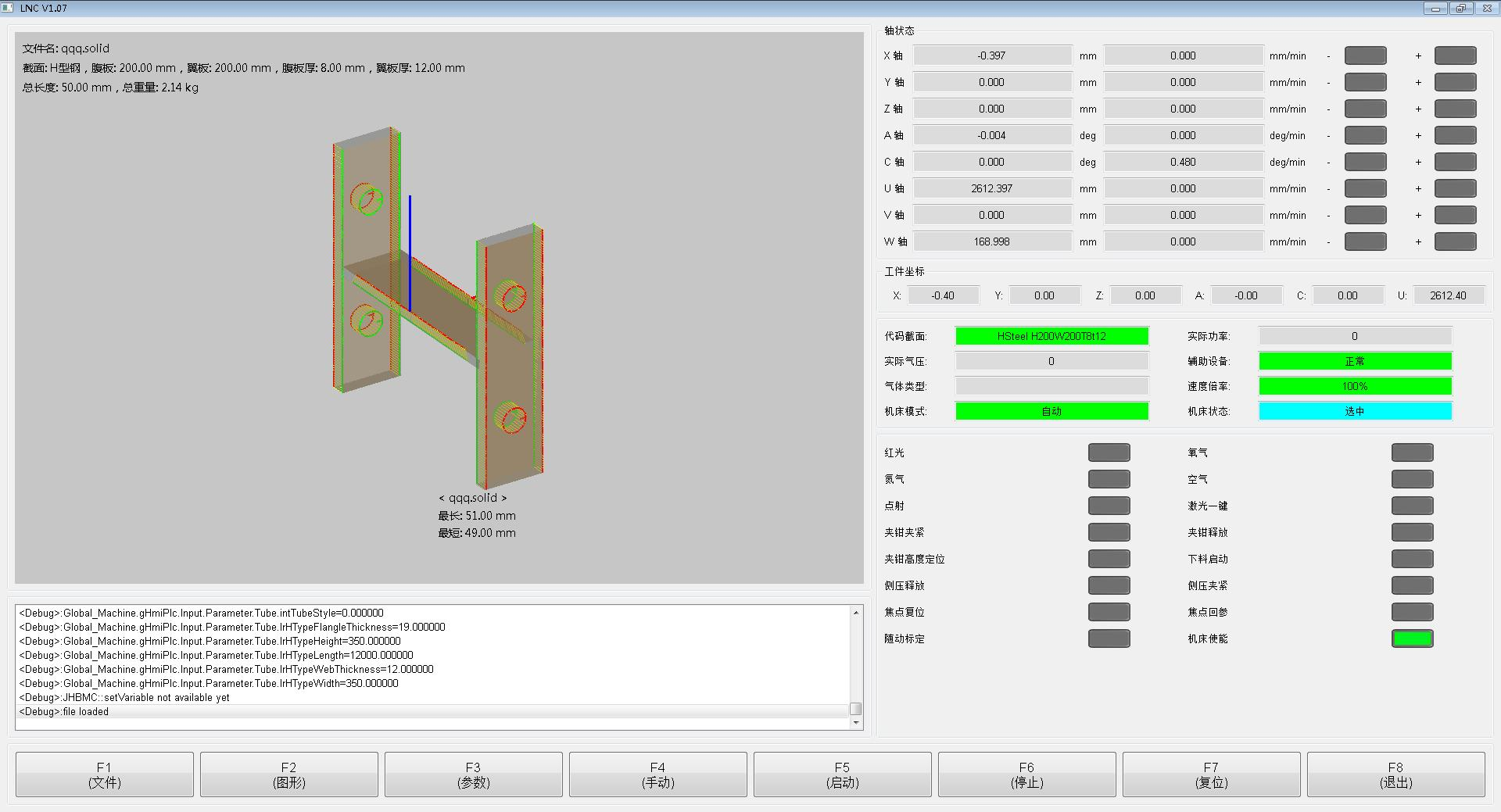

System Key Features:

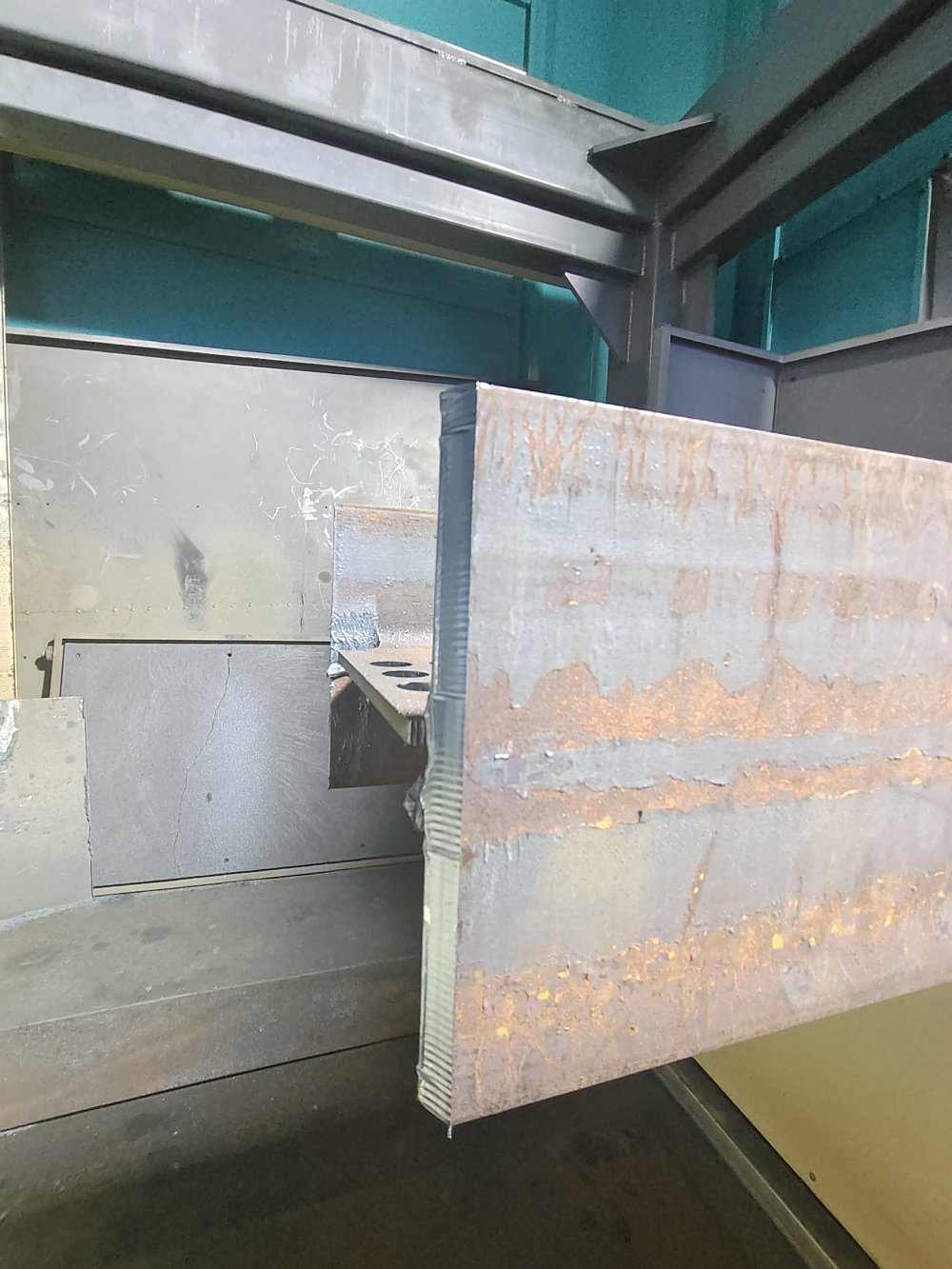

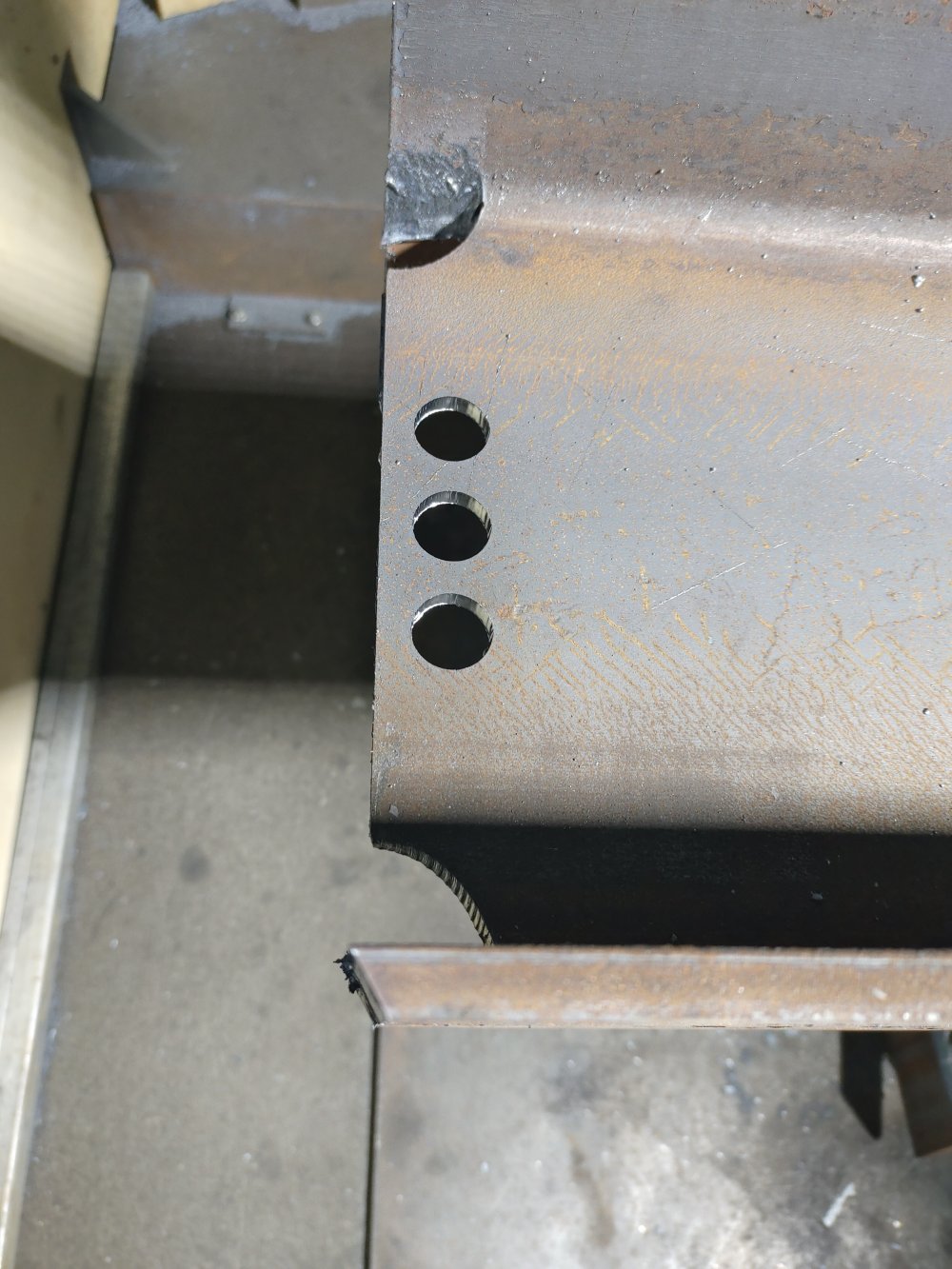

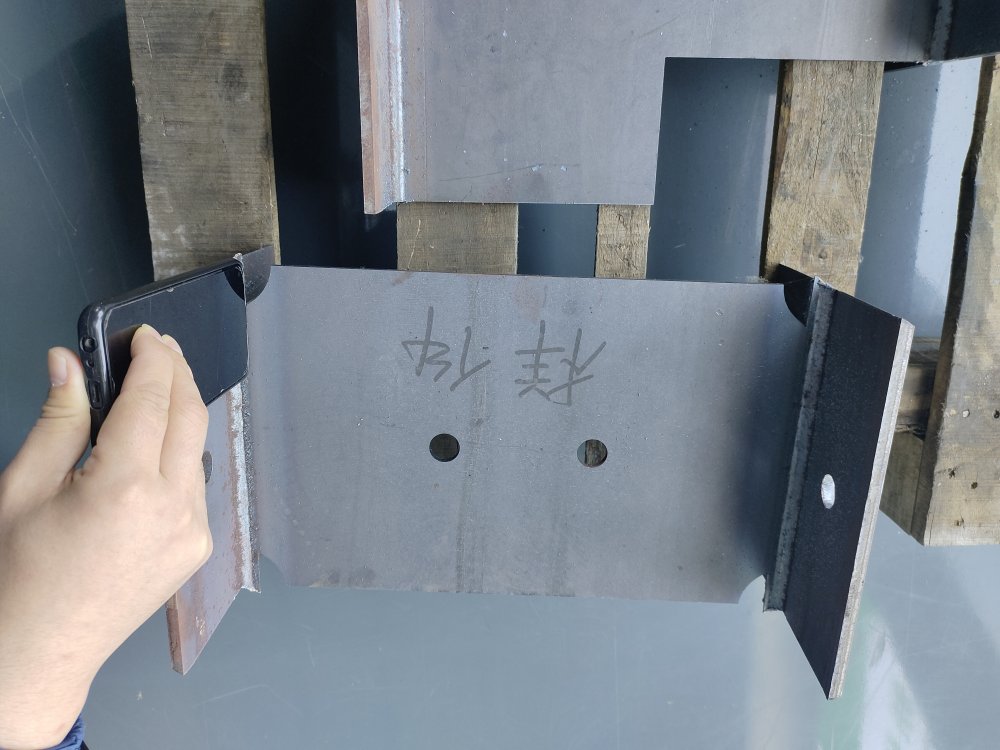

Sample Display:

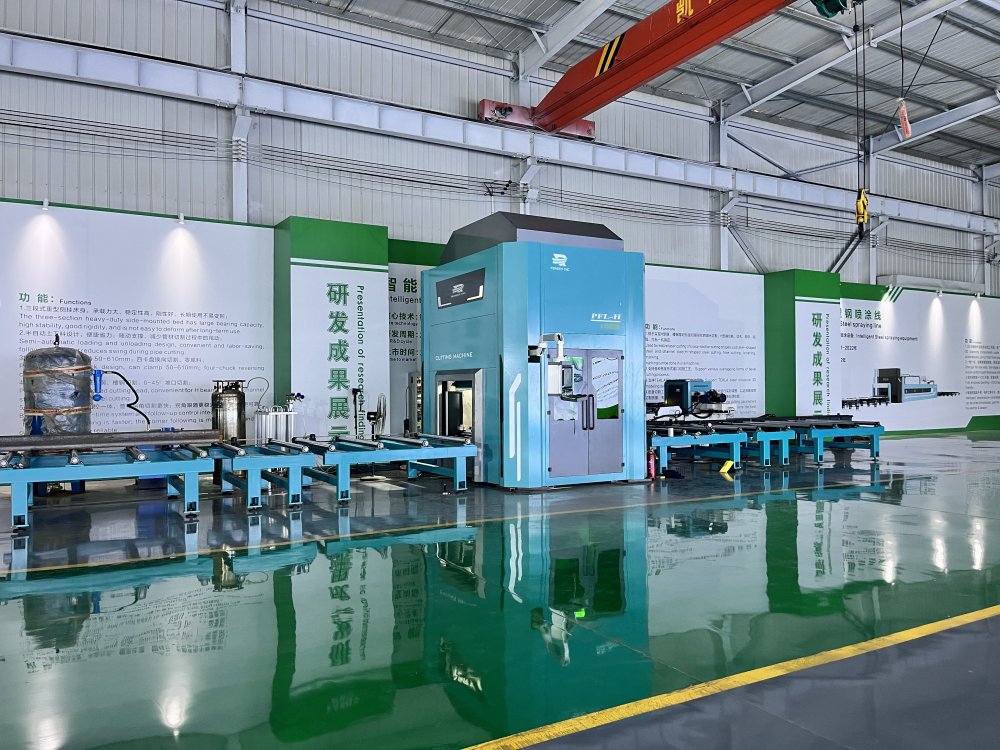

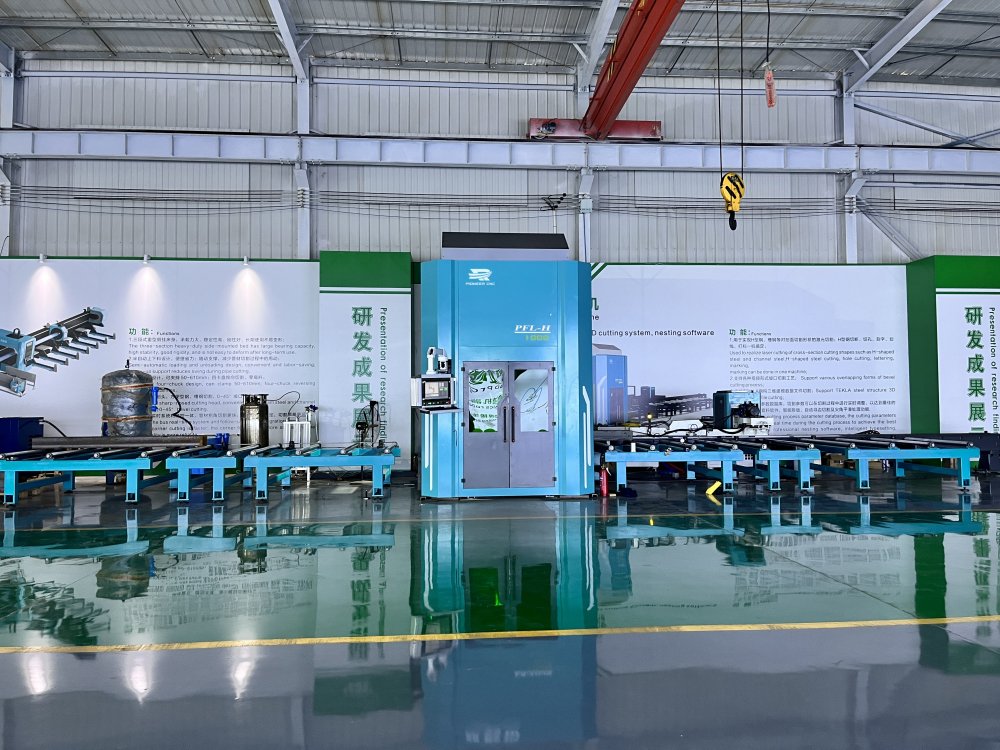

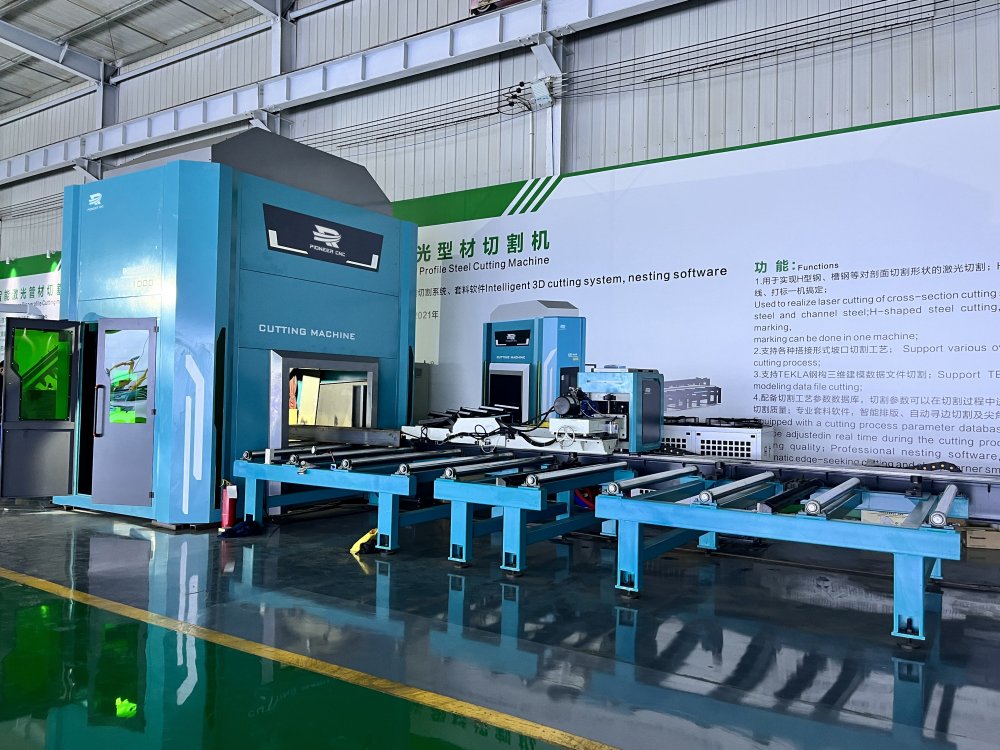

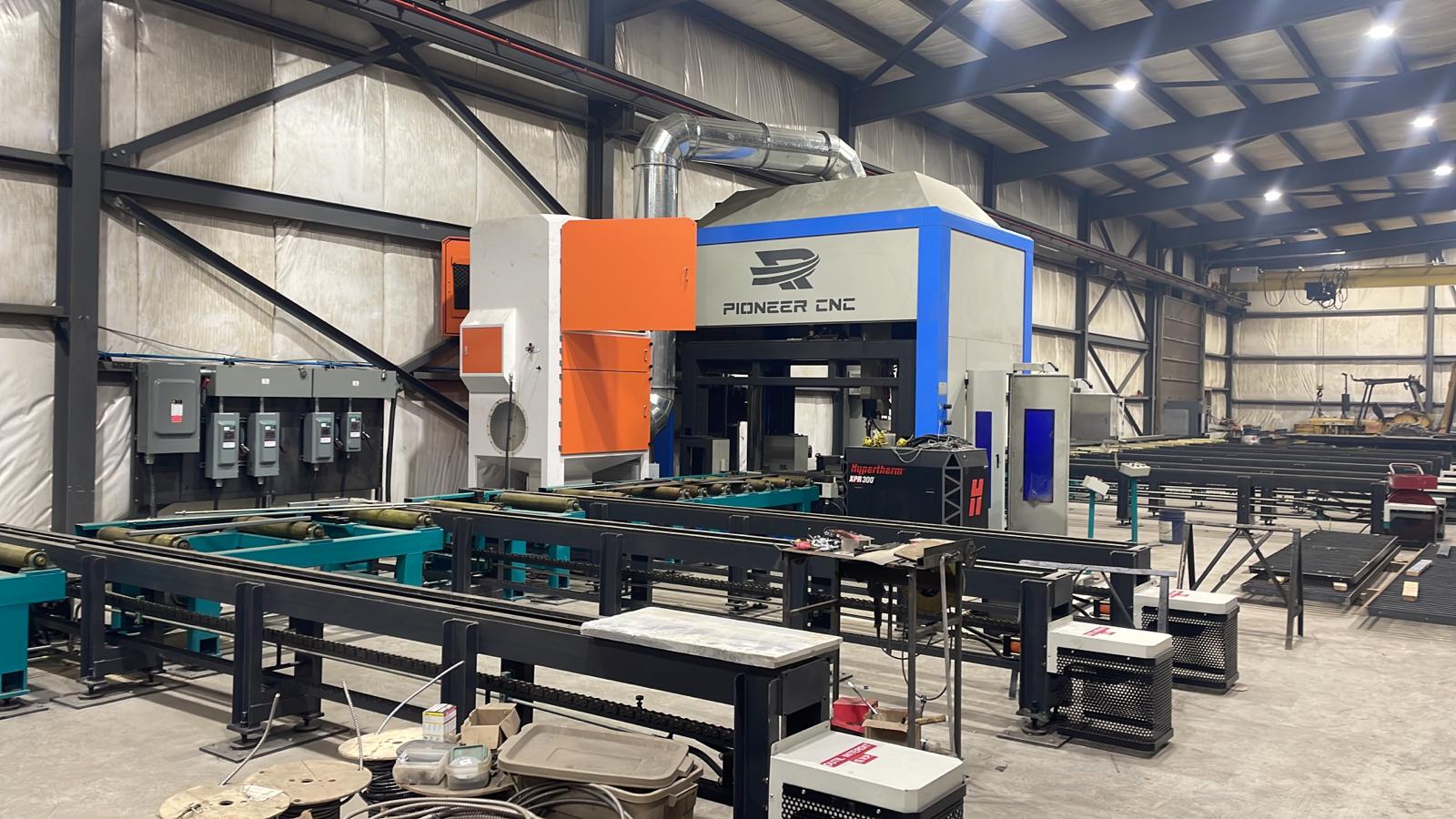

Global Installations:
