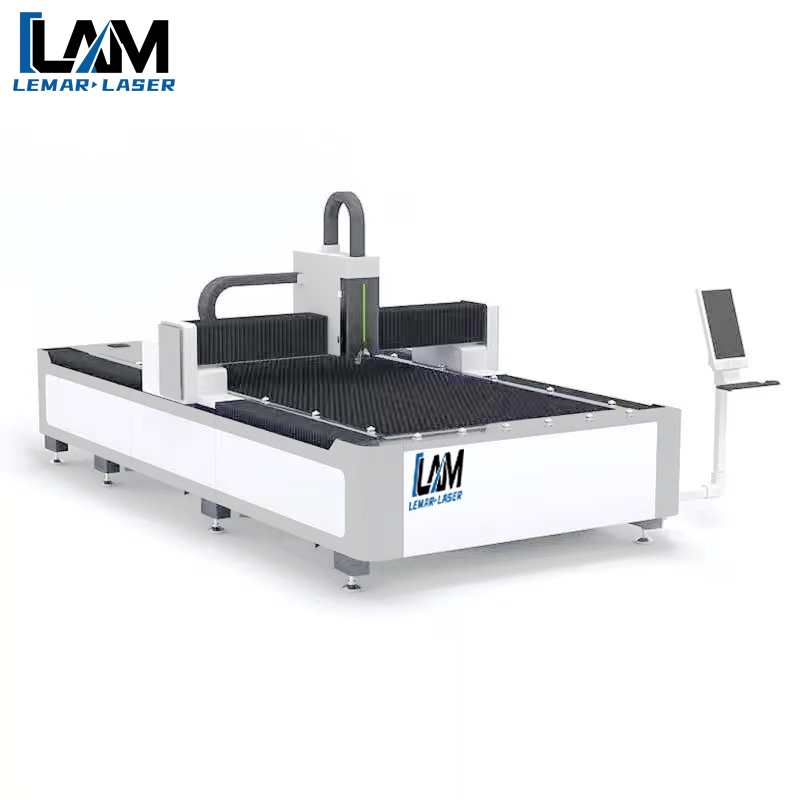

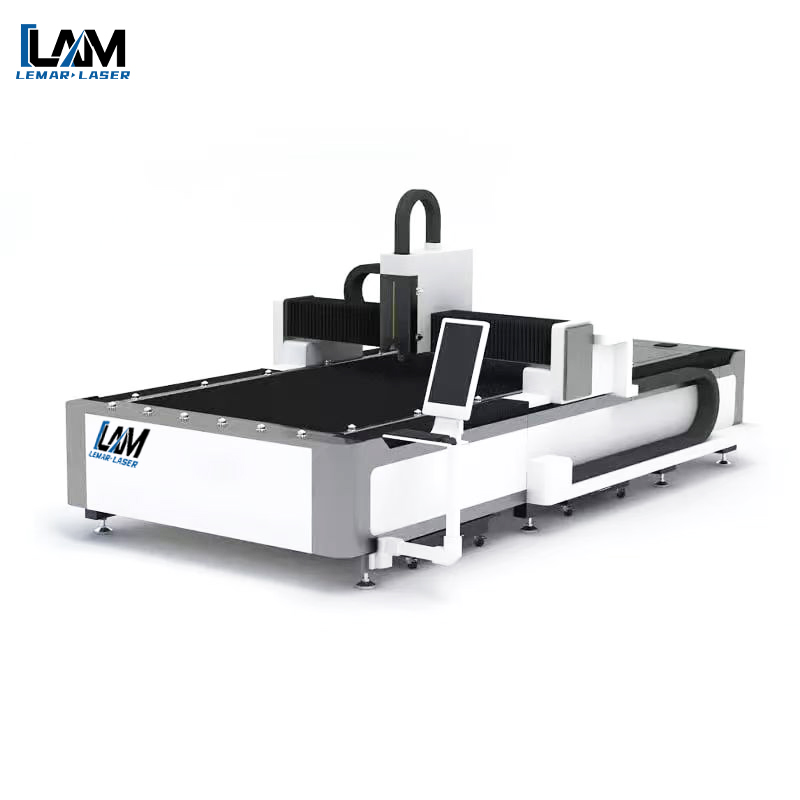

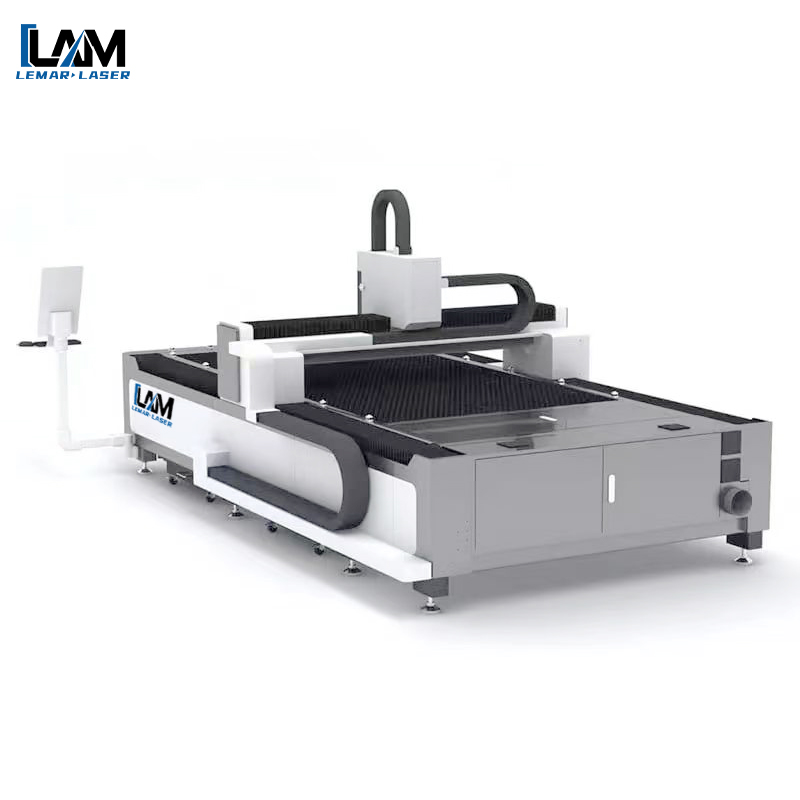

Laser cutting machine is a highly integrated equipment that combines light, machinery, and electricity. It uses a high-power density laser beam to scan the surface of materials, heating them to several thousand to tens of thousands of degrees Celsius in a very short time, melting or vaporizing the materials. Then, high-pressure gas is used to blow the melted or vaporized substances away from the cutting seam, achieving the purpose of cutting materials with extreme precision.
| Subitem | Parameters / Features |
|---|---|
| Subitem | LM-A3015 |
| Working area | 3048mm * 1524mm |
| Max. linkage speed | 120m/min |
| Air pressure intelligent control | Available for 12KW and above |
| Automatic adjustment of cutting gas pressure | 6kW and below: O2; Above 12kW: O2, N2, Air |
| Intelligent over-heat adaptation | Available for 12KW and above |
| Mineral casting anti burning | Available for 1.5KW and above |
| Requirements for sheet | Plate thickness ≥ 0.8mm |
| Max. acceleration | 1.5G |
| Table load bearing | 1-3kw (650kg); 6KW (850KG); 12KW (1400KG) |
| Machine overall dimensions | 4900*2330*1860mm (3kw-6kw); 4900*2330*1960mm (12kw) |
| Overall weight | Approx. 2300KG (3kw); Approx. 2600KG (6kw) |
