Small focusing spot, cut fine lines;
The fiber machine power consumption is only 20-30% of similar CO2 laser cutting machine. Can use air cutting all kinds of sheet metal;

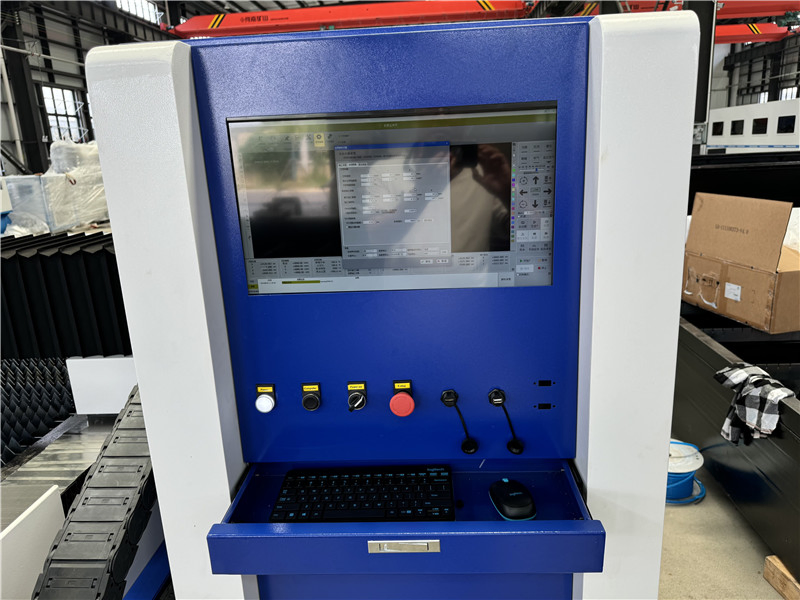

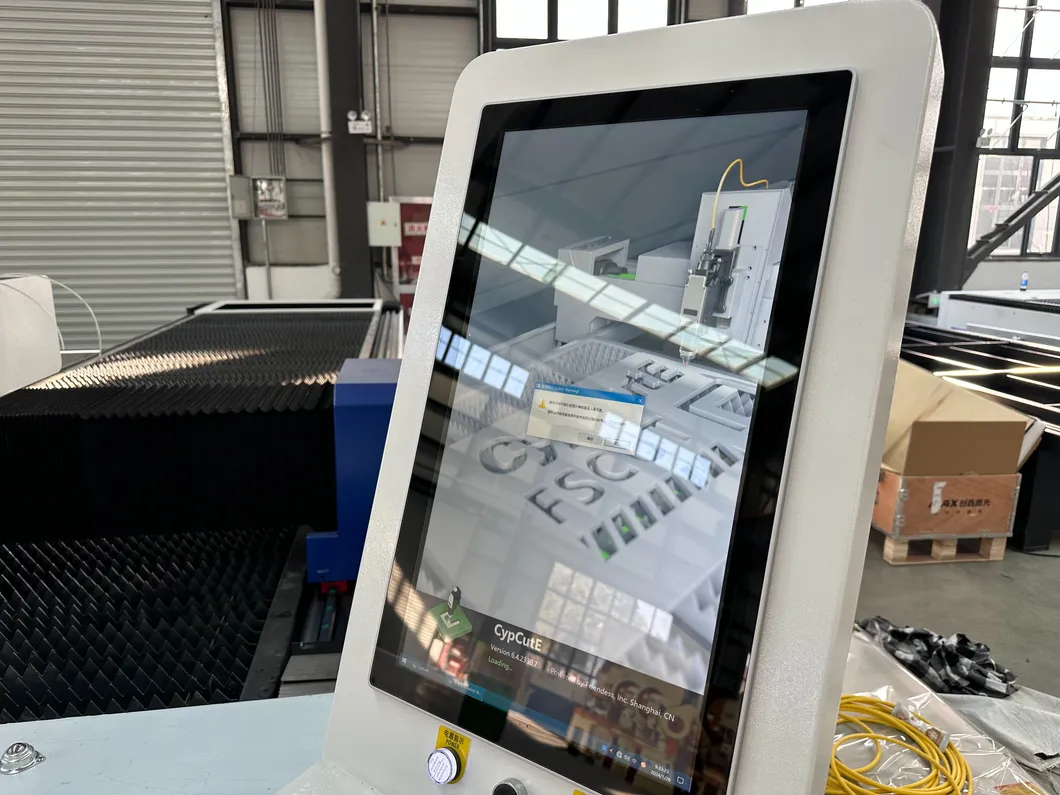

Simple and friendly man-machine control interface, modular design, automatic identification mainstream mapping file; Surrounded by design. Closed outside the protection, improve the working environment cleanliness, personnel safety, operator European CE standards;
Fiber Laser cutting machine can cut a variety of metal plates, mainly suitable for fast cutting of stainless steel, carbon steel, manganese steel, galvanized sheet, various alloy sheets, rare metals and other materials. Widely used in: kitchen electrical, sheet metal chassis, machine frame equipment, lighting hardware, advertising signs, auto parts, display equipment, various metal products, sheet metal cutting and processing industries.
| Parameter Description | Specification Details |
|---|---|

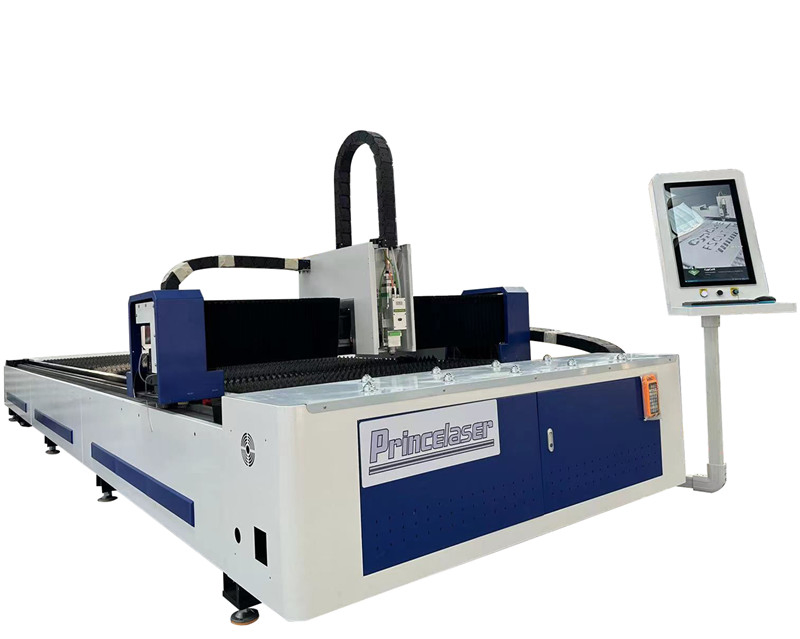

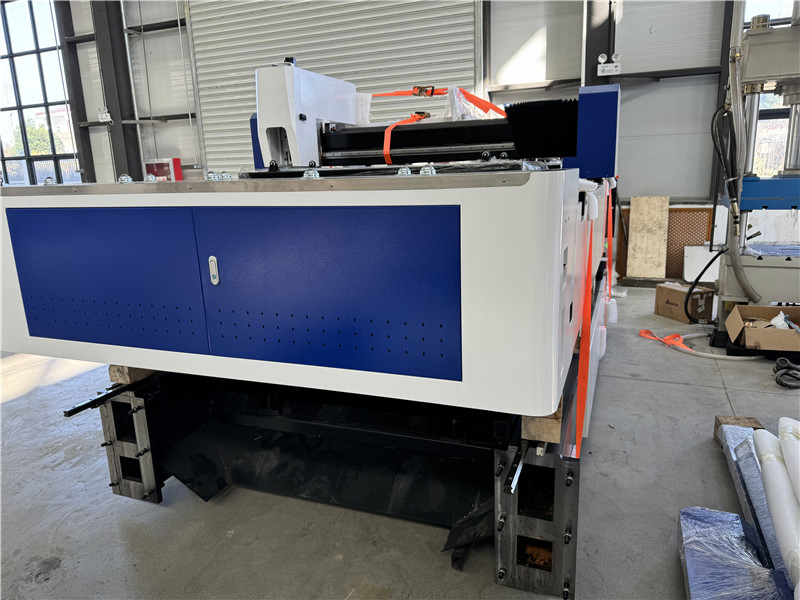

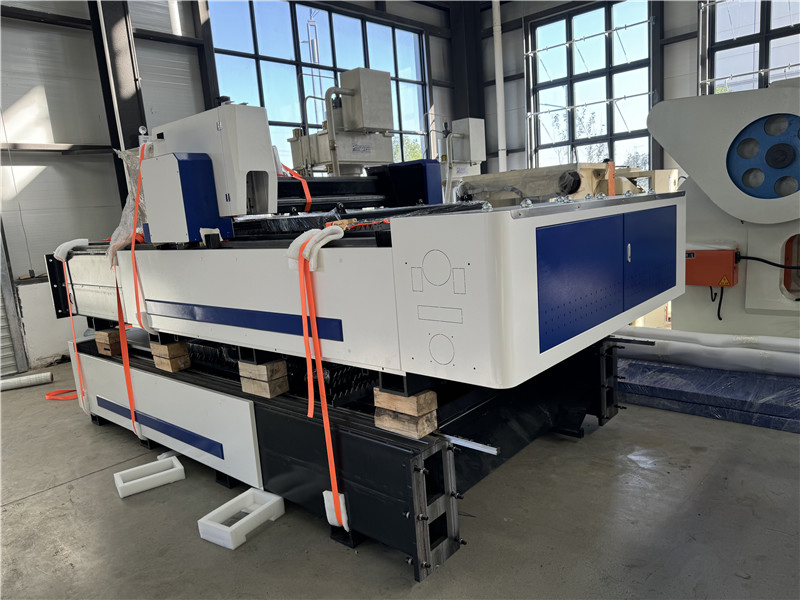

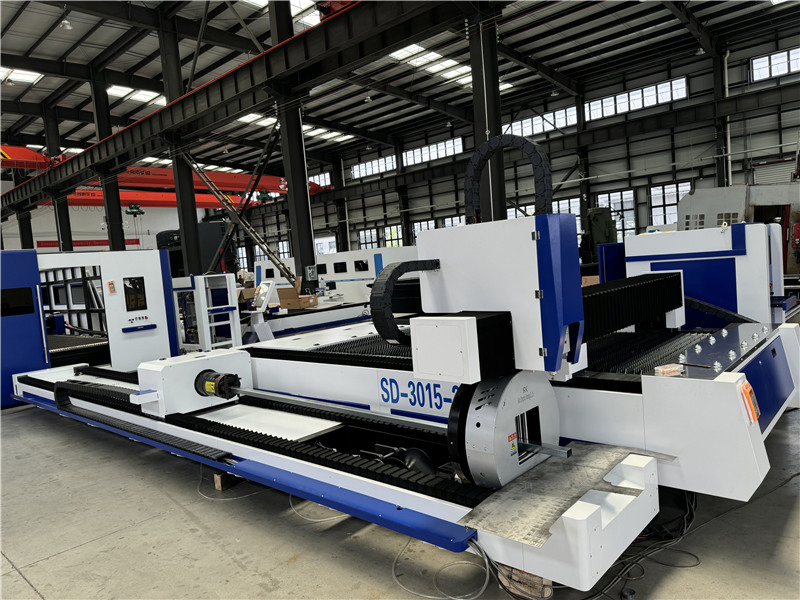

| Model | PM 6000W Fiber Laser cutting machine |
| Laser Type | Max |
| Laser Wavelength | 1070nm |
| Laser Maximum Power | 6000W |
| Max. Cutting thickness | Carbon steel 25mm Stainless steel 13mm Brass 8mm |
| Total Power Consumption | <40KW |
| Working Size | 3000X1500mm |
| Max.cutting speed | 0-80m/min (Depending on the material and thickness) |
| X, Y, Z Axis Orientation Precision | ≤±0.05mm/m |
| X, Y, Z Axis Repeat Precision | ≤±0.03mm/m |
| Min line width | ≤0.15mm |
| Maximum Empty Running Speed | 120m/min |
| Driving way | Japanese Fujiservo motors system |
| Transmission way | Y-axis imported gear rack double driver, X-axis imported ball screw |
| Cooling System | Water Cooling |
| Continuous working time | 24 Hours |
| Environment temperature | 0-35°C |
| Power requirements | 220V /50Hz or 60Hz |
| Applications | High precision Metal material cutting (Fine cutting for precision parts and various crafts, cutting surface is bright and clean, no need subsequent treatment) |
