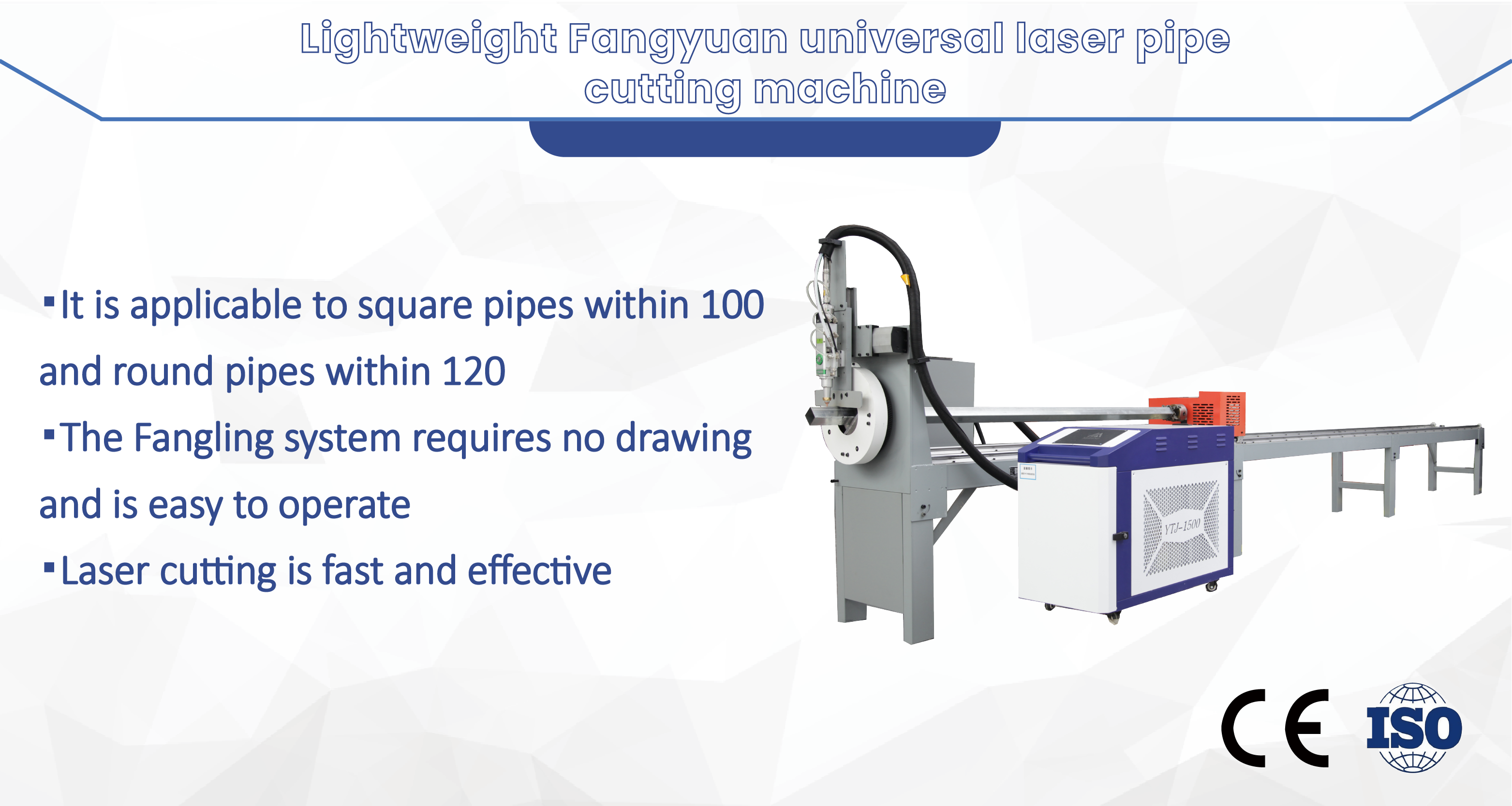

Datum Machine
Datum Machine
The bed is welded with high-quality carbon steel, which is more stable and durable. Stress-relief annealed at 600℃ ensures structural rigidity and long-term accuracy.
High clamping accuracy, fast speed, and strong pipe bearing capacity with gear linkage for reliable stability.
Ensures fast and high-quality cutting with higher precision across all aspects of production.
No human intervention required. Features fast focusing speed and a repeatability of approximately 30 microns.
| Model | SL-TM Fiber Laser Tube Cutting Machine |
|---|---|
| Laser power | 1500W |
| System | Fang Ling |
| Motor | Delixi/sine |
| Laser generator | Tottenham Hotspur/Caplin |
| Laser head | Gang Chun Yi Du/Jia Qiang |
| Water-cooled machine | Teyu/Hanli |
| Feeding materials | Pneumatic |
| Front card | Manual |
| Rear card | Manual/Pneumatic |
| Equipment dimensions | 6550 * 500 * 1220 |
| Weight | 310kg |

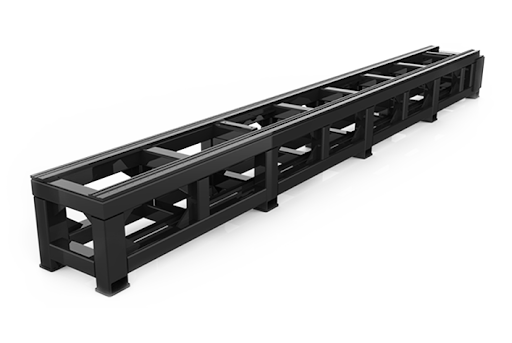

High precision beam
Double pneumatic chucks with one key clamping.

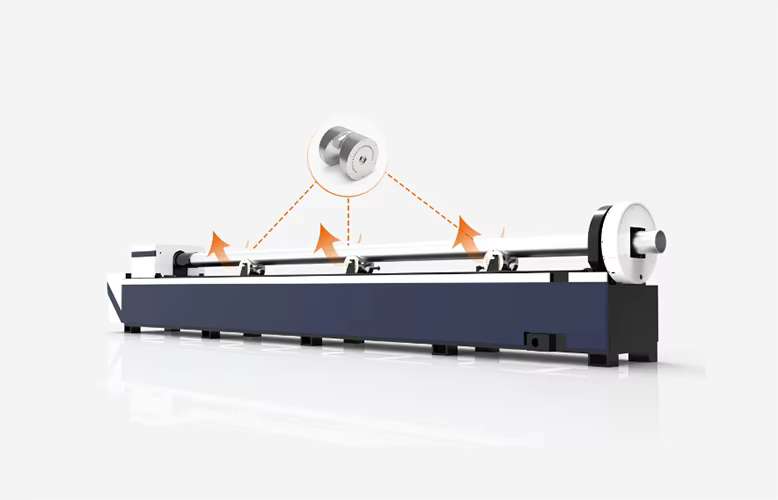

Clamping accuracy
Automatic centering reduces waiting time.

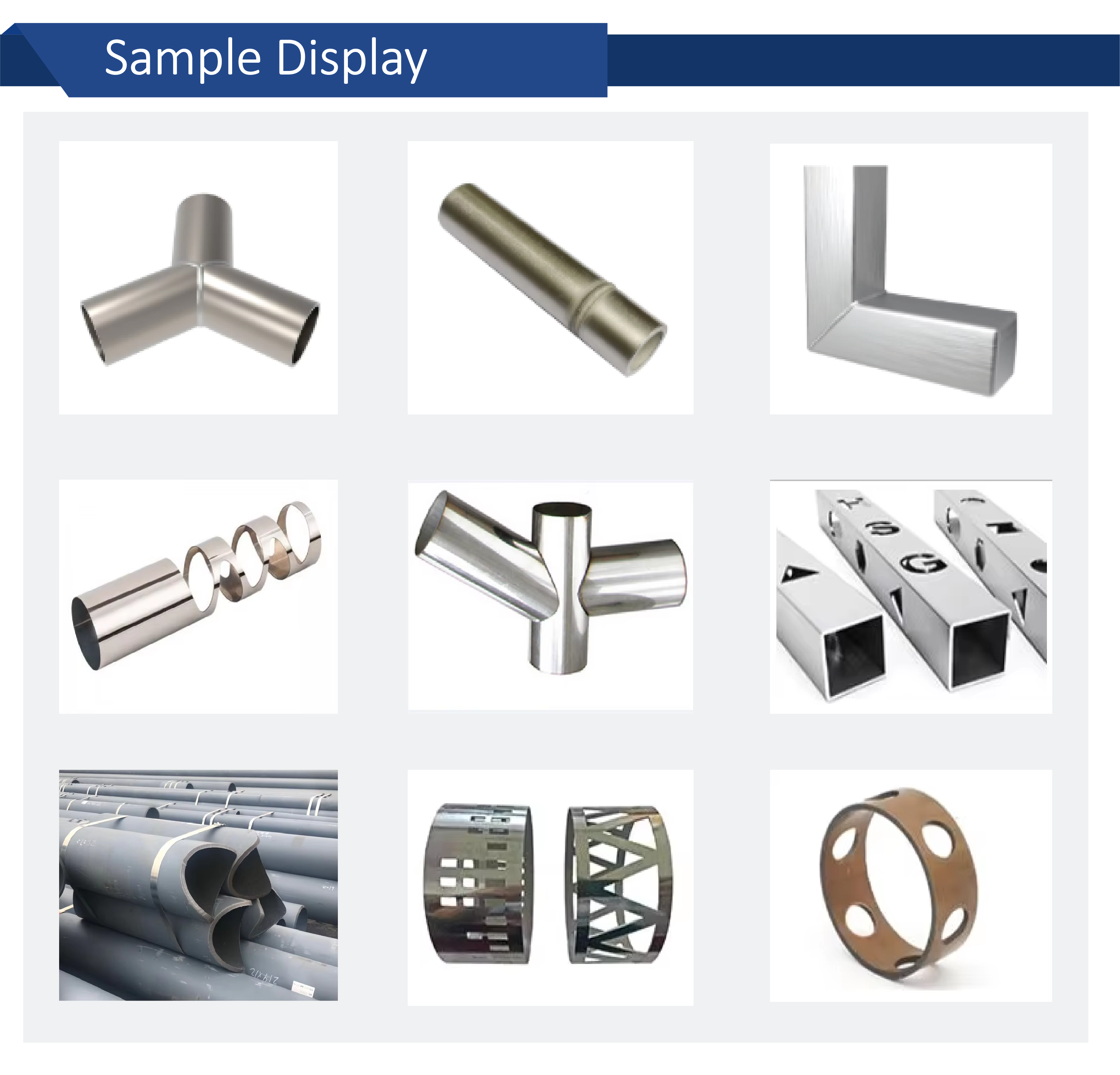

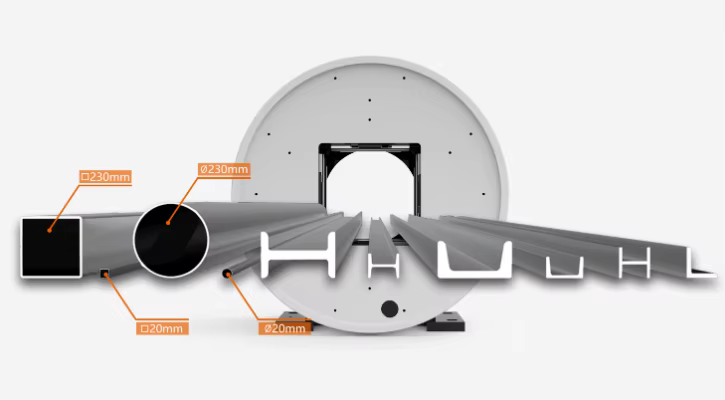

Suitable Materials
Cuts round, square, oval, U-shaped, L-shaped, H-shaped steel.
Semi-automatic Loading
Supports wide range of tube types on conveyor.

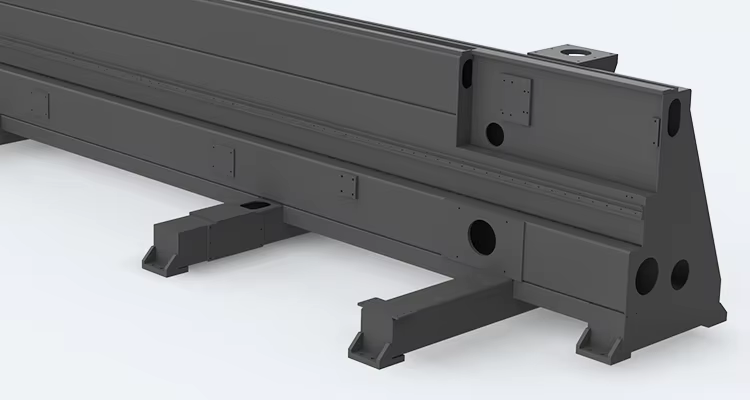

Integrated Bed
Annealed to eliminate stress for stability.

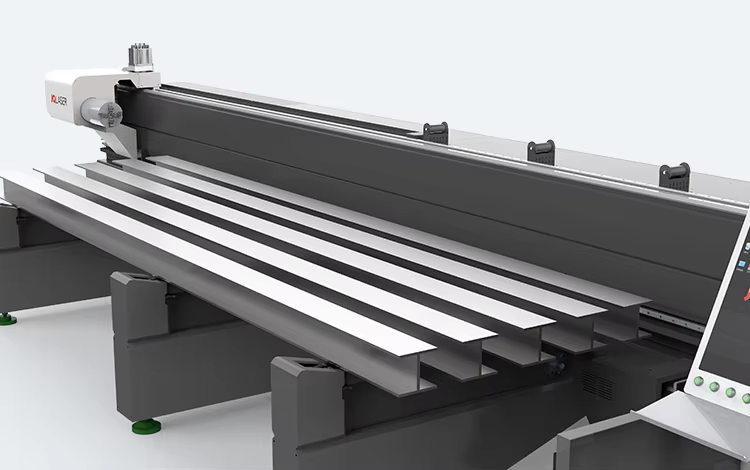

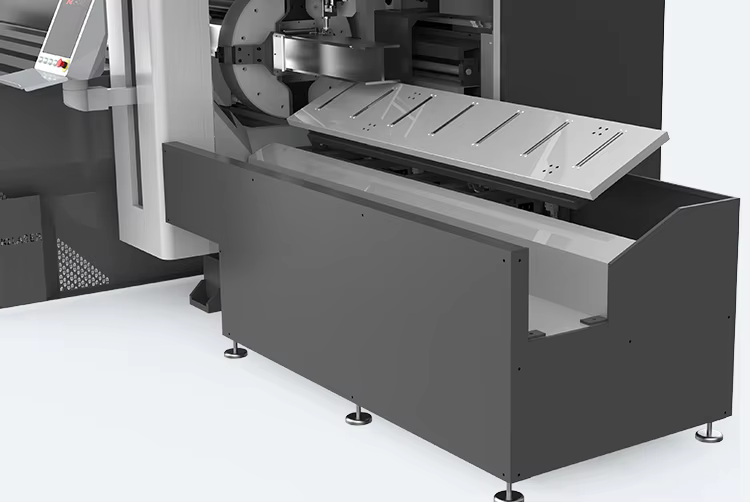

Front Loading Device
Cylinders hold support plate to prevent sagging.

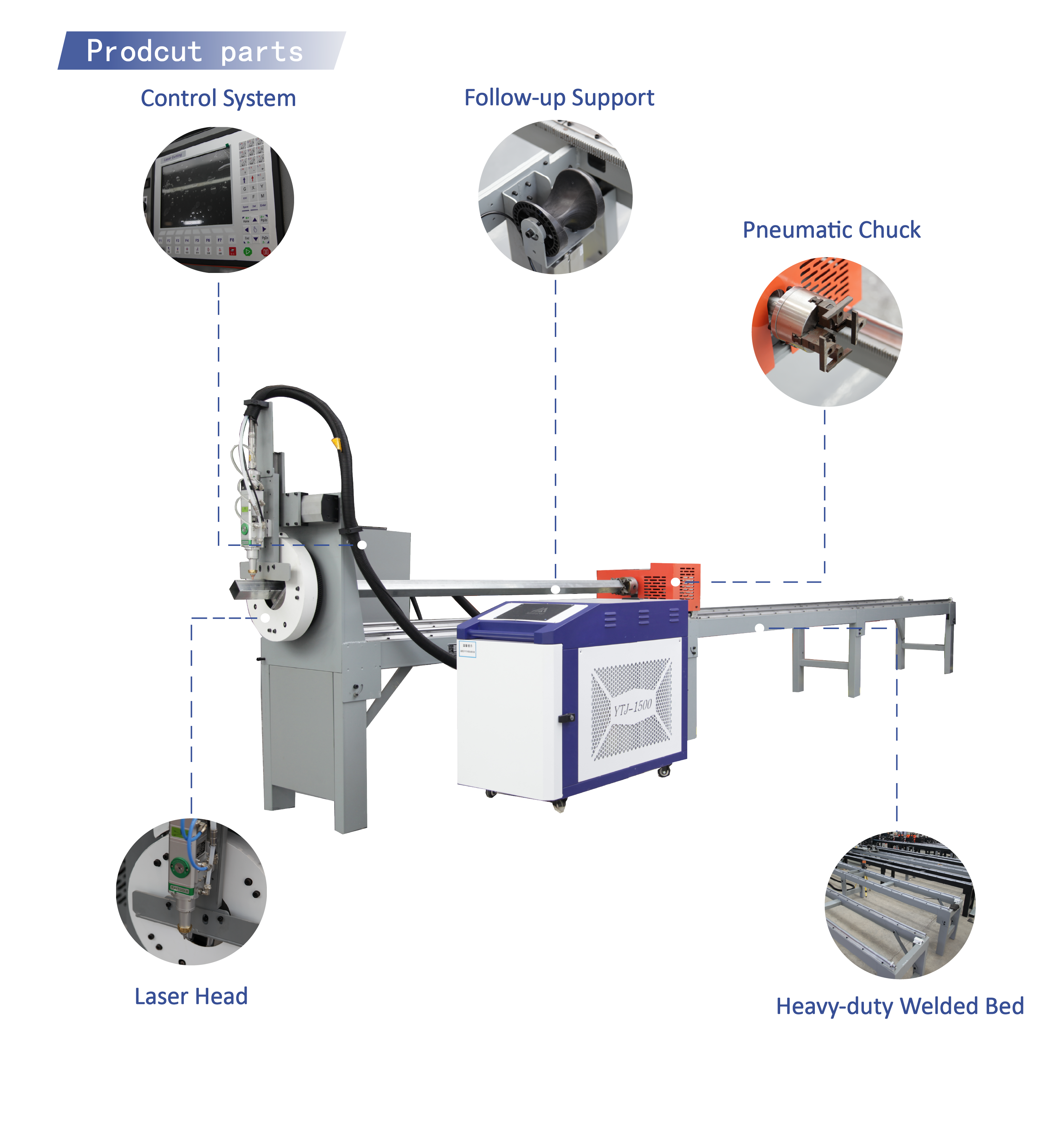

CNC System
Intelligent edge searching and automatic typesetting.
Special Laser Head
Sealed design to avoid dust pollution.

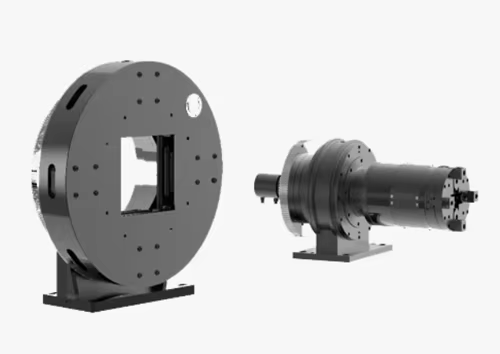

High Precision Chunk
Accurately clamping workpiece for machining accuracy.

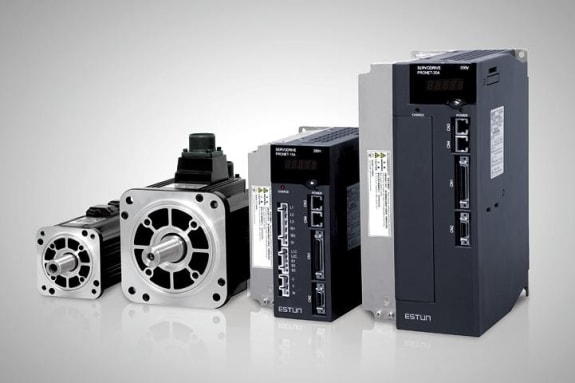

Servo Motor
Improved vibration suppression performance.

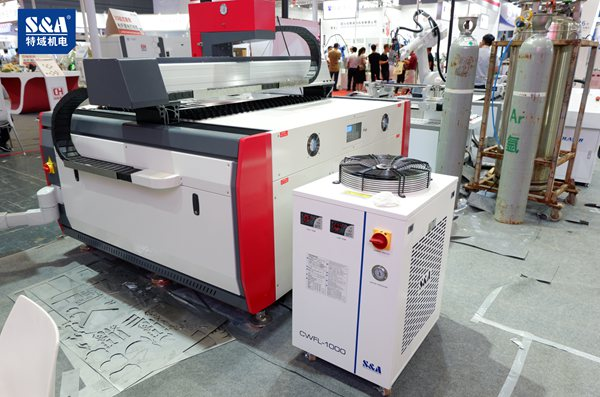

S&A Water Chiller
Leading industrial refrigeration quality.

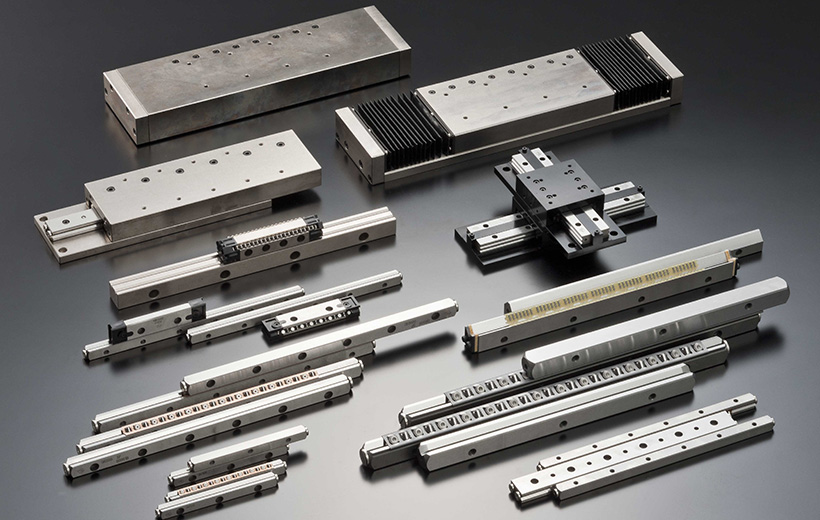

Taiwan HIWIN Guide
High positioning accuracy and durability.
