Datum Machine
Datum Machine
| Model | FT-6012S | FT-6017S | FT-6024S | FT-6035S |
|---|---|---|---|---|
| Working Length | ≤6.5m | ≤6.5m | ≤6.5m | ≤6.5m |
| Cut Diameter | 10-120mm | 20-160mm | 20-240mm | 20-360mm |
| Positioning Accuracy | 0.05mm | 0.03mm | 0.03mm | 0.03mm |
| Repositioning Accuracy | 0.05mm | 0.02mm | 0.02mm | 0.02mm |
| Laser Power | 1500W / 2000W / 3000W / 6000W | |||

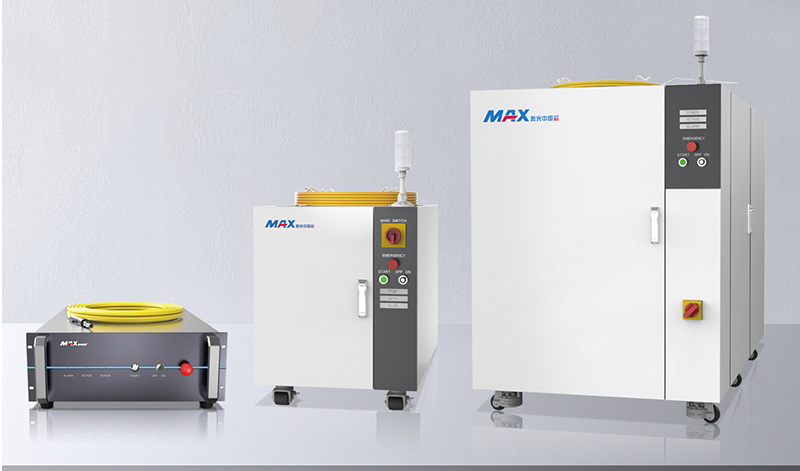

| Laser Generator | MAX / RAYCUS (Optional) | |||
| Maximum Acceleration | 1.2G / 0.8G / 0.6G | |||
| Machine Idle Speed | 120m/min | |||

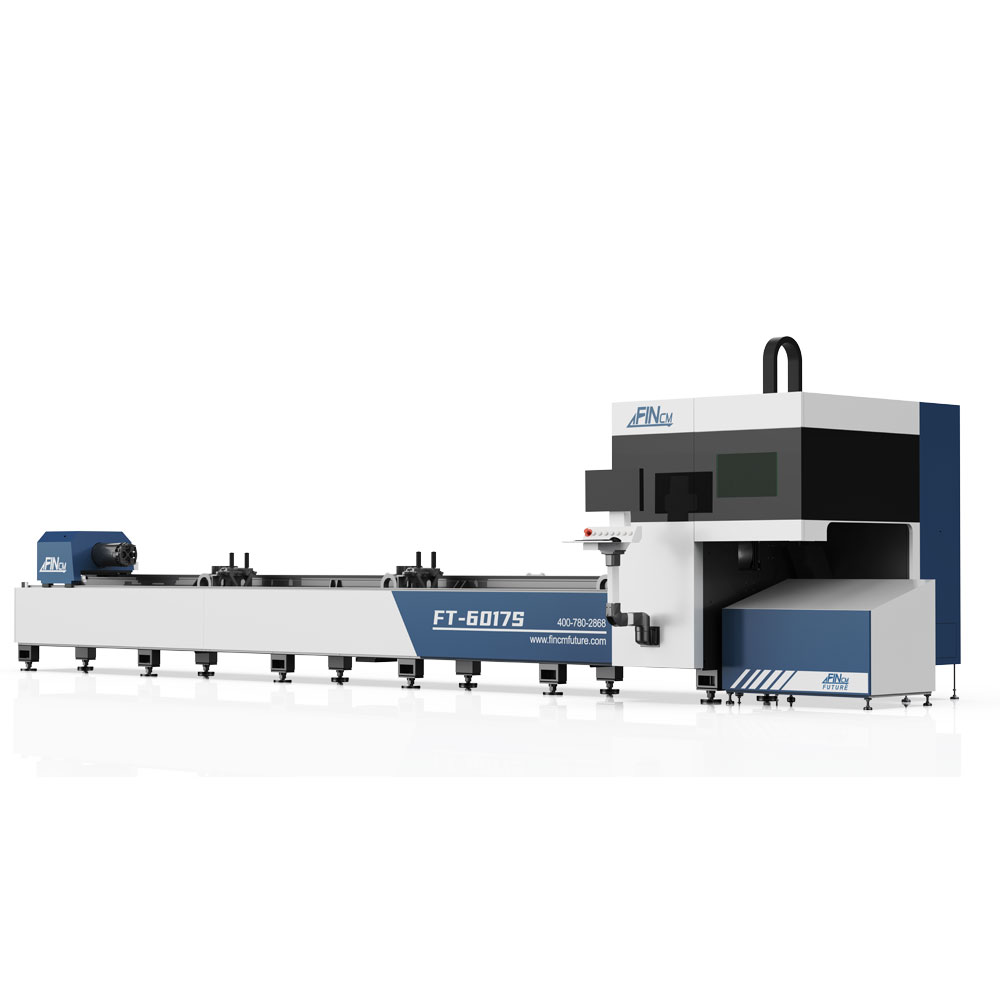

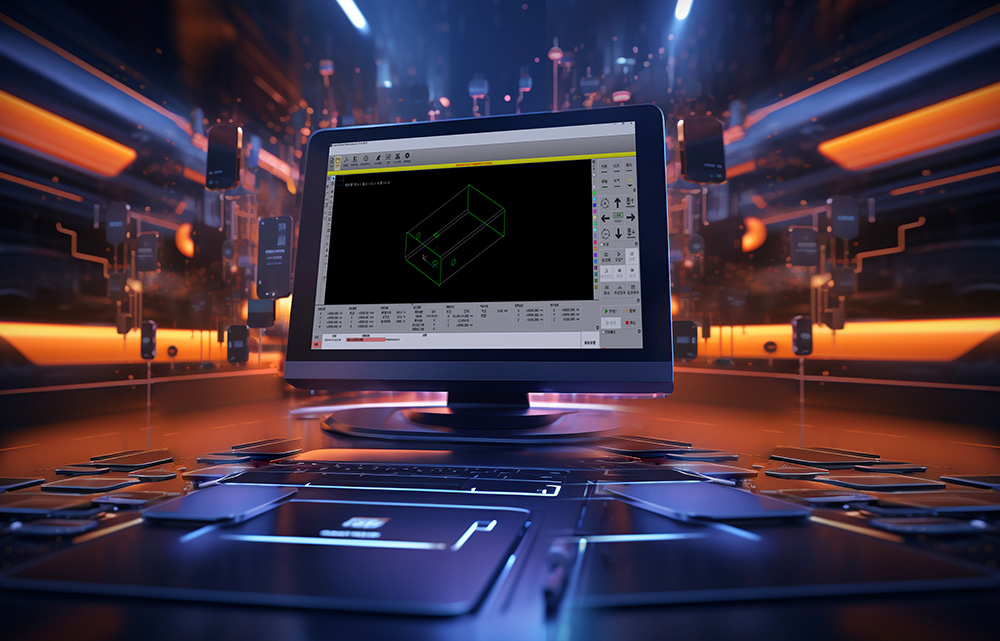

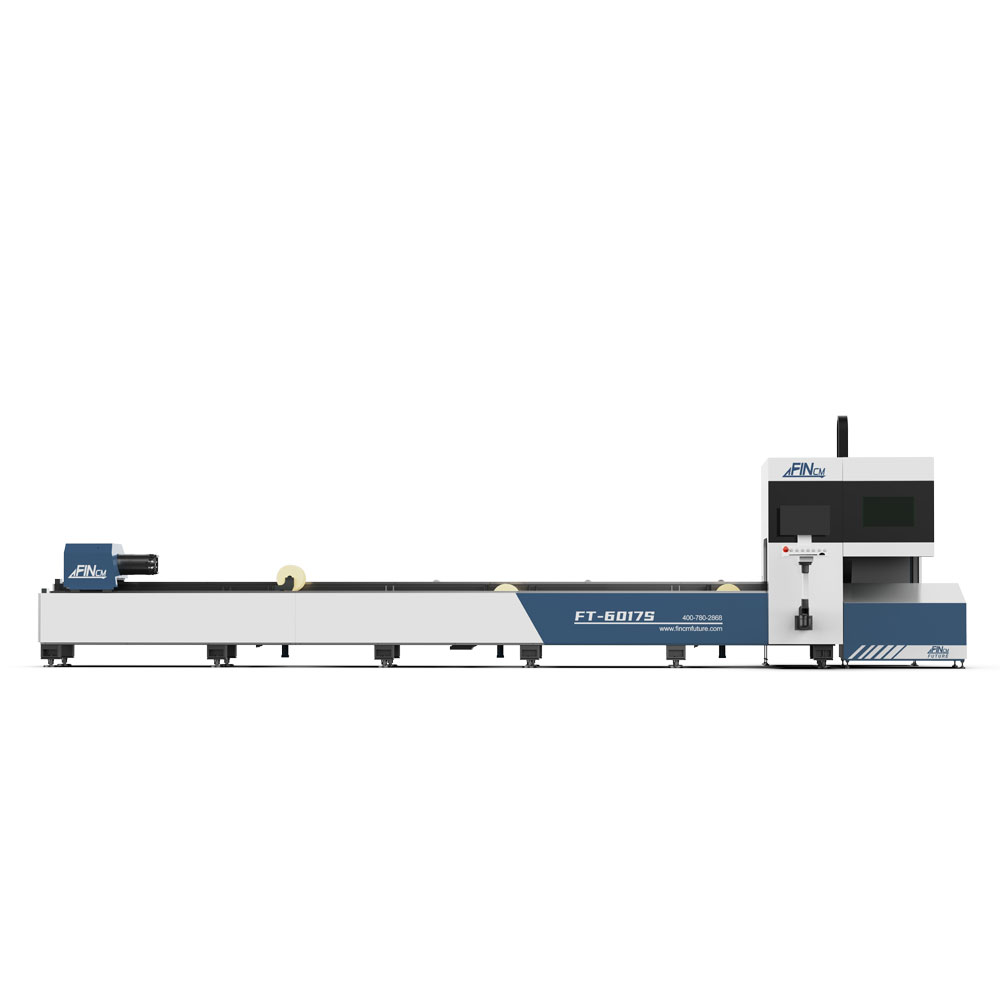

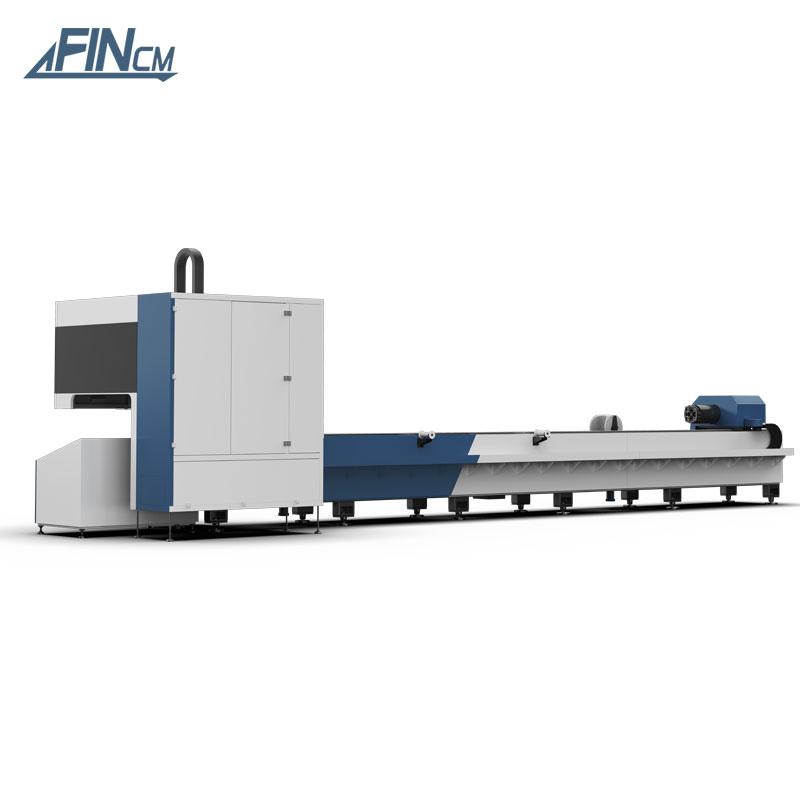

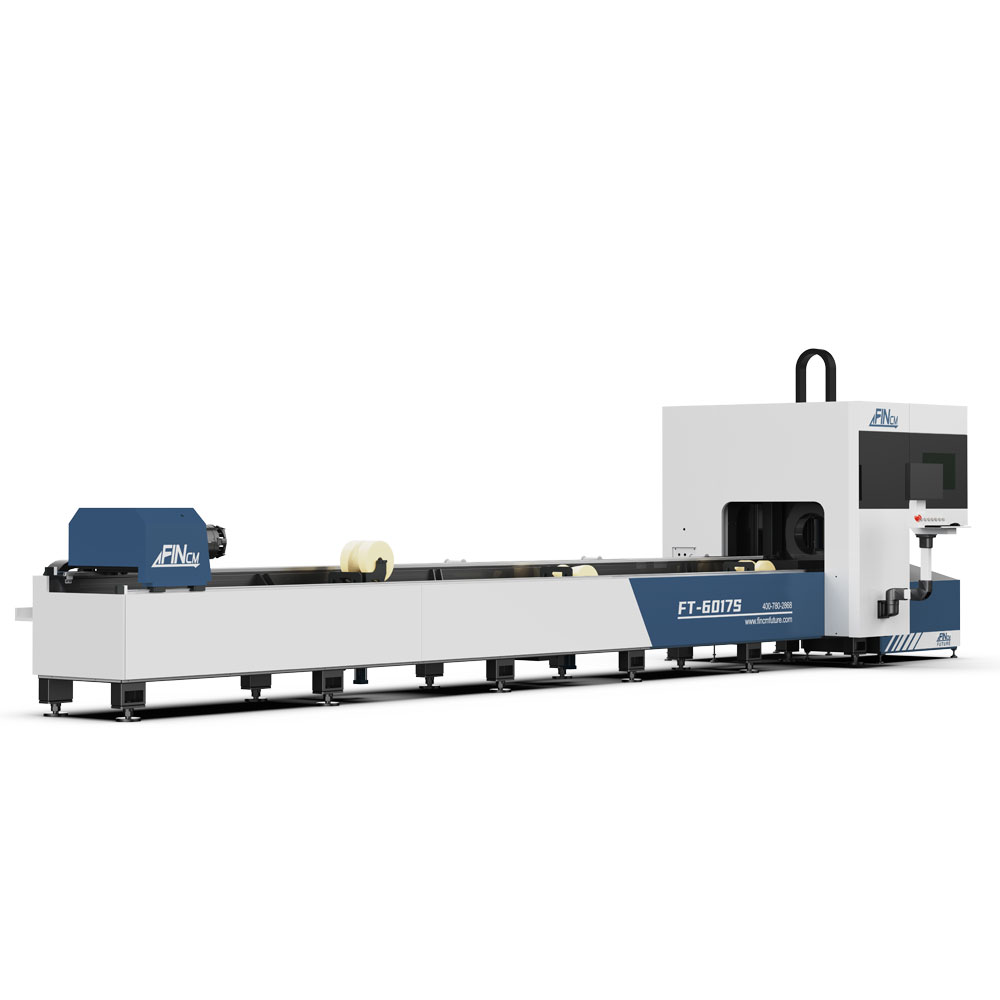

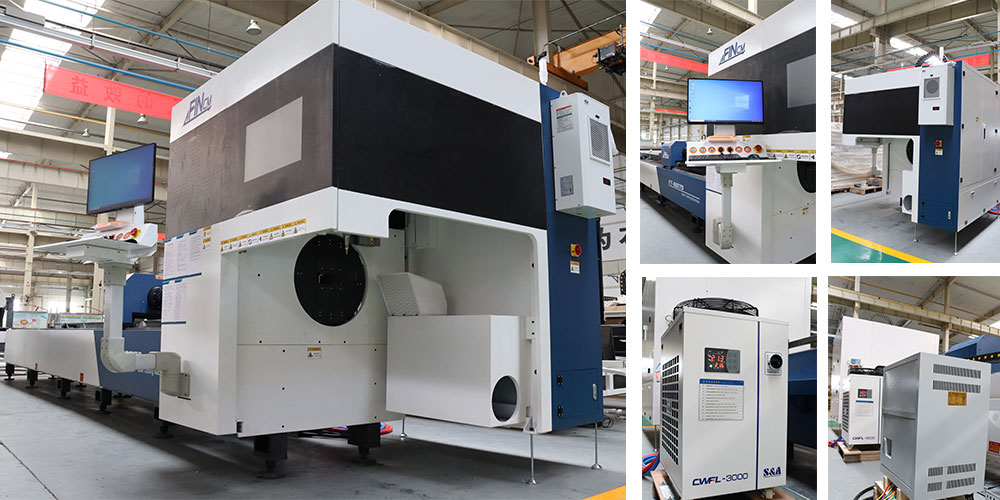

A two-chuck laser cutting machine equipped with a Bochu system delivers fast, precise, and intelligent tube cutting with seamless automation and reliable performance.

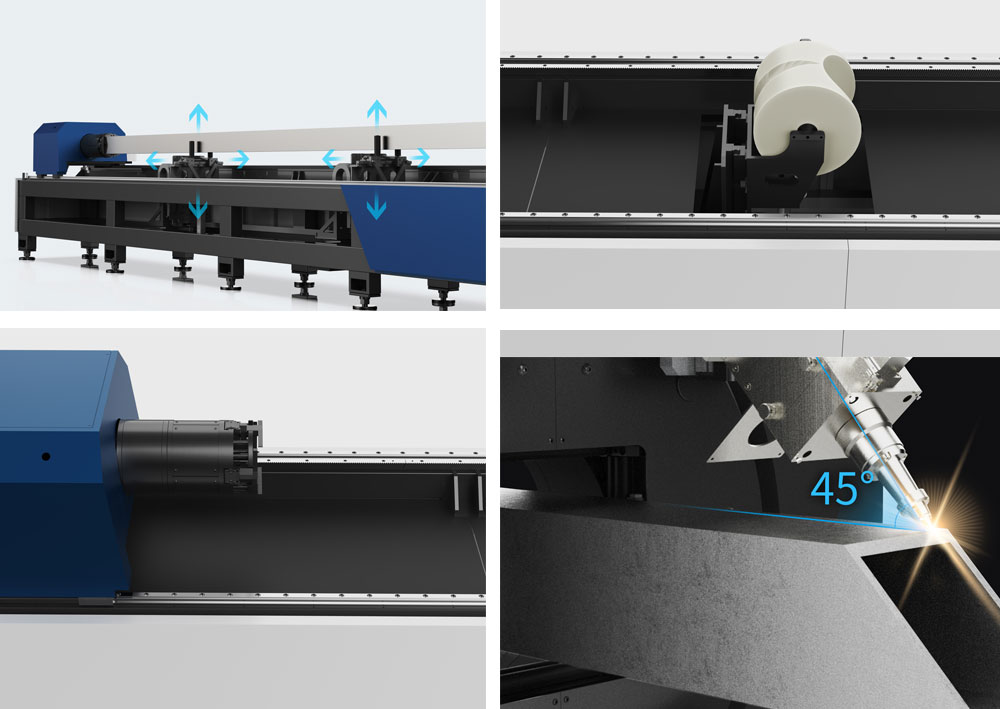

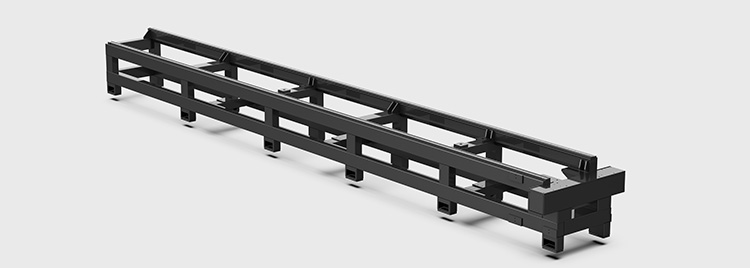

The frame structure welded with high-quality square tubes has undergone professional welding, aging treatment, and precision machining by large gantry milling machines to ensure that the machine tool has excellent seismic resistance, high rigidity and stability.

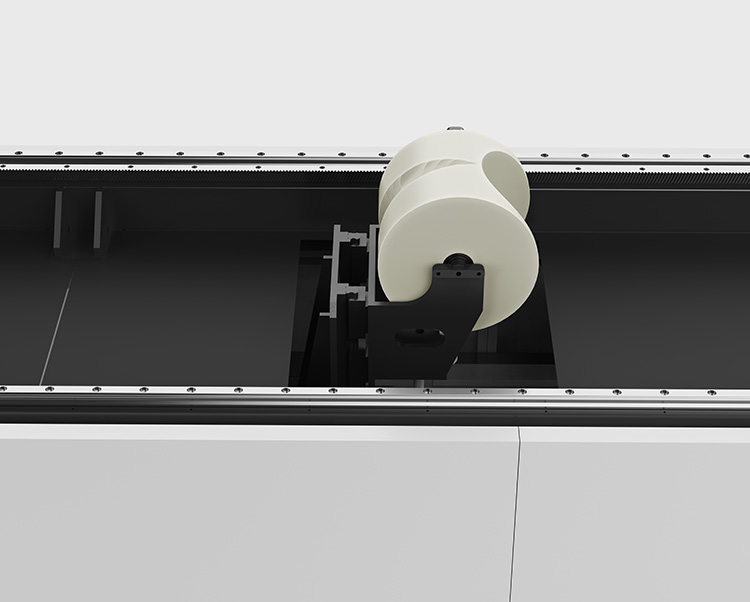

The segmented auxiliary support structure can adapt to pipes of different diameters and shapes.

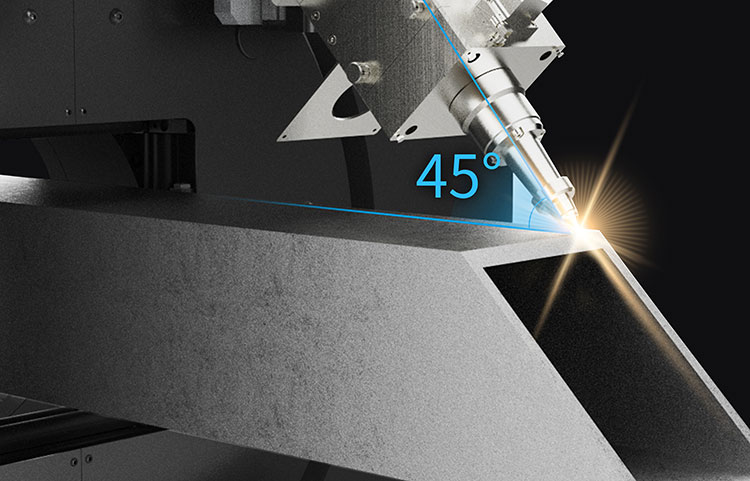

Beveling of different shapes and angles can be cut according to user needs, such as V-shaped beveling, X-shaped beveling, U-shaped beveling, etc.
Delivery and Installation
The equipment will be delivered to the designated installation site at the customer's facility. Specialized engineers will be dispatched to carry out the installation on-site.
Commissioning and Debugging
Upon completion of the installation, comprehensive commissioning and debugging will be conducted to ensure the equipment operates properly and fully meets the customer's functional requirements.
On-Site Training
Engineers will provide on-site training covering equipment maintenance, safety precautions, standard operating procedures, and basic troubleshooting techniques to ensure the team can operate and maintain the equipment effectively.
Final On-Site Acceptance
After completing all steps, final on-site acceptance shall be conducted by the customer. The assigned engineer may only leave the site once acceptance is formally confirmed.

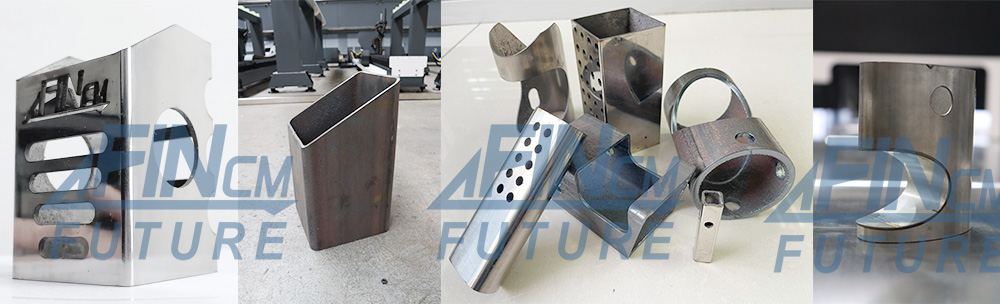

Laser tube cutting machines are versatile tools used across a wide range of industries due to their precision, efficiency, and ability to handle various materials and shapes:
Located in a major industrial hub, we focus on high-power laser cutting machines, metal pipe laser cutters, H-beam cutting machines, welding machines, and laser cleaning systems, serving a wide range of metal processing needs.
The factory is equipped with advanced production facilities and precision manufacturing equipment, supported by a comprehensive professional team covering design & R&D, manufacturing, and after-sales service-ensuring efficient production and responsive customer support. With a strict quality management system in place, we guarantee that every machine meets international standards and satisfies the diverse processing requirements of customers worldwide.
