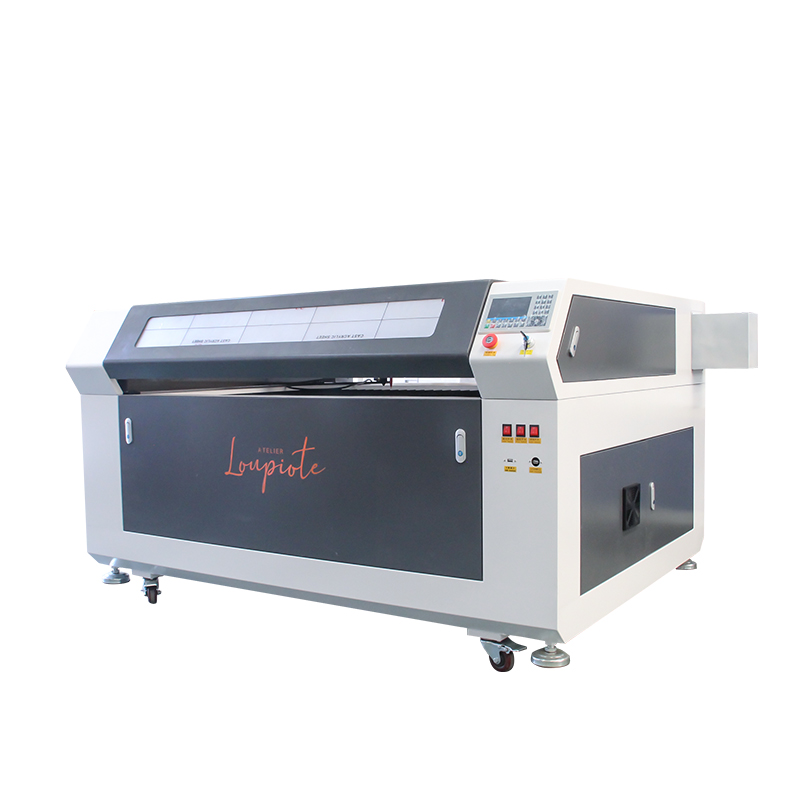

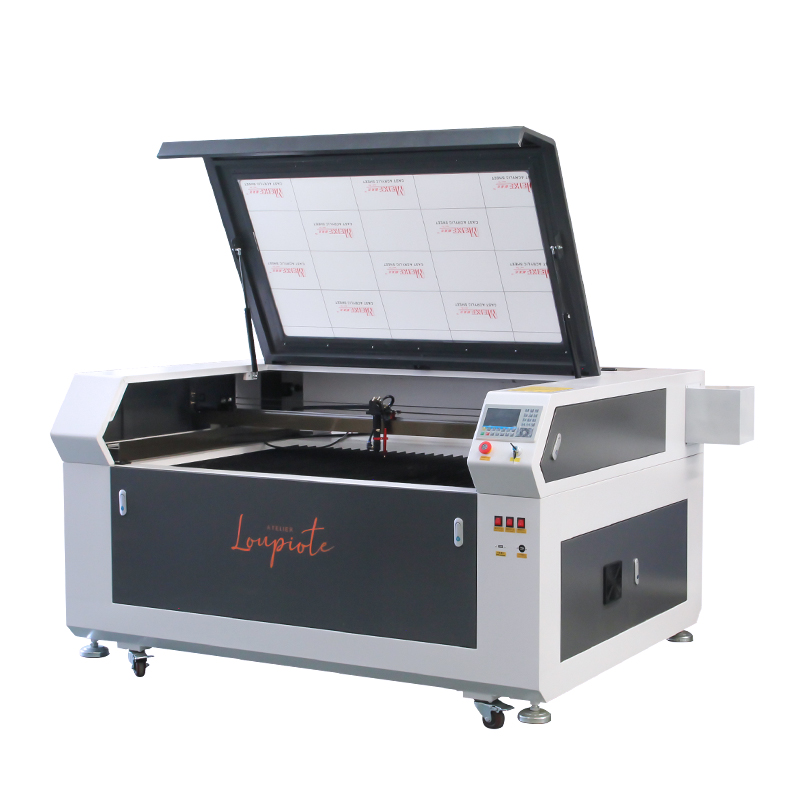

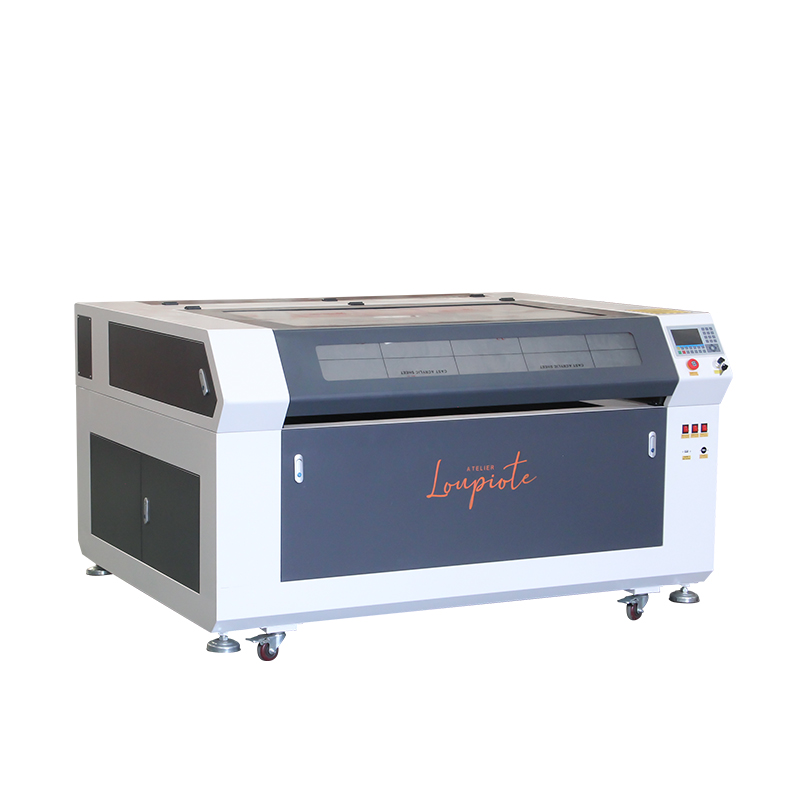

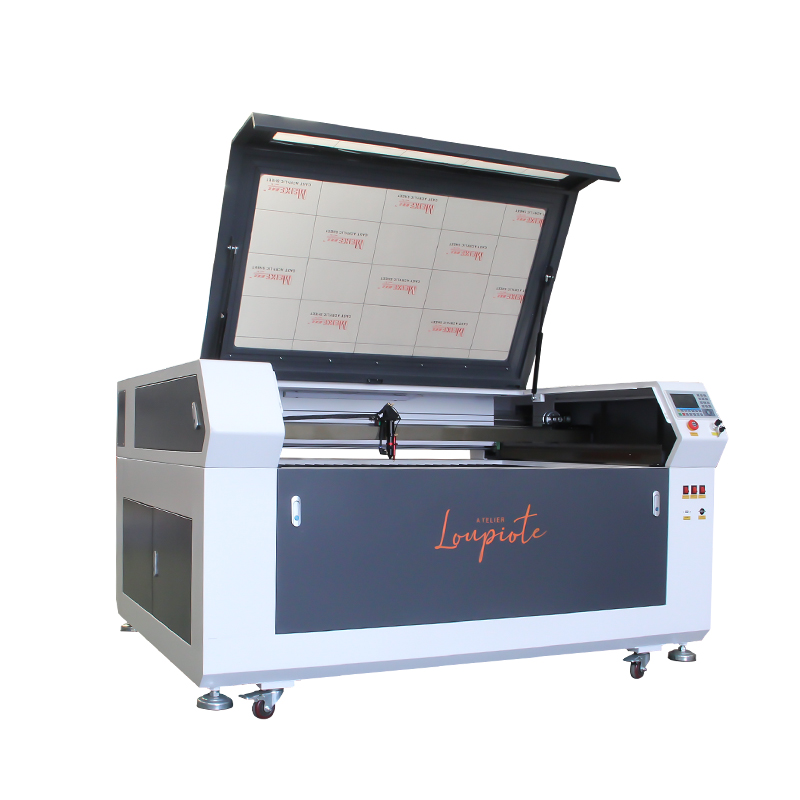

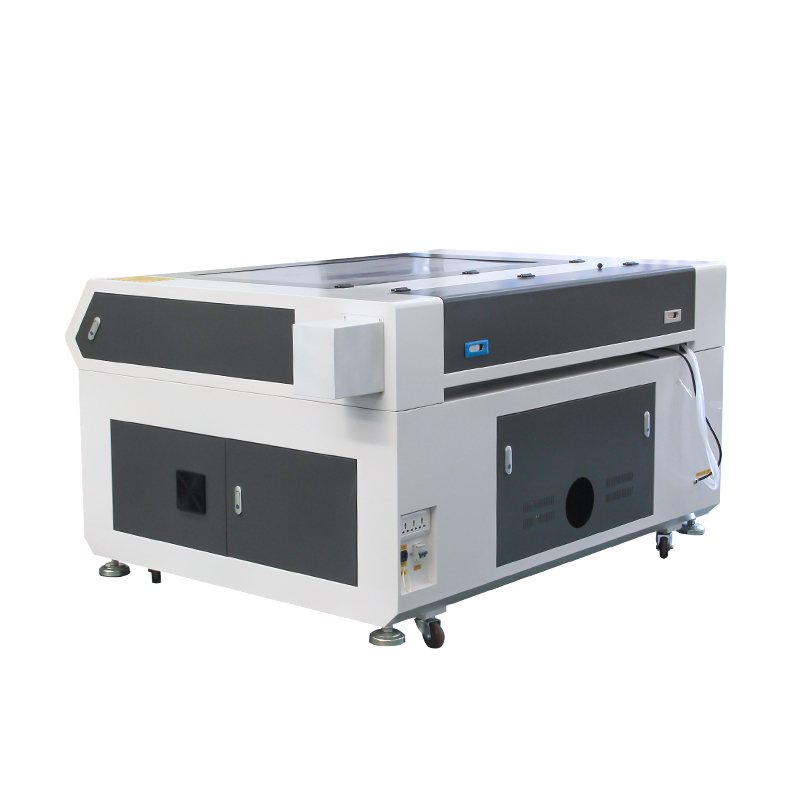

Co2 Laser Cutting Machine With YongLi DLT 300W Co2 Laser Tube
Co2 Laser Cutting Machine With YongLi DLT 300W Co2 Laser Tube
Co2 Laser Cutting Machine With YongLi DLT 300W Co2 Laser Tube
Co2 Laser Cutting Machine With YongLi DLT 300W Co2 Laser Tube
Co2 Laser Cutting Machine With YongLi DLT 300W Co2 Laser Tube
1 / 5
Co2 Laser Cutting Machine With YongLi DLT 300W Co2 Laser Tube
Co2 Laser Cutting Machine With YongLi DLT 300W Co2 Laser Tube
Co2 Laser Cutting Machine With YongLi DLT 300W Co2 Laser Tube
Co2 Laser Cutting Machine With YongLi DLT 300W Co2 Laser Tube
Co2 Laser Cutting Machine With YongLi DLT 300W Co2 Laser Tube

Co2 Laser Cutting Machine With YongLi DLT 300W Co2 Laser Tube

Send Inquiry

Product Description

Mixed 300w 1310 Metal and Non-metal CO2 Laser Cutting Machine - Acrylic & Stainless Steel Laser Cutter

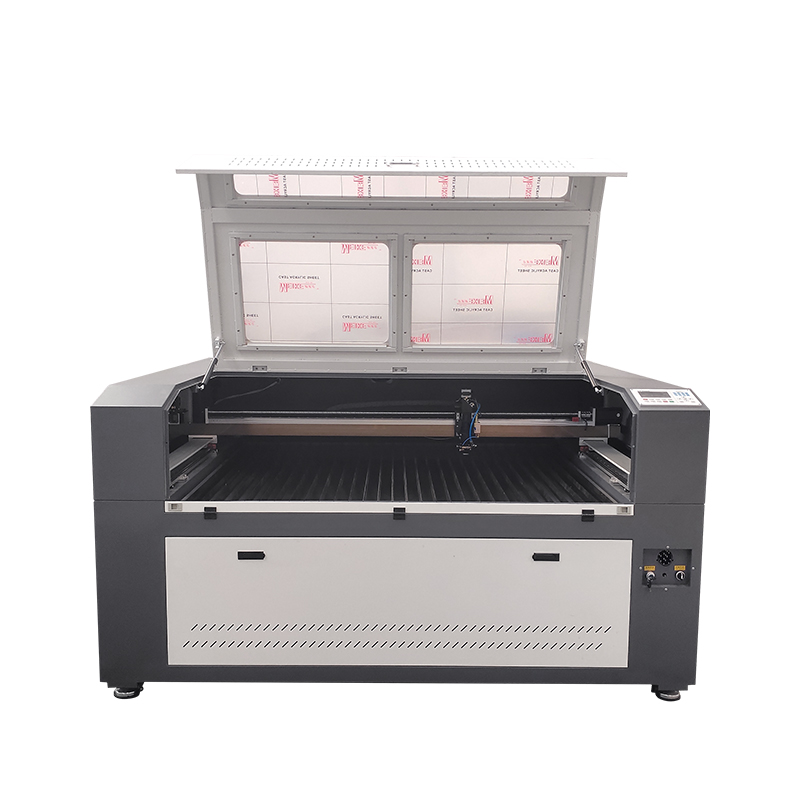

CO2 Laser Cutting Machine

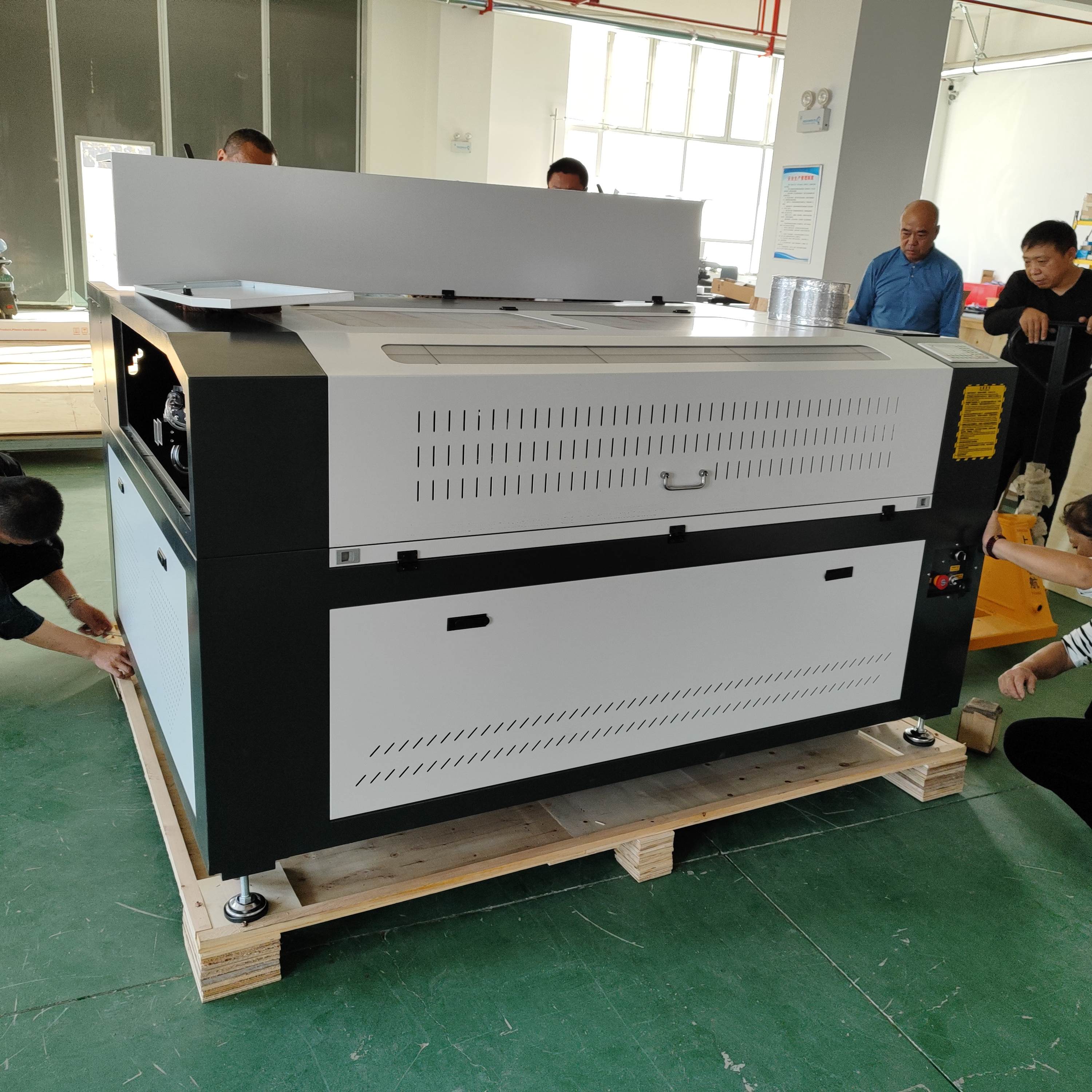

Laser Cutter Detail
Laser Cutting Head

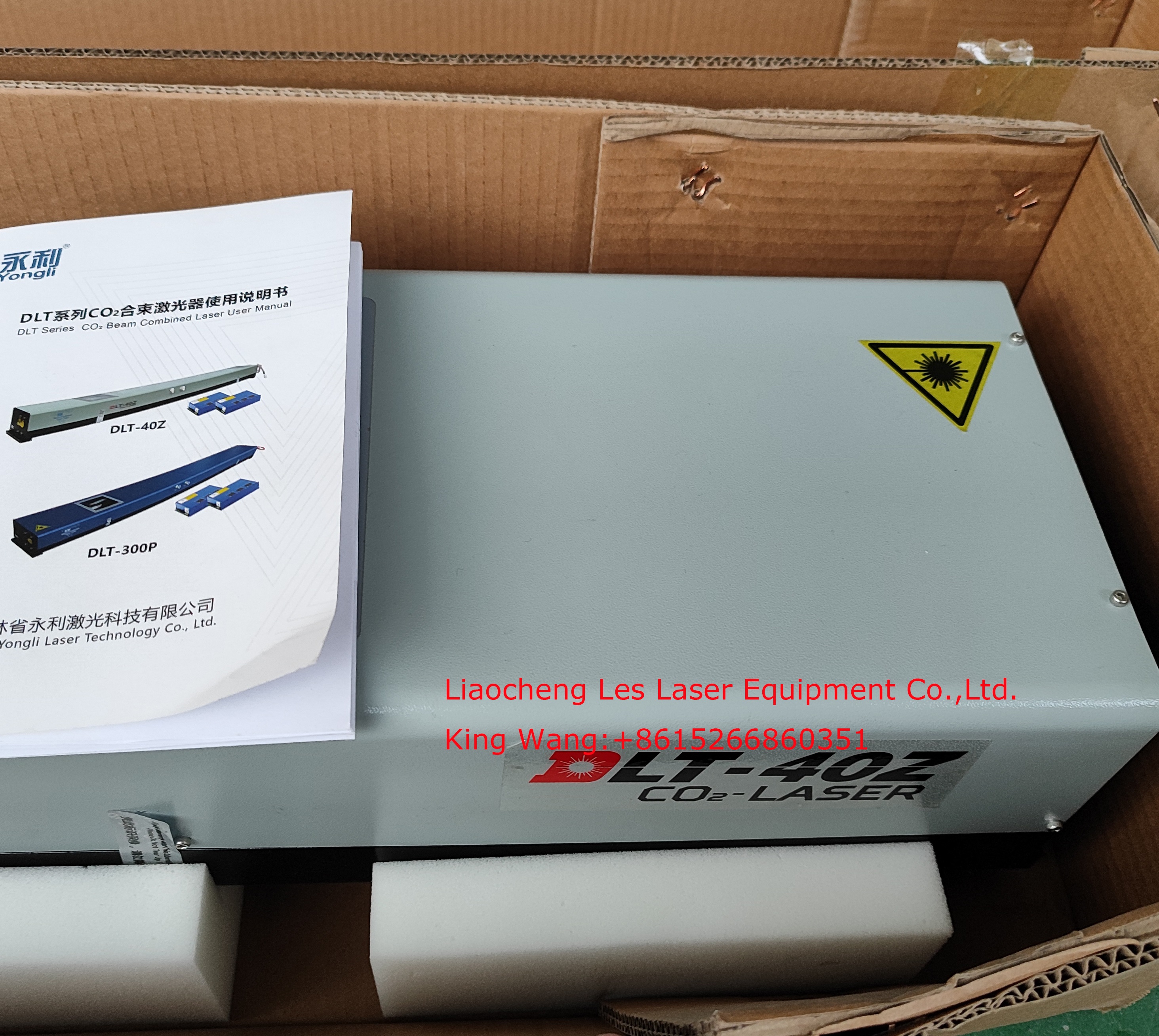

Control System
★ Main Features
1
Versatile Cutting: The 1310 machine is a mixing cutting machine, specialized in cutting stainless steel, carbon steel, MDF, die board, and wood.
2
High Efficiency: It is easy to cut 1mm stainless steel and 20mm acrylic with perfect cutting quality.
3
Precision Components: Matched with a stepper motor system for high efficiency, high precision, stable performance, and long life.
4
Economical Operation: Low running cost of approximately 3-5KVA per hour.
📊 Product Parameters
ModelMixed 1310 Co2 laser cutting machine
Working area1300*1000mm
Laser sourceSealed CO2 laser tube 300W (YongLi brand)
Control systemRuida 6332M
X/Y step motor3 phase 57 step motor
Auxiliary airNitrogen, Oxygen, Air
Laser headAutofocus laser cutting head
Working tableBlade work platform
Position accuracy±0.05mm
Compatible formatBMP, PLT, DST, AI, DXF etc
Cooling modeConstant temperature water cooling and protection system
Working voltage220V±10% 50Hz or 110V±10% 60Hz
Software supportedArtCut, PhotoShop (Conversion), CorelDraw, AutoCAD (Direct output)
Standard PartsKnife working table, Air pump, Exhaust fans, Cooling system, Tool box
WarrantyOne year (except consumable parts)
⚙️ Product Configuration

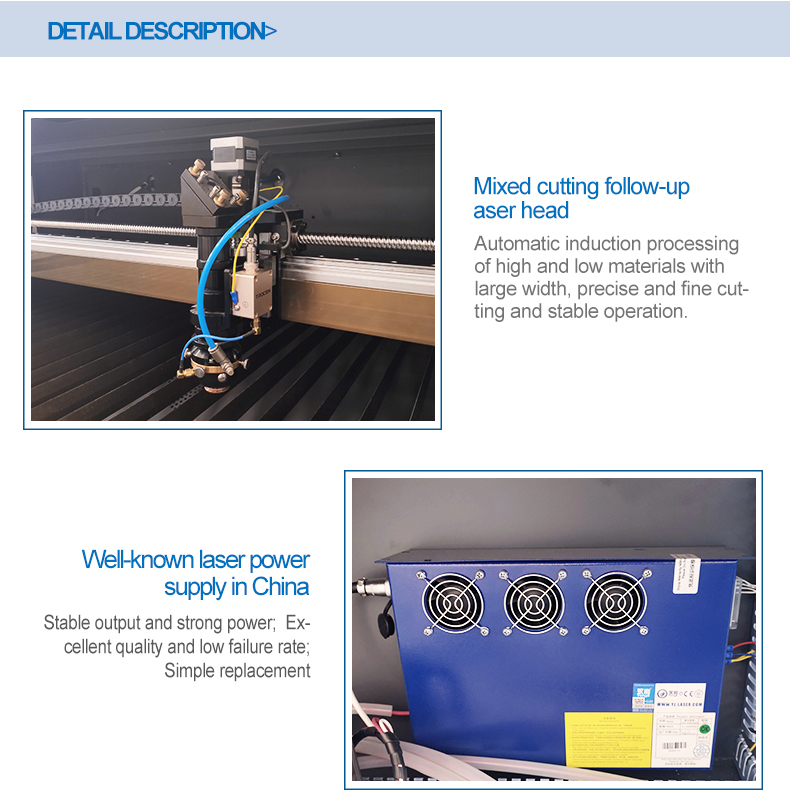

Configuration 1

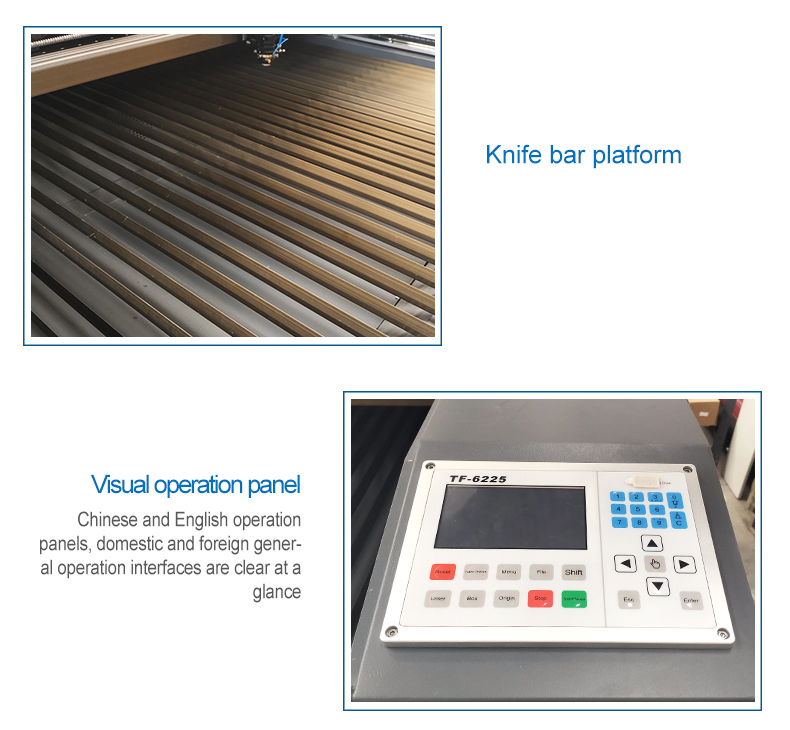

Configuration 2

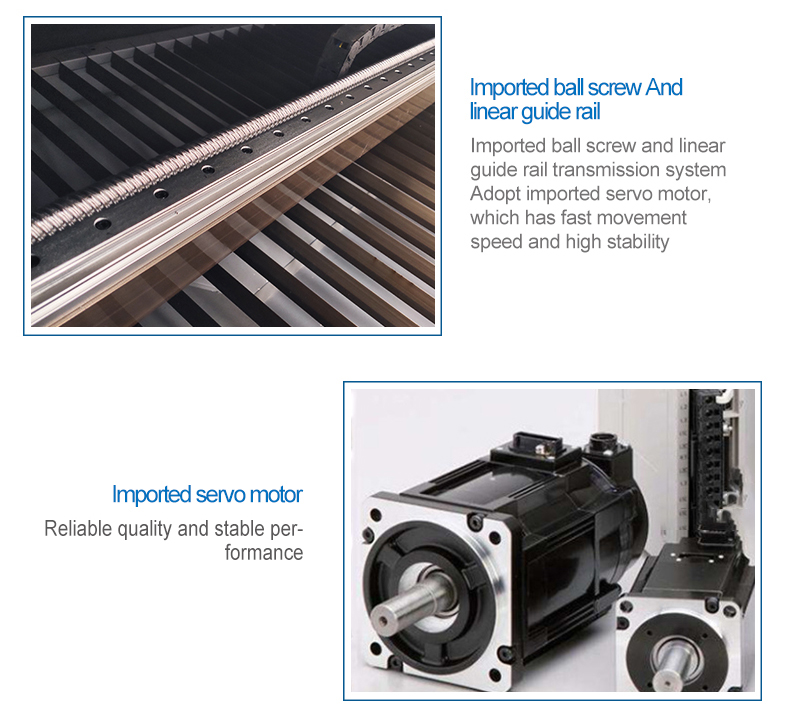

Configuration 3

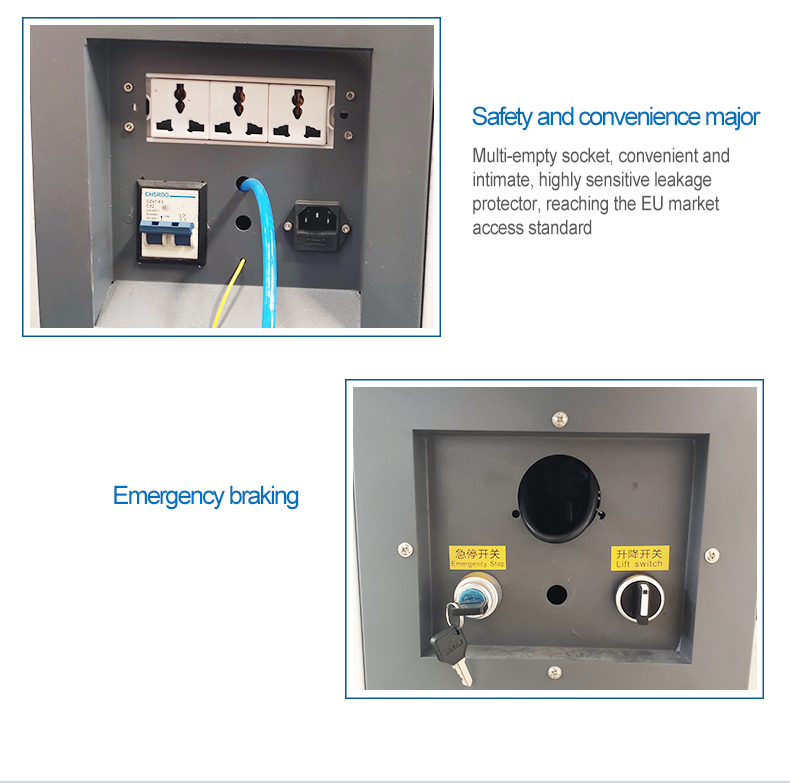

Configuration 4
📦 Product Packaging

Triple Layer Protection:

1
Outer Layer: Professional wood craft case for international transport.
2
Middle Layer: Thick foam covering to protect the machine from vibrations and shaking.
3
Inner Layer: Thickening plastic bag for complete waterproofing.

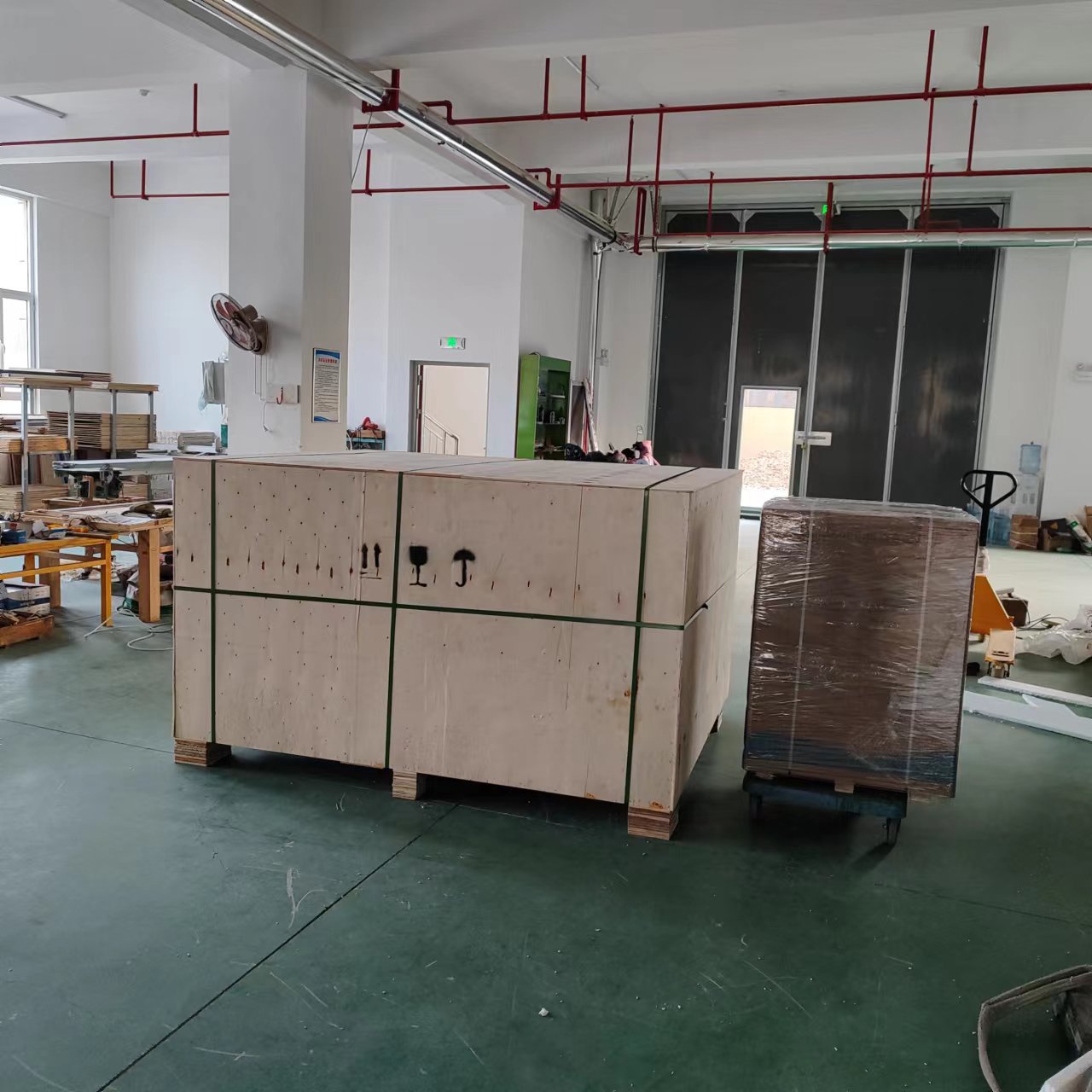

Packaging Process
Wooden Case
🛠 Our Services

1. Sample Testing: We offer free sample marking and testing services to ensure the machine meets your needs.

2. After-sales Support: Lifelong technical support for all our machines. Quality issues during the warranty period are covered with free replacement parts.

3. Customization: We provide free LOGO customization services for your equipment.

🔍 Samples & Factory

Cutting Samples:

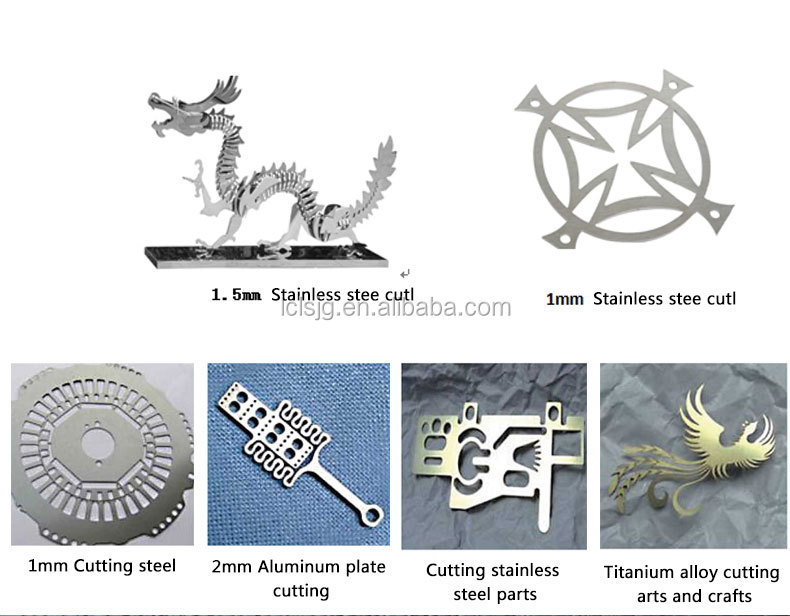

Laser Cutting Samples

Production Environment:

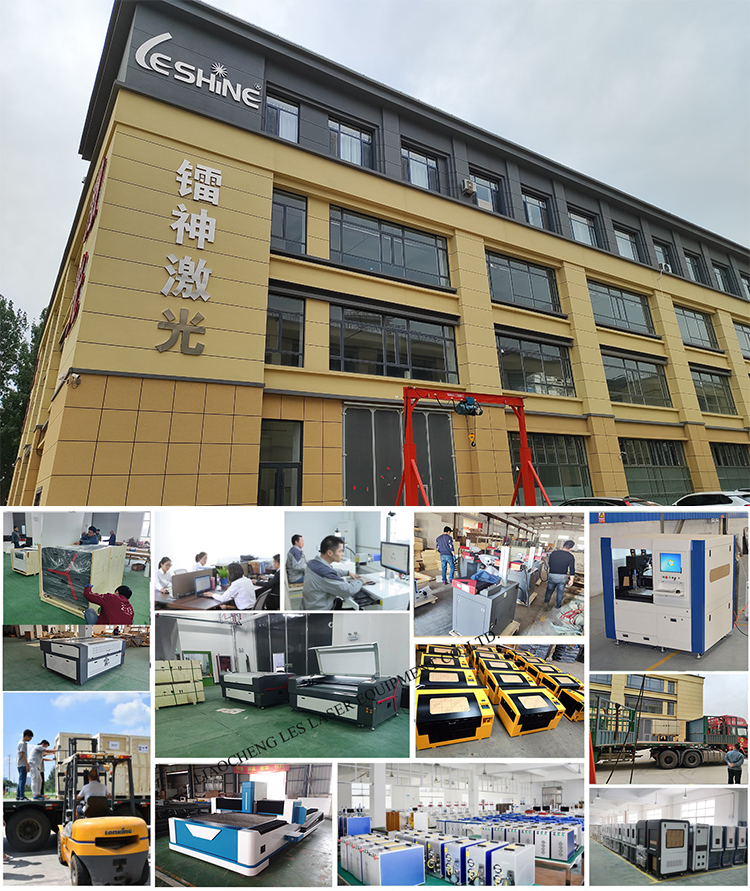

Factory Overview
❓ Frequently Asked Questions
What materials can the mixed 1310 laser machine cut?
It can cut both metal and non-metal materials, including stainless steel, carbon steel, acrylic, MDF, wood, and die board.
What is the maximum thickness it can cut?
It can efficiently cut up to 1mm stainless steel and 20mm acrylic with high-quality results.
What control system does the machine use?
The machine is equipped with the Ruida 6332M control system, which is stable and widely compatible.
What is the warranty period for this laser cutter?
We provide a one-year warranty, excluding consumable parts like the laser tube and lenses.
Which software is compatible with this machine?
It supports ArtCut, PhotoShop (conversion output), and direct output from CorelDraw and AutoCAD.
How is the machine protected during shipping?
We use a 3-layer packaging system: waterproof plastic inside, protective foam in the middle, and a sturdy wooden craft case for the exterior.
