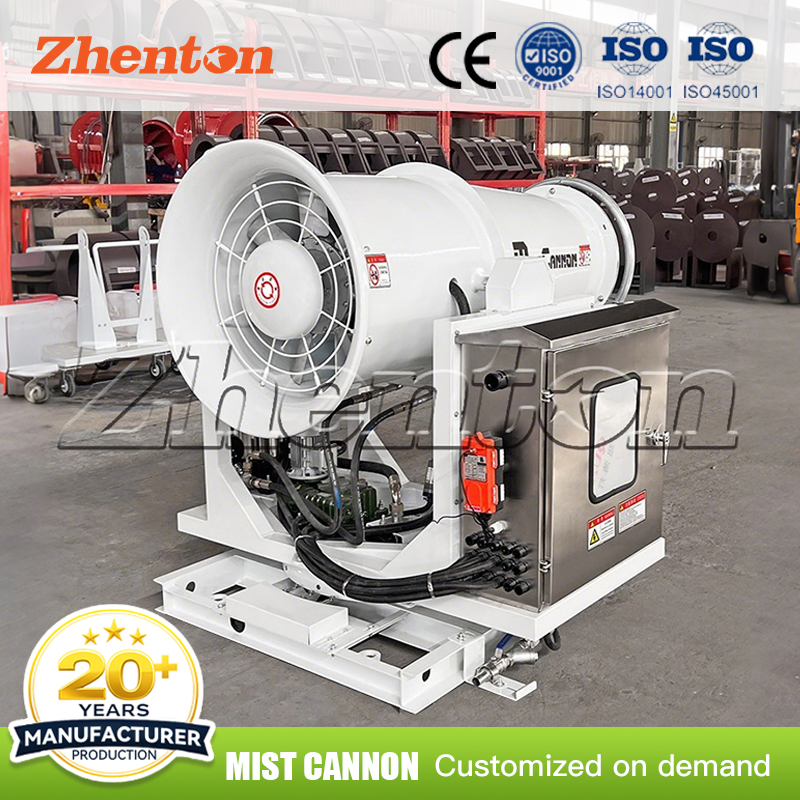

Dust Suppression Mist Cannon Smart Farm Spraying System with Variable Speed Fan Control

📊

Basic Information

Model NO.

60m Fog Cannon System

Warranty

1 Year

Installation

External Thread Connection

Liquid Contained

Medicine, Disinfector

Spraying Shape

Sector

Power Supply

Electric (380V)

Material

Aluminum

Wind Range

60m

Dimension

1930*1630*1650mm

Weight

850 Kg

Mist Diameter

30~150μm

Pump Flow Rate

25-50 L/Min

🚀

Product Description

Principle and Function

The mist cannon atomizes water into ultra-fine droplets (30-150 microns). When sprayed by the high-power fan, these droplets adhere to floating dust particles, forming larger aggregates that settle naturally due to gravity. This effectively reduces airborne dust concentration (PM2.5, PM10) and purifies the ambient air.

Core Features

✨ High Efficiency: Captures both large and fine dust particles.
✨ Resource Saving: Water-saving and energy-efficient with adjustable spray angles.
✨ Safe Operation: Non-corrosive mist, safe for equipment and environment without chemical additives.

📜

Certifications

We hold specialized certifications including EU CE certification, ISO 9001, ISO 14001, and ISO 45001. With over 20 years of manufacturing expertise, our quality is globally recognized.

🌍

Scenario Applications

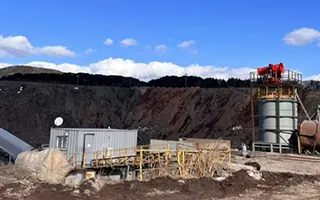

Dust Suppression

Odor Control

Cooling & Humidification

Ideal for construction sites, mines, quarries, cement plants, demolition sites, and waste incineration facilities.

⚙️

Technical Specifications

Model

ZT-60

Range

55-60 Meters

Coverage

10,900 m²

Noise

≤70 dB (at 20m)

Power

22.5 kW

Nozzles

36-60 Pcs

🔧

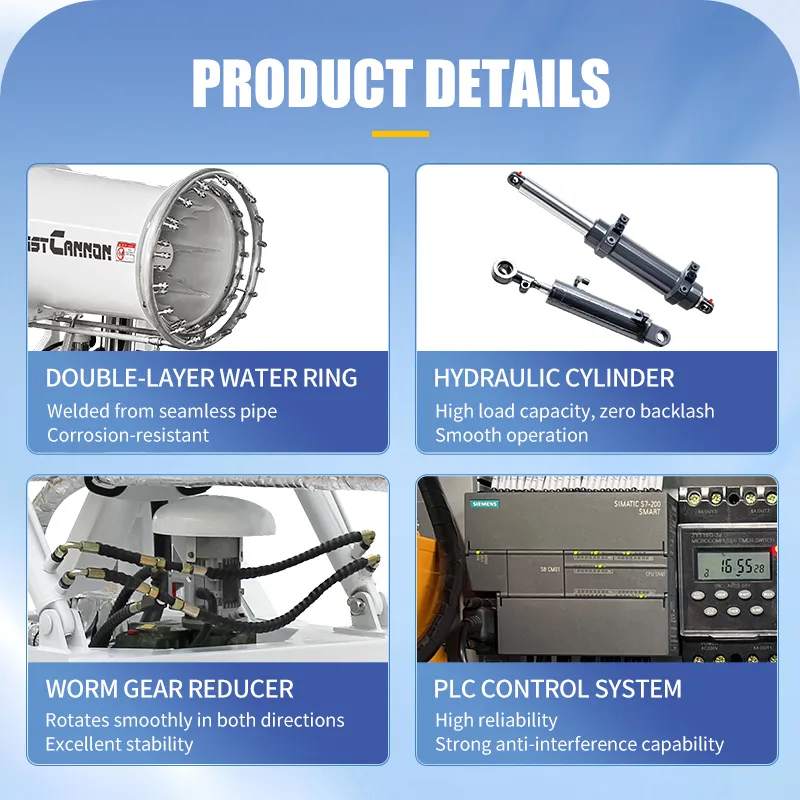

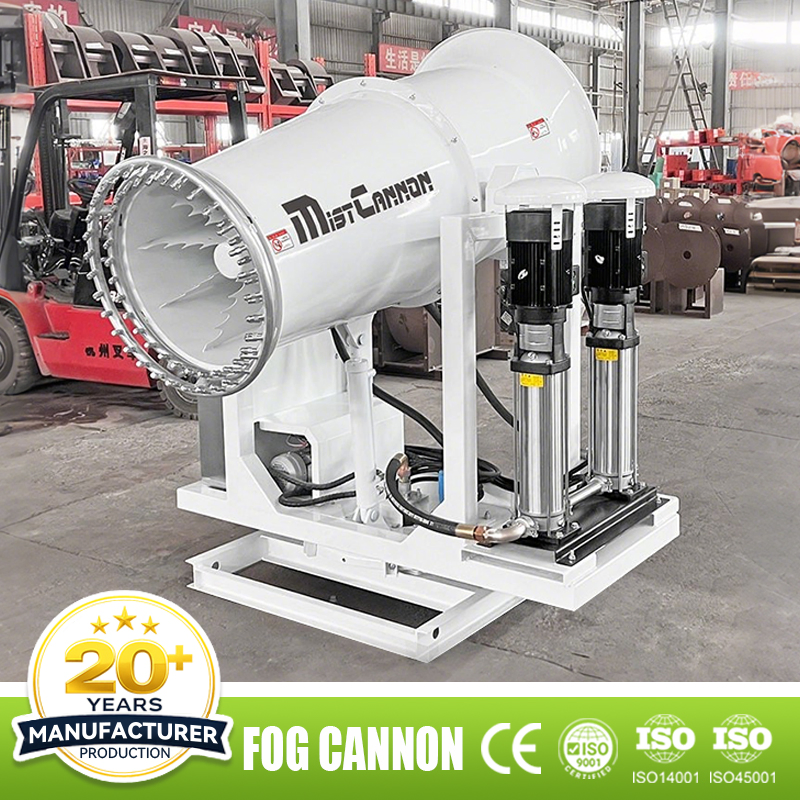

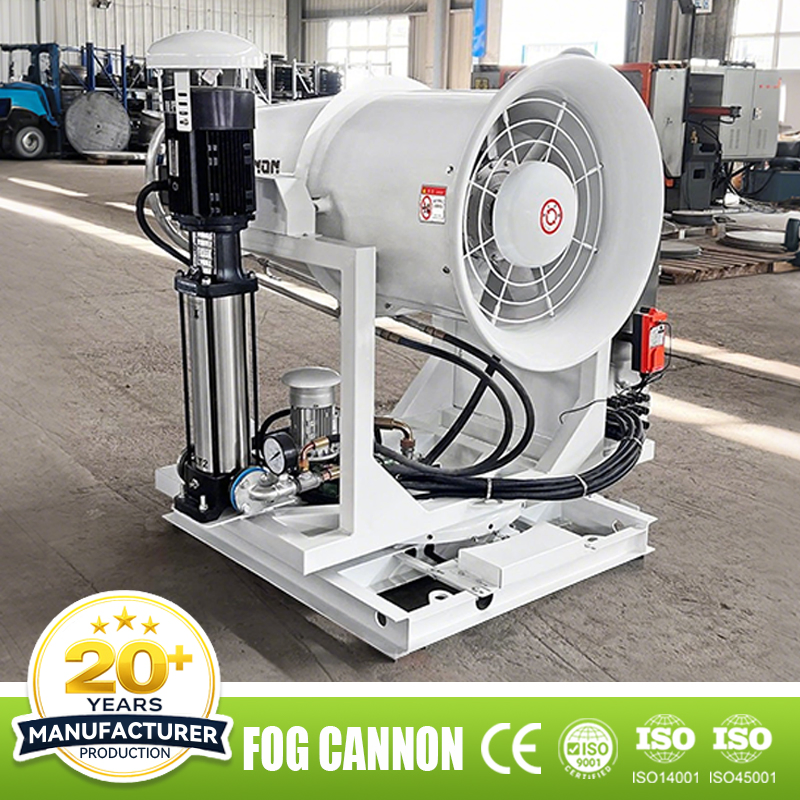

System Components

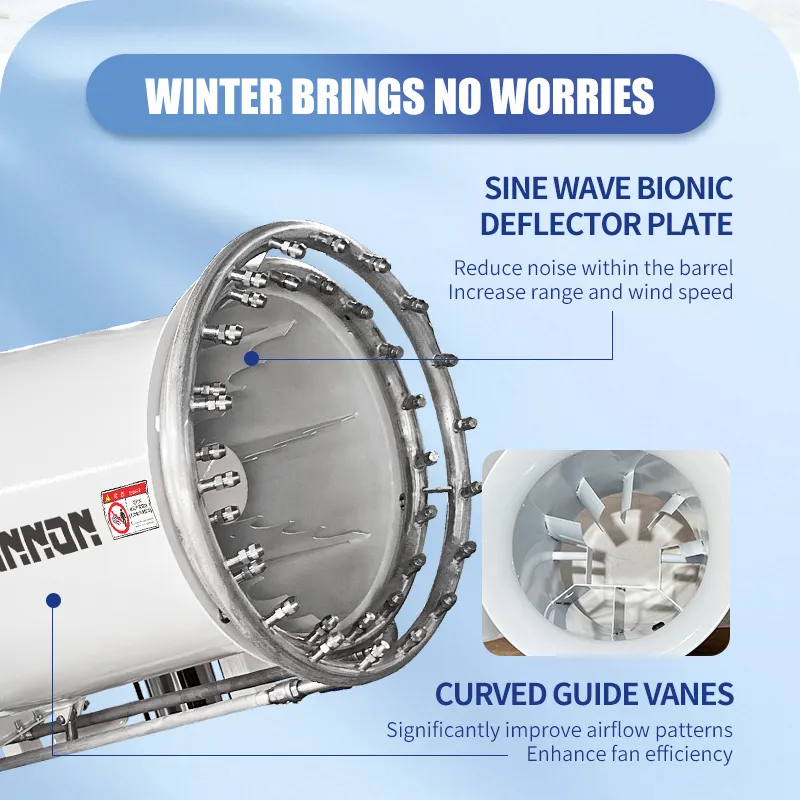

Gun Barrel: Laser full-weld, conical integrated design.
Water Passage: 304 Stainless steel nozzles and water rings.
Pump Options: Vortex, Plunger, or Multistage centrifugal pump.
Mechanism: Electric or hydraulic elevation actuators.

📦

Packing & Delivery

All machines are packed using reinforced export-special standards. The process includes waterproof film, shockproof bubble cotton, and sturdy multi-layer plywood cases. All wooden materials are fumigation-free, meeting international quarantine standards for smooth customs clearance.

🎬

Factory & Operation Video

❓

Frequently Asked Questions

Q1: Is this equipment suitable for international export?

A1: Yes. The system is designed to international standards and can be configured for different voltages (e.g., 380V/415V/440V) and regional requirements.

Q2: What is the effective range of the water mist?

A2: This specific model has a quiet wind range of 60 meters, providing high coverage for large industrial sites.

Q3: What droplet size does the mist cannon produce?

A3: It produces micron-level droplets (30-150μm) that effectively capture airborne dust particles like PM10 and PM2.5.

Q4: How does the control system work?

A4: The machine supports both Remote Control and Manual Control operations for flexibility in various working environments.

Q5: What kind of maintenance is required?

A5: Basic maintenance includes regular nozzle cleaning and inspection of the pump/motor. We provide a 1-year warranty and lifetime maintenance support.

Q6: Can chemical agents be added to the water?

A6: Yes, the system can be used with disinfectants or odor neutralizers for epidemic prevention or odor control in waste plants.
