Datum Machine
Datum Machine
| Model | Max Width (mm) | Max Thickness (mm) |
|---|---|---|
| NCHW3 | 60-1600 | 0.6-6.0 |
Original: SIEMENS

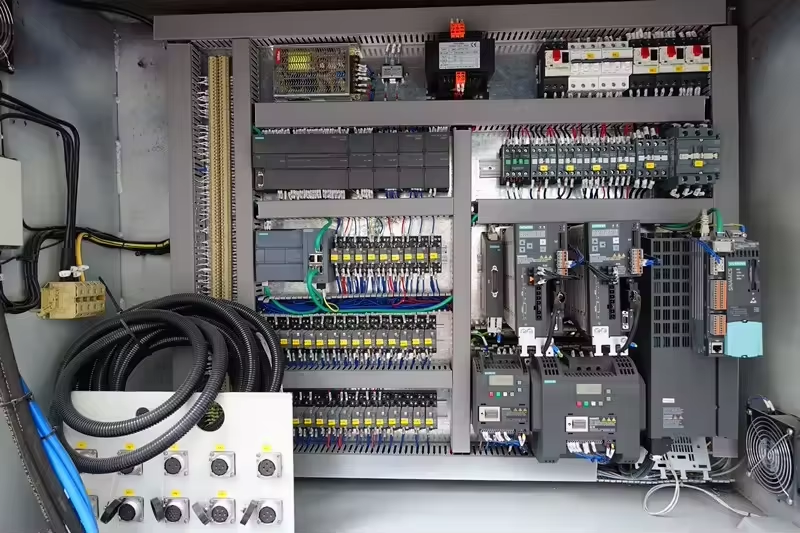

Equipped with Siemens servo motor driver, PLC, and full sets of Schneider low voltage components to ensure high security and stability during operation.
Brand: Siemens

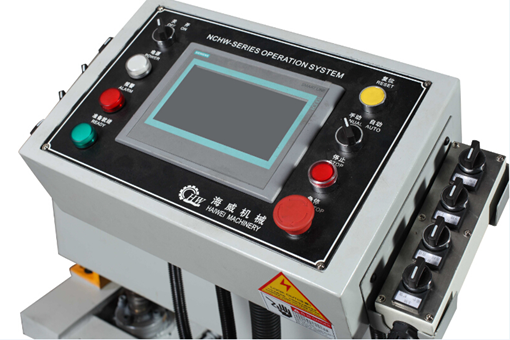

Features a user-friendly touch screen with various function buttons and a manual operation box. Operators simply input production data into the HMI, and the machine runs automatically.

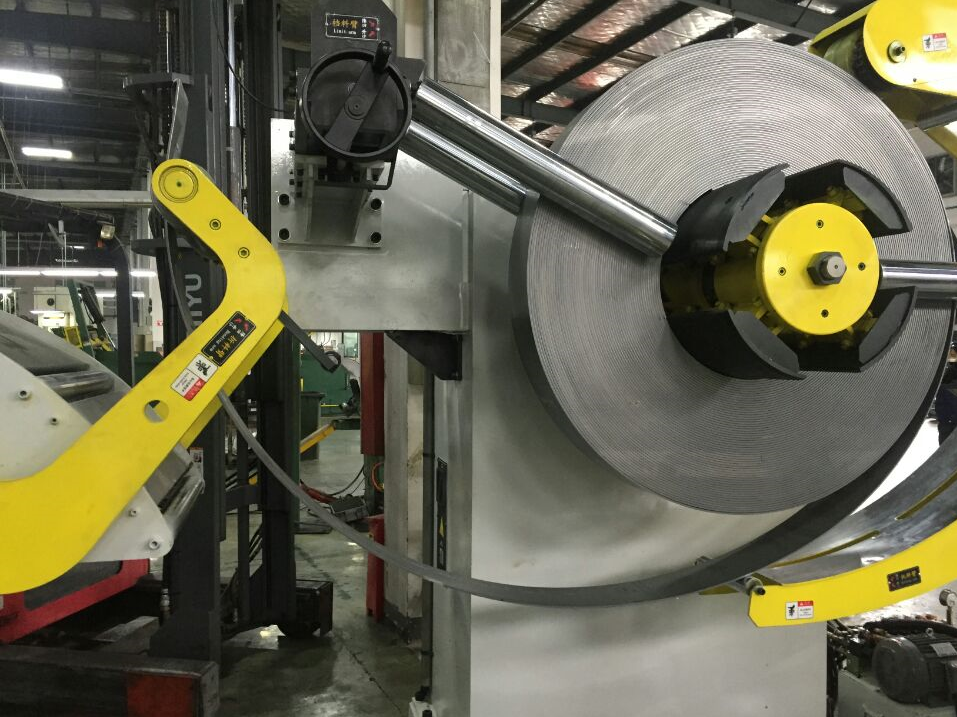

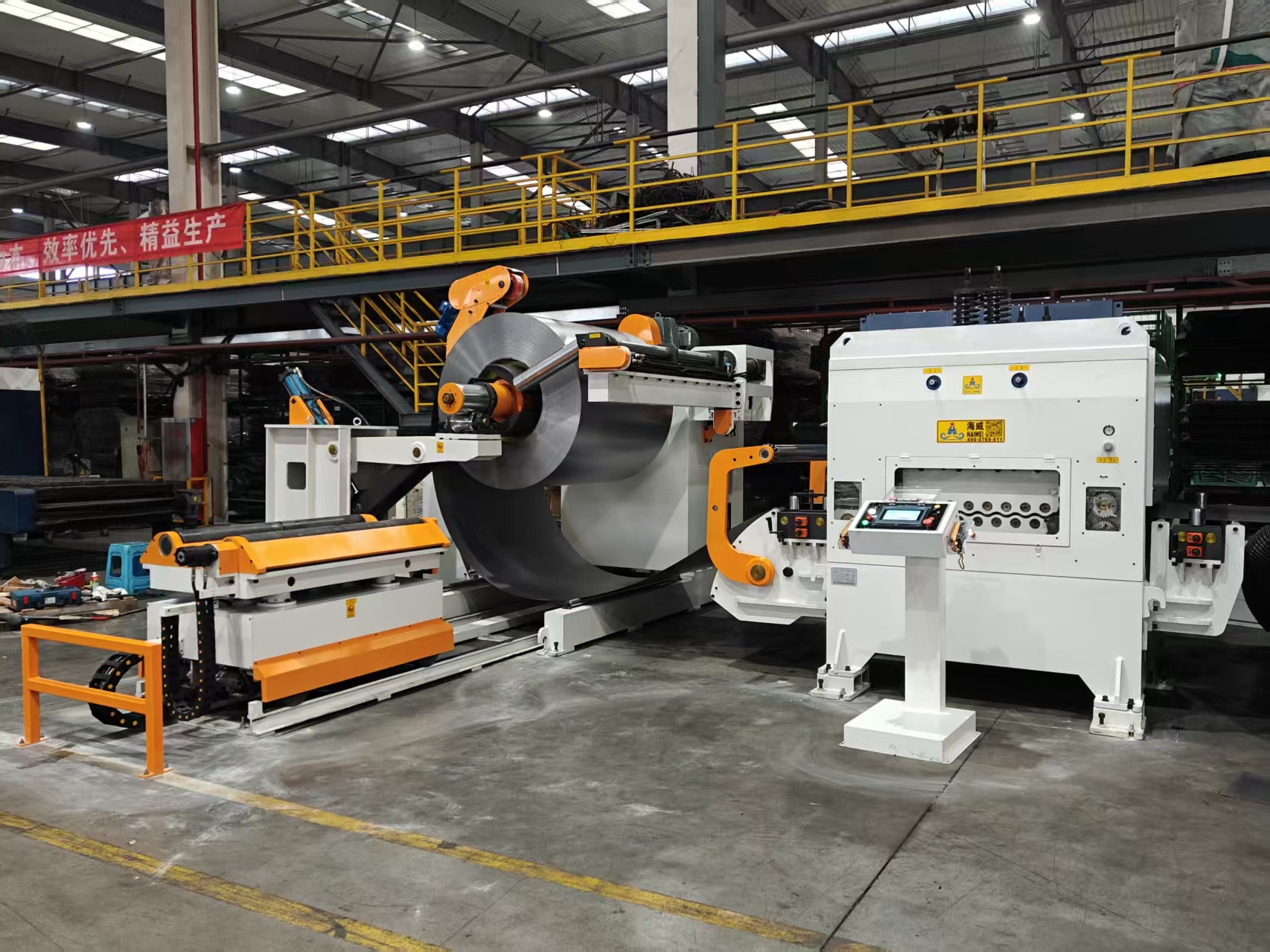

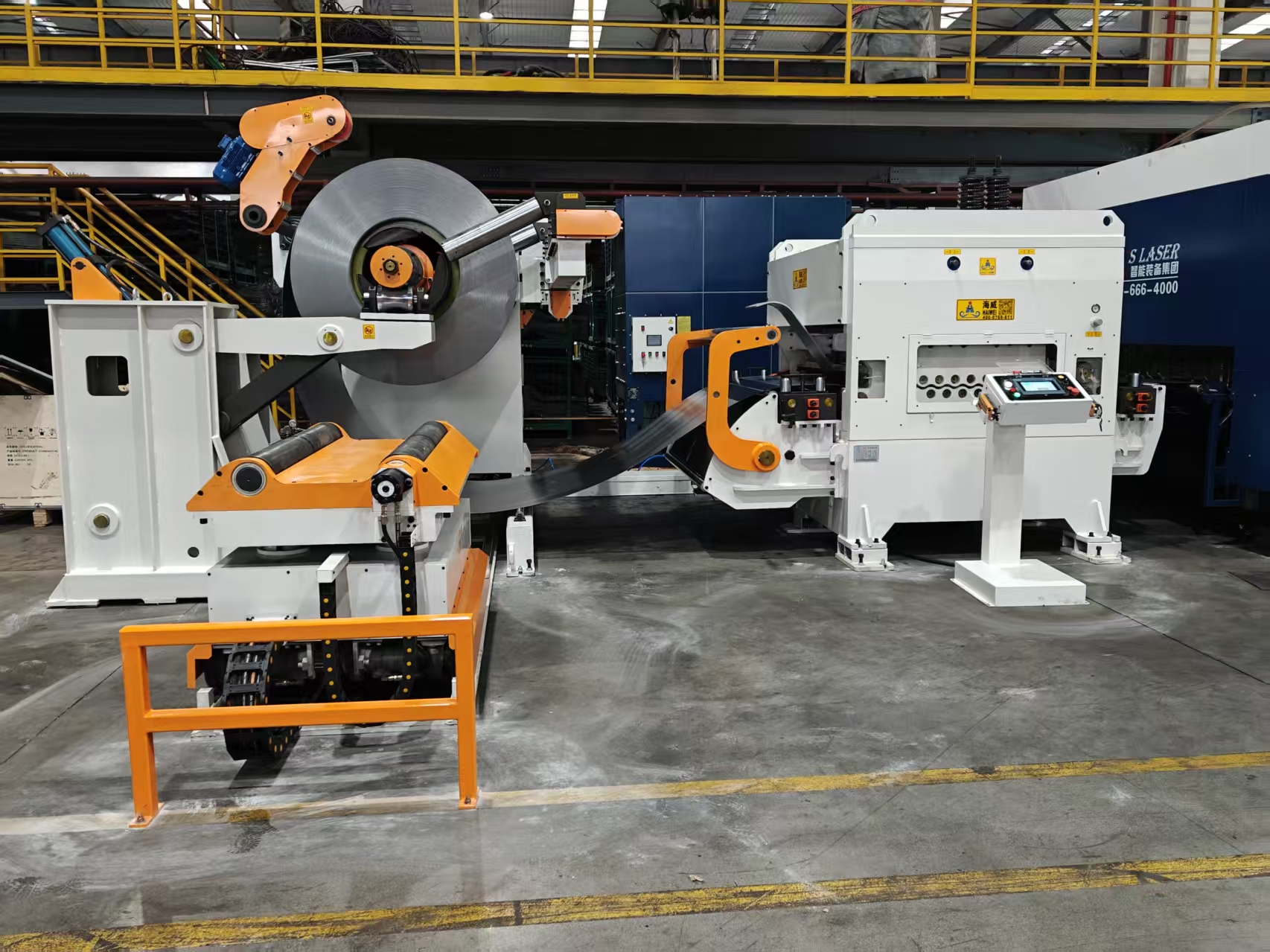

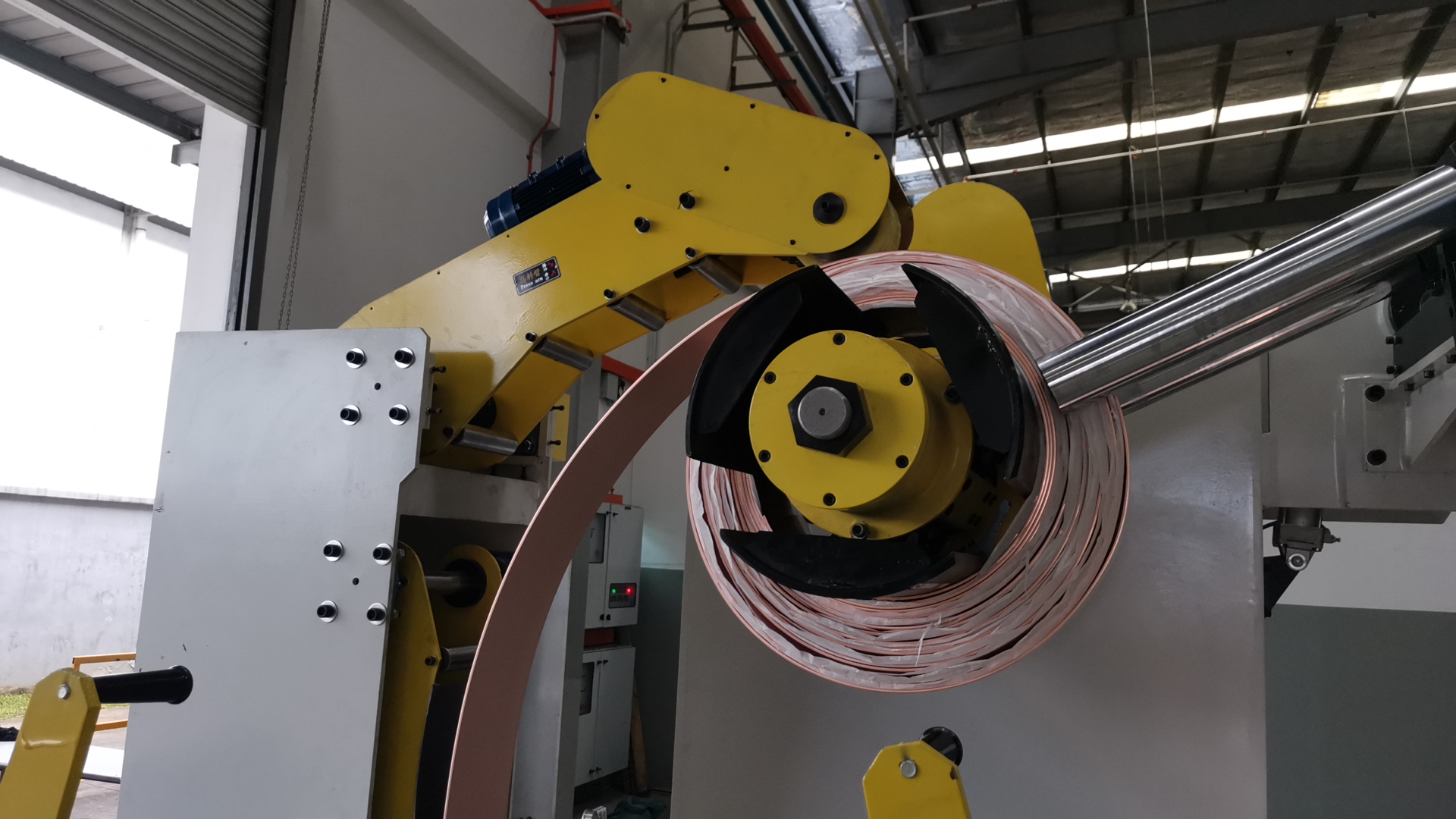

Uses unbending principles to release material bending stress. The strip head is assisted by a support arm and pressed down by the arm device, while motorized rollers feed the strip forwards through the straightener feeder.

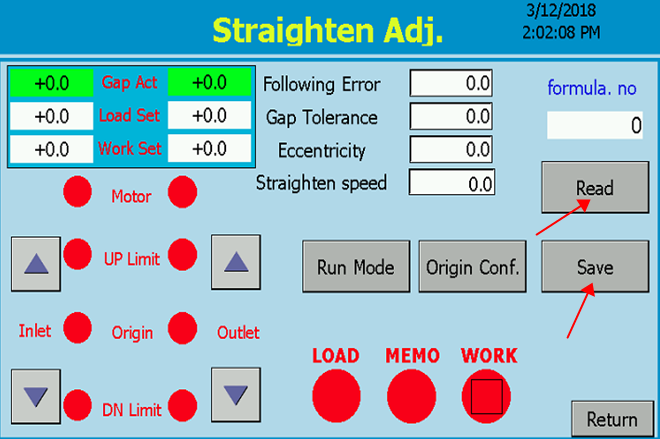

Driven by 2 sets of servo/hydraulic motors to adjust the gap. Data is set directly via the HMI. Includes a memory function to save and recall settings for different product codes and materials.

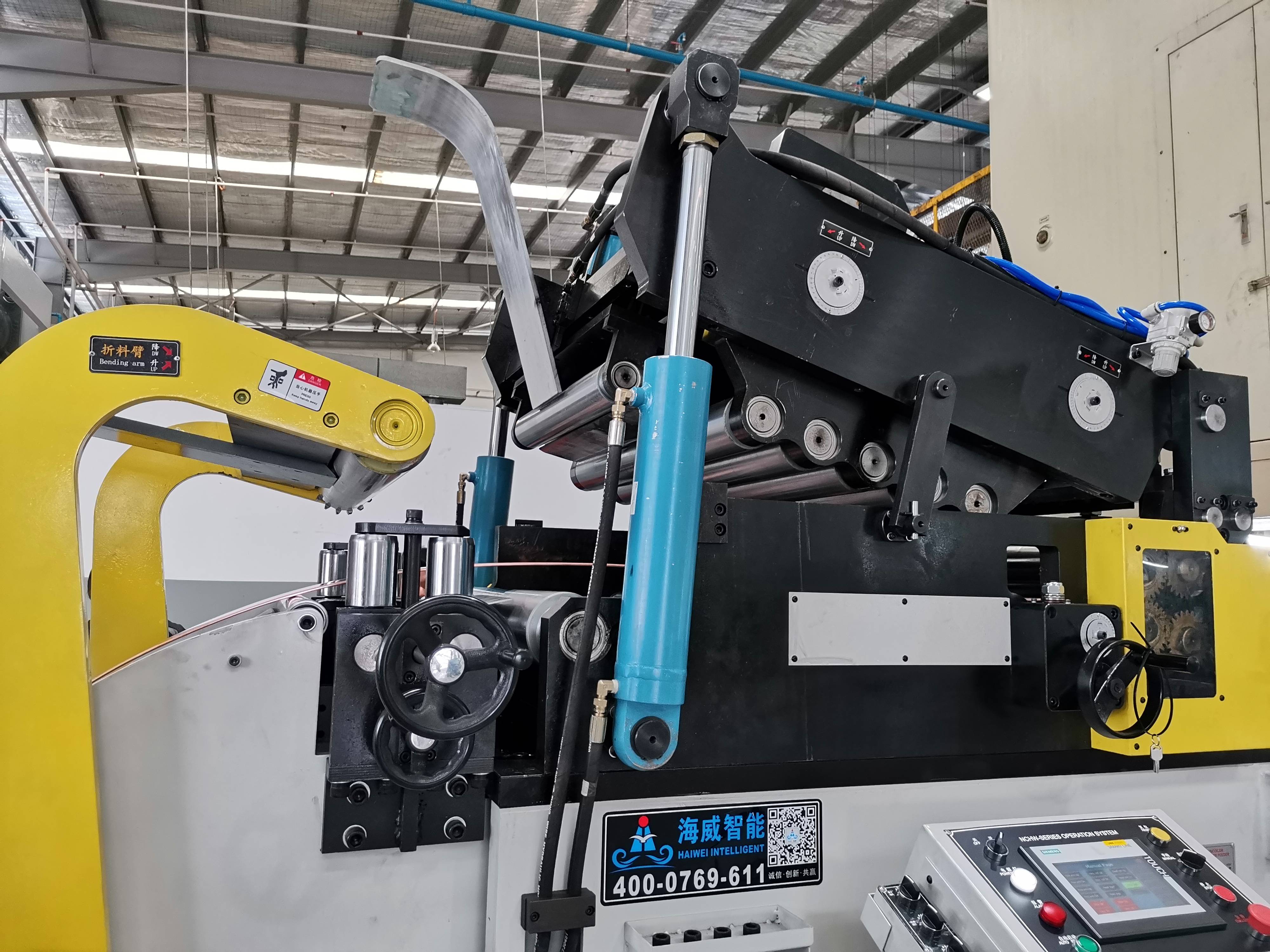

Opens the upper straightener at specific angles for easy cleaning of rollers. Ideal for soft materials like Aluminum or Brass where chippings may stick. Driven by hydraulic cylinders and fixed by 8 long screw rods.
Holds strips firmly when released by the decoiler to prevent loose coils. Equipped with a coil loop tracking device that adjusts wheel speed automatically based on the outer diameter for smooth payoff.
As a professional stamping automation equipment manufacturer, we integrate design, R&D, production, and after-sales services. Our products are widely applied in automotive, appliances, furniture, cookware, and hardware industries. With extensive experience in global commercial cooperation, we provide high-quality equipment including metal plate leveling machines, 3-in-1 decoiler straightener feeders, coil blanking lines, and various press transfers (2D, 3D, and long beam).
We have consistently provided industry-leading products for 13 years and are proud to be a preferred vendor for major auto parts suppliers serving brands such as Volkswagen, Toyota, Hyundai, IKEA, and more.
