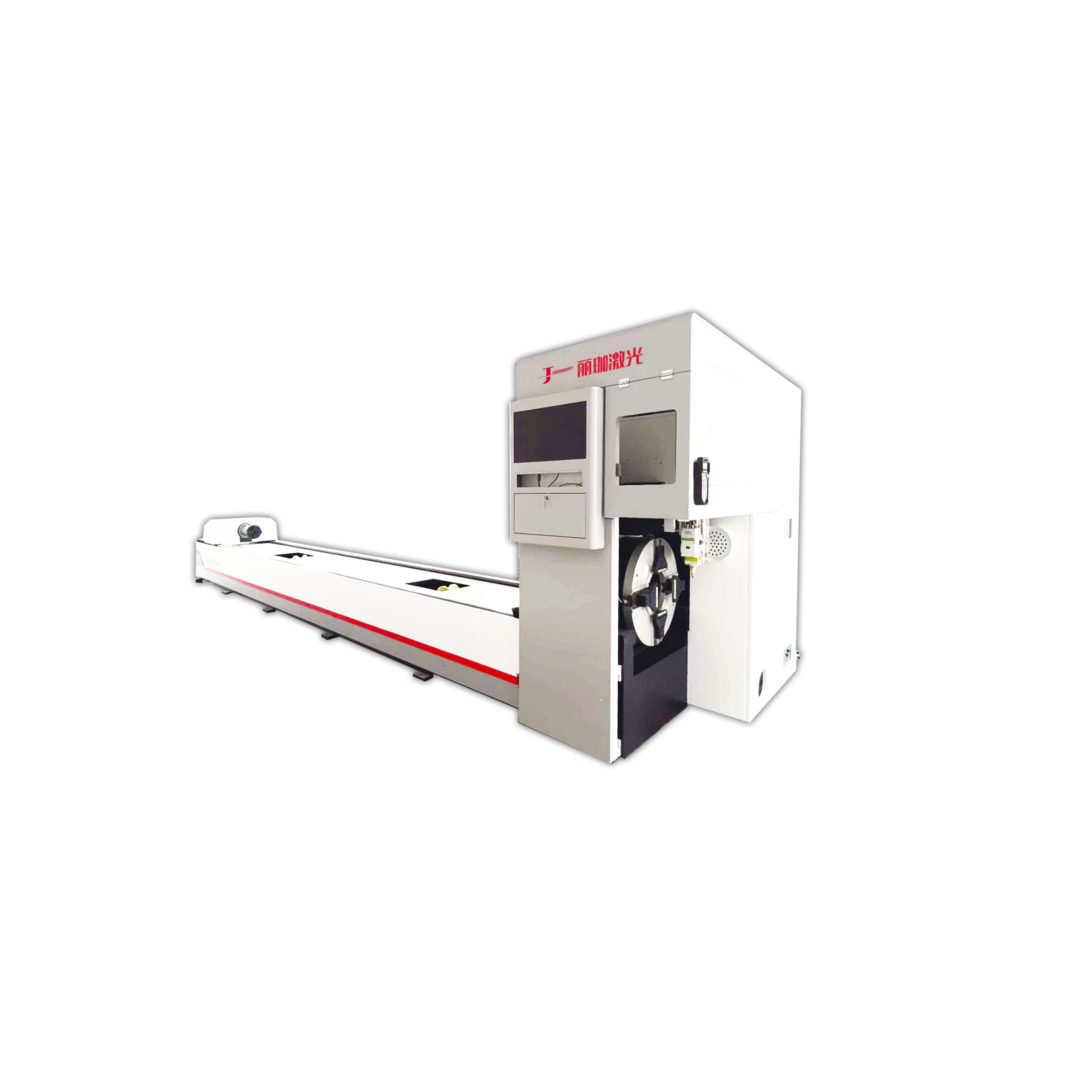

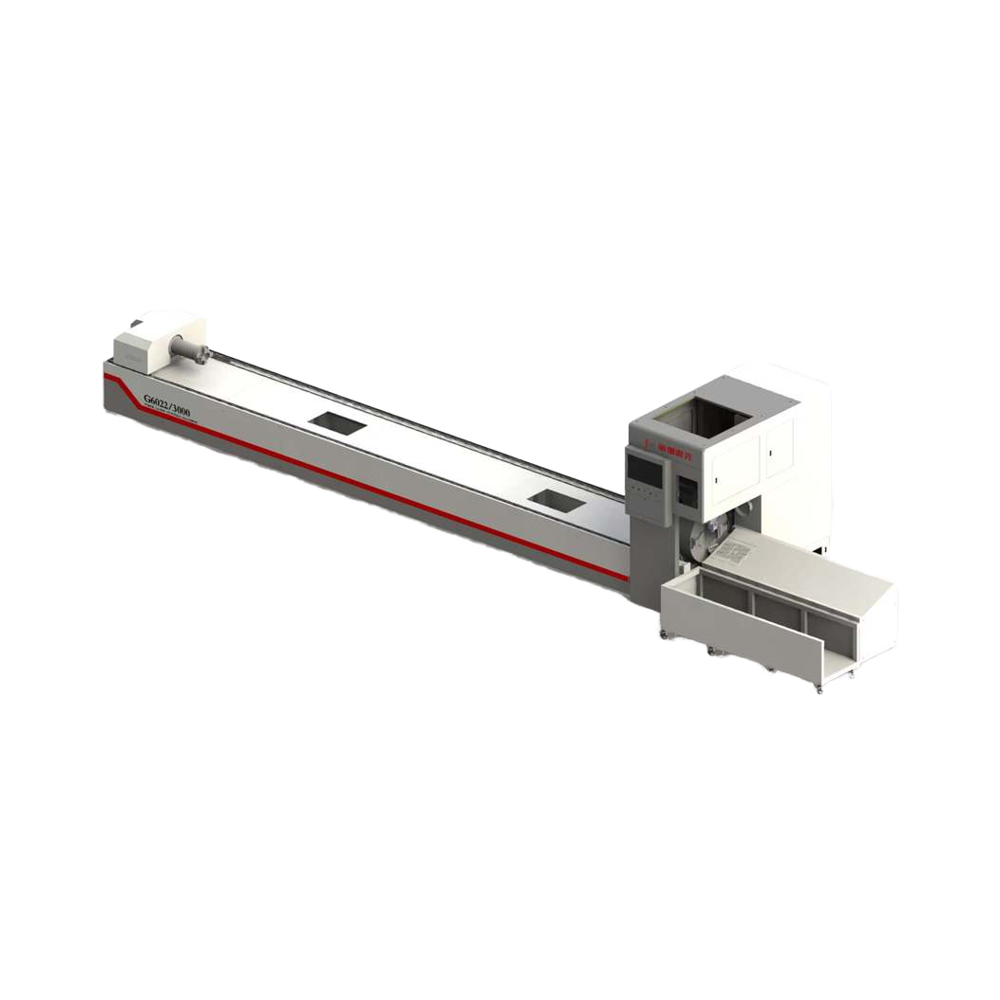

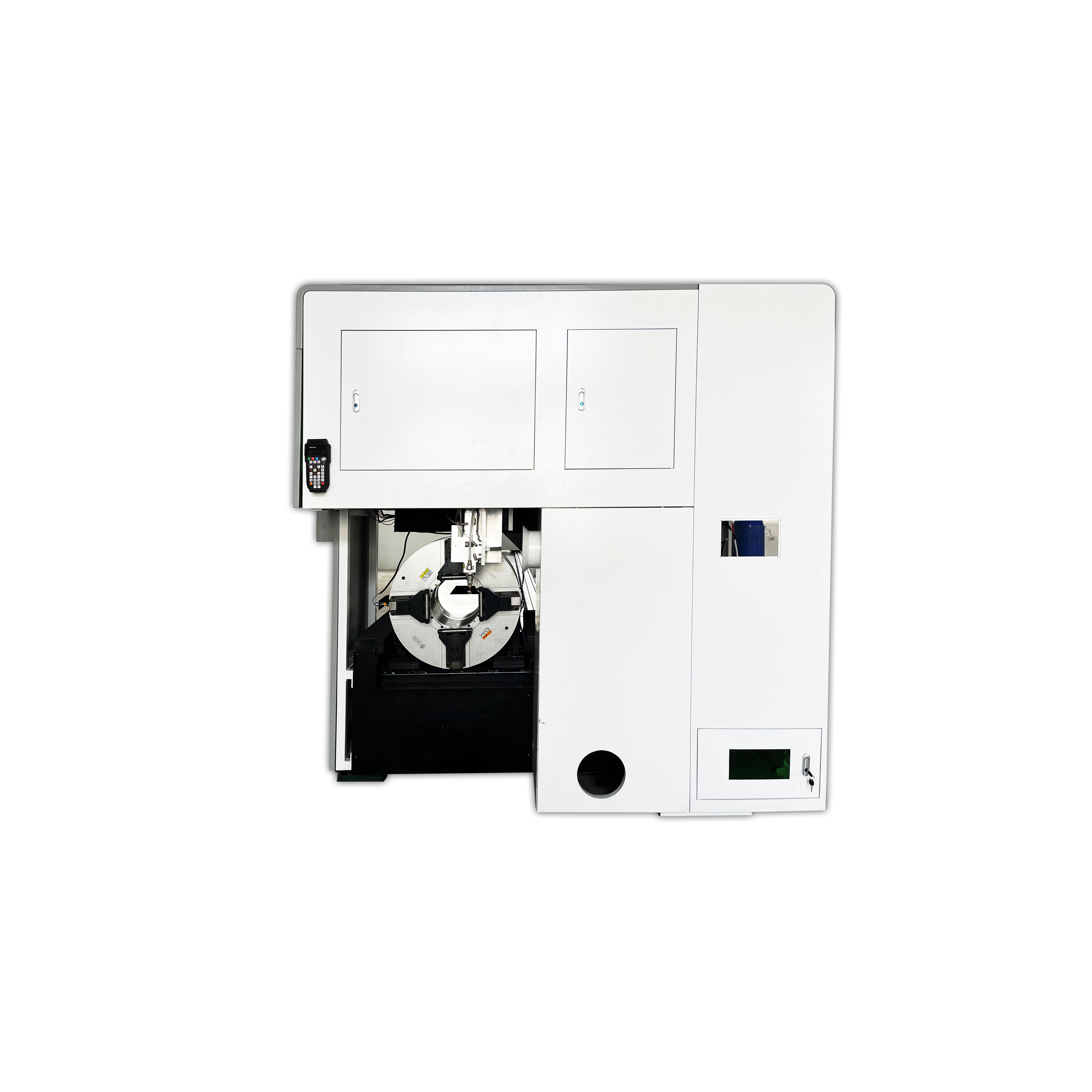

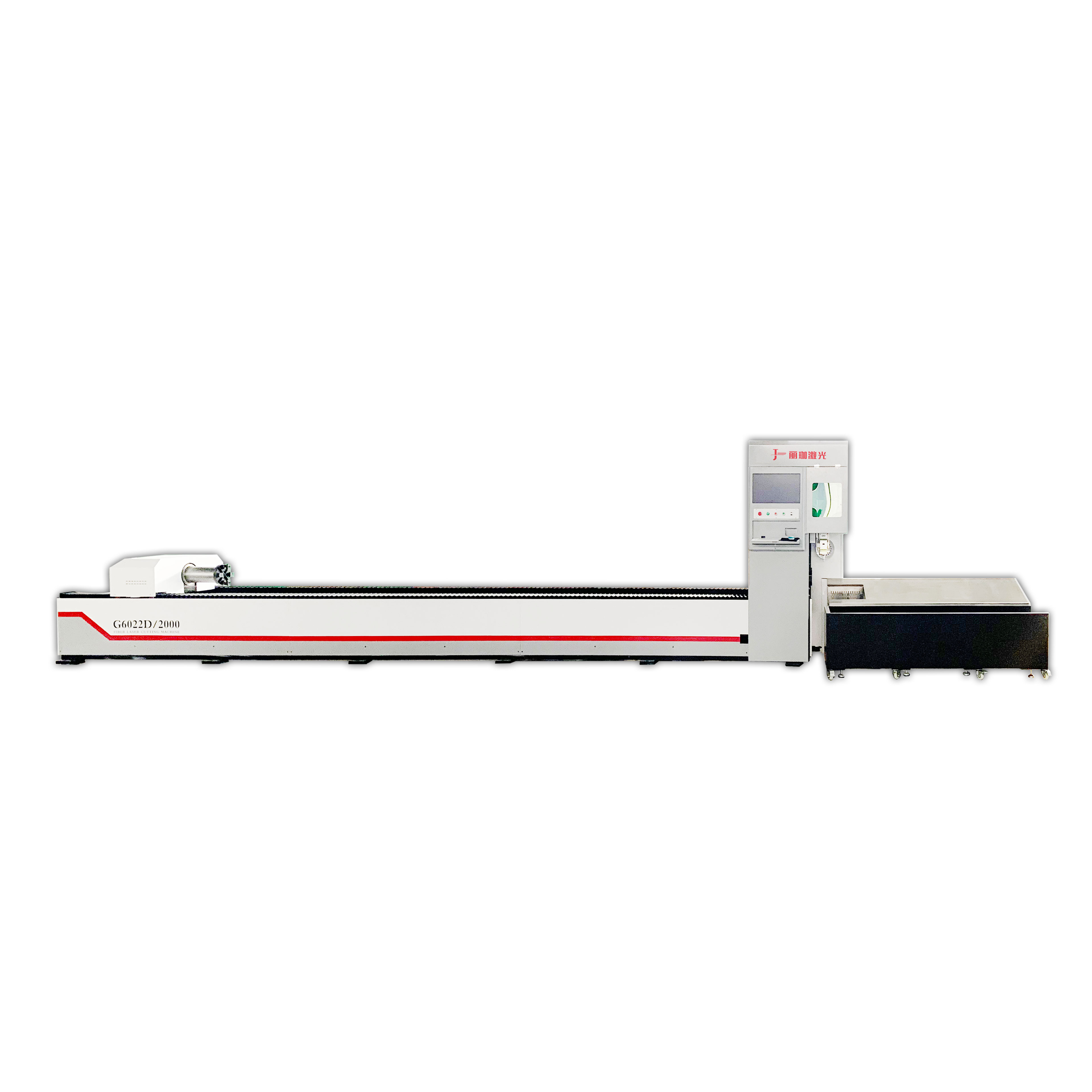

High Precision Automatic Horizontal Double Chuck Laser Cutting Machine for Metal Aluminum Copper Tubes Laser Cutting
High Precision Automatic Horizontal Double Chuck Laser Cutting Machine for Metal Aluminum Copper Tubes Laser Cutting
High Precision Automatic Horizontal Double Chuck Laser Cutting Machine for Metal Aluminum Copper Tubes Laser Cutting
High Precision Automatic Horizontal Double Chuck Laser Cutting Machine for Metal Aluminum Copper Tubes Laser Cutting
High Precision Automatic Horizontal Double Chuck Laser Cutting Machine for Metal Aluminum Copper Tubes Laser Cutting
1 / 5
High Precision Automatic Horizontal Double Chuck Laser Cutting Machine for Metal Aluminum Copper Tubes Laser Cutting
High Precision Automatic Horizontal Double Chuck Laser Cutting Machine for Metal Aluminum Copper Tubes Laser Cutting
High Precision Automatic Horizontal Double Chuck Laser Cutting Machine for Metal Aluminum Copper Tubes Laser Cutting
High Precision Automatic Horizontal Double Chuck Laser Cutting Machine for Metal Aluminum Copper Tubes Laser Cutting
High Precision Automatic Horizontal Double Chuck Laser Cutting Machine for Metal Aluminum Copper Tubes Laser Cutting

High Precision Automatic Horizontal Double Chuck Laser Cutting Machine for Metal Aluminum Copper Tubes Laser Cutting

Send Inquiry

Product Description

Laser Machine Overview
Cutting Detail 1
Cutting Detail 2
Technical Layout
Laser generator 1000W-6000W
Pipe cutting range 6000/9000/12000 (unit: mm)
Chuck 130/175/245/290 (unit: mm)
Laser wavelength 1070nm
Tailing length 180mm
Positioning accuracy of axes X&Y ± 0.05mm
Positioning accuracy of axes B1 & B2 ± 0.05°
Pipe cutting type Square tubes, round tubes, angle steels, I-beams, channel steels, etc
Power supply 380V
Components Diagram
BOCI Laser Head
🔥 BOCI Laser cutting head
1. Water Cooling
2. Protective window temperature monitoring
3. Gas Pressure Monitoring Sensor
4. Amplifier Sensor
5. Fast Focusing
6. Collision Protection
FSCUT System
🔥 FSCUT system
1. Error measurement
2. Centering of special steel
3. Centering of single side
4. Nesting software
MAX Laser Generator
🔥 MAX laser generator
1. High brand recognition
2. High beam quality & Compact structure
3. High photoelectric conversion efficiency
4. 100,000 hours service life laser generator
Inovance Servo Motor
🔥 Inovance servo motor
1. High-precision position control
2. Easy to disassemble and install
3. Easy to maintain
4. Low maintenance cost
MOTOVARIO Reducer
🔥 MOTOVARIO reducer
1. Adopting efficient transmission design
2. Compact structure, saving space
3. Low noise during operation
4. Made of high-quality materials for harsh environments
YYC Rack
🔥 YYC rack
1. High grinding precision
2. Small minimum error between teeth
SHAC Rack
🔥 SHAC rack
1. Smooth and stable cyclic motion
2. Suitable for high-speed motion control
3. Long service life
S&A Water Chiller
🔥 S&A Water Chiller
1. Dual cooling function
2. Real-time alarm system
3. Integrated machine protection
4. Stable cooling and easy operation
Machine Structure
Work Environment
Cutting Sample Showcase
What types of pipes can this laser machine cut?
The machine is highly versatile and can cut square tubes, round tubes, angle steels, I-beams, and channel steels.
What is the maximum power range available?
We offer a power range from 1000W up to 6000W to suit different material thicknesses and production speeds.
How accurate is the positioning of the machine?
The positioning accuracy for X and Y axes is ±0.05mm, ensuring high precision for complex industrial tasks.
What is the advantage of the MAX laser generator?
The MAX laser generator provides high photoelectric conversion efficiency and an impressive service life of up to 100,000 hours.
Does the machine include a cooling system?
Yes, it comes equipped with an S&A Water Chiller which features dual cooling functions and real-time alarms for machine protection.
What is the minimum tailing length?
The machine is designed for efficiency with a short tailing length of only 180mm, reducing material waste.
