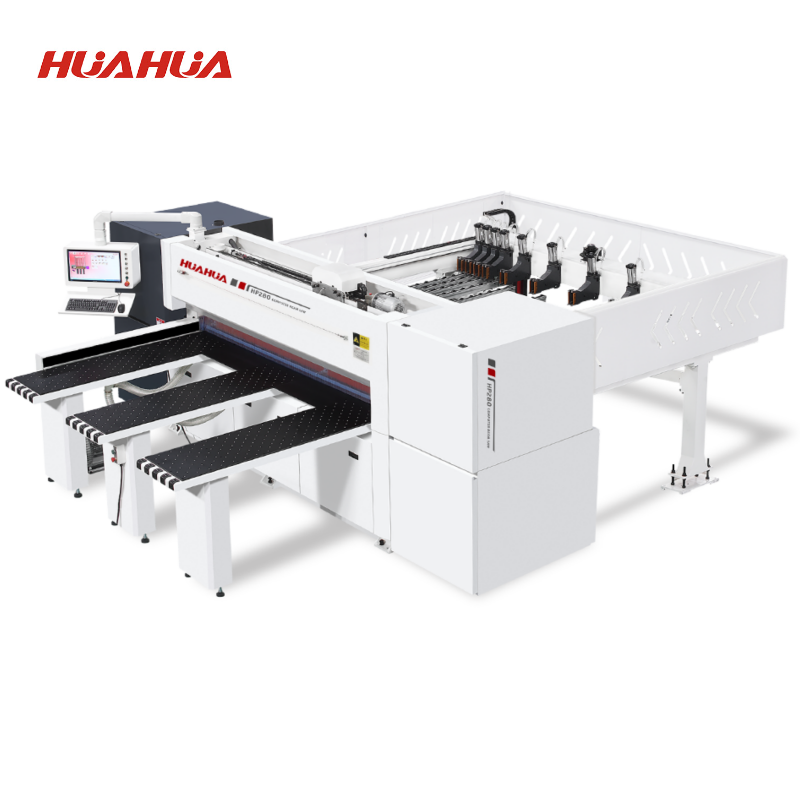

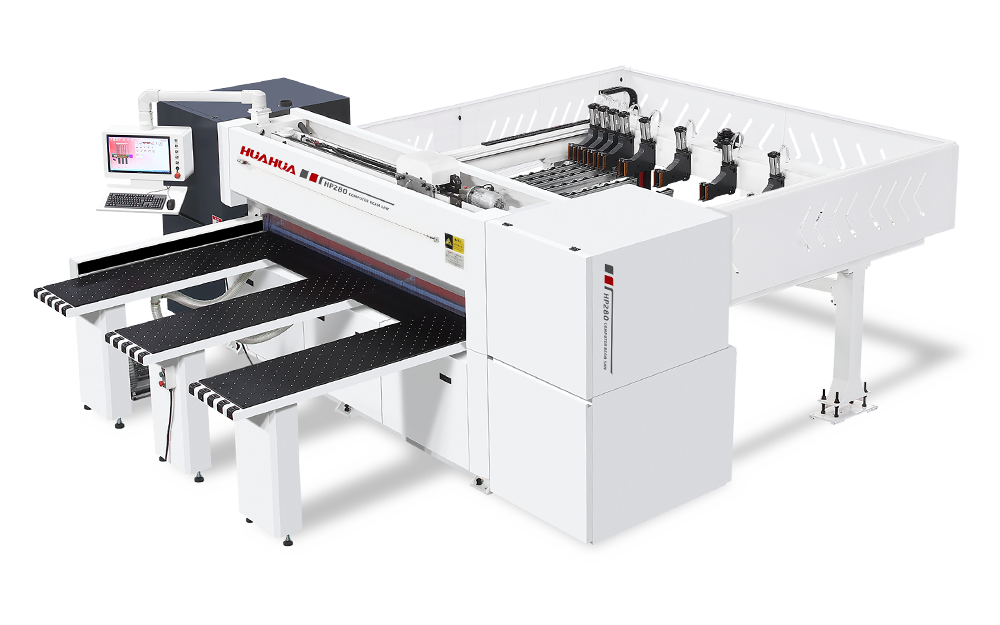

Datum Machine
Datum Machine

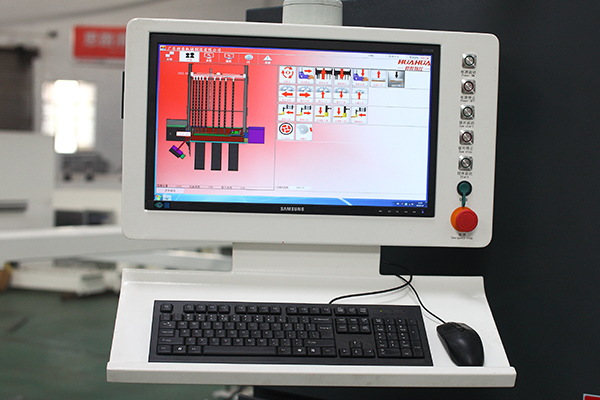

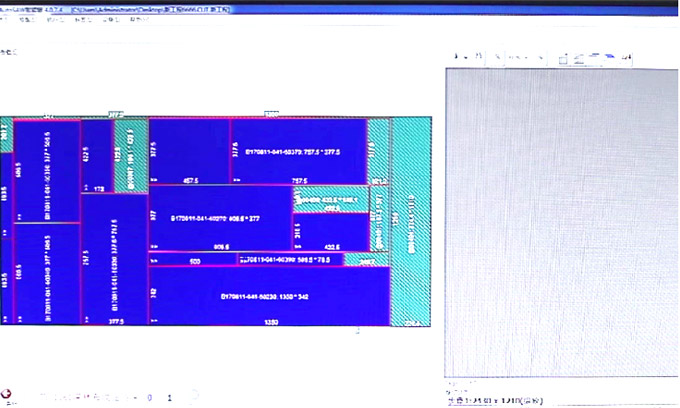

Automatic calculate system, layout system, and remains management. Greatly enhance productivity, reduce costs, and improve panel utilization.

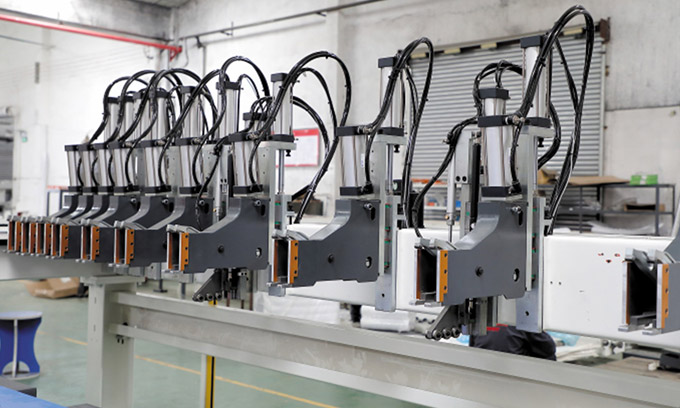

Industry-leading two-finger clamping structure. Panel is clamped by air cylinder via roller conveyor to ensure accuracy without damaging the surface.

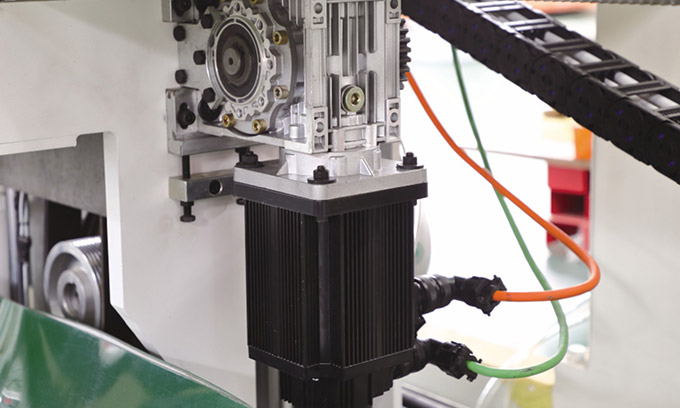

Equipped with 2kw servo motor and precision gear reducer for high efficiency and stable cutting performance.

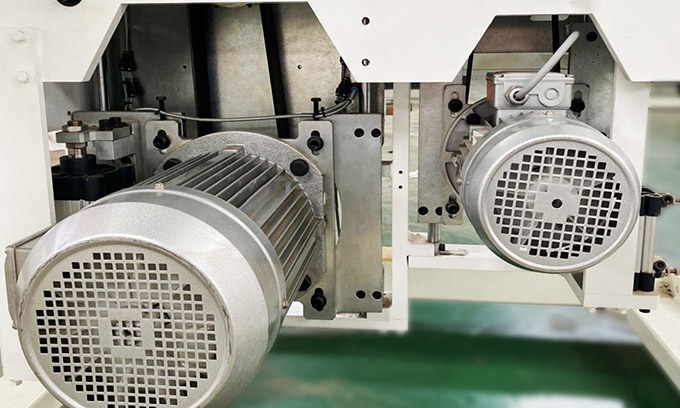

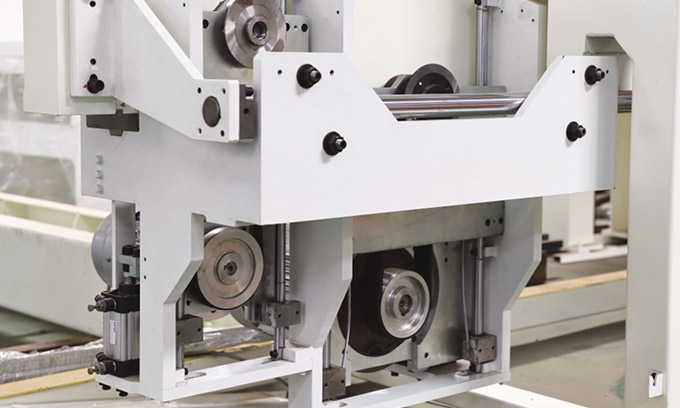

Independent lift for main and scoring saws. Auto-positioning based on thickness. Standard 18.5kw main motor with fast blade replacement.

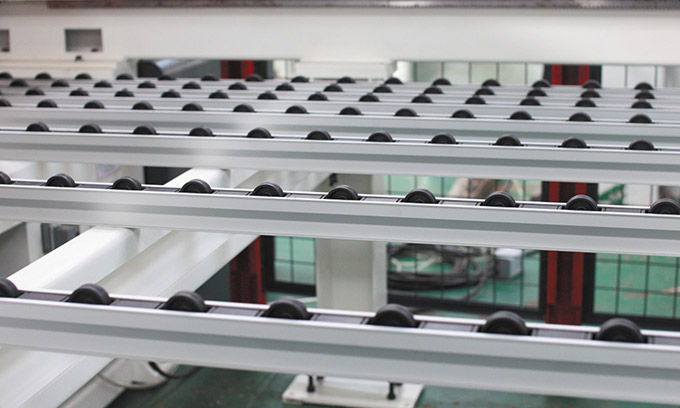

Assists panel movement while protecting the surface from scratches. Makes moving heavy panels effortless.
18.5kw motor, 4000rpm main shaft speed. Precision reducer adjusts cutting height automatically based on panel thickness.

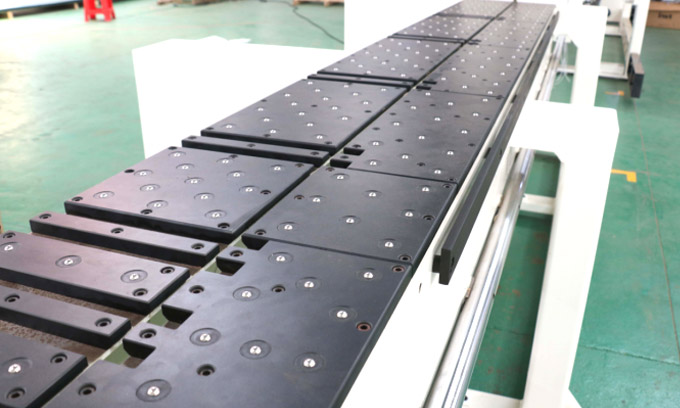

Air floating bead design for easy movement. Upgraded narrow bench design prevents deformation and ensures clean edge cutting.
| Max. cutting length | 2800mm | Saw carrier motor | 2kw (AC Servo) |
| Max. cutting thickness | 120mm | Automatic feeding motor | 2kw (AC Servo) |
| Main saw blade | Φ380mm (option 450mm) | High-pressure blower | 3kw + 2.2kw |
| Main saw shaft dia. | Φ75mm | Side aligner motor | 0.25kw |
| Rotation speed | 4000rpm | Total power | 30.15kw |
| Scoring saw blade | Φ200mm | Feeding speed | 85m/min |
| Saw carriage forward | 0-100m/min | Air pressure | 5-7kg/cm² |
| Main saw motor | 18.5kw | Net weight | 5300kg |
