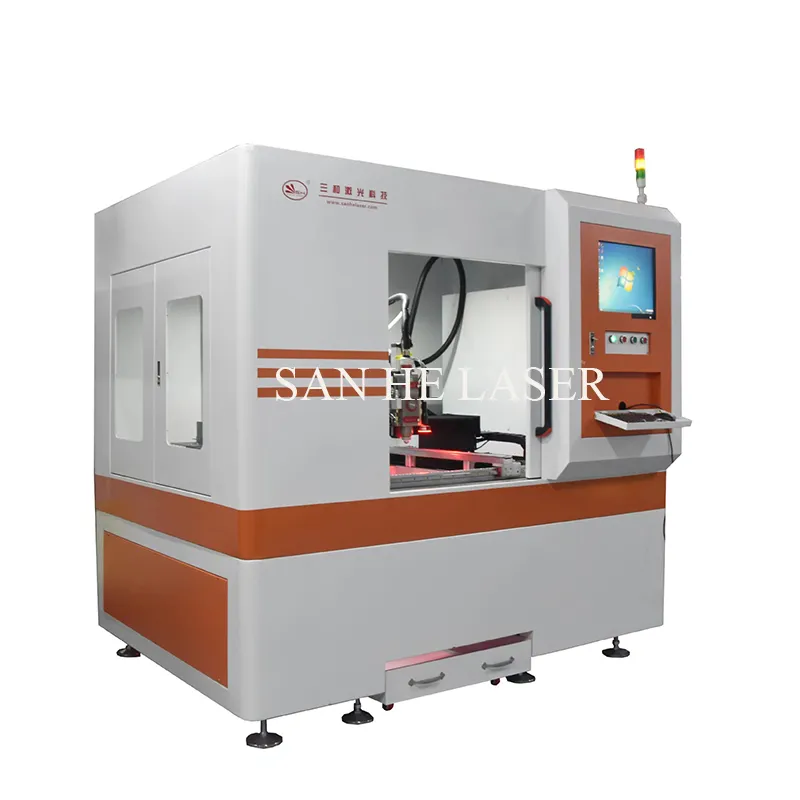

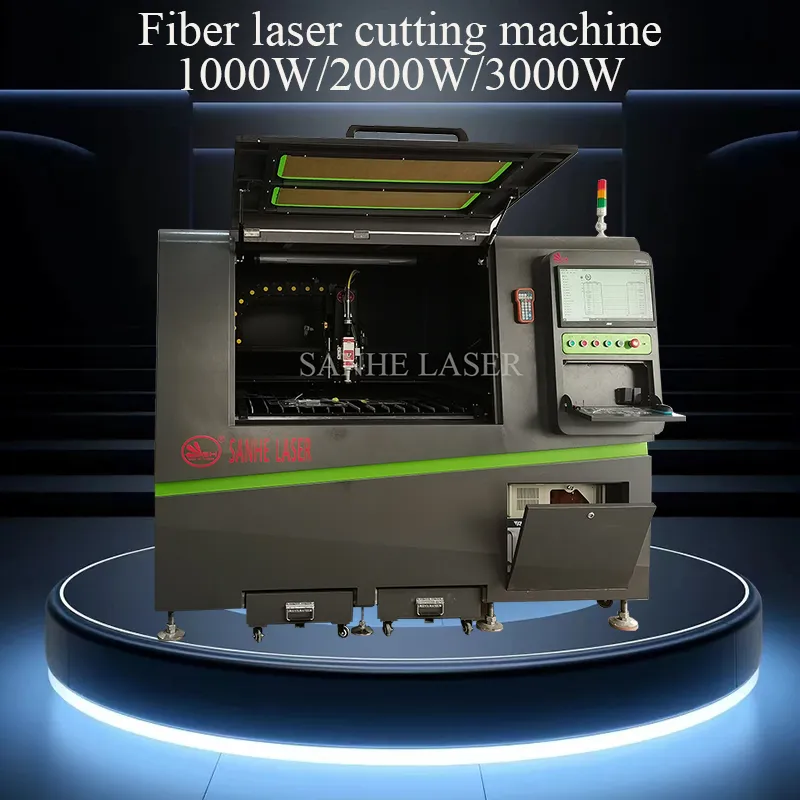

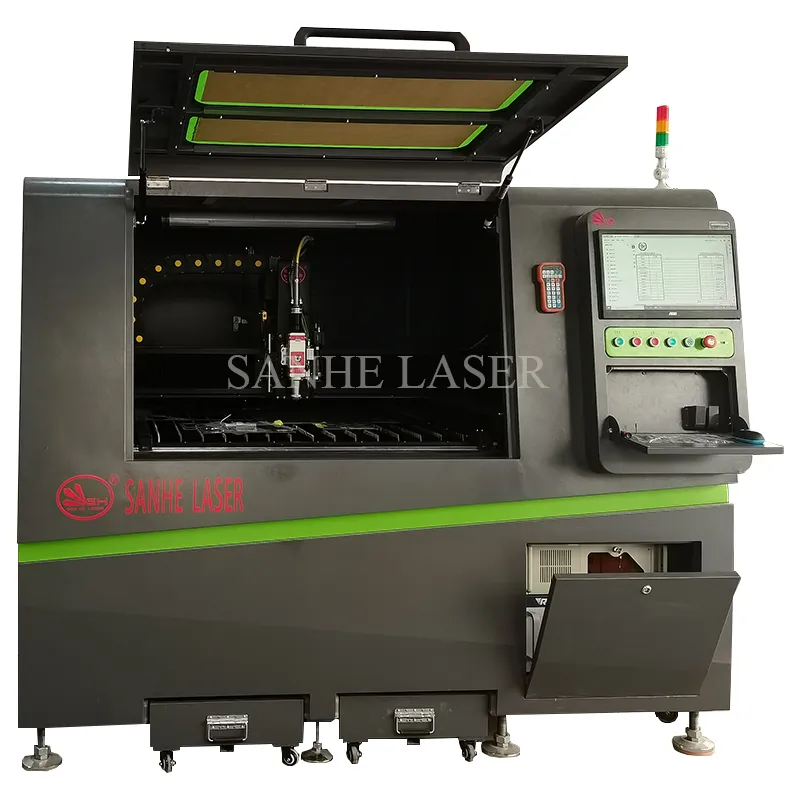

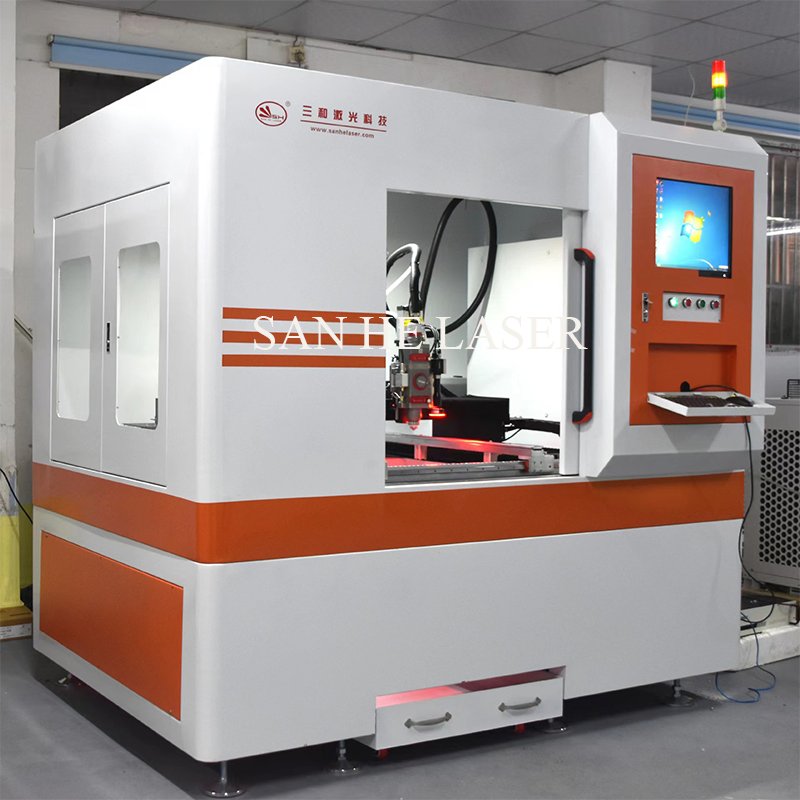

Datum Machine
Datum Machine

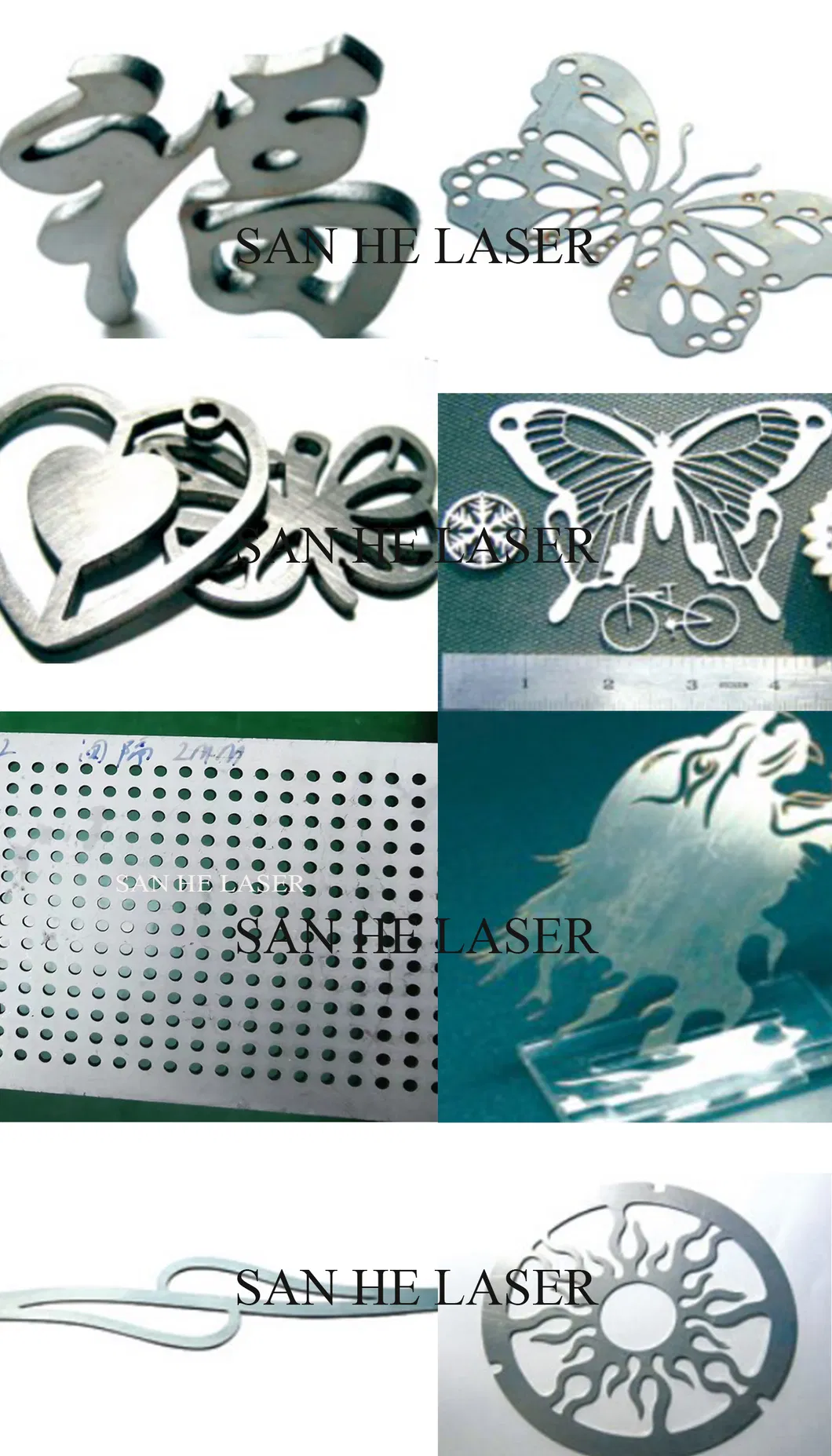

It is especially suitable for stainless steel, iron plate, diamond saw blade and other materials. It has good processing effect for all kinds of hard and brittle alloys. In sheet metal industry, laser cutting technology can partly replace punch and wire cutting. Suitable for cabinet, hardware, advertising, elevator manufacturing, household appliances, automobile manufacturing, aerospace, construction machinery and other industries.
| Model | 3HE-MF1000W / 3HE-MF2000W |
| Laser power | 1000w / 2000w |
| Laser Technology | Germany Technology |
| Working Area | 800*600mm |
| Axis Stroke | 800*600*150mm (X*Y*Z) |
| Max. Cutting Thickness | 12MM / 20MM |
| Laser Type | Imported Fiber Laser |
| Transmission Way | Imported ball screw |
| Table-driven System | Japanese Panasonic Servo motor & Driver |

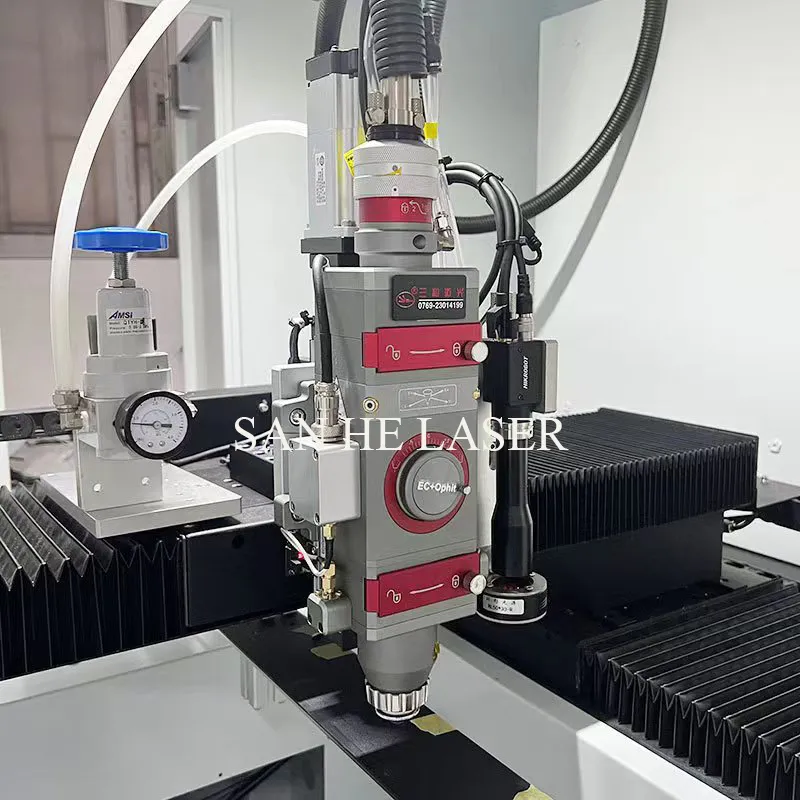

| Focus Method | Dynamic Following and Automatic Adjust Focus |
| Location Precision | ≤±0.05mm |
| Re-location Precision | ±0.02mm |
| Max. Moving Speed | 100m/min |
| Power Demand | 380v/50Hz |
| Supporting Format | PLT, DXF, BMP, AI |

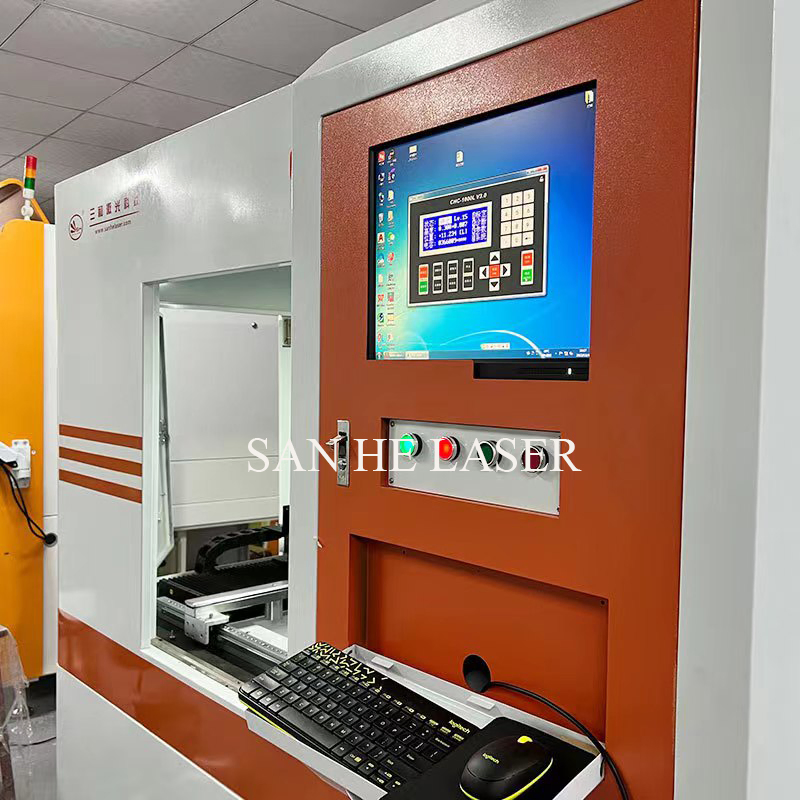

| Control Software | Professional Laser Cutting Software |
