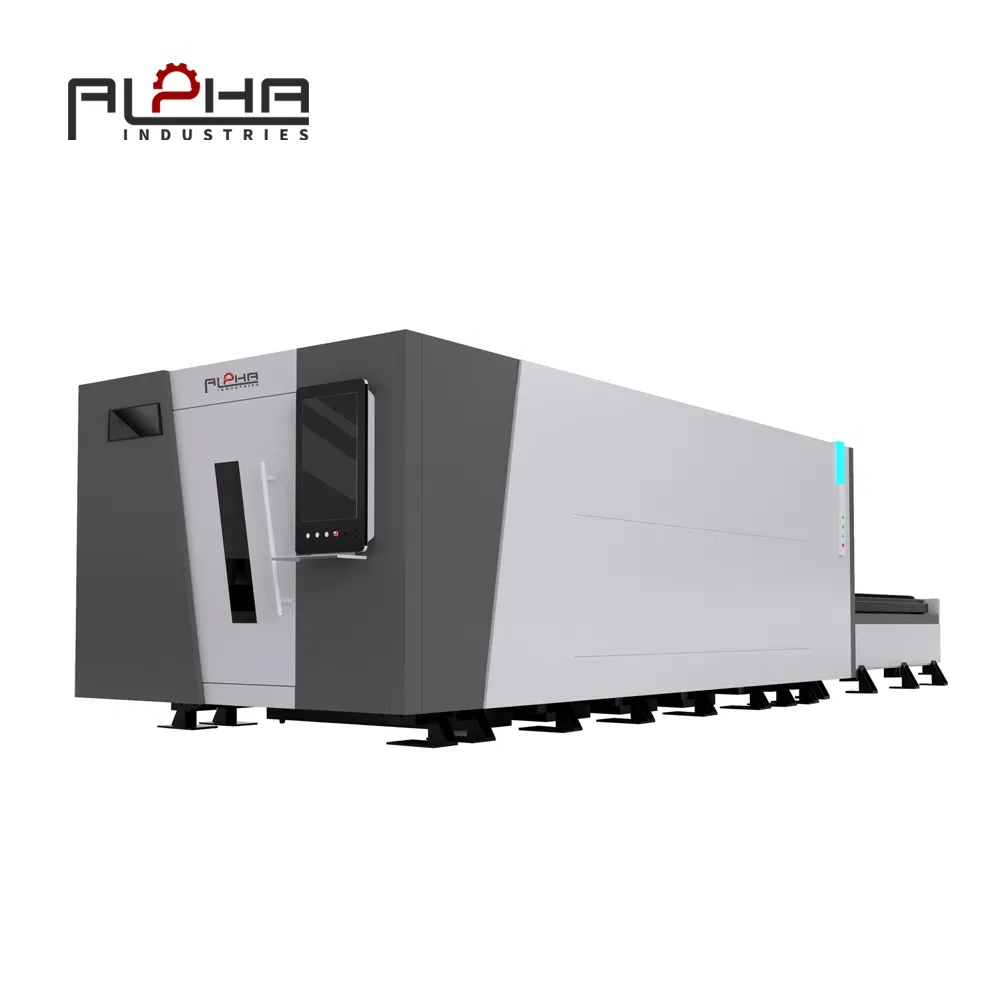

Overview & Basic Information
| Model NO. |
3015 |
| Application |
Environmental Equipment, Agriculture Machinery, Food Machinery |
| Cooling System |
Water Cooling |
| Technical Class |
Continuous Wave Laser |
| Applicable Material |
Metal |
| Structure Type |
Gantry Type |
| Laser Classification |
Solid Laser |
| Laser Technology |
Thermal Cutting |
| After-Sales Service |
7X24 Hours |
| Certification |
CE |
| Production Capacity |
100 Sets/Year |
| Package Size |
2.45cm * 1.75cm * 1.70cm |
| Package Gross Weight |
2000.000kg |
Technical Parameters
| Specification Item |
Details |
| Work area | 3000*1500mm |

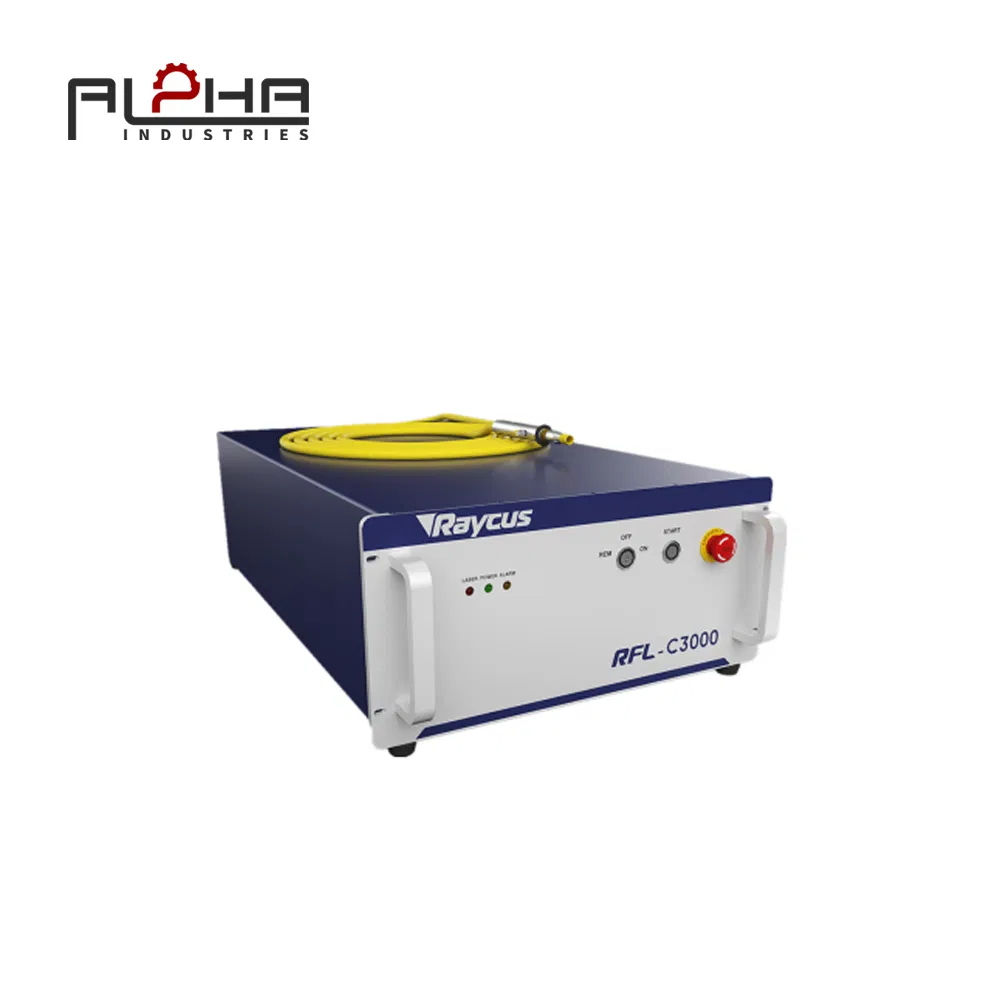

| Laser power | RAYCUS 3KW |
| Control system | FSCUT2000E control system |
| Laser head | Raytools BM110 |

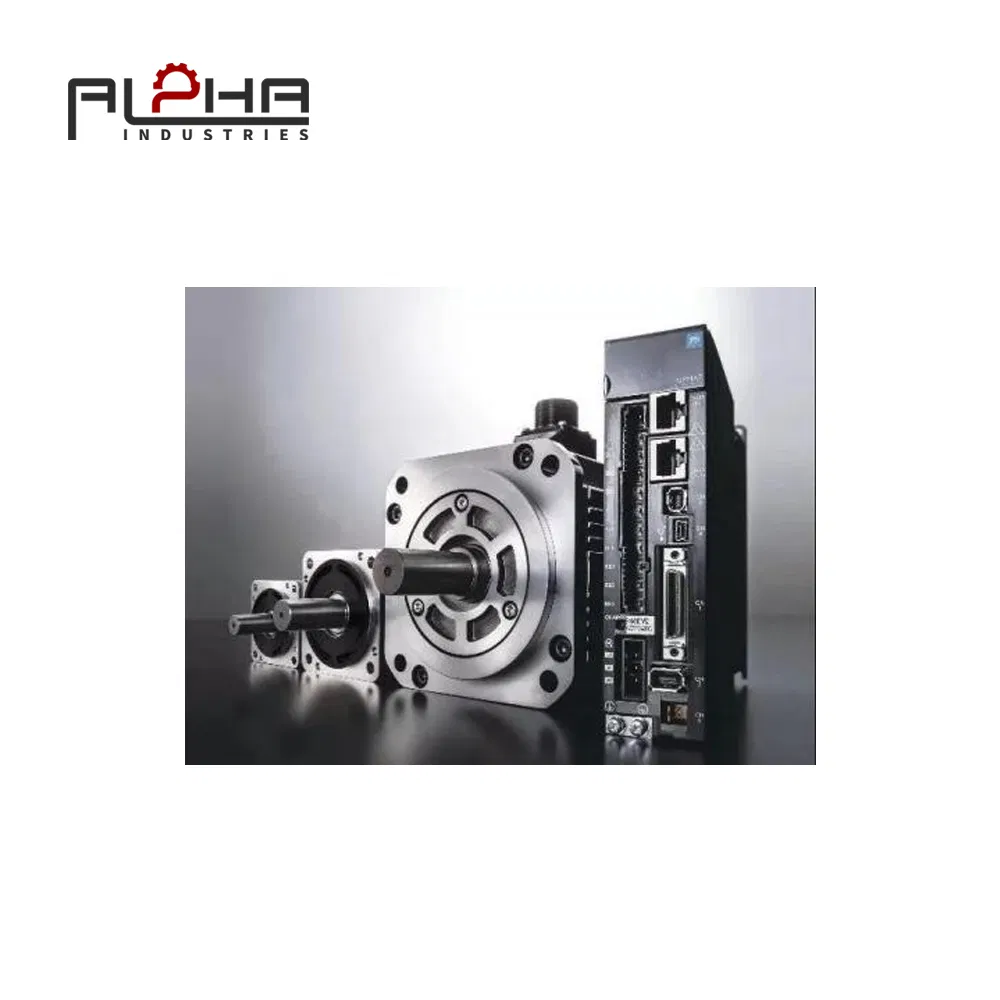

| Servo motor and drivers | YASKAWA |

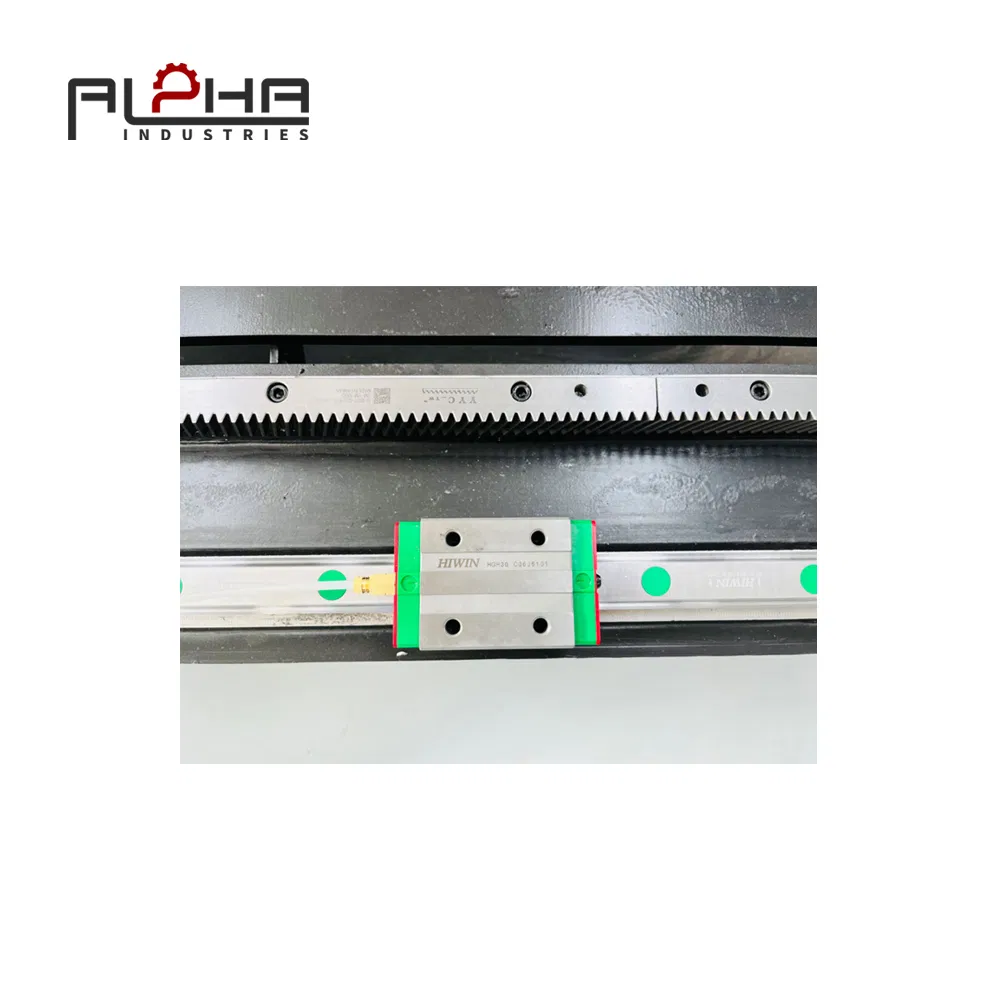

| Guide Rails | SMAGIC |
| Rack and gear | SMAGIC |
| Reducer | Germany Techmech |
| Water Chiller | Hanli 3KW |

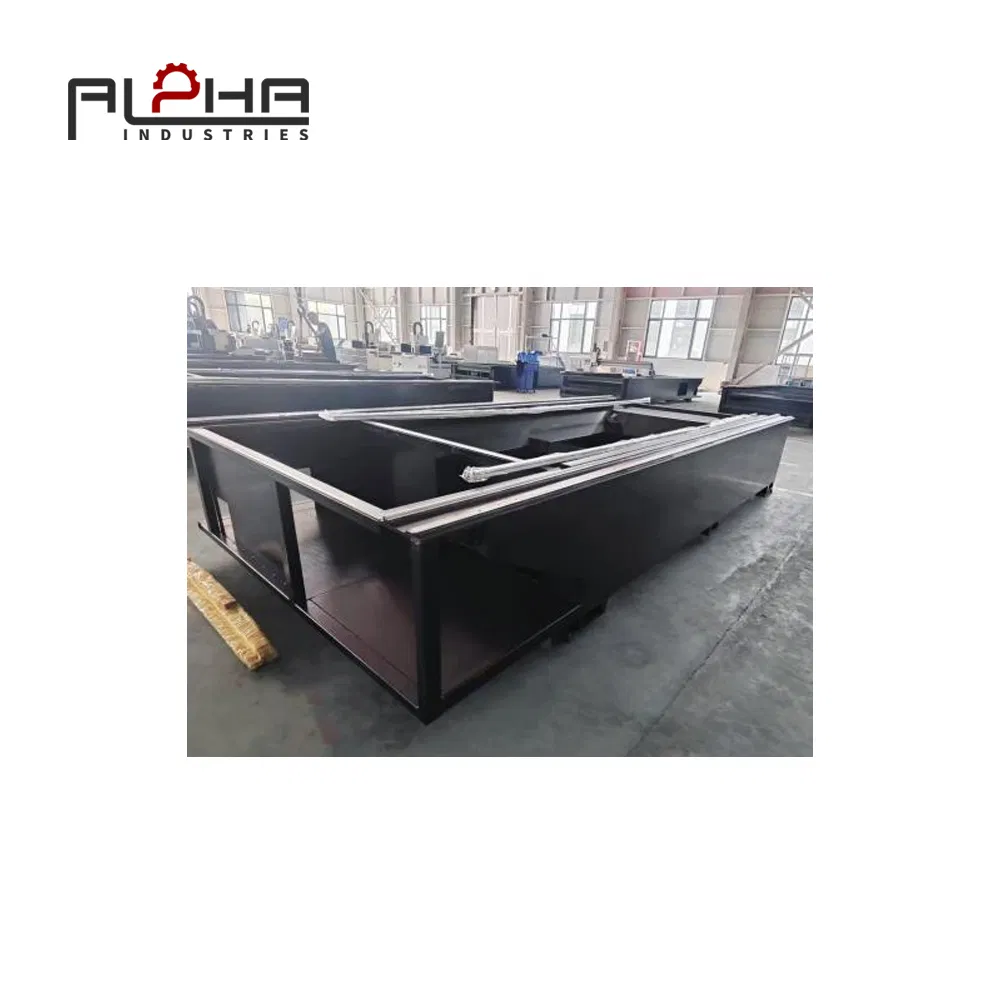

| Machine body | 6mm plate welded heavy duty machine body |
| Lubrication | Automatically Lubrication System |
| Pneumatic components | Japan SMC |
| Voltage | 380V 3PH 50Hz |
| Max.Idle Running Speed | 120M/min |
| Geometric Position Accuracy | Within ±0.05mm/M |
| Reorientation Accuracy | Within ±0.03mm/M |
| Machine Weight | About 5900KG |
| Machine size | 8403mm*3005mm*2281mm |
Certifications & Global Exhibition
Frequently Asked Questions
How is the warranty for the equipment?
The warranty period is 15 months after the BL date.
Can we visit the factory before placing an order?
Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Do you have the machines in stock?
We maintain stock for popular models, while others are produced according to specific orders.
What is the Minimum Order Quantity (MOQ)?
The MOQ is just one set.
How do you ensure product quality?
We operate under ISO9001:2008, ISO14001, and OHSAS18001 systems. Most products are approved by European and American safety standards, including CE, GS, EMS, and UL. Our products are exported to more than 40 countries, maintaining a high reputation.
Can you provide customized machine solutions?
Yes, we have professional engineers and designers who can design and manufacture equipment according to your specific requirements.
