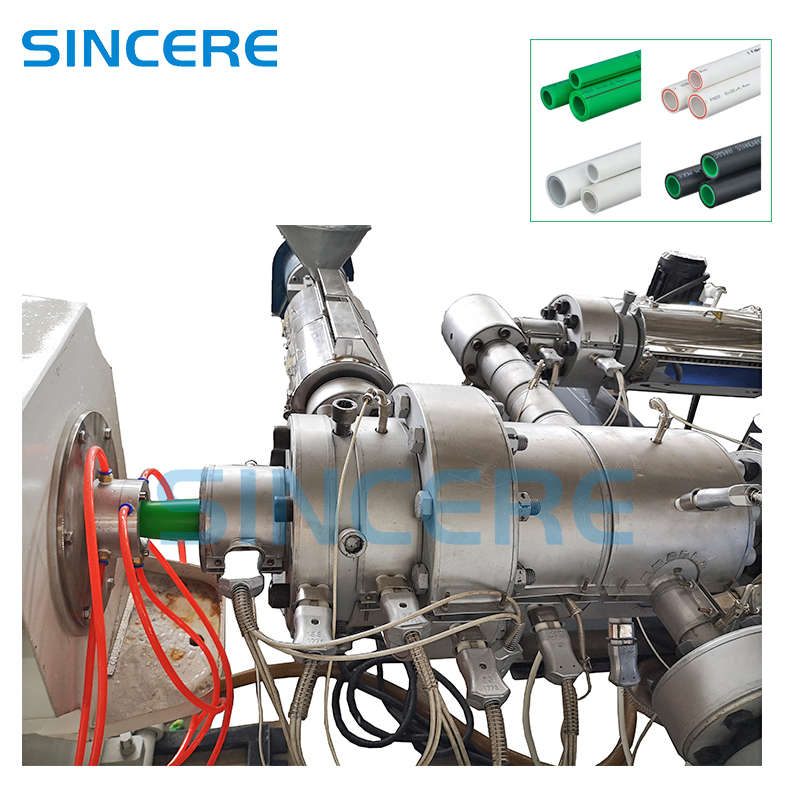

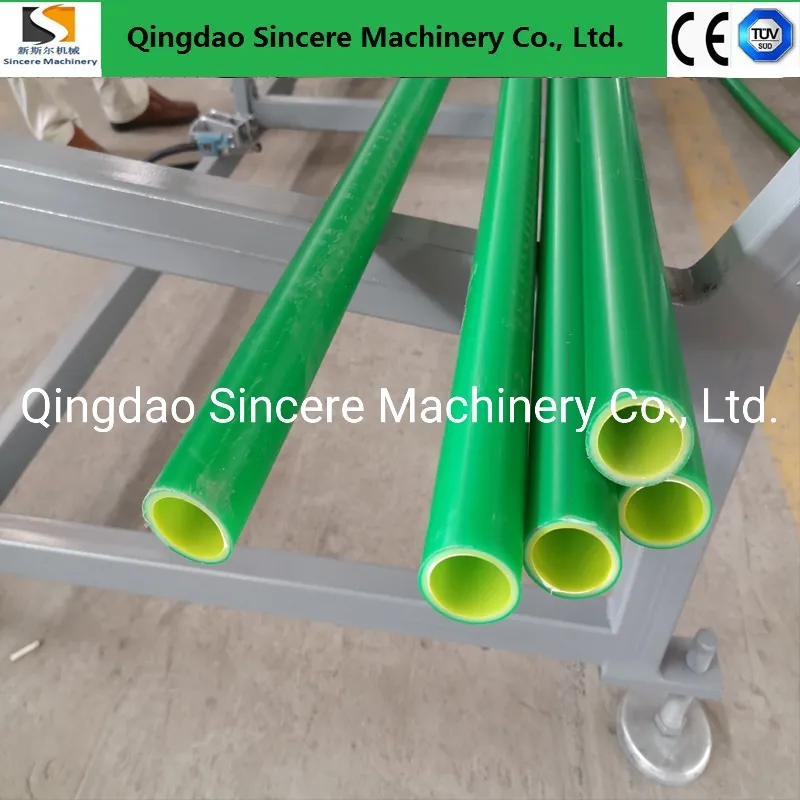

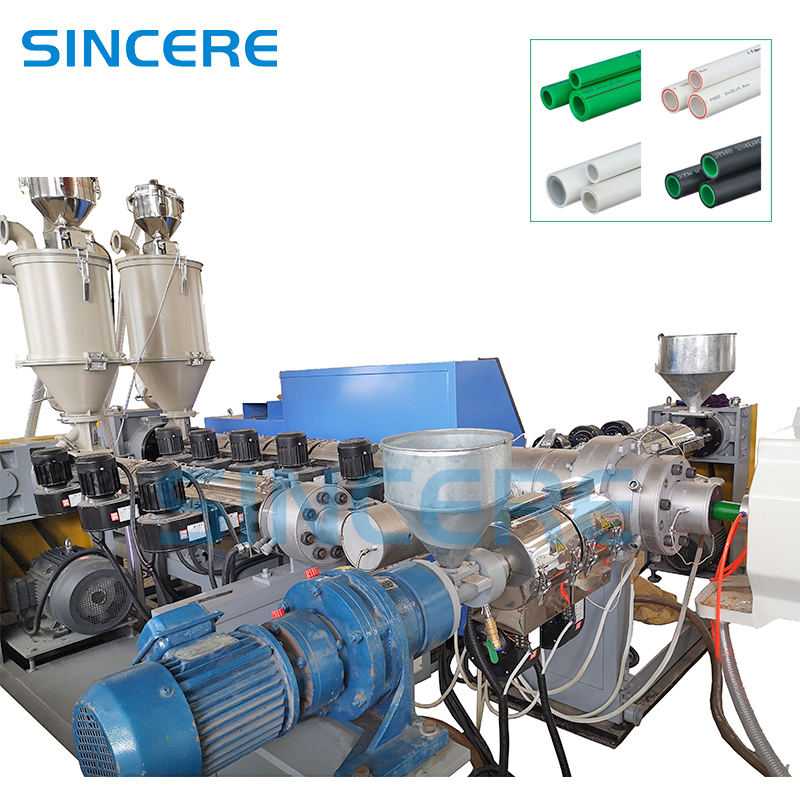

The PPR pipe production line is professional equipment designed for manufacturing cold and hot water supply pipes. It supports single-layer extrusion with marking lines or advanced three-layer glass fiber reinforced composite pipes. The system integrates vacuum feeding, high-efficiency single screw extrusion, precise mold technology, and automated cooling and cutting units.
2. Core Technical Advantages

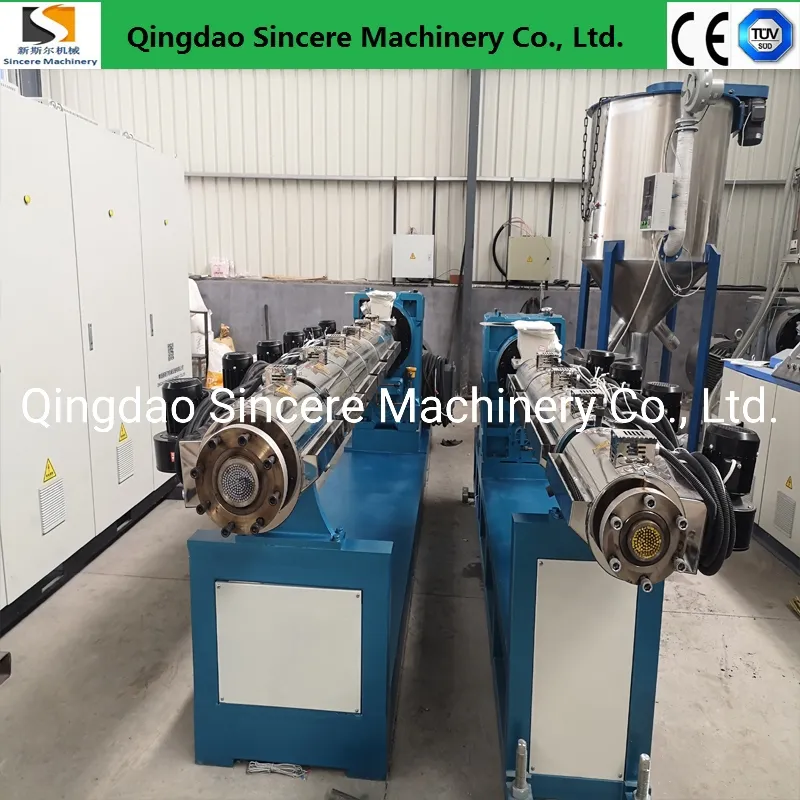

High-Efficiency Screw: Barrier type screw ensures excellent plasticizing at low temperatures with high output capacity.
Durable Barrel: 38CrMoAl nitrogen-treated barrel with a surface hardness of HRC 65-68 for extended service life.
Precision Mold: Millipore type mold with optimized compression ratios guarantees high-quality pipe finishes.

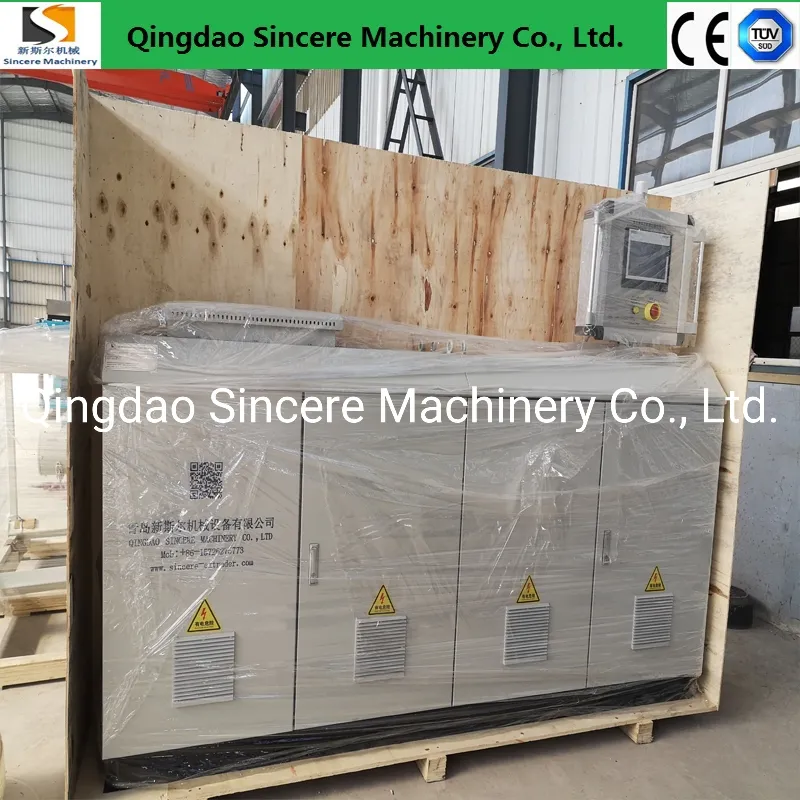

PLC Control: Full production line synchronization via touch screen for extruders, haul-offs, and cutters.
3. Production Process Flow

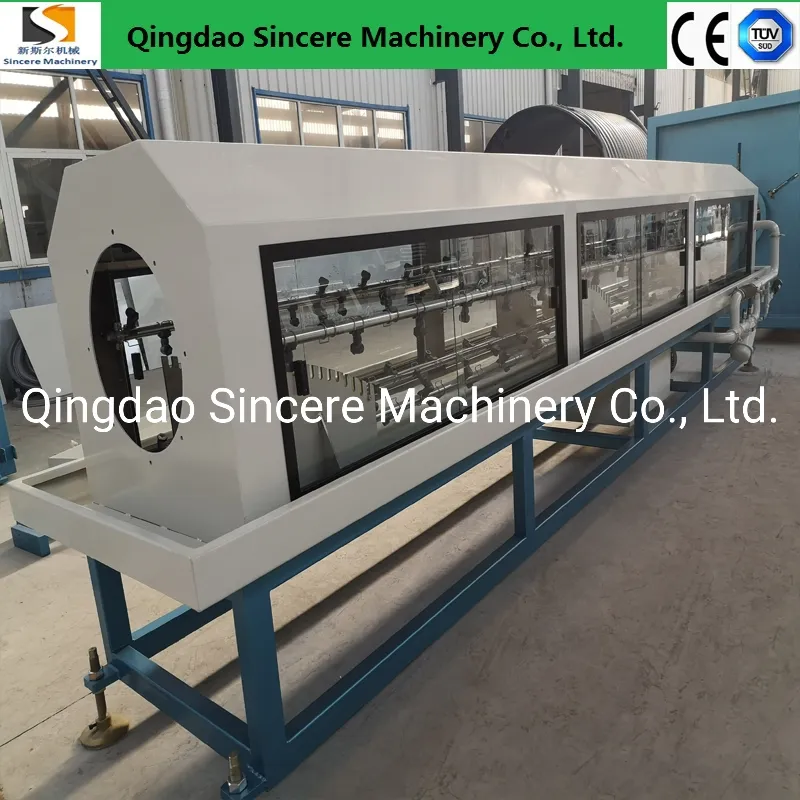

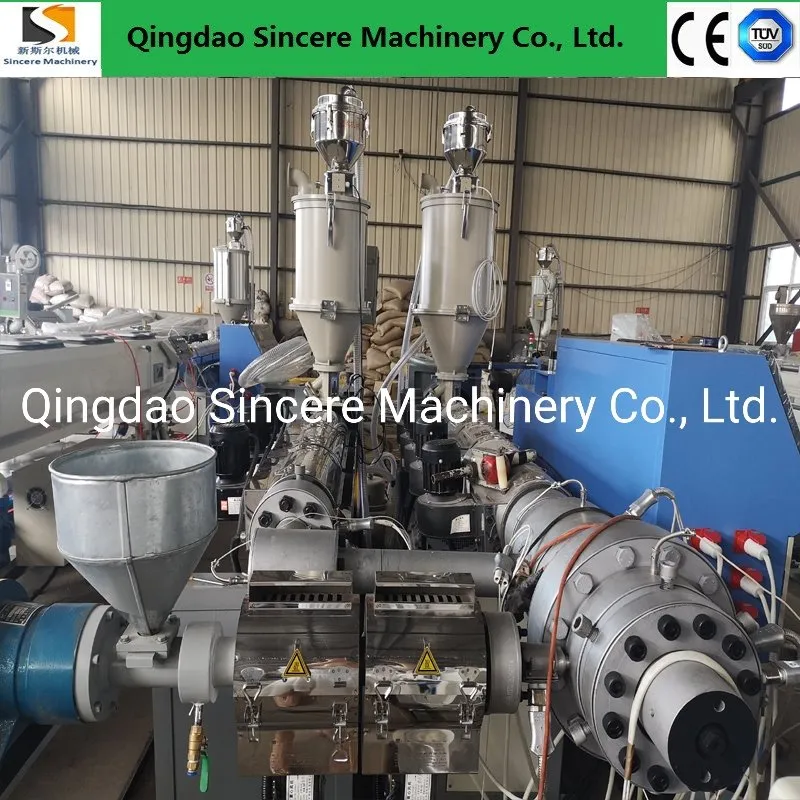

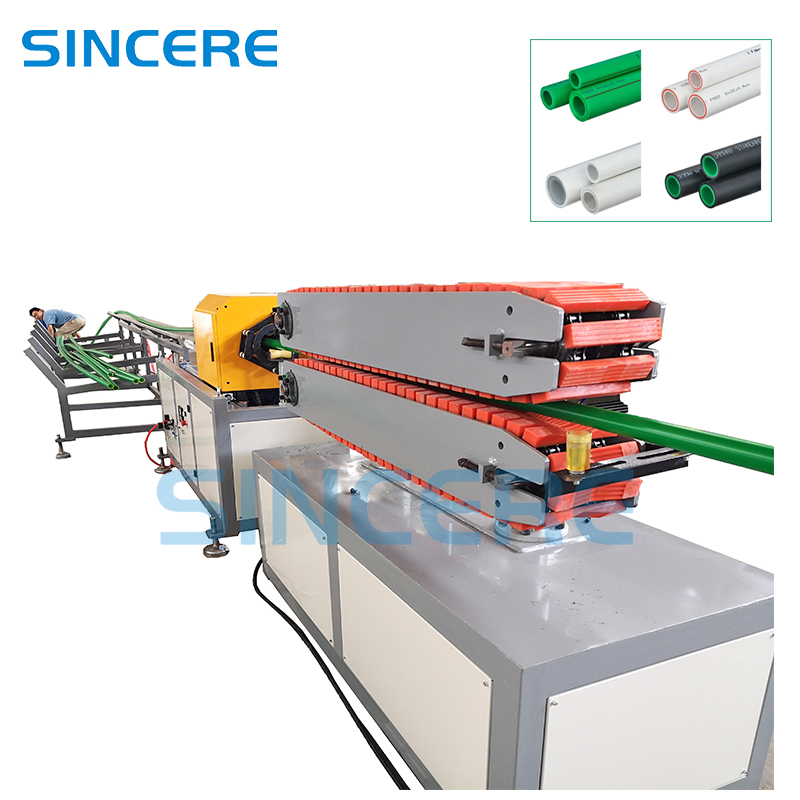

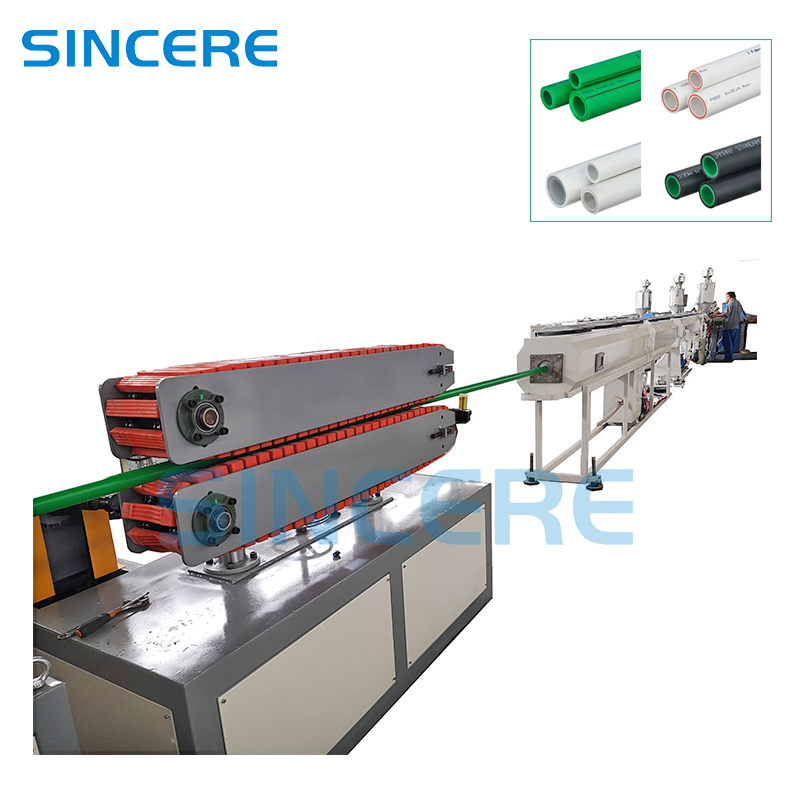

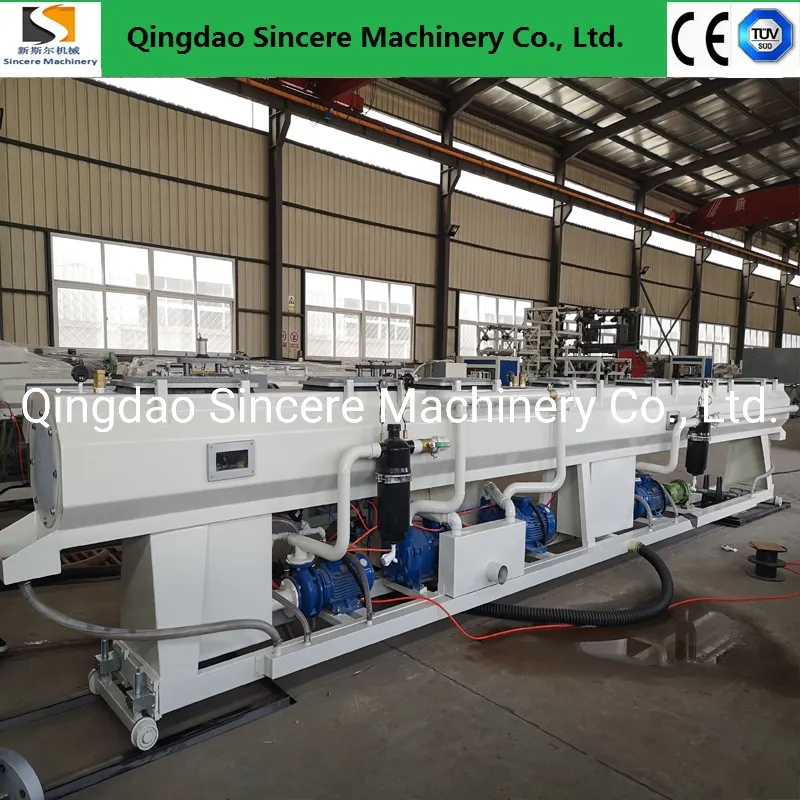

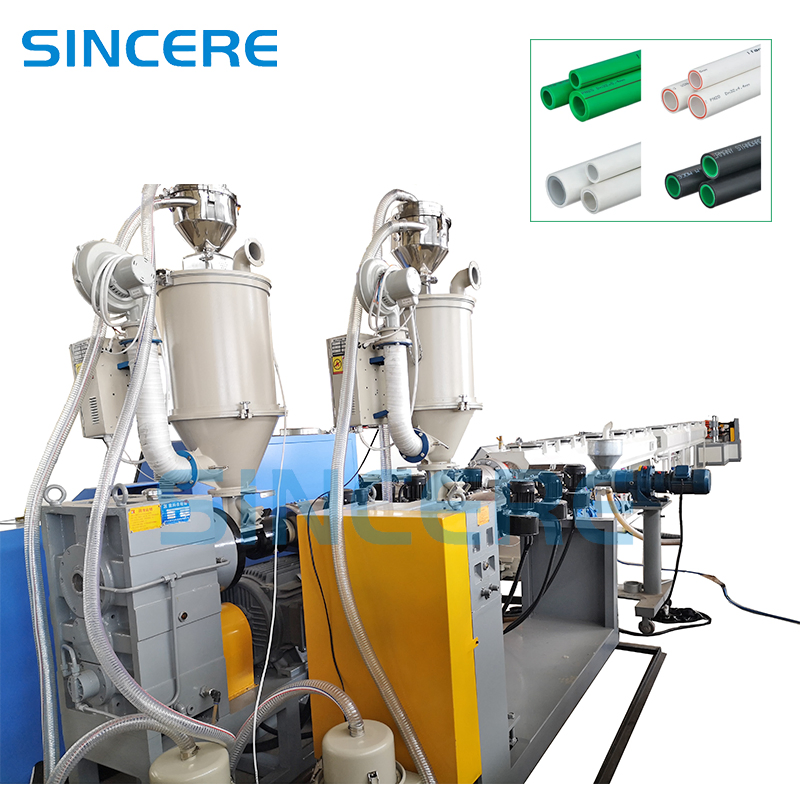

Raw Material + Master Batches → Mixing → Vacuum Feeding → Drying → Single Screw Extrusion (Main & Co-extruders) → Spiral Co-extrusion Mould → Calibrator → Spray Vacuum Calibration → Cooling Water Tank → Printer → Belt Haul-off → Dust-free Cutter → Stack Rack → Inspection & Packing
4. Technical Parameters
Model
Pipe Range (mm)
Haul-Off Speed (m/min)
Total Length (m)
Output (kg/h)
Power (kw)
SJ-63
Ф20-63mm
1.2-12.0
35
100-150
140
SJ-110
Ф75-110mm
0.8-8.0
40
150-180
180
SJ-160
Ф75-160mm
0.35-3.5
52
150-240
210
Equipment Display
Frequently Asked Questions
Q1: Can this machine produce both cold and hot water pipes?Yes, the PPR pipe extrusion line is specifically designed to manufacture high-quality pipes for both cold and hot water supply systems.

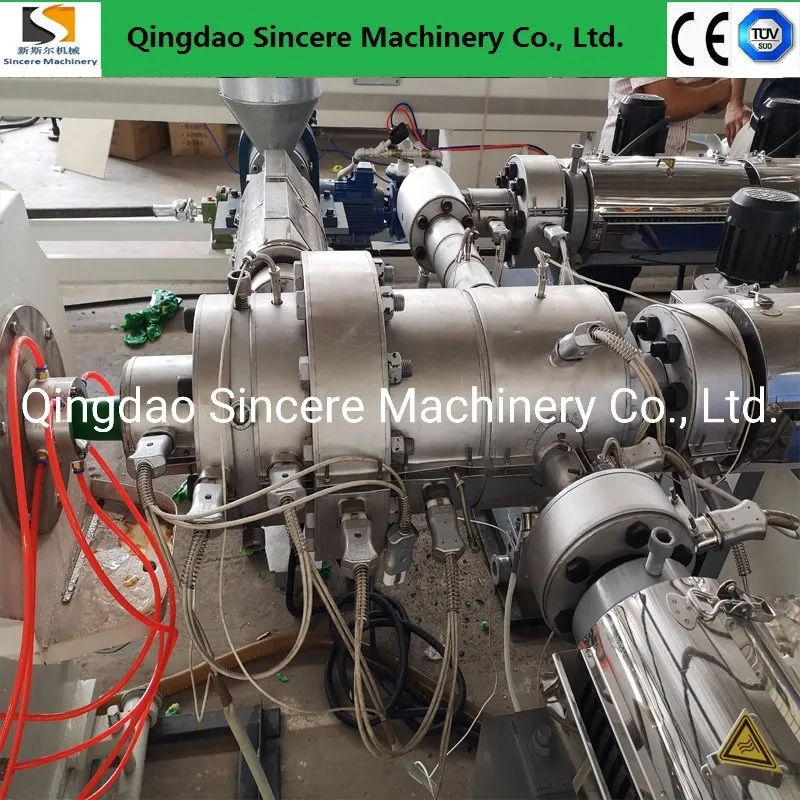

Q2: Does the equipment support multi-layer composite pipe production?Absolutely. By adding additional extruders, it can produce three-layer or four-layer glass fiber reinforced composite PPR pipes.
Q3: What is the maximum production speed?The production speed varies by pipe diameter, ranging from 0 to 30 meters per minute for optimal quality control.
Q4: How is the machine controlled?The entire production line is managed by a centralized PLC touch screen system, allowing for synchronous adjustment of all units.
Q5: What certifications does the equipment hold?The machine is fully certified with CE, ISO9001:2008, and TUV standards, ensuring international safety and quality compliance.
Q6: What is the typical lead time for a custom order?The processing and manufacturing period usually takes between 40 to 60 days, depending on the specific model and customization requirements.
