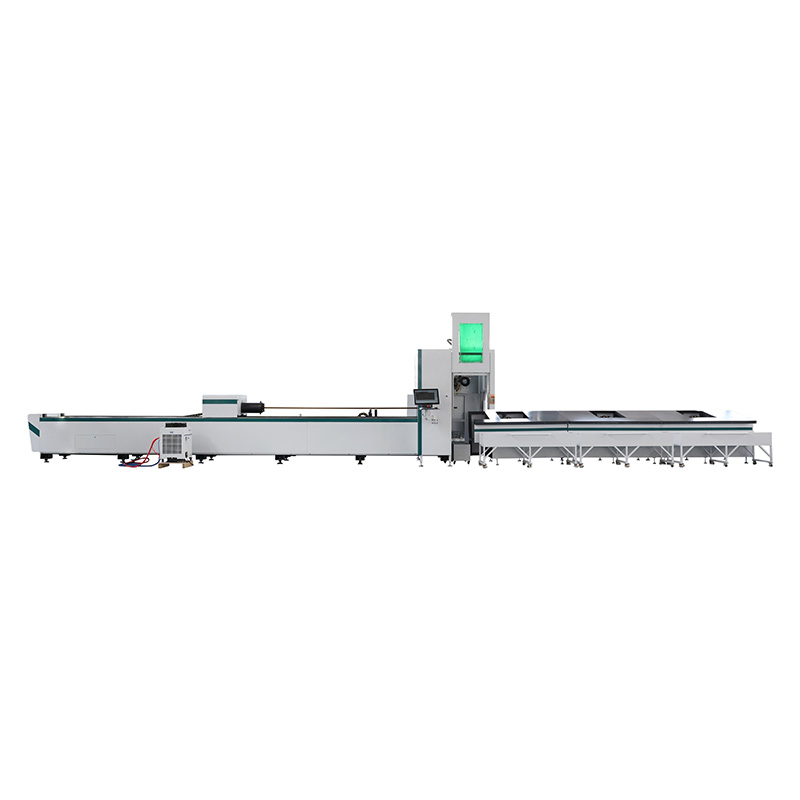

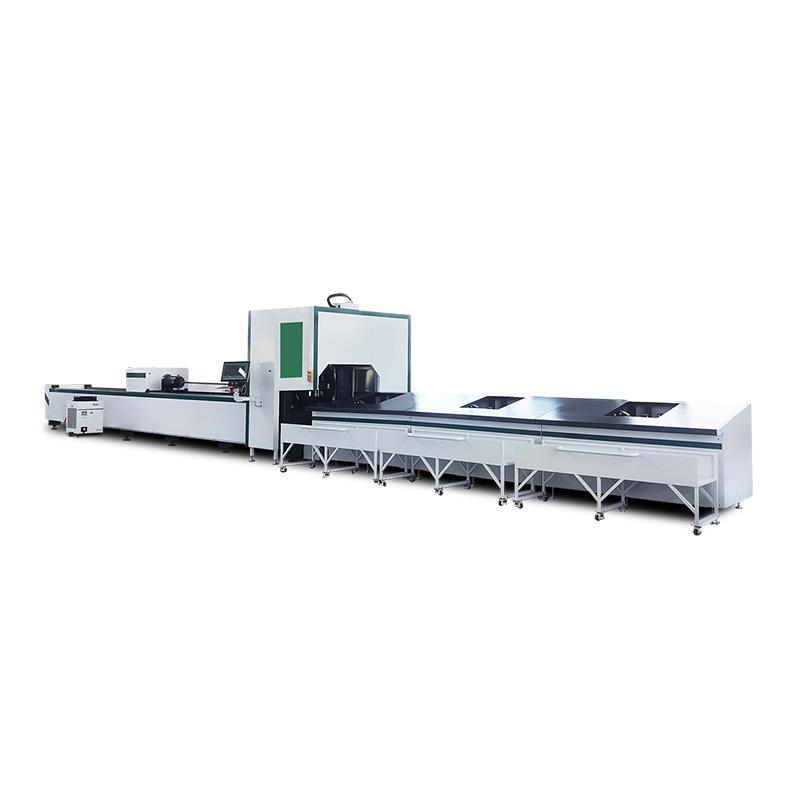

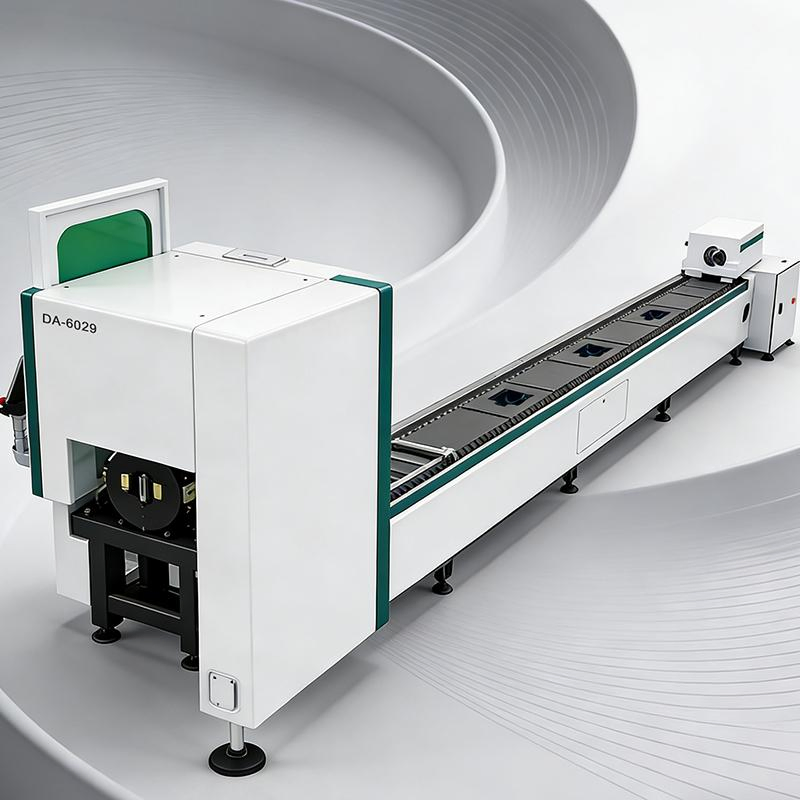

Our Professional Laser Tube Cutting Machine is engineered for precision processing of round pipes, square tubes, rectangle tubes, tubular elements, and H-beam profiles. These systems cater to diverse industrial needs with models capable of cutting tubes from 10-500 mm in diameter and lengths of 6 to 12 meters, featuring automated feeding functions for maximum efficiency.
Fiber laser technology offers significant advantages, making it the preferred choice for tube processing companies globally. Key benefits include high beam quality, extreme brightness, high conversion rates, and maintenance-free operation. Air-assisted cutting represents the pinnacle of laser technology, specifically suitable for stainless steel, carbon steel, alloy, brass, copper, and titanium.
| Model | LD-6024T |
| Laser Power | 1000W / 1500W / 2000W / 3000W / 4000W / 6000W |
| Tube Cutting Diameter |
Round Tube: φ50-φ500mm Square Tube: 50-350mm U-Steel: 5#-40# I-Beam: 10#-40# Angle Iron: 250*250mm |
| Tube Cutting Length | 6m / 12m |
| Machine Dimensions | 8550 * 2300 * 2000mm |
| Max. Linkage Speed | 150m/min |
| Max. Acceleration | 1.5G |
| Positioning Accuracy | 0.03mm |

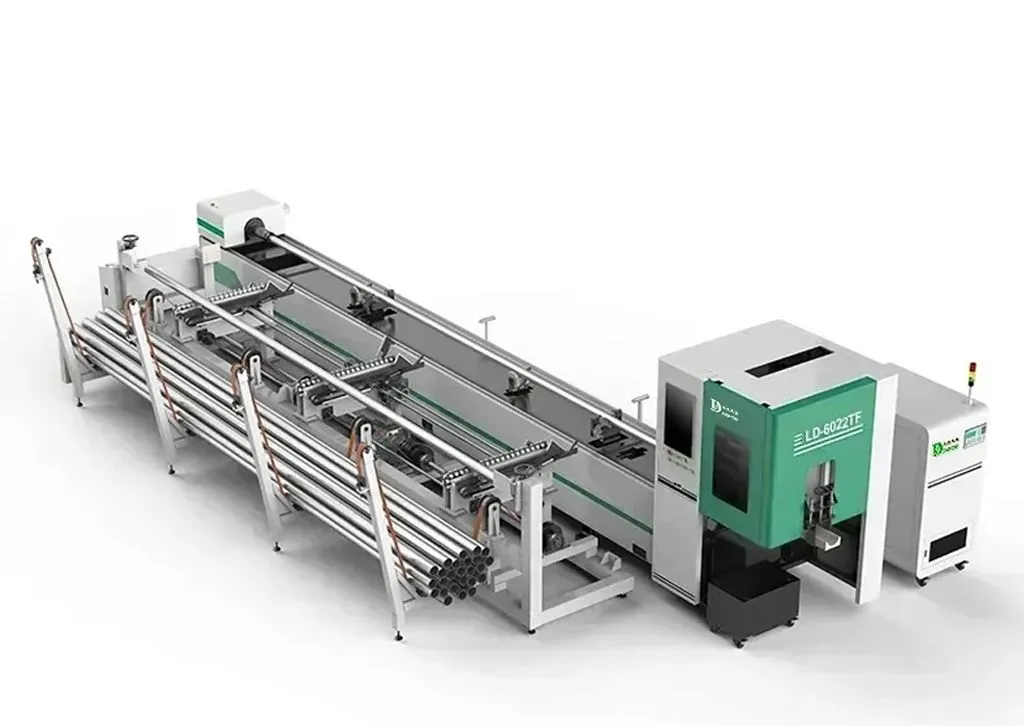

| Loading Options | Semi-automatic / Full-automatic loading system |
Shape Identification: Automatically recognizes standard and special-shaped pipes, including round, oval, square, and more, eliminating manual configuration.
Non-Inductive Detection: Employs continuous, high-efficiency detection without human intervention, streamlining operations and boosting productivity.
Exceptional Precision: Guarantees cutting accuracy with a position deviation within 0.15mm over the entire meter section, ensuring consistency and quality.
Welded Machine Frame

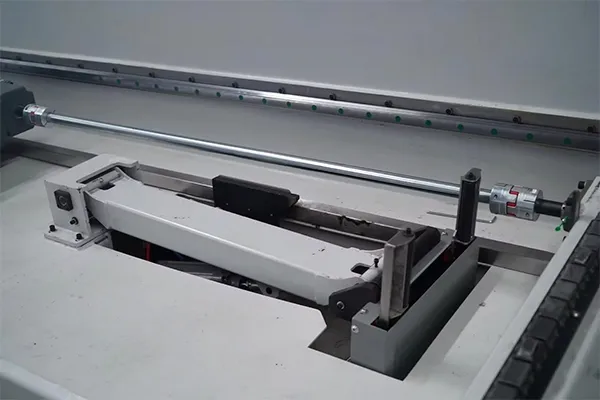

Automatic Support System
Stable Foundation: The machine adopts a plate welding structure bed, reaching optimal stress points for load-bearing. After aging treatment, internal stress is minimized to ensure long-term stability. The advanced automatic support system maintains pipe alignment, ensuring clean and accurate cuts regardless of material diameter.

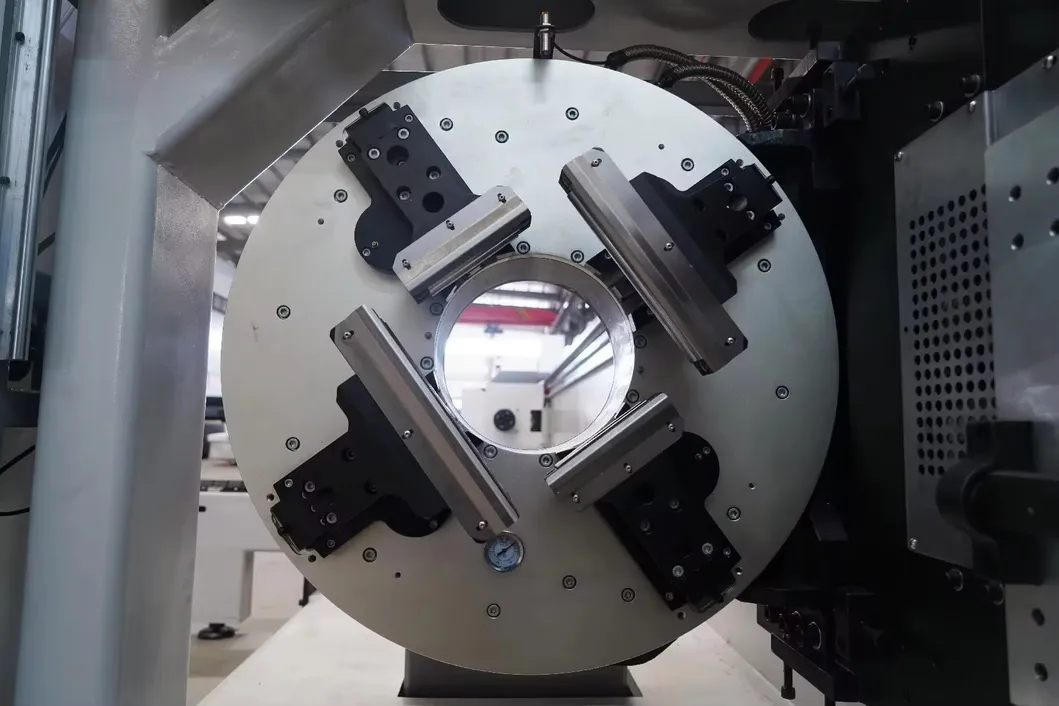

Front Chuck: Fully sealed dust-proof structure with an aluminum alloy panel. High clamping accuracy and strong load-bearing force.

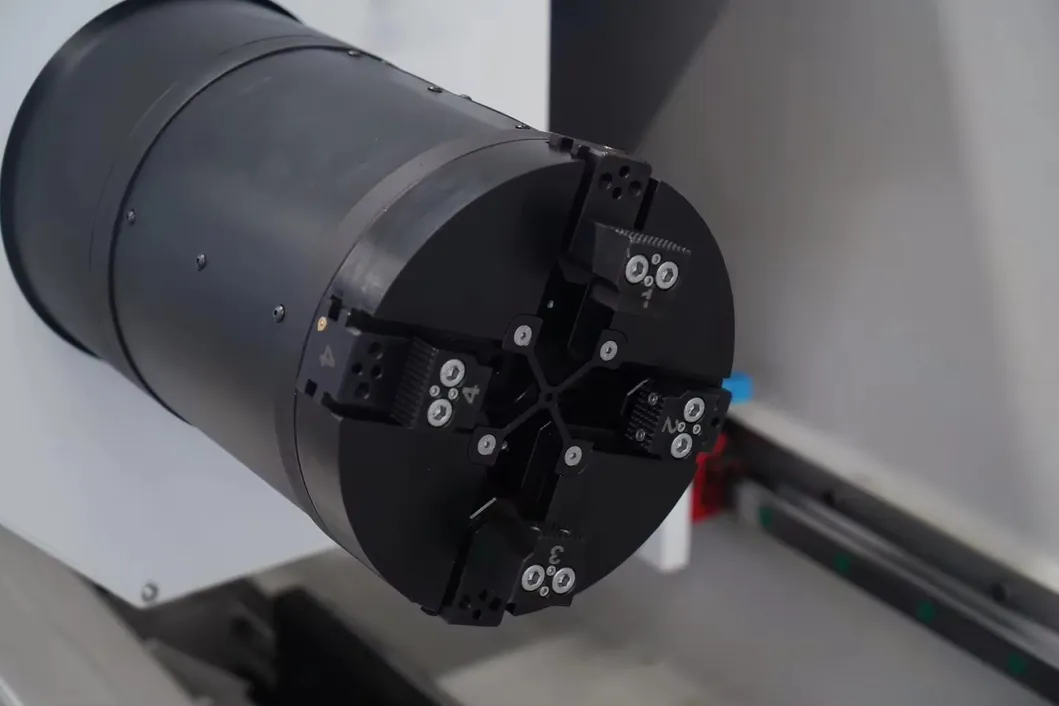

Rear Chuck: Features specialized claws for special-shaped pipes to prevent slipping, including dust extraction functions and an integral support base for stability.

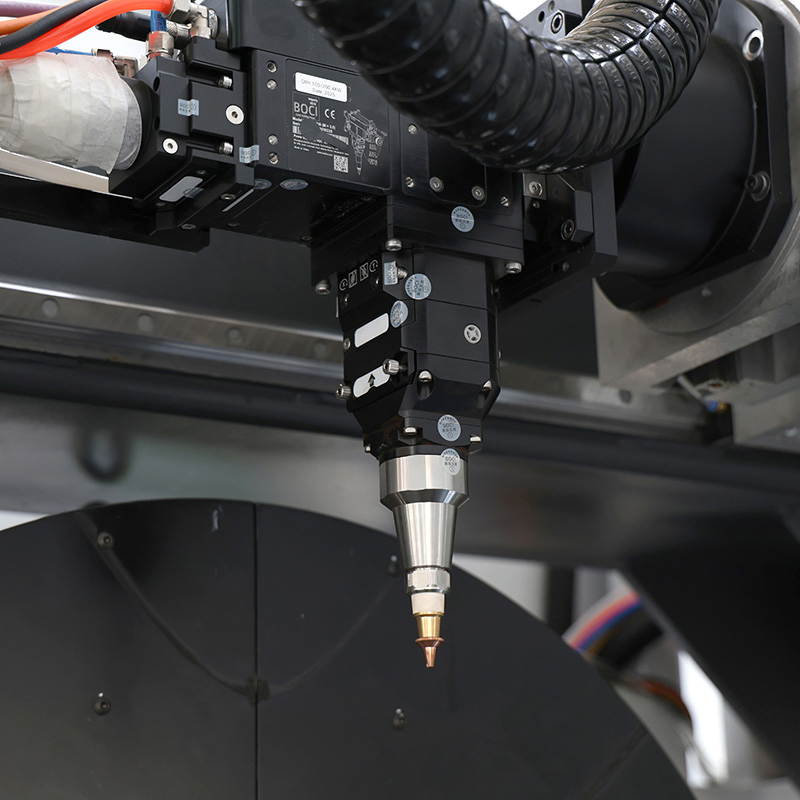

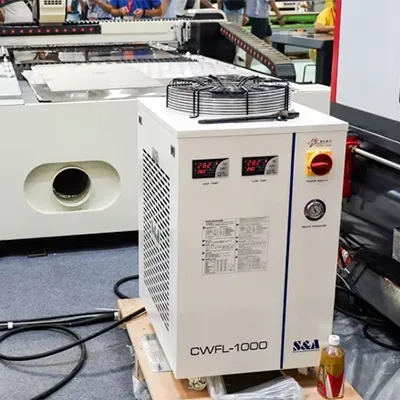

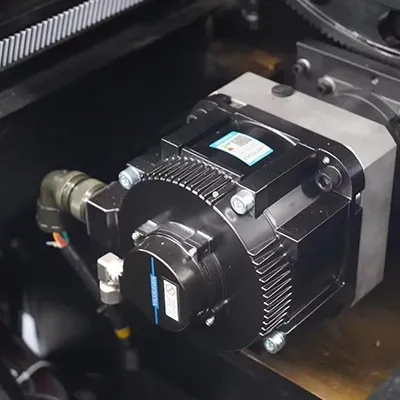

Utilizing high-quality laser sources and servo motors to drive the Z-axis, our machines ensure precise movement according to programmed instructions. Professional water chillers accurately control temperature to stabilize light output and protect the laser system.

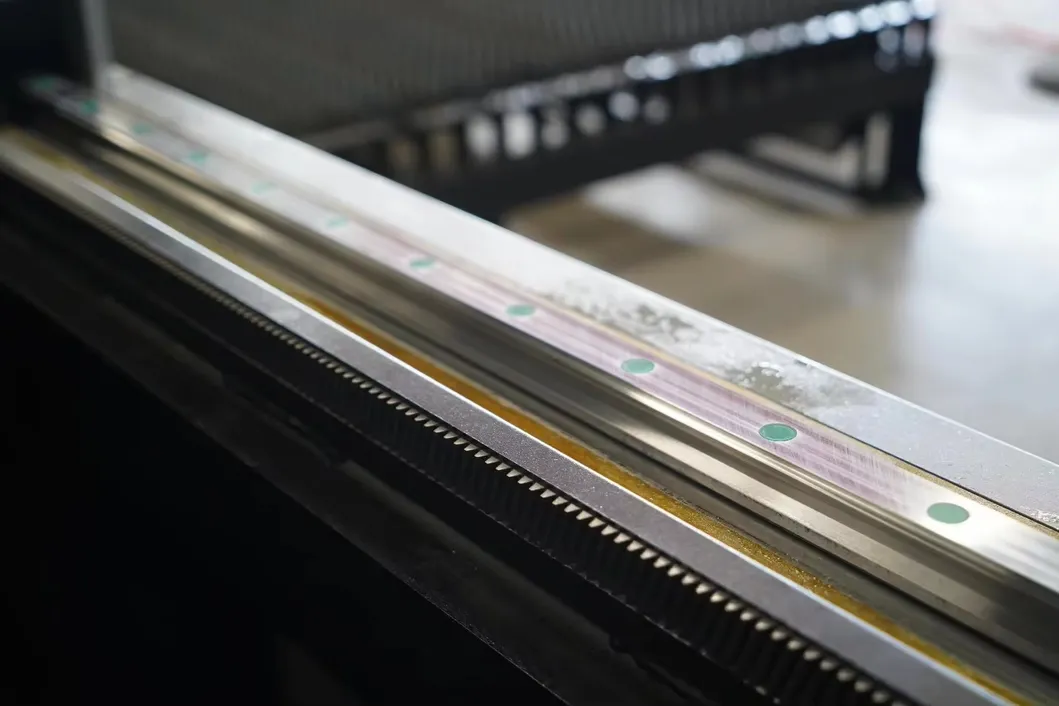

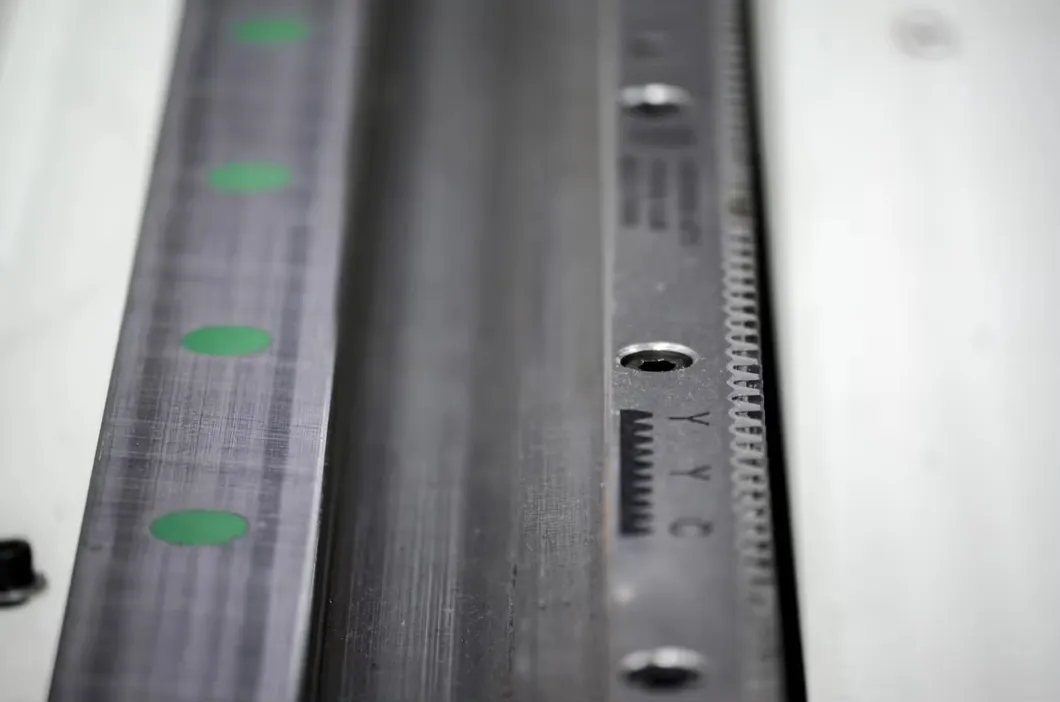

Precision is maintained through HIWIN linear guides and YYC Gears (German standard DIN6 level), providing high speed, high load capacity, and extreme rigidity for CNC equipment.
Pneumatic Chuck: Precise internal rack and pinion drive designed for fast and efficient cutting of small pipes.
3D Nesting Software: Works with specialized laser cutting control to minimize waste and maximize production efficiency.
Independent Height Adjuster: Ethernet communication interface for automatic edge finding and frog jumping functionality.

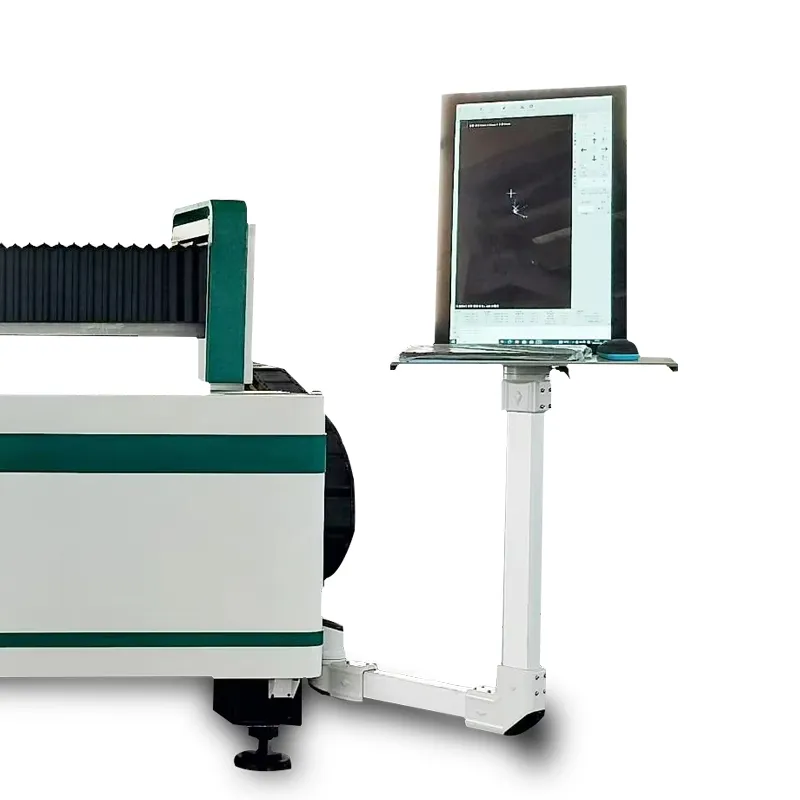

Intuitive Control: Simplified operation settings and specialized keyboards for easy data recording.
Wireless Control: Allows operators to maintain a safe distance while managing machine operations efficiently.

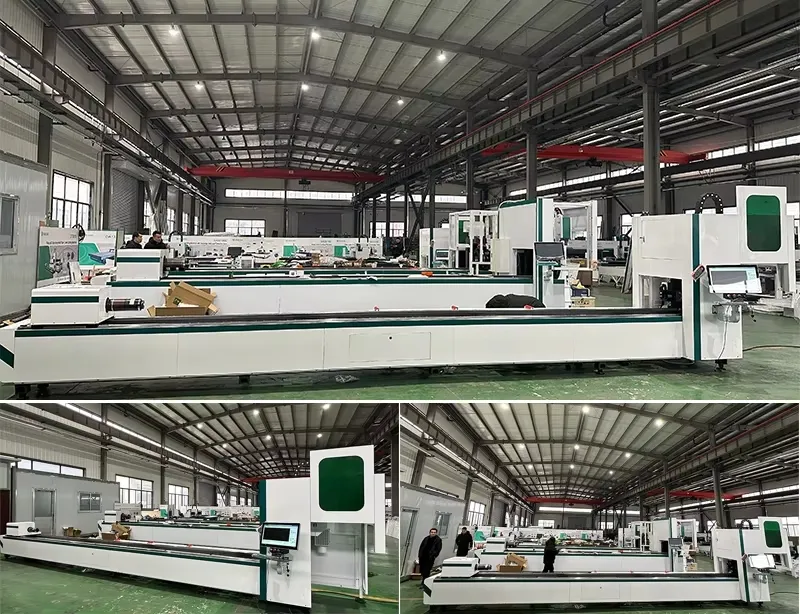

Our manufacturing processes follow strict ISO9001 quality management and 5S management systems. All equipment is certified with CE, BV, SGS, and TUV standards, ensuring global reliability and safety for metal forming industrial applications.
