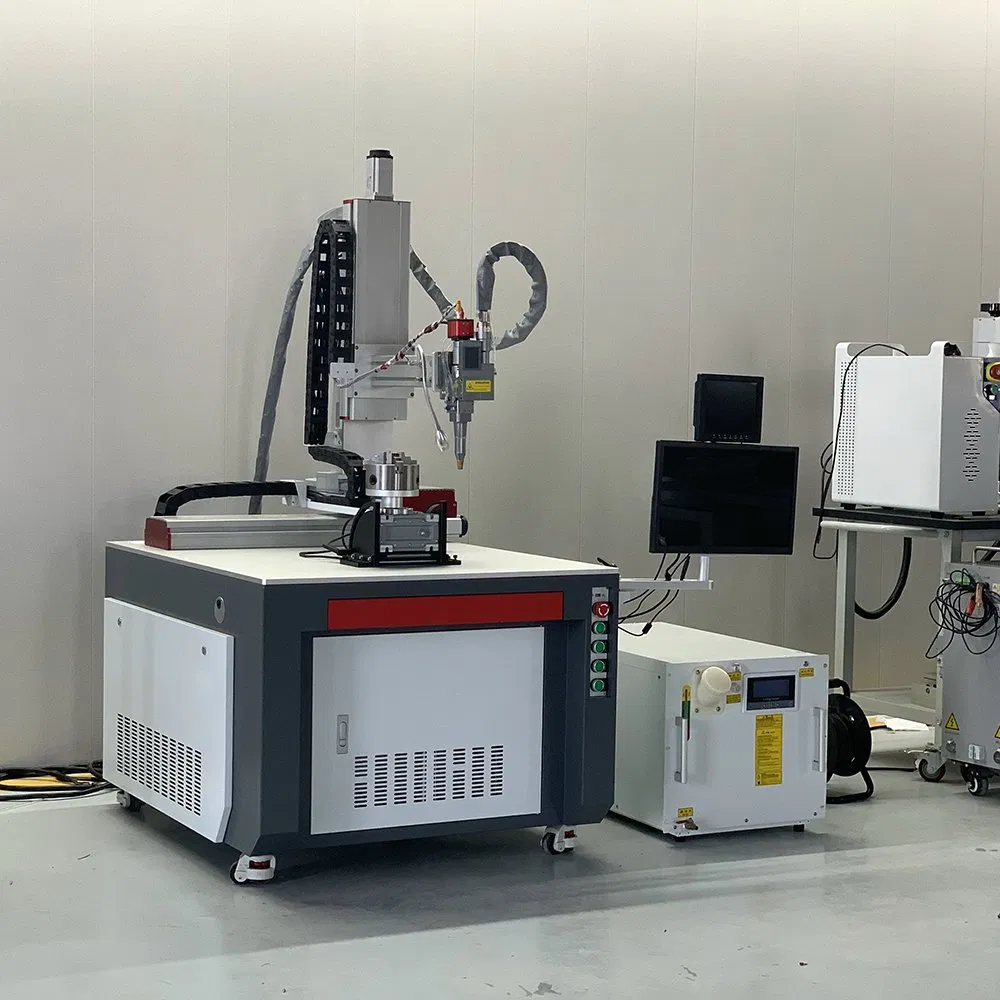

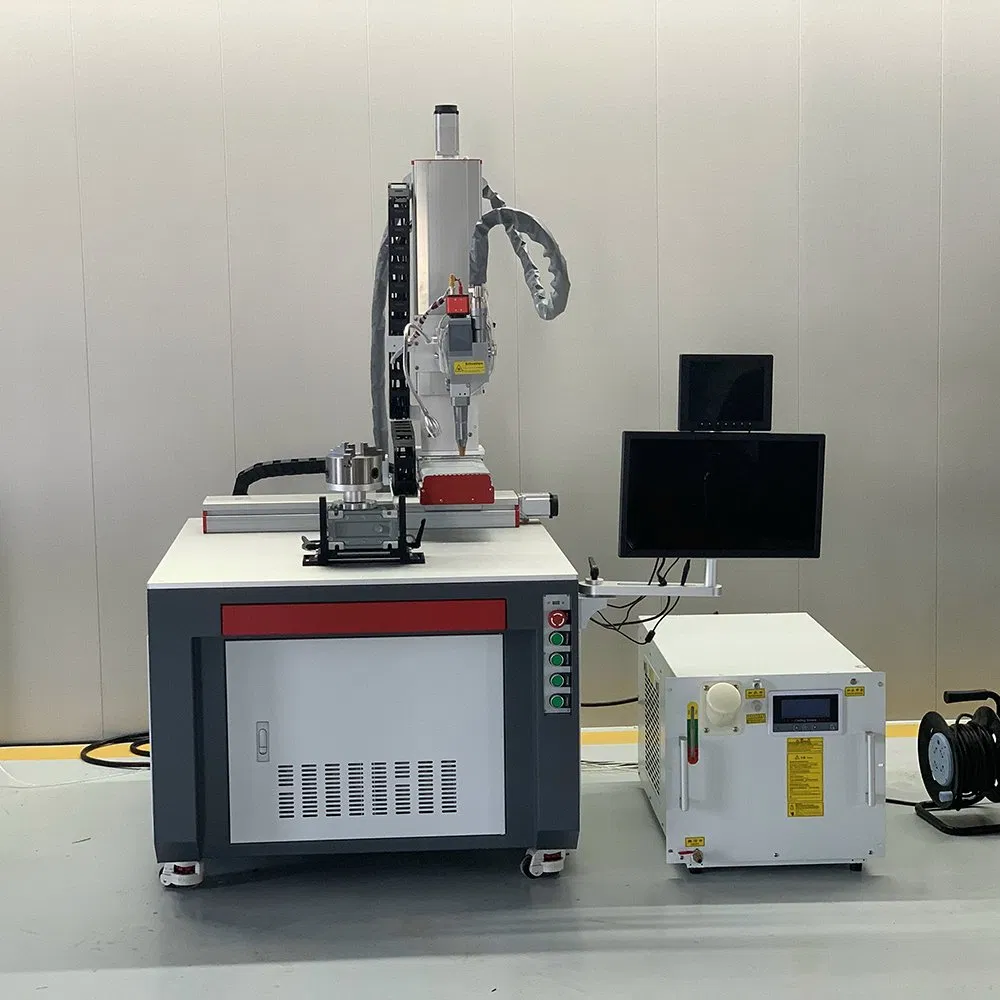

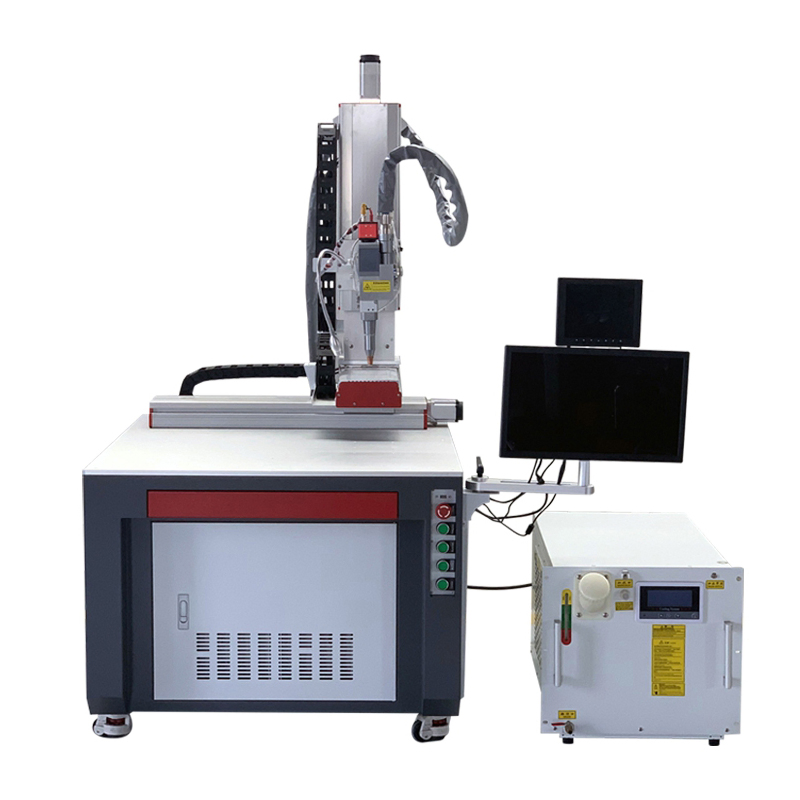

Smart Fiber Fusion Welding System with High-Speed Processing

Customization:	Available
After-sales Service:	Online Service
Warranty:	2 Years

⚙️ Basic Information

Model NO.	OM-W3000	Application	Manufacturing Industry
Technical Class	Continuous Wave Laser	Control	Automatic
Power Density	3000W	Laser Classification	Laser
Type	Automatic Laser Welding Machine	Laser Power	3kw
Laser Source Brand	Reci (Raycus, Ipg, Max, Jpt Optional)	Cooling Method	Water Cooling
Water Chiller	Including	Water Chiller Brand	Hanli (S&A Optional)
Laser Head	Zbtk (Sup, Wsx, Qilin Optional)	Motor	Leadshine Servo
Control System	Mosen	Rotary	Diameter 100 (Professional for Welding)

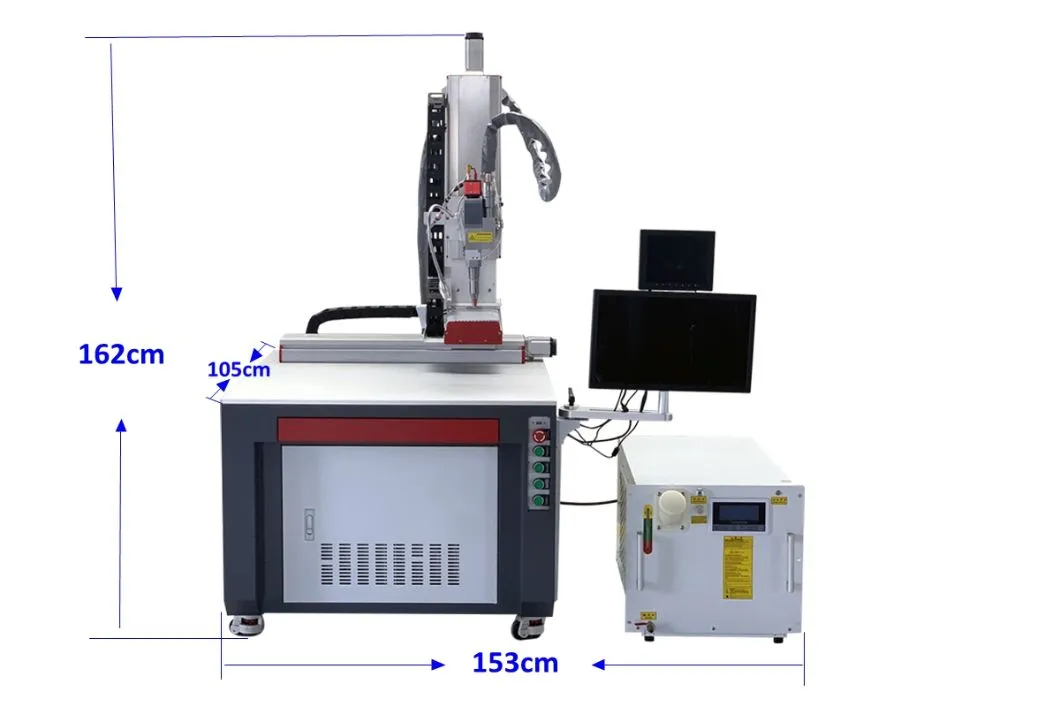

Working Area	500300300mm	Power Supply	220V Single Phase

📋 Product Description

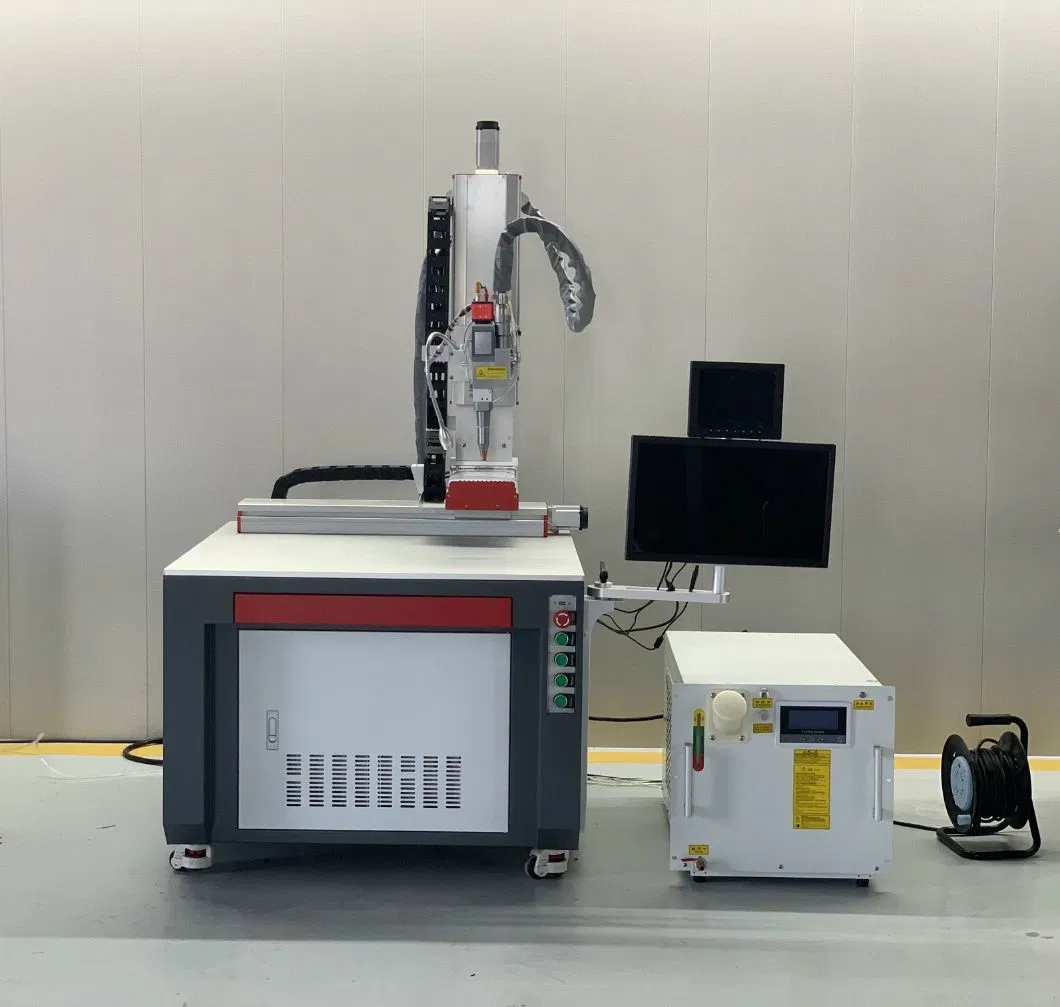

Smart Fiber Fusion Welding System with High-Speed Processing

Specifications

Model	3kw 4 axis laser welding machine
Laser source	3kw (1kw, 1.5kw, 2kw optional)
Observation system	CCD microscope vision system
Working area	500300300mm (X, Y, Z, R-360)

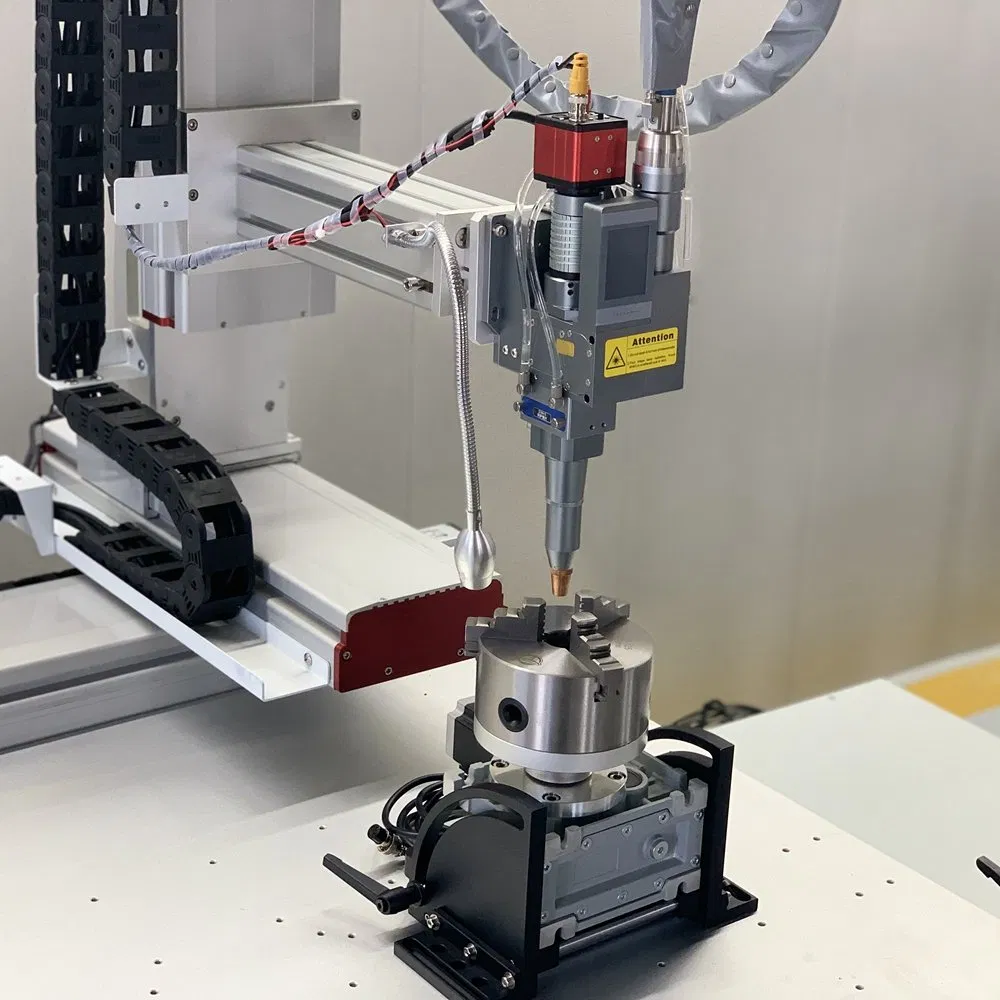

Rotary	Diameter 100mm (professional for welding)
Laser wavelength	1080±10%
Spot size	0.2-3.0mm
Cooling method	Water Cooling

Kindly noted:

1. This model includes a professional rotary for welding. Fiber marking rotaries are not suitable for this machine.
2. Special signal requirements for production lines can be accommodated.

Recommended Power Settings

Power	Material Capability
1000W	Stainless/Carbon steel 0-2mm, Aluminum 0-1.5mm
1500W	Stainless/Carbon steel 0-3mm, Aluminum 0-2mm
2000W	Stainless/Carbon steel 0-4mm, Aluminum 0-3mm
3000W	Stainless/Carbon steel 0-6mm, Aluminum 0-4mm

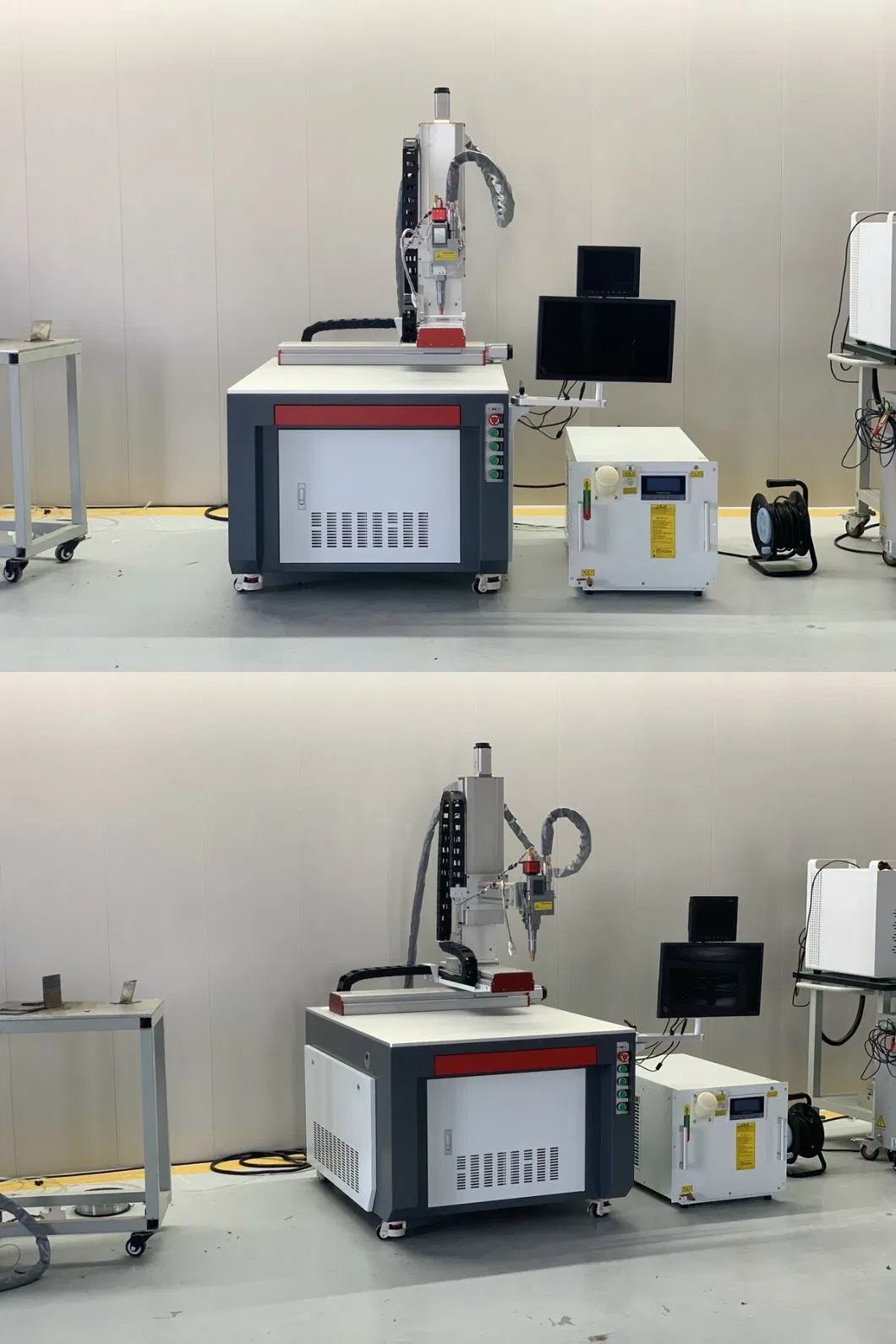

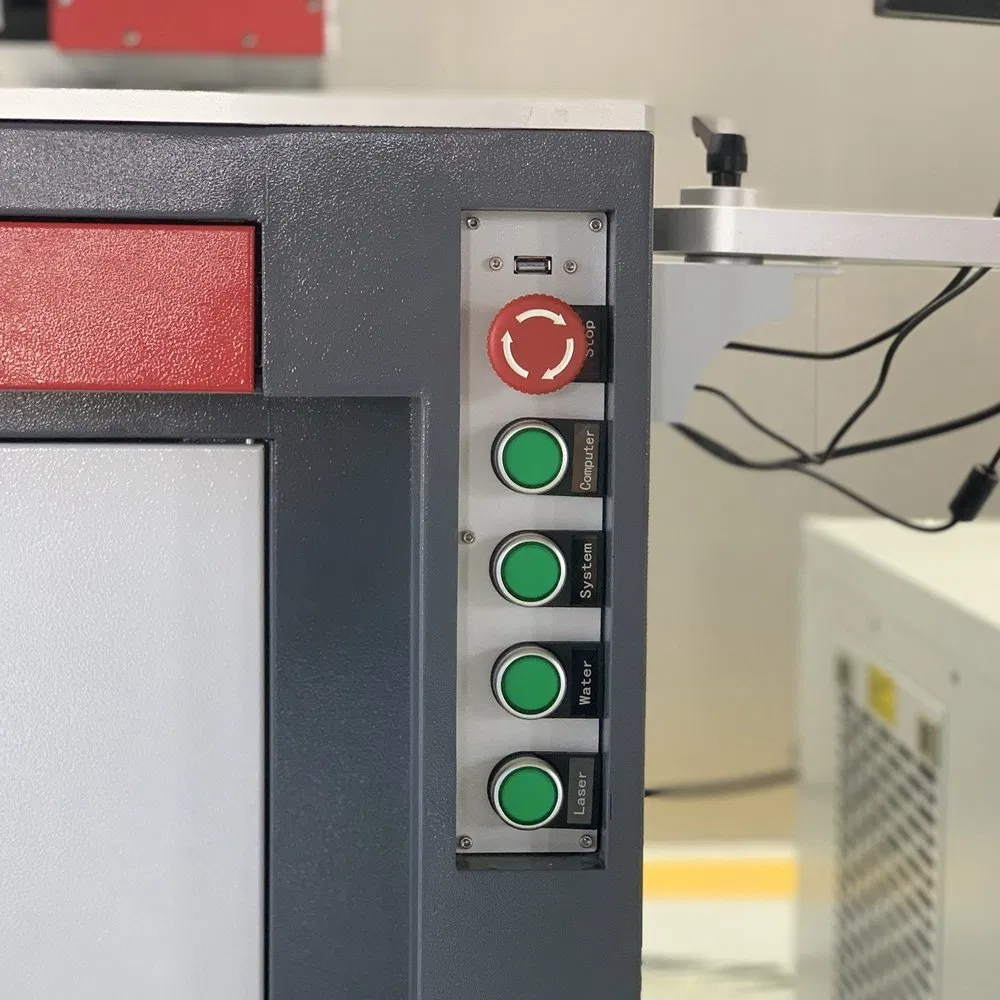

📸 Detailed Photos & Functionality

Integrated Industrial Motion Control: Mature solutions integrating welding functions with PC interface.

Powerful PC Control: Intuitive programming for automatic/semi-automatic complex path welding.

IDE Environment: Streamlined graphic editing and real-time monitoring.

4-Axis Control: High-performance spatial welding trajectory teaching.

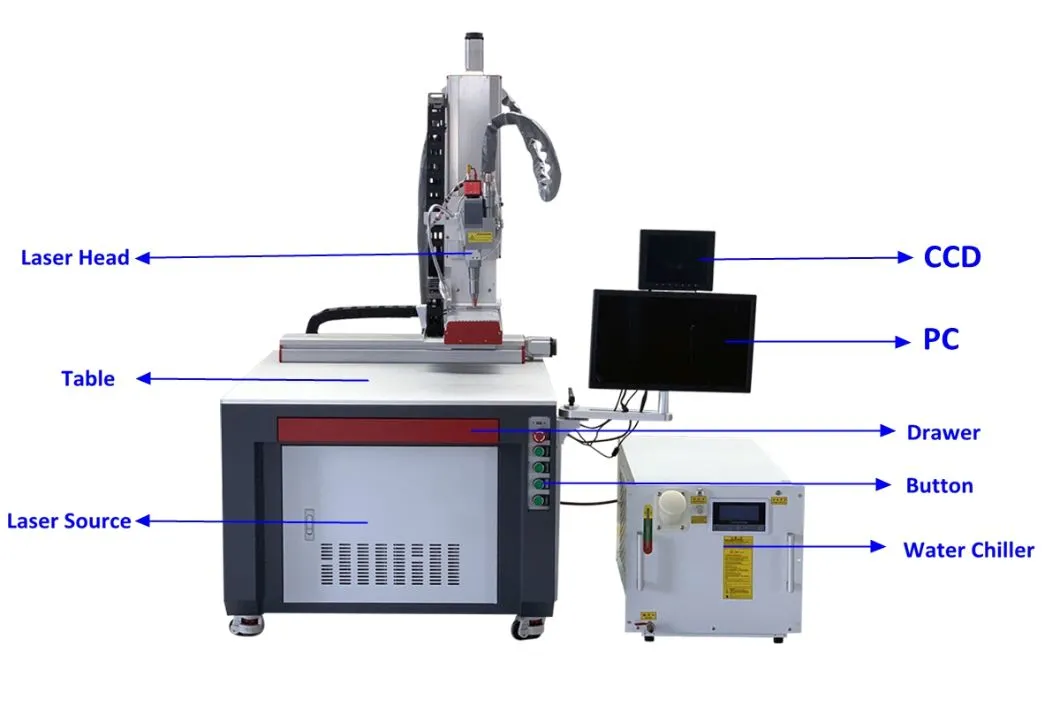

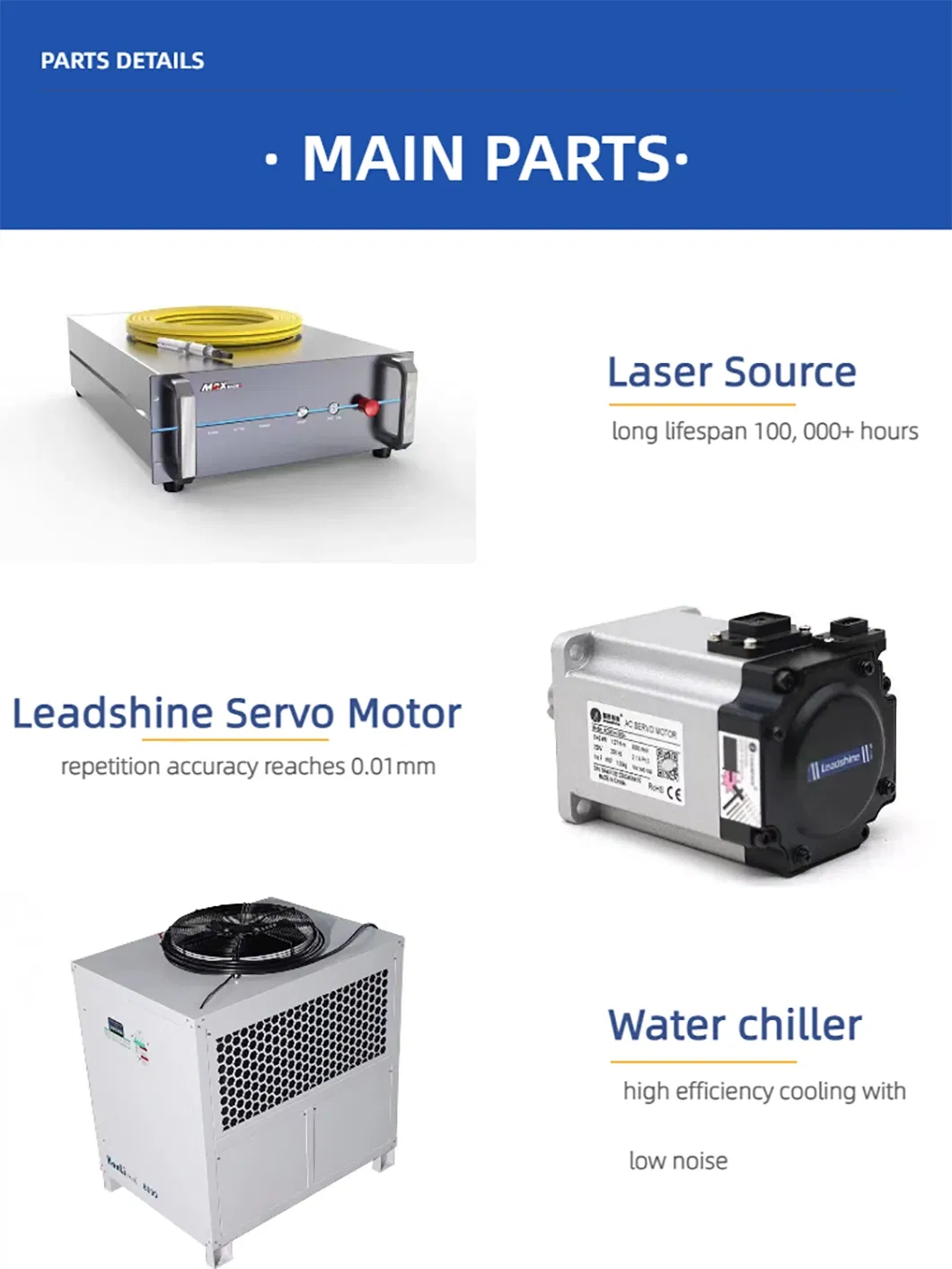

Main Machine Parts

Fiber Laser Source: MAX brand high-stability source (Lifespan >100,000 hrs).
Leadshine Servo Motor: 0.01 mm repetition accuracy.
Water Chiller: Hanli industrial chiller with low noise.

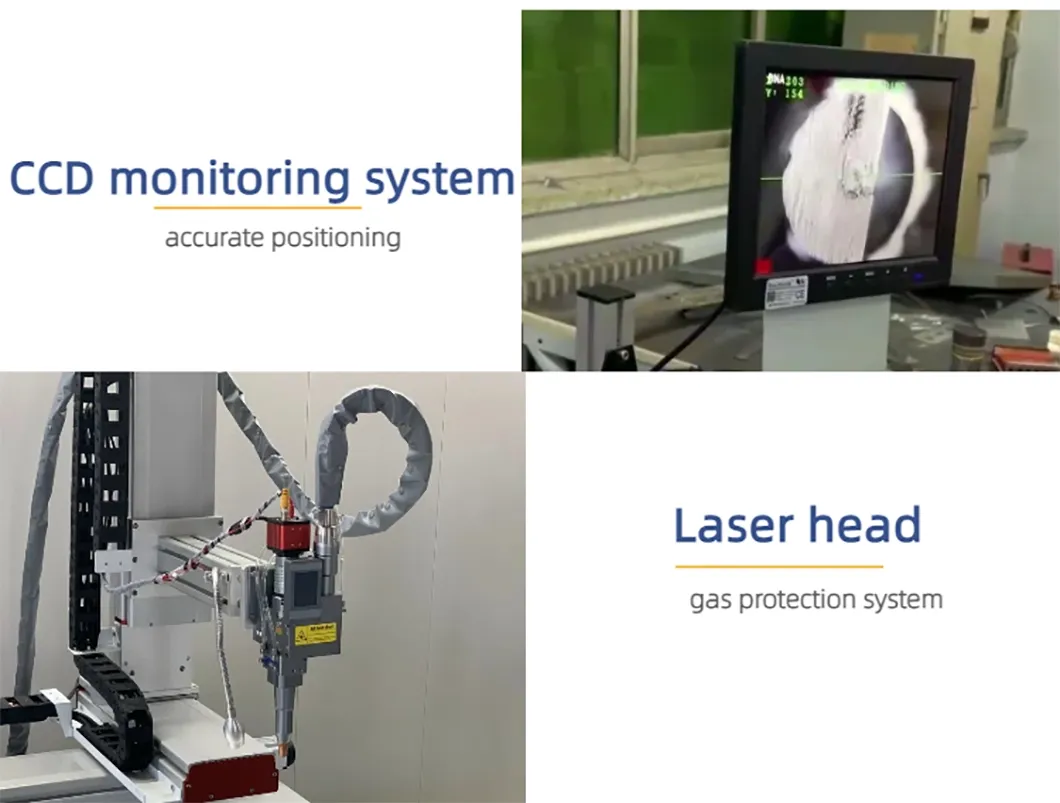

CCD Monitoring: Advanced positioning and auto-focus for high-quality seams.

🚀 Industry Applications

Aerospace & Automotive
Power Battery Production
Medical Equipment
Metal Precision Parts

Optical Communication
Flexible Circuit Boards (FPC)
High-Precision LCDs
Electronics & Sensors

🏆 Quality Assurance & Feedback

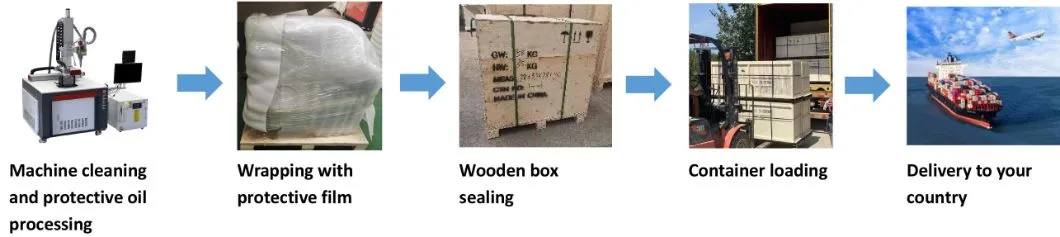

📦 Factory & Logistics

❓ Frequently Asked Questions

What is the warranty period for this laser welding machine?

The machine comes with a 2-year warranty for the entire unit and the laser generator (excluding consumable parts). We also provide free lifetime technical support.

How long does it take for a beginner to learn how to operate it?

With our comprehensive English manual and instructional videos, most users grasp the basics within a few hours and become fully proficient in a few days.

What materials can be processed with the 3000W model?

The 3000W model is highly efficient for stainless steel and carbon steel up to 6mm, and galvanized sheets or aluminum up to 4mm.

Is customization available for specific production needs?

Yes, our technical team can customize the system, including working area and signal integration, to meet your specific manufacturing requirements.

What is the expected lifespan of the laser source?

The fiber laser source is rated for a long lifespan exceeding 100,000 hours under normal operating conditions.

What shipping terms do you support?

We offer flexible shipping options by sea, air, or express, supporting various international trading terms such as FOB, CIF, EXW, and DDU.
