Datum Machine
Datum Machine

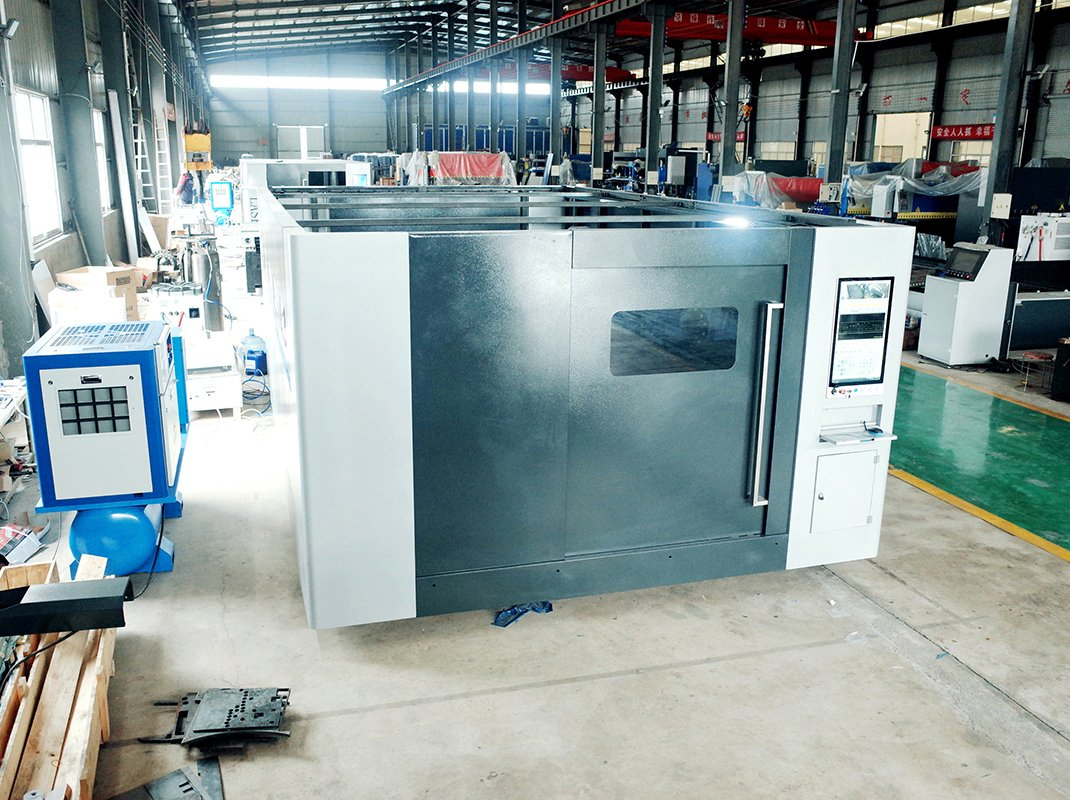

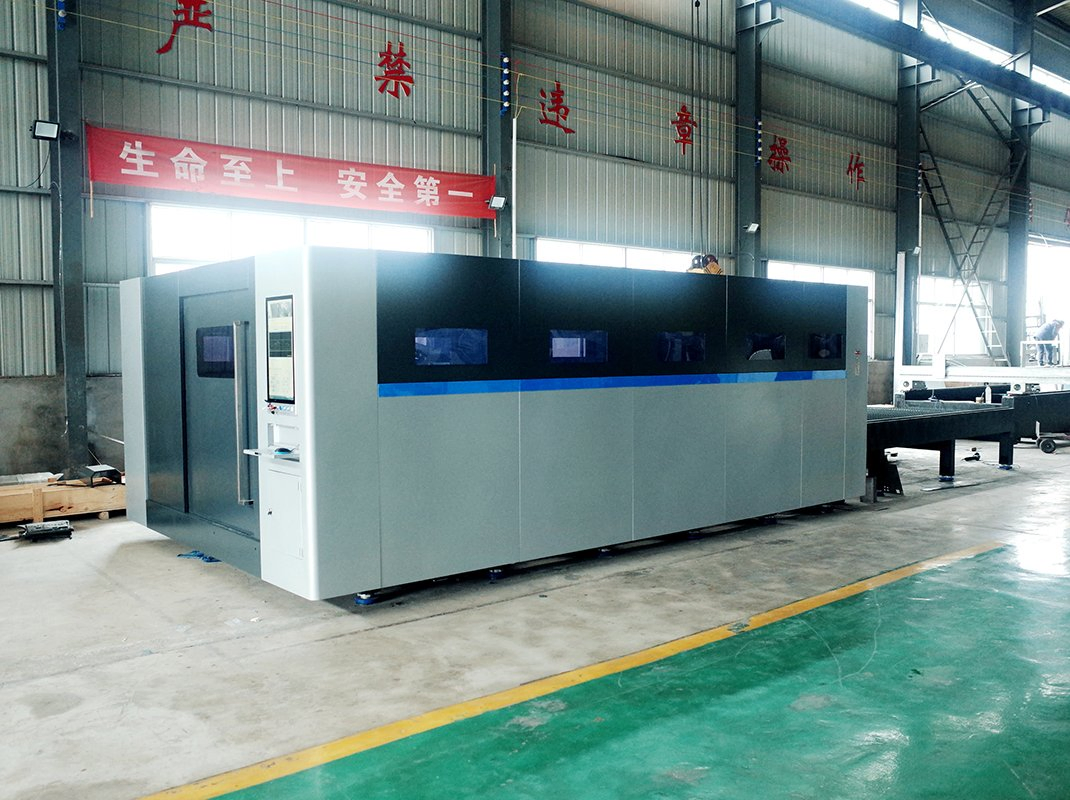

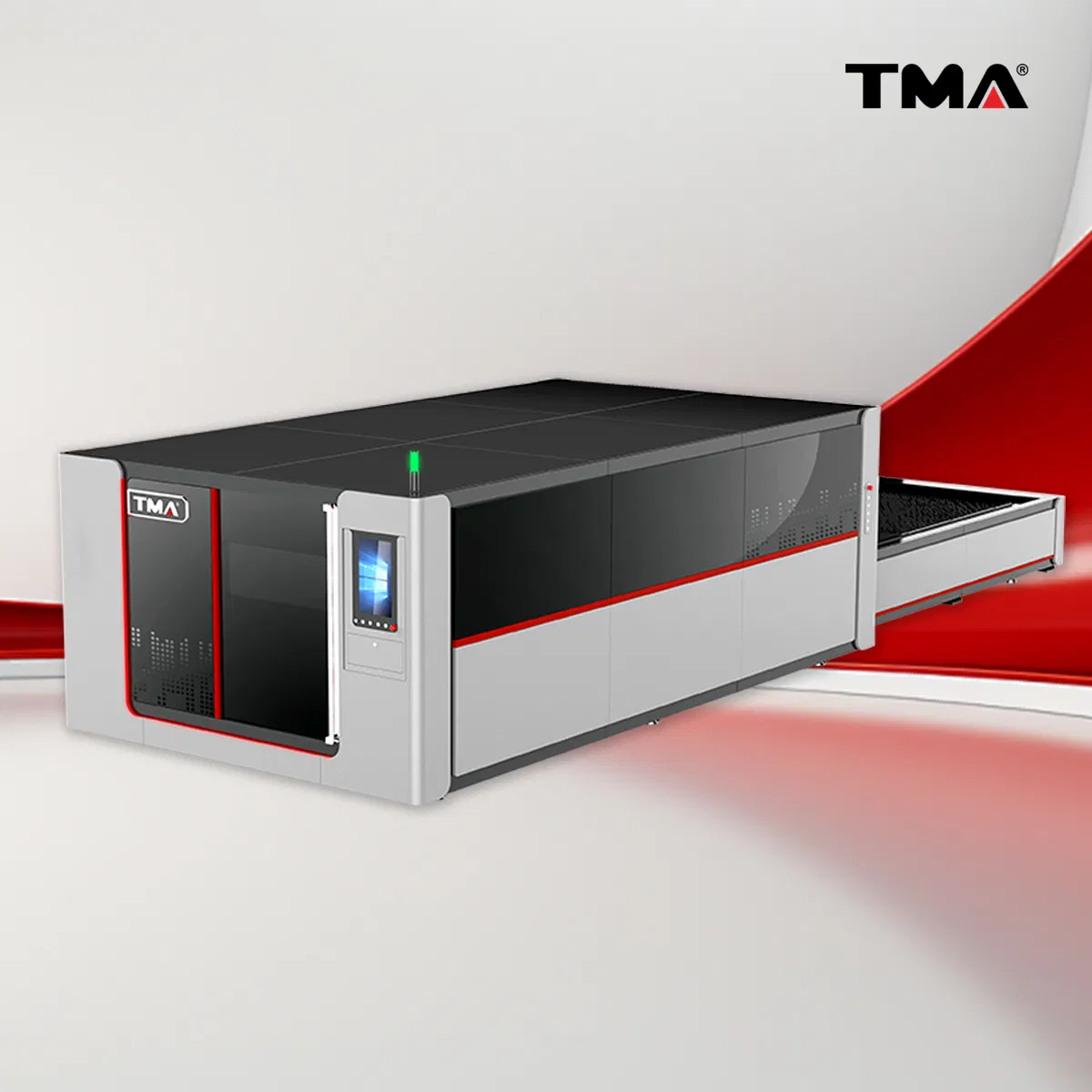

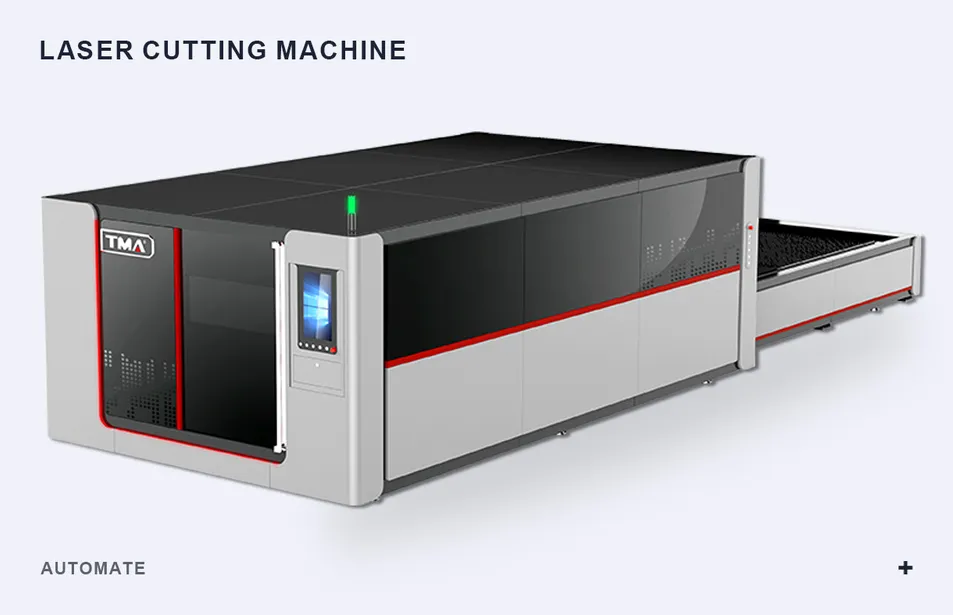

Introducing the Exchange Worktable Laser Cutting Machine — engineered for maximum productivity. Its dual-table system allows continuous operation: load materials on one table while the other is cutting, eliminating downtime. The fully enclosed safety guard ensures a protected, stable, and clean working environment.

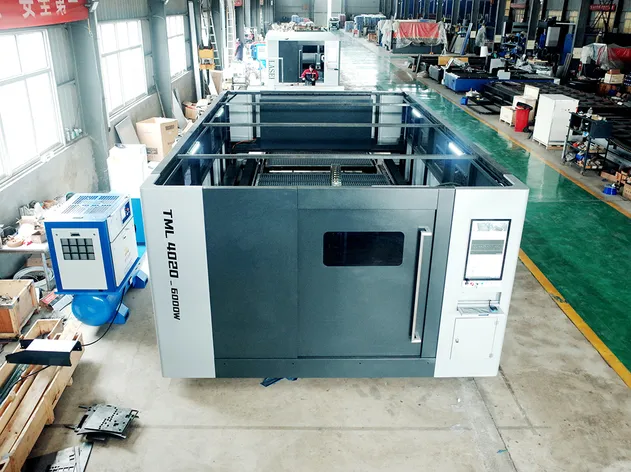

Top Elevation

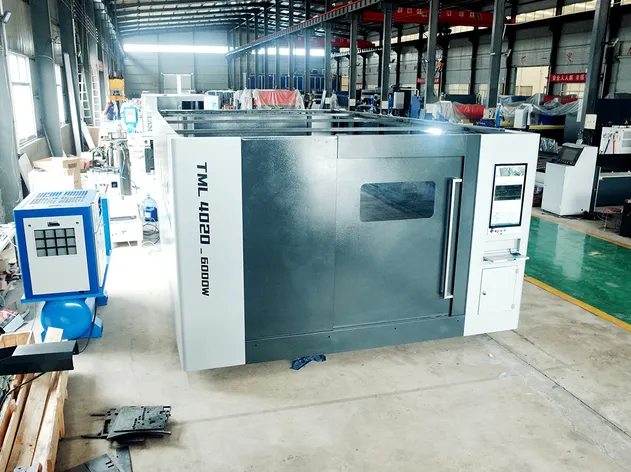

Front Elevation
Right Elevation

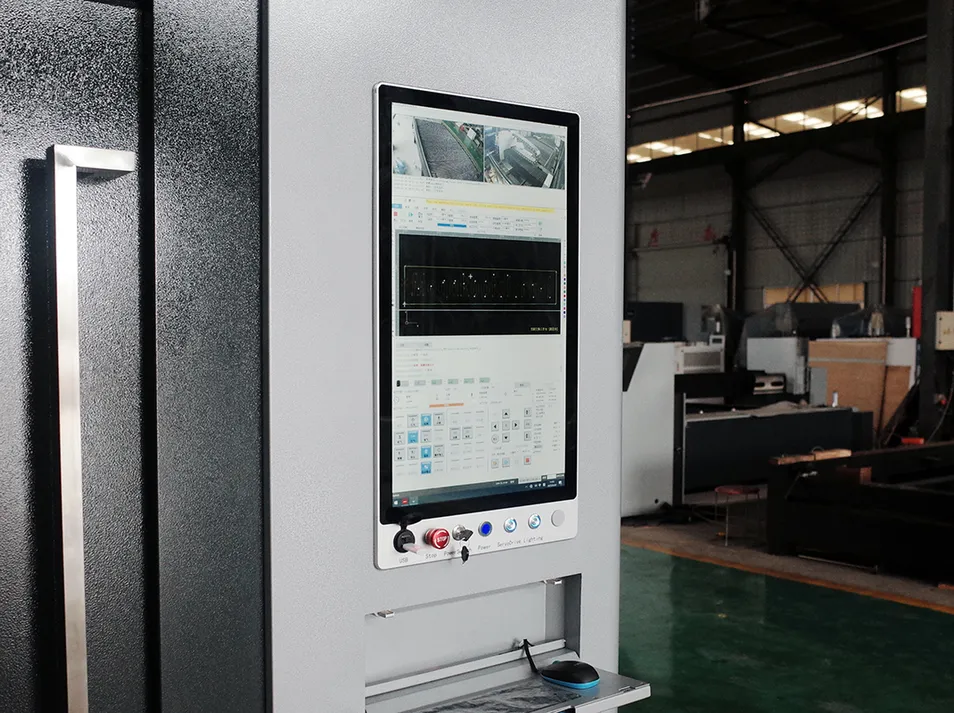

Bochu CNC System
The intelligent command center processes cutting programs and controls all machine motions with high-speed precision.

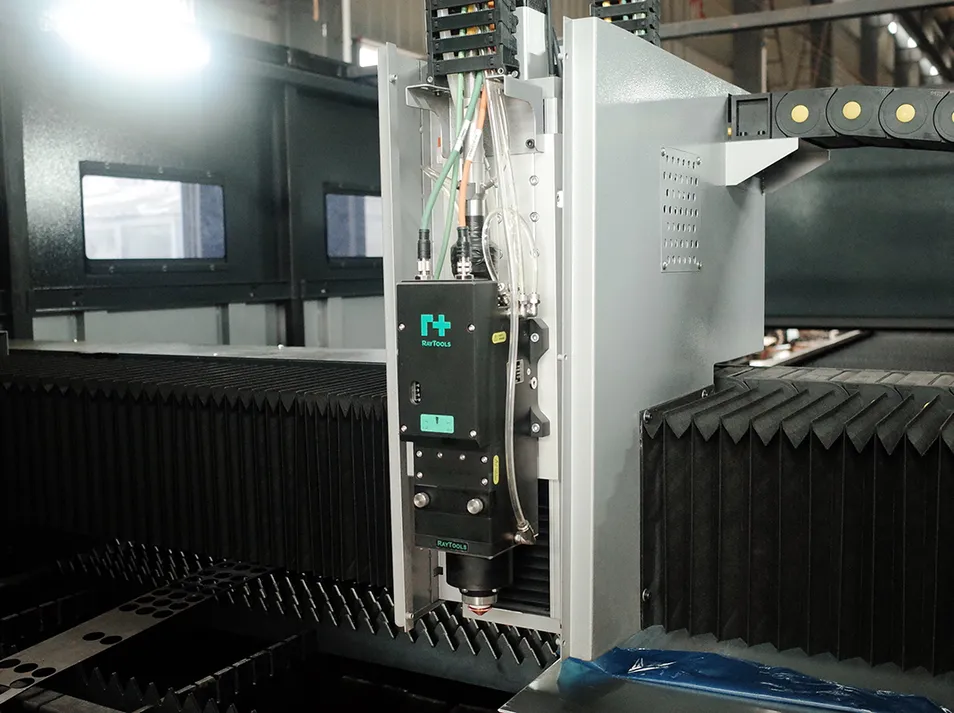

Laser Head
Equipped with an automatic capacitive height sensor, maintaining optimal distance in real-time for consistent quality.

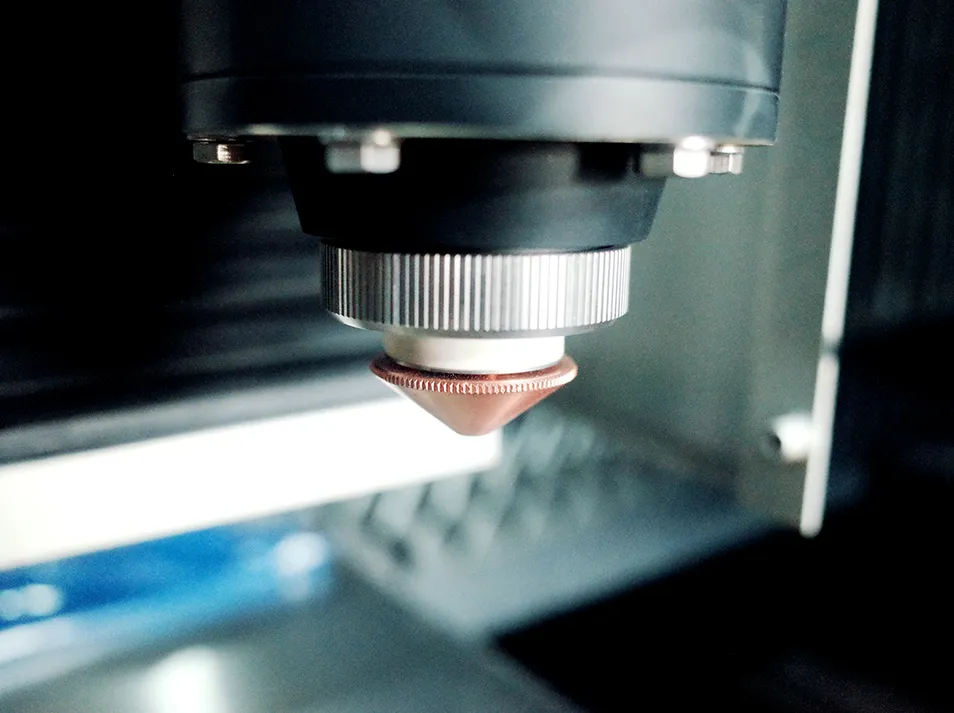

Cutting Nozzle
Precision-calibrated bore ensures stable gas dynamics for clean, dross-free cuts.

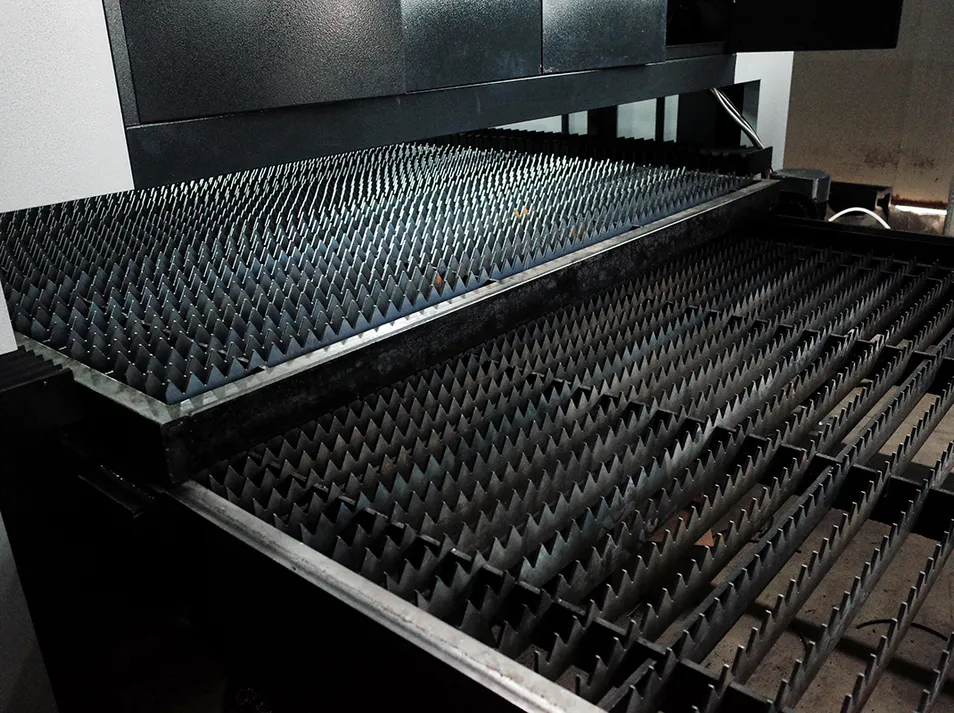

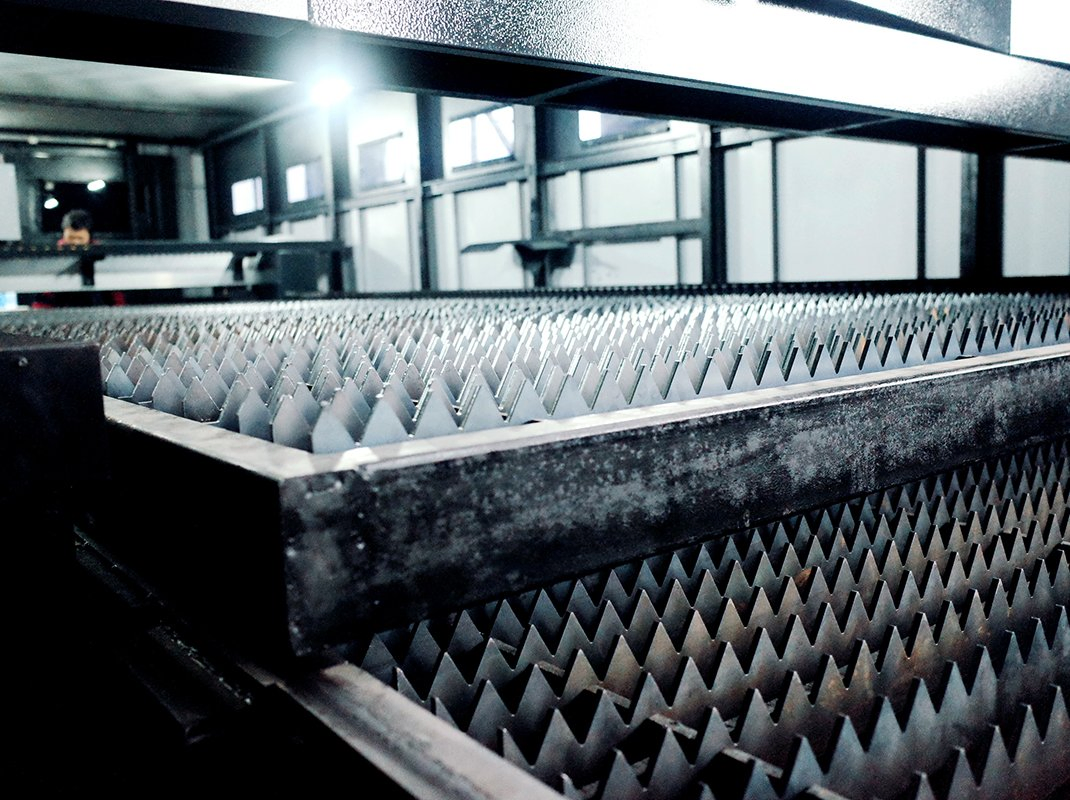

Exchange Worktable
Dual-station system enables continuous production by allowing offline loading and unloading.

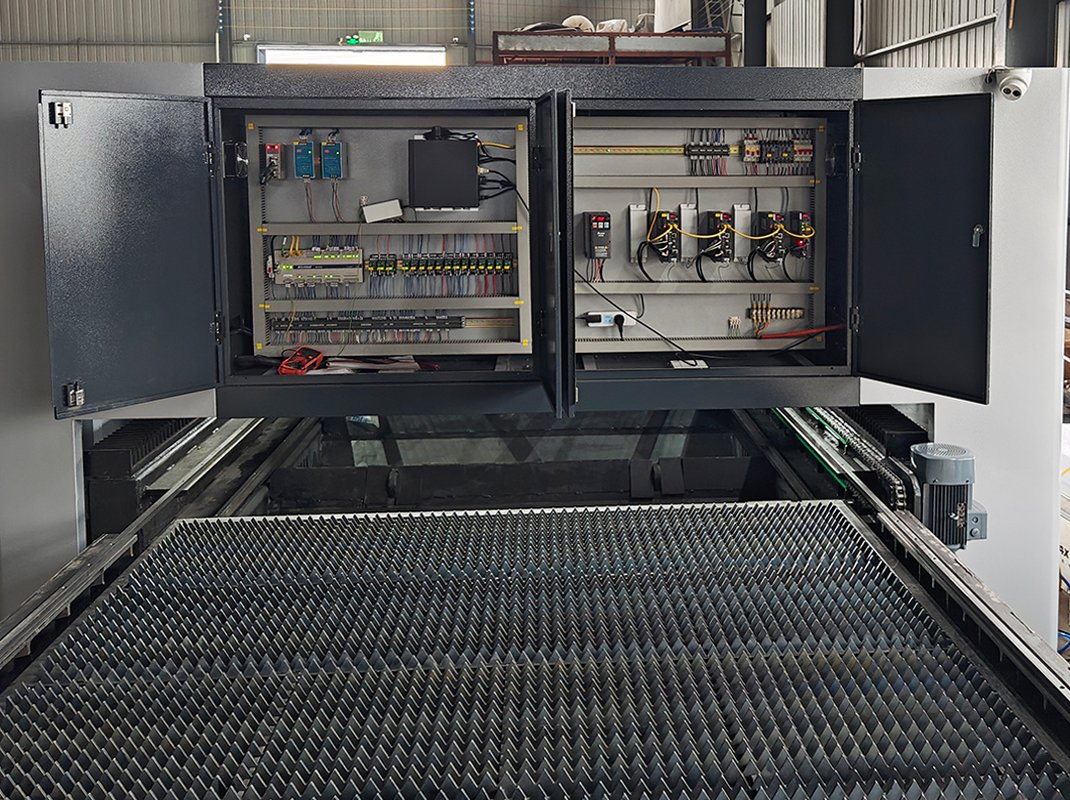

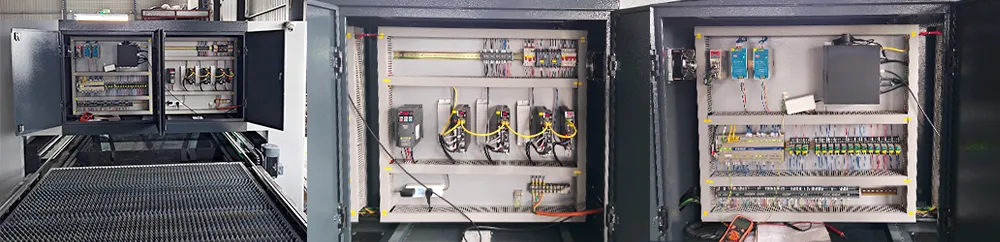

Control Cabinet
Integrated housing with superior heat dissipation and protection for reliable electrical operations.
| NO. | Model Parameter | Unit | 4020 6000W Specs |
|---|---|---|---|
| 1 | Processing Range | mm | 4000 * 2000 |
| 2 | Laser Power | W | 6000 |
| 3 | X-Axis Travel | mm | 2025 |
| 4 | Y-Axis Travel | mm | 4025 |
| 5 | Z-Axis Travel | mm | 100 |
| 6 | Positioning Accuracy | mm/m | ±0.05 |
| 7 | Repeated Positioning Accuracy | mm/m | ±0.03 |
| 8 | Maximum Linkage Speed | m/min | 100 |
| 9 | Maximum Acceleration | G | 1.5 |
