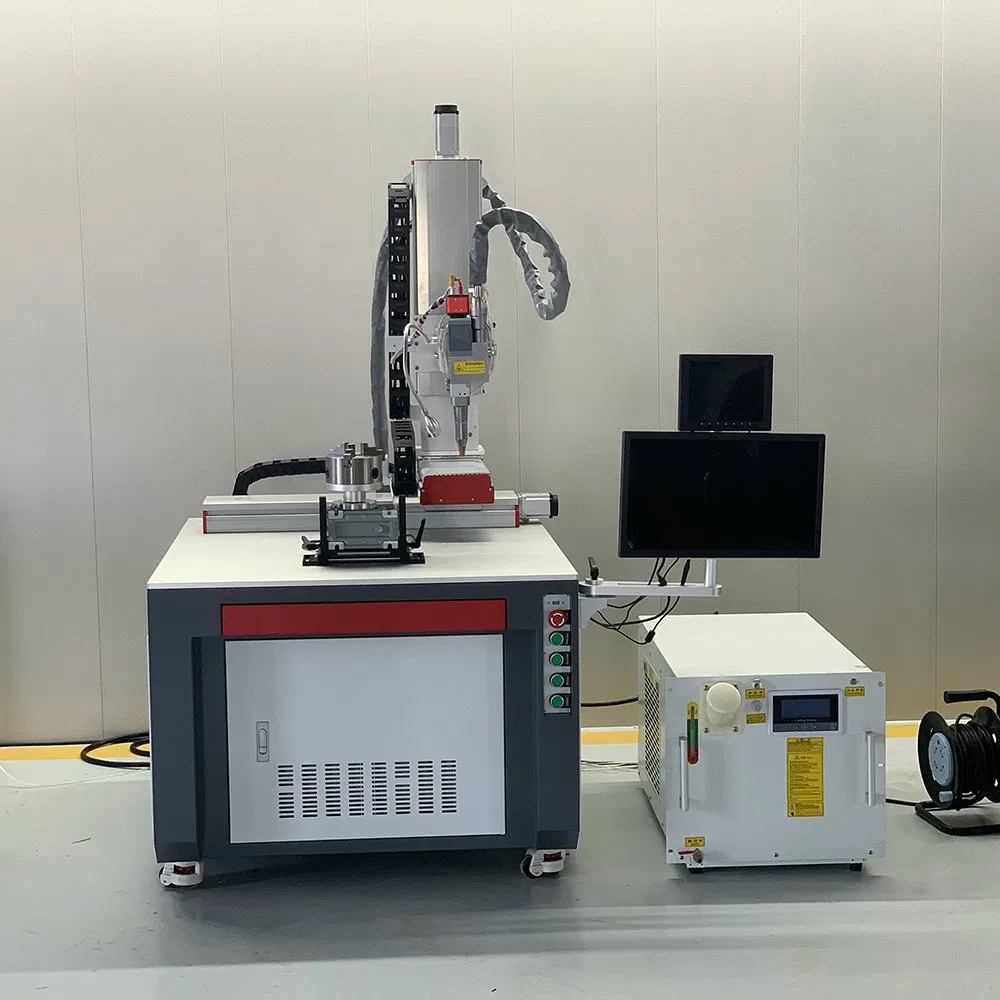

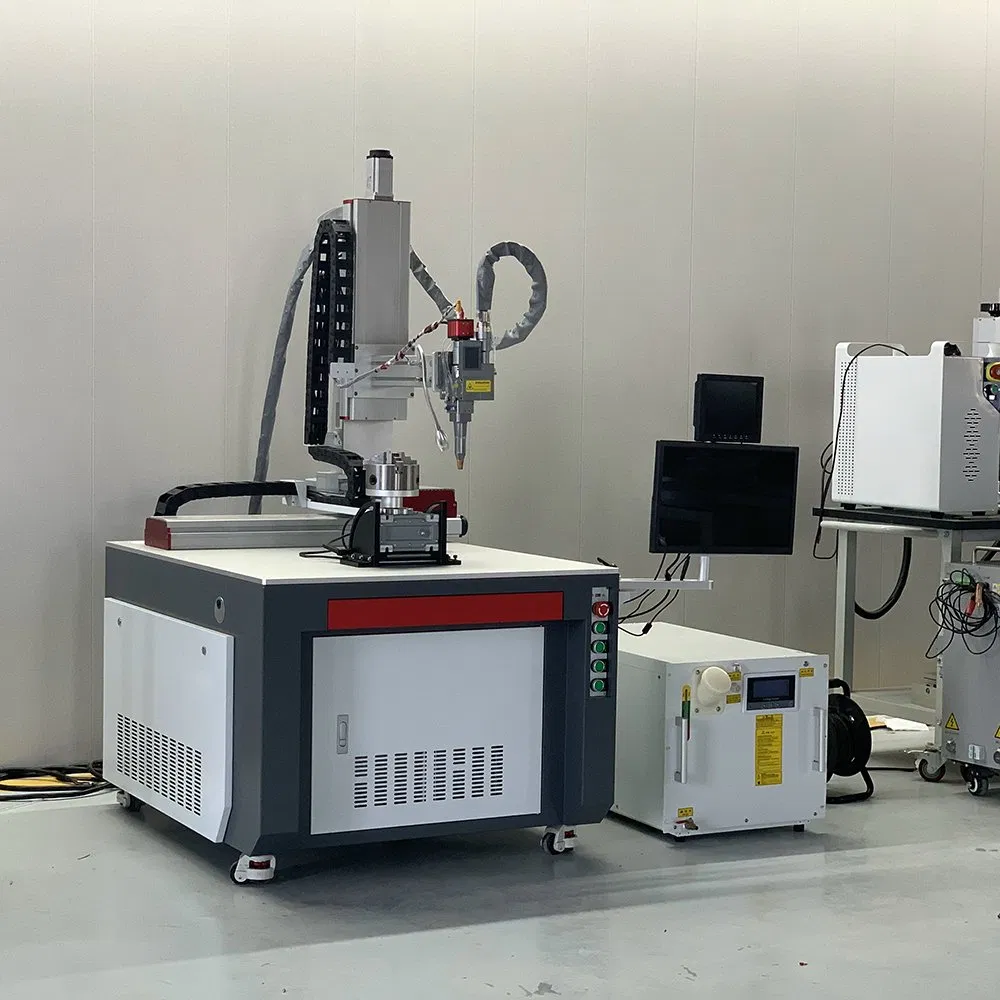

Smart Optical Fiber Welding System with Automated Control

1 / 5

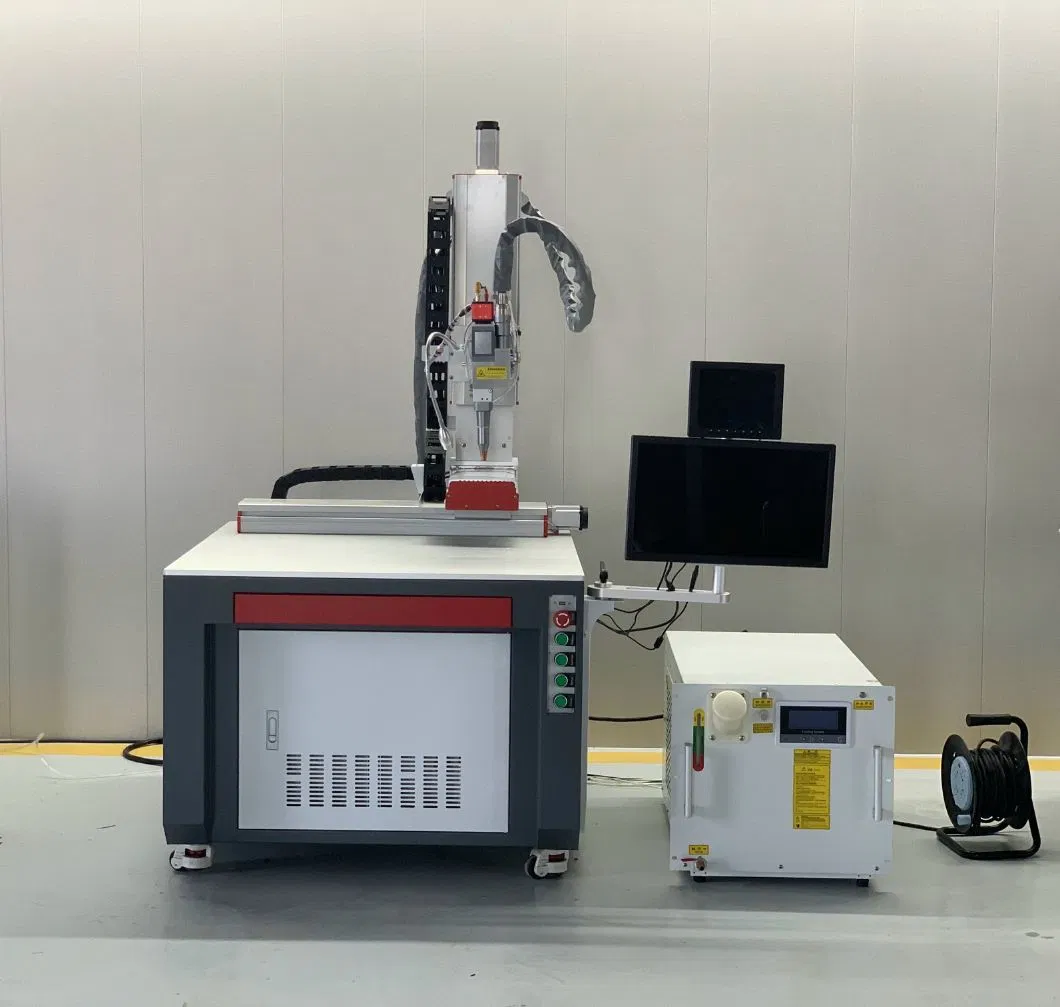

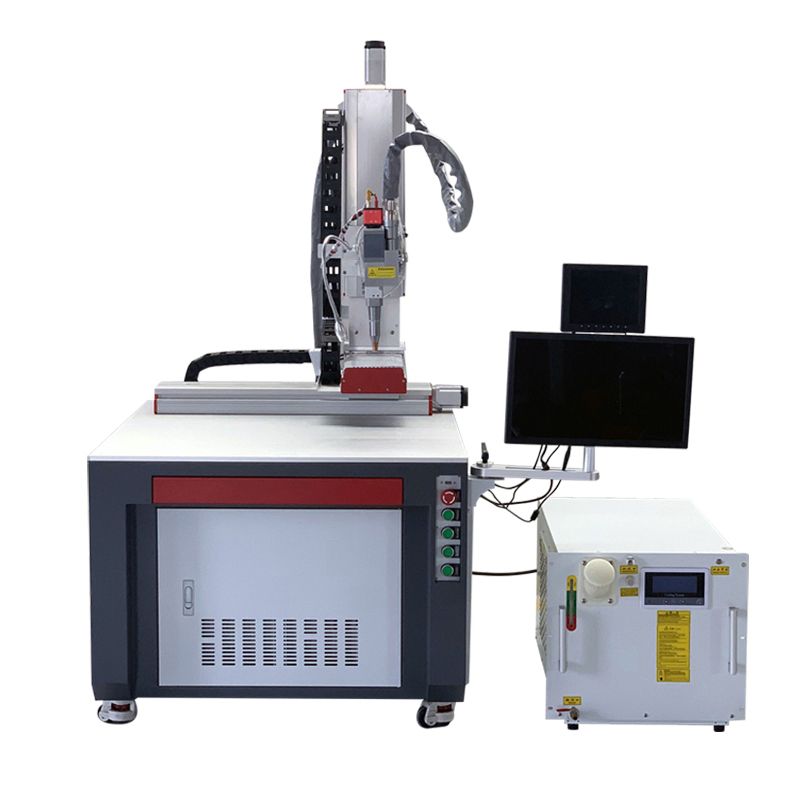

Smart Optical Fiber Welding System with Automated Control

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.OM-W3000

ApplicationManufacturing Industry

Technical ClassContinuous Wave Laser

ControlAutomatic

Power Density3000W

TypeAutomatic Laser Welding Machine

Laser SourceReci (Raycus, IPG, Max, JPT Optional)

Cooling MethodWater Cooling

Working Area500*300*300mm (X, Y, Z, R-360)

Power Supply220V Single Phase / 380V Three Phases

⚙️

Product Description

Optical Fiber Automatic Welding Equipment with Intelligent Control

Technical Specifications
Model	3kw 4 axis laser welding machine
Observation system	CCD microscope vision system

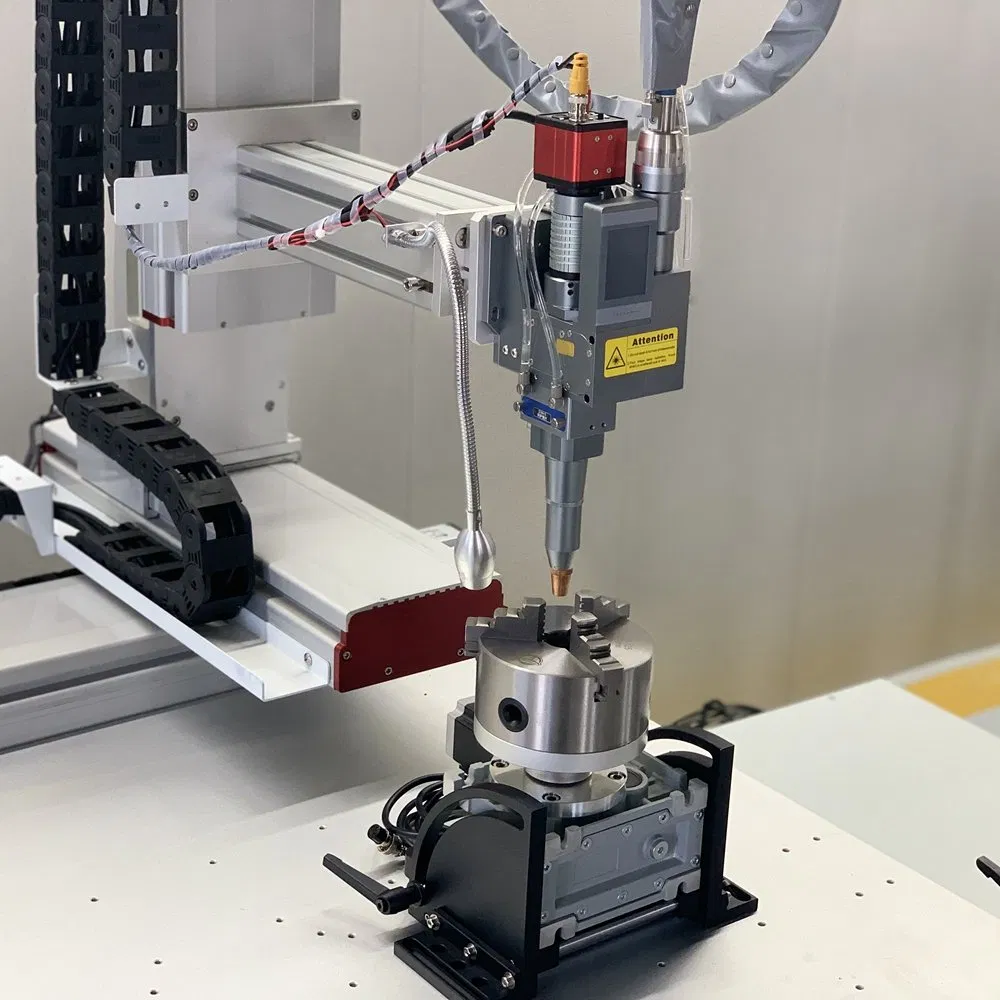

Rotary	Diameter 100mm (professional for welding)
Laser wavelength	1080±10%
Spot size	0.2-3.0mm
Workbench load-bearing	200kg
Module life	100000hrs

Power Recommendations:

Laser Power	Material Thickness Capability
1000W	Stainless/Carbon steel 0-2mm, Aluminum 0-1.5mm
1500W	Stainless/Carbon steel 0-3mm, Aluminum 0-2mm
2000W	Stainless/Carbon steel 0-4mm, Aluminum 0-3mm
3000W	Stainless/Carbon steel 0-6mm, Aluminum 0-4mm

🚀

Control and Functionality

Integrated Motion Control Mature solutions combining laser functions with PC operation.
Powerful PC Control Supports complex paths: lines, arcs, and custom flat plane trajectories.
IDE Software Environment Streamlined graphic editing and real-time monitoring.
4-Axis Control High-performance spatial welding trajectory programming.
Multi-Language Supports Simplified Chinese and English for global users.

🛠️

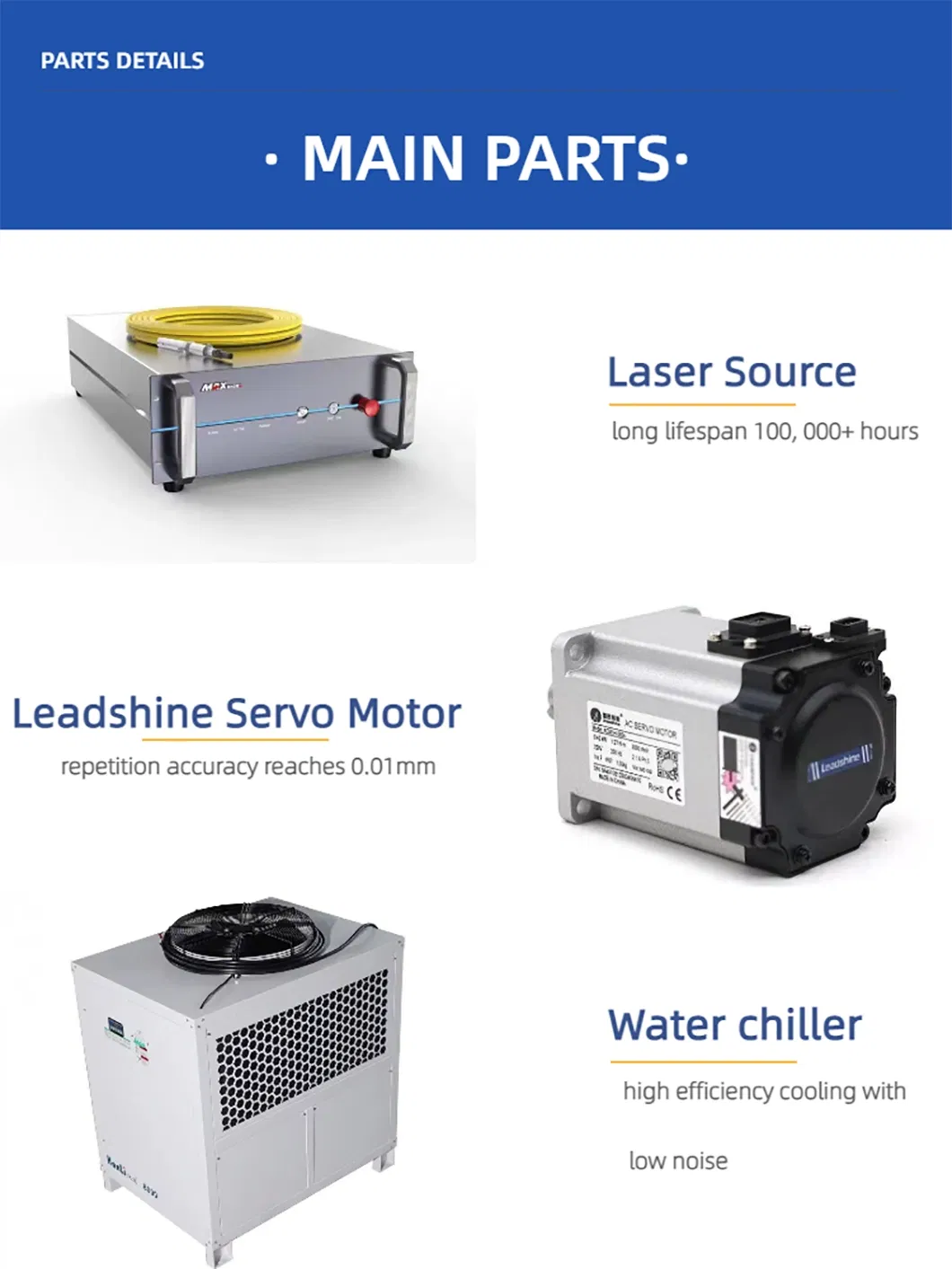

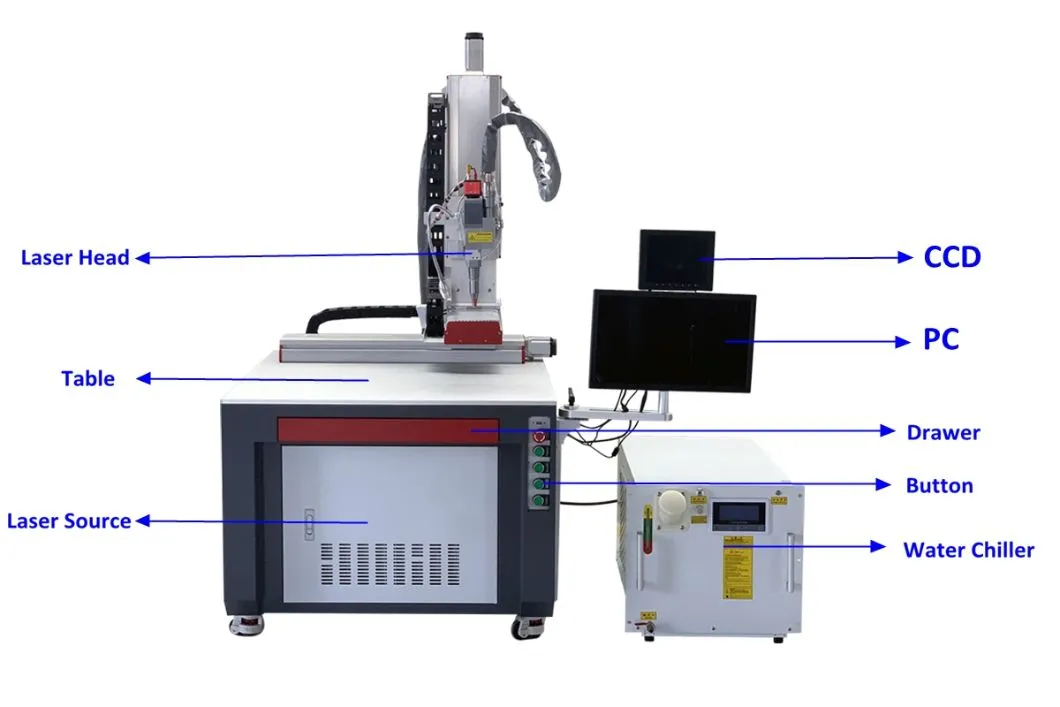

Machine Main Parts

Fiber Laser Source MAX brand (Raycus, JPT, IPG optional), high stability, 100,000+ hours lifespan.
Leadshine Servo Motor 0.01 mm repetition accuracy for enhanced precision.
Water Chiller Industrial grade Hanli chiller, low noise, efficient cooling.

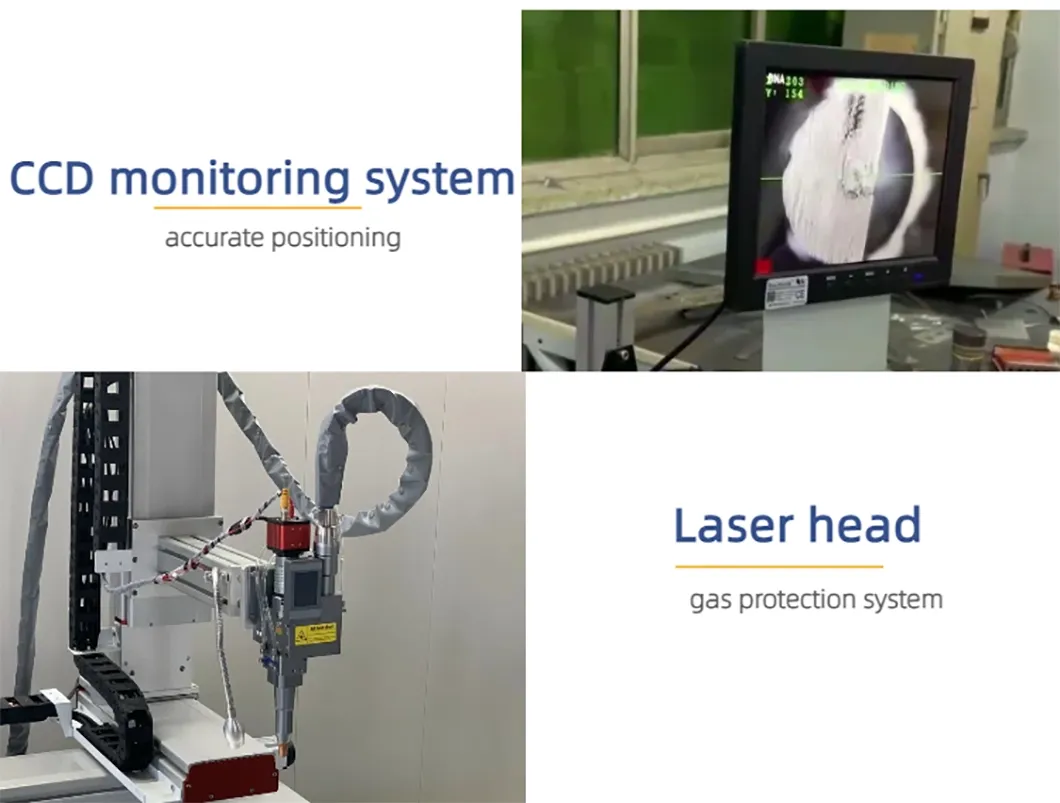

CCD Monitoring Advanced positioning software and auto-focus for high-tensile seams.
Laser Head Lightweight, flexible design with integrated gas protection.

🌐

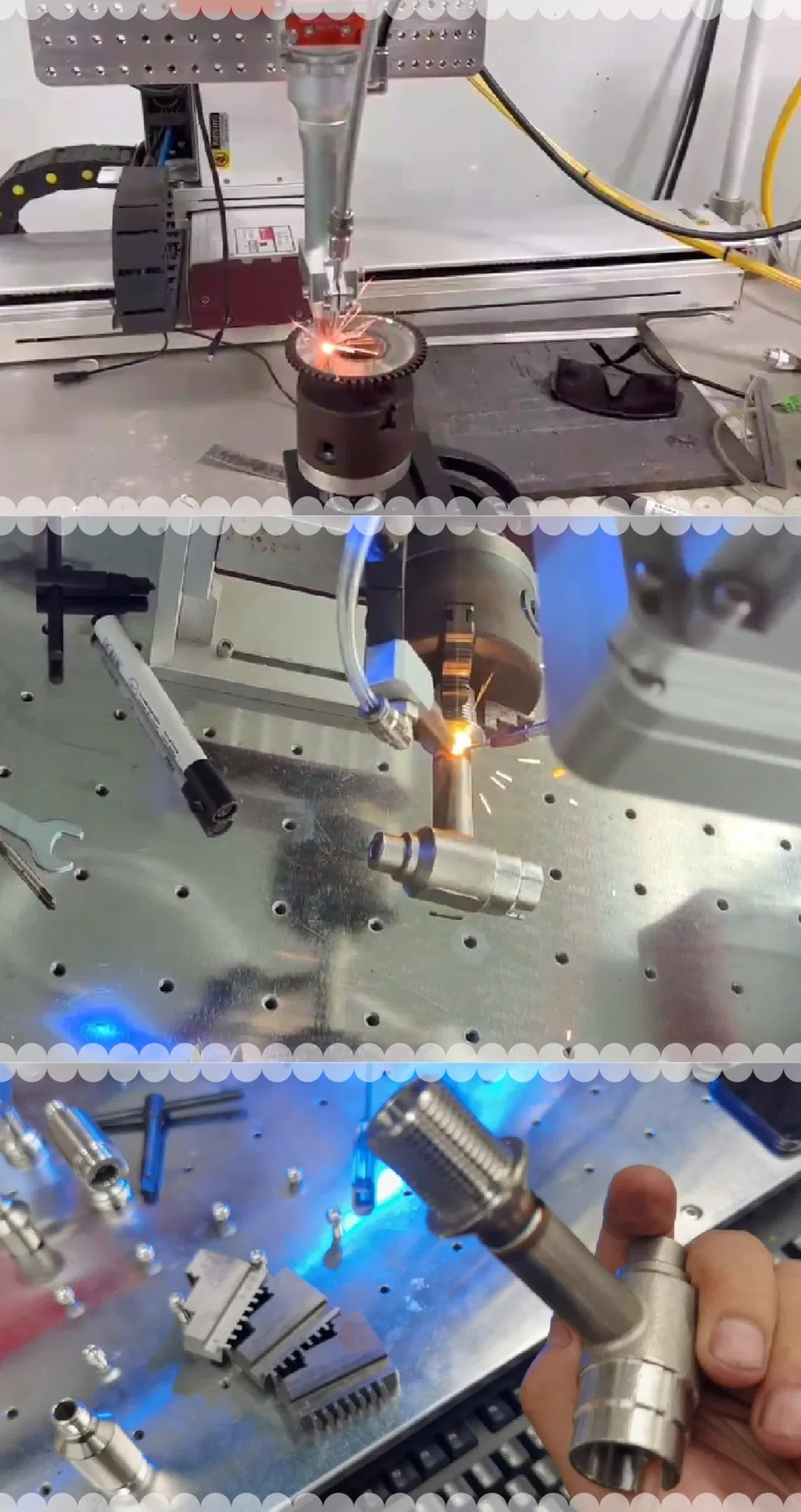

Product Applications

Aviation and Aerospace
Automotive Manufacturing
Power Battery Production
Machinery Manufacturing
Shipbuilding
Optical Communication Devices
Medical Equipment
Electronics & PCB/FPC
Metal Precision Parts
LCD Screens & Digital Tubes

💎

After Sales Service

2-Year Warranty Coverage for the entire machine and generator.
Lifetime Support Technical assistance available via email or online 24/7.
Training Resources Detailed English videos, manuals, and in-factory training.
Overseas Service On-site training and installation support available if needed.

❓

FAQ

What should I do if something goes wrong with the laser?

We offer a two-year warranty with free replacement parts for any issues. Additionally, we provide free lifetime technical support to ensure your machine stays operational.

How long does it take to learn to operate the machine?

With our English manual, instructional videos, and technician assistance, most users grasp the basics in a few hours and become proficient within a few days.

Can the machine be customized to my specific needs?

Yes, our technical team specializes in tailoring solutions, including specific hardware configurations and signal requirements for production lines.

What are the available shipping options?

We offer flexible shipping by sea, air, or express. Common trading terms include FOB, CIF, EXW, and DDU to suit your logistics preferences.

Does the machine include a warranty?

Yes, the entire machine and the laser generator are covered by a 2-year warranty, excluding consumable parts.

Is on-site training available?

We provide free hands-on training at our factory. For overseas customers, we can also arrange on-site installation and operational support as needed.
