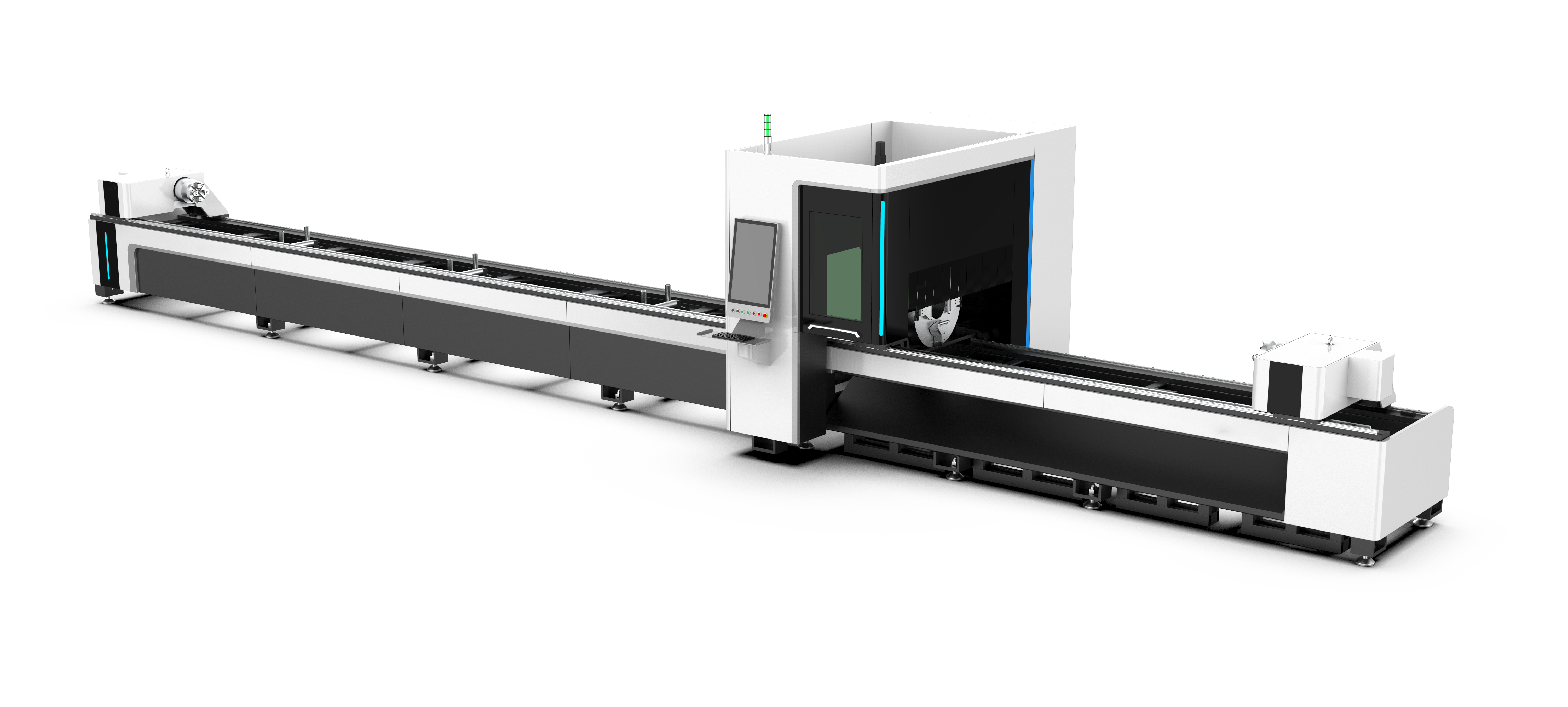

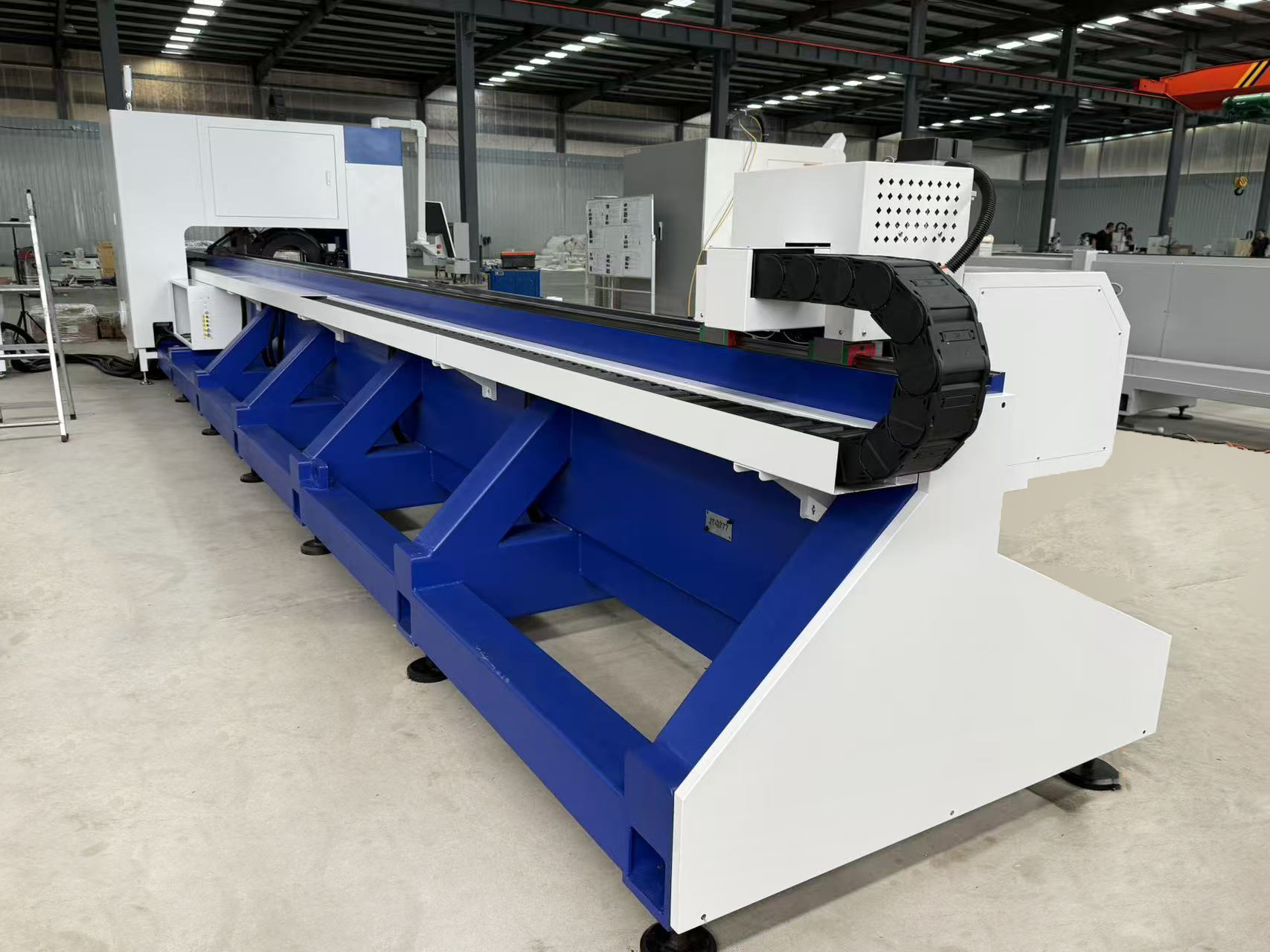

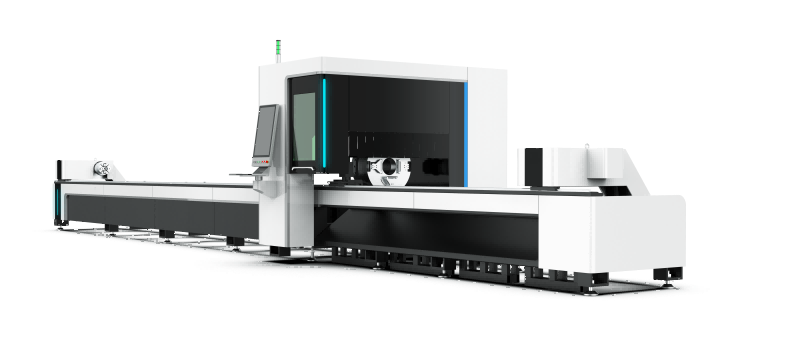

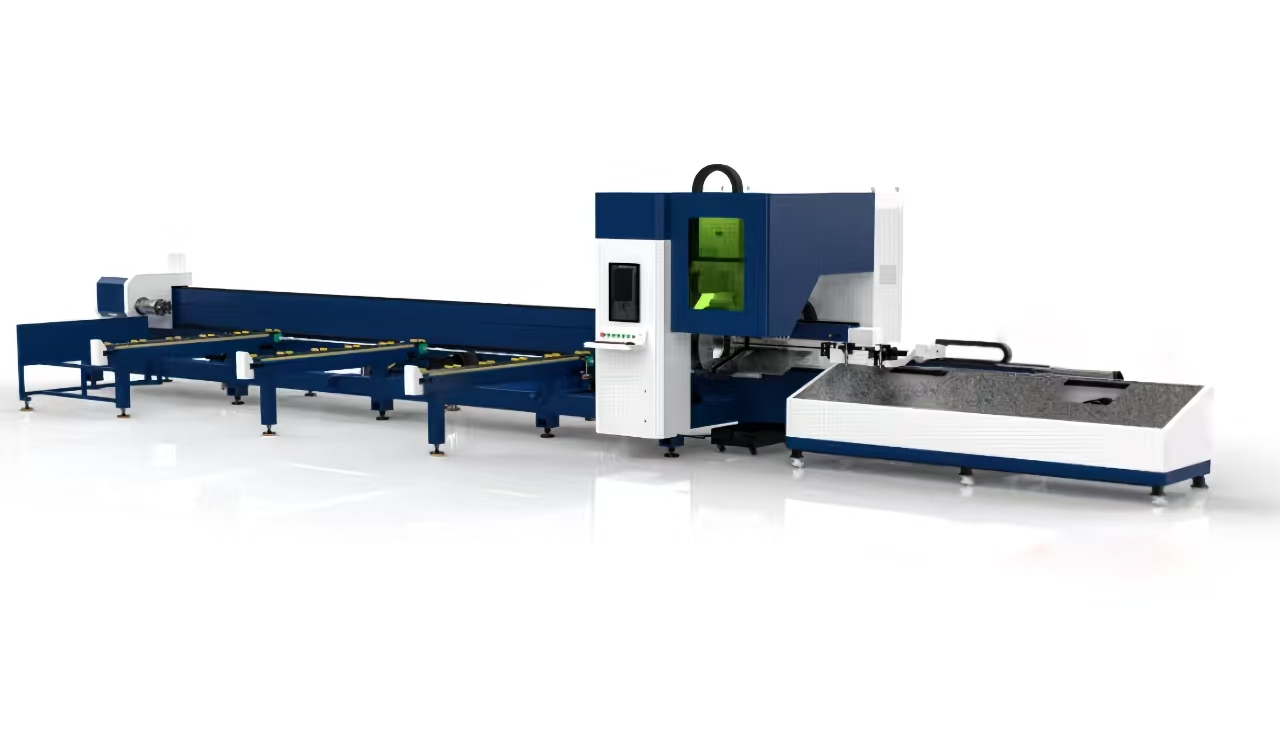

TONY LASER TN6012T Operate Flexibly 1500W Metal Tube Cnc Fiber Laser Pipe Cutting Machine for Cut Square Tubes Round Tubes
TONY LASER TN6012T Operate Flexibly 1500W Metal Tube Cnc Fiber Laser Pipe Cutting Machine for Cut Square Tubes Round Tubes
TONY LASER TN6012T Operate Flexibly 1500W Metal Tube Cnc Fiber Laser Pipe Cutting Machine for Cut Square Tubes Round Tubes
TONY LASER TN6012T Operate Flexibly 1500W Metal Tube Cnc Fiber Laser Pipe Cutting Machine for Cut Square Tubes Round Tubes
TONY LASER TN6012T Operate Flexibly 1500W Metal Tube Cnc Fiber Laser Pipe Cutting Machine for Cut Square Tubes Round Tubes
1 / 5
TONY LASER TN6012T Operate Flexibly 1500W Metal Tube Cnc Fiber Laser Pipe Cutting Machine for Cut Square Tubes Round Tubes
TONY LASER TN6012T Operate Flexibly 1500W Metal Tube Cnc Fiber Laser Pipe Cutting Machine for Cut Square Tubes Round Tubes
TONY LASER TN6012T Operate Flexibly 1500W Metal Tube Cnc Fiber Laser Pipe Cutting Machine for Cut Square Tubes Round Tubes
TONY LASER TN6012T Operate Flexibly 1500W Metal Tube Cnc Fiber Laser Pipe Cutting Machine for Cut Square Tubes Round Tubes
TONY LASER TN6012T Operate Flexibly 1500W Metal Tube Cnc Fiber Laser Pipe Cutting Machine for Cut Square Tubes Round Tubes

TONY LASER TN6012T Operate Flexibly 1500W Metal Tube Cnc Fiber Laser Pipe Cutting Machine for Cut Square Tubes Round Tubes

Send Inquiry

Product Description

Product Description
Model TN6012T TN6024T TN6035T
Laser output power 6000w/3000w/1500w 6000w/3000w
Round Tube 6-120mm 8-240mm 20-350mm
Square Tube 6-110mm 8-240mm 20-350mm
Rectangular tube 6-110mm 8-240mm 20-350mm
Positioning accuracy 0.05mm/m
Repositioning accuracy 0.03mm
X axis maximum speed 100m/min 90m/min
Y axis maximum speed 60m/min 60m/min
Product Parameters
Lathe bed
Lathe bed

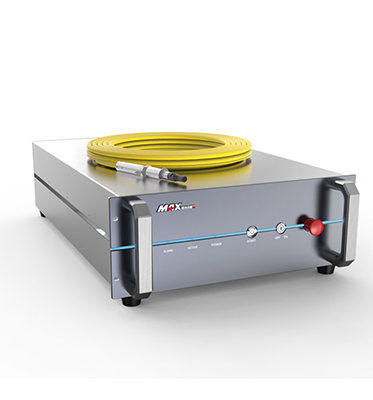

Laser source
Laser source

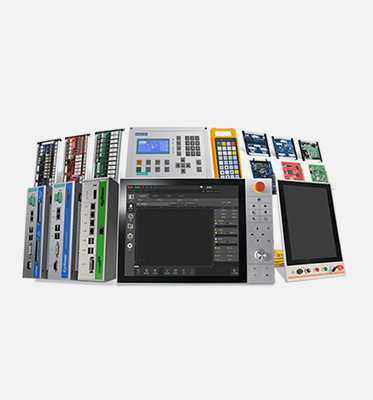

Control system
Control system
Water Chiller
Water Chiller
Servo motor
Servo motor
Laser head
Laser head

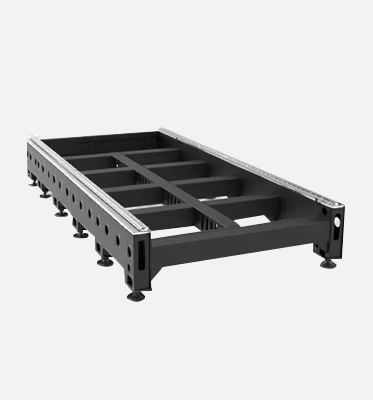

Lathe bed details
High Precision Machine Bed
1. Machine bed part is developed independently using party welding lathe bed base, processed through large gantry milling machines.
2. Each machine bed undergoes 30 to 45 days of natural aging to release internal stress completely before finishing, ensuring high strength and stability for over 20 years without distortion.

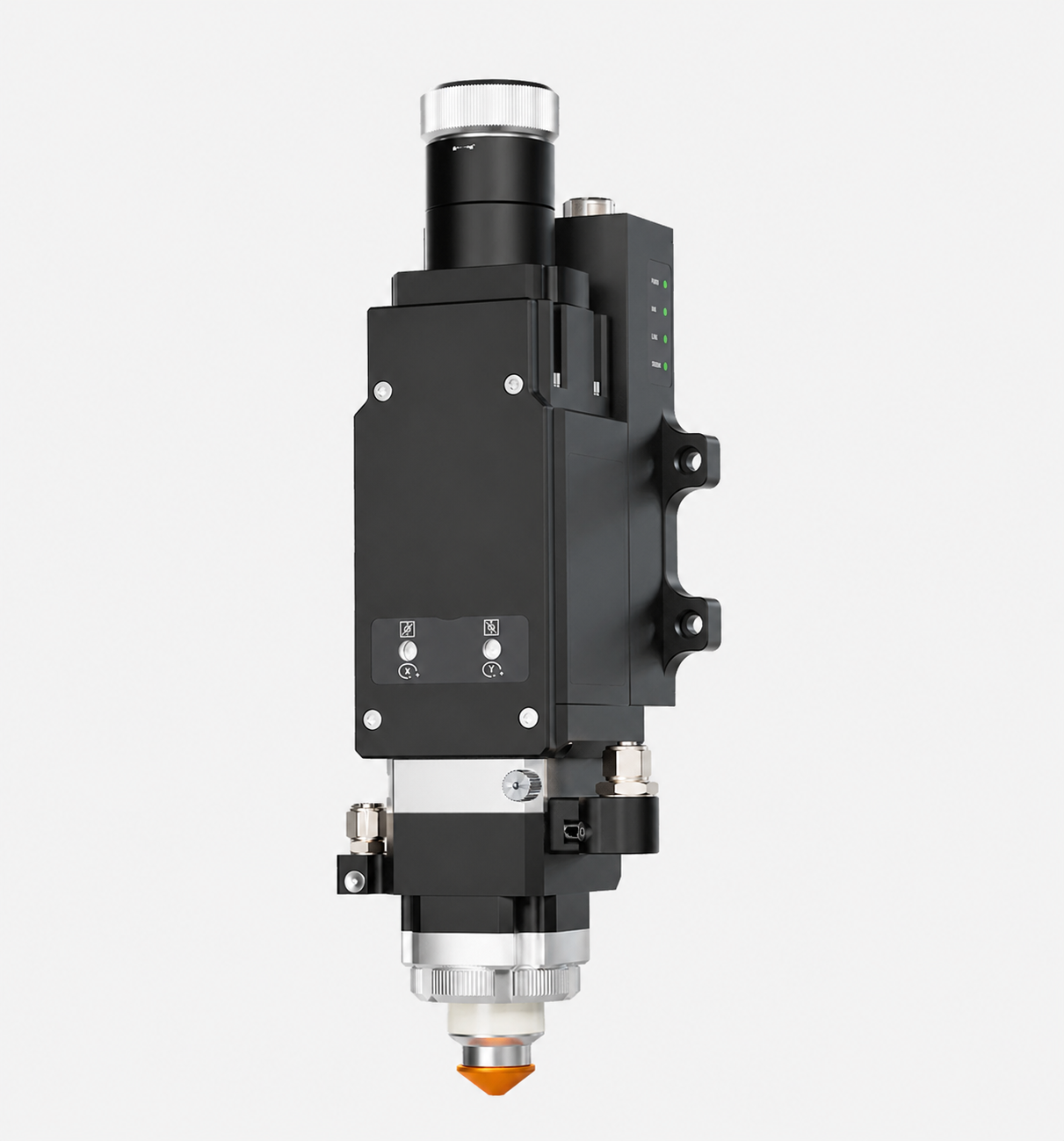

Laser Head details
Advanced Laser Head
1. Modularized design for easy maintenance and reduced downtime.
2. Equipped with 3 protective lenses to safeguard collimating focusing lenses efficiently.
3. 2-way optical water cooling extends continuous working time.
4. Closed-loop automatic focusing with a repeatability of 1μm and 100mm/s speed.
5. Fast piercing: 16mm low carbon steel piercing time < 6 seconds.

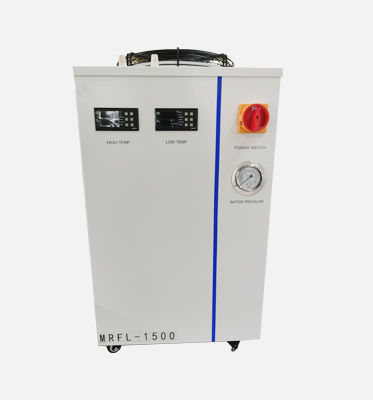

Water chiller details
Industrial Water Chiller
1. Automatically adjusts temperature based on the environment; protects the laser source and head through continuous water circulation.
2. Includes safety functions like water flow and temperature protection to prevent laser generation if cooling is insufficient or temperature is too high.

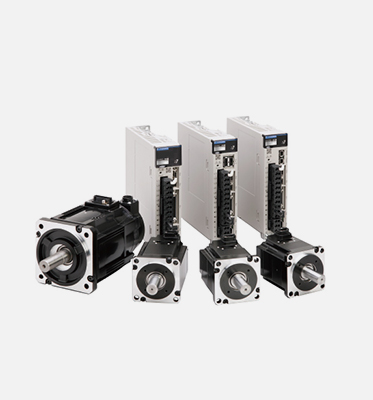

Servo motor details
High-Performance Servo Motor
Y axis: Double sets of BOCHU servo motors and drivers.
X axis: BOCHU Servo motor and driver for increased speed, precision, and stability.
Z axis: BOCHU Servo motor and driver for precise vertical control.

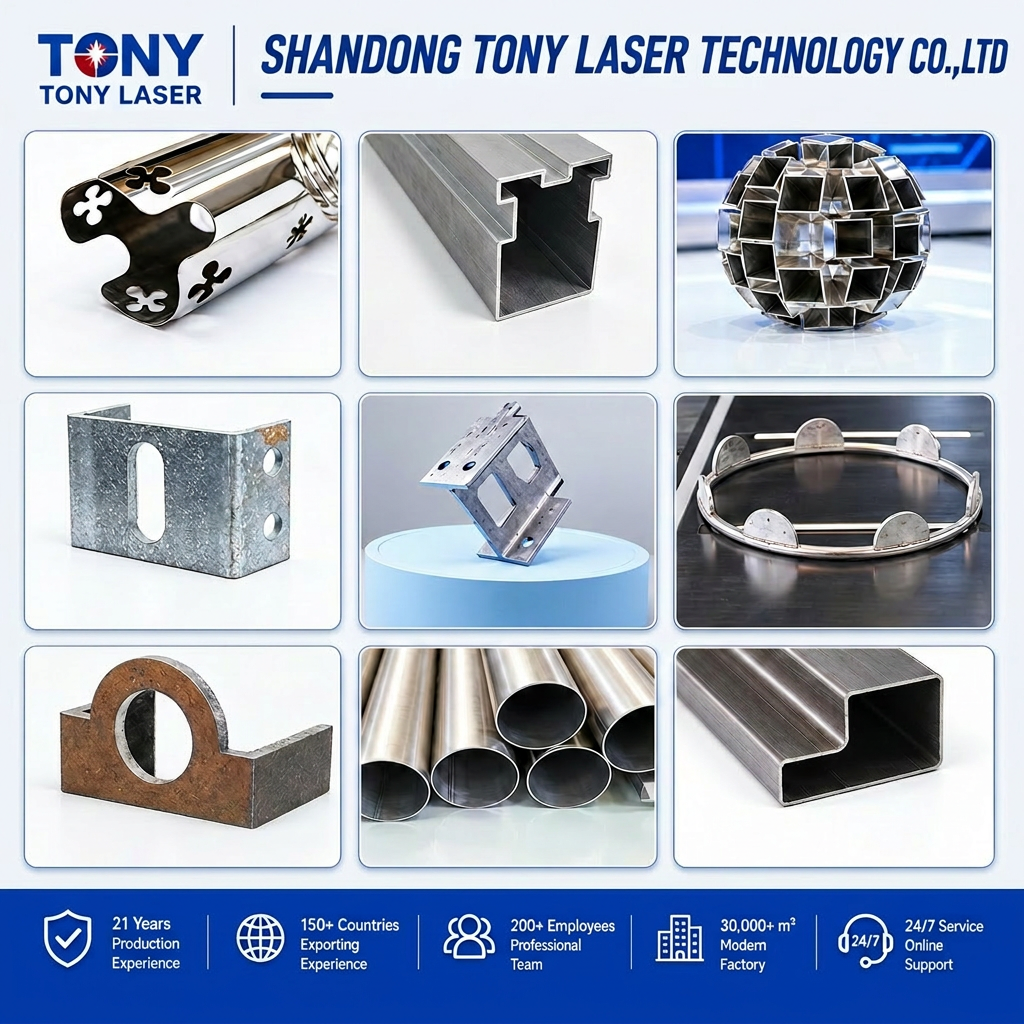

Cutting Samples
Cutting Samples Display

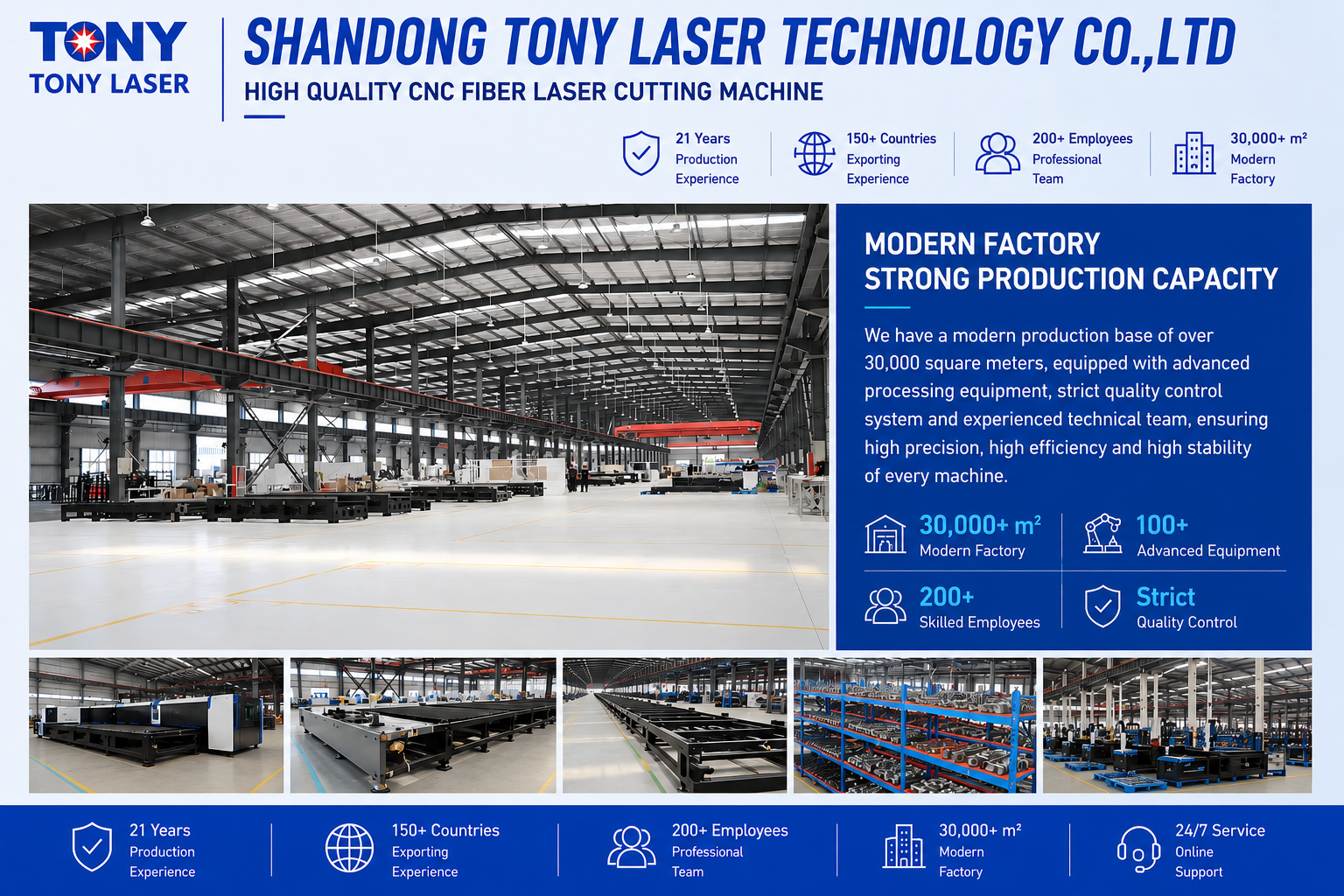

Factory Overview
Factory Overview
Certifications
Machine Certifications
Packing & Delivery
Packing and Delivery
Frequently Asked Questions
What should I do if the machine encounters technical problems?
We provide free replacement components if the machine is within the warranty period. Additionally, we can dispatch professional engineers to your location to perform necessary repairs.
Do you provide equipment operation training for new users?
Yes, we offer comprehensive onsite training. Our professional engineers can visit your facility for equipment installation, adjustment, and full operation training to ensure your team is proficient.
What are the advantages of choosing your fiber laser cutting machines?
Our team consists of top laser technology experts. We operate a standardized intelligent equipment base dedicated to R&D, ensuring high precision, stability, and a global support system.
What types of tubes can this machine cut?
The machine is designed to cut a wide variety of tubes, including round tubes, square tubes, and rectangular tubes, with high precision and varying diameter ranges depending on the model chosen.
How long is the expected lifespan of the machine bed?
Thanks to our specialized heat treatment and aging process which releases internal stress, the high-strength machine bed is designed to provide over 20 years of stable use without distortion.
Is the laser head protected during continuous heavy-duty cutting?
Yes, the laser head features a modular design with three protective lenses and a 2-way optical water cooling system, which effectively extends its continuous working life and protects internal components.
