Product Description

FSCUT8000

High-end intelligent EtherCAT bus controller designed for high power fiber laser above 8kW, featured by out of box service, easy to install and adjust, full solution functions, supports custom, automatic and digitization solutions.

Product Specifications

Model NO.CYPCUT FSCUT8000

Logo Printingwith Logo Printing

SizeMiddle

CustomizedNon-Customized

TypeController

MaterialPlastic

CertificationISO 9001:2008, ISO 9001:2000, GS, CE

Control Signal5/24V PWM/Analog/Ethercat Bus

Installed Machine3015/1325 Fiber Laser Machine

Auto Find EdgeYes

Applied Laser Power8000W-20kw

Applied MaterialAll Kinds of Metal Materials

File FormatDxf, Plt, Ai, Gerber, Lxd

Computer OSWindows7 or Above

Other AccessoryHandle Box + Living Focus Controller

Matched GeneratorIpg/Raycus/Max/Nlight

CE CertificationYes

ApplicationPlate Cutting/Pipe Cutting/Welding

Active Collision AvoidanceYes

Breakpoint BackupYes

Application IndustryAuto Battery/Aerospace/Machinery

Specification310*380

TrademarkCypcut

OriginChina

Packaging & Delivery

Package Size52.00cm * 43.00cm * 25.00cm

Package Gross Weight10.000kg

Transport PackageCarton Box and Foam

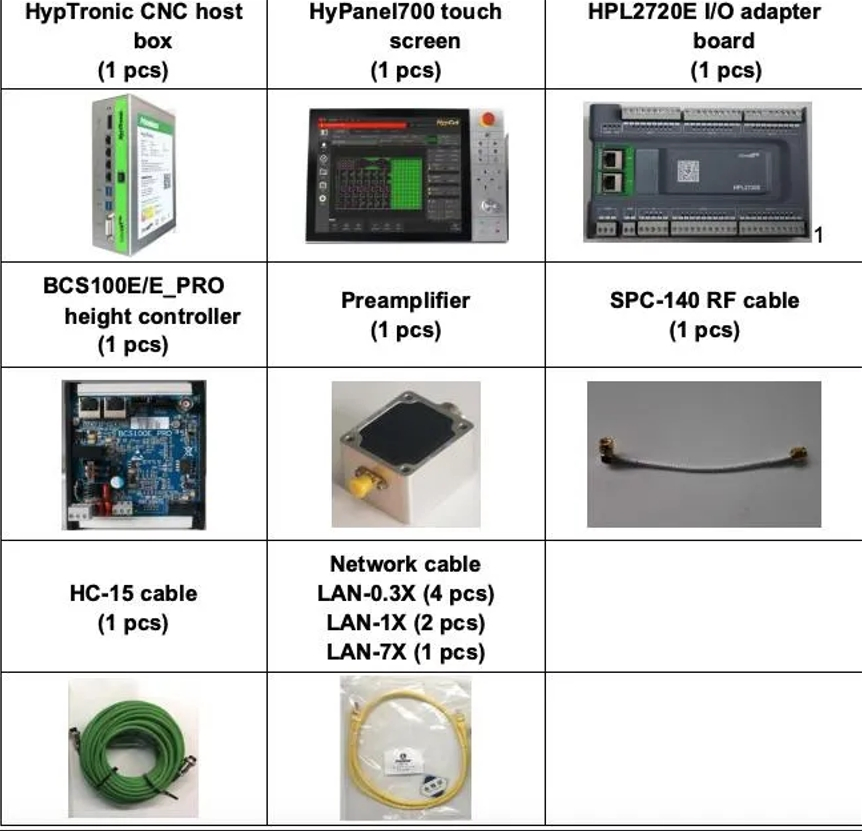

Detailed Component Specifications

AIO ComponentHyPanel2_IAC2822W3

Terminal BoardBCL4568E

Remote ControlWKB-V6H

Main Advantages & Software Capabilities

✓

Easy to Operate & User-Friendly

Ribbon style toolbar design offers clear functional partition for beginners to quickly get started, supporting custom shortcut keys and operation processes.

✓

Multi-Format Import & Auto Optimization

Supports DXF, PLT, AI, Gerber, and LXD formats. Automatically removes duplicate lines, merges connected lines, and sorts processing orders.

✓

Intelligent Path Optimization

Built-in automatic layout algorithm supports common edge nesting, surplus material utilization, and part array filling to maximize material use.

✓

Rich Process Parameter Control

Customizable laser power, cutting speed, frequency, and perforation methods (segmented, progressive, insensitive) with a reusable material library.

✓

High Quality & Efficient Processing

Features non-trace micro connection/seamless perforation, disk centering, breakpoint memory, and high-speed flight cutting mode.

✓

Real-Time Monitoring & Protection

Combined with the BCS series capacitor heightness adjuster and follow-up living focus controller, it achieves active collision avoidance, frog jumping, and automatic edge finding.

✓

Compatibility & Scalability

Supports Win7 and above, compatible with motion control cards (BMC1204, BMC1605, etc.). Supports PLC expansion, wireless handheld box, and Ethernet remote control.

✓

Strong Industry Adaptability

Multiple software versions to fit various needs: CypCut (general medium/low power), CypCutE (bus medium power with disc centering), and CypCutPro (medium/high power with 5-level perforation).

✓

Ecosystem Integration

Integrates seamlessly with HypCut, CypTube, and CypNest nesting software to collaborate efficiently from design to production.

✓

Accessory Compatibility

Compatible with servo motors from Panasonic/Yaskawa, speed reducers from Mordor, Raytools laser cutting heads, and S&A CWFL series water cooling chillers.

Product Diagnostics & Visual Layout

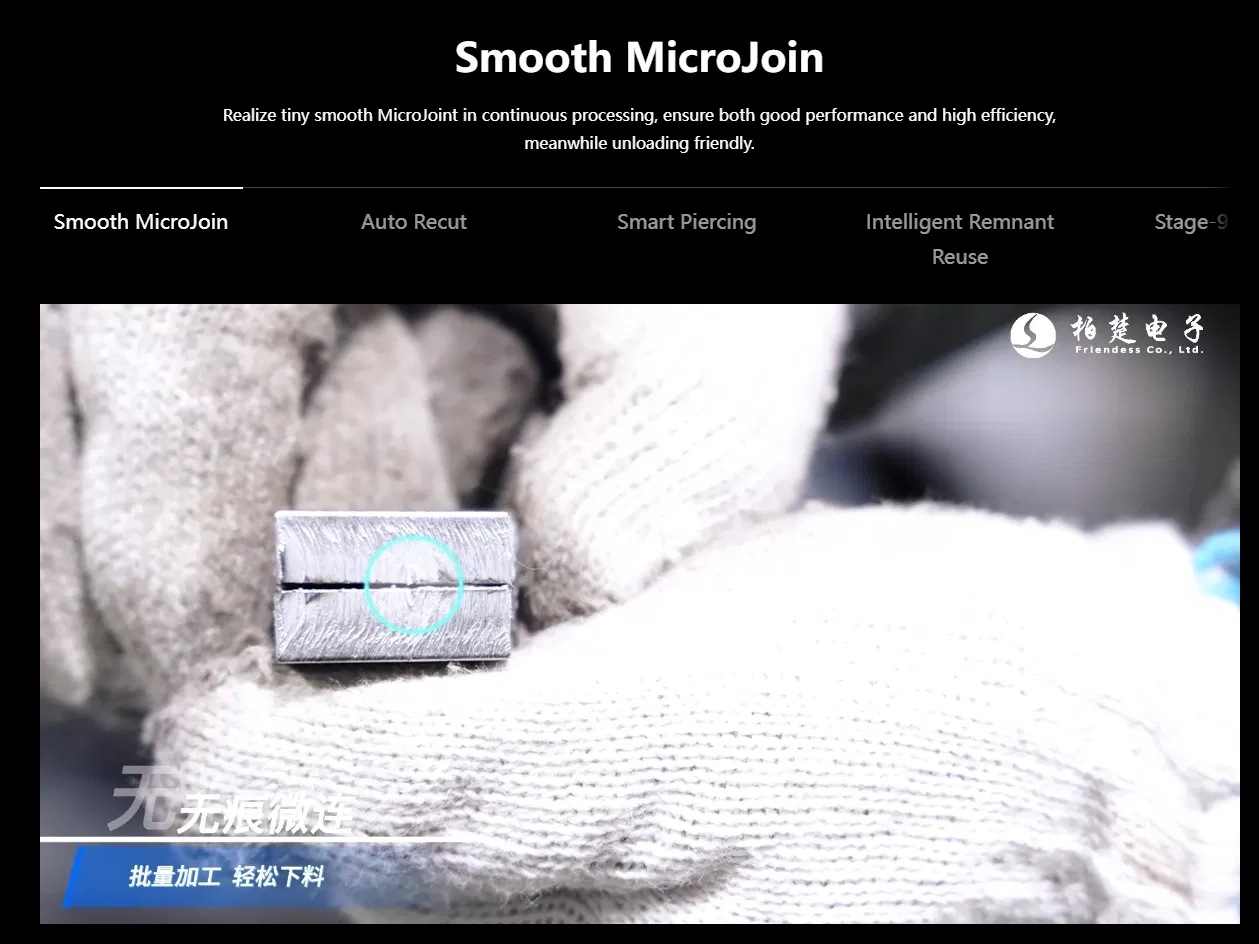

Cypcut Fiber Metal Laser Cutting Control System Details 1

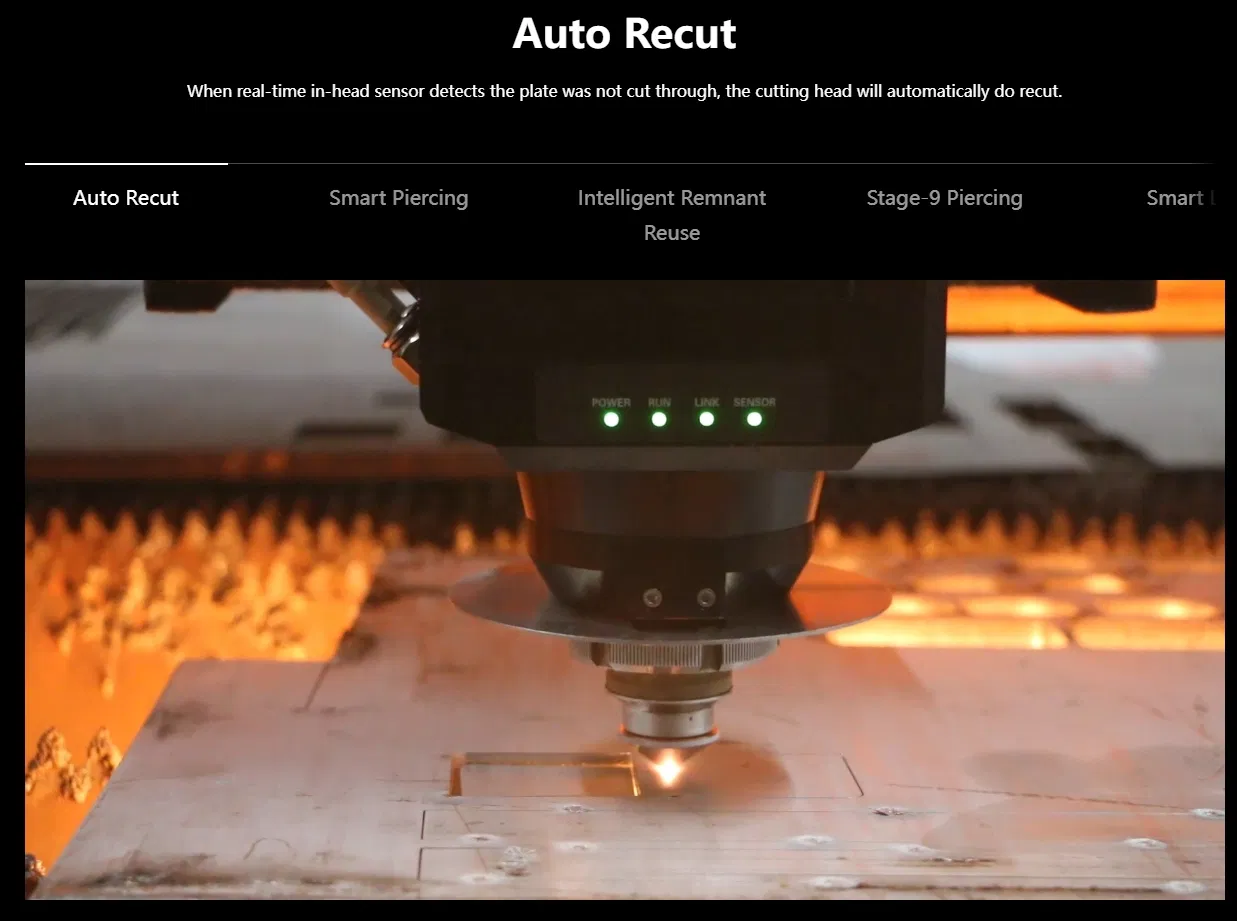

Cypcut Fiber Metal Laser Cutting Control System Details 2

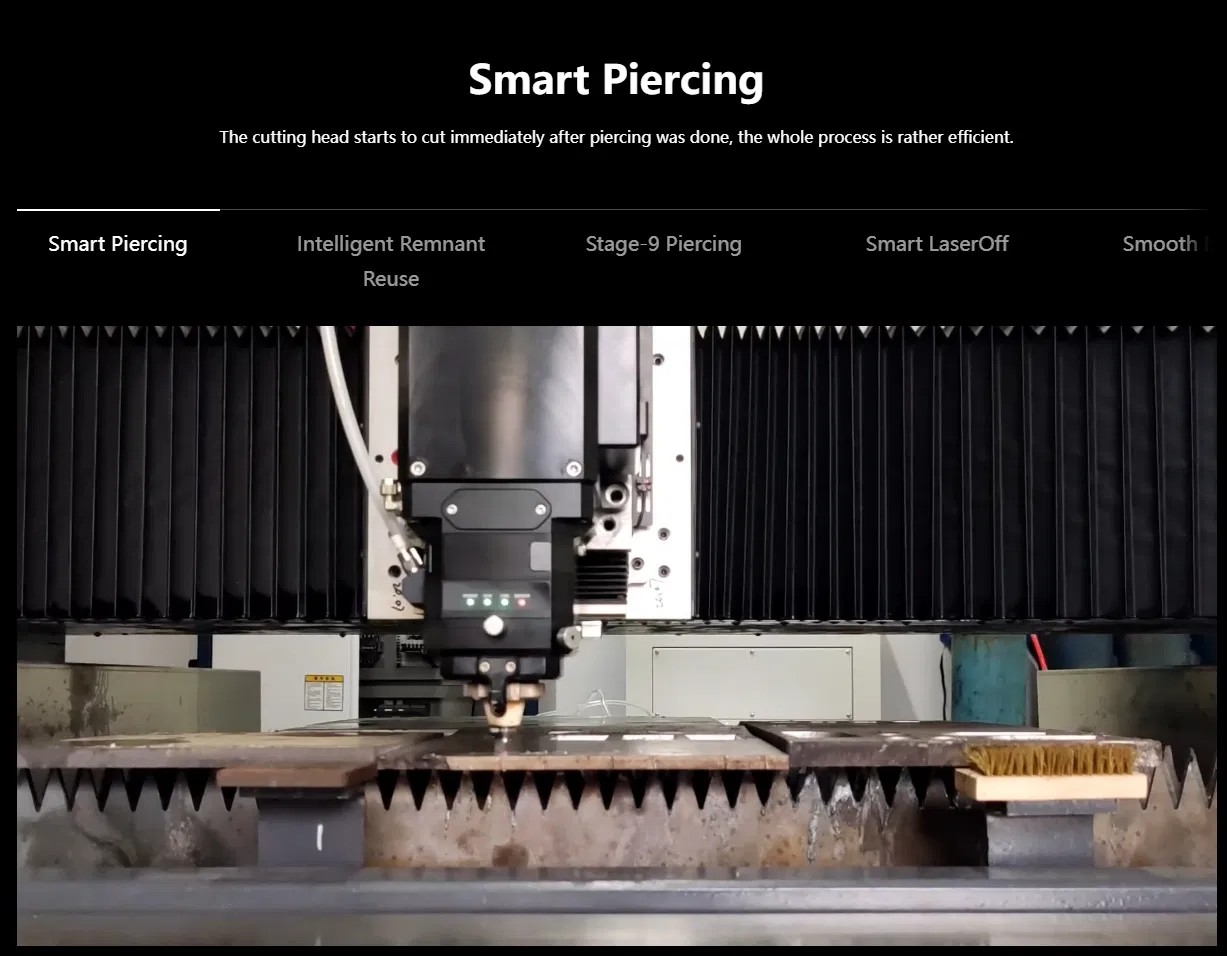

Cypcut Fiber Metal Laser Cutting Control System Details 3

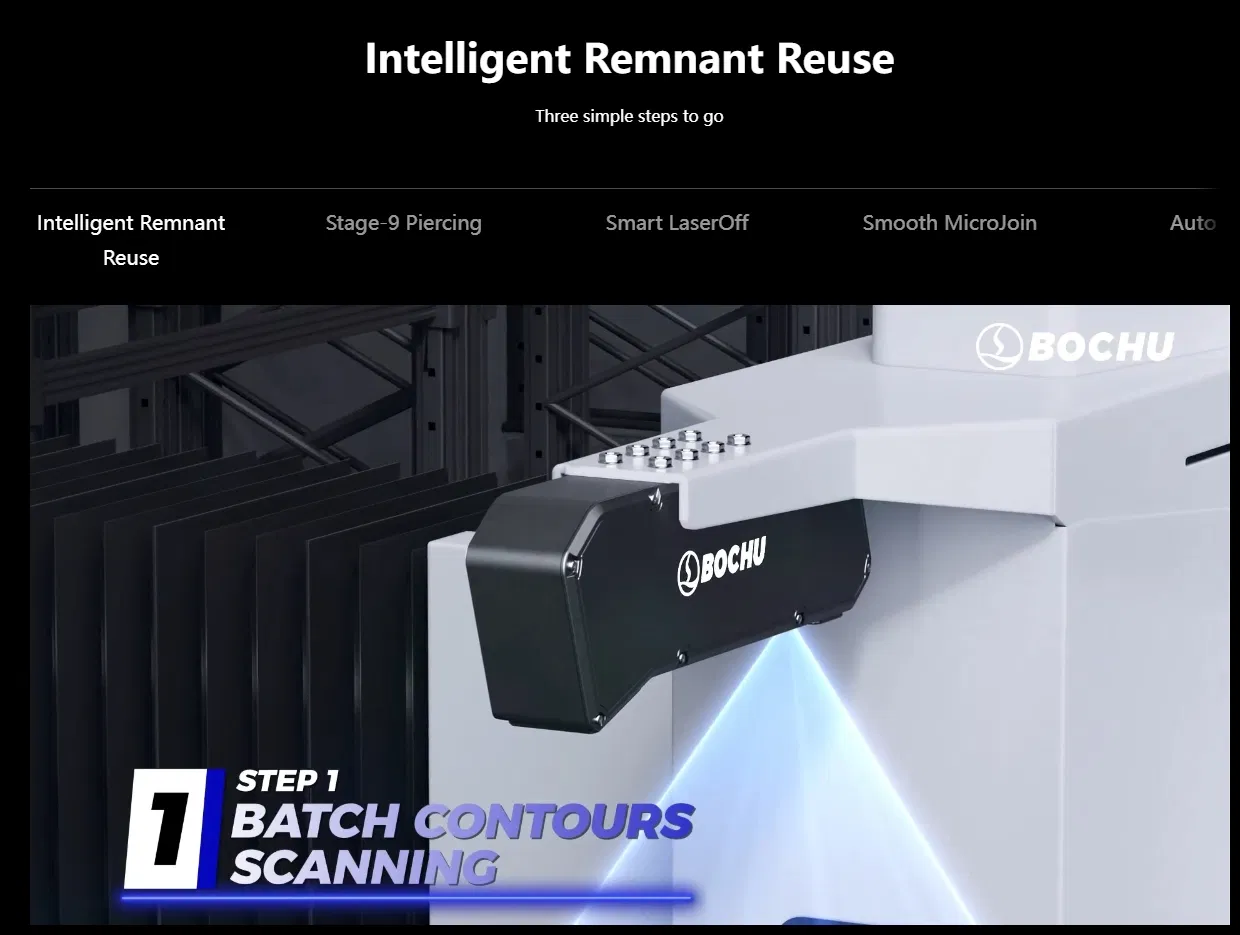

Cypcut Fiber Metal Laser Cutting Control System Details 4

Frequently Asked Questions (FAQ)

Q1 Do you have CE documents and other customs declaration documents?

Yes, we do. We have a one-stop service for you. First, we will show you. After shipment, we will give you CE / packing list / commercial invoice / sales contract for customs clearance.

Q2 What about the warranty?

Our machine is guaranteed for 1 year, and all the main parts (excluding consumables) are acceptable. If there is any problem during the warranty period, free replacement (some parts will be repaired) is provided.

Q3 Do you have after-sale service?

Yes, we are happy to advise, and we have skilled technicians all over the world. We need your machines to run to keep your business running.

Q4 What laser power and materials does the FSCUT8000 support?

The system is designed for high-power fiber lasers ranging from 8000W to 20kW. It is suitable for cutting and processing all kinds of metal materials, including plates, pipes, and laser welding.

Q5 What file formats are supported by this controller?

The controller supports multiple mainstream graphic formats, including DXF, PLT, AI, Gerber, and LXD. After importing, the software can automatically optimize paths, merge lines, and sort processing order.

Q6 Which computer operating systems are compatible with this software?

The CYPCUT fiber laser metal cutting control software supports Windows 7 or above operating systems.
