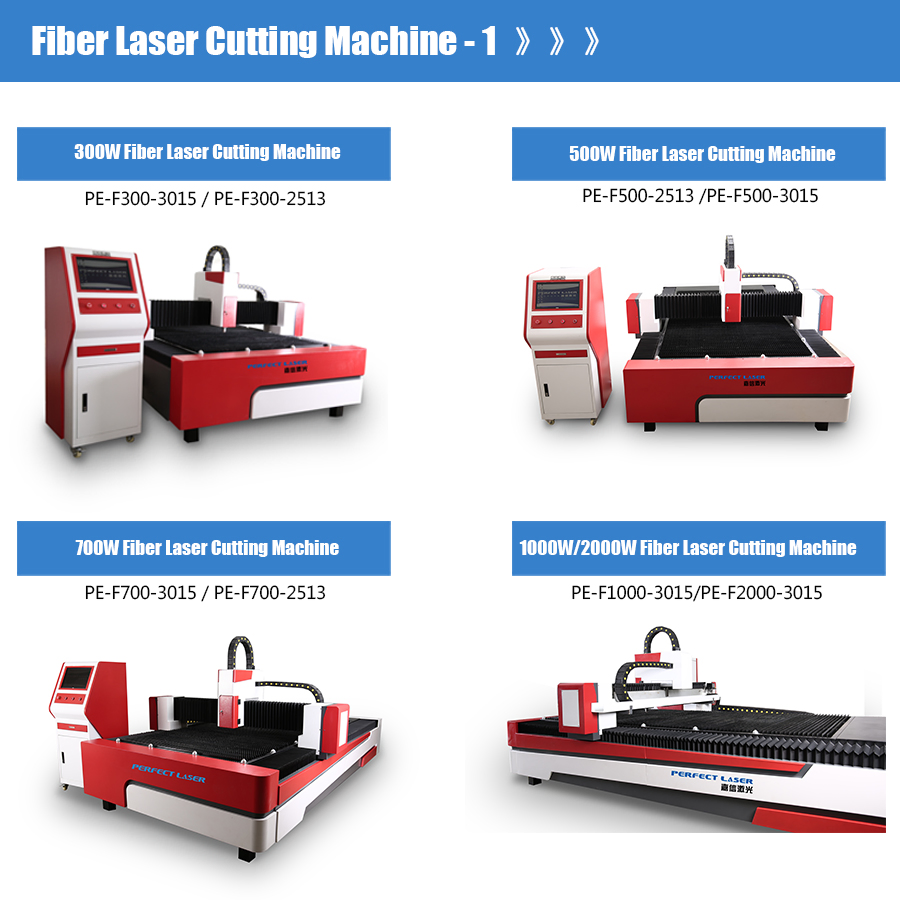

High Quality 3mm 500W Fiber Laser Cutting System with Ce

Basic Technical Specifications

Model NO.

PE-F2513

Cutting Material

Copper, Carbon Steel, Iron, Aluminum, Stainless Steel, etc.

Automatic Grade

Automatic

Laser Power

500W

Laser Source

Fiber Laser Source

Max. Thickness

1mm - 5mm (CS)

Location Precision

<=0.05mm

Control Software

Professional Laser Cutting Software

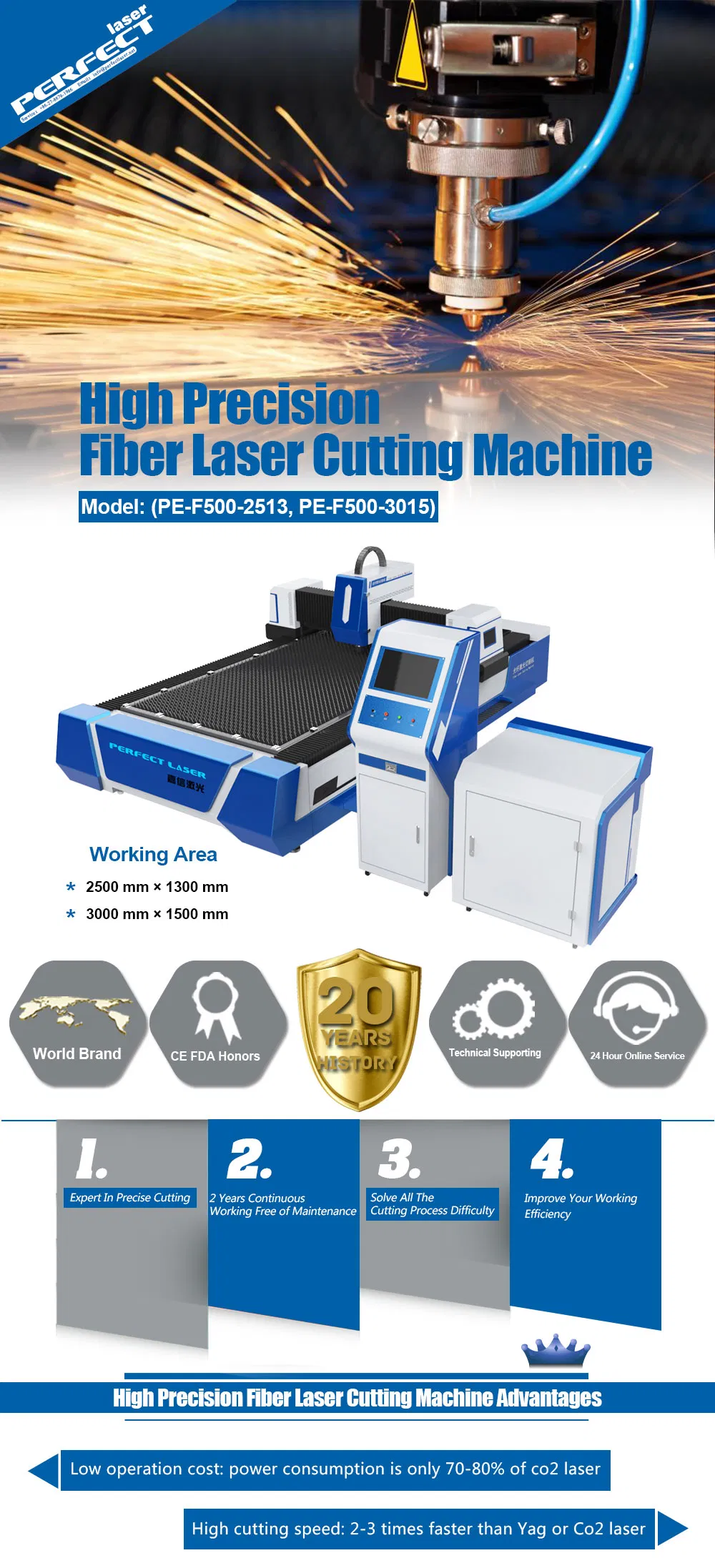

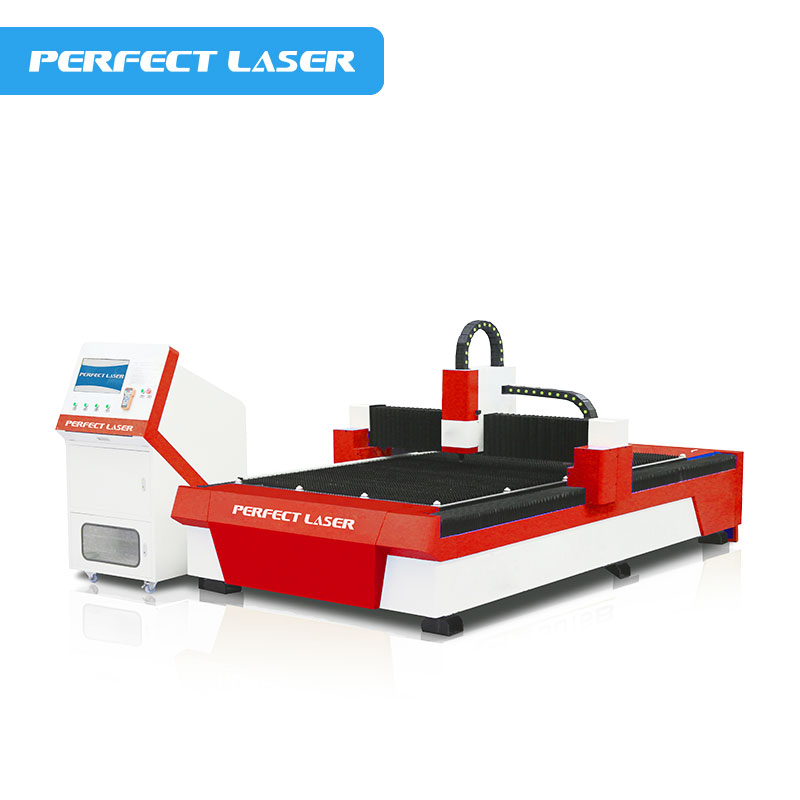

High Quality 500W Fiber Laser Cutting System

This fiber laser cutting machine adopts world-famous fiber laser sources and cutting heads paired with a dynamic focus system. It is designed to cut and punch various metal materials with high precision and speed. Since the laser is transmitted via fiber, no complex optical path adjustments are required, significantly reducing fault rates and extending working life.

Key Advantages

Excellent Beam Quality: Smaller focus diameter and high work efficiency.

High Speed: Cutting speeds can exceed 20m/min for thin materials.

Low Maintenance: No need for reflect lenses; photoelectric conversion up to 30%.

Stability: Key parts can reach a lifespan of 100,000 to 150,000 hours.

Auto-Focus: Dynamic height follower ensures constant distance from material.

Slim Cutting Slot: Reaches up to 0.05mm for high-precision parts processing.

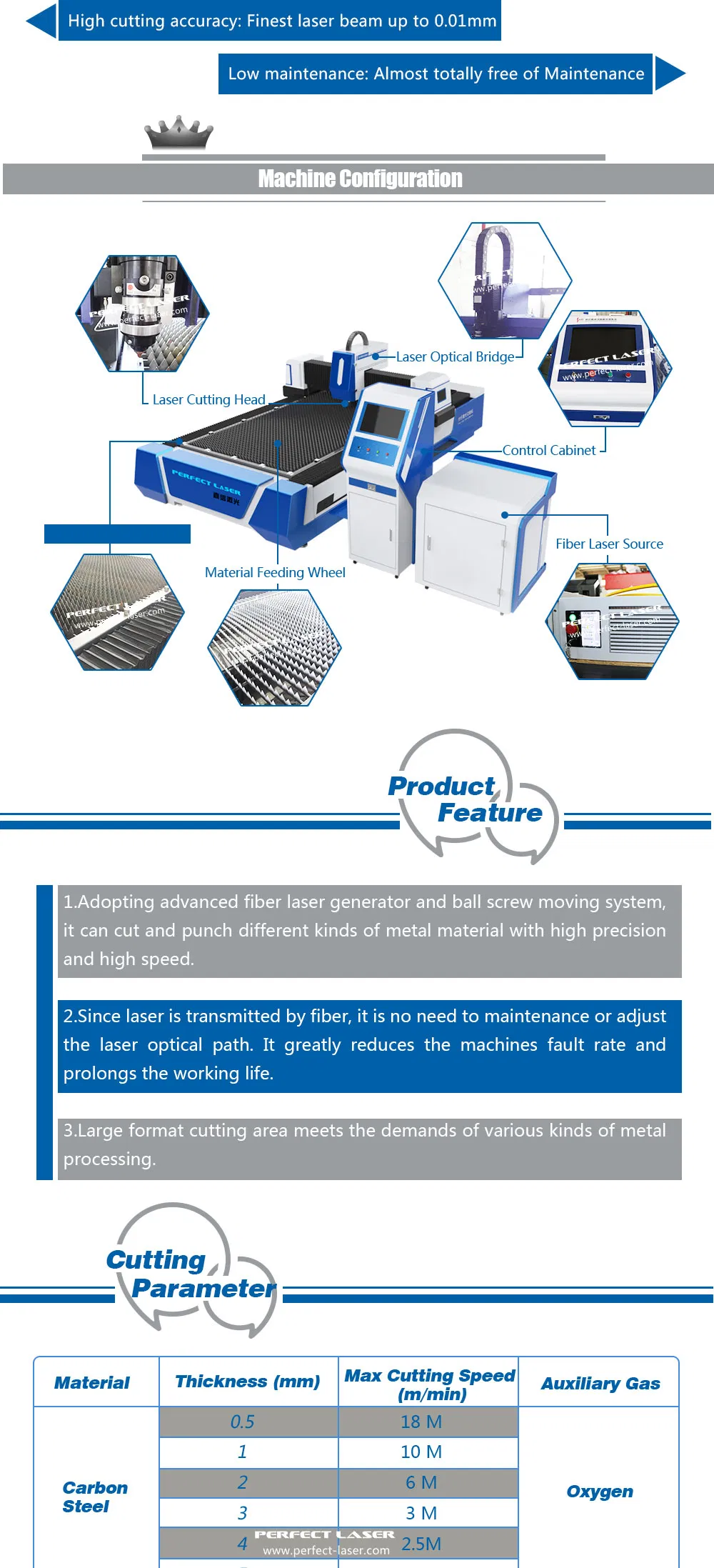

Detailed Technical Data

Parameter	PE-F500-2513 Specification	PE-F500-3015 Specification
Working Area	25001300150mm	30001500150mm
Laser Power / Wavelength	500W / 1070nm
Max. Cutting Speed	5-15 Meters / Min
Max. Location Speed	60m/min
Location Precision	≤±0.05mm
Cooling Way	Water Cooling
Table-Driven System	Servo Motor & Driving System
Supporting Formats	PLT, DXF, BMP, AI

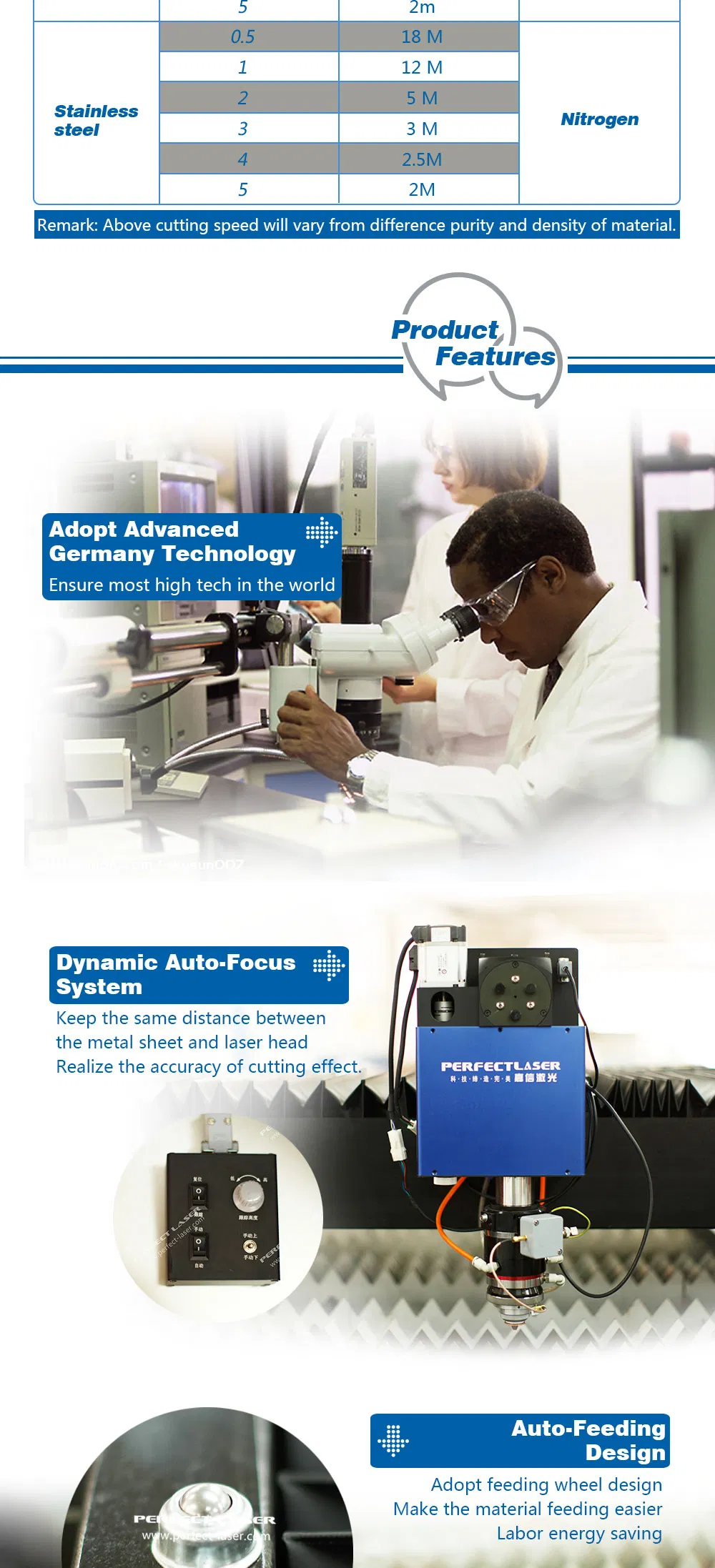

Cutting Performance Reference

Material	Thickness (mm)	Max Speed (m/min)	Auxiliary Gas
Carbon Steel	0.5 / 1.0 / 3.0 / 5.0	18 / 10 / 3 / 2	Oxygen
Stainless Steel	0.5 / 1.0 / 3.0 / 5.0	18 / 12 / 3 / 2	Nitrogen

Frequently Asked Questions

What materials can this 500W fiber laser cutter handle?

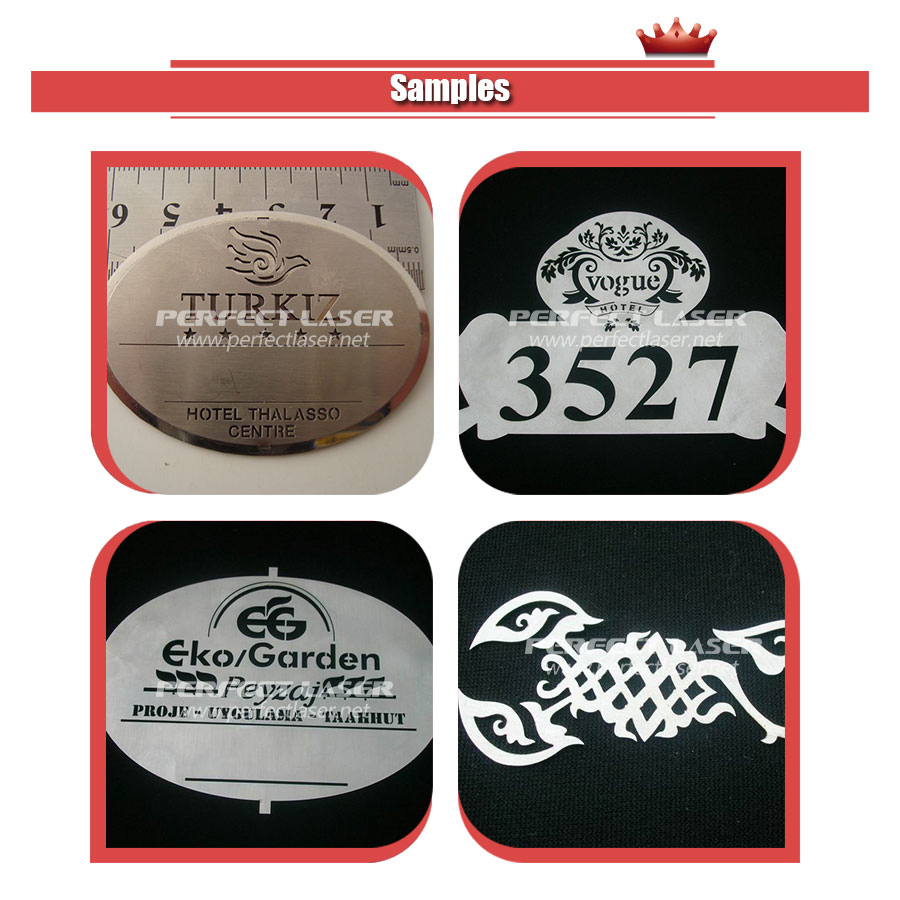

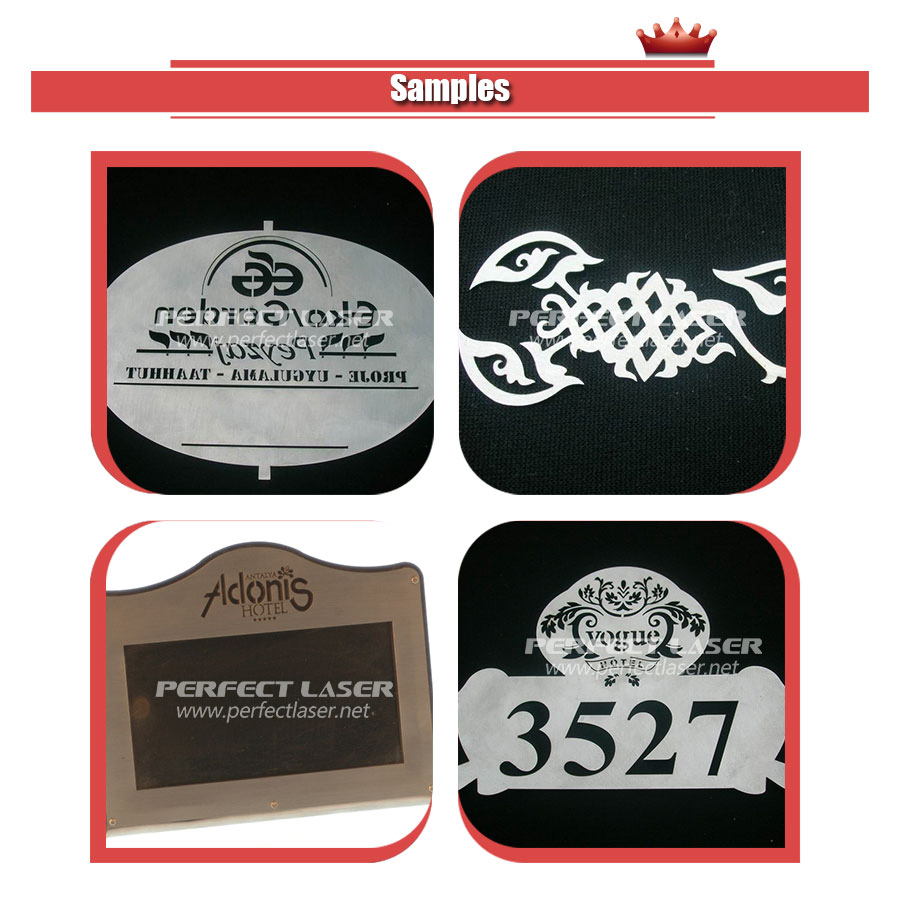

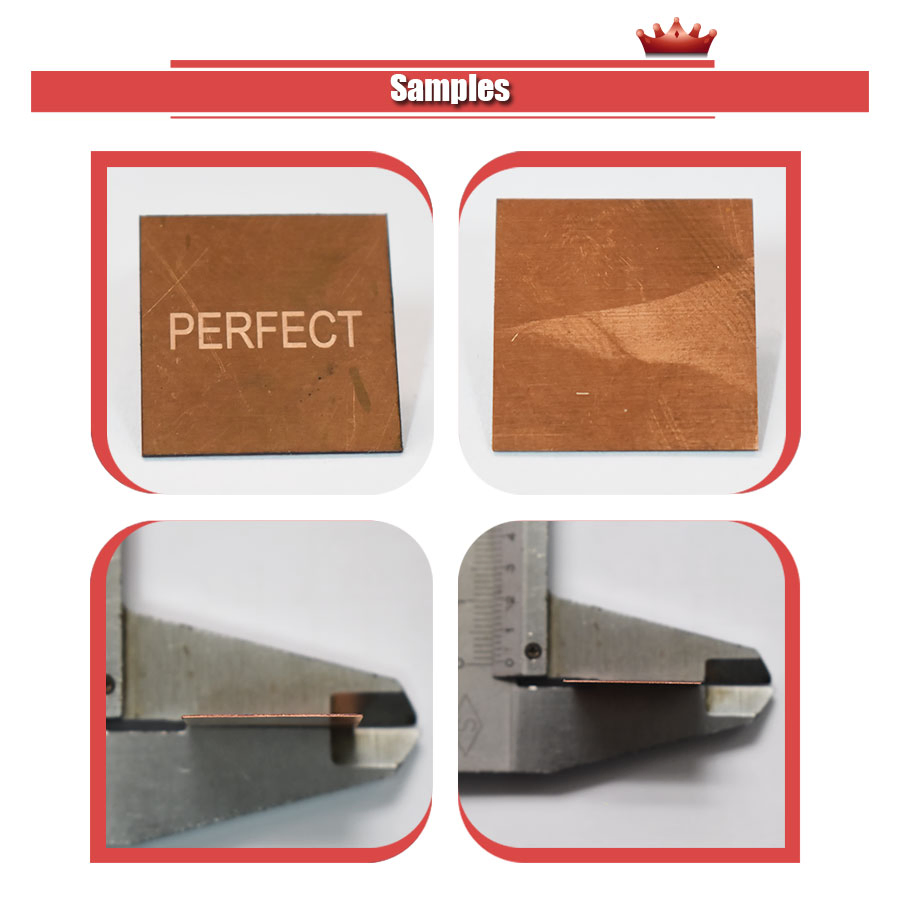

It is primarily used for cutting carbon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, and copper among other metal materials.

How is the machine protected for international shipping?

We use a 3-layer package: a waterproof plastic bag for the inner layer, foam for the middle layer to prevent shaking, and a professional export wooden case for the exterior.

Is the machine difficult to install and operate?

The technician installs the main components before shipping. We provide detailed training videos and manuals; approximately 95% of users can operate the machine independently after reviewing them.

What is the advantage of fiber laser over CO2 laser?

Fiber lasers offer three times the photoelectric conversion efficiency of CO2 lasers, lower power consumption (20%-30% of CO2), and require no optical path adjustment or reflective lens maintenance.

How long is the service life of the laser source?

The high-quality fiber laser source is designed for high stability and can achieve a working lifespan of up to 100,000 to 150,000 hours.

What happens if the machine encounters a technical issue?

We offer full technical support via email, call, and video. Our response time is typically within 24 hours to help diagnose and resolve any operational issues.
