Datum Machine
Datum Machine
| Model | LW1204E-055 | LW1206E-075 | LW1209E-110 |
|---|---|---|---|
| Dimension | 1100*1100*1970mm | 1100*1100*2610mm | 1520*1350*2730mm |
| Process Capacity | 2500-4500m³/h | 4500-6500m³/h | 6500-9000m³/h |
| Motor Power | 5.5KW | 7.5KW | 11KW |
| Filter Area | 92m² | 138m² | 243m² |
| Filter Efficiency | ≥99.9% | ≥99.9% | ≥99.9% |

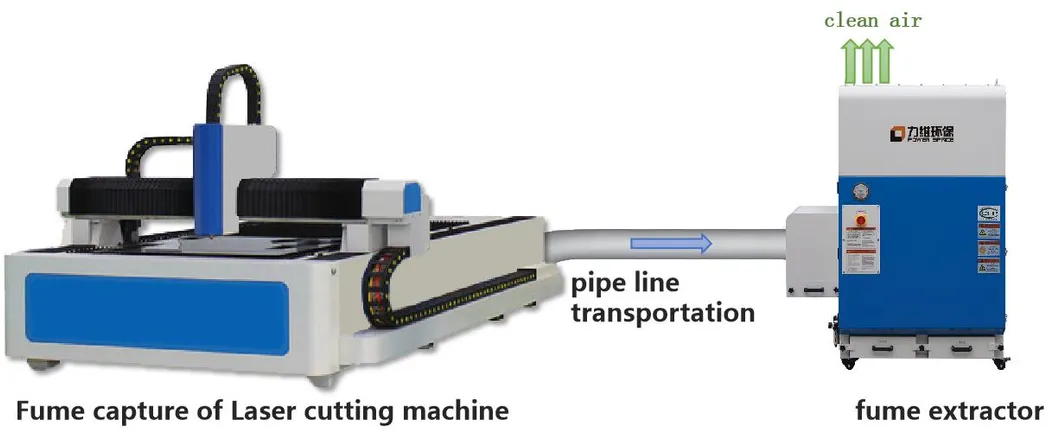

Fume Collection → Pipeline Transportation → Fume Extractor
The system integrates three critical components to ensure complete purification of laser cutting fumes. The collection design, channel flow, and extraction power work in synergy for maximum efficiency.

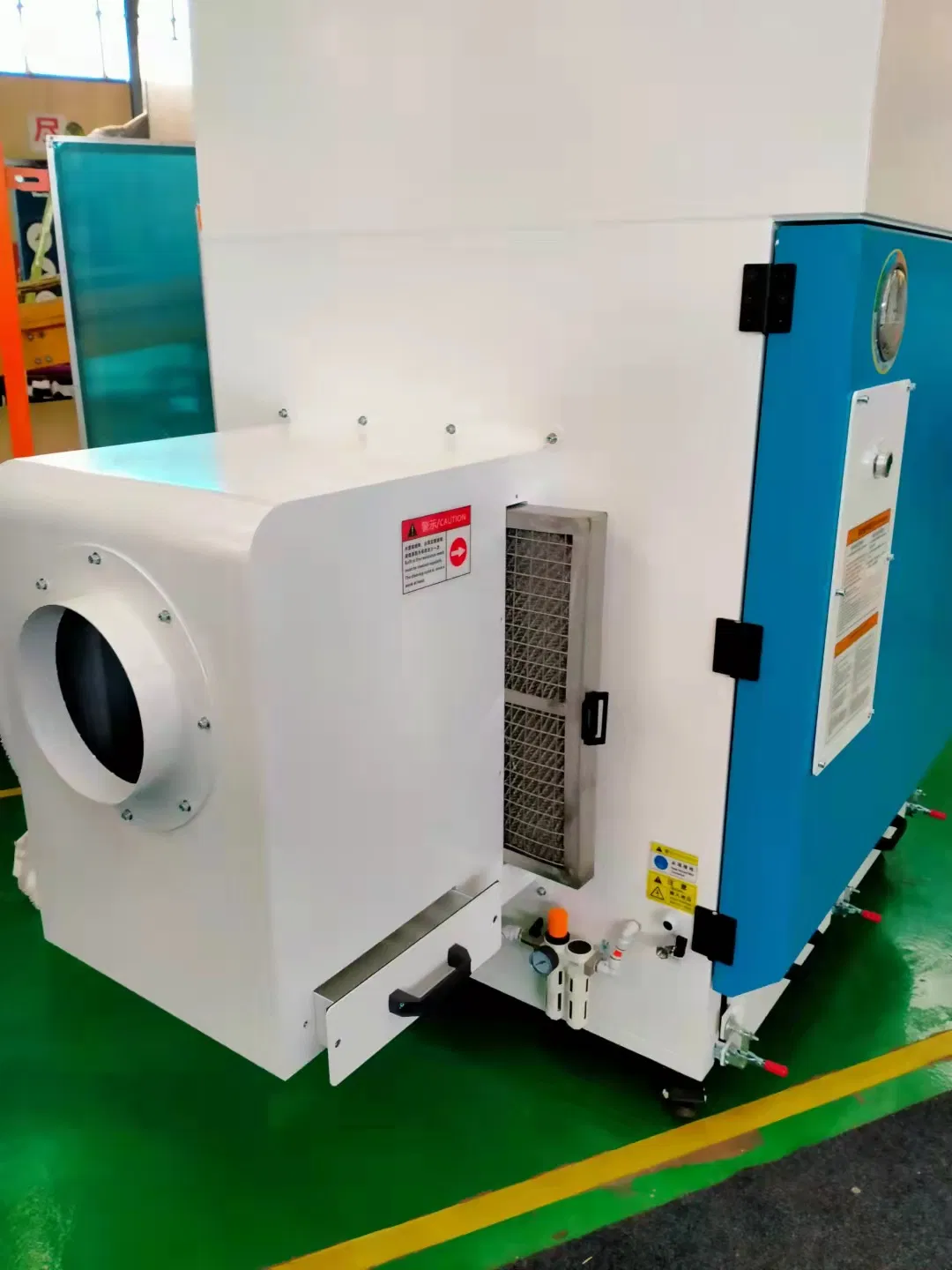

Spark catcher, high efficiency metal fireproof net, and high quality nano flame retardant filter material ensure maximum safety.

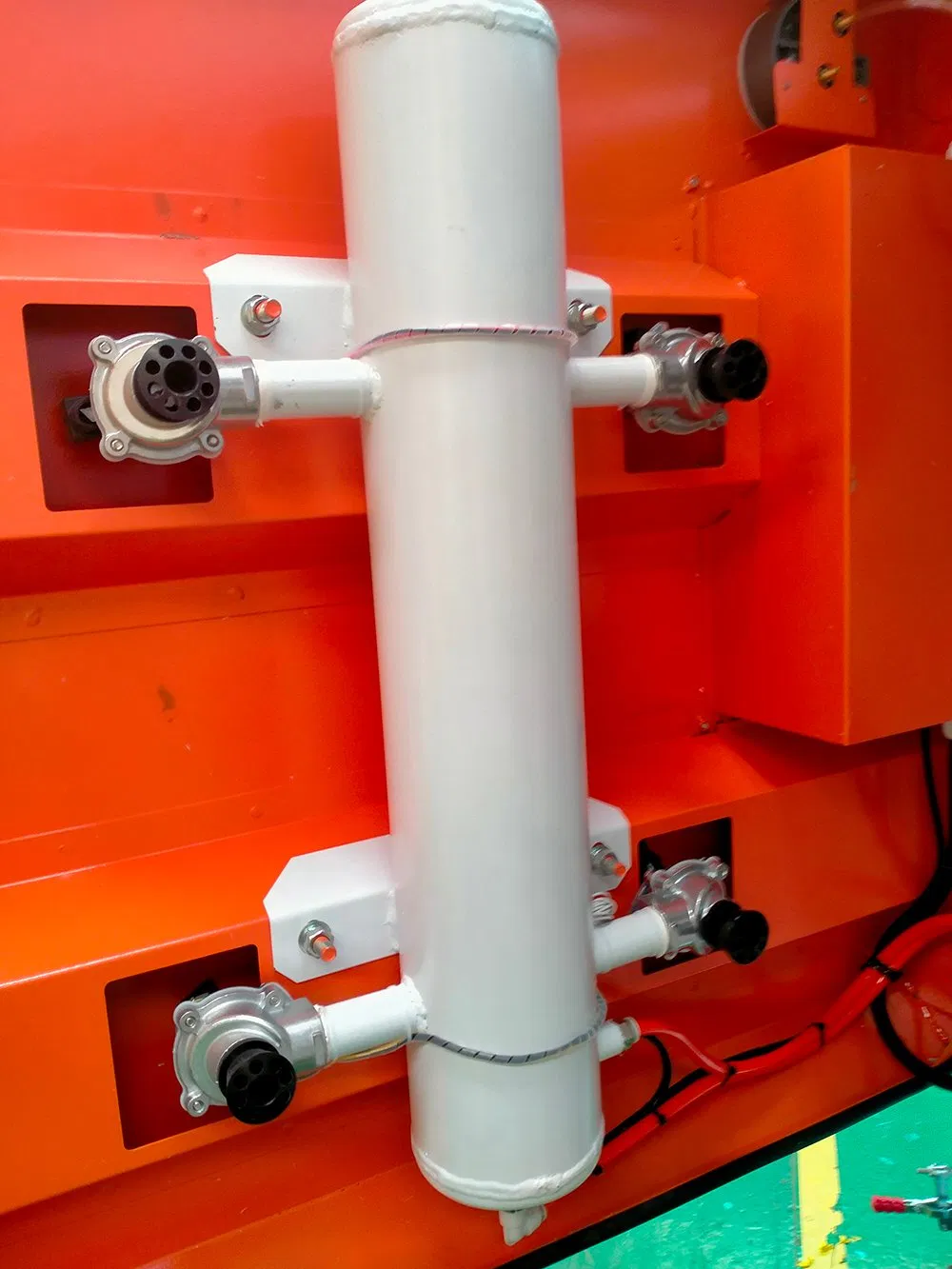

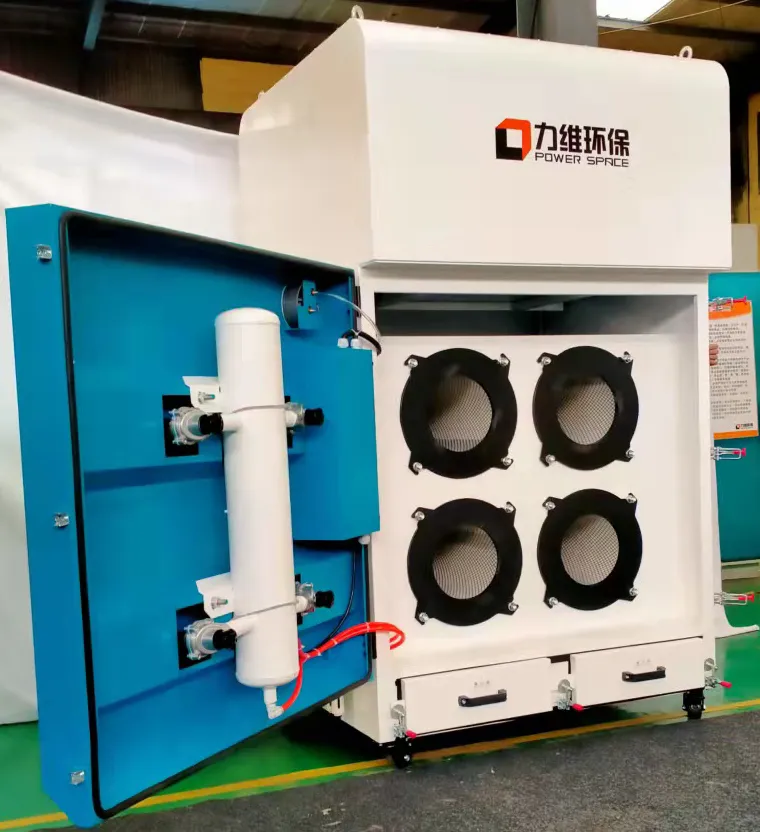

Effectively cleans the filter cartridge and significantly prolongs its service life.
Ahlstrom Nano flame-retardant filter with 99.9% filtration efficiency for 0.3μm particles.
2mm high-strength galvanized sheet with electrostatic multi-layer anti-corrosion spraying.
Self-developed impeller providing high negative pressure and large air flow for effective fume handling.
The enterprise is a professional entity engaging in R&D and manufacturing of industrial environmental protection equipment. We hold certificates for ISO9001, ISO14001, OHSAS18001, and CE.
