Datum Machine
Datum Machine

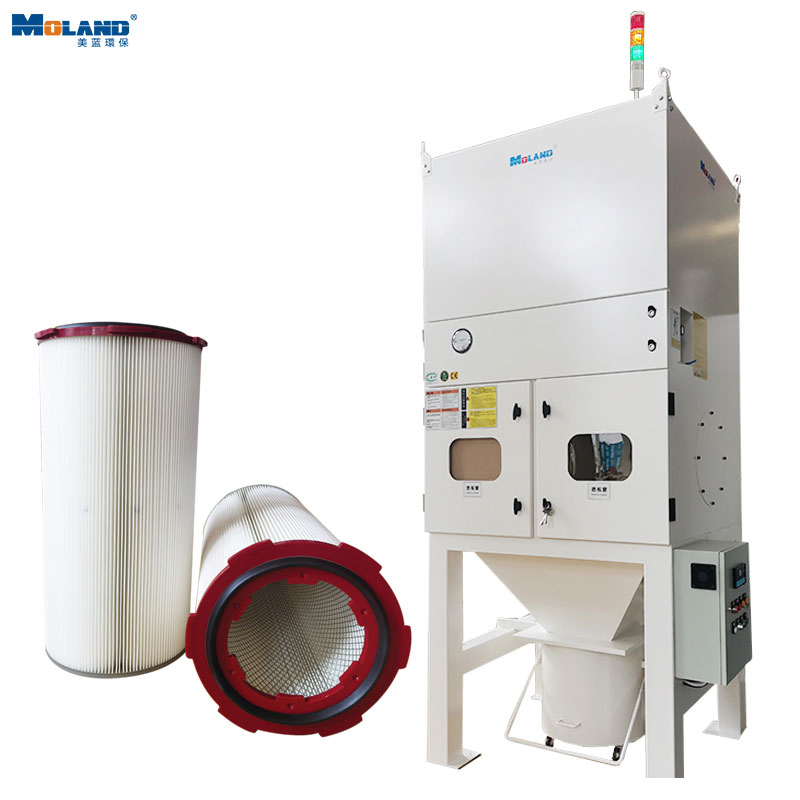

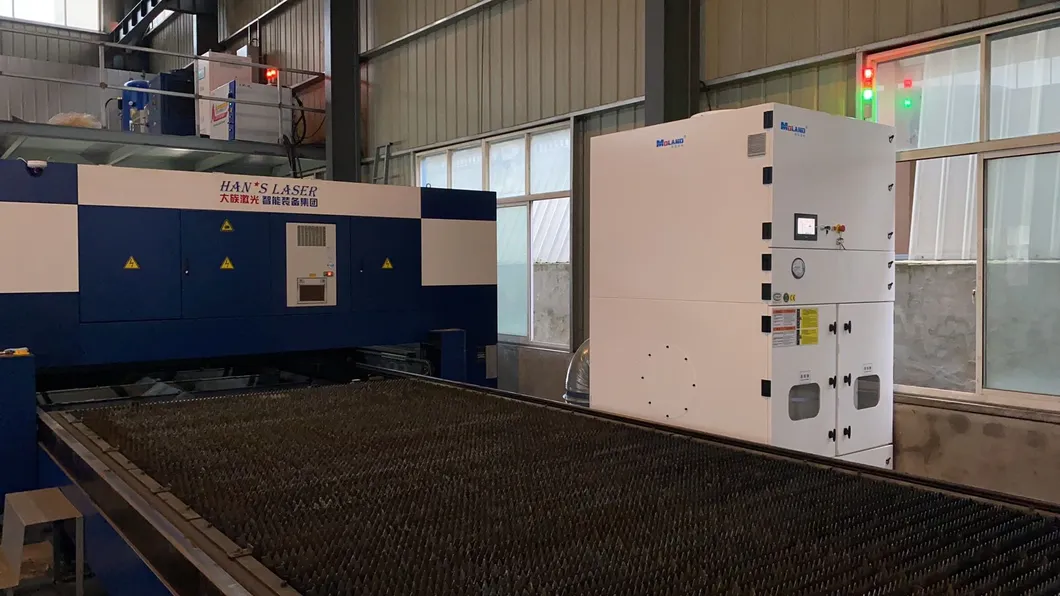

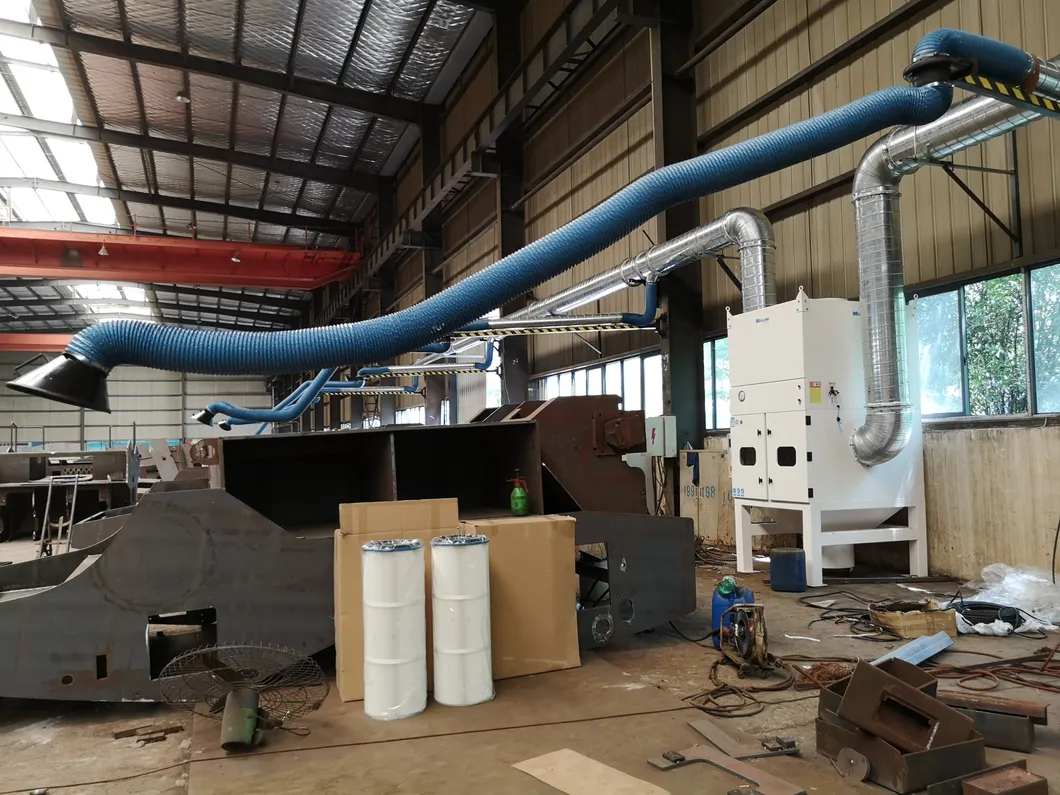

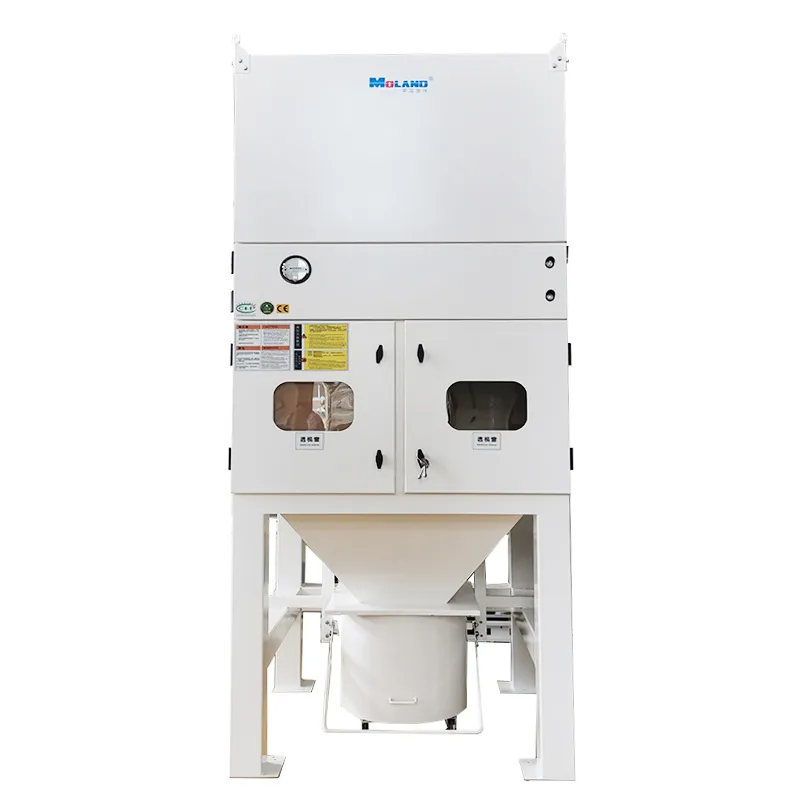

Suitable for: welding fume, cutting fume dust, laser welding cutting fume, plasma cutting fume, polishing dust, drilling dust, mixing and cutting materials to produce dust.

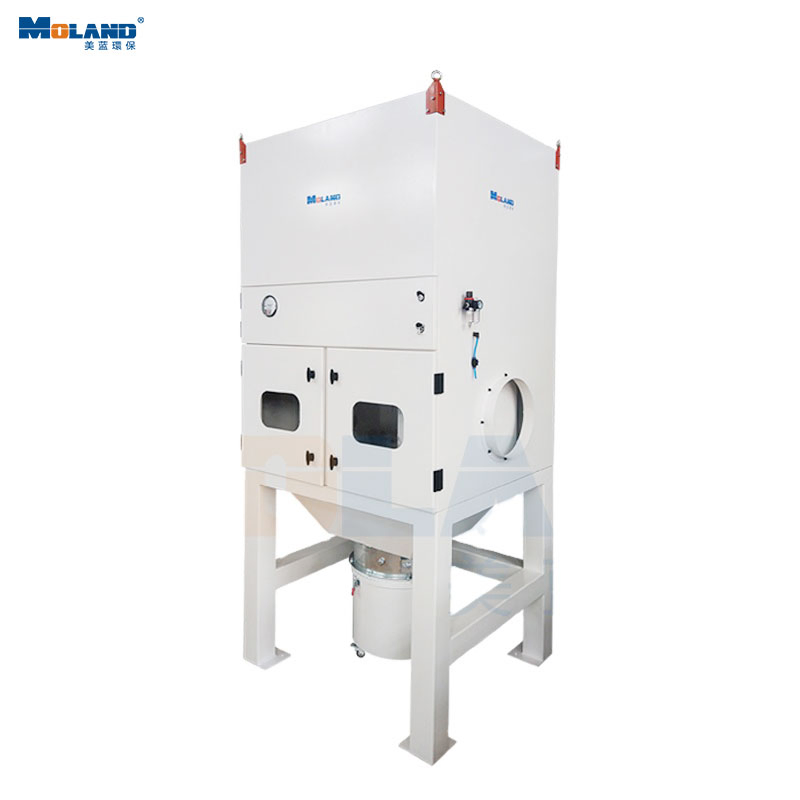

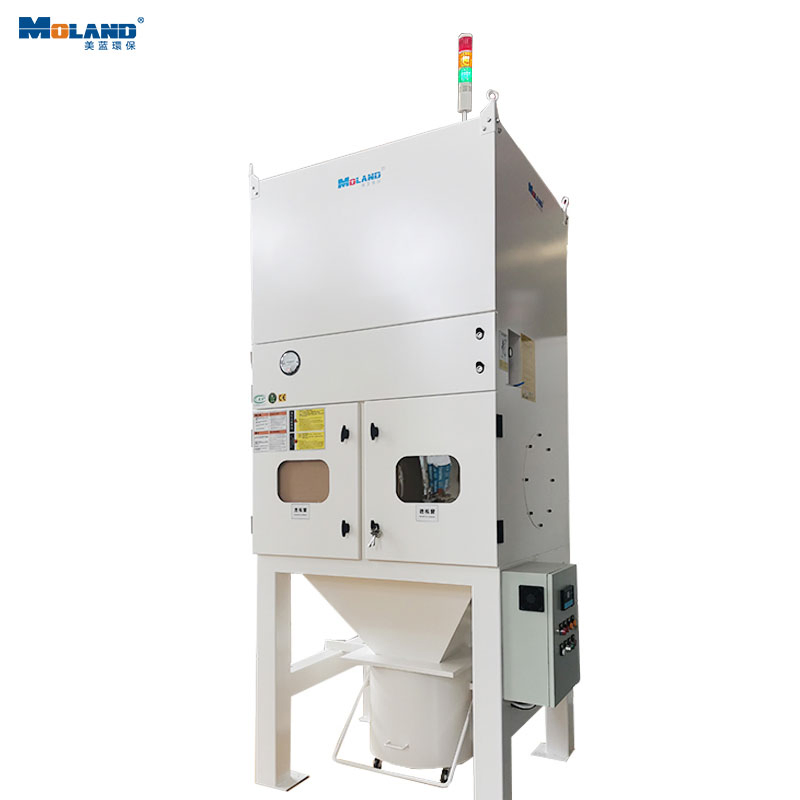

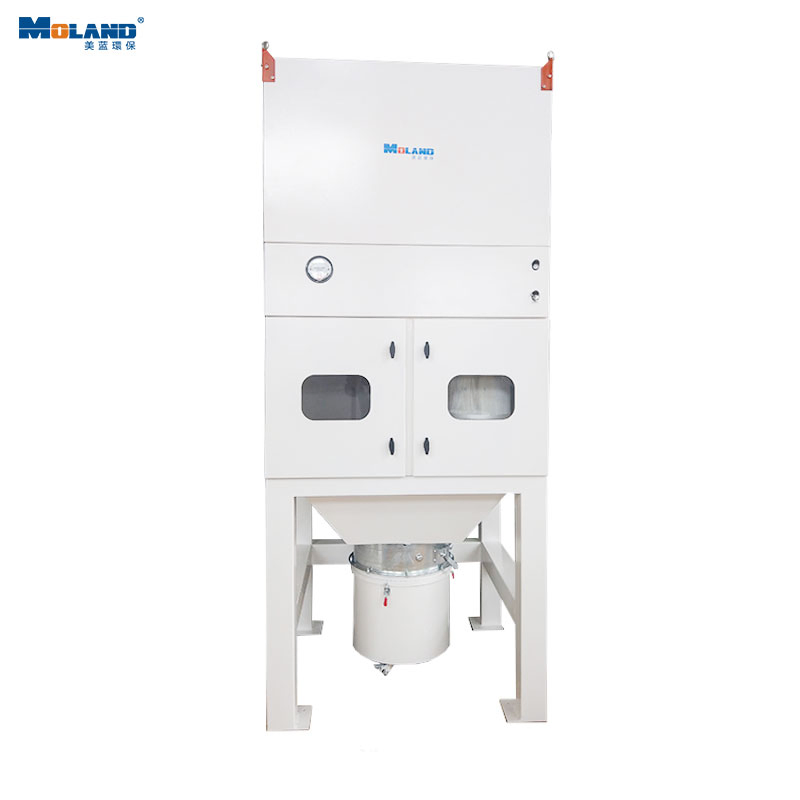

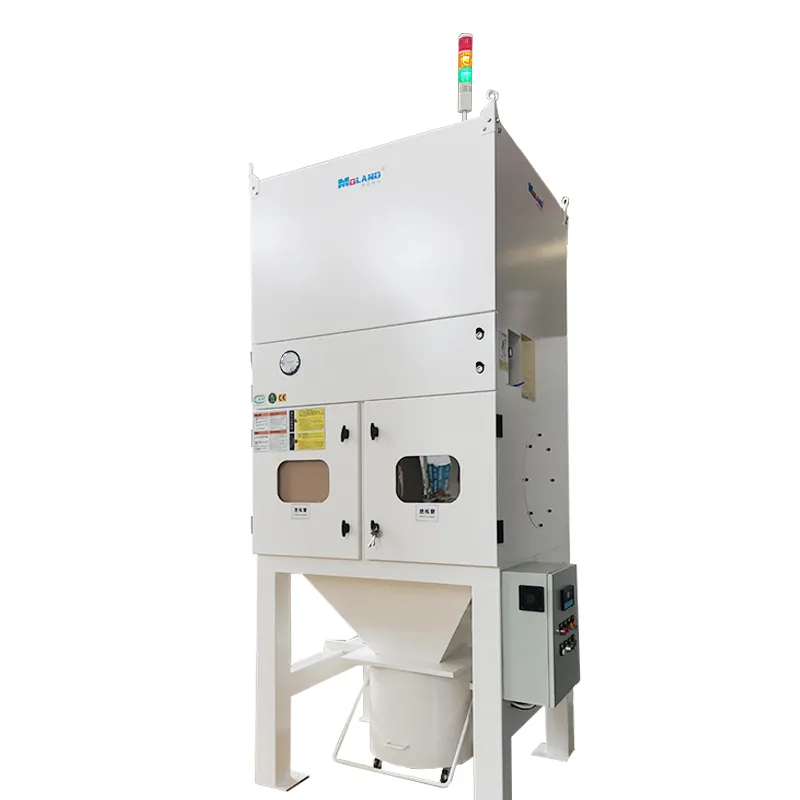

| Model | MLWF600-6THD | MLWF600-9THD | MLWF800-9THD |
|---|---|---|---|
| Motor Power | 5.5 KW | 5.5KW | 7.5 KW |
| Working Voltage | 380V 50Hz | 380V 50Hz | 380V 50Hz |
| Air Volume | 5000-7000 m³/h | 5000-7000 m³/h | 7000-10500 m³/h |
| Filter Efficiency | 0.3um 99.9% | 0.3um 99.9% | 0.3um 99.9% |
| Filter Material | Imported flame retardant coated polyester fiber | ||
| Filter Area | 66 m² | 99 m² | 126 m² |
| Noise Level | 75±3 dBA | 75±3 dBA | 75±3 dBA |
| Size (mm) | 1240*1130*2800 | 1240*1470*2800 | 1240*1470*2550 |

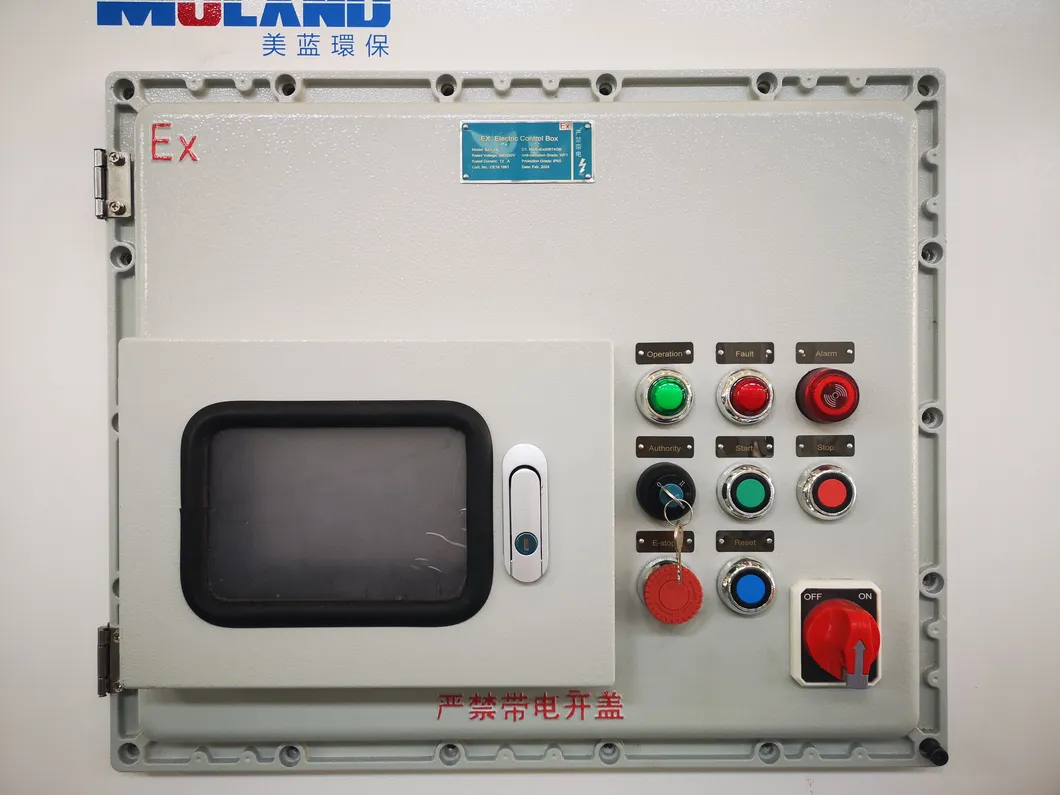

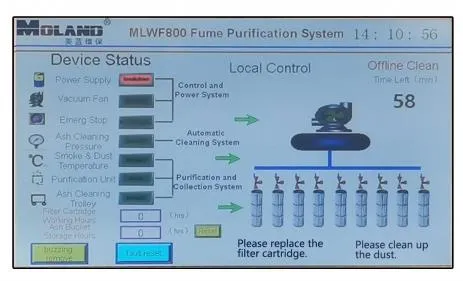

* Self developed intelligent control system.
* Clearly shows the situation of different unit.
* Touch screen for easy parameter adjustment.
* Siemens PLC is optional.

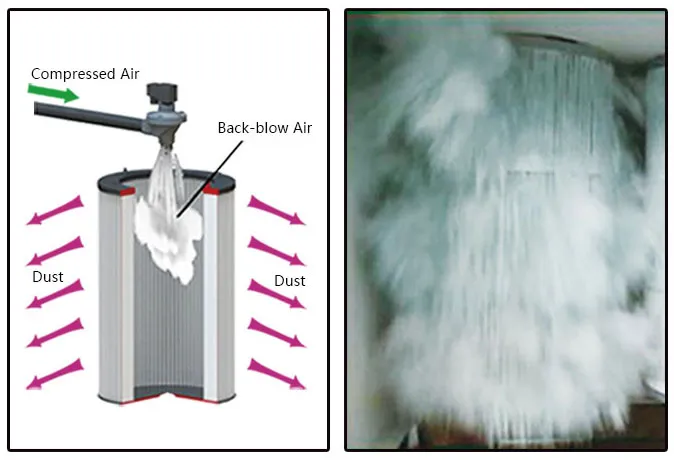

The omni-directional pulse blowback dust removal system can automatically clean the filter cartridge with a filtration efficiency of 99.9%.
* Size: Φ325*860mm
* Material: Imported flame Retardant Coated polyester fiber
* Filter area: 126 m²
* Accuracy: 0.3μm
Supply of non-explosion-proof and explosion-proof types. Custom solutions based on workpiece material to ensure worker safety.

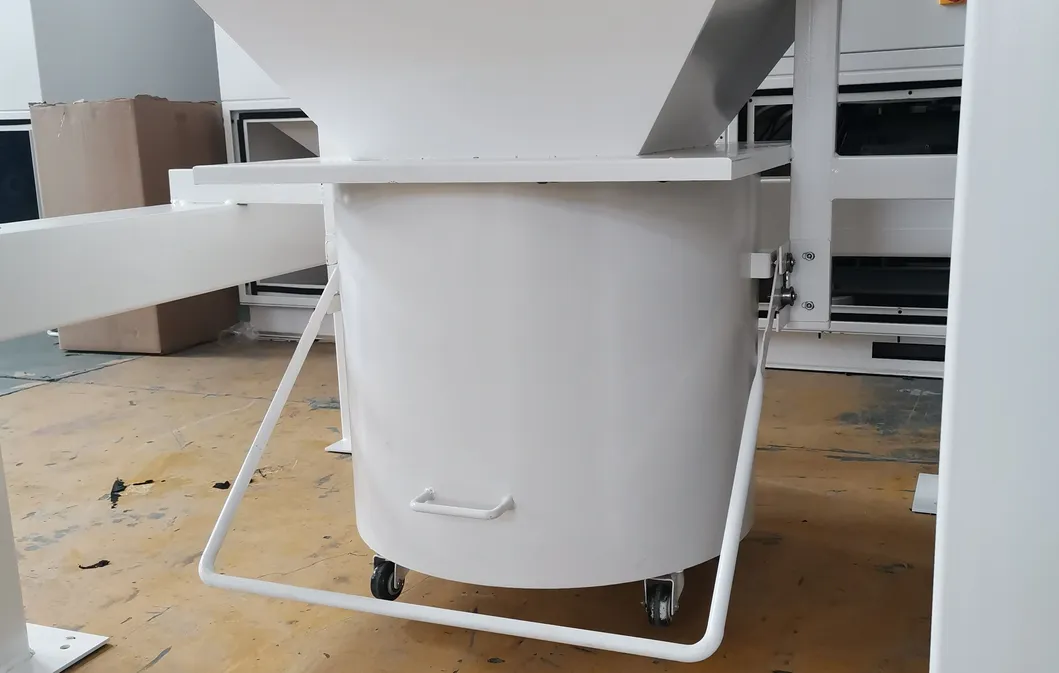

* Large capacity with leakage-proof rubber sealing.
* Locking rod for easy release and secure seal.
* Handle design for easy removal and cleaning.

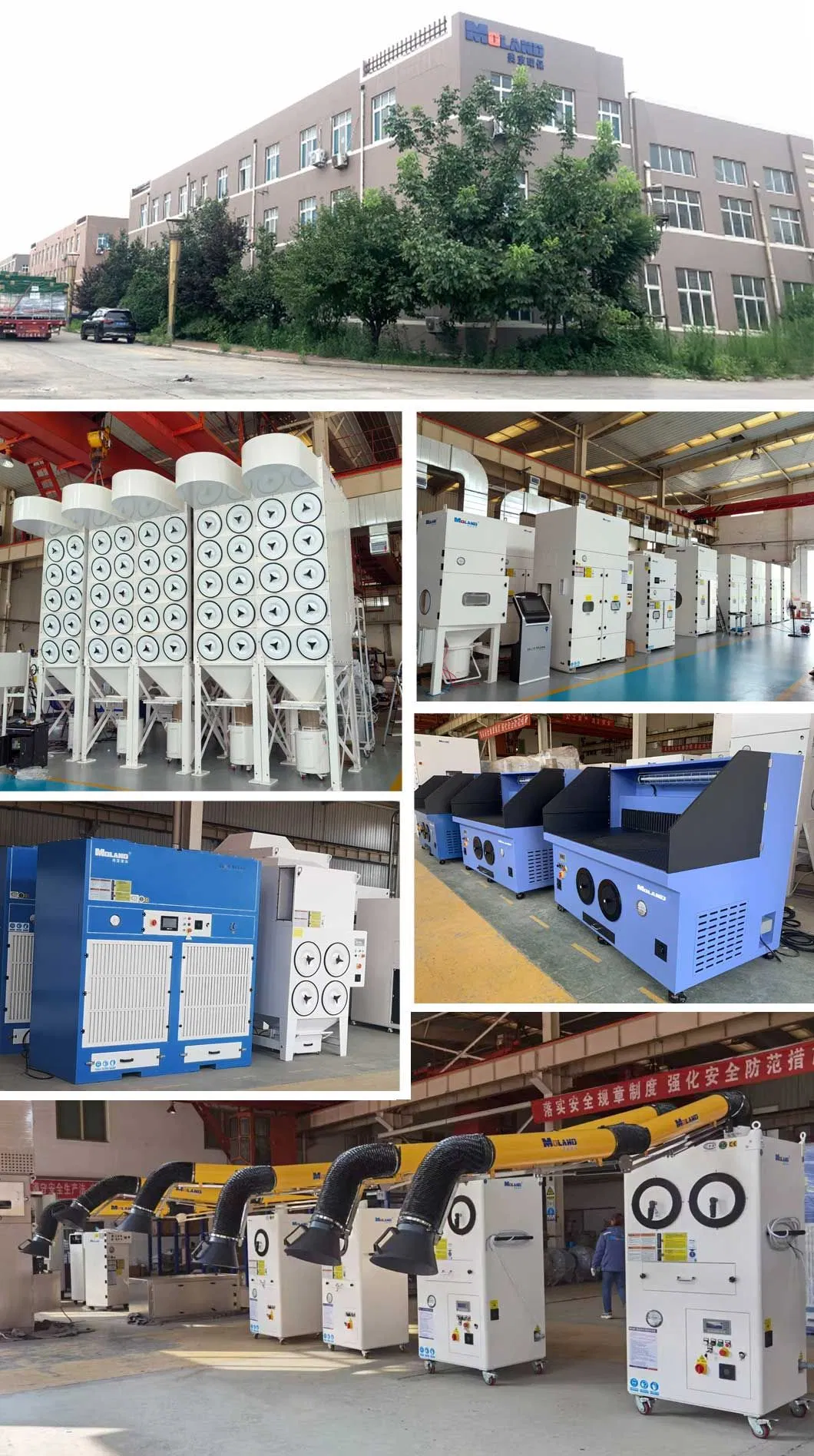

Specializing in research, development, and manufacture of efficient smoke purification systems since 2016. Committed to reducing environmental impact and protecting workers from harmful gases and dust across industries like automobile, railway, construction, and aviation.
Certifications: CE, ISO9001, ISO14001, ISO45001, Utility Model Patents, and High-tech Enterprise status.
