Weihong Nk300 Economical Fiber Laser Cutting Control System

1 / 5

Weihong Nk300 Economical Fiber Laser Cutting Control System

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Info

Model NO.NK300

Logo PrintingWithout Logo Printing

SizeMiddle

CustomizedNon-Customized

TypeController

MaterialPlastic

CertificationISO 9001:2008, ISO 9001:2000, GS, CE

SignalContinuous

MachinaPlasma Cutter

BrandWeihong

FunctionAutomatic Control

ConditionNew

Transport PackageBox

Specification310*380

TrademarkRUBYLASER

OriginChina

HS Code853710190

Product Description

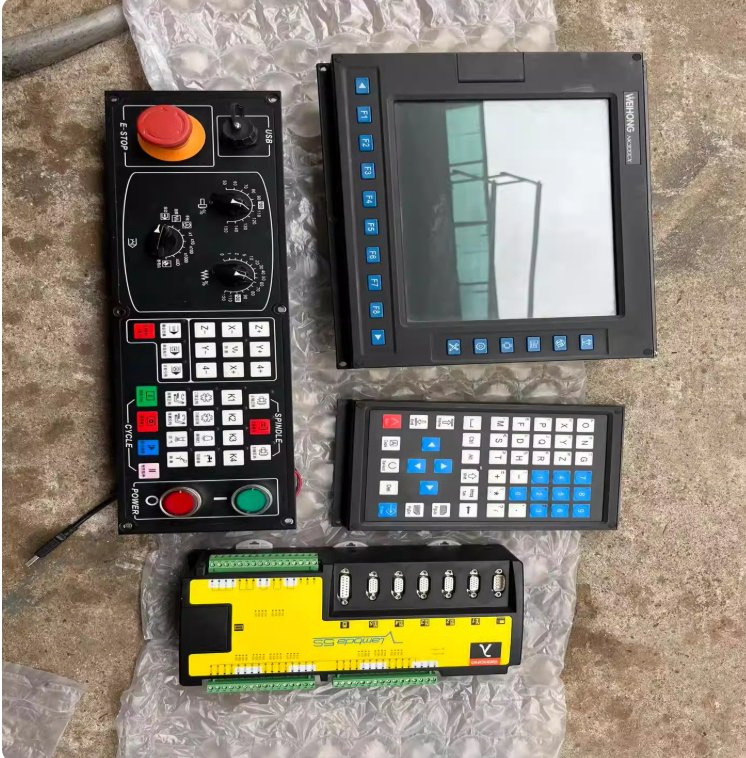

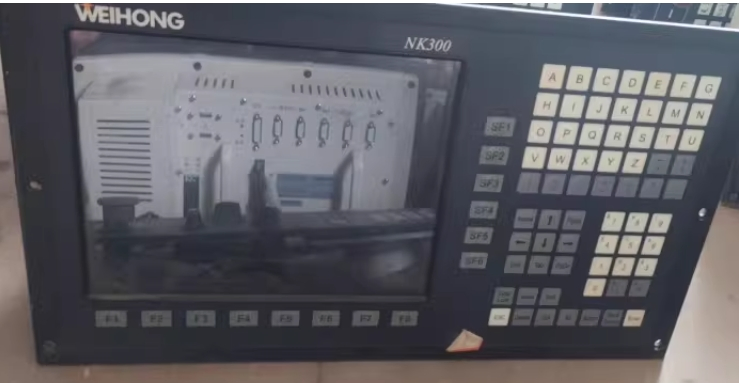

Weihong NK300CX PLUS CNC System

Weihong NK300CX PLUS CNC System features a 10.4/15-inch screen, Intel dual-core CPU high-performance processor, 32/64-bit system, and isafe3.0 encryption. Equipped with 2GB memory and 30GB hard drive capacity, it is suitable for standard precision engraving machines, machining centers, and gantry systems. It utilizes the HST high-speed trapezoidal algorithm for high-speed, high-quality machining. Supports 3-5 axis interpolation, up to 10 axes total. Compatible with M2/M3/EtherCAT bus protocols, allowing instant file loading with support for files up to 4GB.

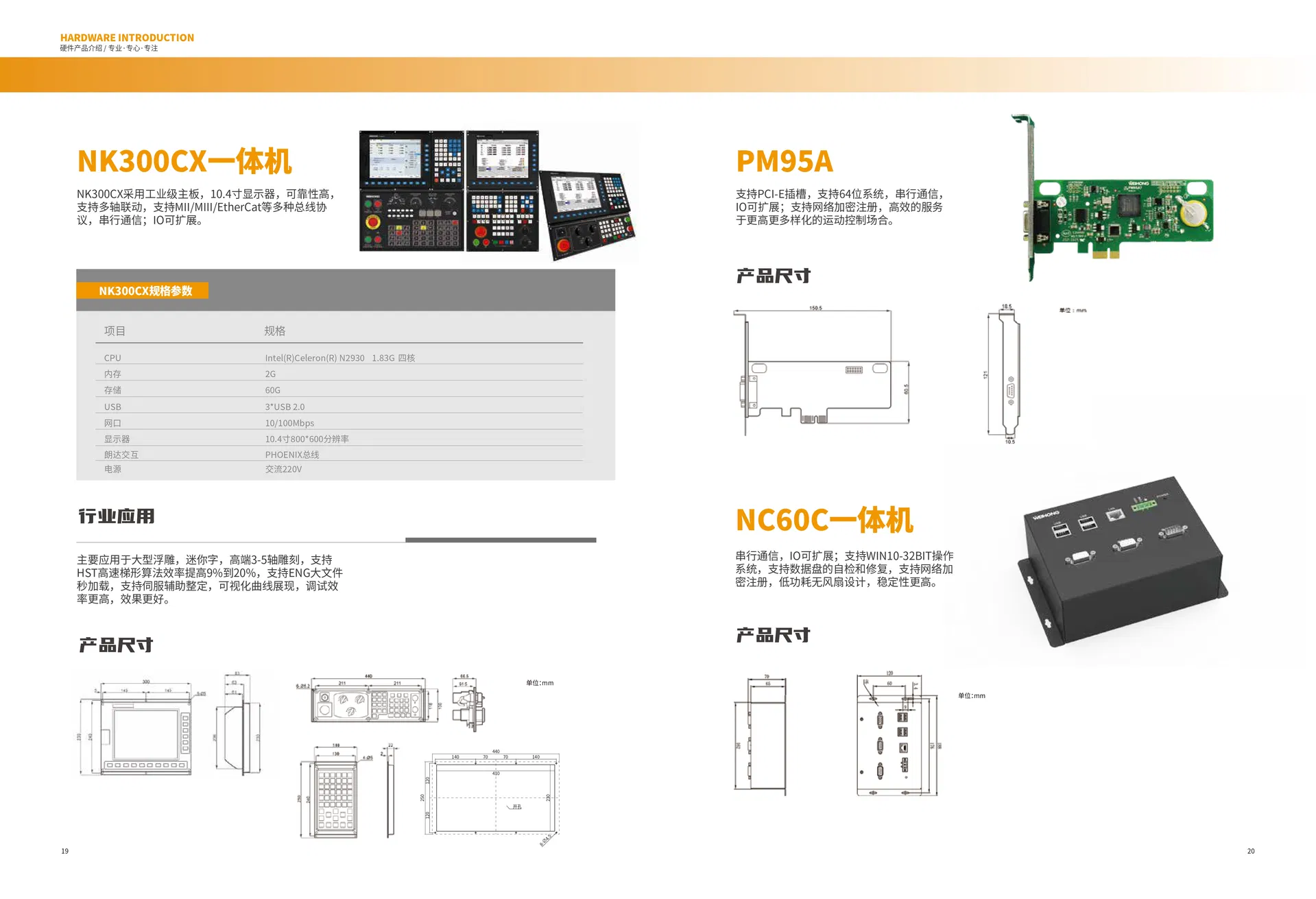

NK300 Specification Overview
Type	Product Line	NK300CX/ NK53OM				NK300CX Plus	NK300CX-5 Plus
Product Specifications	Configuration	-	-	-	-	A	B
	Mechanical Group (Max Main System Shaft Group)	1	1	1	1	1	1
	Multi-channel functional groups (excl. loading/unloading)	1	1	1	1	1	1
	Standard number of feed axes (standard config)	4	5	8	8	4	8
	Maximum Number of Controlled Feed Axes (Registered)	-	-	-	-	6	10
	Maximum Number of Spindles	2	3	6	6	4	6
	Maximum number of axes under simultaneous control	4	4	5	5	4	5
	RTCP	-	-	-	·	-	·
Hardware Specifications	Size	10.4"/15"	10.4"/15"	10.4"/15"	10.4"/15"	10.4"/15"	10.4"/15"
	Storage	30G	30G	30G	30G	30G	30G
	USB	3/4	3/4	3/4	3/4	3/4	3/4
	IO Standard Configuration	38/18	38/18	38/18	38/18	38/18	38/18
	Network port	Gigabit	Gigabit	Gigabit	Gigabit	Gigabit	Gigabit

NCStudio CNC Control Software Features

Strong Compatibility

Supports multiple file formats output by popular CAD/CAM software, including G-code, PLT (HPGL), ENG (Precision Engraving Format), etc. It is compatible with UG, Mastercam, CASMATE, ArtCAM, AutoCAD, CorelDraw, etc.

Easy & Intuitive Operation

Based on the Windows graphical interface, it supports multiple input methods such as mouse, keyboard, and handwheel, which makes learning costs low and suitable for beginners and professional users.

High Speed & High-Precision Machining

Adopts an adaptive forward-looking algorithm and HST high-speed trapezoidal algorithm, which increases the processing capacity of small line segments by more than 2 times and the machining efficiency by 9% - 20%.

Speed Adaptive Connection

Supports speed adaptive connection, which reduces speed ripple and enhances surface finish quality.

Complete Safety & Reliability Functions

Breakpoint memory/program skip execution: Resumes processing from the breakpoint after a power outage or interruption.
Z-axis auto tool alignment: Offers return to mechanical origin and workpiece origin restoration/save.
Safety boundary protection: Supports processing restricted area settings, arc speed limits, and short segment curvature speed limits to prevent collisions/overcutting.

Strong Simulation & Visualization

3D dynamic trajectory display with multi-view observation and zooming.
Fast program simulation to predict processing time, identify errors, and minimize trial-and-error costs.

Rich Advanced Processing Functions

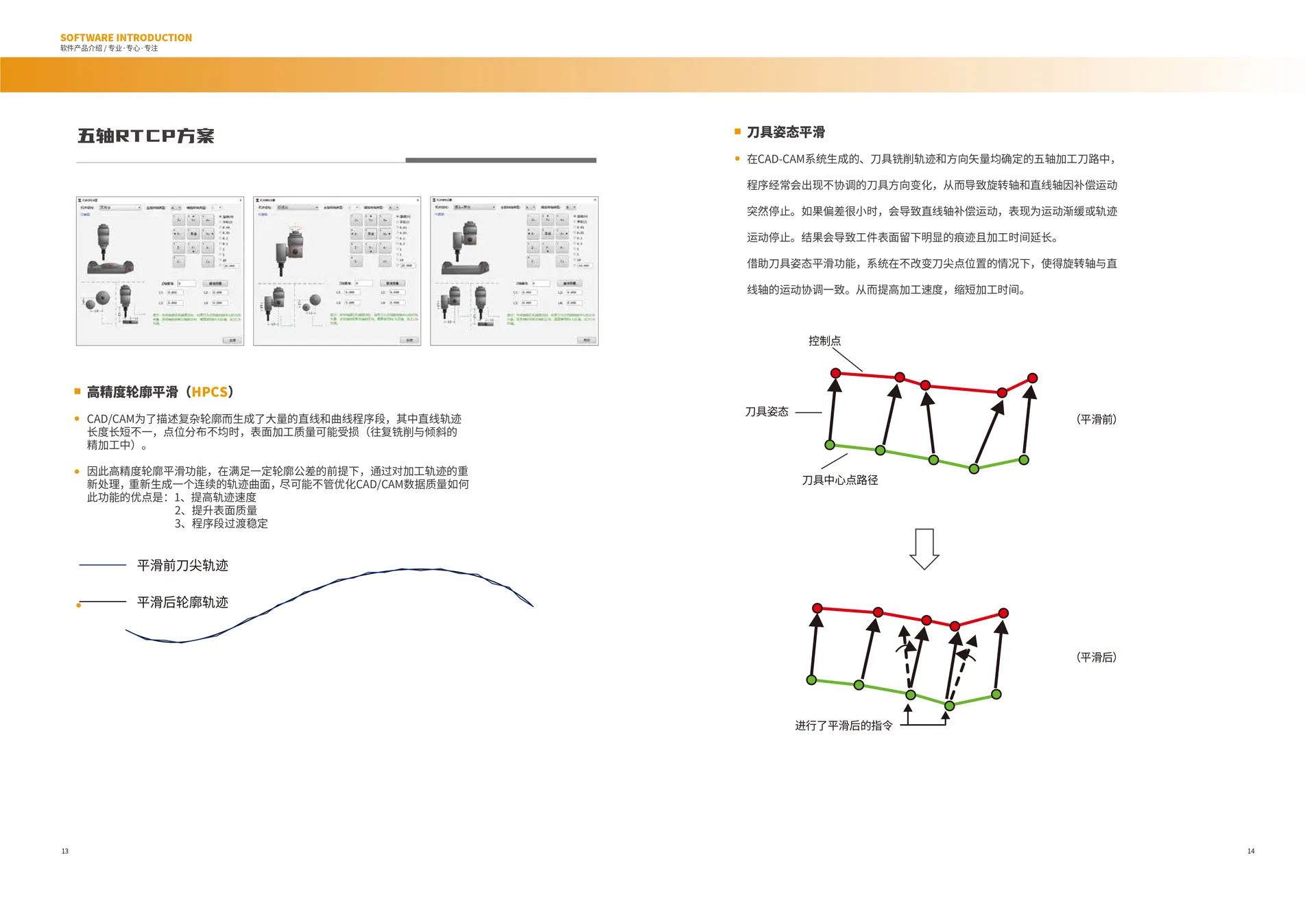

Supports multi-axis linkage (up to 5 axes), rotary axis machining, oblique plane machining, and RTCP.
Provides tool selection, graphic frame selection, engraving, array, mirroring, and layered processing.
Card-free simulation version allows testing G-code on a standard PC.

Industrial Grade Stability & Applications

Complies with industrial standards for electromagnetic compatibility, high/low temperature resistance, and vibration resistance. Ideal for advertising signs, woodworking furniture, mold manufacturing, stone carving, 3C electronics, and metal cutting.

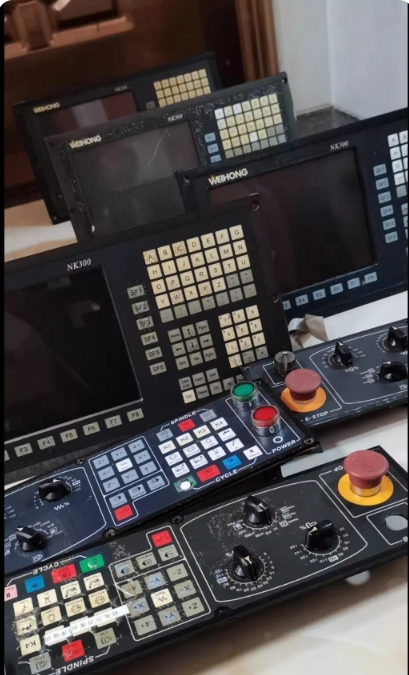

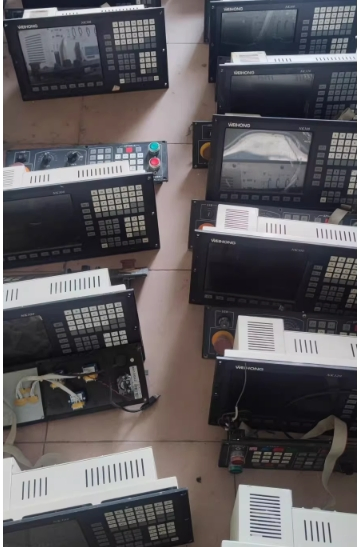

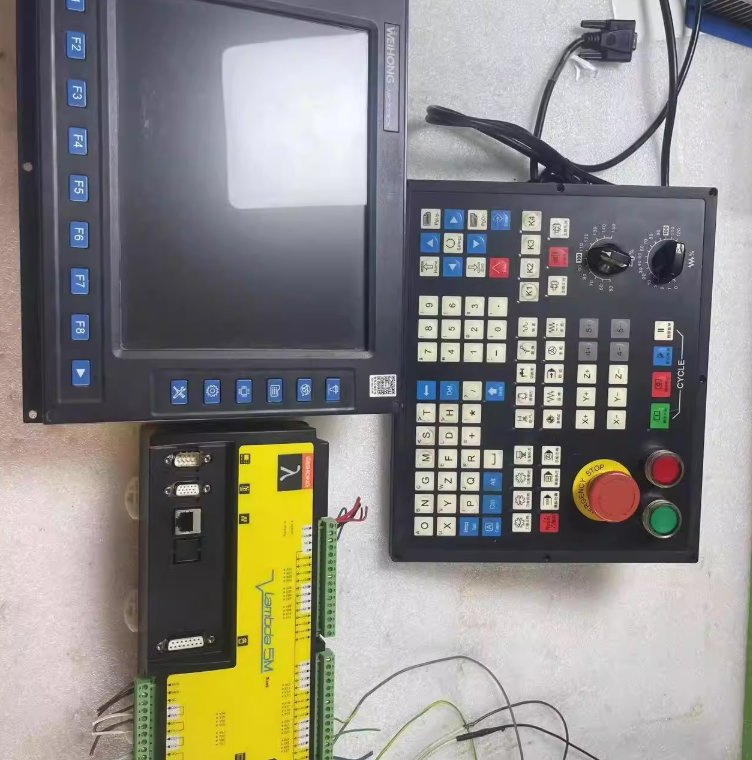

Product Gallery

Frequently Asked Questions (FAQ)

What are the hardware specifications of the Weihong NK300CX PLUS?

The NK300CX PLUS CNC system is built with an Intel dual-core high-performance processor, a 32/64-bit operating system, a 10.4 or 15-inch screen display, and uses isafe3.0 encryption. It includes 2GB of memory and a 30GB hard drive.

How many control axes and spindles does the system support?

The system supports 3 to 5-axis interpolation and up to 10 axes in total. Spindle capacity ranges from 2 up to 6 maximum spindles depending on the configuration and exact product line version (e.g., NK300CX-5 Plus supports up to 6 spindles and 5-axis simultaneous control).

Which file formats and CAD/CAM software are compatible with NCStudio?

NCStudio supports multiple standard file output formats including G-code, PLT (HPGL), and ENG (Precision Engraving Format). It is compatible with leading software such as UG, Mastercam, CASMATE, ArtCAM, AutoCAD, and CorelDraw.

What type of algorithms are used to optimize machining efficiency?

It adopts an adaptive forward-looking algorithm and the HST high-speed trapezoidal algorithm. These algorithms speed up the processing of small line segments by more than 2 times, improving overall machining efficiency by 9% to 20% while reducing speed ripple.

Does the system provide crash prevention and safety configurations?

Yes, the system is equipped with multiple safety protections including processing restricted area settings, arc speed limits, and short segment curvature speed limits to prevent collisions or overcutting. It also includes automatic tool alignment and breakpoint memory to resume work after power cuts.

Can I run simulations without having the physical control hardware?

Yes, NCStudio offers a card-free simulation version. Users can run, test, and debug G-code configurations on a regular PC, which is highly useful for small businesses, teaching, and process design.
